14568528

Bits

15199574

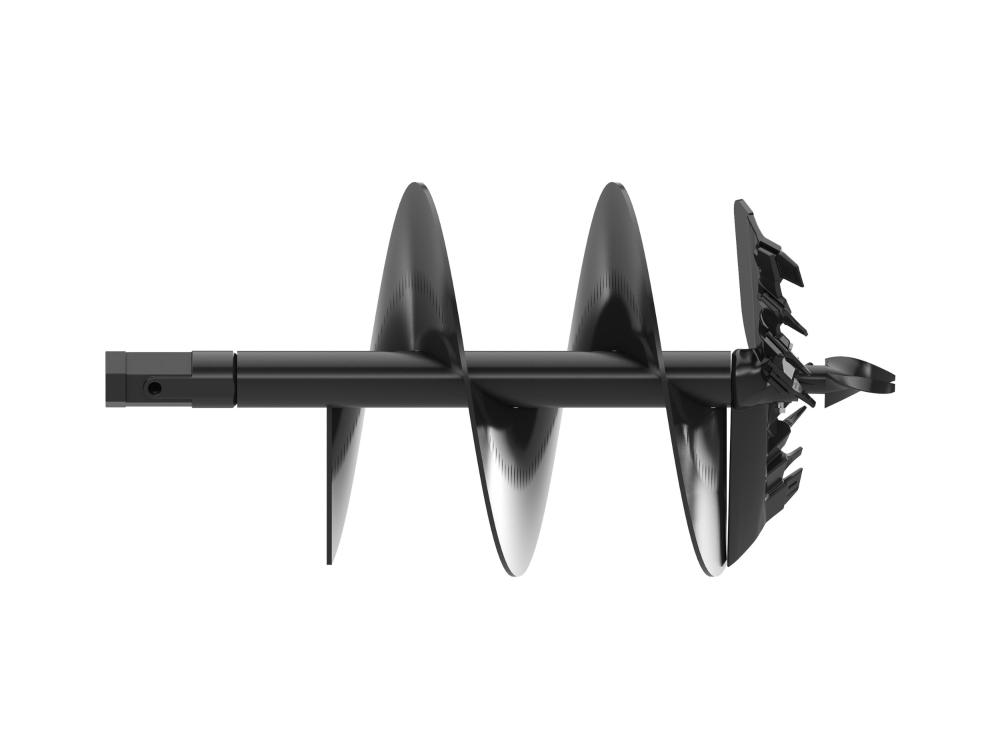

610 mm (24 in) Industrial Bit for Augers

Cat

https://www.finanzauto.es/productos/brocas-caterpillar-broca-industrial-de-610-mm-24-pulg

Units of measurement :

Metric

Imperial

Type

Industrial Bit

Overall Length

1219 mm

48 in

Weight

68 kg

149.9 lb

Availability

Purchase Rental Used

Cat® Auger Bits equip Cat Augers for post hole auger applications, such as fencing, footings, sign posts, trees and shrubs in construction, agricultural and landscaping jobs.

Features

Specifications

Standard Duty

Tree Bits

Industrial Bits

Standard Rock Drill Head Bits (bolt-on)

Rock Drill Head and Teeth

Standard duty bits are used in normal ground conditions and fracturable rock applications for ordinary digging. Best for those who dig 250-300 holes a day, allowing quick tooth changes.

Tree bits are utilized best in abrasive soil and fracturable rock. Tree bits are tapered for drilling a larger diameter upper hole for a root ball and smaller diameter hole for mulch or fertilizer.

Industrial bits provide excellent tooth retention while digging, yet allows for easy removal and installation.

Standard rock drill head bits transform a standard bit to an industrial version when ground conditions change from normal to severe, including hard rock and various types of concrete conditions. Bits can easily be removed when returning to dirt or normal conditions.

Standard rock drill head has an enlarged shoulder to increase holder protection protect the connection for use in solid fracturable rock and high impact soil. A variety of auger flights are available to handle various ground conditions. Gage teeth for the outer station and flat and/or chisel teeth for the inner stations. Flights are available hard faced or carbide to handle abrasive soil and compacted rock.

Others

Type	Industrial Bit
Overall Length	1219 mm	48 in
Weight	68 kg	149.9 lb
Cut Diameter	610 mm	24 in
Compatible Bit Extension	305, 610, 915, 1829 mm (12, 24, 36, 72 in)
Number of Teeth	8

Compatible products:

A23

Drive Shaft Torque at Maximum Pressure

2304 N·m

1699.3 lb/ft

Drive Method

Gerotor Motor - Direct Drive

Mounting Bracket Design

3 Ton Mini Excavator Pin On

Cat

15175139
A23

Drive Shaft Torque at Maximum Pressure

2304 N·m

1699.3 lb/ft

Drive Method

Gerotor Motor - Direct Drive

Mounting Bracket Design

2 Ton Mini Excavator Pin On

Cat

15175108
A23

Drive Shaft Torque at Maximum Pressure

2304 N·m

1699.3 lb/ft

Drive Method

Gerotor Motor - Direct Drive

Mounting Bracket Design

Skid Steer Loader Coupler

Cat

15175091
A41

Drive Shaft Torque at Maximum Pressure

4120 N·m

3038.8 lb/ft

Drive Method

Gerotor Motor - Single Planetary Reduction

Mounting Bracket Design

5 Ton Mini Excavator Pin On

Cat

15175218
A41

Drive Shaft Torque at Maximum Pressure

4120 N·m

3038.8 lb/ft

Drive Method

Gerotor Motor - Single Planetary Reduction

Mounting Bracket Design

3 Ton Mini Excavator Pin On

Cat

15175187
A41

Drive Shaft Torque at Maximum Pressure

4118 N·m

3037.3 lb/ft

Drive Method

Gerotor Motor - Single Planetary Reduction

Mounting Bracket Design

Skid Steer Loader Coupler

Cat

15175157
A68

Drive Shaft Torque at Maximum Pressure

6826 N·m

5034.6 lb/ft

Drive Method

Gerotor Motor - Double Planetary Reduction

Mounting Bracket Design

5 Ton Mini Excavator Pin On

Cat

15175266
A68

Drive Shaft Torque at Maximum Pressure

6826 N·m

5034.6 lb/ft

Drive Method

Gerotor Motor - Double Planetary Reduction

Mounting Bracket Design

8 Ton Mini Excavator Pin On

Cat

15175284
A68

Drive Shaft Torque at Maximum Pressure

6826 N·m

5034.6 lb/ft

Drive Method

Gerotor Motor - Double Planetary Drive

Mounting Bracket Design

Skid Steer Loader Coupler

Cat

15175249
A68

Drive Shaft Torque at Maximum Pressure

6830 N·m

5037.5 lb/ft

Drive Method

Gerotor Motor - Double Planetary Reduction

Mounting Bracket Design

415-444 Backhoe Loader Pin On

Cat

16753318
