Demolition Excavators Caterpillar 352 Straight Boom

Machine Setup Simplification

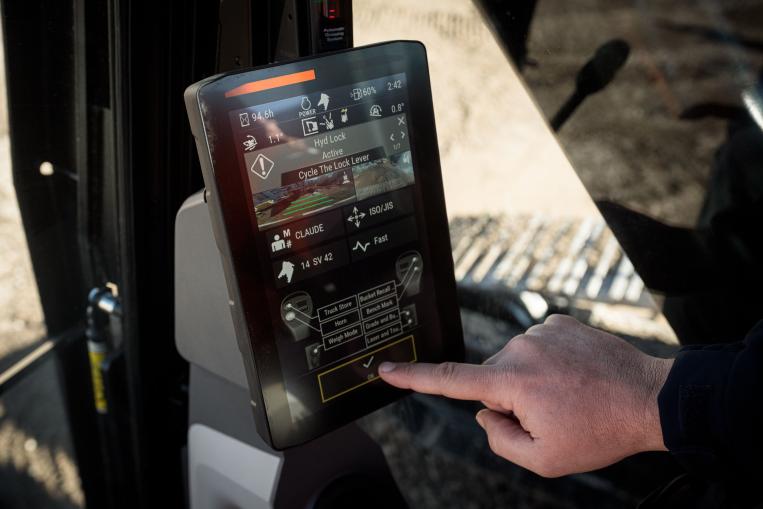

At the touch of fingertips and navigating user-friendly icons, the latest operator oriented User Interface (UI) maximizes uptime and gets crews to work without delay. From re-ordering work tool lists to creating new work tool combinations as needed, operators can quickly set up machines and easily access information.
The interface allows operators to maintain accuracy and makes the most of every second of their shift. Adding the ability to input couplers and attachments into the system makes setting up work tool combinations highly efficient by significantly reducing calibration time. It also eliminates the need to measure up again when changing Cat® work tool attachments and makes it manageable for a single person to check and adjust for bucket wear.

Cat Payload and Advanced Payload

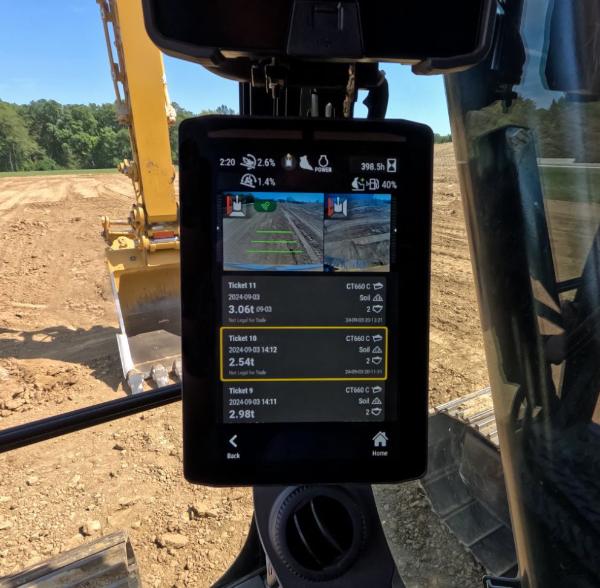

Cat Payload provides operators with on-the-go weighing to help them hit load targets and avoid overloading, underloading, or misloading materials. Advanced Payload is a system upgrade that offers expanded features and capabilities, including custom tags, daily totals, and electronic ticketing. Combine Payload with VisionLink® Productivity* to analyze jobsites and individual assets for remote management of production targets and key metrics.

* VisionLink® subscription required.

Not all features are available in all regions. Please check with your local Cat dealer for specific offering availability in your area. Build Number: 08D

High fuel efficiency ensures more work per unit of fuel.
The C13B engine and electrohydraulic system will power through all different types of material.
Auxiliary hydraulic options give you the versatility to use a wide range of Cat attachments, including the largest attachments needed for demolition work.
Optional removable counterweight allows for ease of transport and lower transportation costs.
Achieve higher vertical reach with up to 36% more stick pin height compared to 352 Reach configuration.
Match the excavator to the job with three power modes – Smart, Power, and Eco. Smart mode automatically matches engine and hydraulic power to digging conditions, providing maximum power when needed and reducing power when it isn't to help save fuel. Power mode is maximum power all the time. Eco mode reduces engine speed and keeps it constant to reduce fuel consumption.
The high-efficiency hydraulic fan cools the engine on demand to help reduce fuel consumption; standard reverse function makes it easy to keep cores clean.

The latest operator oriented User Interface (UI) has been designed to maximize uptime by allowing operators to easily reorder work tool lists and quickly create new work tool combinations. It also eliminates the need to measure up again when changing Cat® work tool attachments and makes it manageable for a single person to check and adjust for bucket wear.
Standard Cat Grade with 2D indicates depth and slope on the monitor with auditory alerts.
Cat Payload onboard weighing helps you achieve precise load targets to improve your operating efficiency. Pick up a load of material – with either a bucket or grapple – and get a real-time weight estimate without even swinging.
Combine Payload with VisionLink® and remotely manage your production targets. The monitor’s USB port lets you download results from one shift all the way up to 30 days of work, so you can manage your progress without needing an internet connection or VisionLink subscription.
Know the excavator’s exact position relative to GPS and GLONASS systems. The machine automatically compensates for excavator pitch and roll caused by sloping ground conditions.
VisionLink provides actionable data insights for all assets - regardless of fleet size or equipment manufacturer.* Review equipment data from your desktop or mobile device to maximize uptime and optimize assets. Dashboards provide information such as hours, miles, location, idle time, and fuel utilization. Make informed decisions that lower costs, simplify maintenance, and improve safety and security on your jobsite.
VisionLink Productivity gathers and summarizes machine telematics and jobsite data from all your equipment – regardless of the manufacture.* View actionable information such as idle time, fuel burn, location, payload, load counts, total cycles, and more to improve machine efficiency, productivity, and utilization. Access data anywhere via a mobile, tablet, or desktop device - on or off the jobsite.
Remote Troubleshoot is a mobile application that allows your Cat dealer to perform diagnostic testing on your connected machine remotely to help ensure that issues are resolved quickly and with less downtime.
Remote Flash is a mobile application that allows you to update onboard software without a technician being present, allowing you to initiate software updates when convenient, increasing your overall operating efficiency.

*Data field availability can vary by equipment manufacturer.

Reinforced booms, sticks, and frame make the machine more durable and built to last.
Standard high-ambient temperature capability is 52°C (125°F) with cold start capability at -18°C (0°F).
Auto hydraulic oil warmup gets you to work faster in cold temperatures and helps prolong the life of components.

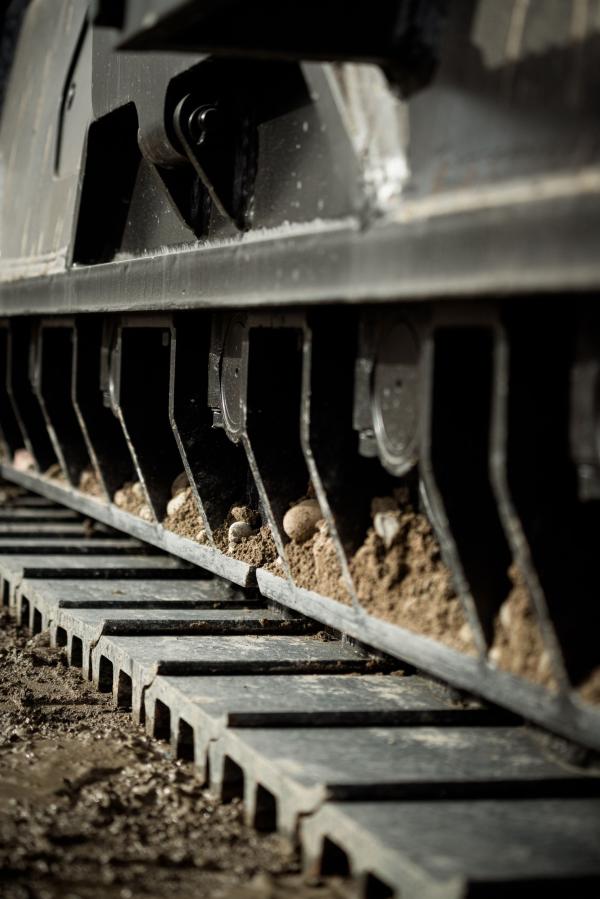

Grease sealed between track pins and bushings reduces travel noise and prevents debris from entering to increase undercarriage life.
The sloped track frame prevents mud and debris accumulation, helping reduce risk of track damage.

Start the engine with a push button; use a Bluetooth® key fob or the unique Operator ID function.
Program each joystick button, including power mode, response, and pattern, using Operator ID; the machine will remember what you set each time you go to work.
Make moving the excavator much easier with standard Cat Stick Steer. Simply push a button and use one hand to travel and turn instead of both hands or feet on levers or pedals.
Trouble cutting through tough material? Auto dig boost gives you an automatic power increase when you need it for better bucket penetration, shorter cycle times, and greater payloads.
Need more lift during your shift? Auto heavy lift gives you more power exactly when you need it for as long as you need it.
Not sure how a function works or how to maintain the excavator? Always have the operator’s manual at your fingertips in the touchscreen monitor.

Get in and out of the cab easily with the standard tilt-up left console.
Deluxe cab with premium seat offers a heated and ventilated seat for year-round comfort.
Control the excavator comfortably with easy-to-reach controls all located in front of you.
Stow your gear with plenty of in-cab storage beneath and behind the seat and in the consoles.
Use the standard radio’s USB ports and Bluetooth technology to connect personal devices and make hands-free calls.

When you buy Cat® equipment, you get more than the machine. You’re also getting the support of a best-in-class dealer network backed by a range of flexible solutions, technology, tools, and more.

When you work with your local Cat dealer, you'll be supported by one of the industry's most extensive, knowledgeable dealer networks. Comprised of 160 independent dealers, the Cat Dealer Network serves 197 countries with thousands of branches around the globe.

It’s more uptime, cost-saving service and repair options, quality parts, and precision components. It’s all about support built around your success.

Ask your Cat dealer today about the many services that help you do your work your way.

The importance of buying genuine Cat parts.

Designed by Caterpillar engineers to the exact specs of your Cat equipment.
Rigorously tested to ensure maximum performance.
Covered by a 12-month warranty.

Cat Inspect – Work made easy.

Record real-time inspection data.
Simplify inspections and reporting.
Easy-to-read results all in one place.

Cat Ground Engaging Tools (GET) – Longer wear. More work.

GET for every machine and application.
Tools to extend life and track GET lifecycles.
Bucket rebuild options for optimal performance.

Cat Hydraulic Components – Durability quality you can work with.

Flexible options – New, reman, exchange, rebuild or repair.
Expert diagnostics, testing, and contamination control.
Buy in-store, online, or on your mobile device.

Cat Hose Service – Fast, safe—to get you back to work.

Hoses and couplings for most makes and models.
OEM database ensures an exact fit.
Industry-best tooling, training, and assembly standards.

Cat Certified Rebuild – An investment that works. Again, and again.

Better-than-when-new performance at a fraction of the cost.
Performance, safety, and technology upgrades and enhancements.
Full warranty coverage, Customer Value Agreement, and special financing.

Cat Remote Services – Work done in a flash.

Cut downtime for updates and service.
Install the latest machine software remotely.
Troubleshoot issues before a technician arrives.

24/7 Expert Support
Get industry-leading support for any question or problem you have 24 hours a day, 7 days a week, 365 days a year.

CALL US
We’re available 24/7 at
Toll Free:1-888-228-1460
Direct:1-513-830-1806
SMS:+13098656129

Learn more at https://parts.cat.com/

Long life fuel, oil, and air filters keep you working on the job longer.
Check the hydraulic system oil and easily drain fuel system water from ground level.
The standard inlet air heater helps improve cold start performance.
Track your excavator’s filter life and maintenance intervals via the in-cab monitor. The optional engine oil sensor tracks your oil levels to speed up your daily maintenance routine.
Change all fuel filters at a synchronized 1,000 hours. Filters are grouped together for easy maintenance.
The air intake filter with pre-cleaner has a high dust holding capacity.
The hydraulic oil filter provides improved filtration performance and anti-drain valves to keep oil clean when the filter is replaced.
The high-efficiency hydraulic fan has a standard automatic reverse function to keep cores free from debris, eliminating the need for any operator interaction.
S·O·S^SM ports simplify maintenance and allow for quick, easy extraction of fluid samples for analysis.

The front windshield and roof window are made with P5A glazing for enhanced impact resistance.
A travel direction indicator helps operators know which way to activate the travel levers.
Enjoy great visibility in each swing direction and behind you with the help of smaller cab pillars, larger windows, the standard radial roof wiper and washer, and a flat engine hood design.
Operator Protective Guards (OPG) protect the roof and front window in a demolition application while also maintaining visibility to the jobsite.
A ground-level shutoff switch stops all fuel to the engine when activated and shuts down the machine.
Rearview and right-hand-sideview cameras are standard. Upgrade to 360° visibility and you’ll easily visualize objects and personnel around the excavator in a single view.
Serrated steps and anti-skid punch plate on the service platform help prevent slipping.
Keep your excavator secure with Operator ID. Use your PIN code on the monitor to enable the push button starting feature.
Cat Lift Assist helps you avoid tipping by letting you know if your load is within the excavator’s safe working range.

The Cat® C13B engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Auto Engine Speed Control helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
Cat Grade technologies combine advanced guidance with optional automated machine control helping you reach grading targets while reducing fuel burn and greenhouse gas emissions by improving efficiency, job site productivity, and accuracy.
Cat® Payload for excavators provides on-the-go material weighing which helps reduce fuel burn by improving loading efficiency, job site productivity, and eliminating trips to the scale.
Cat® 2D E-fence keeps the front linkage within a predefined work area to avoid hazards such as traffic - not only helping keep personnel safe but also helps you avoid repairs, downtime, and costly job site fines.
Don't waste fuel idling. Cat VisionLink® online fleet monitoring helps you manage idle time and reduce fuel burn and greenhouse gas emissions.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.
Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.

*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).
**Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.

Operating Weight	54900 kg	121000 lb
Note (1)	Variable Gauge undercarriage, Straight boom, Reach 3.9 m TB (12'10") stick, HD 2.14 m³ (2.8 yd³) bucket, 600 mm (24") triple grouser shoes and 11.35 mt (25,020 lb) removable counterweight.
Note (2)	Fixed Gauge undercarriage is available - see technical specifications document for configurations.

Maximum Pin Height at Stick Nose	12.85 m	42.2 ft
Maximum Weight at Stick Nose	5650 kg	12456 lb
Note (1)	Variable Gauge undercarriage, Straight boom, Reach 3.9TB m (12'10") stick, HD 2.14 m³ (2.8 yd³) bucket, 600 mm (24") triple grouser shoes and 11.35 mt (25,020 lb) removable counterweight.
Maximum Digging Depth	6010 mm	19.8 ft
Maximum Cutting Height	14650 mm	48.1 ft
Maximum Loading Height	10970 mm	36 ft
Minimum Loading Height	4390 mm	14.4 ft
Maximum Depth Cut for 2440 mm (8'0") Level Bottom	5850 mm	19.2 ft
Maximum Vertical Wall Digging Depth	4890 mm	16.1 ft
Bucket Digging Force -ISO	268 kN	60250 lbf
Stick Digging Force - ISO	184 kN	41360 lbf

Engine Model	Cat C13B
Net Power - ISO 9249	330 kW	443 hp
Net Power - ISO 9249 (DIN)	449 hp (metric)	449 hp (metric)
Engine Power - ISO 14396	332 kW	445 hp
Engine Power - ISO 14396 (DIN)	451 hp (metric)	451 hp (metric)
Bore	130 mm	5 in
Stroke	157 mm	6 in
Displacement	12.5 l	763 in³
Biodiesel Capability	Up to B20¹
Emissions	Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Note (1)	Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 1,700 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2)	¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). *Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.

Main System - Maximum Flow	779 l/min (206 gal/min)
Maximum Pressure - Equipment	35000 kPa	5076 psi
Maximum Pressure - Equipment - Lift Mode	38000 kPa	5511 psi
Maximum Pressure - Travel	35000 kPa	5076 psi
Maximum Pressure - Swing	26000 kPa	3771 psi

Swing Speed	6.5 r/min	6.5 r/min
Maximum Swing Torque	189 kN·m	139400 lbf·ft

Fuel Tank Capacity	715 l	188.9 gal (US)
Cooling System	52 l	13.7 gal (US)
Engine Oil	40 l	10.6 gal (US)
Swing Drive	11 l	2.9 gal (US)
Final Drive - Each	10 l	2.6 gal (US)
Hydraulic System - Including Tank	550 l	145.3 gal (US)
Hydraulic Tank	217 l	57.3 gal (US)
DEF Tank	80 l	21.1 gal (US)

Note (1)	Variable Gauge undercarriage, Straight boom, Reach 3.9TB m (12'10") stick, HD 2.14 m³ (2.8 yd³) bucket, 600 mm (24") triple grouser shoes and 11.35 mt (25,020 lb) removable counterweight.
Shipping Height - Top of Cab	3380 mm	11.1 ft
Cab Height - With OPG	3590 mm	11.8 ft
Shipping Length	12830 mm	42.1 ft
Tail Swing Radius	3840 mm	12.6 ft
Counterweight Clearance	1435 mm	4.7 ft
Ground Clearance	710 mm	2.3 ft
Track Length	5350 mm	17.6 ft
Track Length to Center of Rollers	4340 mm	14.2 ft
Track Gauge	2390 mm	7.8 ft
Transport Width	3680 mm	12.1 ft

Detalle Productos Cat

Cat® 352 Straight Boom Excavator

Maximize Performance

Low Operating Cost

Comfort and Safety

LATEST FEATURES

HIGH PERFORMANCE WITH LOW FUEL CONSUMPTION

BOOST EFFICIENCY AND PRODUCTIVITY

RELIABLE IN TOUGH CONDITIONS

SIMPLE TO OPERATE

WORK IN COMFORT

DEDICATED SERVICE AND SUPERIOR SUPPORT

EASY MAINTENANCE

SAFELY HOME EVERY DAY

SUSTAINABILITY​​​​​​​

Weights

Working Ranges and Forces

Engine

Hydraulic System

Swing Mechanism

Service Refill Capacities

Dimensions

Air Conditioning System

Sustainability
