16071187
Marine Generator Sets
15174552
Caterpillar
https://www.finanzauto.es/productos/grupos-electrogenos-marinos-caterpillar-grupo-electrogeno-marino-cat-c280-16
Metric
Imperial
Power Range
4700 - 4840 ekW
Frequency
50 / 60
Emissions
EPA Tier 2, IMO II
Availability
| Power Range | 4700 - 4840 ekW |
| Frequency | 50 / 60 |
| Speed | 1000 rpm (50 hz) or 900 rpm (60 hz) |
| Minimum Rating | 4700 ekW (5875 kVA) |
| Maximum Rating | 4840 ekW (6050 kVA) |
| Emissions | EPA Tier 2, IMO II | |
| Aspiration | Turbocharged-Aftercooled | |
| Bore | 280 mm | 11 in |
| Stroke | 300 mm | 11.8 in |
| Displacement | 296 l | 18062 in³ |
| Governor Type | Electronic | |
| Fuel System | EUI | |
| Compression Ratio 50 Hz | 13.1 | |
| Compression Ratio 60 Hz | 13:1 | |
| Engine Model | Vee 16, 4-Stroke-Cycle Diesel |
| Length | 9314 mm | 366.7 in |
| Width | 1990 mm | 78.3 in |
| Height | 4167 mm | 164.1 in |
| Weight | 31000 kg/ 68343 lb (engine dry weight), 18145 kg/ 40000 lb (generator weight) |
Power Range
1550 - 1700 ekW
Frequency
60 hz
Emissions
IMO II
Caterpillar
15174529
Power Range
10 - 12 ekW
Frequency
50 / 60
Emissions
U.S. EPA Tier 3
Caterpillar
15174479
Power Range
260 - 565 ekW
Frequency
50 / 60
Emissions
EPA Tier 3, IMO II, EU IWW, EU Stage V, China II
Caterpillar
15174509
Power Range
15 - 25 ekW
Frequency
50 / 60
Emissions
U.S. EPA Tier 3
Caterpillar
15174484
Power Range
3640 - 3520 ekW
Frequency
50 Hz or 60 Hz
Emissions
EPA Tier 2, IMO II
Caterpillar
15174547
Power Range
1720 - 1820 ekW
Frequency
50 / 60 Hz
Emissions/Fuel Strategy
U.S. EPA Tier 2, IMO II
Caterpillar
15174535
Power Range
2200 - 2600 ekW
Frequency
50 / 60
Emissions/Fuel Strategy
EPA Tier 2, IMO II
Caterpillar
15174542
Power Range
550 - 940 ekW
Frequency
50 / 60
Emissions/Fuel Strategy
EPA Tier 4, IMO II/IMO III switchable and EU Stage 5
Caterpillar
15174516
Power Range
36.0R - 99 ekW
Frequency
50 / 60
Emissions
NST
Caterpillar
15174489
Power Range
58.0R - 118 ekW
Frequency
50 / 60
Emissions
U.S. EPA Tier 3, EU Stage V
Cat
15174496
Power Range
200 - 300 ekW
Frequency
50 / 60
Emissions/Fuel Strategy
IMO II, IMO III, U.S. EPA Tier 3, China Stage II
Caterpillar
15174504

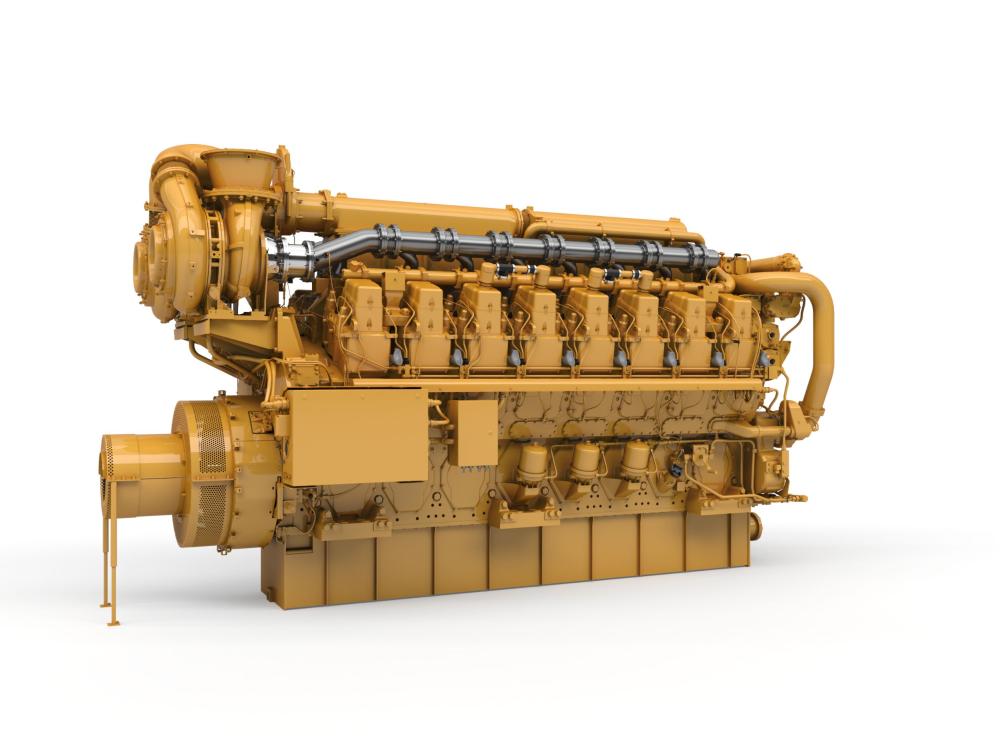

Cat C280-16 Marine Generator Set
