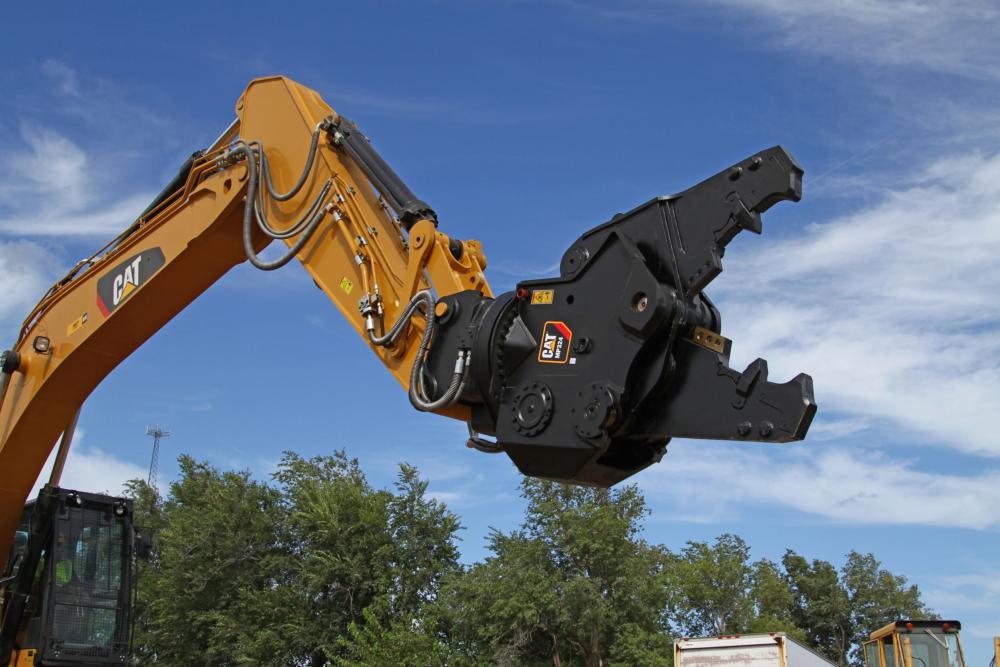

MP324 Demolition Jaw

Units of measurement :

Metric

Imperial

Cycle Time - Open

1.8 s

Excavator Minimum

24 tons

Cycle Time - Close

1.2 s

Availability

Purchase Rental Used

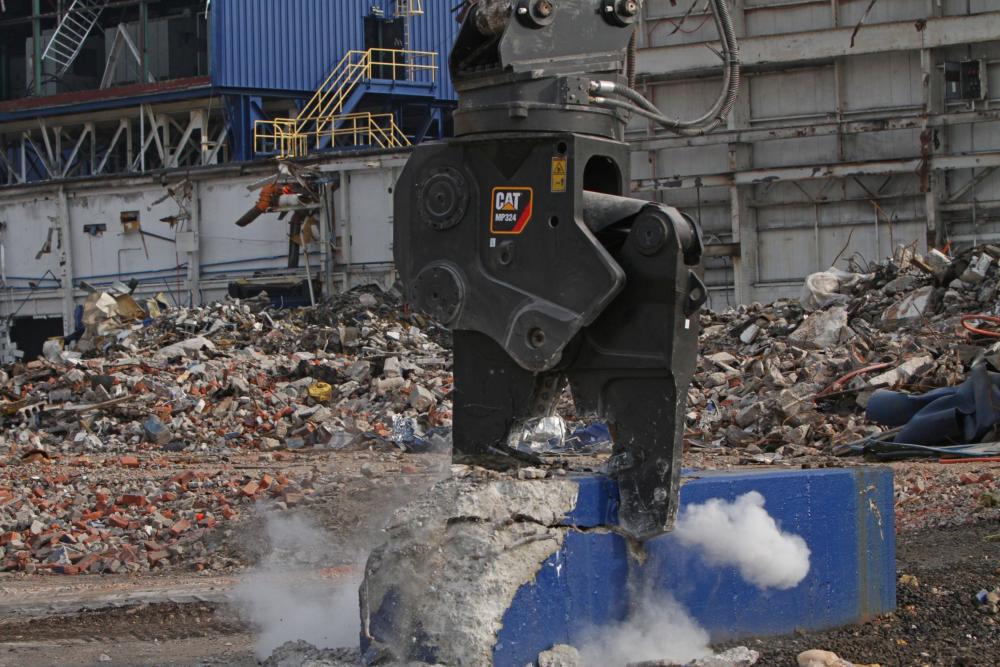

Cat® Multi-Processors accept multiple interchangeable jaws for a wide range of demolition tasks. Faster cycle times get your jobs done quicker. Greater power means taking on bigger jobs. Quick jaw change gives you the right tool for the task at hand, without slowing you down. All built on a durable, easy to maintain platform.

Cycle Times are 50 Percent Faster

Up to 19 Percent More Force

Change Jaws in 15 minutes

Durable and Maintainable

New speed booster technology dynamically shifts hydraulic force from speed to boost mode, automatically as you operate.
You’ll spend less time waiting for the jaw to open or close to contact, as the speed valve automatically adjusts to fast flow when there’s no load.
Maximum crushing/cutting force is applied as soon as the jaw contacts material.

MP324 Multi-Processor Key Features.pdf Multi-Processor Brochure.pdf Multi-Processors Technical Specifications.pdf

Performance

Cycle Time - Open	1.8 s	1.8 s
Cycle Time - Close	1.2 s	1.2 s
Crushing Force - Primary Cutter	3767 kN	423 Sh Ton
Crushing Force - Cutter Tip	1684 kN	189 Sh Ton
Crushing Force - Tooth Tip	1166 kN	131 Sh Ton

Recommended Carrier Weight

Hydraulic Requirements

Dimensions - Jaw

Dimensions - Housing + Jaw

Compatible machines:

Other categories of Multiprocesadores:

Multi-Processor with Secondary Pulverizer Jaws

MP324 Demolition Jaw

Jaw Circuit - Max. Oil Pressure	5076 psi	350 bar
Jaw Circuit - Max. Oil Flow	225 l/min	59 gal/min
Rotation Circuit - Max. Oil Pressure	2031 psi	140 bar
Rotation Circuit - Max. Oil Flow	11 gal/min	40 l/min

Jaw Depth	756 mm	29.8 in
Cutter Length	191 mm	7.5 in
Jaw Opening - Maximum	903 mm	35.6 in
Jaw Width - Fixed	132 mm	5.2 in
Jaw Width - Moveable	132 mm	5.2 in

Length	2079 mm	81.9 in
Height	1593 mm	62.7 in
Width	793 mm	31.2 in
