14568151
Open Bowl Scrapers
15198624

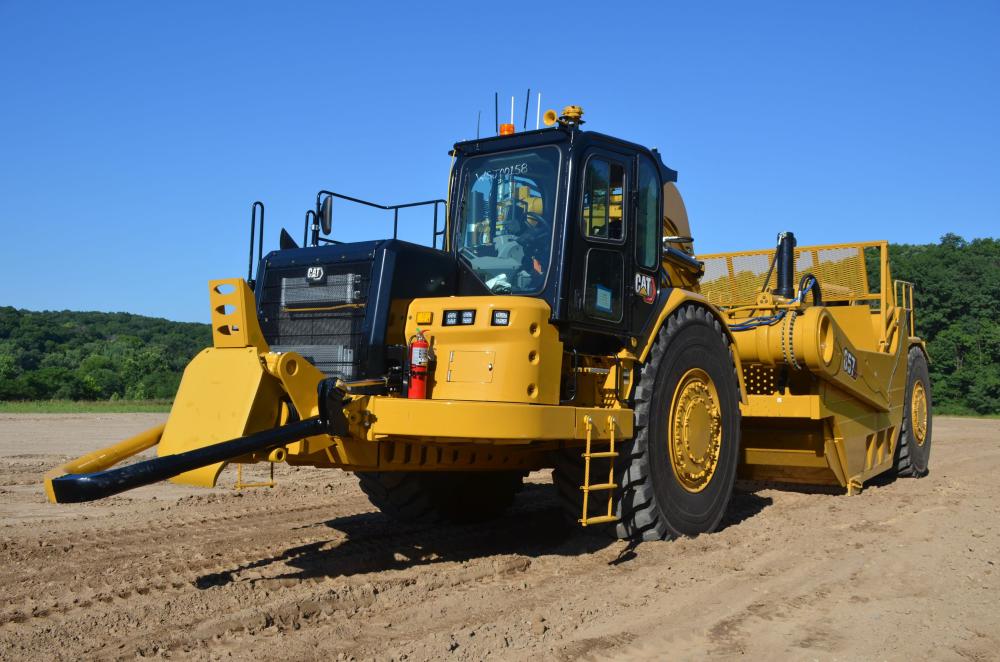

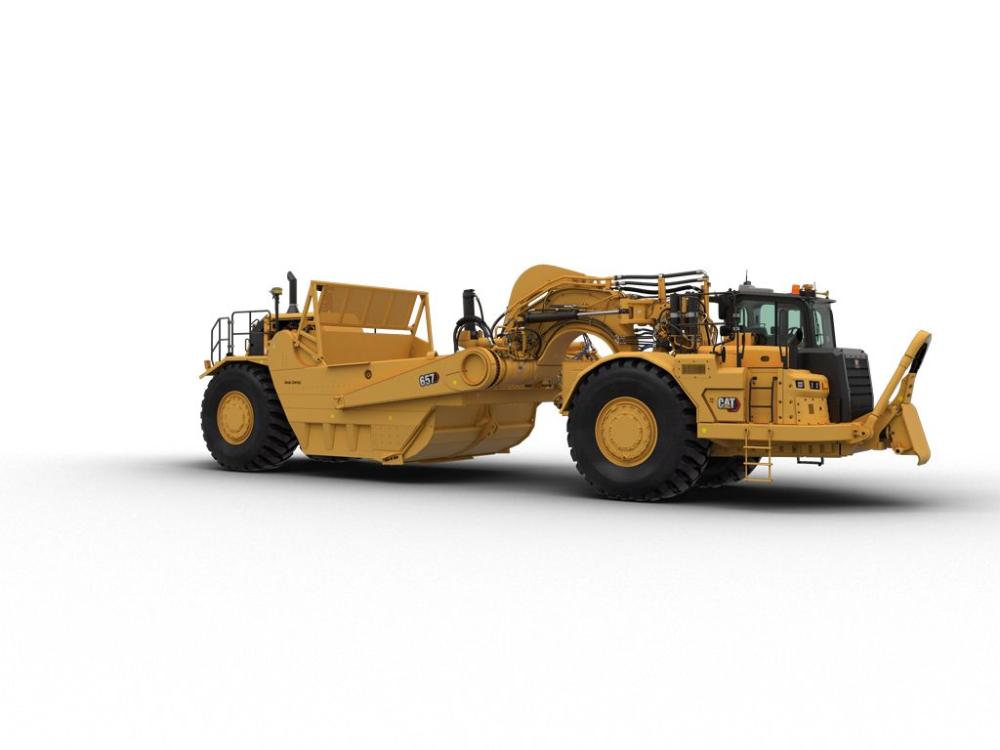

657 Wheel Tractor-Scraper
Caterpillar
https://www.finanzauto.es/productos/mototraillas-de-caja-abierta-caterpillar-mototrailla-657
Metric
Imperial
Tractor Engine
Cat C18
Flywheel Power - Tractor/Scraper
469kW (629 hp) / 353 kW (473 hp)
Scraper Engine
Cat C15
Availability

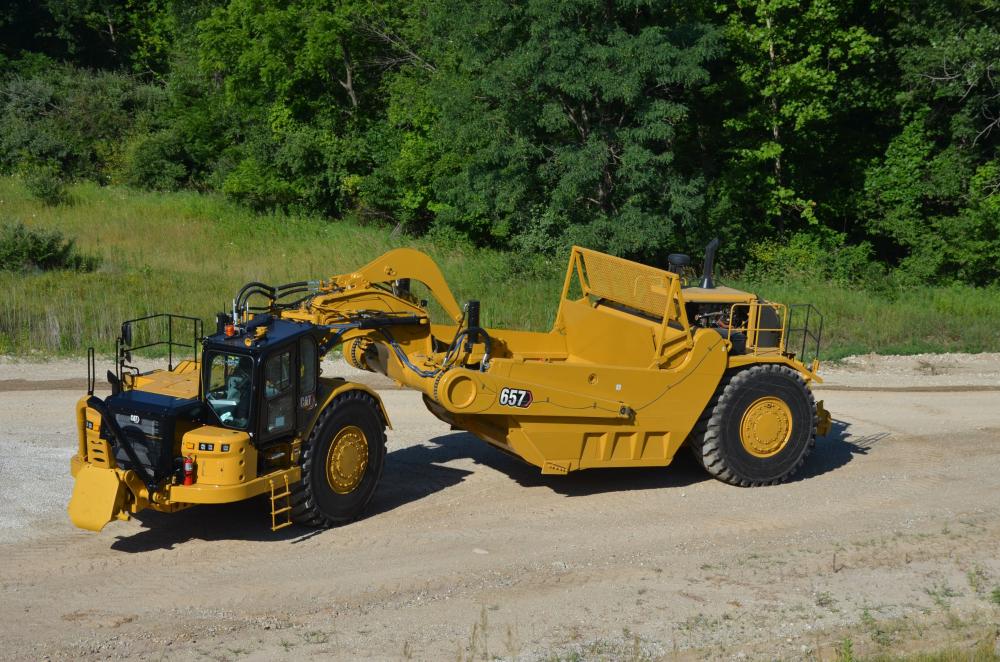

Cat® Wheel Tractor-Scraper 657 twin engine has the power to boost productivity by utilize push-pull loading. Combine this ability with improvements in productivity, enhancements in operator comfort, and new safety features \u2013 Powered Access System and effective wet disc brakes \u2013 and you have a machine offering high returns on profit and time.

Enhanced Operator Comfort
Ergonomic controls and a newly redesigned cab interior provide a more comfortable and efficient working environment all day longUp To 6% Improved Productivity
Improvements in fuel efficiency, utilizing payload estimator, and the new APECS transmission controls deliver increased productivityUnparalleled Safety
Safety features help increase operator confidence by providing a safer environment for operations - effective wet disc brakes, WAVS camera, and powered access cab entryUp To 7% Less CO2 Emissions
The 657 emits up to 7% less CO2 than the previous 657G.BE MORE PRODUCTIVE
WORK IN COMFORT
DESIGNED FOR SAFETY
EASY TO OPERATE
INTEGRATED CAT TECHNOLOGIES
EXECUTE EFFICIENCY

- Advanced Productivity Electronic Control System (APECS) allows the engine and transmission to communicate on a high level. This communication allows the machine to better utilize the power and torque the engine is producing. The net result is moving more material.
- Use Ground Speed Control to set the desired top speed and the machine will find the gear that works best for the engine and the transmission, providing a lower fuel burn.
- The Machine Speed Limit feature replaces Top Gear Selection.
- Auto-Stall assists in quickly bringing the transmission to an operating temperature at start-up when the machine is working in a cold climate region.
- Cat® Payload Estimator for scrapers is an earthmoving solution for optimal payload and job site efficiency. Payload Estimator achieves on-the-go weighing by using bowl lift cylinder pressure during the loaded haul segment. Payload Estimator is optimized to be used with Sequence Assist, which provides increased productivity with less operator effort.
- Steer with less effort with the newly designed High-Pressure Steering system.
- Reduce up to 14 individual operator commands per cycle with

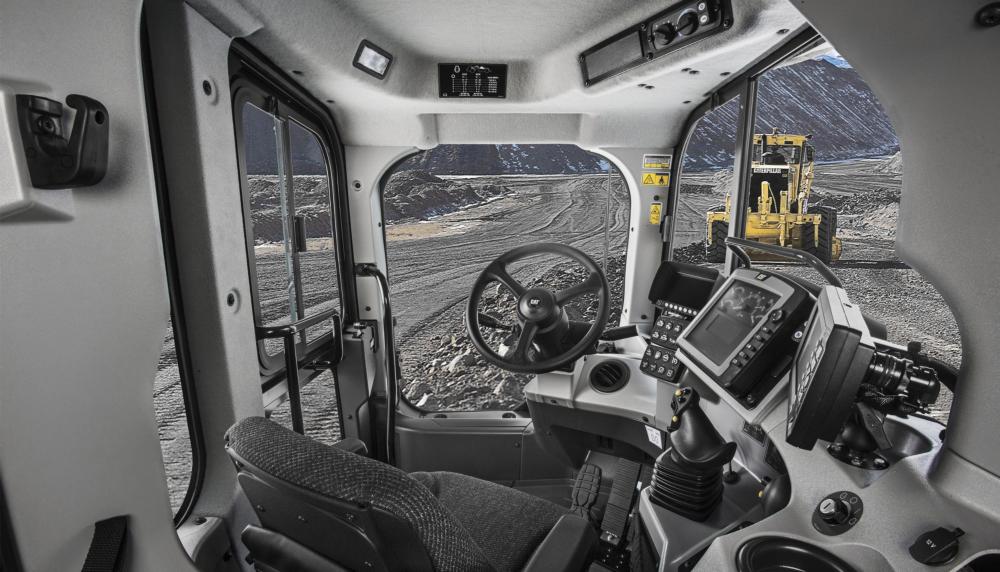

Sequence Assist (optional attachment). - Enjoy interior improvements and a more ergonomic work

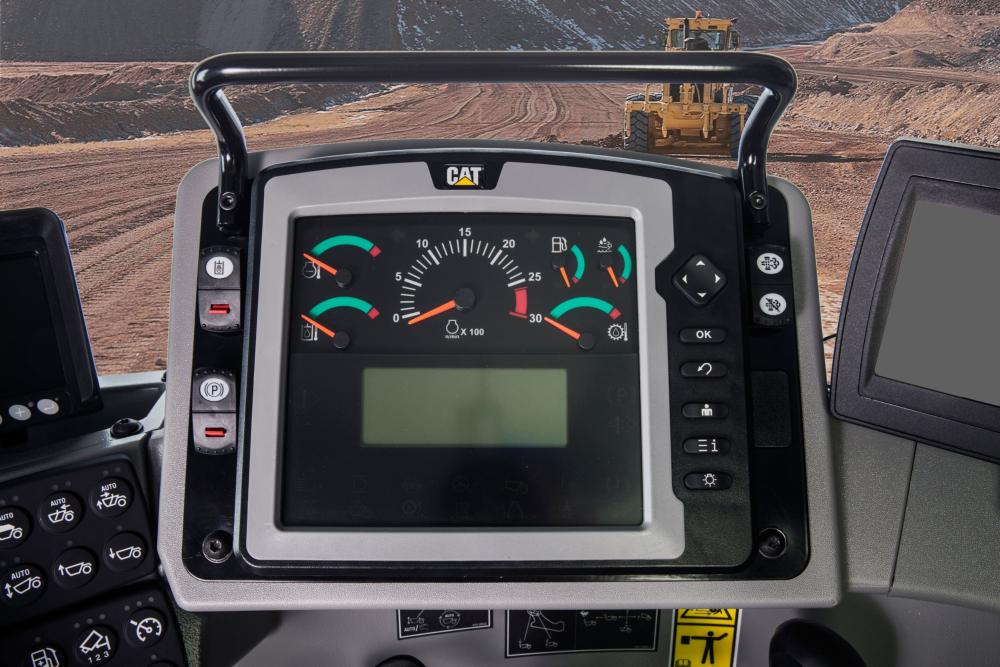

environment with a 21% larger cab than the 657 G-Series cabs. - Intuitive, ergonomic controls with multifunction display keep operators focused on their work.
- Maintain desired cab temperature with Automatic
Temperature Control.
- Get in and out of the cab easier with the new powered access
ladder system (optional attachment). - Enhance an operator’s awareness of site surroundings with the
optional Work Area Vision System (WAVS). - Ground level access to fuel fill and daily maintenance points.
- Seat belt indicator provides visual and audible alerts when the
seatbelt is not in use. - Advanced Cushion Hitch allows the cushion hitch to prevent
end stroke by having the ability to predict end stroke events
and manage the rate of dampening, resulting in reduced hitch
maintenance and improved operator ride in rough conditions.
- Cat Advance Ride Management (ARM) seat suspension reduces end stroke movement of the load cylinder for a smoother ride.
- Engine overspeed protection will automatically engage with no operator input when the machine is in eighth gear. The machine will assist in slowing the machine speed by canceling the throttle command and engaging the engine compression brake.

- Access information anytime, anywhere with Vision Link® –use it to make informed decisions that boost productivity, lower costs, simplify maintenance, and improve safety and security onyour jobsite.
- Product Link™ collects machine data that can be viewed online through web and mobile applications (optional attachment).

- The Cat C18 tractor and C15 scraper engines meets U.S. EPA Tier 4 Final or EU Stage V emission standards, contributing to lowerfuel consumption.

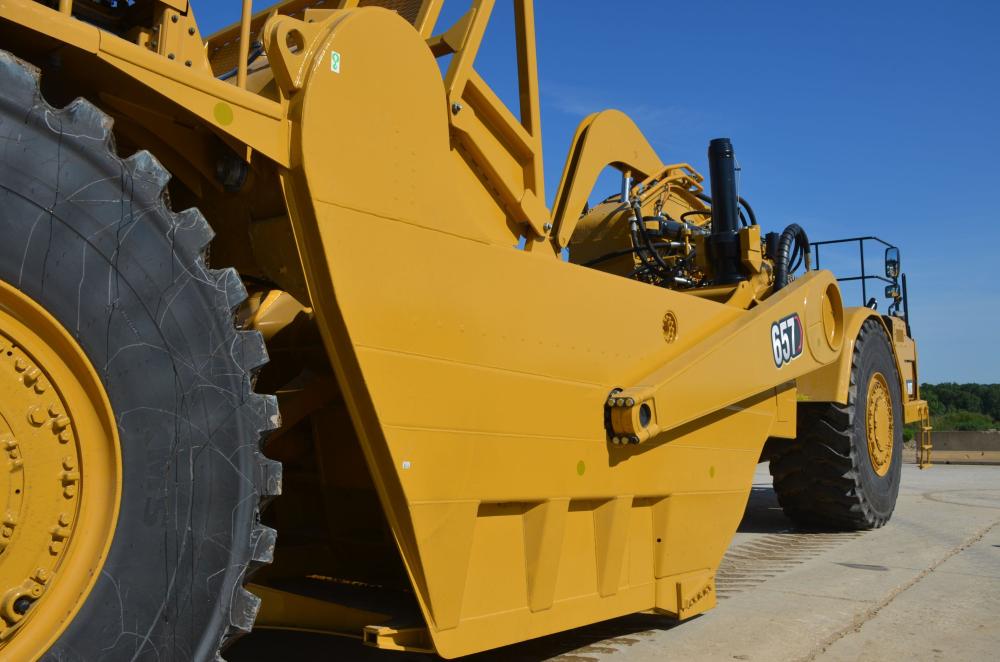

- Using draft-arm overflow guards diverts material away from the bowl, preventing material from getting caught between the draft arms and the bowl sides.
- The new tractor hydraulic on-demand fan helps assist in lower fuel consumption.
Engine
Tractor Engine | Cat C18 |
Scraper Engine | Cat C15 |
Tractor Engine
Flywheel Power - Tractor/Scraper | 469kW (629 hp) / 353 kW (473 hp) | |
Net Power | 469 kW/637 hp | |
Gross Power (SAE J1995) | 475 kW | 637 hp |
Net Power (ISO 14396) | 469 kW | 637 hp |
Net Power (SAE J1349/ISO 9249) | 436 kW | 584 hp |
Net Power (SAE J1349/ISO 9249) | 436 kW | 592 hp |
Bore | 145 mm | 5.7 in |
Stroke | 183 mm | 7.2 in |
Displacement | 18.1 l | 1105 in³ |
Scraper Bowl
Scraper Capacity - Heaped | 33.6 m³ | 44 yd³ |
Rated Load | 47200 kg | 104058 lb |
Capacity - Struck | 24.5 m³ | 32 yd³ |
Depth of Cut - Maximum | 417 mm | 16.4 in |
Width - Cut - To Router Bits | 3.8 m | 12.5 ft |
Ground Clearance - Maximum | 0.7 m | 2.3 ft |
Hyd. Penetration Force - 657G | 542 kN | 121000 lb |
Depth of Spread - Maximum | 660 mm | 26 in |
Apron Opening | 2337 mm | 92 in |
Apron Closure Force | 176 kN | 39200 lb |
Transmission
Top Speed - Loaded | 56.1 km/h | 33 mile/h |
1 Forward | 5.7 km/h | 3.5 mile/h |
2 Forward | 10.5 km/h | 6.5 mile/h |
3 Forward | 12.5 km/h | 7.8 mile/h |
4 Forward | 17 km/h | 10.6 mile/h |
5 Forward | 22.8 km/h | 14.2 mile/h |
6 Forward | 30.9 km/h | 19.2 mile/h |
7 Forward | 41.4 km/h | 25.7 mile/h |
8 Forward | 56.1 km/h | 34.9 mile/h |
Reverse | 10.8 km/h | 6.7 mile/h |
Scraper Engine
Net Power | 353 kW/447 hp | |
Gross Power (SAE J1995) | 359 kW | 481 hp |
Net Power (ISO 14396) | 353 kW | 480 hp |
Net Power (SAE J1349/ISO 9249) | 333 kW | 415 hp |
Bore | 137.2 mm | 5.4 in |
Stroke | 171.5 mm | 6.75 in |
Displacement | 15.2 l | 928 in³ |
Weights - Push-Pull
Total Shipping | 72804 kg | 160505 lb |
Tractor Shipping | 42472 kg | 93635 lb |
Scraper Shipping | 29061 kg | 64068 lb |
Total Operating - Empty | 74500 kg | 164244 lb |
Front Axle | 42566 kg | 93842 lb |
Rear Axle | 30238 kg | 66663 lb |
Total Operating - Loaded | 121700 kg | 268302 lb |
Front Axle - Loaded | 60856 kg | 134165 lb |
Rear Axle - Loaded | 59121 kg | 130340 lb |
Dimensions
Width - Overall Machine | 4.36 m | 14.3 ft |
Width - Tractor | 3.75 m | 12.3 ft |
Width - Rear Tire Center Lines | 2.81 m | 9.21 ft |
Width - Inside of Bowl | 3.68 m | 12.07 ft |
Width - Outside Bowl - Shipping Width | 3.93 m | 12.98 ft |
Height - Overall Shipping | 4.66 m | 15.29 ft |
Height - Top of Cab | 3.92 m | 12.86 ft |
Ground Clearance - Tractor | 0.7 m | 2.3 ft |
Front of Tractor to Front Axle | 4.55 m | 14.93 ft |
Axle to Vertical Hitch Pin | 0.55 m | 1.8 ft |
Height - Scraper Blade Maximum | 0.66 m | 2.17 ft |
Wheel Base | 9.96 m | 32.68 ft |
Length - Overall Machine | 17.97 m | 58.96 ft |
Rear Axle - Rear of Machine | 2.46 m | 8.07 ft |
Steering
Width - 180° Turn - Right | 13.85 m | 45.4 ft |
Width - 180° Turn - Left | 14.5 m | 47.57 ft |
Steering Angle - Right | 90 | |
Steering Angle - Left | 85 |
Service Refill Capacities - Tractor
Crankcase | 38 l | 13.7 gal (US) |
Transmission | 136 l | 35.9 gal (US) |
Differential | 136 l | 36 gal (US) |
Final Drive - Each | 29.5 l | 6 gal (US) |
Cooling System | 88.6 l | 23.4 gal (US) |
Hydraulic Reservoir | 150 l | 39.6 gal (US) |
Windshield Washer | 5 l | 0.5 gal (US) |
Hydraulics
Bowl Cylinder Bore | 180 mm | 7.08 in |
Bowl Cylinder Stroke | 950 mm | 37.4 in |
Apron Cylinder Bore | 180 mm | 7.08 in |
Apron Cylinder Stroke | 759.5 mm | 29.92 in |
Ejector Cylinder Stroke (Stage 1/ Stage 2) | 973.5 mm | 38.32 in |
Steering Circuit (@ High Idle) | 288 l/min | 76.08 gal/min |
Implement Circuit (@ High Idle) | 517 l/min | 517 l/min |
Cushion Hitch Circuit | 74 l/min | 19.54 gal/min |
Secondary Steering Circuit | 55 l/hr | 14.52 gal/hr |
Relief Valve - Steering Circuit | 13500 kPa | 1959 psi |
Relief Valve - Implement Circuit | 13780 kPa | 1999 psi |
Compensator Settings - Cushion Hitch Circuit | 20700 kPa | 3002 psi |
Service Refill Capacities - Scraper
Fuel Tank | 1628 l | 430 gal (US) |
Crankcase | 34 l | 8.9 gal (US) |
Transmission | 121 l | 31.9 gal (US) |
Differential | 168 l | 44 gal (US) |
Final Drive - Each | 30 l | 7.8 gal (US) |
Cooling System | 63.2 l | 16.6 gal (US) |
