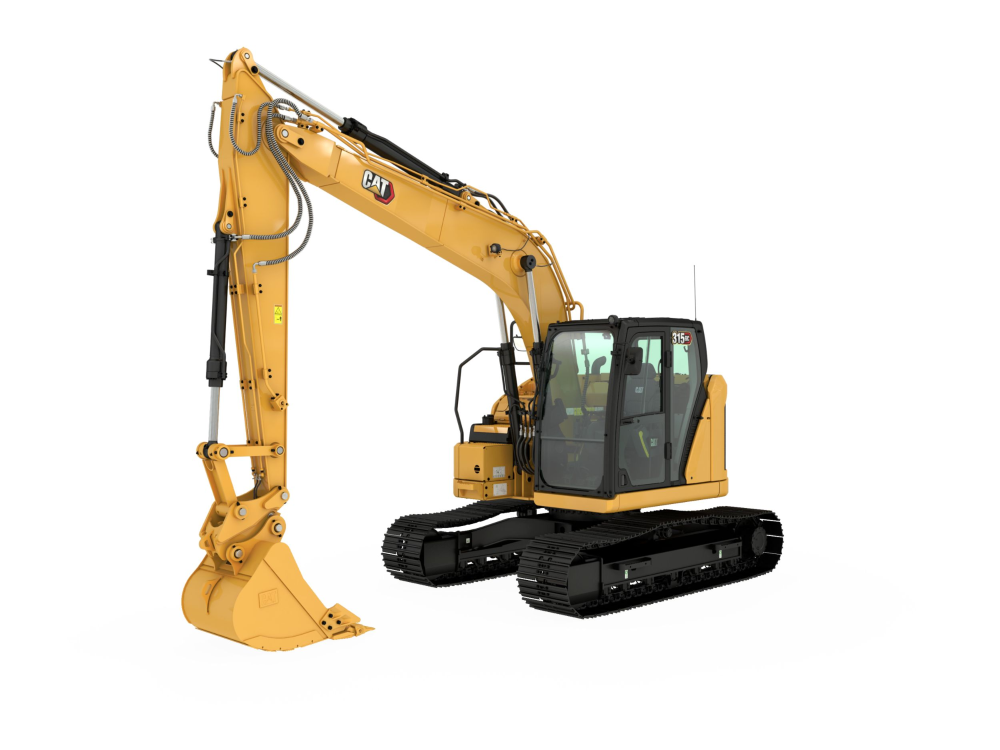

Small Excavators Cat 315 GC

Cab Monitor Improvements

Continuously improved user interface allows for intuitive navigation, minimizing performance interruption with the easy-to-use touchscreen menu.
Smaller app tiles to view more apps in one screen.
When navigating the menu, scroll position will be remembered.
While menu is shown and lever is moved, camera view will be shown.

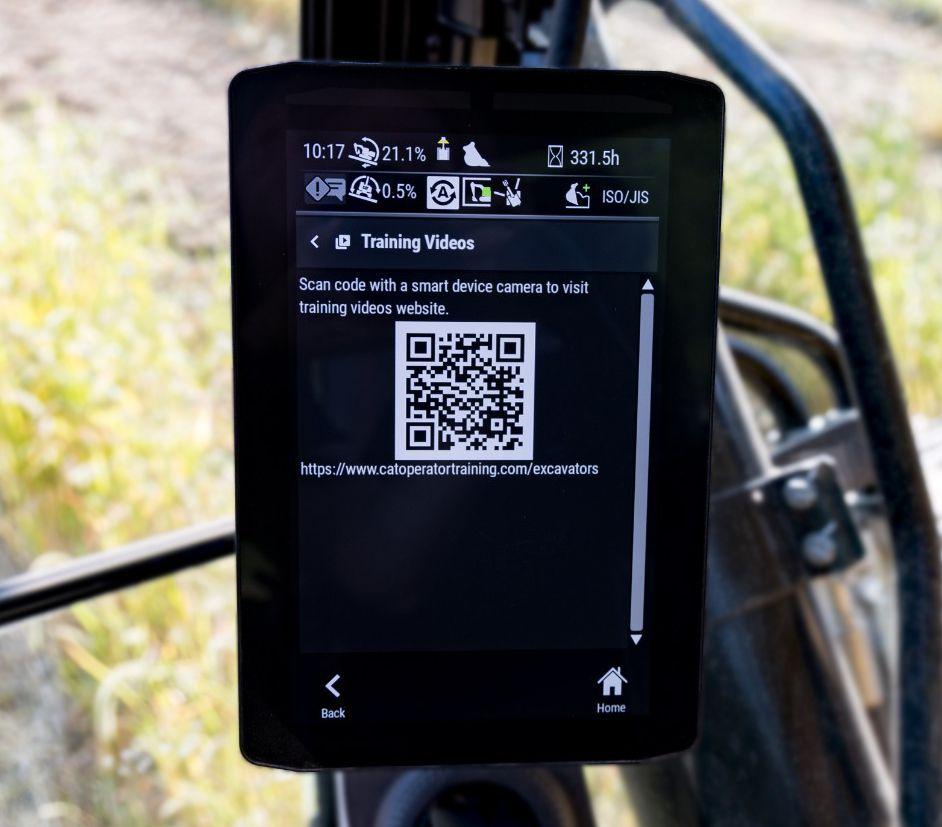

Use the in-monitor QR code to learn about machine and technology features through a full suite of “how-to” videos.

Not all features are available in all regions. Please check with your local Cat® dealer for specific offering availability in your area. Build Number: 07H

Use less fuel than the 315F to keep you moving and productive on the jobsite.

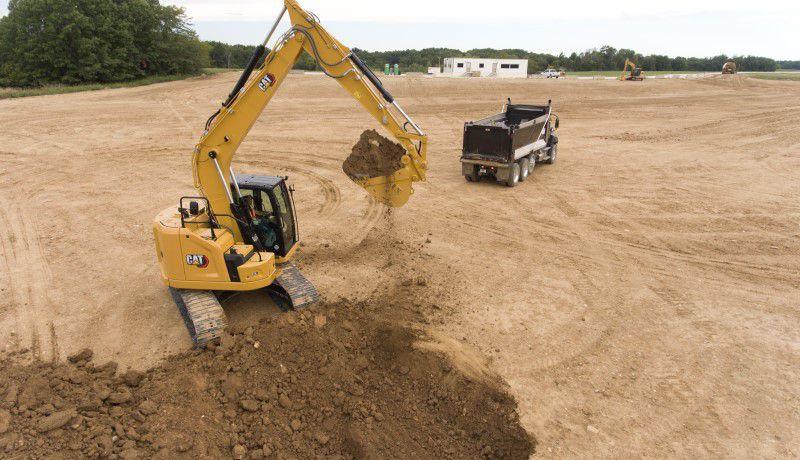

Work confidently in space-restricted areas. Dig, swing, and dump within a working space of 3.96 m (12 ft 11 in).
Easily work on slopes and move around the jobsite with excellent swing torque.
The advanced hydraulic system provides the optimum balance of power and efficiency while providing the control needed for precise digging requirements.
Smart mode meets your power needs by automatically matching engine and hydraulic power to digging conditions.
Get higher production in demanding applications, easier penetration into piles, and faster cycle times with Cat® Advansys™ bucket tips. Quickly change tips with a simple lug wrench instead of a hammer or special tool, improving safety and uptime.

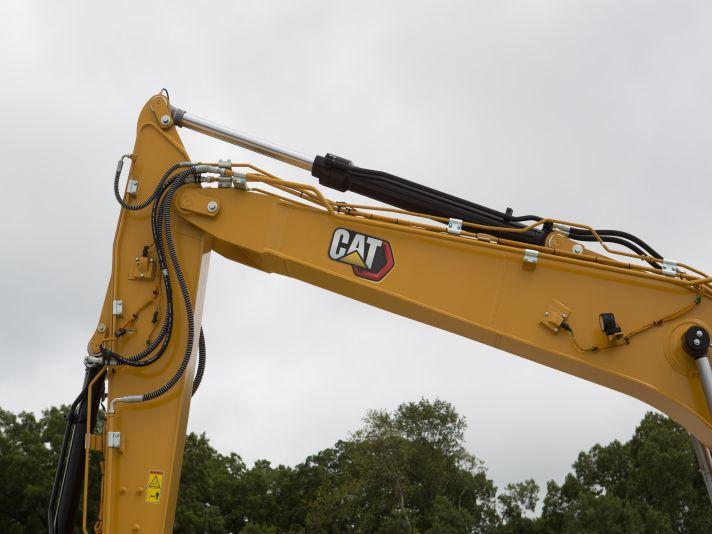

Auxiliary hydraulic options give you the versatility to use a wide range of Cat attachments.
The Cat C3.6 engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.

Expect lower maintenance costs compared to the 315F.

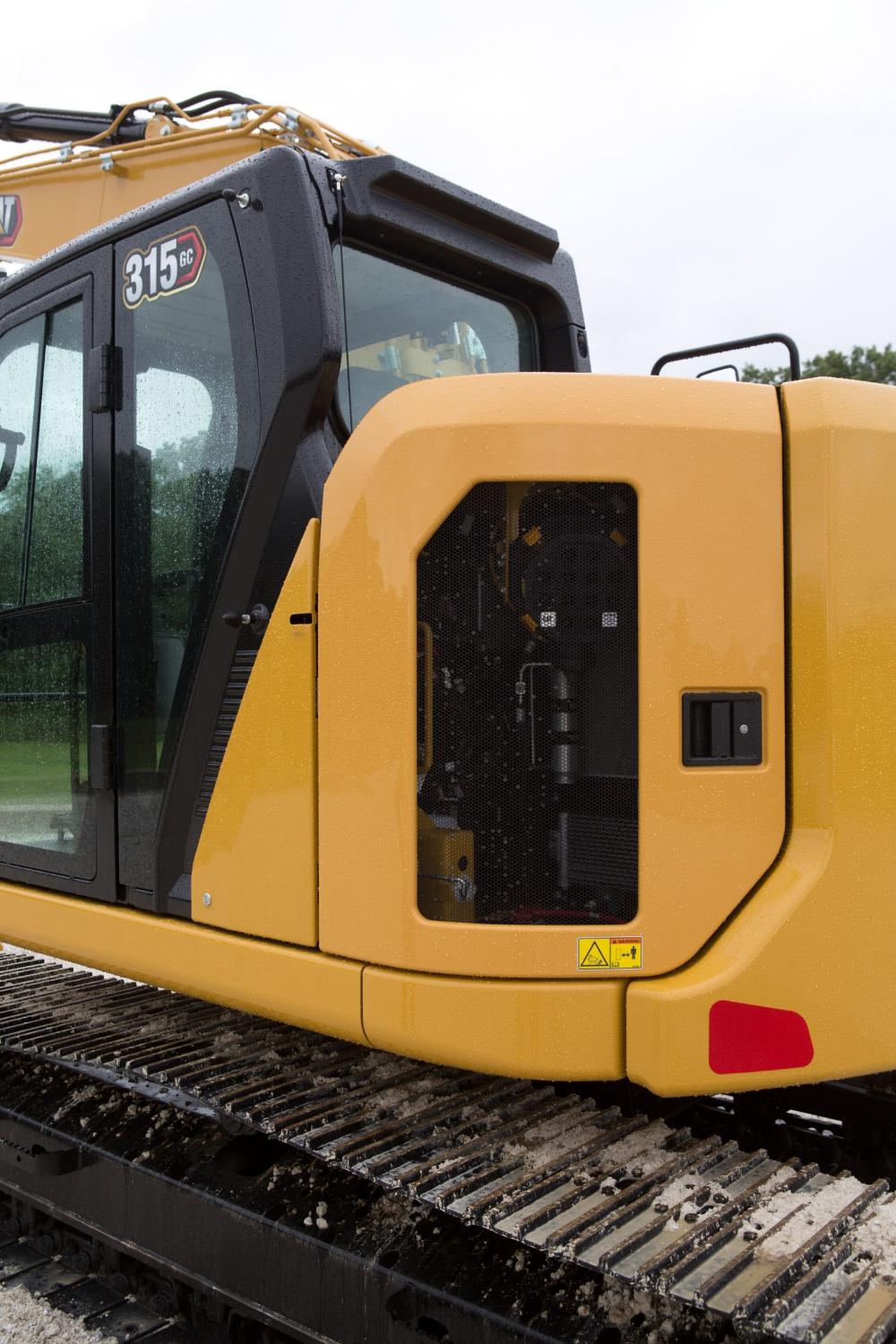

Quickly check and service your machine with all daily maintenance points accessible from ground level.
Check the engine oil level quickly and safely from the ground. Fill and check engine oil on top of the machine with a conveniently located second dipstick.
The hydraulic oil filter provides improved filtration performance, anti-drain valves to keep oil clean when the filter is replaced, and longer life with a 3,000-hour replacement interval – 50% longer than previous filter designs.
Track your machine’s filter life and maintenance intervals on the in-cab monitor.
Boost productivity with proactive service reminders. The Integrated Vehicle Health Management system alerts the operator with step-by-step service guidance along with parts needed so you don't experience any unnecessary downtime.
S·O·S^SM ports are located at ground level, simplifying maintenance and allowing for quick, easy extraction of fluid samples for analysis.

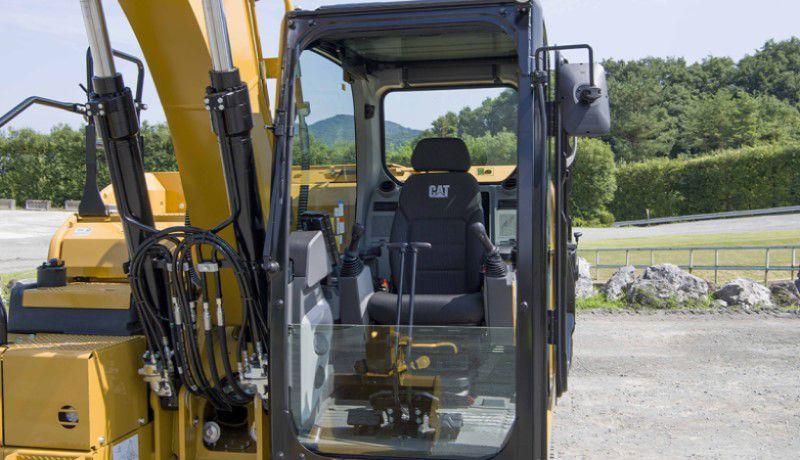

Increase operator productivity with a comfortable, large cab.
The cab has a wide seat that adjusts for operators of all sizes.
Get in and out of the cab easier using the tip-up left console.
Advanced viscous mounts reduce cab vibration.
Control the excavator comfortably with easy-to-reach controls, all located in front of you.
Stow your gear with plenty of in-cab storage beneath and behind the seat, overhead, and in the consoles. A cup holder, document holder, and coat hook are also provided.
Use the standard radio’s USB ports and Bluetooth® technology to connect personal devices and make hands-free calls.

Don’t let the temperature stop you from working. The 315 GC has a standard high-ambient temperature capability of 52° C (125° F) without derate and cold-start capability of -25° C (-13° F).
Auto warm up speeds up hydraulic oil warming in cold temperatures and helps prolong the life of components.
Grease sealed between track pins and bushings reduces travel noise and prevents debris from entering to increase undercarriage life.
The track guiding guard helps keep the excavator track aligned when traveling and working on slopes.
The sloped track frame prevents mud and debris accumulation, helping reduce the risk of track damage.

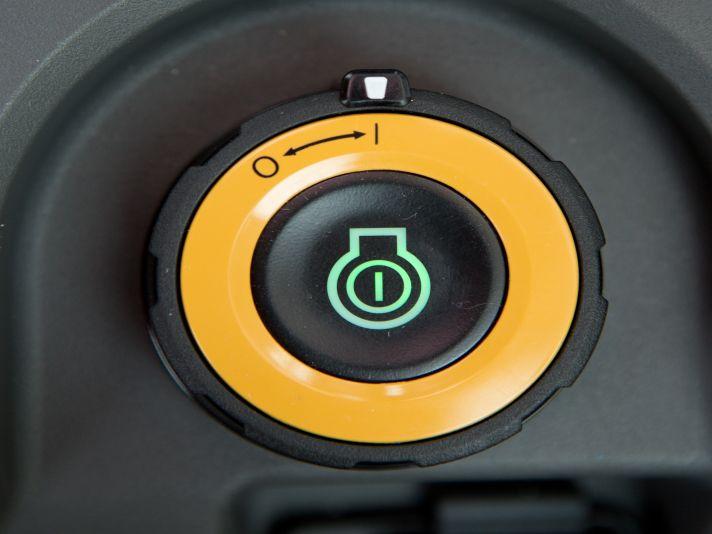

Start the engine with the push of a button or the unique Operator ID function.
Program your preferred power mode and joystick settings using your operator ID. The excavator will automatically remember your selections.
Navigate quickly on the standard high-resolution touchscreen monitor or with the aid of the jog dial control.
Continuously improved user interface allows for intuitive navigation, minimizing performance interruption with the easy-to-use touchscreen menu.
Use the in-monitor QR code to learn about machine and technology features through a full suite of “how-to” videos.
The Cat® PL161 attachment locator allows you to track attachments across all worksites, reduce the number of lost attachments, and plan for attachment maintenance and replacement.
Save more time and energy with the available work tool recognition feature. A simple shake of the attached tool confirms its identity and ensures all the attachment settings (pressure, flow, and dimensions) are correct so you can work quickly and efficiently.
Not sure how a function works or how to maintain your machine? Simply access the operator’s manual through the touchscreen monitor.
Continuously improved user interface allows for intuitive navigation, minimizing performance interruption with the easy-to-use touchscreen menu.
Use the in-monitor QR code to learn about machine and technology features through a full suite of “how-to” videos.

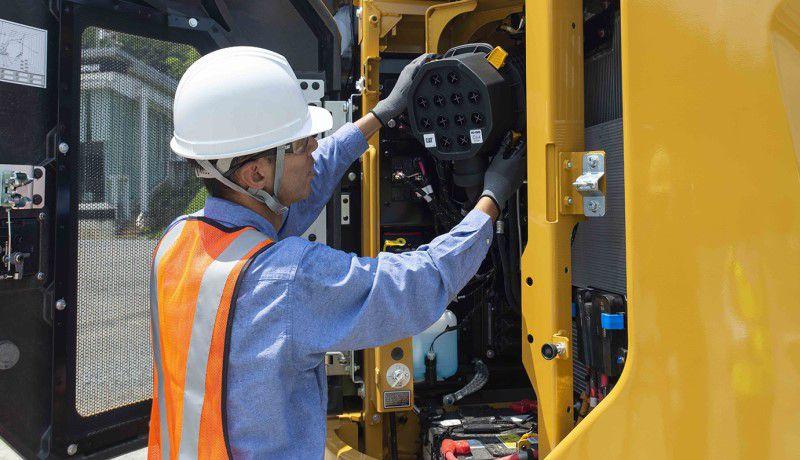

Access all daily maintenance points from ground level – no need for you to climb on top of the machine.
The standard ROPS cab meets ISO 12117-2:2008 requirements.
Small cab pillars, large windows, and a wide skylight hatch provide greater vertical visibility.
The standard hydraulic lockout lever isolates all hydraulic and travel functions in the lowered position.
A ground-level shut-off switch stops all fuel to the engine and shuts down the machine when activated.
A rearview and right-side-view camera are standard, helpin to increase safety and visibility.

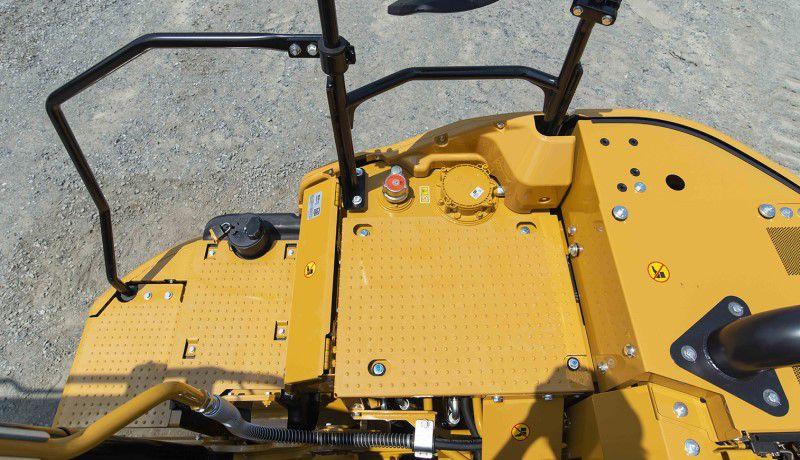

The service platform design provides easy, safe, and quick access to the upper service platform. Prevent slipping with the anti-skid punch plate on the platform steps.
Optional boom and stick lowering check valves prevent reverse flow, keeping your front linkage securely in place should the hydraulic system unexpectedly lose power.
Brightly colored seatbelts allow easy recognition of properly utilized safety restraints.
Enhance jobsite safety. Add a swing alarm to alert people when you're rotating from trench to stockpile and back again.
Make service work easier and safer with optional inspection lighting. With the flip of a switch, lights will illuminate the engine, pump, battery, and radiator compartments to enhance visibility.

VisionLink® provides actionable data insights for all assets - regardless of fleet size or equipment manufacturer.* Review equipment data from your desktop or mobile device to maximize uptime and optimize assets. Dashboards provide information such as hours, miles, location, idle time, and fuel utilization. Make informed decisions that lower costs, simplify maintenance, and improve safety and security on your jobsite.
VisionLink® Productivity gathers and summarizes machine telematics and jobsite data from all your equipment – regardless of the manufacture.* View actionable information such as idle time, fuel burn, location, payload, load counts, total cycles, and more to improve machine efficiency, productivity, and utilization. Access data anywhere via a mobile, tablet, or desktop device - on or off the jobsite.
Cat® Remote Flash is a mobile application that allows you to update onboard software without a technician being present, allowing you to initiate software updates when convenient, increasing your overall operating efficiency.

*Data field availability can vary by equipment manufacturer.

The Cat® C3.6 engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
The 315 GC emits lower CO2 emissions compared to the 315F.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels.Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations" (SEBU6250) for details.
Auto Engine Speed Control reduces unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
Cat Scheduled Oil Sampling Services helps reveal excessive wear, contaminated fluids or other "unseen" issues that can shorten component life. In many cases, you can extend oil and coolant change intervals by using fluid monitoring. Consult your Cat dealer or the machine's operation and maintenance manual for more information.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
Cat VisionLink® displays the CO2 emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
Cat® Remote Troubleshoot is a mobile application that allows your Cat dealer to perform diagnostic testing on your connected machine remotely to help ensure that issues are resolved quickly and with less downtime.
Cat® Remote Flash is a mobile application that allows you to update onboard software without a technician being present, allowing you to initiate software updates when convenient, increasing your overall operating efficiency.
Cat® Reman parts are a sustainable choice. New Cat parts are designed with the potential to have more than one life, so Cat Reman parts are truly remanufactured not just repaired, rebuilt or reconditioned. Because the process ensures the latest design changes are incorporated into Cat Reman parts, you get like new quality and outstanding performance at lower cost.

*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).
** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.

Net Power - ISO 9249	73.3 kW	98 hp
Engine Model	Cat C3.6
Engine Power - ISO 14396	74.4 kW	100 hp
Engine Power - ISO 14396 (DIN)	101 hp (metric)	101 hp (metric)
Net Power - ISO 9249 (DIN)	100 hp (metric)	100 hp (metric)
Bore	98 mm	4 in
Stroke	120 mm	5 in
Displacement	3.6 l	220 in³
Biodiesel Capability	Up to B20¹
Emissions	Meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards
Note (1)	Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system and alternator with engine speed at 2,400 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture.
Note (2)	¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations“ (SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.

Maximum Digging Depth	5990 mm	19.7 ft
Boom	Reach 4.65 m (15'3")
Stick	Reach R3.0 m (9'10")
Bucket	GD 0.68 m³ (0.89 yd³)
Maximum Reach at Ground Level	8690 mm	28.5 ft
Maximum Cutting Height	9690 mm	31.8 ft
Maximum Loading Height	7220 mm	23.7 ft
Minimum Loading Height	2080 mm	6.8 ft
Maximum Depth Cut for 2440 mm (8 ft) Level Bottom	5810 mm	19.1 ft
Maximum Vertical Wall Digging Depth	5180 mm	17 ft
Minimum Working Equipment Radius	2240 mm	7.3 ft
Bucket Digging Force - ISO	98.67 kN	22180 lbf
Stick Digging Force - ISO	59.29 kN	13330 lbf

Main System - Maximum Flow	247 L/min (65 gal/min)
Maximum Pressure - Equipment	35000 kPa	5075 psi
Maximum Pressure - Travel	35000 kPa	5075 psi
Maximum Pressure - Swing	26000 kPa	3770 psi

Swing Speed	11.5 r/min	11.5 r/min
Maximum Swing Torque	35 kN·m	25815 lbf·ft

Fuel Tank Capacity	187 l	49.4 gal (US)
Cooling System	15 l	4 gal (US)
Engine Oil	8 l	2.1 gal (US)
Final Drive - Each	3 l	0.8 gal (US)
Hydraulic System - Including Tank	85 l	22.5 gal (US)
Hydraulic Tank	72 l	19 gal (US)

Boom	Reach 4.65 m (15'3")
Stick	Reach R3.0 m (9'10")
Bucket	GD 0.68 m³ (0.89 yd³)
Shipping Height - Top of Cab	2810 mm	9.3 ft
Handrail Height	2860 mm	9.4 ft
Shipping Length	7440 mm	24.5 ft
Shipping Length - with Blade	8010 mm	26.3 ft
Tail Swing Radius	1570 mm	5.2 ft
Counterweight Clearance	880 mm	2.9 ft
Ground Clearance	440 mm	1.4 ft
Track Length	3750 mm	12.3 ft
Length to Center of Rollers	3040 mm	10 ft
Track Gauge	1990 mm	6.5 ft
Transport Width	2690 mm	8.8 ft

Detalle Productos Cat

315 GC Hydraulic Excavator

LOWER FUEL CONSUMPTION

LOWER MAINTENANCE COSTS

ENHANCED COMFORT

LOWER CO2 EMISSIONS

Latest Features

High Performance

Low Maintenance Costs

Work in Comfort

Reliable, Whatever the Environment

Simple to Operate

Safety

Take the Guesswork out of Managing Your Equipment

Sustainability

Engine

Weights

Working Ranges and Forces

Hydraulic System

Swing Mechanism

Service Refill Capacities

Dimensions

Air Conditioning System

You might also be interested in:

313

313 GC - Tier 4 / Stage V

315

317

317 GC

Compatible products:

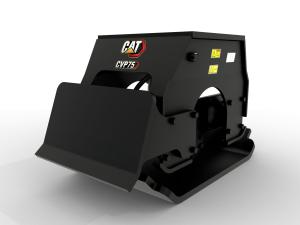

CVP75

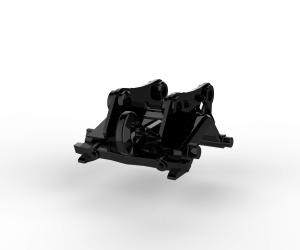

CW20
