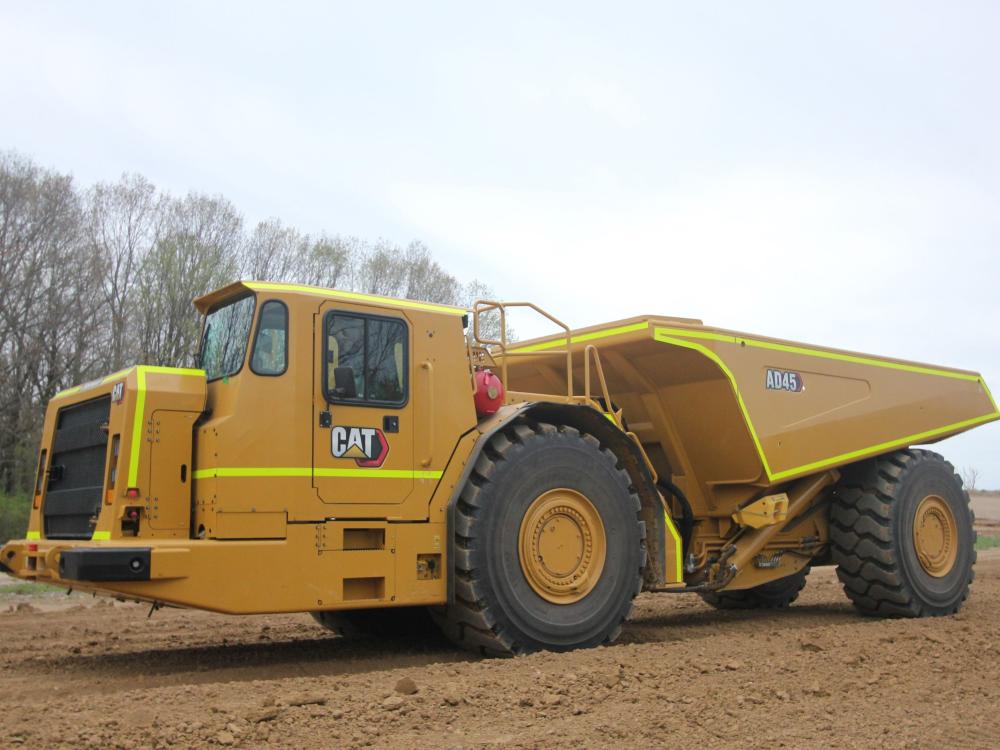

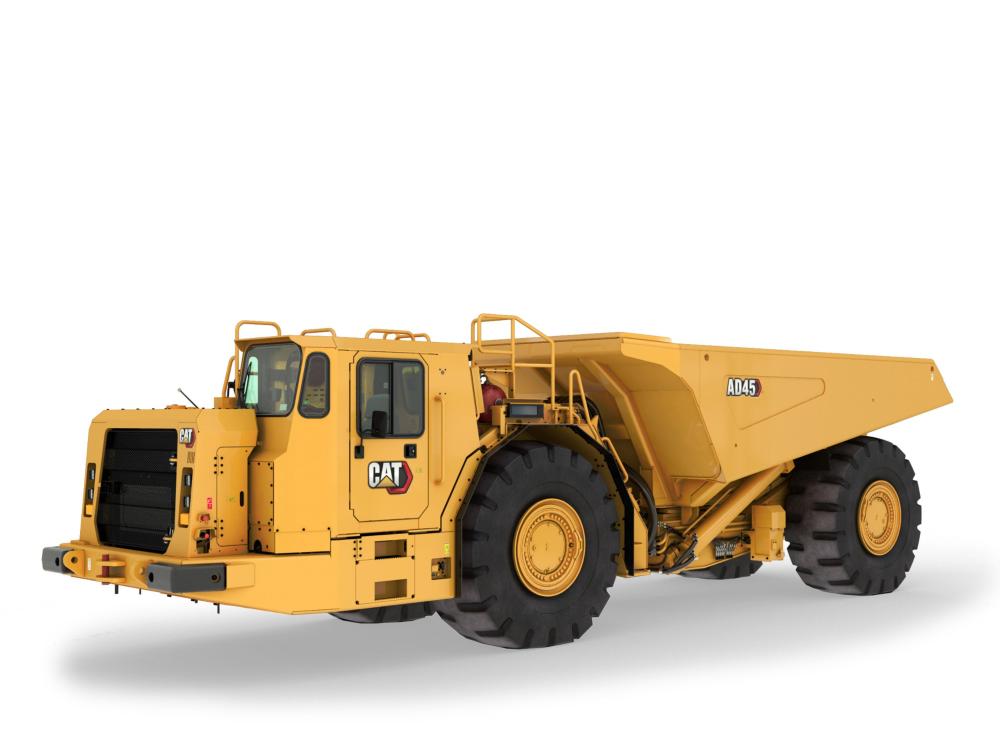

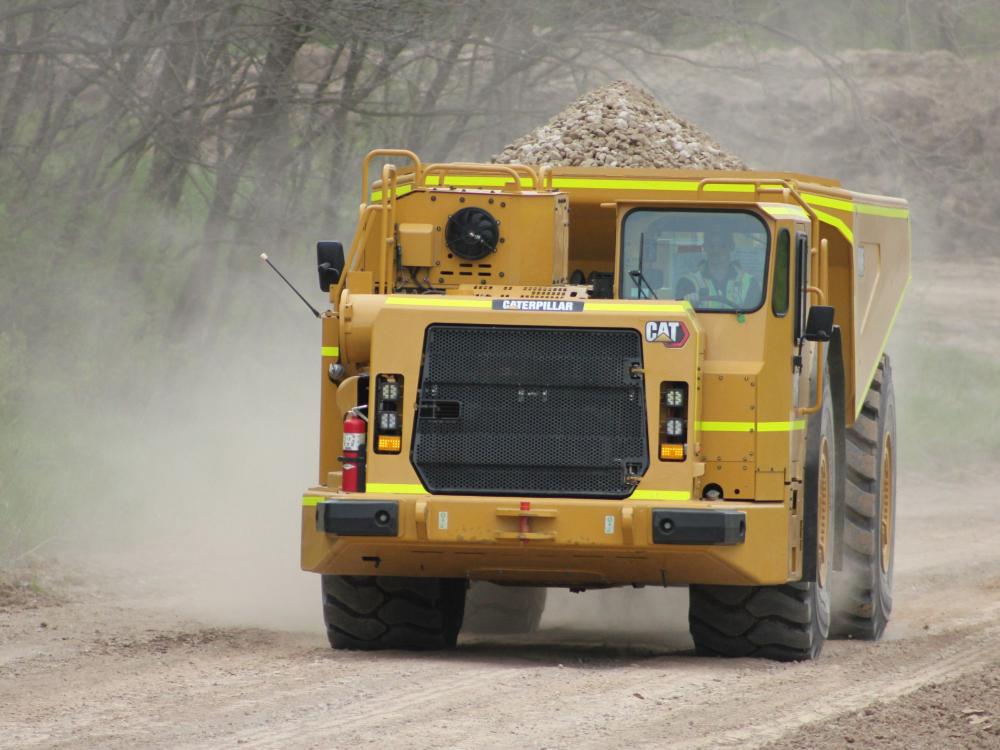

SAFETY
OPERATOR COMFORT & CONTROL
PRODUCTIVITY & PERFORMANCE
POWER & EFFICIENCY
TRUCK BODIES
RELIABILITY & DURABILITY
SERVICEABILITY
INTELLIGENT ELECTRONICS
SUSTAINABILITY
- Standard Operator Present System, which protects the machine and operator from uncontrolled machine movements, with hydraulic system neutralization and door sensor.
- Optional reverse and cab loading cameras, plus additional camera mounted on the right-hand side to enhance visibility for the EU Stage V model.
- Safer access and egress with anti-skid upper deck surfaces, upper deck handrails and 3-point cabin and machine access.
- Four corner oil-cooled braking system that provides excellent control, with service brake system actuated by hydraulic pressure and parking brake function that is spring applied and hydraulic released to ensure braking in the event of loss of hydraulic failure.
- Safer service with service with steering frame lock, body retaining pins, exhaust heat shielding and firewall fitted, hitch hydraulic hoses fitted with burst protection sleeves, tailgate retaining pins (ejector body), and hot and cold side of engine.
- Controls, levers, switches and gauges positioned to maximize productivity and minimize fatigue.
- Optional sound-suppressed ROPS cab for a quiet, secure and comfortable air-conditioned working environment with fresh, pressurized, temperature-controlled air circulation.
- Ergonomic, fully adjustable suspension seat with thick cushions that reduce pressure on lower back and thighs and wide, retractable seat belts that provide a secure, comfortable restraint.
- Comfort wheel with tilt steering that provides a comfortable driving position, secure grip and greater control.
- Rollover Protective Structure (ROPS) and Falling Objects Protective Structure (FOPS) resiliently mounted to the mainframe to isolate the operator from vibration for a more comfortable ride.
- Truck Payload Measurement System, which automatically records load cycle information when the load is dumped, giving operators real-time loading data and sorting it for download.
- Automatic Retarder Control (ARC) electronically controls retarding on grade, allowing the operator to maintain optimum engine speeds for faster downhill hauls and greater productivity.

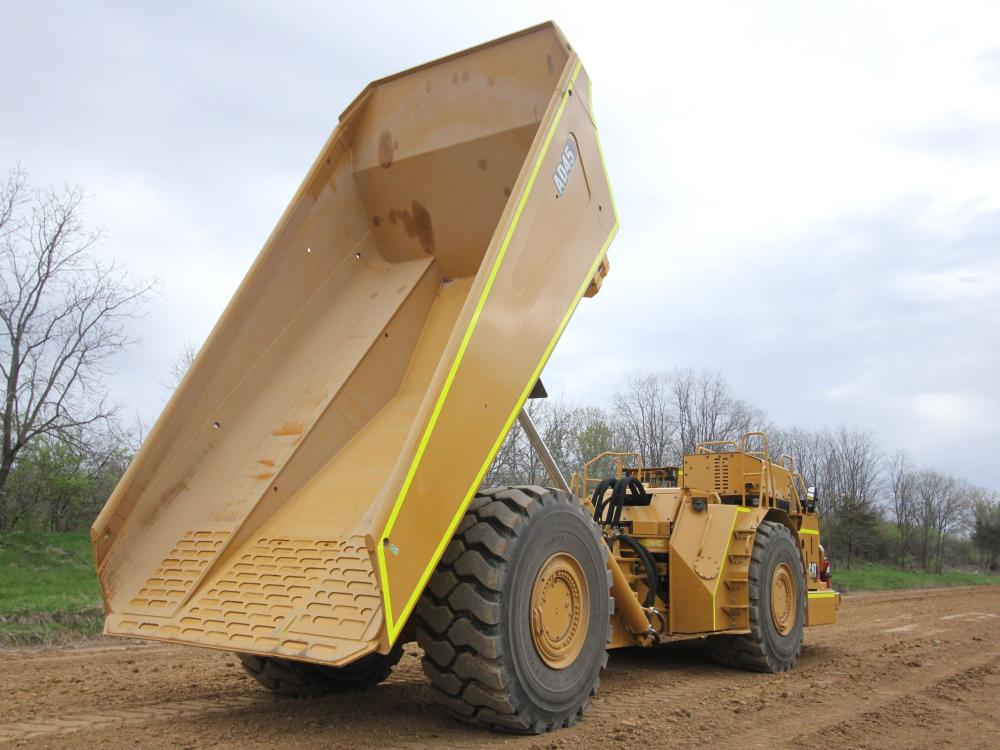

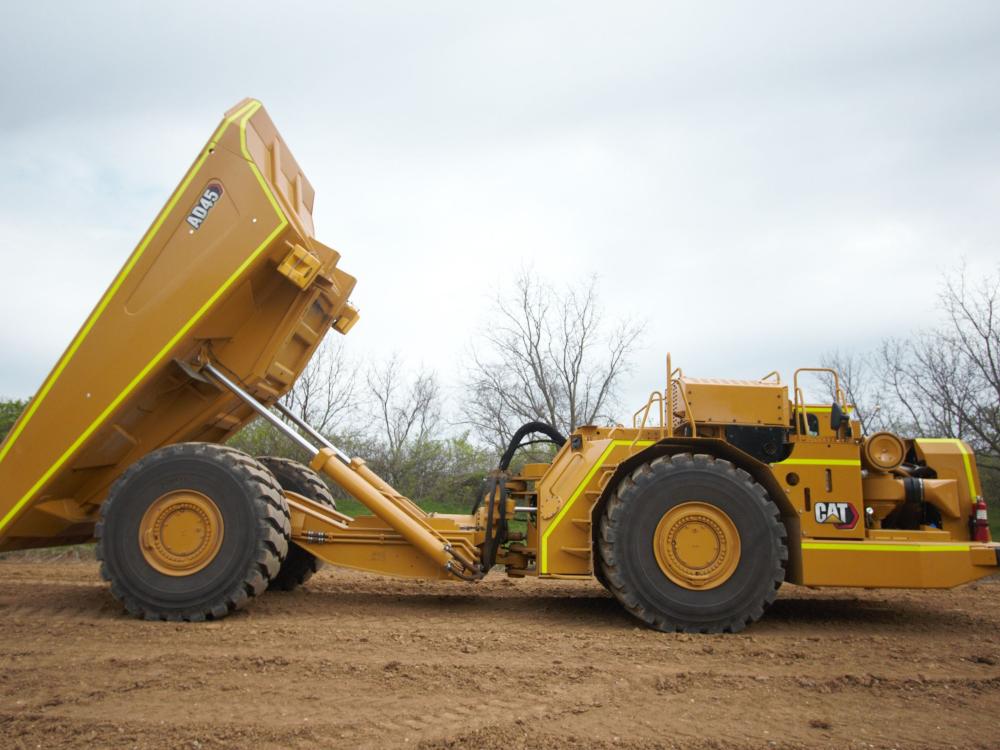

- Single-stage hoist cylinders that provide fast dump cycle times of 16 seconds for raise and 21 seconds for lower.

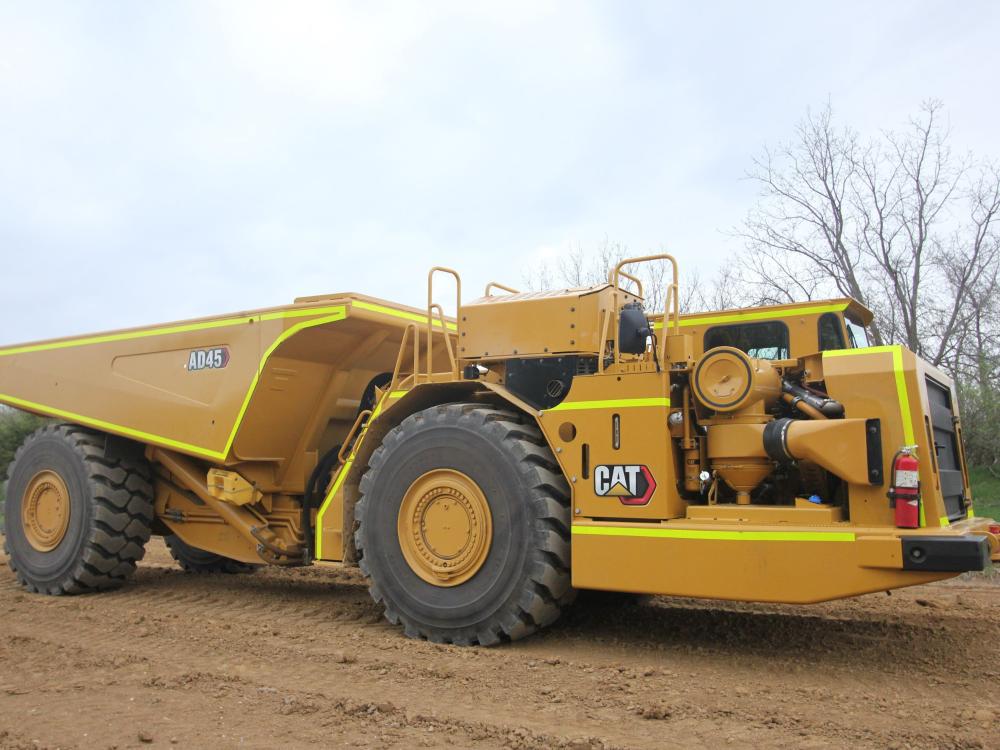

- Cat C18 engine, which provides efficient fuel management for quick response, high productivity and exceptional service life.
- Torque rise that effectively matches transmission shift points for maximum efficiency and fast cycle times.
- Lockup Torque Converter combines maximum rimpull while in torque converter drive with the efficiency and performance of direct drive when the lockup clutch is engaged.
- Mechanically Actuated, Electronic Unit Injection (MEUI™) high-pressure, direct injection fuel system, which electronically monitors operator demands and sensor inputs to optimize engine performance and fuel combustion.
- Cat seven-speed planetary power shift transmission matched with the direct-injection Cat C18 engine to deliver constant power over a wide range of operating speeds.

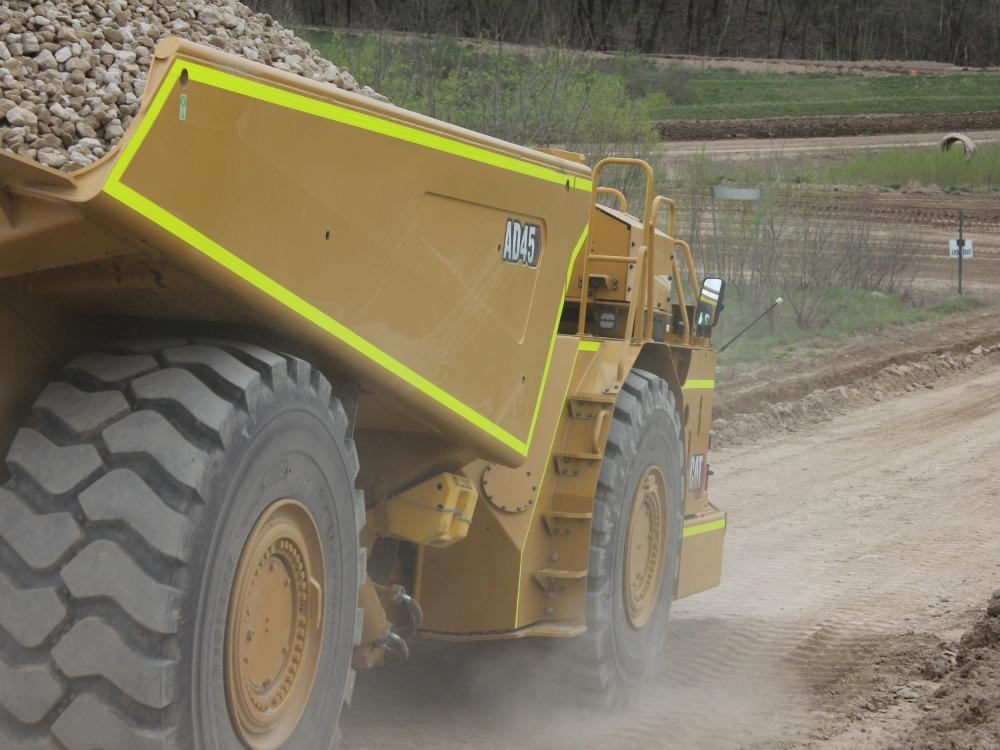

- Cat truck bodies designed for optimal strength, capacity and durability.
- Designed and matched with the integrated chassis system for optimum structural reliability, durability and long life.
- Two Cat body styles, dump body and ejector body, for the most efficient hauling solution at the lowest cost per ton.
- Greater versatility with ejector body that can be easily removed and a dump body fitted.
- Box-section frame design with stiff frame beams to resist twisting forces; weld joint and materials matched to optimize structural life.
- Full floating axles that relieve internal stresses and increase durability, plus rolled splines that provide increased service life.
- Two independent variable rebound suspension cylinders that dissipate haul road forces for longer frame life and a comfortable ride.
- Proven planetary power shift transmission built for long life between overhauls.
- Frame, powertrain, engine and components that are built to be rebuilt, delivering second and third lives.
- Ground-level access to all tanks, filters, lubrication points and compartment drains; remote mounted fuel filters for easier serviceability; and fluid-level sight gauges.
- Radial seal air filters that are easy to change, reducing time required for air filter maintenance.
- Electrical connectors that are sealed to lock out dust and moisture, harnesses that are covered for protection, and wires that are color- and number-coded for easy diagnosis and repair.
- Cat Electronic Technician (ET), which enables quick electronic diagnosis of machine performance and key diagnostic data for effective maintenance and repairs.
- Cat Electronic Monitoring System (EMS), which provides continuous access to critical machine data to keep the machine performing at a high level.
- Smoother shifts and longer component life with Controlled Throttle Shifting, which regulates engine RPM, torque converter lock-up and transmission clutch engagement.
- Reduced fuel consumption, decreased noise levels and potential for longer engine life with Economy Shift Mode.
- Machine damage prevented by directional shift management, which regulates engine speed to avoid high-speed directional changes; and body-up shift inhibitor, which prevents the transmission from shifting above a pre-programmed gear without the body fully lowered.
- Overspeed protection provided by Automatic Retarder Control, which engages the brakes if an unsafe engine speed is reached when the throttle is being depressed by the operator.
- Engine with EU Stage V emissions package for mines that require compliance with highest emission standards to drive down diesel particulate matter and NOx emission to near-zero while improving overall air quality and maintaining a high machine performance; also available with EU Stage IIIA /U.S. EPA Tier 3 engine.
- Optional Ventilation Reduction (VR) Package, which incorporates selective engine hardware and software to reduce diesel particulate matter in the engine exhaust and deliver a significant ventilation rate reduction, a decrease in fuel consumption, and maintained or improved product performance.
- Cat Diesel Particulate Filter, which complements the VR engine by further reducing particulate matter in the exhaust.
- Ongoing research and development into engine compatibility with diesel fuel blended with lower-carbon intensity fuels such as biofuels and renewable fuels, plus power options like electrification.
- Cat Rebuild and Cat Reman programs, which preserve raw materials, conserve energy and reduce emissions, plus retrofits and upgrades for older machines to incorporate efficiency improvements and emission reductions.
Engine
| Engine Model |
Cat® C18 |
| Engine Power - EU Stage V Engine - ISO 14396:2002 |
446 kW |
598 hp |
| Engine Power - Tier 3 Engine - ISO 14396:2002 |
433 kW |
581 hp |
| Engine Power - VR Engine - ISO 14396:2002 |
433 kW |
581 hp |
| Bore |
145 mm |
5.7 in |
| Stroke |
183 mm |
7.2 in |
| Displacement |
18.1 l |
1104.53 in³ |
| Note (1) |
Power ratings apply at a rated speed of 2,000 rpm when tested under the reference conditions for the specified standard. |
| Note (2) |
All rating conditions are based on ISO/TR14396:2002, inlet air standard conditions with a total barometric pressure of 100 kPa (29.5 in Hg), with a vapor pressure of 1 kPa (0.295 in Hg), and 25° C (77° F). Performance measured using fuel to EPA specifications in 40 CFR Part 1065 and EU specifications in Directive 97/68/EC with a density of 0.845-0.850 kg/L @ 15° C (7.05-7.09 lb/gal @ 59° F) and fuel inlet temperature 40° C (104° F). |
| Note (3) |
Minimal engine derating* required up to 3048 m (10,000 ft) @ rated speed for Stage V engines, 2700 m (8,858 ft) for Tier 3/Stage IIIA equivalent engines and 3505 m (11,500 ft) for Tier 2/Stage II equivalent VR engines. |
| Note (4) |
Optional Ventilation Reduction Package available. |
| Note (5) |
Optional engine with emissions equivalent to Tier 3 and Stage IIIA is also available. |
| Note (6) |
Optional engine available that meets U.S. EPA Tier 4 Final and EU Stage V emission standards. |
| Note (7) |
*<5 % |
Operating Specifications
| Nominal Payload Capacity |
45000 kg |
99208 lb |
| Gross Machine Mass |
89250 kg |
196765 lb |
| Shipping Mass (Stage V Engine Model) |
43645 kg |
96225 lb |
| Shipping Mass (Other Engine Models) |
42825 kg |
94415 lb |
| Body Capacities |
18.0-25.1 m³ (23.5-32.8 yd³) |
Weights (Stage V Engine Model)
| Operating Mass |
41405 kg |
91285 lb |
| Operating Mass - Front Axle |
29285 kg |
64565 lb |
| Operating Mass - Rear Axle |
12120 kg |
26720 lb |
| Operating Mass + Rated Payload |
86405 kg |
190495 lb |
| Operating Mass + Rated Payload - Front Axle |
40475 kg |
89235 lb |
| Operating Mass + Rated Payload - Rear Axle |
45930 kg |
101260 lb |
Weights (Other Engine Models)
| Operating Mass |
40060 kg |
88320 lb |
| Operating Mass - Front Axle |
27770 kg |
61225 lb |
| Operating Mass - Rear Axle |
12290 kg |
27095 lb |
| Operating Mass + Rated Payload |
85060 kg |
187530 lb |
| Operating Mass + Rated Payload - Front Axle |
38715 kg |
85355 lb |
| Operating Mass + Rated Payload - Rear Axle |
46345 kg |
102175 lb |
Weight Distribution (Stage V Engine Model)
| Empty - Front Axle |
70.7% |
| Empty - Rear Axle |
29.3% |
| Loaded - Front Axle |
46.8% |
| Loaded - Rear Axle |
53.2% |
Weight Distribution (Other Engine Models)
| Empty - Front Axle |
69.3% |
| Empty - Rear Axle |
30.7% |
| Loaded - Front Axle |
45.5% |
| Loaded - Rear Axle |
54.5% |
Body Hoist (Stage V Engine Model)
| Raise |
15 Seconds |
| Lower |
21 Seconds |
| Total Cycle Time |
36 Seconds |
Body Hoist (Other Engine Models)
| Raise |
14 Seconds |
| Lower |
21 Seconds |
| Total Cycle Time |
35 Seconds |
Body Capacities
| Dump Body - 1 |
18 m³ |
23.6 yd³ |
| Dump Body - 2 - Standard |
21.3 m³ |
27.9 yd³ |
| Dump Body - 3 |
25.1 m³ |
32.8 yd³ |
| Ejector Body |
22.9 m³ |
29.9 yd³ |
| Note |
Heaped SAE 2:1. |
Turning Dimensions
| Outside Clearance Radius* |
9420 mm |
371 in |
| Inside Clearance Radius* |
5310 mm |
209 in |
| Frame Oscillation |
10° |
| Articulation Angle |
42.5° |
| Note |
*Clearance dimensions are for reference only. |
Transmission
| Forward - 1 |
7 km/h |
4.4 mile/h |
| Forward - 2 |
9.5 km/h |
5.9 mile/h |
| Forward - 3 |
12.9 km/h |
8 mile/h |
| Forward - 4 |
17.3 km/h |
10.8 mile/h |
| Forward - 5 |
23.5 km/h |
14.6 mile/h |
| Forward - 6 |
31.7 km/h |
19.7 mile/h |
| Forward - 7 |
42.4 km/h |
26.4 mile/h |
| Reverse - 1 |
6.8 km/h |
4.2 mile/h |
| Reverse - 2 |
9 km/h |
5.6 mile/h |
| Note |
Maximum travel speeds with standard 29.5 × R29 tires. |
Service Refill Capacities
| Engine Crankcase - With Filter |
64 l |
16.9 gal (US) |
| Transmission |
60 l |
15.9 gal (US) |
| Hydraulic Tank |
266 l |
70.3 gal (US) |
| Cooling System |
85 l |
22.5 gal (US) |
| Front Differential and Final Drives |
77 l |
20.3 gal (US) |
| Rear Differential and Final Drives |
83 l |
21.9 gal (US) |
| Fuel Tank |
764 l |
201.8 gal (US) |
Standards
| Standards |
ROPS/FOPS Certified Cab |
Final Drives
| Differential Ratio |
3.46:1 |
| Final Drive Ratio |
5.65:1 |
| Total Reduction Ratio |
19.55:1 |
