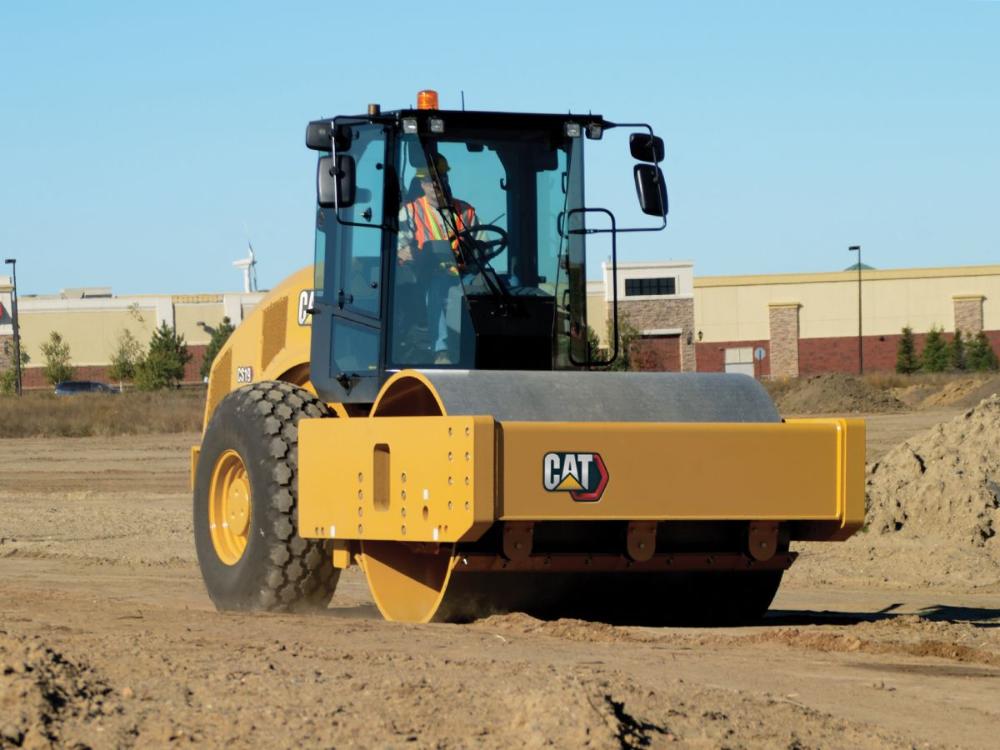

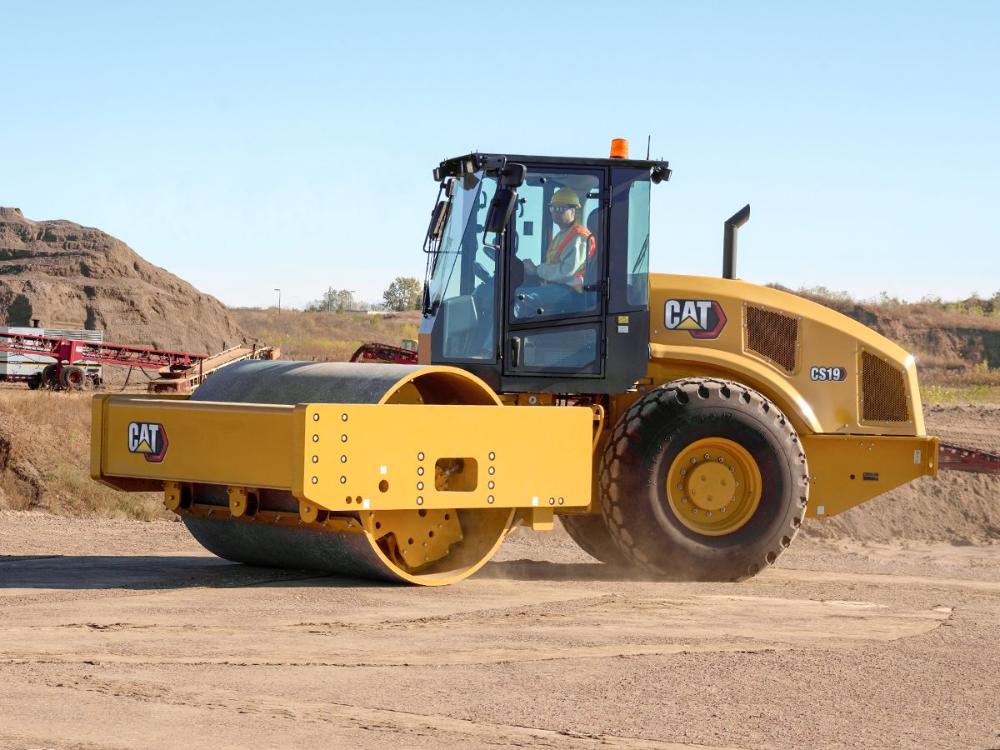

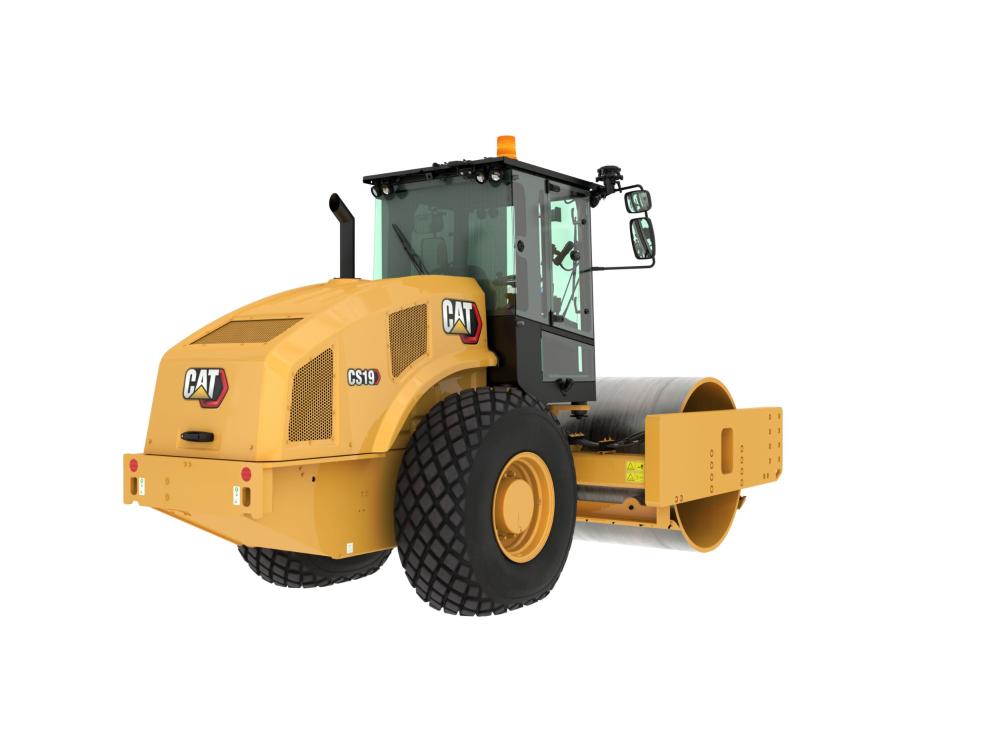

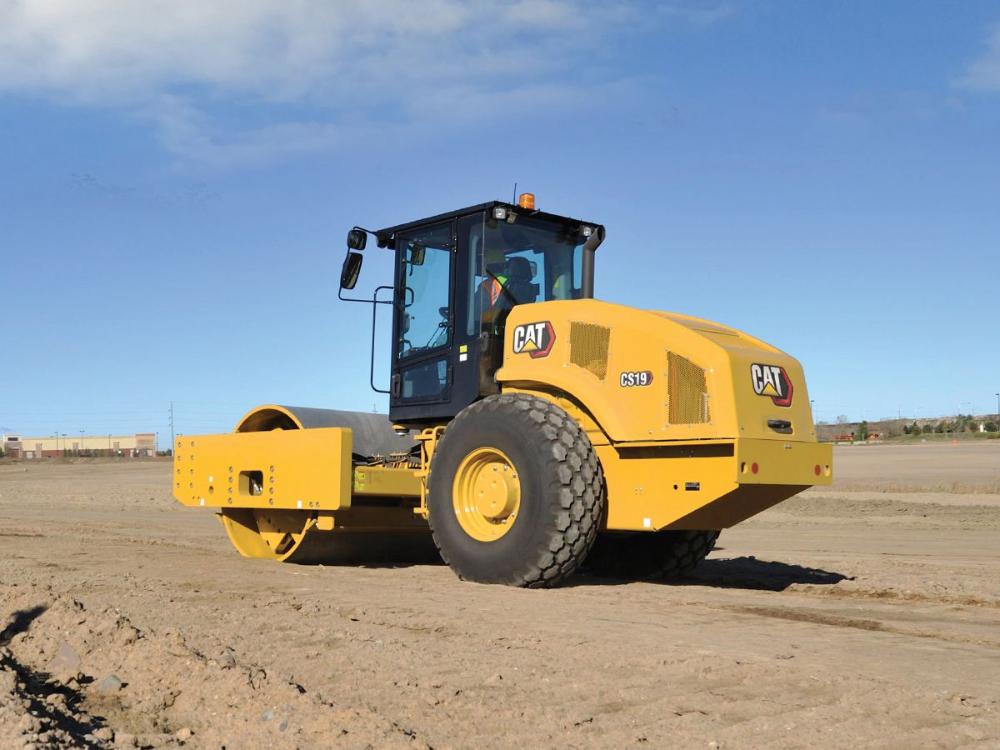

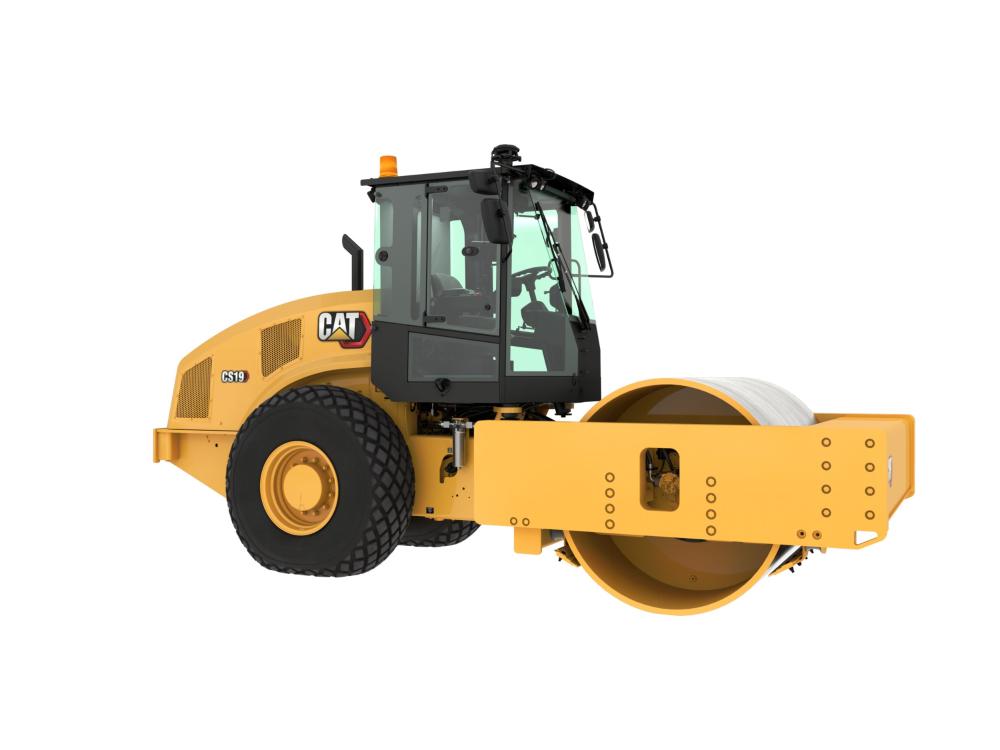

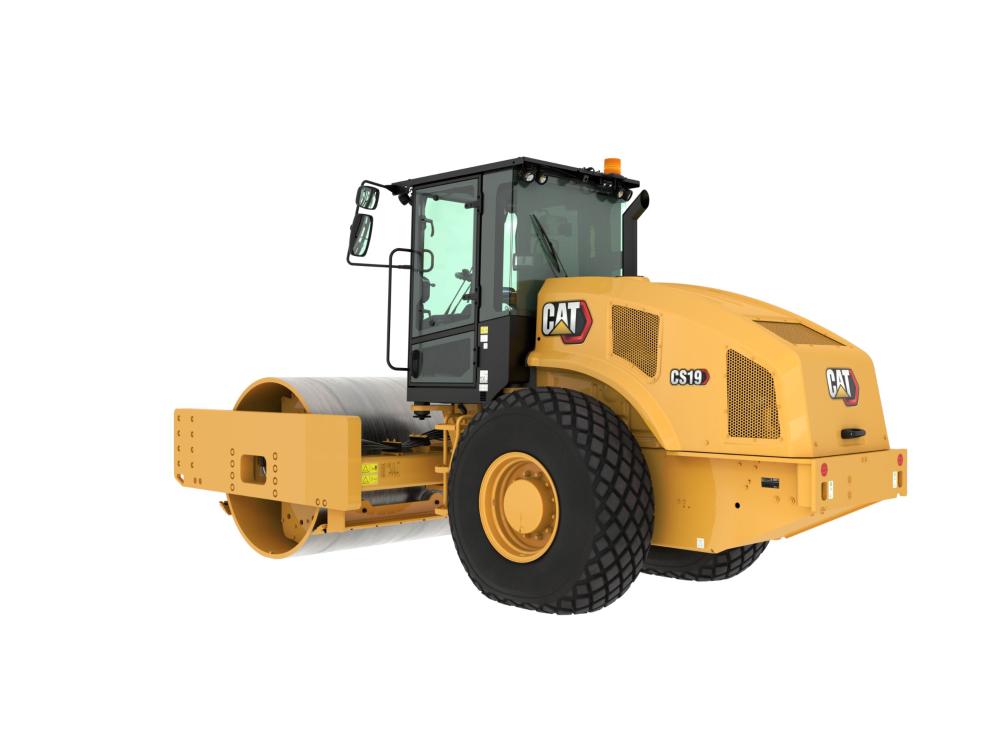

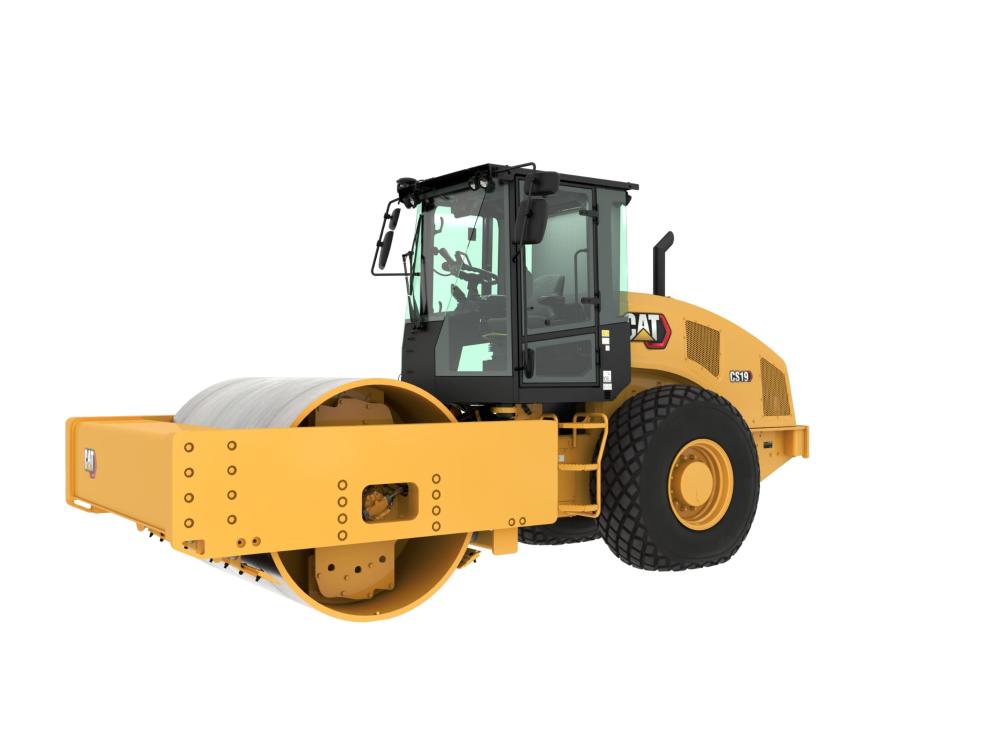

Efficient Power
Exceptional Compaction Performance
Safe and Comfortable Work Environment
Enhance Quality and Productivity with Technology
Virtually Maintenance Free
Sustainability

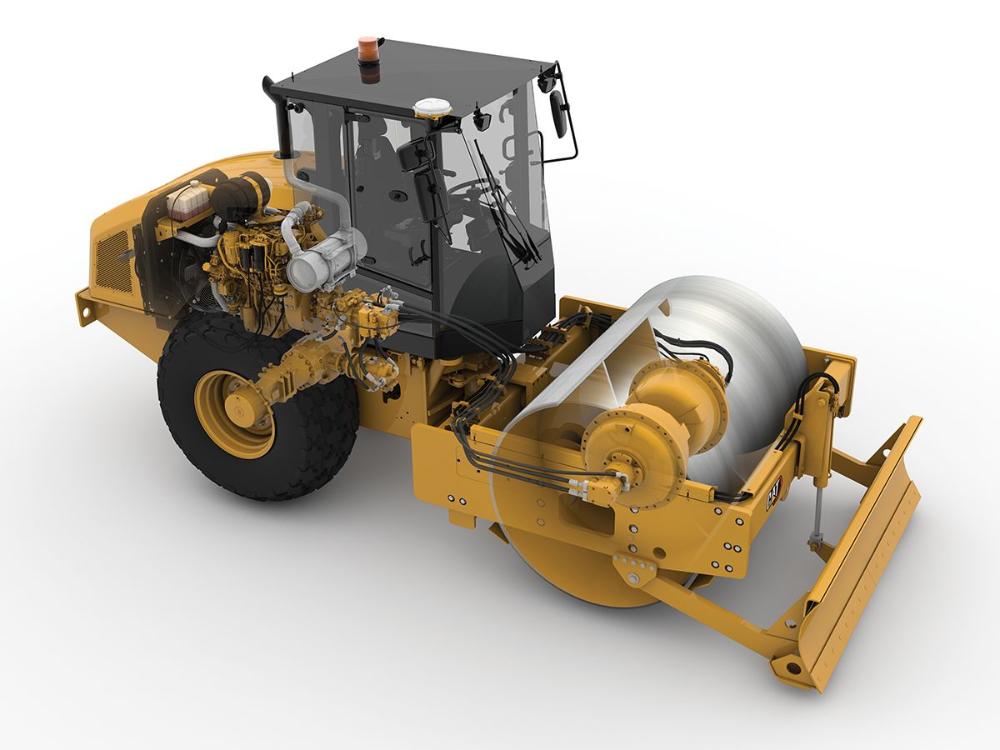

- Built around a dual pump propel system, two pumps provide separate dedicated flow to the drum drive motor and rear axle motor for exceptional gradeability and traction in forward and reverse.
- Powered by a Cat® C4.4 engine that meets U.S. EPA Tier 4 Final, EU Stage V and Japan 2014 emission standards.
- Eco-mode limits engine RPM helping to reduce fuel consumption.
- Engine Idle Shutdown Timer reduces fuel burn and unnecessary idle time by shutting down the machine after a pre-set idling period.
- A variable speed cooling fan operates at the lowest possible speed for optimal cooling.
- High static linear loads and amplitudes.

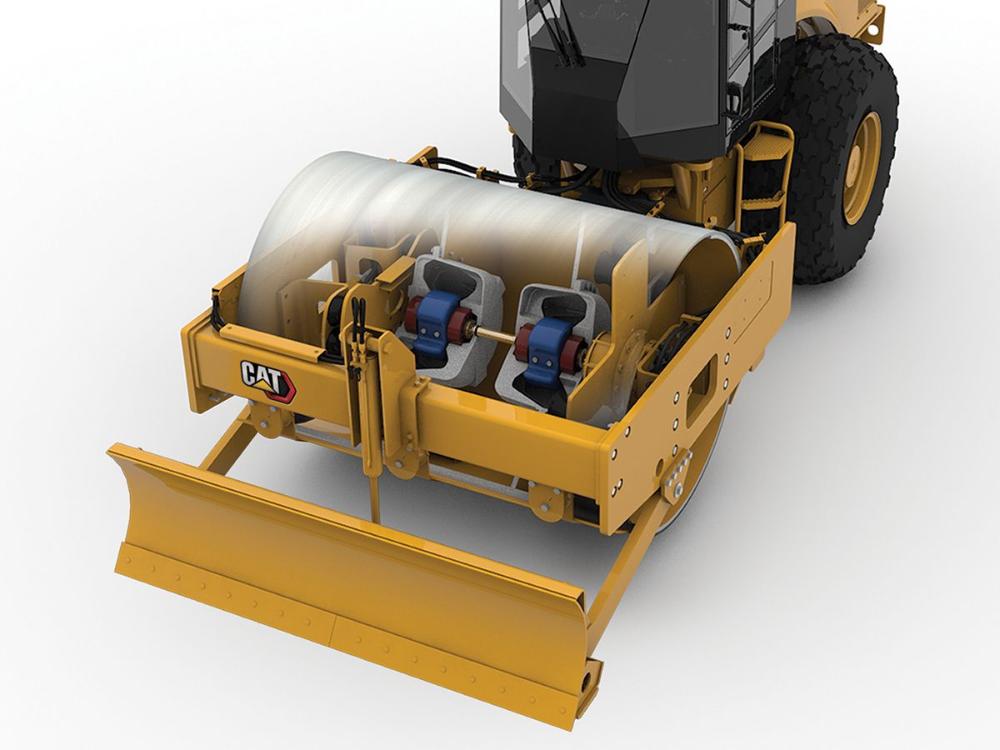

- Exclusive eccentric weight design provides high reliability, smooth performance and low noise.
- Automatic Speed Control and Auto-vibe functions make it easy to ensure consistent, high-quality compaction.
- The Variable Frequency option provides a wide range of frequencies to help maximize compaction performance.
- Increase machine versatility with the addition of an oval or square padfoot shell kit, allowing your smooth drum machine to compact semi-cohesive and cohesive materials.
- A rear vision camera with large color touchscreen display enhances visibility for more complete operator control and safety.

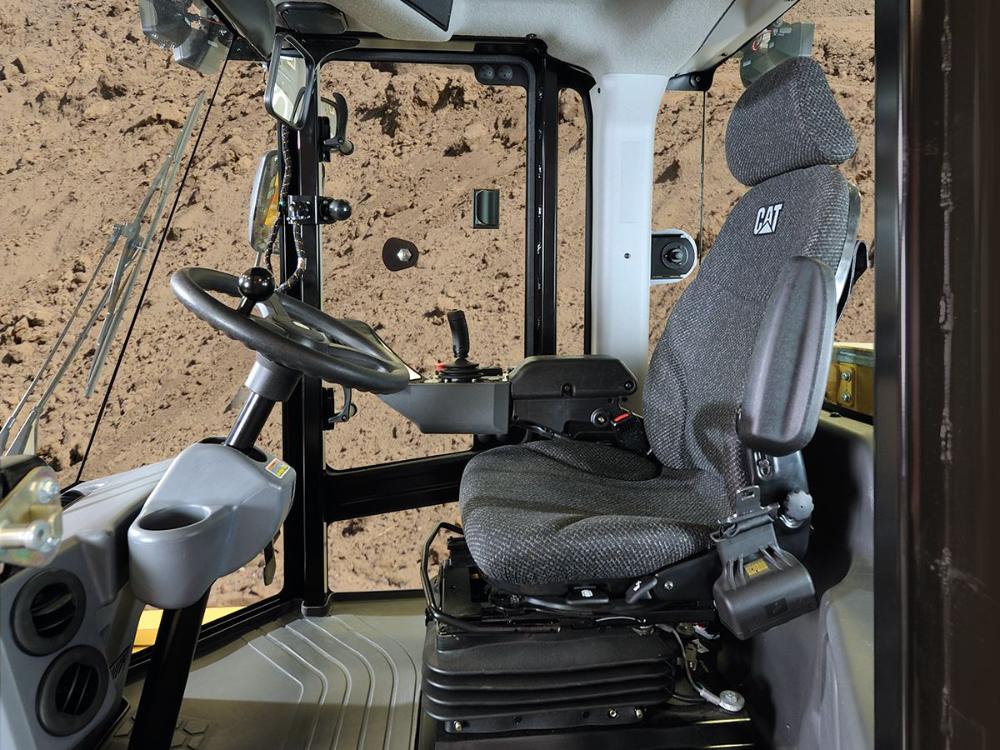

- The pivoting seat with integrated multifunction LCD display and control console move with the operator.
- Outstanding visibility to the front and rear of machine.
- Low sound levels and vibration for greater operator comfort and productivity.
- Operators are protected from the elements by a climate-controlled ROPS/FOPS cab with hinged glass windows.
- Get complete process control with increased coverage and more uniform compaction results using the optional exclusive semi-autonomous Command for Compaction technology to automate compaction.
- Optional Cat Compact technologies help you consistently meet compaction targets faster, more uniformly, and in fewer passes – saving on fuel and reducing rework and material costs.
- Exclusive Machine Drive Power (MDP) is an energy-based measurement and can be used on all soil types.
- Compaction Meter Value (CMV) is an accelerometer-based measurement for granular soils.
- Maintenance-free hitch with sealed-for-life bearings.

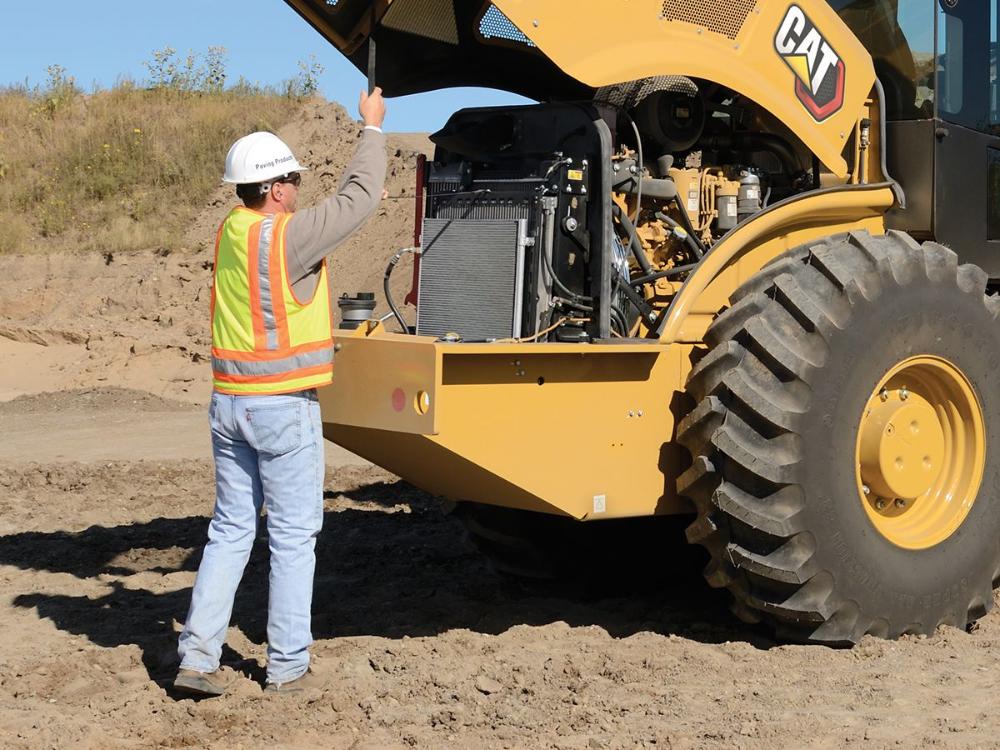

- Ground-level access to the engine compartment and cooling module for easy service and fluid sampling.
- Monitor fluid conditions with regular sampling to help extend change intervals up to 500 hours engine oil, 3000 hours eccentric housing and hydraulic oil, and 12000 hours coolant.
- Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
- VisionLink® takes the guesswork out of managing your entire fleet–regardless of size or equipment manufacturer*–by providing maintenance needs, machine hours, location, fuel usage, idle time, diagnostic codes, and more through interactive dashboards on your mobile device or desktop, helping you make informed decisions that lower costs, simplify maintenance, and improve safety and security on your jobsite.
* Data field availability can vary by equipment manufacturer and is provided through an application programming interface (API).
- The Cat C4.4 is available in configurations that meet U.S. EPA Tier 4 Final, EU Stage V and Japan 2014 emission standards.
- Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels* up to: 20% biodiesel FAME (fatty acid methyl ester) or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or "Caterpillar Machine Fluids Recommendations" (SEBU6250) for details.
*Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.
- Auto engine idle shutdown helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
- A well-trained operator is worth the investment. Skilled operators benefit your bottom line by maximizing productivity, avoiding costly downtime, and maintaining jobsite safety - which can help to improve fuel efficiency and reduce greenhouse gas emissions.
- Extended maintenance intervals not only reduce downtime but can decrease the amount of fluid and filters that are replaced over the life of the machine. Extend change intervals up to 500 hours engine oil, 3000 hours eccentric housing and hydraulic oil, and 12000 hours coolant.
- Performance and safety can be augmented with standard and optional cameras that are viewed on in-cab displays.
- Cat Compact technologies help you consistently meet compaction targets faster, more uniformly, and in fewer passes - saving on fuel and reducing rework and material costs.
- Cat Scheduled Oil Sampling (S•O•S℠) Services helps reveal excessive wear, contaminated fluids or other "unseen" issues that can shorten component life. In many cases, you can extend oil and coolant change intervals by using fluid monitoring. Consult your Cat dealer or the machine's operation and maintenance manual for more information.
Weights
| Operating Weight - With Cab |
18888 kg |
41641 lb |
| Weight - Drum with Cab |
13443 kg |
29637 lb |
| Note (1) |
Operating weights are approximate and consider full fluids, 75 kg (165 lb) operator, cab with heat and air conditioning. |

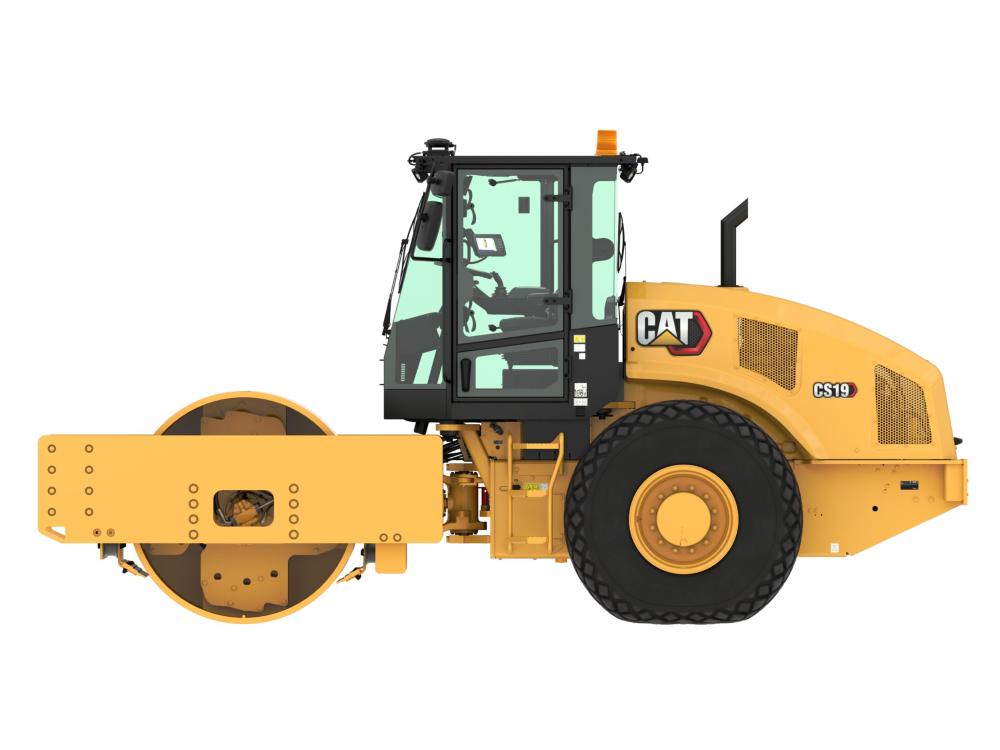

Dimensions
| Compaction Width |
2134 mm |
84 in |
| Overall Length |
6.1 m |
20.1 ft |
| Overall Width |
2.5 m |
8.1 ft |
| Maximum Height |
3.1 m |
10.1 ft |
| Drum Diameter |
1535 mm |
60.4 in |
| Wheel Base |
2.9 m |
9.5 ft |
Engine
| Gross Power |
130.4 kW |
174.9 hp |
| Engine Power - ISO 14396 |
129.4 kW |
173.5 hp |
| Net Power - ISO 9249 |
108.7 kW |
145.8 hp |
| Net Power - SAE J1349 |
108.2 kW |
145.1 hp |
| Note (1) |
Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, clean emissions module, and alternator. |
| Engine Model |
Cat® C4.4 |
| Emissions |
U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 |
| Stroke |
127 mm |
5 in |
| Bore |
105 mm |
4.1 in |
Vibratory System
| Vibratory Frequency - Standard |
28 Hz |
1680 VPM |
| Variable Frequency Option Range |
23.3 - 28 Hz (1400-1680 vpm) |
| Nominal Amplitude - High |
2.1 mm |
0.083 in |
| Nominal Amplitude - Low |
0.98 mm |
0.039 in |
| Centrifugal Force - Maximum |
335 kN |
75234 lb |
| Centrifugal Force - Minimum |
156 kN |
35163 lb |
| Static Linear Load - With Cab |
63 kg/cm |
352.8 lb/in |
Operating Specifications
| Ground Clearance |
429 mm |
16.9 in |
| Curb Clearance |
533 mm |
21 in |
| Turning Radius - Inside Drum Edge |
3.7 m |
12.1 ft |
| Travel Speed - Maximum |
11.4 km/h |
7.1 mile/h |
Service Refill Capacities
| Fuel Tank Capacity |
307 l |
81.1 gal (US) |
| DEF Tank |
19 l |
5 gal (US) |
| Cooling System |
28.2 l |
7.4 gal (US) |
| Engine Oil - With Filter |
11.6 l |
3.1 gal (US) |
| Eccentric Weight Housings (combined) |
26 l |
6.9 gal (US) |
| Axle and Final Drives |
24 l |
6.3 gal (US) |
| Hydraulic Tank |
50 l |
13.2 gal (US) |
