High Quality Results, Higher Earnings
Technology That Works for You
Low Owning and Operating Costs
Unmatched After-The-Sale Support
More Comfort
Easy Viewing Displays, Simple Operation
Screeds That Deliver Quality
Product Link™ Elite
Service and Repair Kits
- Standard paving range of 1.75 m - 3.2 m (5' 9" - 11' 2") with a maximum width of 4 m (13' 1") deliver excellent performance for parking lots, urban streets, pathways, trenches, narrow shoulders, and other mid-sized applications
- An optional paving reduction attachment narrows the paving width to 700 mm (27.5")
- Heated end gates, variable frequency vibration, and tamper bar settings help provide smooth material flow
- Exclusive Eco-mode and automatic engine speed control, reduce fuel consumption and lower sound levels for better comfort and communication
- Auto-fill feeder system simplifies setup by filling the auger chamber to the set point determined by the feed sensors
- Single touch feeder system activation optimizes efficiency by activating each auger and each conveyor
- Automated travel feature; augers raise with the screed, preventing damage during transport
- Single-touch hopper control enables operators to concentrate on other duties
- Engine options available to meet U.S. EPA Tier 4 Final, EU Stage V emissions and other regional standards
- Million cycle switches provide reliability
- Conveyor bed plates and chain guards designed to minimize labor requirements and provide lower cost replacement
- Heating elements slide out for easy replacement
- Machined screed frames simplify screed plate leveling
- Strategically located dealers with 24/7 support
- In-the-Iron service training for technicians
- Paver Operator Training helps maximize machine performance
- Project consulting helps improve technique and job site management
- Ventilation system option draws fumes from the auger chamber and redirects them away from the operator for a more comfortable working environment

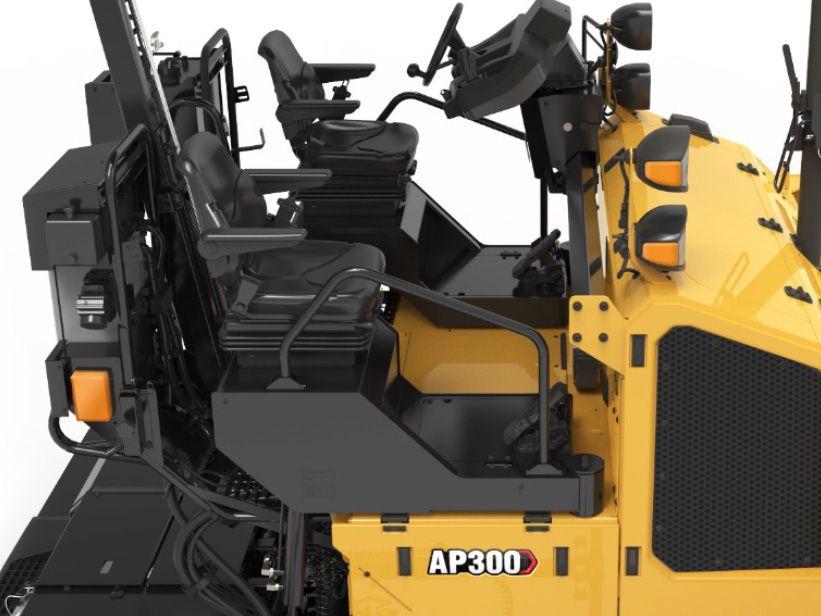

- Single sliding console enables operation from either side of the machine
- Dual independent seats swing out beyond the platform for good visibility to curbs and obstacles
- Heated seat option delivers comfort in cool weather conditions
- High visibility 76 mm (3") seat belt helps with crew safety compliance

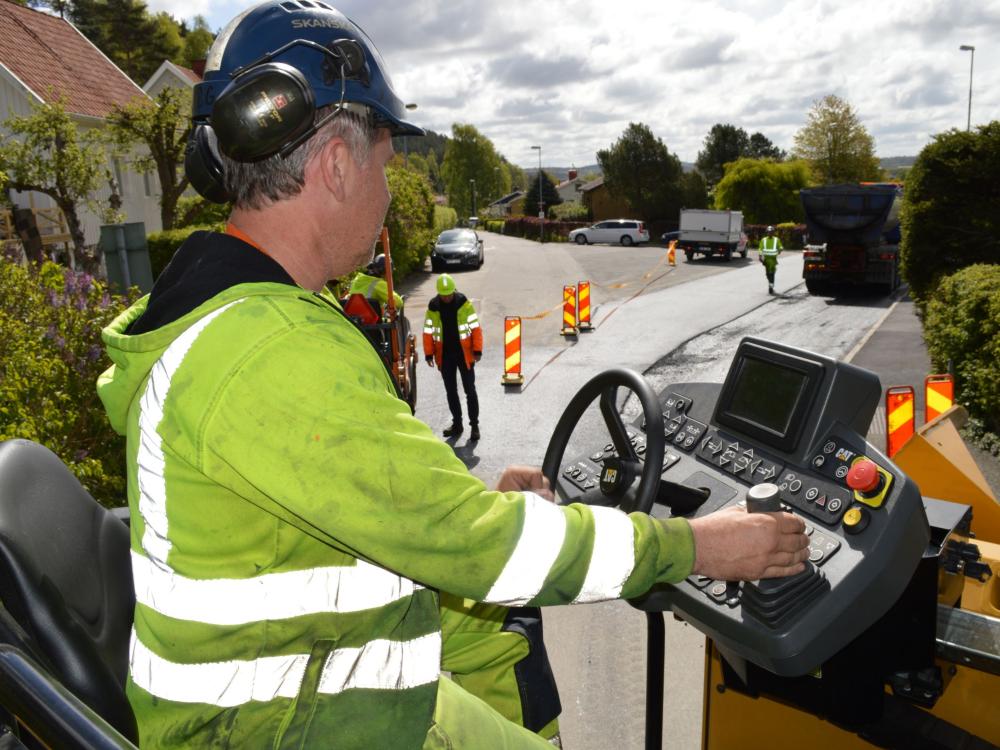

- Operating displays can be tailored to specific language requirements with multiple options available
- Easy access to generator activation, screed temperature control, screed heating zones, tamper and vibratory speeds, and service code information
- Intuitive symbols and large graphics simplify operation
- Adjustable brightness control for easy viewing day or night
- Raised switch design enables easy recognition for better efficiency and performance

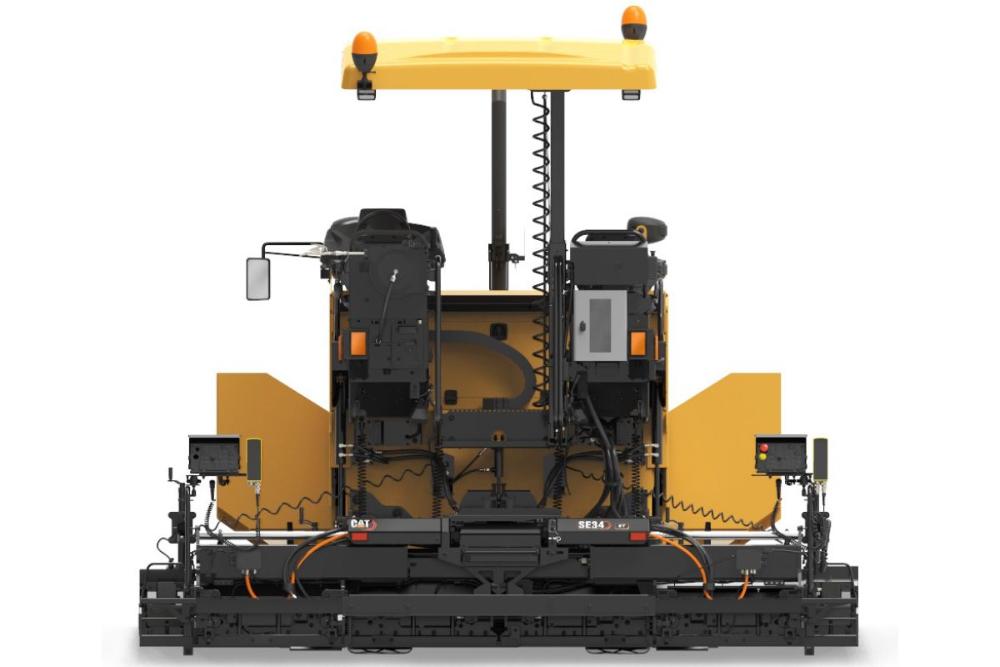

- SE34 V and SE34 VT screeds deliver excellent ride, density, and mat texture while providing superior adjustment capabilities
- Basic Grade Control option available

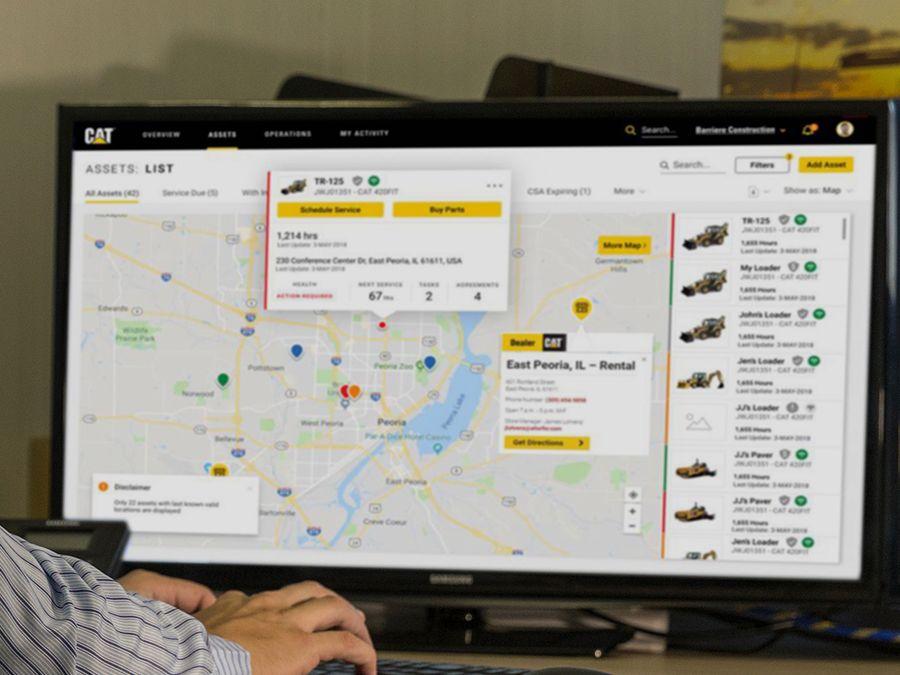

- Make timely, fact-based decisions to maximize efficiency, improve productivity, and lower owning and operating costs
- Easily track location, machine hours, fuel usage, and idle time in real time
- Diagnostic codes are made available through online web applications
- Scheduled maintenance and Scheduled Oil Sampling notification

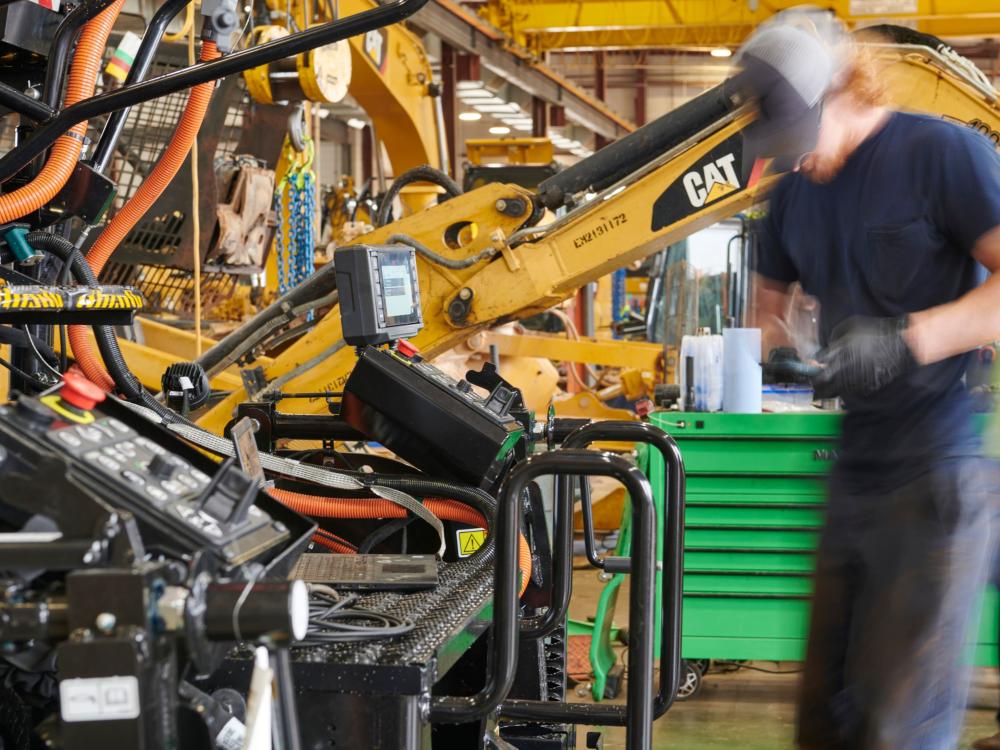

- Paver and screed service and repair kits include all the parts necessary to complete specific repairs
- Cat genuine parts are manufactured to precise specifications and designed for optimal performane and maximum uptime
- Repair kits are identified by a single part number to make ordering easy
- Select kits are available to be packaged as a kit by the dealer for over-the-counter purchases or through the dealer service shop
Operating Specifications
| Standard Paving Range |
1.75 - 3.42 m (5.6' - 11.1') |
| Maximum Throughput Capacity |
406 tonnes/hr |
447 ton(US)/h |
| Maximum Travel Speed |
16 km/h |
10 mile/h |
| Maximum Paving Speed |
61 m/min |
200 ft/min |
| Maximum Paving Width |
4 m |
13.1 ft |
| Minimum Paving Width |
700 mm |
27.5 in |
Weights
| Operating Weight - With SE34 VT |
8200 kg |
18078 lb |
| Operating Weight - With SE34 V |
8000 kg |
17637 lb |
| Shipping Weight - Paver Only |
6600 kg |
14550 lb |
Dimensions
| Wheel Base |
1950 mm |
6.45 ft |
| Operating Length |
5047 mm |
16.5 ft |
| Operating Width |
3180 mm |
10.4 ft |
| Operating Height - With Canopy |
3415 mm |
11.2 ft |
| Transport Height |
2645 mm |
8.6 ft |
| Transport Width |
1938 mm |
6.3 ft |
| Transport Length |
5029 mm |
16.4 ft |
Engine
| Engine Model (1) |
Cat C3.3B |
| Engine Power (1) |
55 kW |
73.8 hp |
Service Refill Capacities
| Fuel Tank |
110 l |
29 gal (US) |
| Cooling System (1) |
9 l |
2.4 gal (US) |
| Engine Oil (1) |
13.2 l |
3.5 gal (US) |
| Washdown Spray Tank |
28 l |
6.2 gal (US) |
