M315 Wheeled Excavator
Cat
Metric
Imperial
Engine Power - ISO 14396:2002
110 kW
148 hp
Operating Weight Maximum
18000 kg
39680 lb
Maximum Travel Speed
35 km/h
21.7 mile/h
Availability

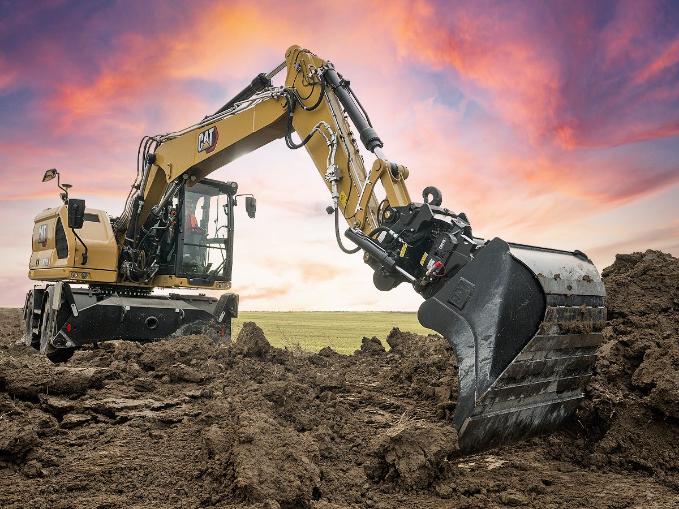

The Cat® M315 Wheeled Excavator provides top performance to get the job done faster. Save time and money with low maintenance costs, longer service intervals, and 100 percent daily ground level maintenance. The compact radius design makes it easy to work in space restricted environments. The M315 gives you the power to work longer while putting money in your pocket.
MAXIMIZE PERFORMANCE
Work faster with more swing torque. A smaller front and reduced tail swing radius lets you work in space-restricted areas.UP TO 5% LOWER MAINTENANCE COSTS
Longer, synchronized service intervals, 100% daily ground-level maintenance and centralized grease points with an autolube option lower your overall costs.ENHANCED COMFORT

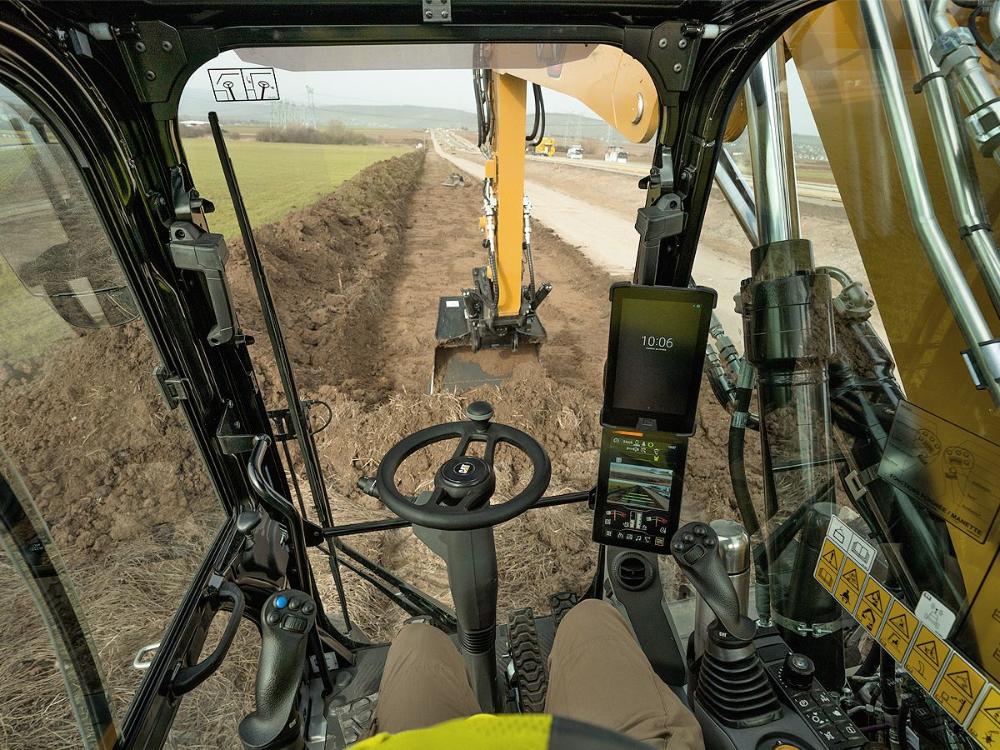

Operate with ease. Easy to reach controls, a comfortable seat, and improved visibility let you work comfortably all shift long.LATEST FEATURES
High Performance with Lower Fuel Consumption
Work in Comfort
Safety
Lower Maintenance Costs
Simple to Operate
Boost Efficiency and Productivity with Integrated Cat Technologies
Sustainability

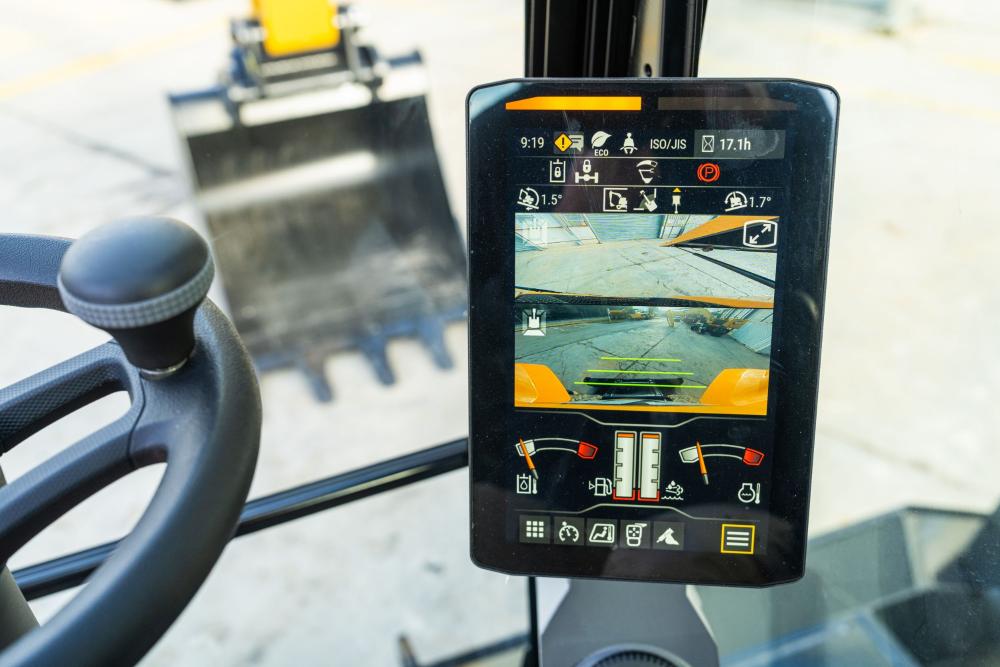

- Cab Monitor Improvements
- Continuously improved user interface allows for intuitive navigation, minimizing performance interruption with the easy-to-use touchscreen menu.
- Identify apps quickly with a grid list view, abbreviated app names, and categorized menu options.
- A new notification center keeps important information visible to the operator, and displays messages without shrinking the camera view.
- Color coded notifications set critical messages apart from the rest.
- Use the in-monitor QR code to learn about machine and technology features through a full suite of “how-to” videos.
- Enhance visibility to make service work easier and safer with optional inspection lighting.
- Standard integrated vehicle health management system alerts the operator with service guidance and parts needed to enhance uptime.
Build Number: 07D
- The Cat® C4.4 engine matches to your performance and production needs. The engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
- Use up to 5 percent less fuel consumption over the M315F.
- Work confidently in space-restricted areas. Dig, swing, and dump within a tight working space.
- Travel more easily between sites with travel speeds up to 35 kph (21.7 mph).
- From dirt to asphalt, the excavator matches your needs to get the job done in a timely, efficient manner.
- The advanced hydraulic system provides the optimum balance of power and efficiency while giving you the control you need for precise working requirements.
- With up to 10 percent more swing torque, you can get the job done faster to move on to the next one. The dedicated swing pump provides consistent power for better multitasking capabilities.
- Auxiliary hydraulic options give you the versatility to use a wide range of Cat attachments.
- Don't let the temperature stop you from working. The excavator has a standard high-ambient temperature capability of 52°C (125°F) and cold start capability of -18°C (0°F).
- Choose between Deluxe and Premium cab options.
- The Deluxe seat is heated and air adjustable while the Premium seat is heated, ventilated, and adjusts automatically.
- Tip-up left console makes it easier to get in and out of the cab.
- Feel more comfortable in the cab while you work with reduced cab vibrations from advanced viscous mounts.
- Control the excavator comfortably with easy-to-reach controls, all located in front of you.
- Stow your gear with plenty of in-cab storage beneath and behind the seat, overhead, and in the consoles. A cup holder, bottle holder, and coat hook are also provided.
- Bluetooth® integrated radio allows for seamless mobile phone connection to listen to music, podcasts, and hands-free calling.
- Easily adjust the climate control system using the touchscreen monitor or jog dial.
- Access daily maintenance points from ground level.
- Keep your excavator secure with Operator ID. Use your PIN code on the monitor to enable the pushbutton starting feature.
- The standard ROPS cab meets ISO 12117-2:2008 requirements.
- Enlarged windows and improved machine layout increase visibility from the seat of the cab compared to the M315F. Rearview and side-view cameras are standard.
- The service platform design provides easy, safe, and quick access to the upper service platform; the service platform steps use anti-skid punch plate to prevent slipping
- The standard hydraulic lockout lever isolates all hydraulic and travel functions in the lowered position.
- Swing lock prevents front linkage from moving as you travel.
- Ground-level shutoff switch stops all fuel to the engine when activated and shuts down the machine.
- Make service work easier and safer with optional inspection lighting. With the flip of a switch, lights will illuminate the engine, pump, battery, and radiator compartments to enhance visibility.
- Quickly check and service your machine with all daily maintenance points accessible from ground level.
- Check the engine oil level quickly and safely from the ground.
- Save up to 10 percent in maintenance parts with the longer lasting filters.
- Track your machine's filter life and maintenance intervals on the in-cab monitor.
- Two levels of fuel filtration protect the engine from fuel contamination.
- The hydraulic oil filter provides improved filtration performance, anti-drain valves to keep oil clean when the filter is replaced, and longer life with a 3,000-hour replacement interval - 50 percent longer than previous filter designs.
- Scheduled Oil Sampling (S·O·SSM) ports are located at ground level, simplifying maintenance, and allowing for quick, easy extraction of fluid samples for analysis.
- Boost productivity with proactive service reminders. The Integrated vehicle health management system alerts the operator with step-by-step service guidance along with parts needed so you don't experience any unnecessary downtime.
- Start the engine with the push-to-start button, a Bluetooth key fob, or the unique Operator ID function.
- Program your power mode and joystick preferences using Operator ID; the excavator remembers your settings each time you go to work.
- Navigate quickly on the standard high-resolution 254 mm (10 inch) touchscreen monitor or with the aid of the jog dial control.
- The auto axle lock presses the pedal for you to reduce your overall number of actions. The machine automatically detects when the service brake and axle need to be locked or unlocked. It releases automatically when you press the travel pedal.
- Tiltrotator attachments--ours or other brands--work seamlessly with Cat 2D Grade, Assist, Payload, and E-Fence . With no additional hardware required, all you have to do is simply select "Third Party Tiltrotator System Installation" in the monitor, do the calibration, and get to work.
- Cat continues to improve user interface functionality for operators of all skill levels. The touchscreen monitor is an easy-to-use operating tool that presents the jobsite dashboard with an intuitive format. Productivity applications are displayed in grid-view to read on-the-go, and touchscreen navigation is programmed to make sure job performance continues without any hold ups.
- Boost productivity versus traditional grading with optional Cat Grade with 2D system.
- Optional Cat Payload helps you achieve precise load targets to improve your operating efficiency. Pick up a load of material--with a bucket and thumb combination or grapple and clamshell attachments--and get a real-time weight estimate without swinging.
- Combine Payload with VisionLink® and remotely manage your production targets or take payload data with you.
- Upgrade to our dual antenna GNSS for maximum grading efficiency. The system lets you create and edit designs on the touchscreen monitor while you’re on the job, or you can have the plan design sent to the excavator to make your work easier. Plus, you get added benefits of avoidance zones, cut and fill mapping, lane guidance, and augmented reality along with advanced positioning capability.
- Optional Grade Assist helps you stay on grade – simply and effortlessly – with single-lever digging. Set your desired bucket angle and let Bucket Assist automatically maintain the angle in sloping, leveling, fine grading, and trenching applications
- Optional 2D E-fence is integrated right out of the factory to prevent the excavator from moving outside operator defined set points.
- All Cat Grade systems are compatible with radios and base stations from Trimble, Topcon, and Leica. Already invested in a grade infrastructure? You can install grade systems from Trimble, Topcon, and Leica onto the machine.
- The Cat® C4.4 engine meets U.S. EPA Tier 4 Final, EU Stage V, and Korea Tier 5 emission standards.
- Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels.Refer to guidelines for successful application. Please consult your Cat dealer or "Caterpillar Machine Fluids Recommendations" (SEBU6250) for details.
- Cat Grade technologies combine advanced guidance with optional automated machine control helping you reach grading targets while reducing fuel burn and greenhouse gas emissions by improving efficiency, job site productivity, and accuracy.
- Auto Engine Speed Control reduces unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
- Cat® Payload for excavators provides on-the-go material weighing which helps reduce fuel burn by improving loading efficiency, job site productivity, and eliminating trips to the scale.
- Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
- Cat Scheduled Oil Sampling (S•O•S℠) Services helps reveal excessive wear, contaminated fluids or other “unseen” issues that can shorten component life. In many cases, you can extend oil and coolant change intervals by using fluid monitoring. Consult your Cat dealer or the machine's operation and maintenance manual for more information.
- Don't waste fuel idling. Cat VisionLink® online fleet monitoring helps you manage idle time and reduce fuel burn and greenhouse gas emissions. VisionLink® displays the CO2 emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
- Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite. Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.
Engine
| Engine Power - ISO 14396:2002 | 110 kW | 148 hp |
| Engine Power - ISO 14396 (DIN) | 150 hp (metric) | 150 hp (metric) |
| Engine Model | C4.4 | |
| Net Power - ISO 9249 | 108 kW | 145 hp |
| Net Power - ISO 9249 (DIN) | 147 hp (metric) | 147 hp (metric) |
| Bore | 105 mm | 4.1 in |
| Displacement | 4.4 l | 268.5 in³ |
| Stroke | 5 in | 127 mm |
| Biodiesel Capability | Up to B20¹ | |
| Emissions | Meets U.S. EPA Tier 4 Final, EU Stage V, Japan 2014 emission standards. | |
| Note (1) | Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, CEM exhaust gas aftertreatment, alternator, and cooling fan with engine speed at 2,200 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture. | |
| Note (2) | ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels.Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations“ (SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. |
Machine Weight
| Operating Weight Maximum | 18000 kg | 39680 lb |
| Operating Weight Minimum | 15700 kg | 34610 lb |
Transmission
| Maximum Travel Speed | 35 km/h | 21.7 mile/h |
| Forward/Reverse - 1st Gear | 10 km/h | 6.2 mile/h |
| Forward/Reverse - 2nd Gear | 35 km/h | 21.7 mile/h |
| Creeper Speed - 1st Gear | 5.5 km/h | 3.4 mile/h |
| Creeper Speed - 2nd Gear | 15 km/h | 9.3 mile/h |
| Drawbar Pull | 104 kN | 23380 lbf |
Hydraulic System
| Main System - Maximum Flow - Implement | 275 l/min | 73 gal/min |
| Maximum Pressure - Implement Circuit - Heavy Lift | 37000 kPa | 5366 psi |
| Maximum Pressure - Implement Circuit - Travel Circuit | 35000 kPa | 5076 psi |
| Maximum Pressure - Implement Circuit - Normal | 35000 kPa | 5076 psi |
Swing Mechanism
| Maximum Swing Torque | 41 kN·m | 30340 ft·lbf |
| Swing Speed | 9.1 r/min | 9.1 r/min |
Service Refill Capacities
| Fuel Tank | 280 l | 74 gal (US) |
| Diesel Exhaust Fluid (DEF) | 20 l | 5.3 gal (US) |
| Cooling System | 6.3 gal (US) | 24 l |
| Hydraulic Tank | 90 l | 23.8 gal (US) |
| Hydraulic System - Including Tank | 220 l | 58.1 gal (US) |
Dimensions
| Boom | VA 5.2 m (17'1") | |
| Stick | 2.5m (8'2") | |
| Bucket | GD 0.76 m³ (0.99 yd³ ) | |
| Shipping Height - Top of Cab | 3280 mm | 10.9 ft |
| Support Point | 3310 mm | 10.1 ft |
| Shipping Length | 7880 mm | 25.1 ft |
| Tail Swing Radius | 1750 mm | 5.9 ft |
| Counterweight Clearance | 1260 mm | 4.2 ft |
| Ground Clearance | 440 mm | 1.5 ft |
| Undercarriage Length | 4870 mm | 16 ft |
| Wheel Base | 2550 mm | 8.4 ft |
Working Ranges and Forces
| Boom Type | VA 5.2 m (17'1") | |
| Stick | 2.5m (8'2") | |
| Bucket | GD 0.76 m³ (0.99 yd³ ) | |
| Dump Height | 7680 mm | 25.2 ft |
| Cutting Height | 10410 mm | 34.2 ft |
| Digging Height | 5580 mm | 18.4 ft |
| Reach at Ground Level | 8980 mm | 29.6 ft |
| Vertical Wall Digging Depth | 4580 mm | 15 ft |
| Stick Forces (ISO) | 71 kN | 15961 lbf |
| Bucket Forces (ISO) | 106 kN | 23830 lbf |
Air Conditioning System
| Note | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.8 kg of refrigerant which has a CO2 equivalent of 1.144 metric tonnes. |
