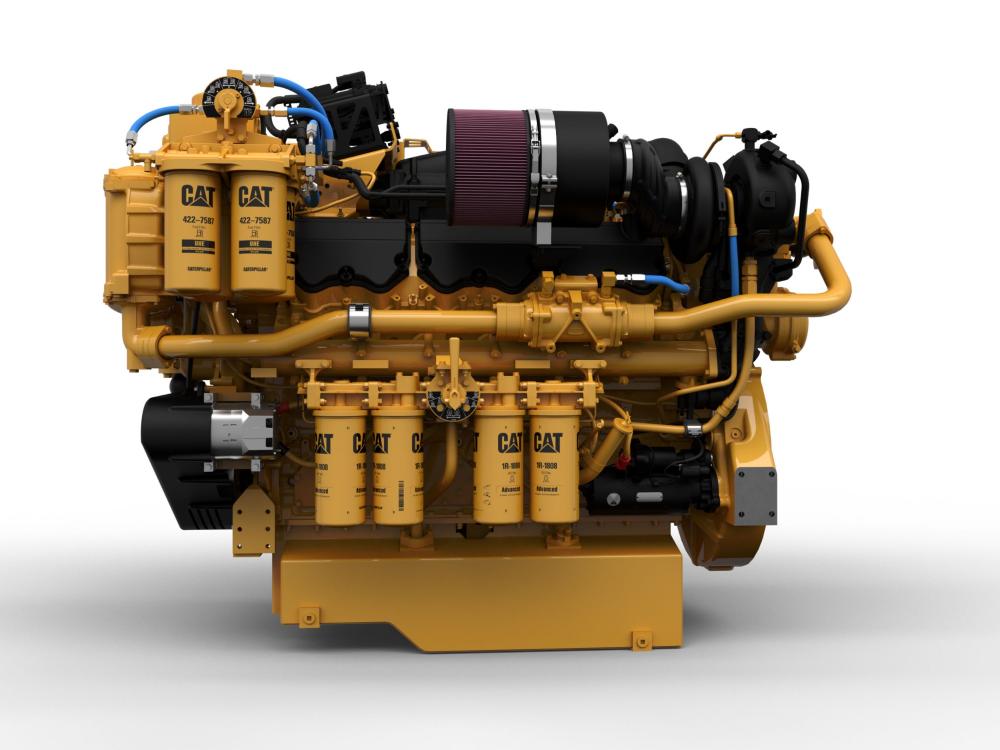

Cat C32 Auxiliary / Diesel Electric Propulsion Engine (IMO III)

Units of measurement :

Metric

Imperial

Power Range

781 - 1047

Frequency

50 / 60

Emissions

IMO II, IMO III U.S. EPA T4, EU Stage V and China-II

Availability

Purchase Rental Used

C32 auxiliary/generator set engines incorporate a separate circuit aftercooling system (SCAC) for all configurations. The primary advantage of the SCAC systsem is reduced aftercooler corrosion since no sea water circulates through the aftercooler. Many other improvements on these engines also contribute to minimizing owning and operating costs. The IMO II, IMO III, EPA T4, EU Stage V and China-II compliant ratings are available with heat exchanger or keel cooled options. Emission options may vary for each rating. Please consult your local dealer for more information.

Emissions

Control Strategy

Fuel System

Power Reserve

Certifications

Warranty

Service

Utilizes SCR Technology to enable IMO III emission regulations compliance while lowering operational costs

C32 IMO III Marine Auxiliary _ DEP 1500 rpm - 874 bkW.pdf

Power Rating

Power Range	781 - 1047
Minimum Rating	781 bkW	1047 BHP
Maximum Rating	994 bkW	1332 BHP

Generator Set Specifications

Engine Specifications

Dimensions & Weights

Clean Emissions Module (CEM) - Dimensions

You might also be interested in:

Cat C32 Auxiliary / Diesel Electric Propulsion Engine (IMO III)

Emissions	IMO II, IMO III U.S. EPA T4, EU Stage V and China-II
Aspiration	Turbocharged- Aftercooled
Displacement	32.1 l	1959 in³
Stroke	162 mm	6.38 in
Rated Engine Speed	1500 /1800 rpm
Rotation	Counterclockwise
Bore	145 mm	5.71 in
Configuration	V 12, 4-stroke-cycle diesel
Cooling	Heat exchanger or keel cooled
Flywheel Housing	SAE No. 0 with SAE No. 18 flywheel (136 teeth)
Governor	Electronic (A5 ECM)
Oil Change Interval	750 hrs - deep pan
Refill Capacity	Lube Oil System w/ oil filter change: 146 L (38.5 gal) - deep pan

Maximum Engine Dry Weight	3248 kg	7160 lb
Minimum Height	1507 mm	59.3 in
Minimum Engine Dry Weight	3152 kg	6950 lb
Minimum Width	1451 mm	57.1 in
Maximum Length	2280 mm	89.8 in
Minimum Length	2130 mm	83.9 in
Maximum Width	1455 mm	57.3 in
Maximum Height	1613 mm	63.5 in

6 Brick Z-Flow - Weight	565 kg	1246 lb
6 Brick U-Flow - Width	1445 mm	56.9 in
6 Brick U-Flow - Length	2159 mm	85 in
6 Brick U-Flow - Height	597 mm	23.5 in
Dosing Cabinet - Width	477 mm	18.8 in
6 Brick Z-Flow - Height	597 mm	23.5 in
Dosing Cabinet - Weight	95 kg	209 lb
6 Brick Z-Flow - Length	3751 mm	147.7 in
6 Brick U-Flow - Weight	560 kg	1235 lb
Dosing Cabinet - Length	949 mm	37.4 in
Dosing Cabinet - Height	579 mm	22.8 in
6 Brick Z-Flow - Width	1106 mm	43.5 in
