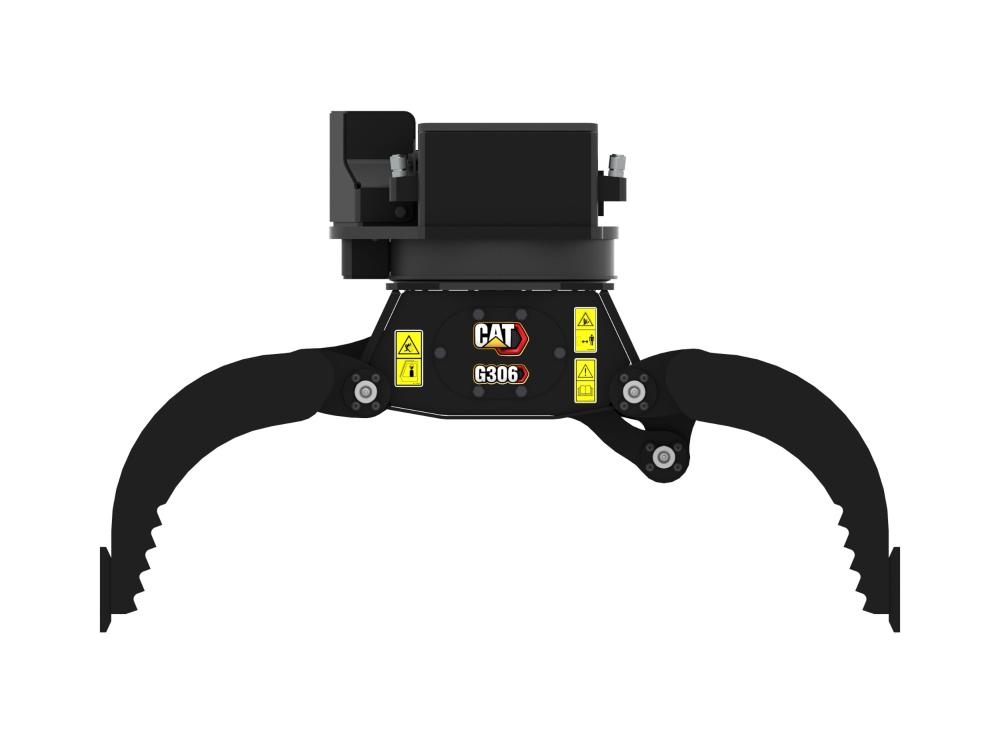

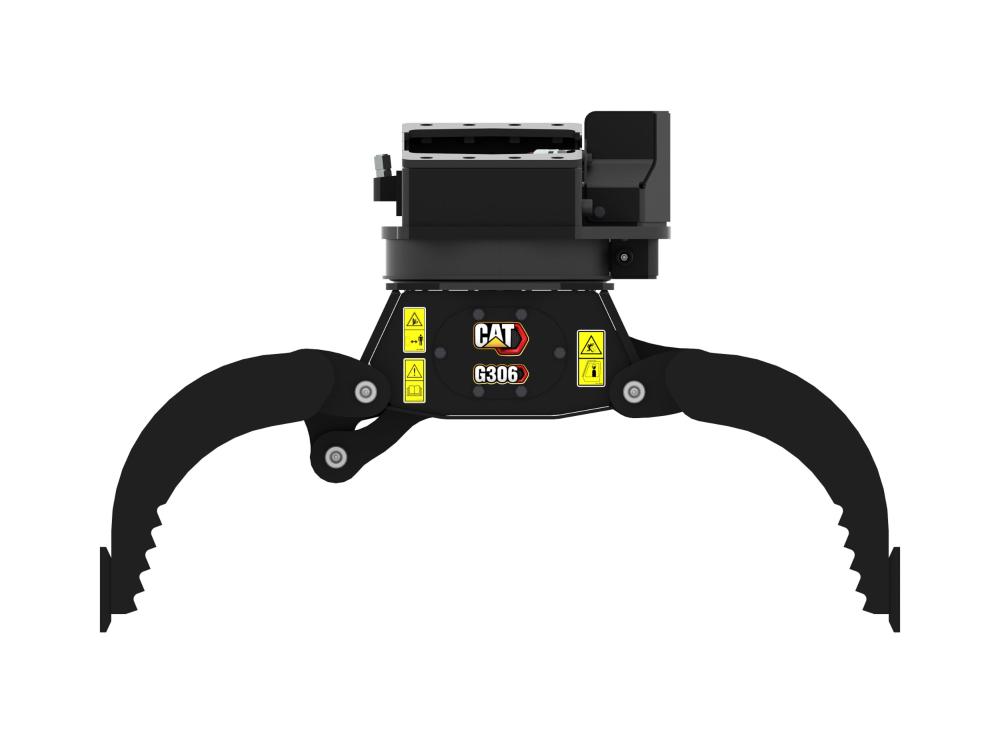

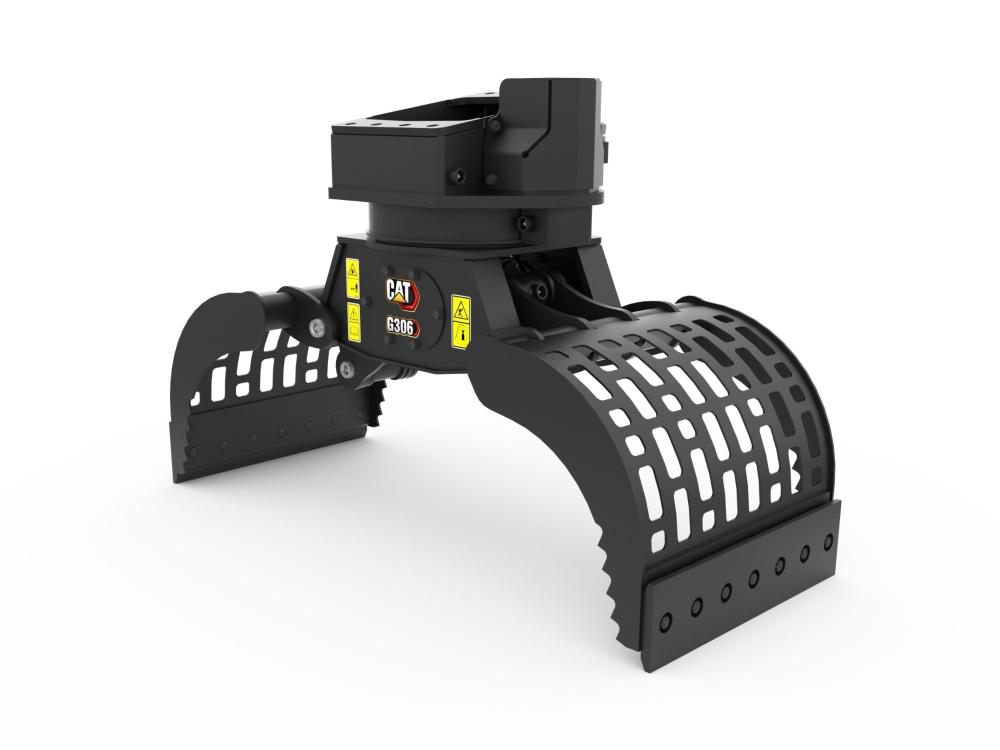

G306 Demolition & Sorting Grapple

Units of measurement :

Metric

Imperial

Grapple Area

160 l

Weight

332 kg

Machine Class

Mini Hydraulic Excavator 5-6 Ton

Availability

Purchase Rental Used

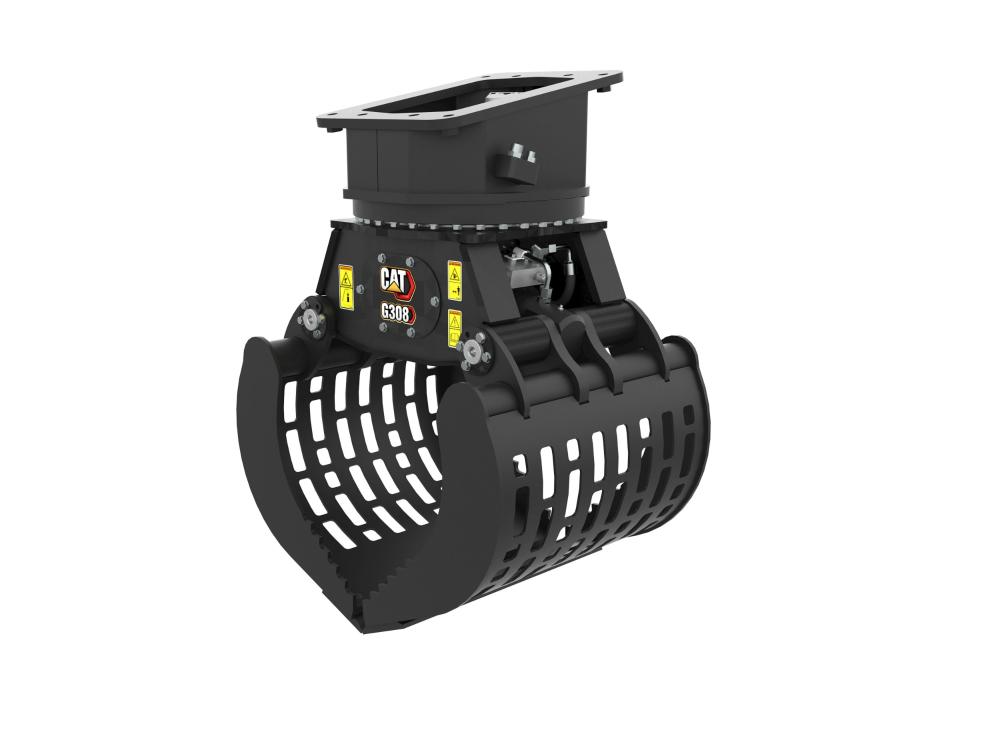

Cat® Demolition & Sorting Grapples are designed for fast, productive material handling. Capable of high-volume, production loading and precise sorting, they enhance the productivity and efficiency of your operation. The grapples can handle anything from primary and secondary demolition to recycling to get the job done.

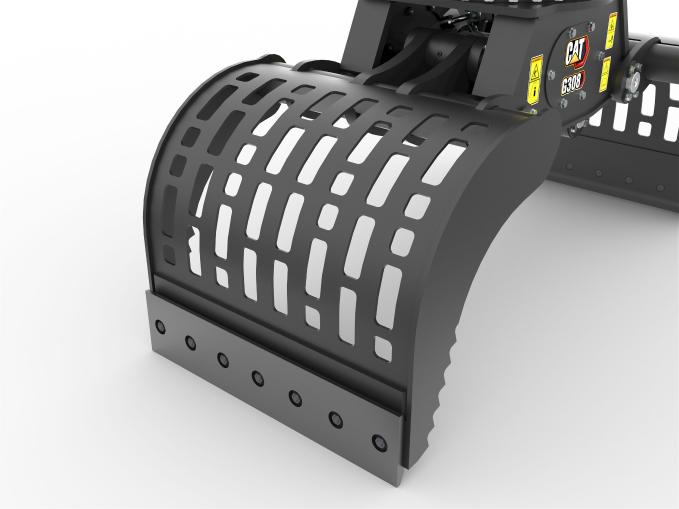

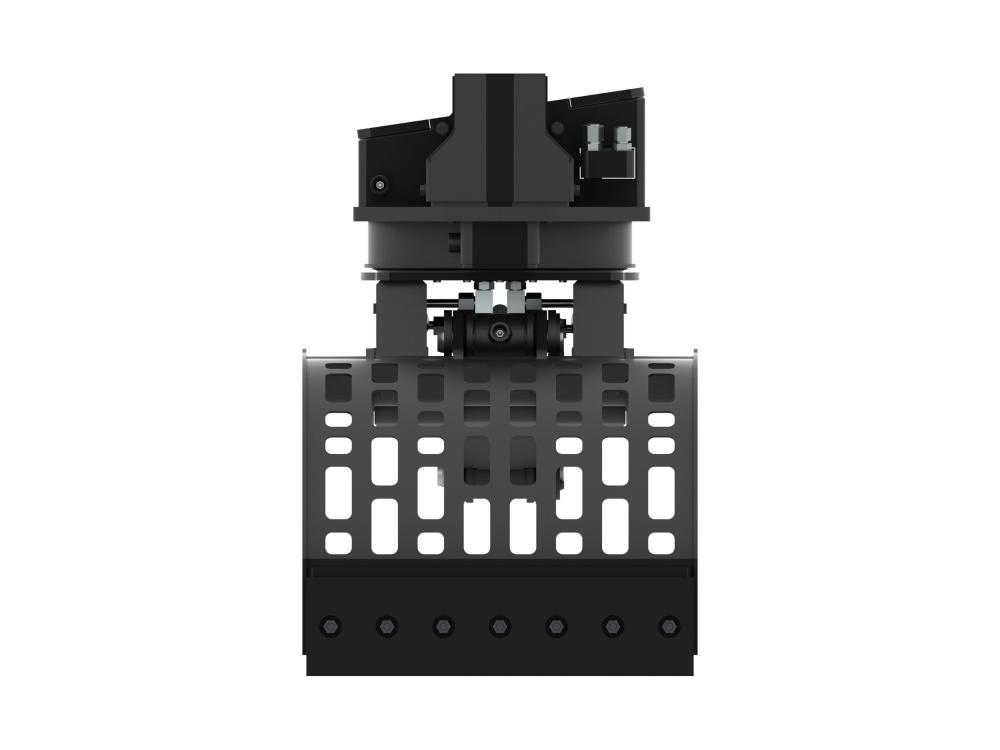

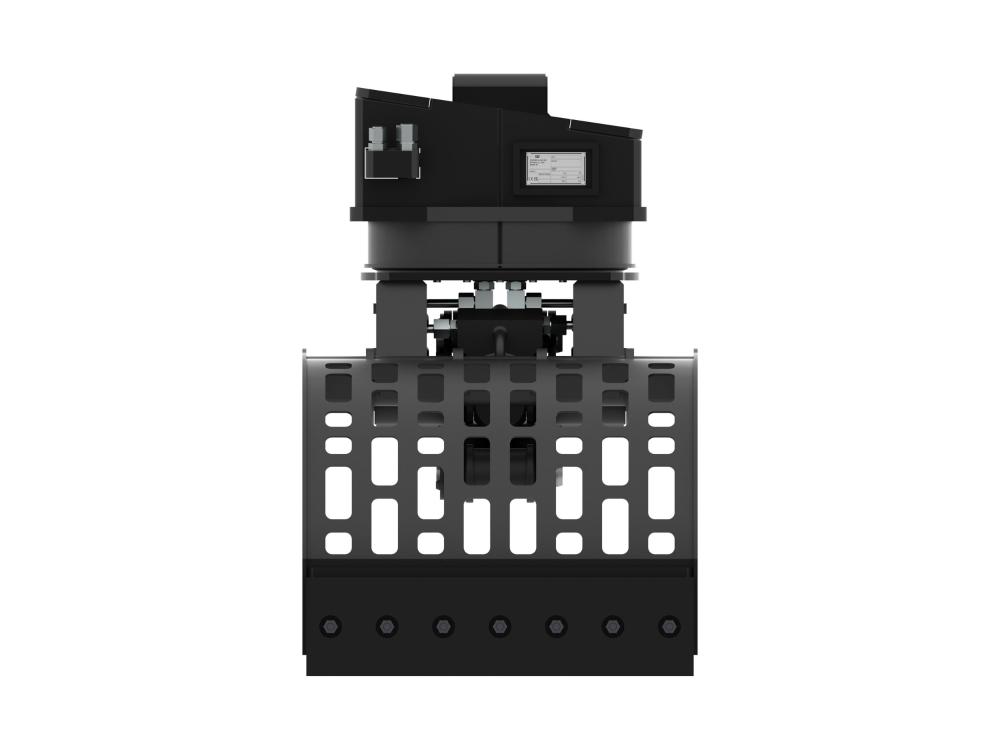

Vertically Perforated Side Plates

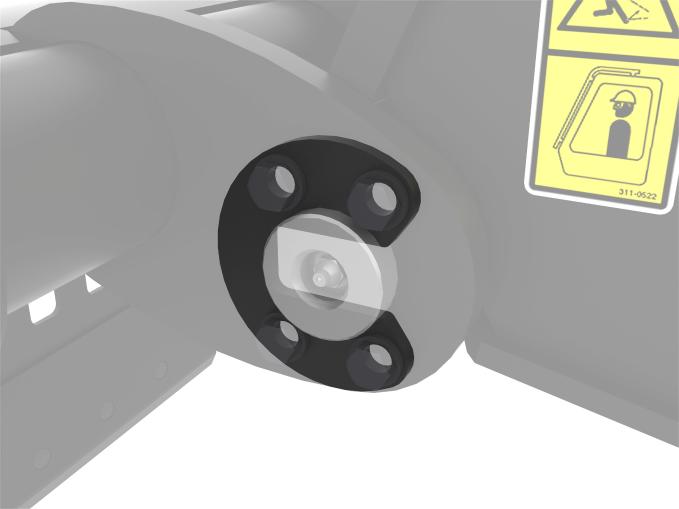

Specially Designed Pins

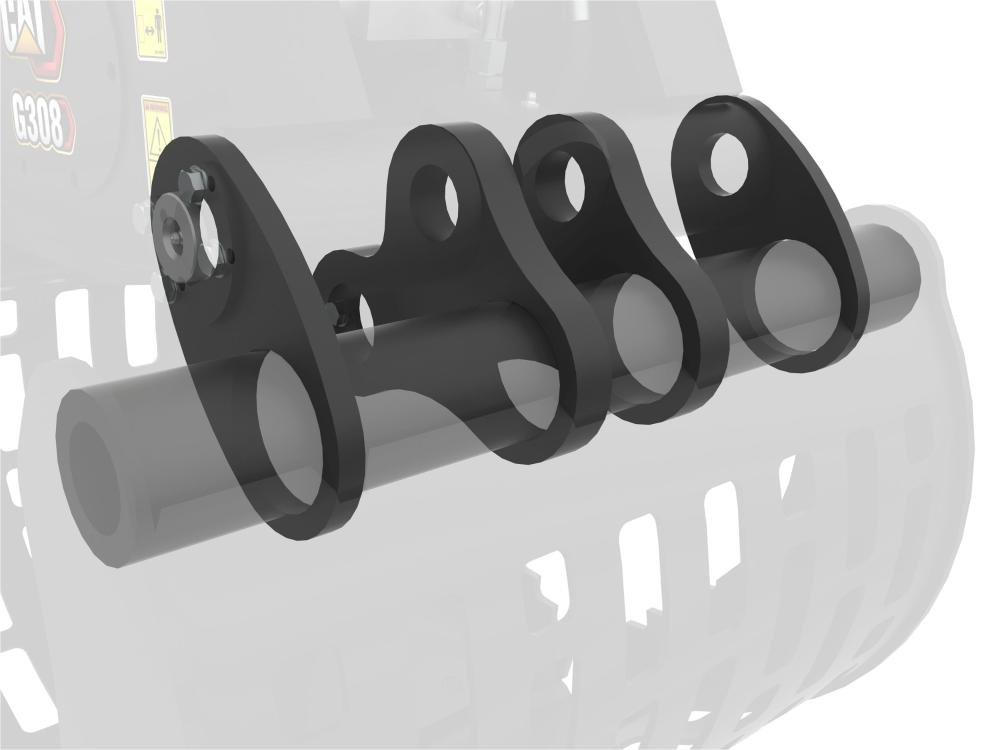

Optimally Designed Linkage

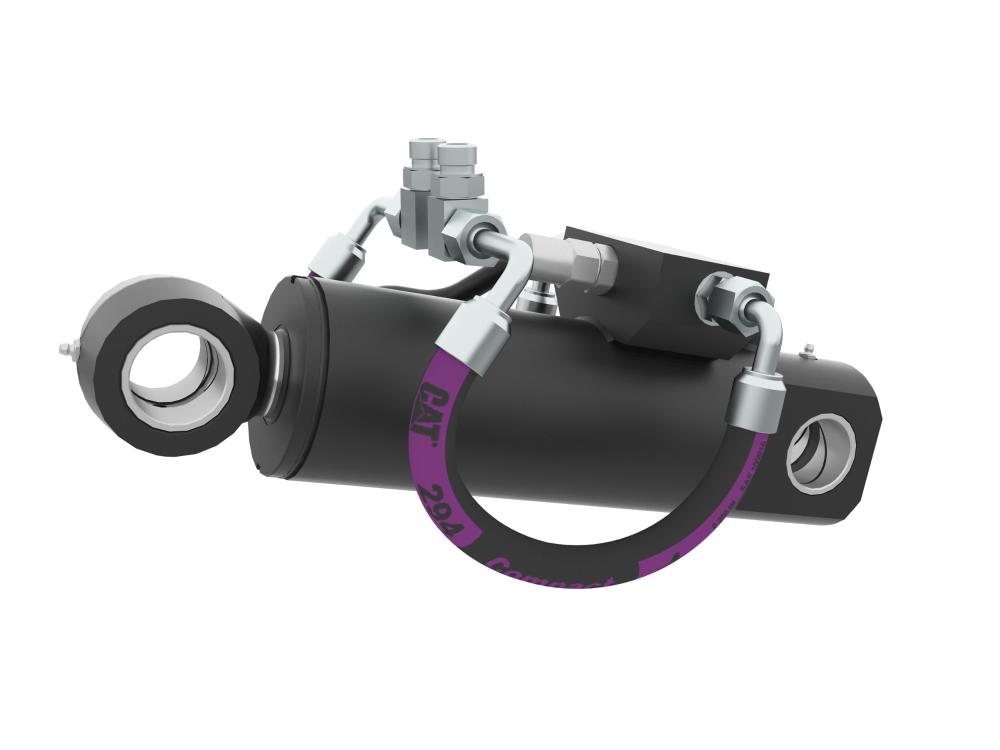

Oversized Cylinder with Load Holding Valve

Slim Design

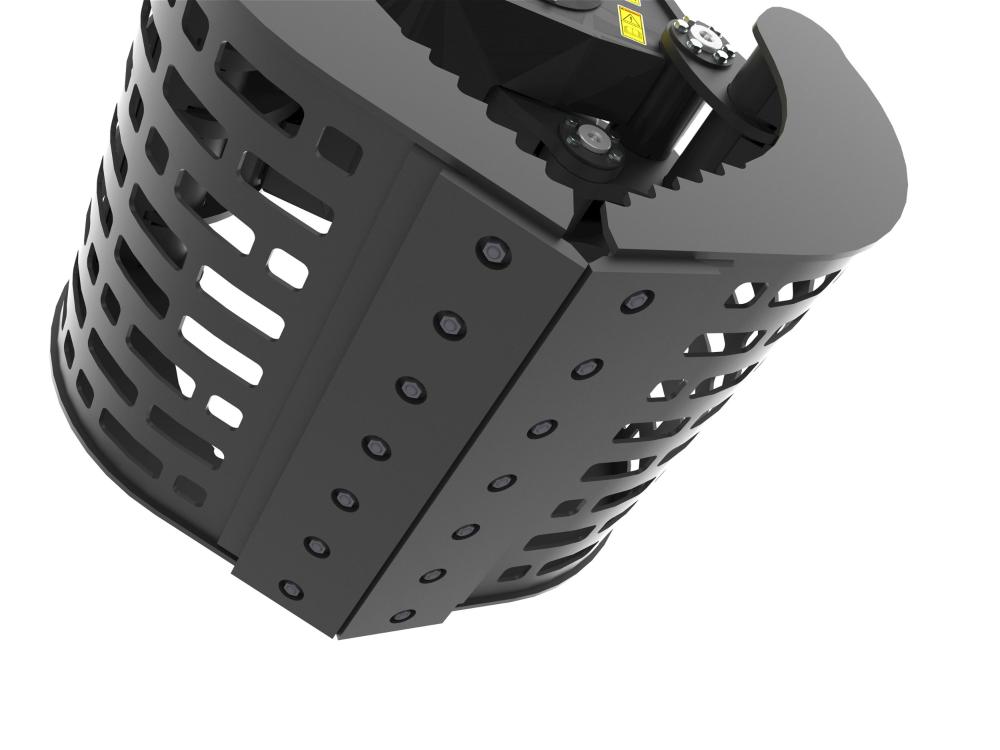

Robust Bolt-on Cutting Edge

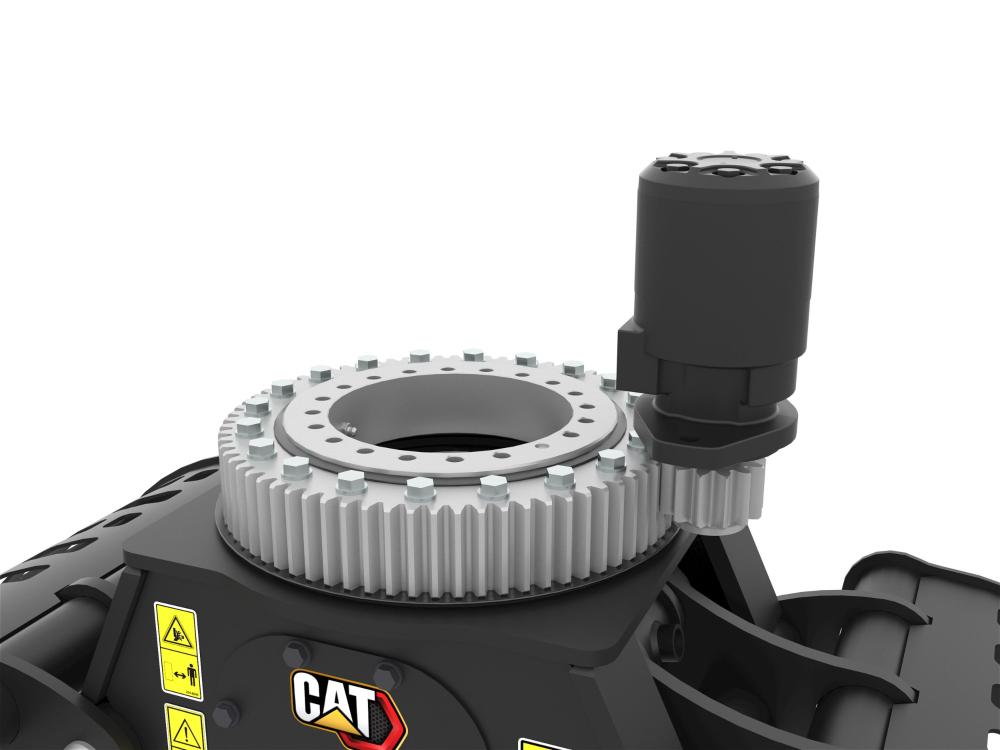

High Displacement Motor

Widest Frame in Class

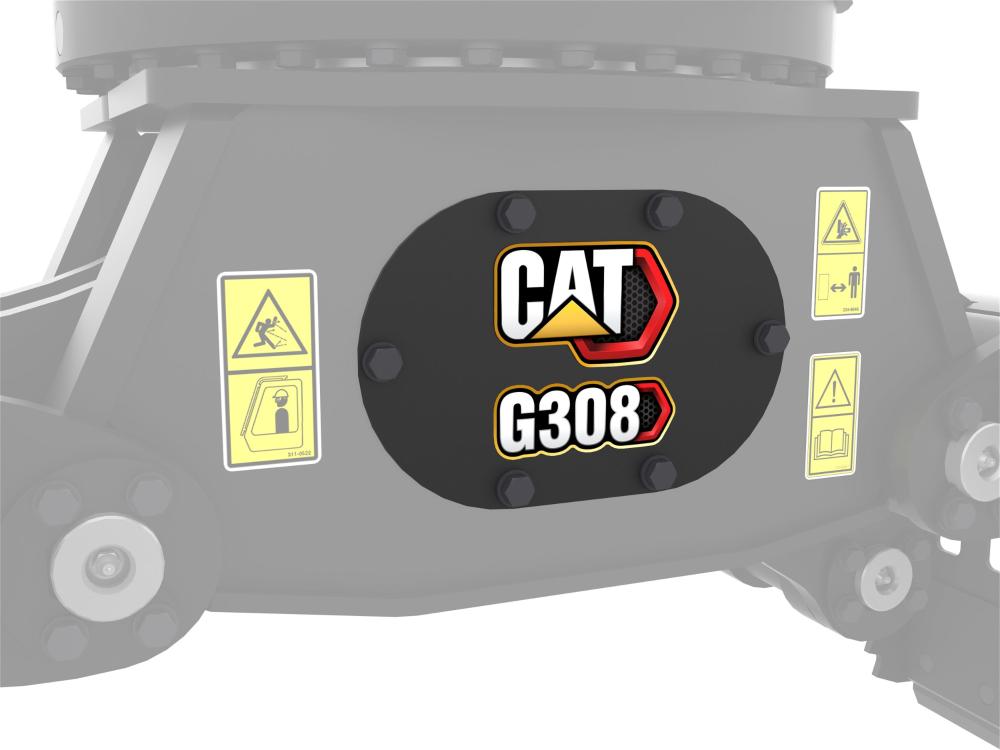

Oval Service Access Panels

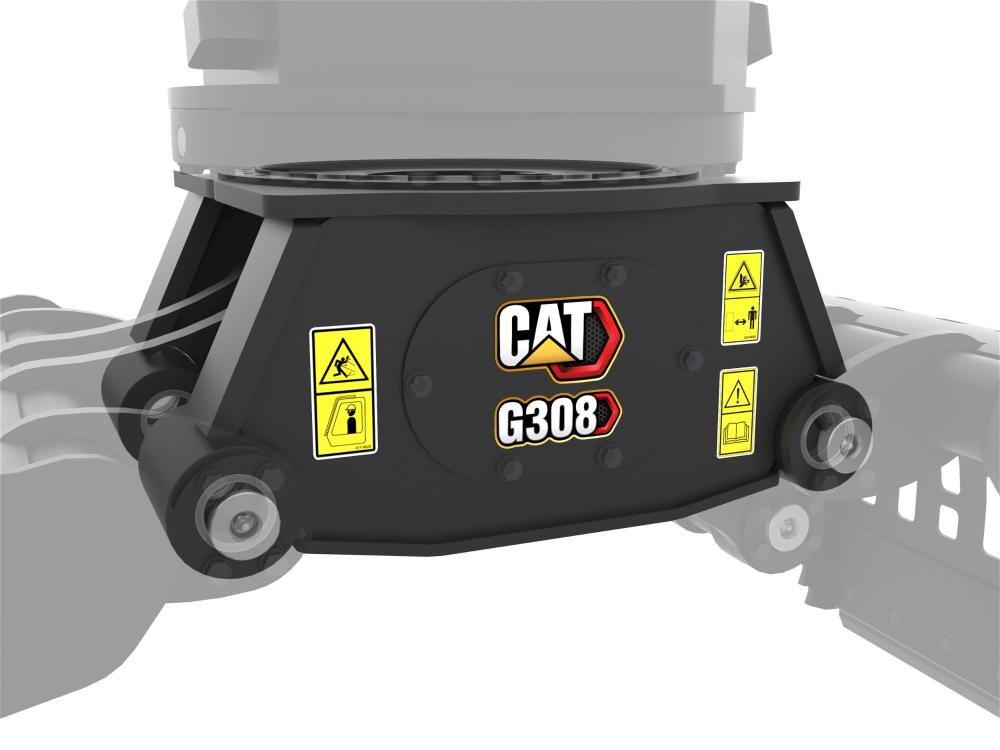

Fully Wrapped Hinge Plates

Better load visibility and easier positioning. Plates are hardened to HB450 standards providing higher wear resistance.

Cat® Demolition and Sorting Grapple Product Brochure.pdf

Others

Grapple Area	160 l	5.7 ft³
Weight	332 kg	731.9 lb
Machine Class	Mini Hydraulic Excavator 5-6 Ton
Maximum Jaw Opening	1271 mm	50 in
Overall Width (Jaws Open)	1404 mm	55.3 in
Overall Width (Jaws Closed)	732 mm	28.8 in
Overall Height (Jaws Open)	894 mm	35.2 in
Overall Height (Jaws Closed)	1057 mm	41.6 in
Overall Depth	600 mm	23.6 in
Interface Type	S40, CW-10, Pin On
Required Hydraulics	2nd Auxiliary
Edge Material	HB500 Equivalent
Optimal Hydraulic Flow	Grab 90 L/min (24 gpm) \| Rotation 33 L/min (9 gpm)
