305 CR Mini Excavator
Caterpillar
Metric
Imperial
Net Power
33.6 kW
45 hp
Operating Weight
5754 kg
12688 lb
Dig Depth
3670 mm
144.5 in
Availability

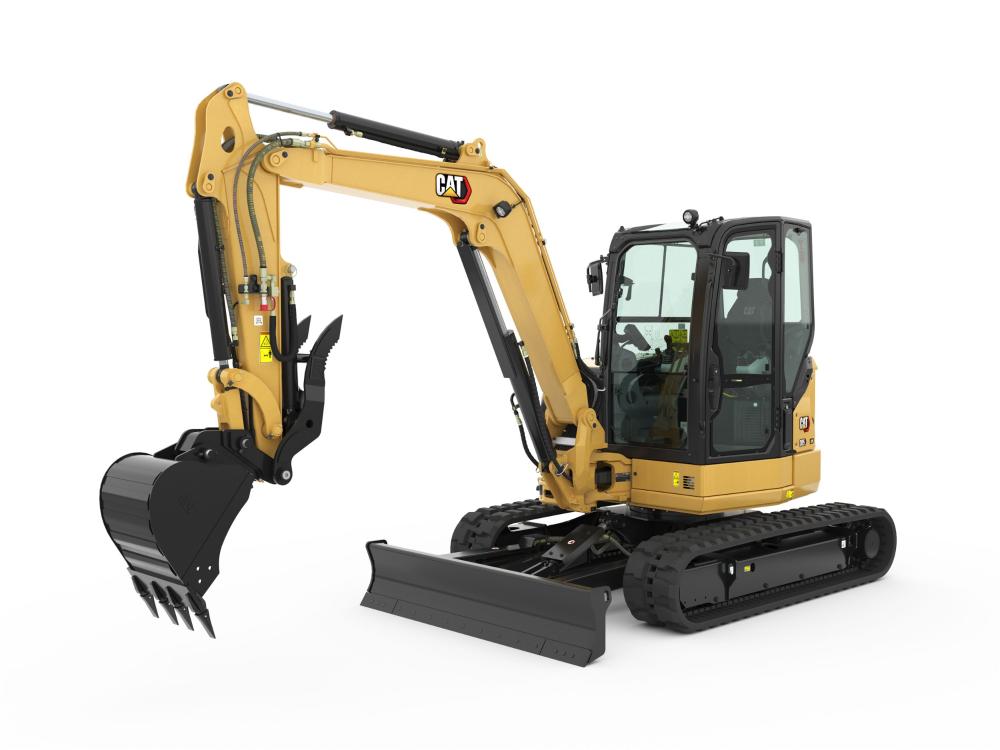

The Cat® 305 CR Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.
4 Industry First Features
Cat Exclusives in a Mini ExcavatorUp to 10% Lower Total Ownership Costs
with extended service intervals, lower repair costs and easy service accessUp to 20% More Performance
in lifting, digging and multi-function capabilityALL DAY COMFORT
EASY TO OPERATE
STICK STEER TRAVEL MODE
BIG PERFORMANCE IN A COMPACT DESIGN
SAFETY ON THE JOB SITE
SIMPLE SERVICE FOR LESS DOWNTIME
LOWER OPERATING COSTS
SUSTAINABILITY

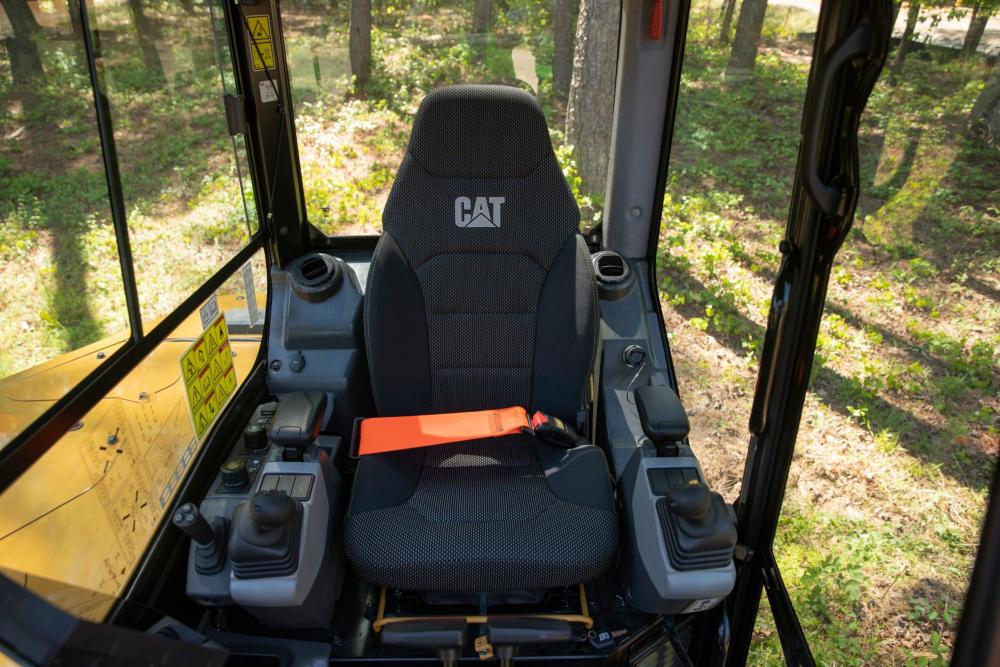

- Choose either a canopy (not available in some regions) or a sealed and pressurized cab which can be equipped with air conditioning, adjustable wrist rests, and a suspension seat to help keep you working comfortably all day long.

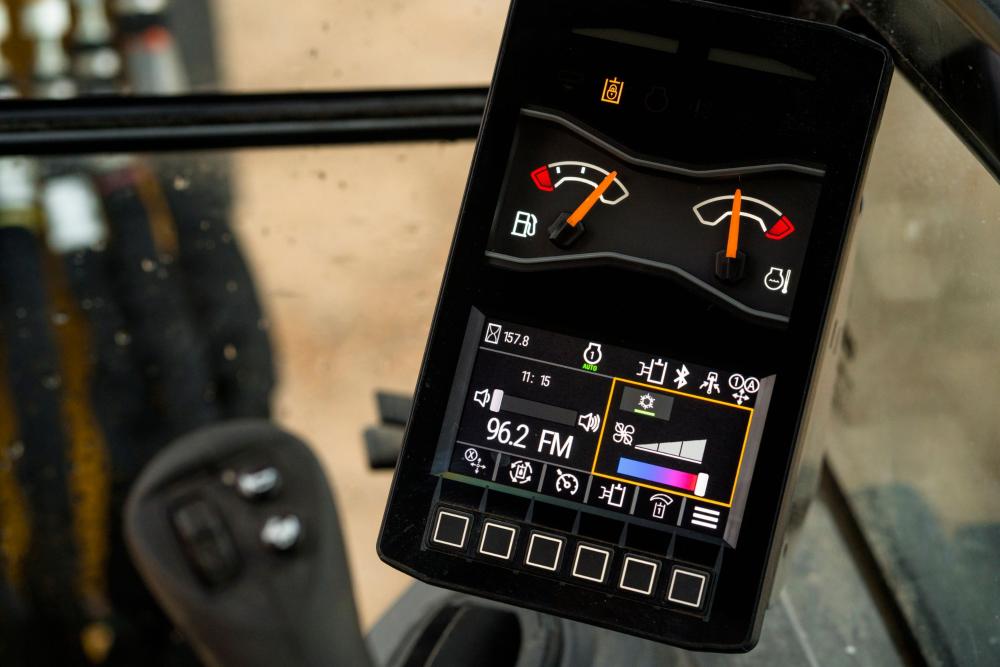

- Controls are easy to use and the intuitive Next Generation LCD monitor provides easy to read machine information. An advanced touchscreen monitor can also be equipped as an upgrade option.
- Moving around the job site is even easier with the Cat Stick Steer option. Easily switch from traditional travel controls with levers and pedals to joystick controls to move the machine and to operate the blade. The benefit of less effort and improved control is in your hands!

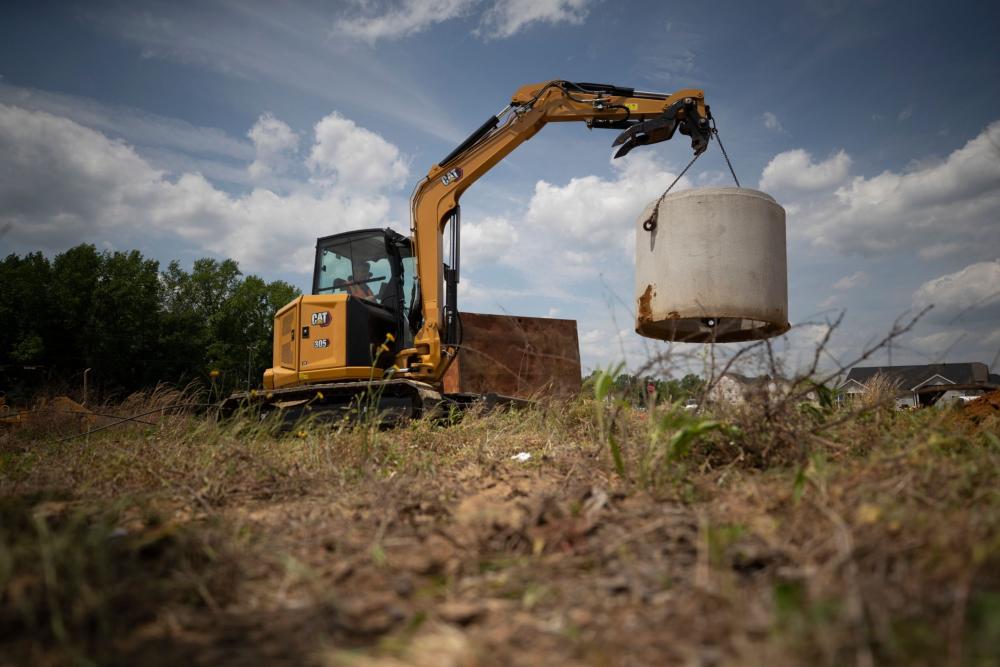

- Strong lift and dig performance helps you get the job done faster. The compact radius design lets you access and work in the tightest areas. Dozer float allows for easy clean up. An angle blade is also an option for finished grading and easier backfilling applications.
- Your safety is our top priority. The Cat mini excavator is designed to help keep you safe on the job. Courtesy work lights and a fluorescent retractable seat belt with optional seat belt reminder system are just a couple of the safety features we’ve built into the machine.

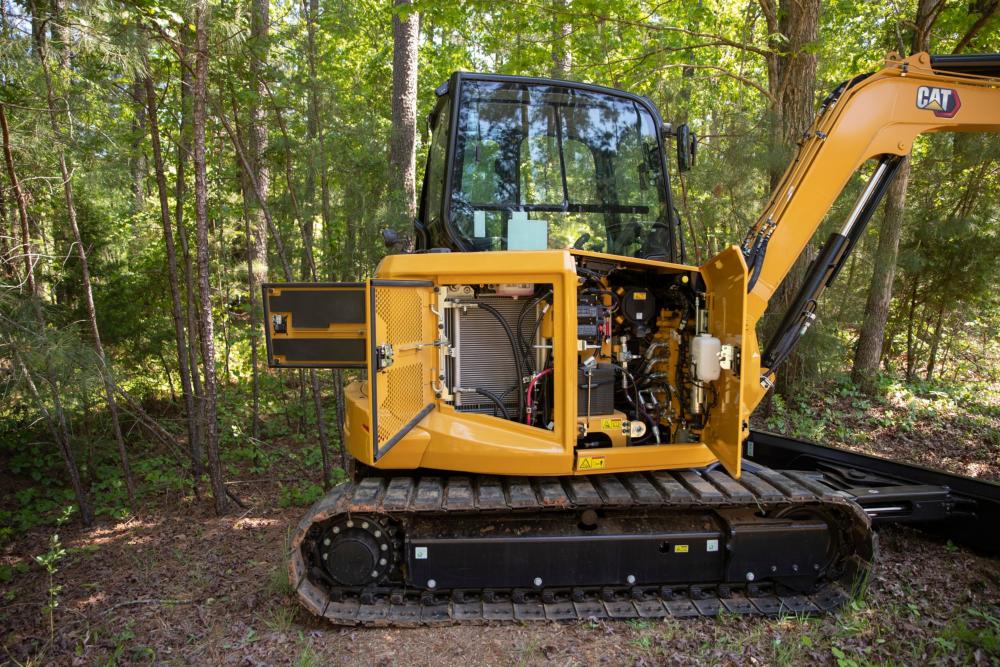

- Maintenance is quick and easy on the Cat mini excavator. Routine check points are easy to access at ground level through the side doors.
- Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat mini excavator was designed with reducing your operating costs in mind.
- The Cat® C1.7 engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
- Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
- Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
- Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
- Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
- The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
- Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
- Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
- Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)
- Cat Grade with advanced 2D and 3D technologies combine advanced guidance with optional automated machine control helping you reach grading targets while reducing fuel burn and greenhouse gas emissions by improving efficiency, job site productivity, and accuracy. (if equipped).
Engine
| Net Power | 33.6 kW | 45 hp |
| Engine Model | C1.7 Turbo | |
| Displacement | 1.662 l | 101 in³ |
| Gross Power - 2,400 rpm - SAE J1995:2014 | 36.1 kW | 48.4 hp |
| Stroke | 100 mm | 3.9 in |
| Bore | 84 mm | 3.3 in |
| Net Power - 2,400 rpm - ISO 9249, 80/1269/EEC | 33.6 kW | 45 hp |
| Note | Advertised power is tested per the specified standard in effect at the time of manufacture. | |
| Emissions | Meets U.S. EPA Tier 4 Final and EU Stage V emissions standards. |
Weights
| Operating Weight | 5754 kg | 12688 lb |
| Note (2) | **Maximum Weight is based on steel tracks with pads, operator, full fuel tank, long stick, straight blade, extra counterweight and no bucket. | |
| Minimum Operating Weight with Cab* | 5105 kg | 11257 lb |
| Note (1) | *Minimum Weight is based on rubber tracks, operator, full fuel tank, standard stick, straight blade, no bucket and no extra counterweight. | |
| Minimum Operating Weight with Canopy* | 5006 kg | 11038 lb |
| Maximum Operating Weight with Canopy** | 5665 kg | 12491 lb |
| Maximum Operating Weight with Cab** | 5764 kg | 12710 lb |
Dimensions - Long Stick
| Dig Depth | 3670 mm | 144.5 in |
| Maximum Reach | 5990 mm | 235.8 in |
| O/A Shipping Height | 2550 mm | 100.4 in |
| Vertical Wall | 2560 mm | 100.8 in |
| Track Width | 1980 mm | 78 in |
| Overall Shipping Length* | 5340 mm | 210.2 in |
| Maximum Dump Clearance | 3845 mm | 151.4 in |
| Tail Swing with Counterweight | 1200 mm | 47.2 in |
| Boom Swing - Right | 865 mm | 34.1 ° |
| Boom Swing - Left | 24.2 ° | 615 mm |
| Tail Swing without Counterweight | 1095 mm | 43.1 in |
| Track Belt/Shoe Width | 400 mm | 15.7 in |
| Maximum Reach - Ground Level | 5835 mm | 229.7 in |
| Stick Length | 1601 mm | 63 in |
| Swing Bearing - Height | 619 mm | 24.4 in |
| O/A Undercarriage Length | 2580 mm | 101.6 in |
| Boom In Reach | 2580 mm | 101.6 in |
| Maximum Blade Depth | 650 mm | 25.6 in |
| Maximum Blade Height | 400 mm | 15.7 in |
| Maximum Dig Height | 5355 mm | 210.8 in |
| Boom Height - Shipping Position | 1895 mm | 74.6 in |
| Note | *Overall Shipping Length depends on blade position during shipment. | |
| Ground Clearance | 335 mm | 13.2 in |
Service Refill Capacities
| Hydraulic Tank | 60 l | 16 gal (US) |
| Engine Oil | 6 l | 1.6 gal (US) |
| Hydraulic System | 75 l | 20 gal (US) |
| Fuel Tank | 68 l | 18 gal (US) |
| Cooling System | 11 l | 2.9 gal (US) |
Swing System
| Boom Swing - Left | 72 Degrees | |
| Machine Swing Speed | 9 r/min | 9 r/min |
| Boom Swing - Right | 50 Degrees |
Hydraulic System
| Digging Force - Bucket | 49.2 kN | 11061 lbf |
| Auxiliary Circuit - Secondary - Pressure | 265 bar | 3843 psi |
| Operating Pressure - Equipment | 265 bar | 3843 psi |
| Auxiliary Circuit - Secondary - Flow | 28 l/min | 7 gal/min |
| Operating Pressure - Travel | 265 bar | 3843 psi |
| Type | Load Sensing Hydraulics with Variable Displacement Piston Pump | |
| Digging Force - Stick - Standard | 28.3 kN | 6362 lbf |
| Auxiliary Circuit - Primary - Pressure | 265 bar | 3843 psi |
| Note | Flow and pressure are not combinable. Under load, as flow rises pressure goes down. | |
| Pump Flow at 2,400 rpm | 133 l/min | 35 gal/min |
| Auxiliary Circuit - Primary - Flow | 80 l/min | 21 gal/min |
| Operating Pressure - Swing | 200 bar | 2901 psi |
| Digging Force - Stick - Long | 25.2 kN | 5665 lbf |
Dimensions - Standard Stick
| Tail Swing without Counterweight | 1095 mm | 43.1 in |
| Boom Swing - Left | 615 mm | 24.2 ° |
| Boom Swing - Right | 865 mm | 34.1 ° |
| Maximum Dig Height | 5215 mm | 205.3 in |
| Vertical Wall | 2335 mm | 91.9 in |
| Maximum Blade Height | 400 mm | 15.7 in |
| Swing Bearing - Height | 619 mm | 24.4 in |
| Boom Height - Shipping Position | 1820 mm | 71.7 in |
| Overall Shipping Length* | 5305 mm | 208.9 in |
| O/A Shipping Height | 2550 mm | 100.4 in |
| Dig Depth | 3420 mm | 134.6 in |
| Maximum Reach - Ground Level | 5590 mm | 220.1 in |
| Maximum Dump Clearance | 3700 mm | 145.7 in |
| Maximum Reach | 5755 mm | 226.6 in |
| Boom In Reach | 2570 mm | 101.2 in |
| Maximum Blade Depth | 650 mm | 25.6 in |
| Note | *Overall Shipping Length depends on blade position during shipment. | |
| O/A Undercarriage Length | 2580 mm | 101.6 in |
| Track Belt/Shoe Width | 400 mm | 15.7 in |
| Stick Length | 1351 mm | 53.2 in |
| Tail Swing with Counterweight | 1200 mm | 47.2 in |
| Ground Clearance | 335 mm | 13.2 in |
Travel System
| Maximum Traction Force - High Speed | 24.7 kN | 5553 lbf |
| Travel Speed - High | 5 km/h | 3.1 mile/h |
| Travel Speed - Low | 2.8 km/h | 1.7 mile/h |
| Ground Pressure - Maximum Weight | 32.2 kPa | 4.7 psi |
| Gradeability - Maximum | 30 degrees | |
| Ground Pressure - Minimum Weight | 27.3 kPa | 4 psi |
| Maximum Traction Force - Low Speed | 50.5 kN | 11353 lbf |
Weight Increase from Minimum Configuration
| Counterweight | 242 kg | 534 lb |
| Angle Blade | 92 kg | 203 lb |
| Long Stick | 34 kg | 75 lb |
| Steel Tracks with Pads | 375 kg | 827 lb |
Blade
| Angle Blade - Right | 25 degrees | |
| Angle Blade Width | 1980 mm | 78 in |
| Angle Blade Height | 400 mm | 15.7 in |
| Straight Blade Width | 1980 mm | 78 in |
| Straight Blade Height | 390 mm | 15.4 in |
| Angle Blade - Left | 25 degrees |
Certification - Cab and Canopy
| Roll Over Protective Structure (ROPS) | ISO 12117-2:2008 |
| Top Guard | ISO 10262:1998 Level I |
Sound
| Operator Sound Pressure (ISO 6396:2008) | 76 dB(A) | 76 dB(A) |
| Average Exterior Sound Pressure (ISO 6395:2008) | 97 dB(A) | 97 dB(A) |
| Note | European Union Directive "2000/14/EC" |
Sustainability
| Recyclability | 96% |
You might also be interested in:
-
300.9D
Net Power
9.6 kW
13 hp
Operating Weight
935 kg
2061 lb
Dig Depth
1731 mm
68 in
Caterpillar
15699515
-
300.9D VPS & HPU300
Net Power
9.7 kW
13 hp
Operating Weight
1088 kg
2399 lb
Dig Depth
1731 mm
68 in
Caterpillar
15699534
-
301.5
Net Power
15.7 kW
21 hp
Operating Weight
1775 kg
3913 lb
Dig Depth
2540 mm
100 in
Caterpillar
15195767
-
301.6
Net Power
15.7 kW
21 hp
Operating Weight
1958 kg
4317 lb
Dig Depth
2540 mm
100 in
Caterpillar
15195795
-
301.7 CR
Net Power
15.7 kW
21 hp
Operating Weight
1915 kg
4222 lb
Dig Depth
2540 mm
100 in
Caterpillar
15195813
-
301.8
Net Power
15.7 kW
21 hp
Operating Weight
2029 kg
4473 lb
Dig Depth
2570 mm
101.2 in
Caterpillar
15195920
-
302.7 CR
Net Power
17.6 kW
23.6 hp
Operating Weight
3050 kg
6725 lb
Dig Depth
2710 mm
106.7 in
Caterpillar
15195971
-
302 CR
Net Power
15.7 kW
21 hp
Operating Weight
2262 kg
4987 lb
Dig Depth
2570 mm
101.2 in
Caterpillar
15195945
-
303.5 CR
Net Power
17.6 kW
23.6 hp
Operating Weight
4190 kg
9239 lb
Dig Depth
3110 mm
122.4 in
Caterpillar
15196027
-
303 CR
Net Power
17.6 kW
23.6 hp
Operating Weight
3545 kg
7817 lb
Dig Depth
2950 mm
116.1 in
Caterpillar
15195999
-
304
Net Power
33.6 kW
45 hp
Operating Weight
4475 kg
9867 lb
Dig Depth
3510 mm
138.2 in
Caterpillar
15196054
-
306 CR
Net Power
41.7 kW
55.9 hp
Operating Weight
7150 kg
15766 lb
Dig Depth
4110 mm
162 in
Caterpillar
15196107
-
306 CR VAB
Net Power
41.7 kW
55.9 hp
Operating Weight
7150 kg
15766 lb
Dig Depth
2975 mm
117.1 in
Cat
15699596
-
308 CR
Net Power
51.8 kW
69.5 hp
Operating Weight
8387 kg
18493 lb
Dig Depth
4643 mm
182.8 in
Caterpillar
15196157
-
308 CR VAB
Net Power
51.8 kW
69.5 hp
Operating Weight
9245 kg
20385 lb
Dig Depth
3815 mm
150.2 in
Caterpillar
15196186
-
309 CR
Net Power
51.8 kW
69.5 hp
Operating Weight
9565 kg
21091 lb
Dig Depth
4642 mm
182.8 in
Caterpillar
15196205
-
309 CR VAB (Long Undercarriage)
Net Power
51.8 kW
69.5 hp
Operating Weight
9740 kg
21477 lb
Dig Depth
3815 mm
150.2 in
Caterpillar
15196307
-
310 - Tier 4 / Stage V
Net Power
51.8 kW
69.5 hp
Operating Weight
10432 kg
23002 lb
Dig Depth
5211 mm
205.2 in
Caterpillar
15196340
Compatible products:
-
1000 mm (39 in)
Width
1000 mm
39.4 in
Capacity
169.89 l
6 ft³
Weight
117.3 kg
258.6 lb
Cat
15177323
-
1200 mm (47 in)
Width
1200 mm
47.2 in
Capacity
259.89 l
9.2 ft³
Weight
186.19 kg
410.5 lb
Cat
15177629
-
1300 mm (51 in)
Height
550 mm
21.7 in
Width
1300 mm
51 in
Overall Width
1312 mm
51.7 in
Cat
15181028
-
1300 mm (51 in)
Width
1300 mm
51.2 in
Capacity
220.3 l
7.8 ft³
Weight
118.19 kg
260.6 lb
Cat
15177503
-
1500 mm (59 in)
Width
1500 mm
59.1 in
Capacity
329.89 l
11.6 ft³
Weight
222.89 kg
491.4 lb
Cat
15177677
-
1600 mm (63 in)
Width
1600 mm
63 in
Capacity
279.79 l
9.9 ft³
Weight
139.1 kg
306.7 lb
Cat
15177548
-
305 mm (12 in)
Width
305 mm
12 in
Capacity
59.5 l
2.1 ft³
Weight
71 kg
156.5 lb
Cat
15177752
-
356 mm (14 in) 8 Teeth/2 Tines
Length
907 mm
35.7 in
Stored Height
333 mm
13.1 in
Overall Width
356 mm
14 in
Cat
15185098
-
406 mm (16 in)
Width
406 mm
16 in
Capacity
76.5 l
2.7 ft³
Weight
79 kg
174.2 lb
Cat
15177774
-
457 mm (18 in)
Width
457 mm
18 in
Capacity
87.8 l
3.1 ft³
Weight
88 kg
194 lb
Cat
15177898
-
508 mm (20 in)
Width
508 mm
20 in
Capacity
101.9 l
3.6 ft³
Weight
94 kg
207.2 lb
Cat
15177920
-
619 mm (24 in)
Width
619 mm
24.4 in
Capacity
130.3 l
4.6 ft³
Weight
106 kg
233.7 lb
Cat
15177942
-
676 mm (27 in)
Shank Length
676 mm
26.6 in
Weight
60.79 kg
134 lb
Overall Length
822 mm
32.4 in
Cat
15183006
-
762 mm (30 in)
Width
762 mm
30 in
Capacity
172.69 l
6.1 ft³
Weight
127 kg
280 lb
Cat
15177964
-
914 mm (36 in)
Width
914 mm
36 in
Capacity
220.89 l
7.8 ft³
Weight
146 kg
321.9 lb
Cat
15177975
-
A41
Drive Shaft Torque at Maximum Pressure
4120 N·m
3038.8 lb/ft
Drive Method
Gerotor Motor - Single Planetary Reduction
Mounting Bracket Design
5 Ton Mini Excavator Pin On
Cat
15175218
-
A68
Drive Shaft Torque at Maximum Pressure
6826 N·m
5034.6 lb/ft
Drive Method
Gerotor Motor - Double Planetary Reduction
Mounting Bracket Design
5 Ton Mini Excavator Pin On
Cat
15175266
-
G306
Grapple Area
160 l
5.7 ft³
Weight
332 kg
731.9 lb
Machine Class
Mini Hydraulic Excavator 5-6 Ton
Cat
15682024
-
H55s
Operating Weight - With Tool
345 kg
760.6 lb
Energy Class
813 J
599.6 ft·lbf
Machine Class
3-6 Ton Mini Excavators, 216-299 Skid Steer/Compact Track Loaders
Cat
15181848
-
H65s
Operating Weight - With Tool
390 kg
859.8 lb
Energy Class
1085 J
800.3 ft·lbf
Machine Class
5-9 Ton Mini Excavators, 216-299 Skid Steer/Compact Track Loaders, 415-444 Backhoe Loaders
Cat
15181860
Other categories of Excavadoras:
360º Interior
360º Exterior

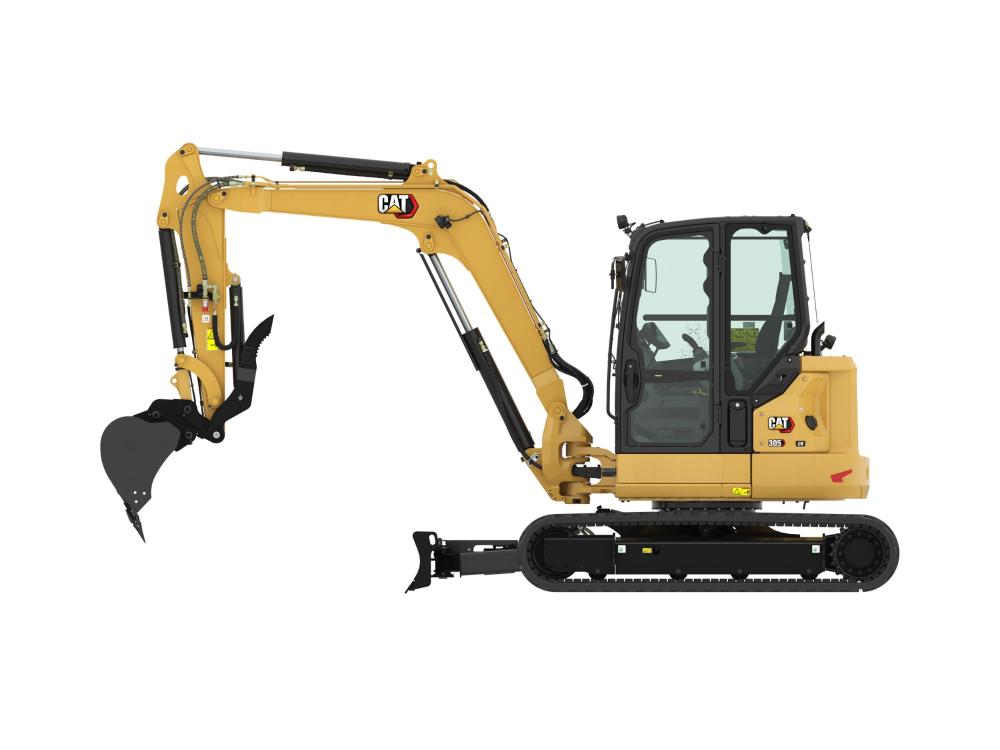

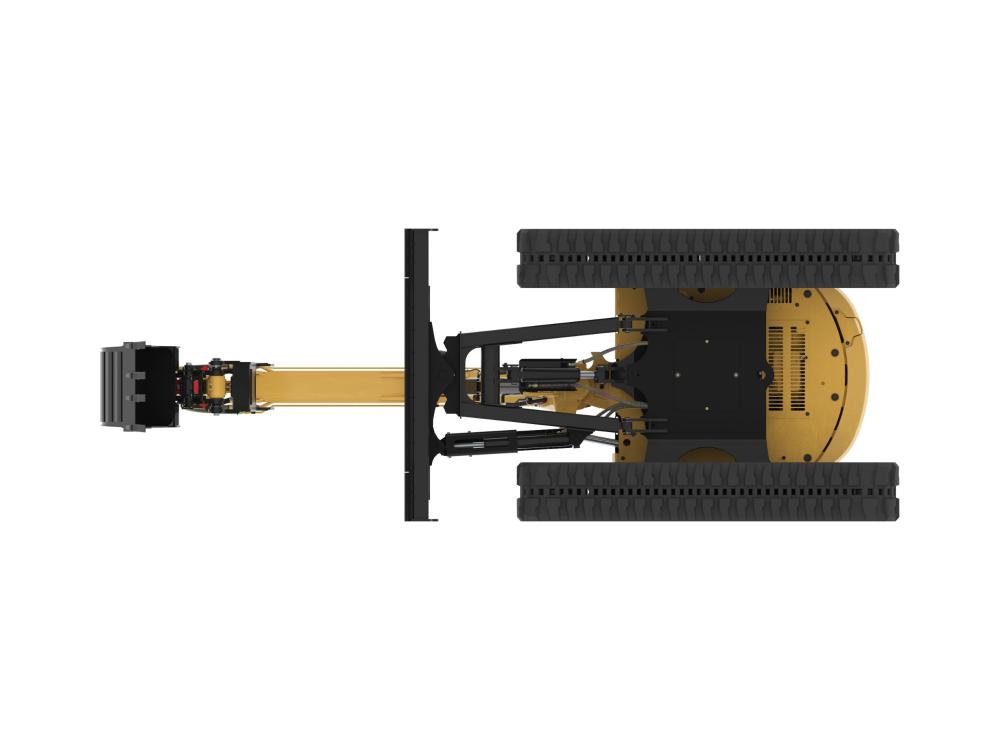

305 CR Mini Excavator
Call us
I am interested
I am interested
Thank you for contacting us.
We have received your request and will contact you as soon as possible.
Please check your email to ensure that the form has been sent correctly.
