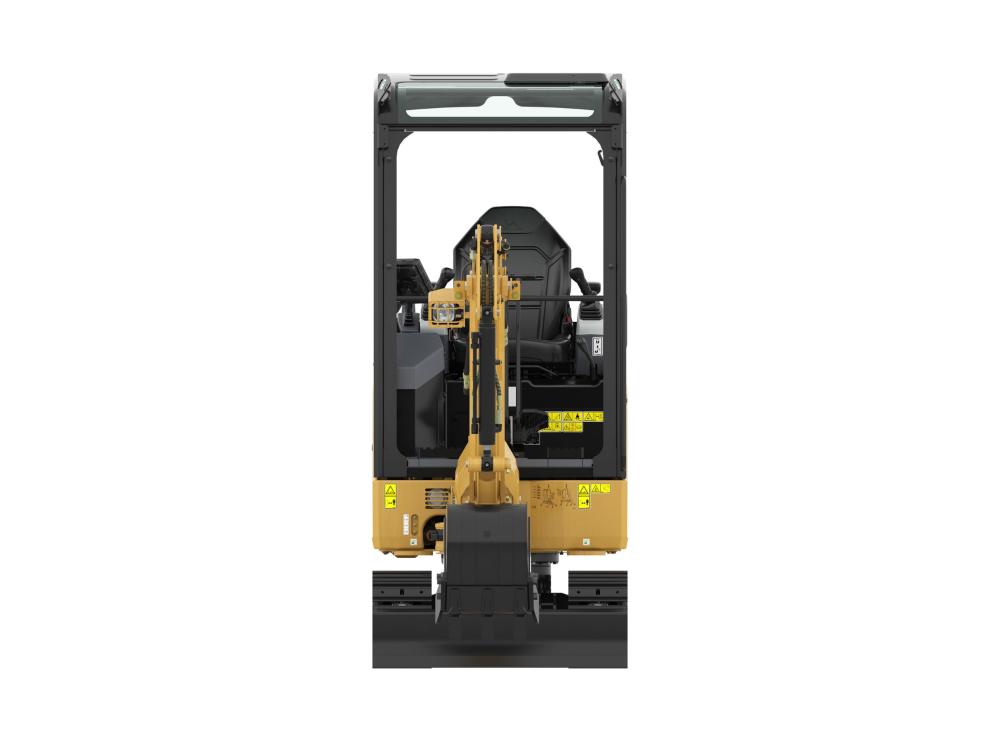

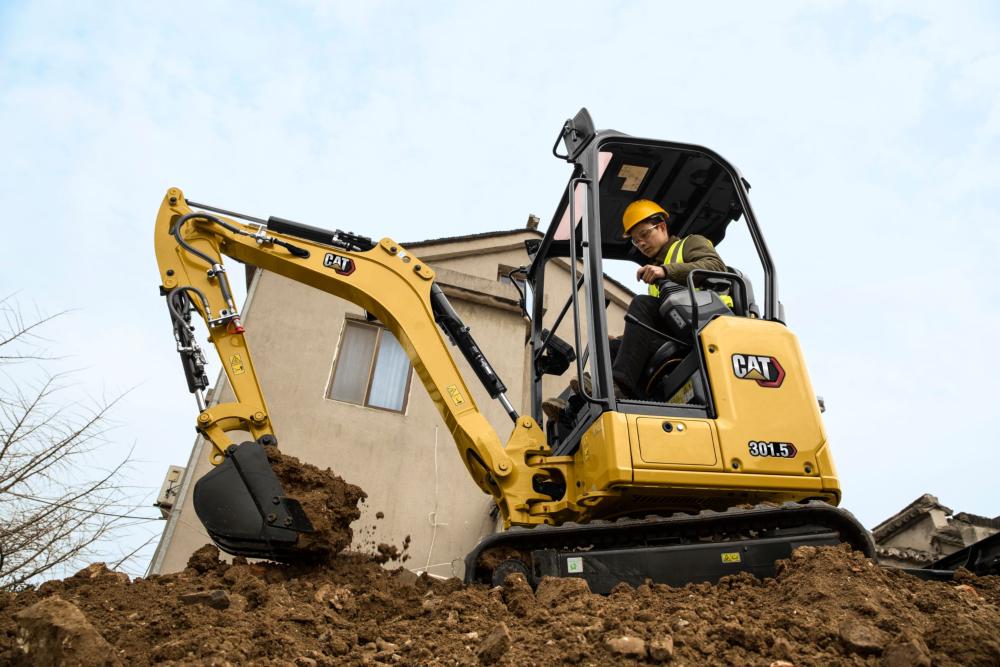

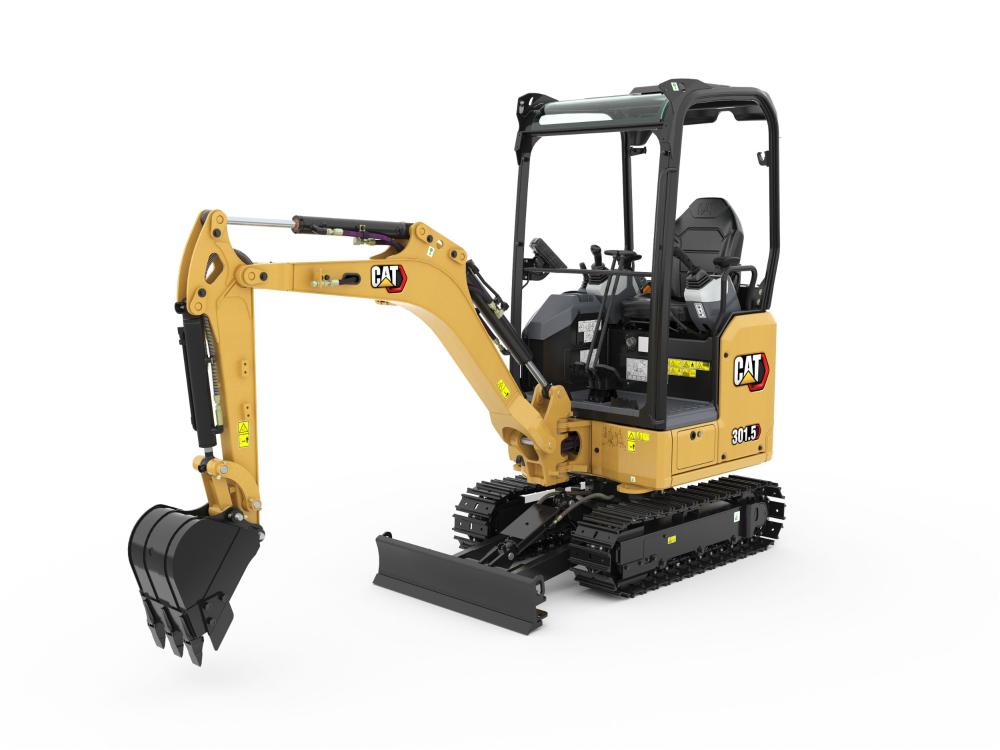

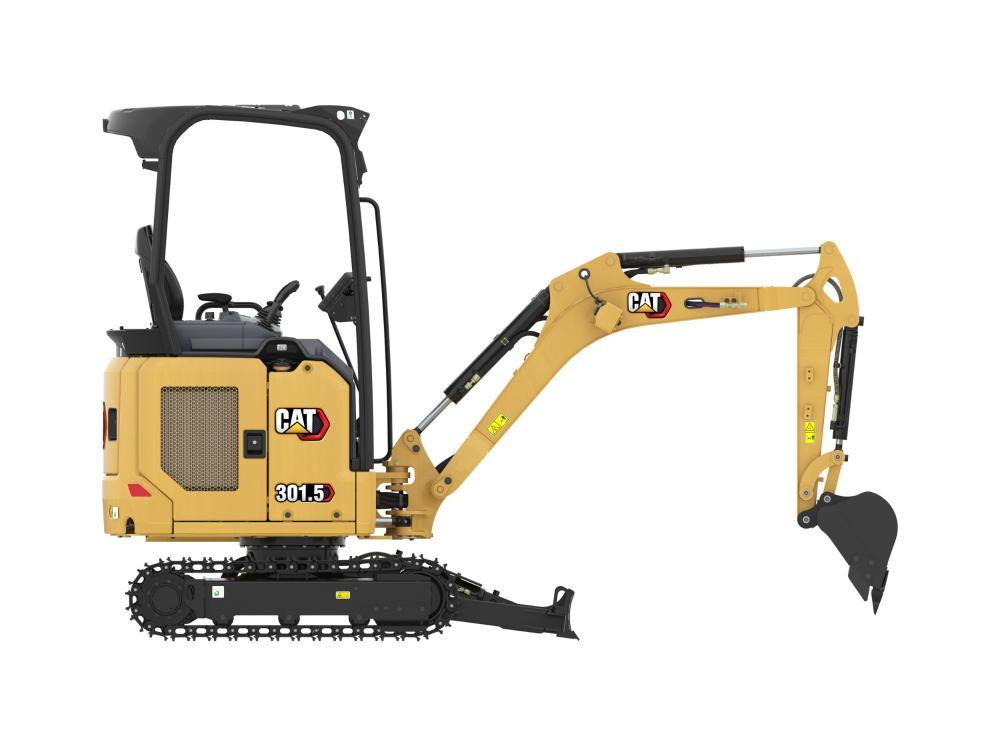

301.5 Mini Hydraulic Excavator

Units of measurement :

Metric

Imperial

Net Power

15.7 kW

Operating Weight

1775 kg

Dig Depth

2540 mm

Availability

Purchase Rental Used

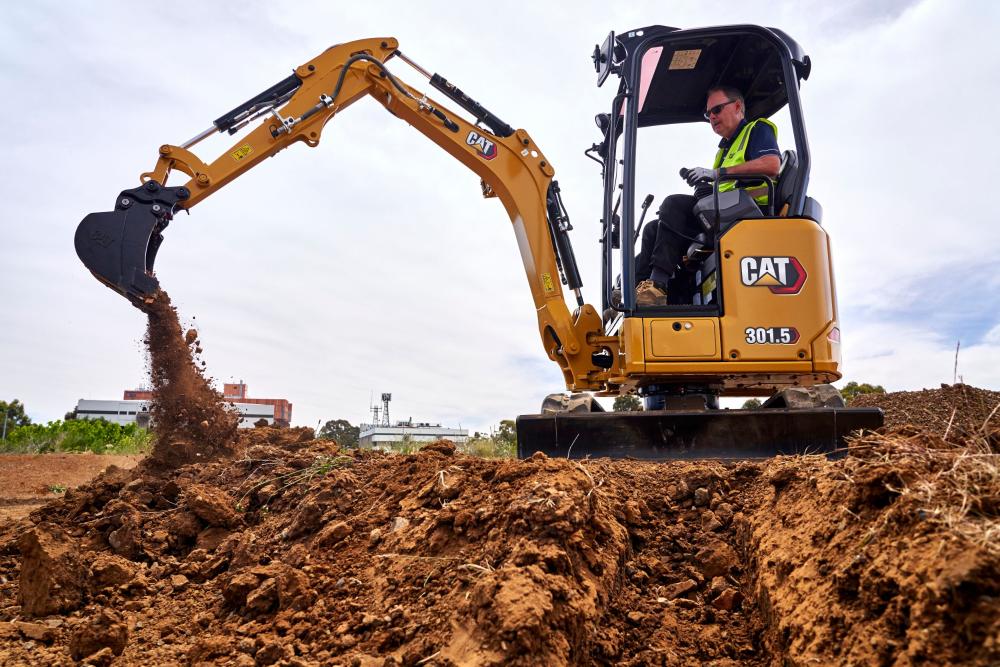

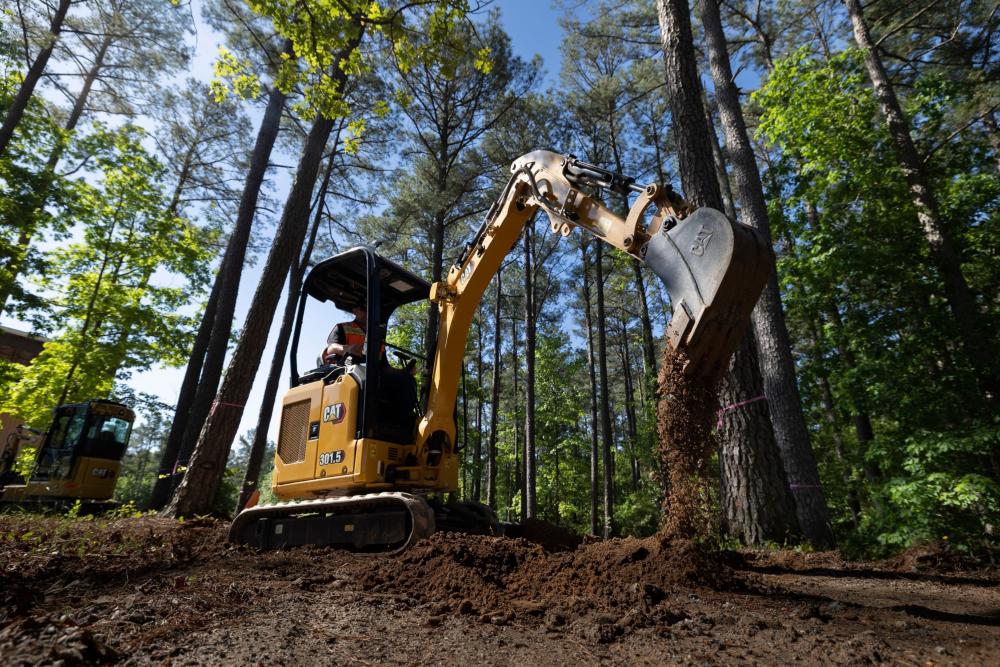

The Cat® 301.5 Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.

4 Industry First Features

Cat Exclusives in a Mini Excavator

Up to 15% Lower Total Ownership Costs

with more common parts, lower repair costs and tilt up cab

Up to 20% More Performance

with programmable operator settings and faster cyle times

ALL DAY COMFORT

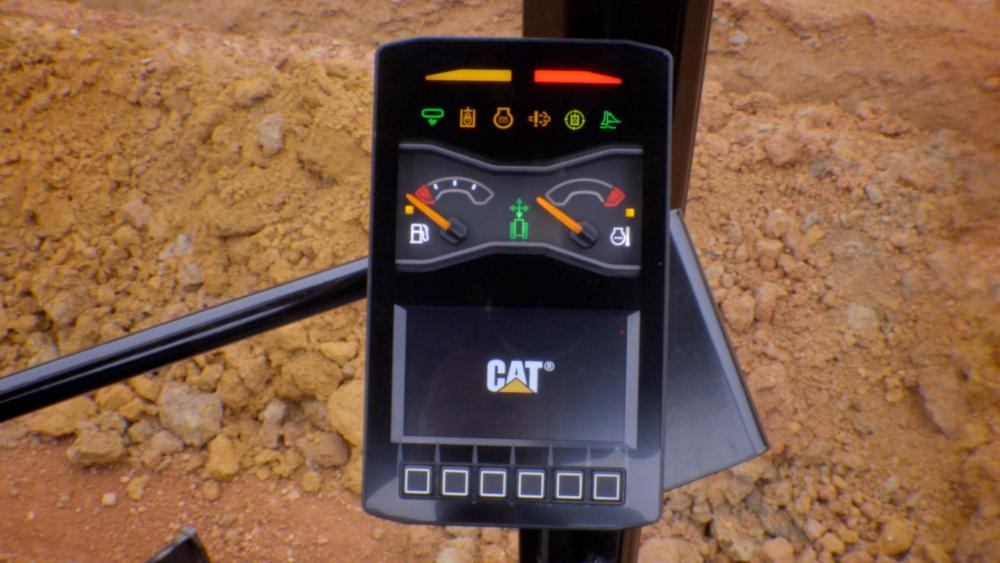

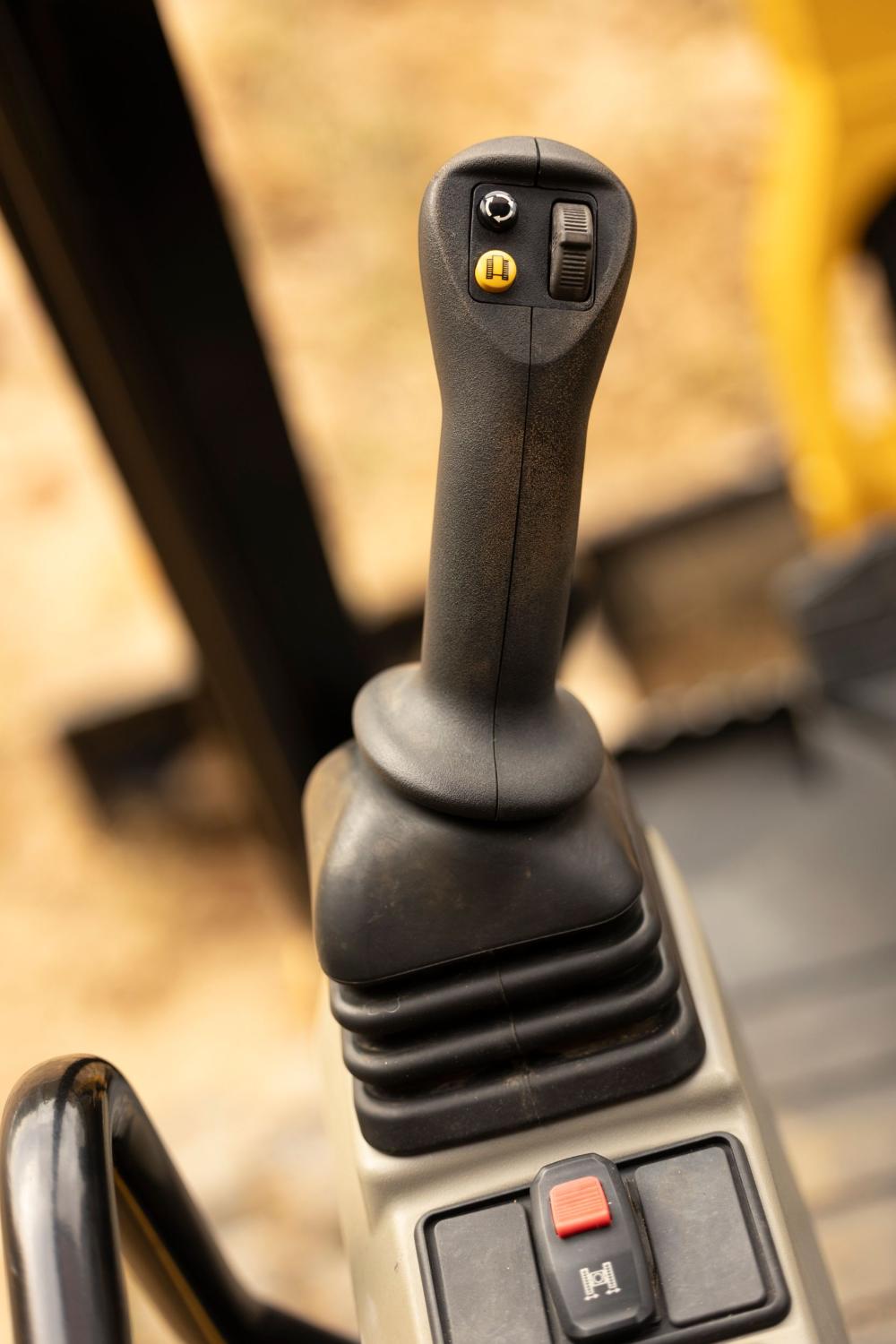

EASY TO OPERATE

STICK STEER TRAVEL MODE

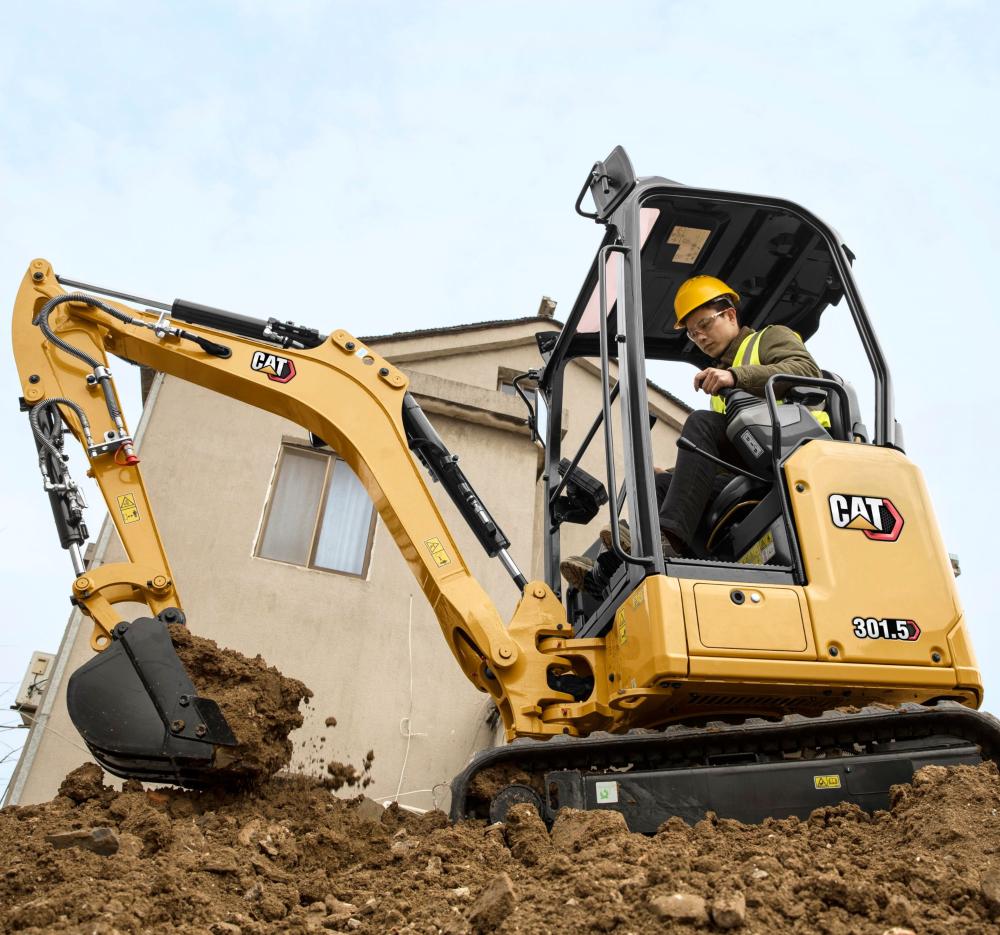

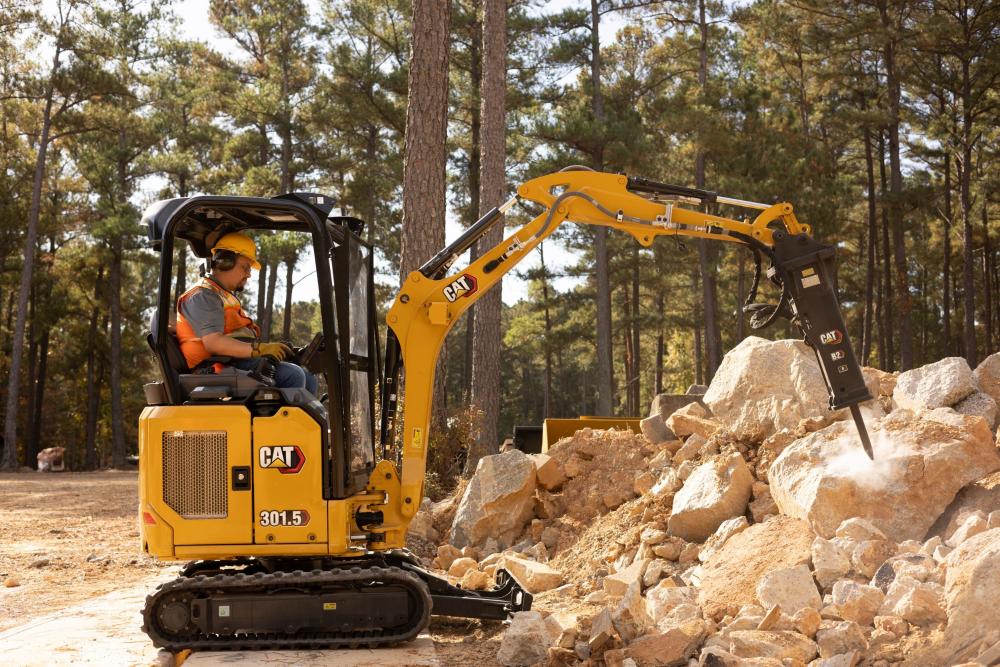

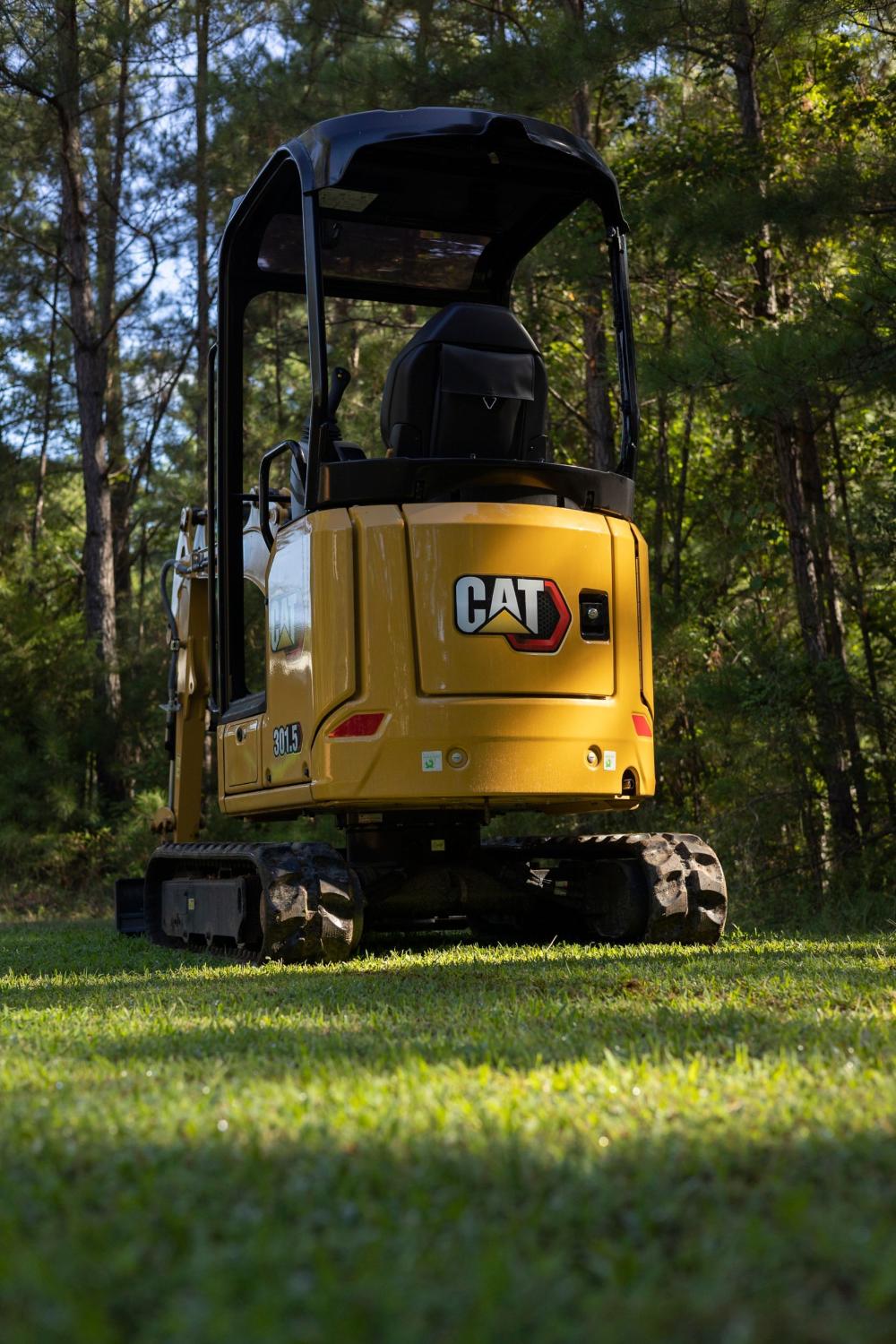

BIG PERFORMANCE IN A COMPACT DESIGN

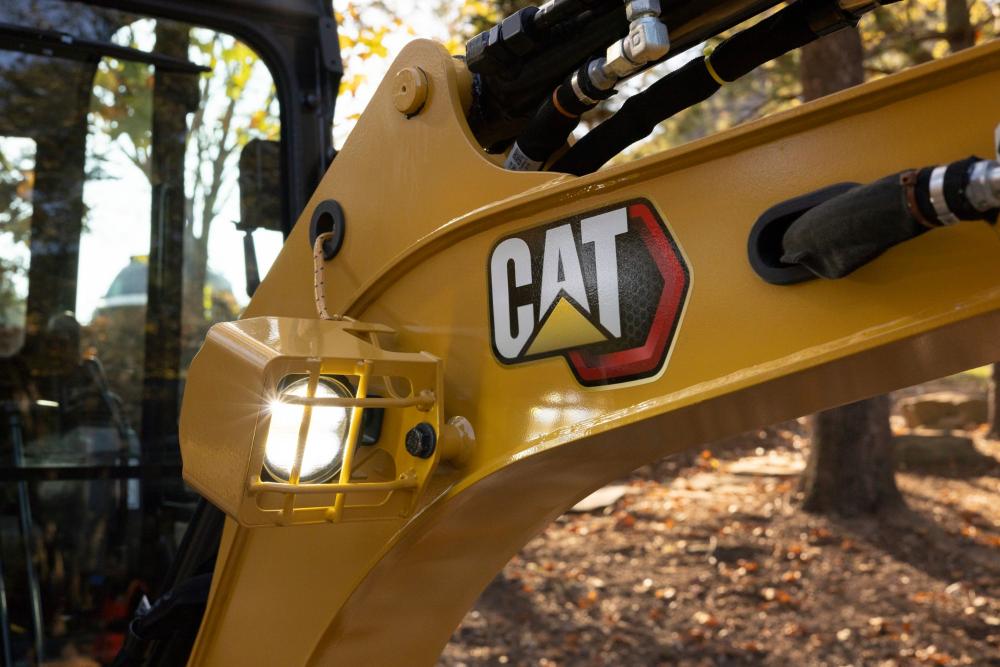

SAFETY ON THE JOB SITE

SIMPLE SERVICE FOR LESS DOWNTIME

LOWER OPERATING COSTS

SUSTAINABILITY

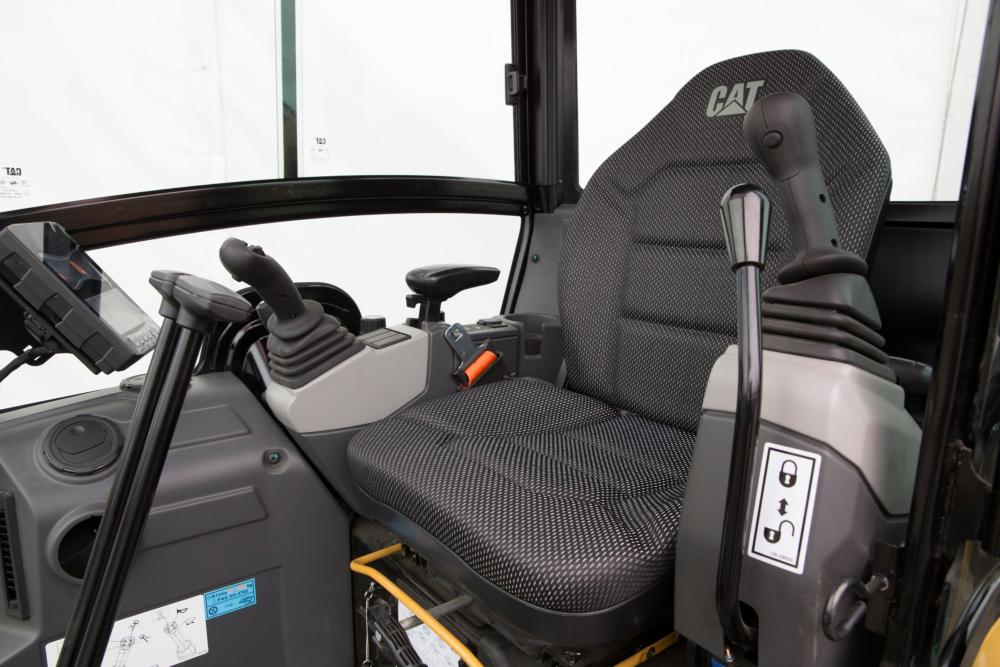

Adjustable wrist rests and a suspension seat option help keep you working comfortably all day long.

The Cat® C1.1 engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.

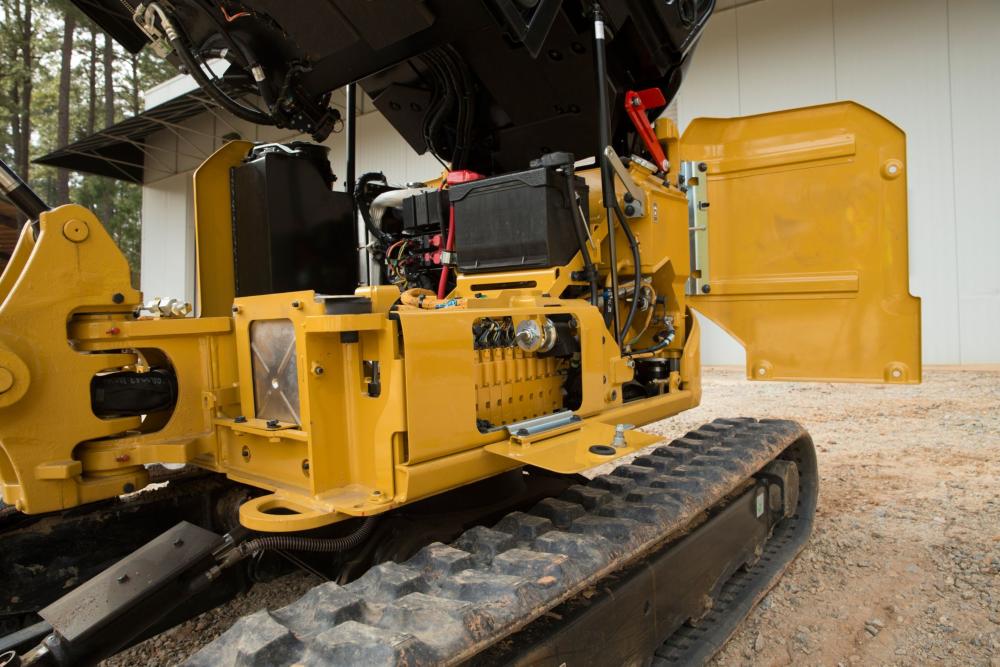

Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)

*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. (for use of blends higher than 20% biodiesel, consult your Cat dealer)

301.5 Small Product Brochure (Global except China and Japan).pdf Options And Accessories Kit Guide for Mini Hydraulic Excavators.pdf Cat Attachments for Mini Excavators Brochure.pdf Attachment Compatibility Guide for Mini Excavators.pdf Cat Mini Hydraulic Excavators Product Line Brochure (North America).pdf Cat Mini Hydraulic Excavators Product Line Brochure (Europe).pdf

Engine

Net Power	15.7 kW	21 hp
Engine Model	C1.1
Displacement	1.1 l	69 in³
Stroke	81 mm	3.2 in
Bore	77 mm	3 in
Emissions	Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Note	Net power is tested per ISO 9249:2007 and 80/1269/EEC.
Note (2)	Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load.
Note (1)	Engine power is tested per ISO 14396:2002.
Net Power - 2,400 rpm - ISO 9249, 80/1269/EEC	15.7 kW	21 hp
Gross Power - SAE J1995:2014	16.1 kW	21.6 hp

Weights

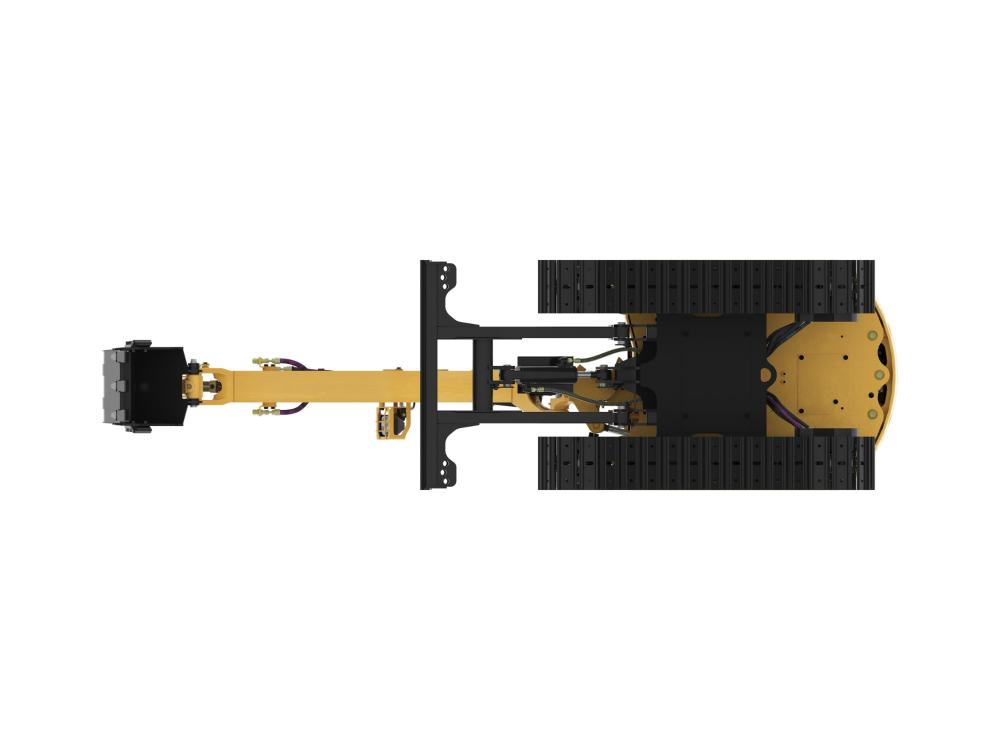

Dimensions - Long Stick

Dig Depth	2540 mm	100 in
Maximum Blade Height	275 mm	10.8 in
Stick Length	1160 mm	45.7 in
Boom Height - Shipping Position	1040 mm	40.9 in
Maximum Reach	3960 mm	155.9 in
Maximum Dig Height	3490 mm	137.4 in
Note	*Overall Shipping Length depends on blade position during shipment.
Tail Swing	820 mm	32.3 in
O/A Undercarriage Length	1460 mm	57.5 in
Track Width - Expanded	1300 mm	51.18 in
Boom In Reach	1450 mm	57.1 in
O/A Shipping Height	2310 mm	90.9 in
Maximum Blade Depth	260 mm	10.2 in
Maximum Reach - Ground Level	3890 mm	153.1 in
Overall Shipping Length*	3590 mm	141.3 in
Maximum Dump Clearance	2510 mm	98.8 in
Swing Bearing - Height	445 mm	17.5 in
Minimum Ground Clearance Below Undercarriage	155 mm	6.1 in
Boom Swing - Left	65 °	65 °
Vertical Wall	1890 mm	74.4 in
Track Width - Retracted	990 mm	39 in
Track Belt/Shoe Width	230 mm	9.1 in
Boom Swing - Right	50 °	50 °

Blade

Dimensions - Standard Stick

Swing Bearing - Height	445 mm	17.5 in
O/A Undercarriage Length	1460 mm	57.5 in
Maximum Reach - Ground Level	3730 mm	146.9 in
Boom Swing - Left	65 °	65 °
Maximum Reach	3800 mm	149.6 in
O/A Shipping Height	2310 mm	90.9 in
Maximum Blade Depth	260 mm	10.2 in
Minimum Ground Clearance Below Undercarriage	155 mm	6.1 in
Vertical Wall	1800 mm	70.9 in
Dig Depth	2340 mm	92.1 in
Track Width - Expanded	1300 mm	51.18 in
Track Belt/Shoe Width	230 mm	9.1 in
Stick Length	960 mm	37.8 in
Maximum Dig Height	3430 mm	135 in
Overall Shipping Length*	3620 mm	142.5 in
Boom In Reach	1460 mm	57.5 in
Maximum Blade Height	275 mm	10.8 in
Maximum Dump Clearance	2450 mm	96.5 in
Boom Swing - Right	50 °	50 °
Note	*Overall Shipping Length depends on blade position during shipment.
Boom Height - Shipping Position	1090 mm	42.9 in
Tail Swing	820 mm	32.3 in
Track Width - Retracted	990 mm	39 in

Hydraulic System

Travel System

Certification - Canopy

Sound

Service Refill Capacities

Swing System

Weight Increase from Minimum Configuration

Sustainability

Compatible products:

Other categories of Excavadoras:

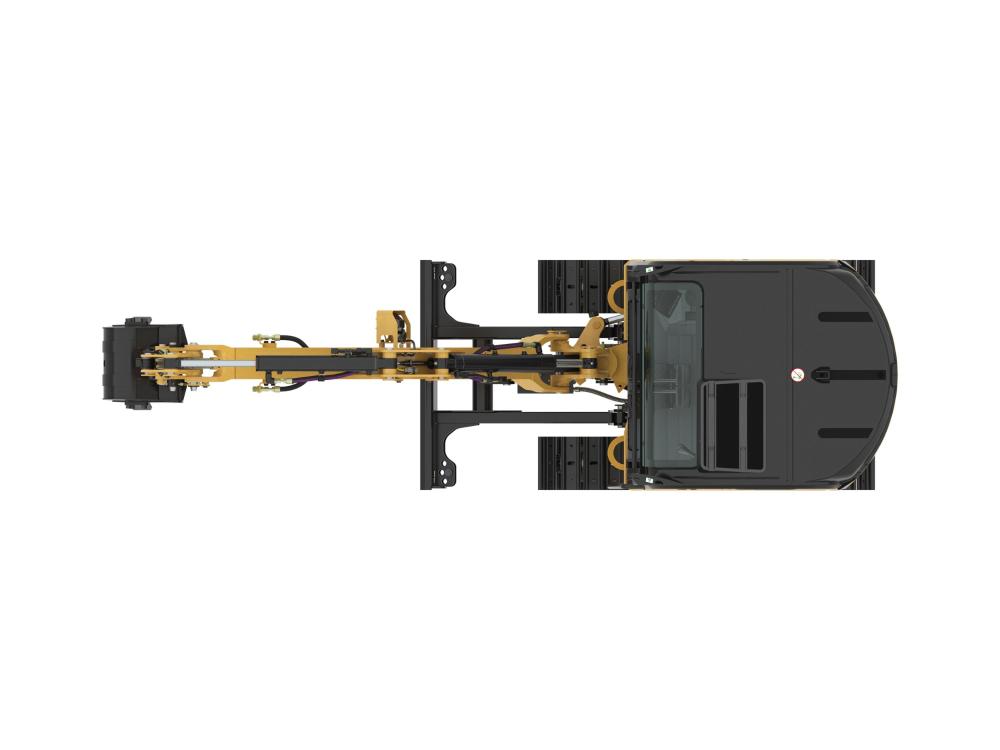

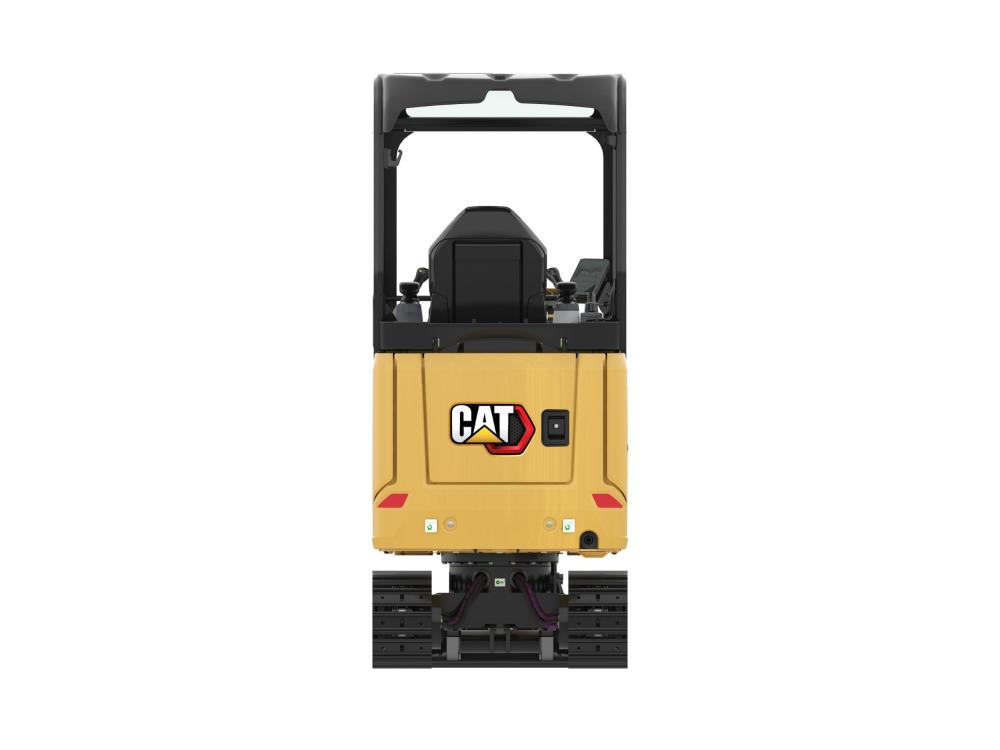

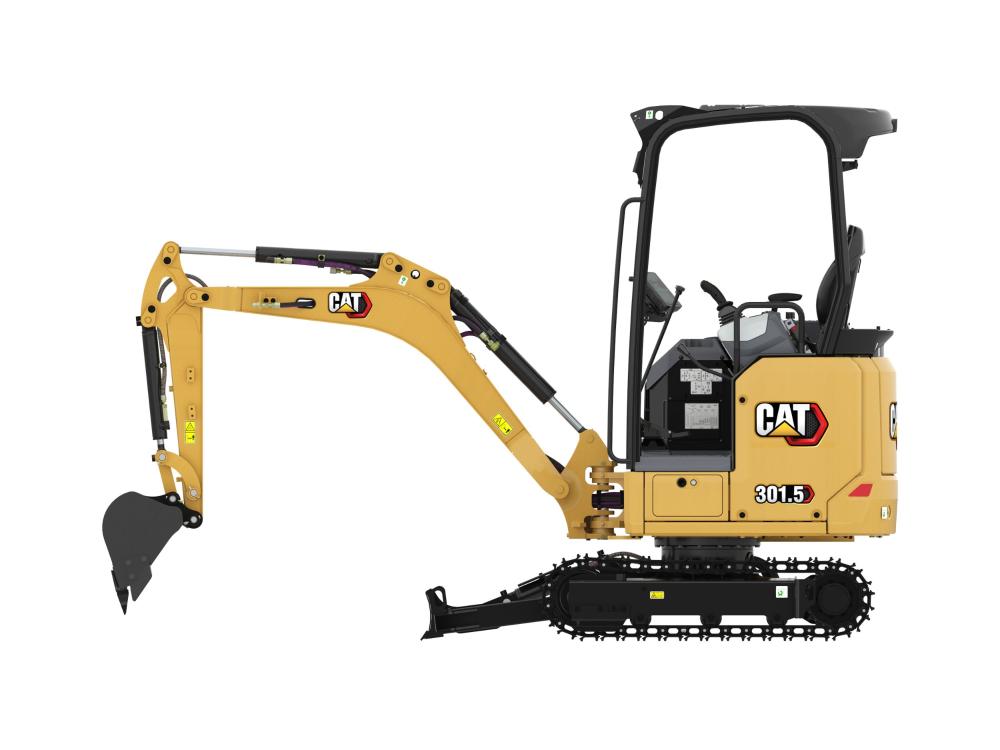

360º Interior
360º Exterior
Virtual Tour

301.5 Mini Hydraulic Excavator

Operating Weight	1775 kg	3913 lb
Minimum Operating Weight with Canopy*	1580 kg	3483 lb
Note (1)	*Minimum Weight is based on rubber tracks, operator, fixed undercarriage and full fuel tank.
Maximum Operating Weight with Canopy**	1775 kg	3913 lb
Note (2)	**Maximum Weight is based on steel tracks, operator, expandable undercarriage and full fuel tank.
EU: CE Plate Weight***	1740 kg	3836 lb
Note (3)	***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.

Pump Flow at 2,400 rpm	66 l/min	17.4 gal/min
Digging Force - Stick - Long	7.2 kN	1616.4 lbf
Operating Pressure - Swing	103 bar	1493.9 psi
Digging Force - Stick - Standard	8.2 kN	1843.4 lbf
Auxiliary Circuit - Primary - Flow	33 l/min	8.7 gal/min
Auxiliary Circuit - Secondary - Pressure	213 bar	3089.3 psi
Operating Pressure - Travel	213 bar	3089.3 psi
Operating Pressure - Equipment	213 bar	3089.3 psi
Auxiliary Circuit - Secondary - Flow	14 l/min	3.7 gal/min
Digging Force - Bucket	14.1 kN	3169.8 lbf
Auxiliary Circuit - Primary - Pressure	213 bar	3089.3 psi
Type	Load Sensing Hydraulics with Variable Displacement Piston Pump

Maximum Traction Force - High Speed	10.3 kN	2315.5 lbf
Ground Pressure - Minimum Weight	27.3 kPa	4 psi
Ground Pressure - Maximum Weight	30.6 kPa	4.4 psi
Travel Speed - High	4.4 km/h	2.7 mile/h
Travel Speed - Low	2.9 km/h	1.8 mile/h
Maximum Traction Force - Low Speed	16 kN	3597 lbf
Gradeability - Maximum	30 degrees

Roll Over Protective Structure (ROPS)	ISO 12117-2:2008
Tip Over Protective Structure (TOPS)	ISO 12117:1997
Top Guard	ISO 10262:1998 (Level I)

Average Exterior Sound Pressure (ISO 6395:2008)	93 dB(A)	93 dB(A)
Note	European Union Directive “2000/14/EC”

Height	225 mm	8.9 in
Note	*Expanded – 1300 mm (51 in)
Width*	990 mm	39 in

Cooling System	3.9 l	1 gal (US)
Engine Oil	4.4 l	1.2 gal (US)
Hydraulic System	26 l	6.9 gal (US)
Hydraulic Tank	18 l	4.8 gal (US)
Fuel Tank	22 l	5.8 gal (US)

Long Stick	8 kg	18 lb
Steel Tracks	57 kg	126 lb
Expandable Undercarriage	129 kg	284 lb
