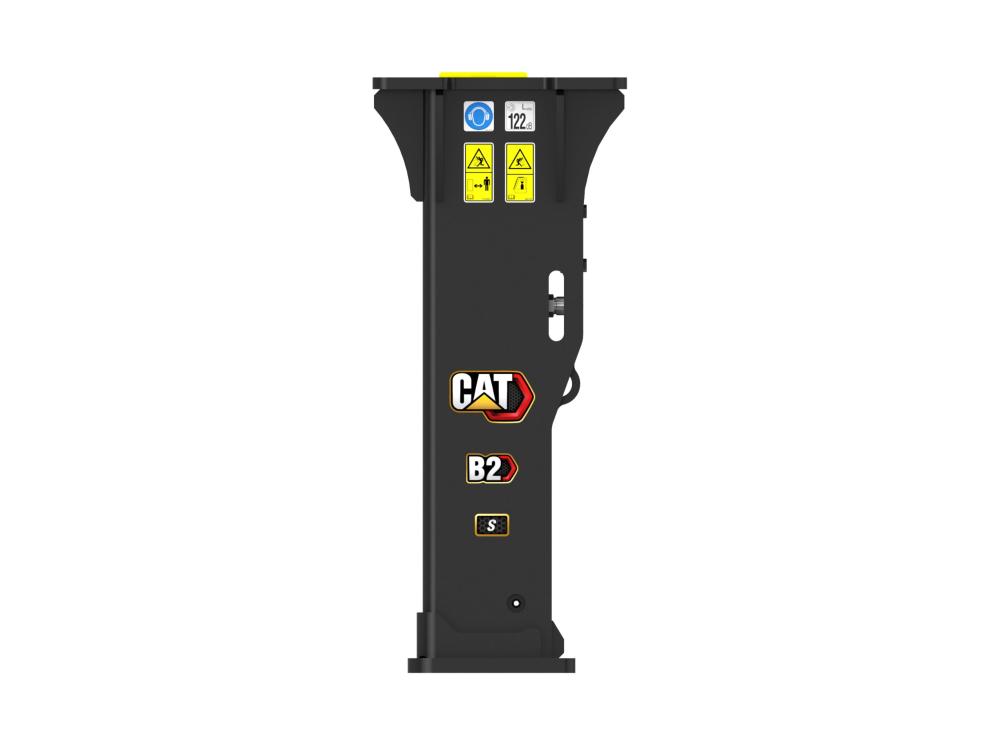

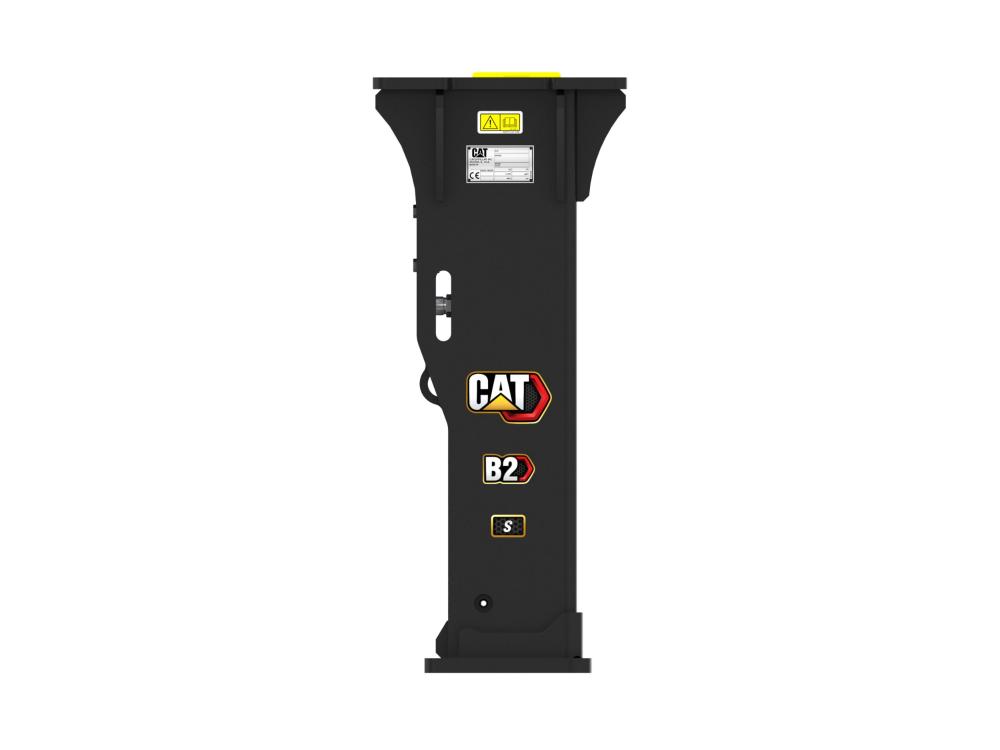

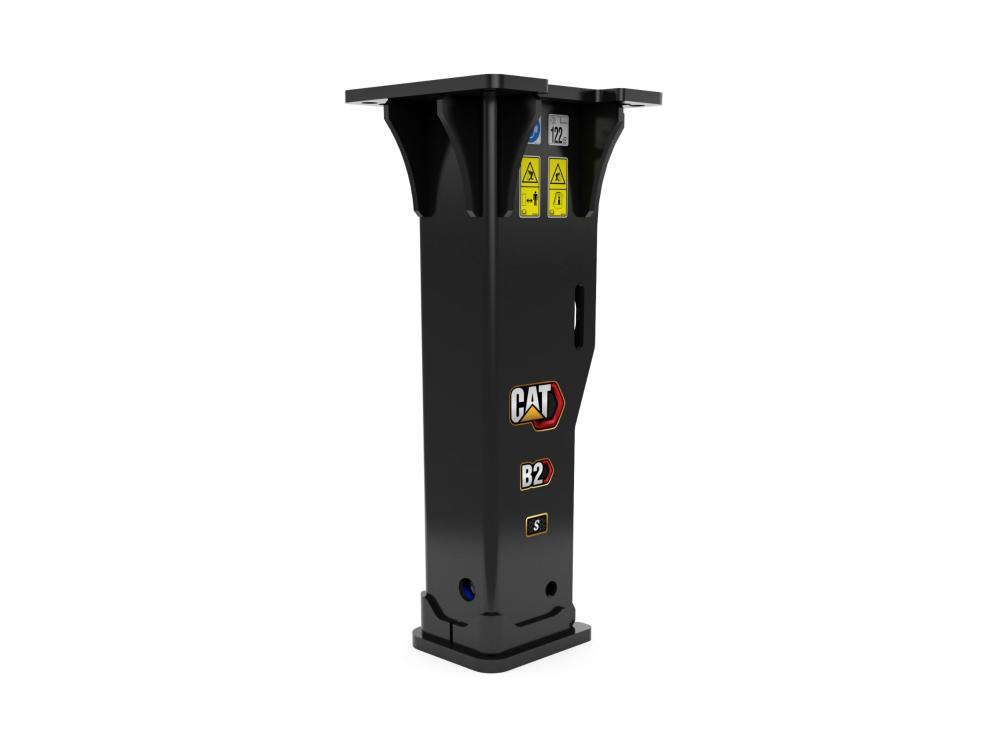

B2s Silenced Hydraulic Hammer

15181532

B2s Silenced Hydraulic Hammer

Cat

https://www.finanzauto.es/productos/martillos-caterpillar-martillo-hidraulico-insonorizado-b2s

Units of measurement :

Metric

Imperial

Operating Weight - With Tool

116.8 kg

257.5 lb

Energy Class

290 J

213.9 ft·lbf

Machine Class

1-3 Ton Mini Excavators

Availability

Purchase Rental Used

Cat® Hammers for Skid Steer Loaders, Compact Track Loaders, Mini Excavators and Backhoe Loaders are high performance breakers, designed for maximum performance on demolition, construction, and road work.

Features

Specifications

Documents

Application

Ergonomically Positioned Hydraulic Lines

Gas Fired Design

Flat Top/Top-Mount Style

Slip Fit Bushings

Included with Each B Series Hammer

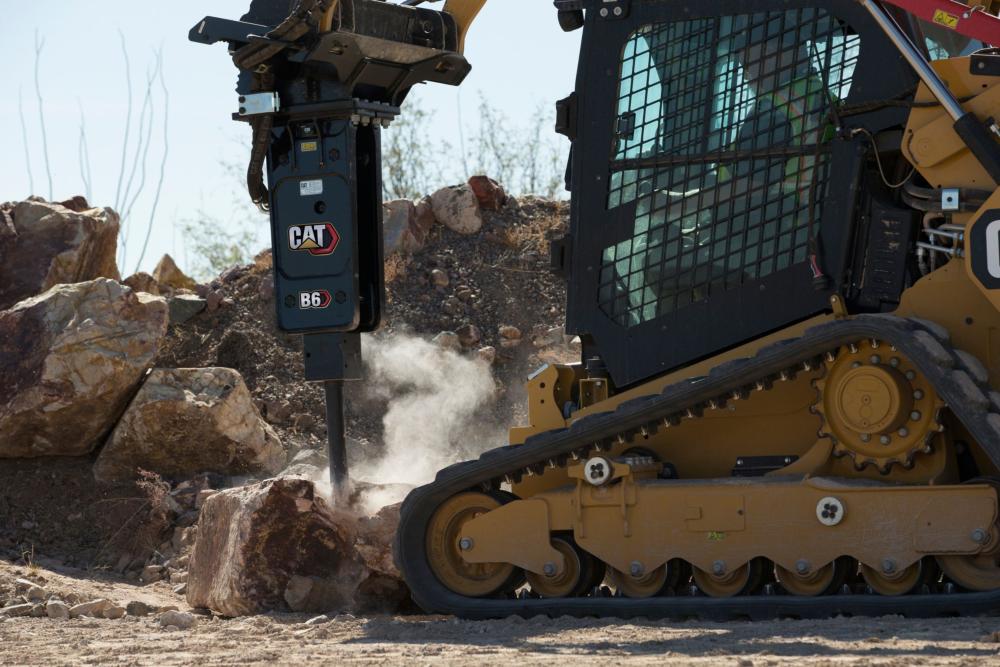

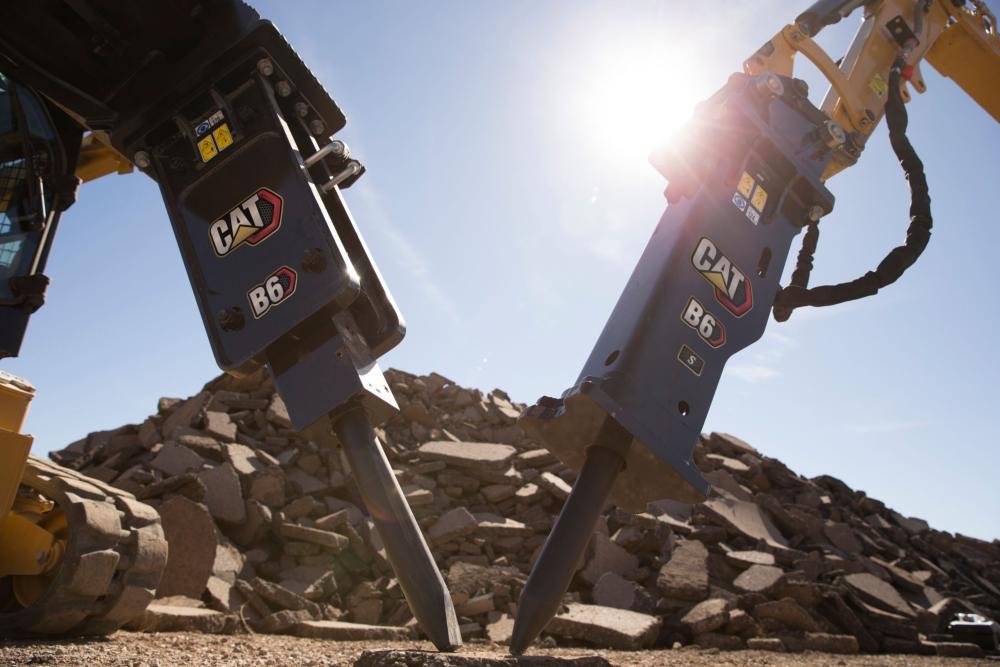

Cat® B Hammers are suitable for use in a wide range of construction and light demolition applications - such as breaking concrete sidewalks and driveways, pavement, roads, masonry, site prep and landscaping, and breaking frozen ground for utility repairs.

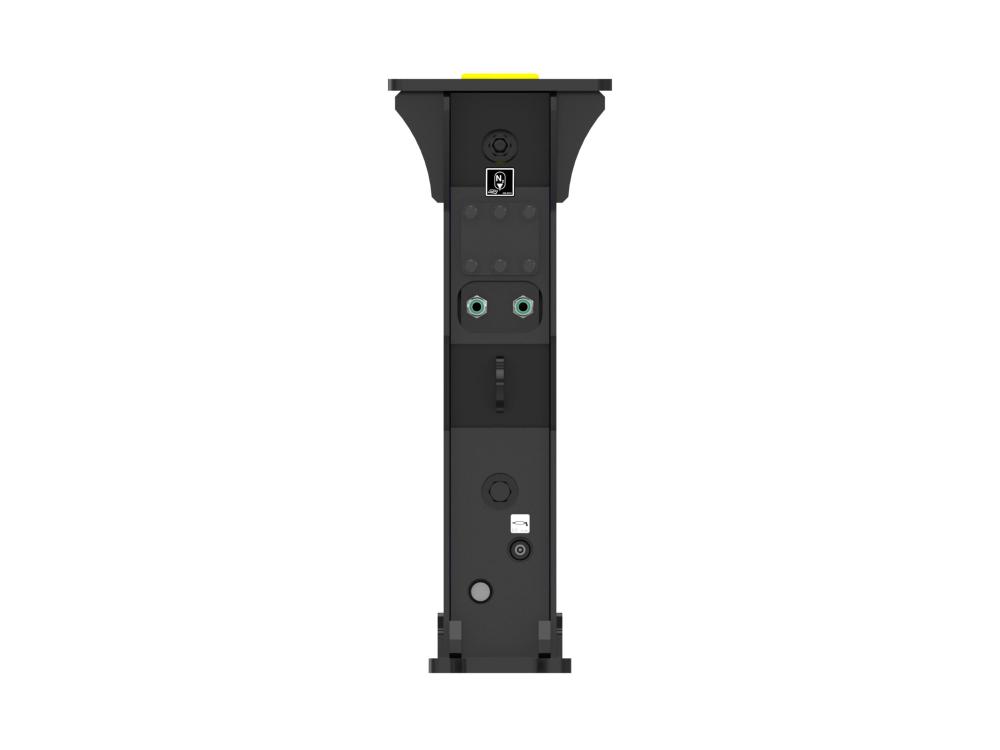

Ergonomically positioned hydraulic lines are designed to optimize serviceability, are easily accessible and require no special tools. Housing has been positioned to protect against force and dirt during impact but allow for wrench access. Hydraulic lines and back head pressure can be checked and charged while breaker is mounted to machine, allowing quick monitoring of breaker's condition.

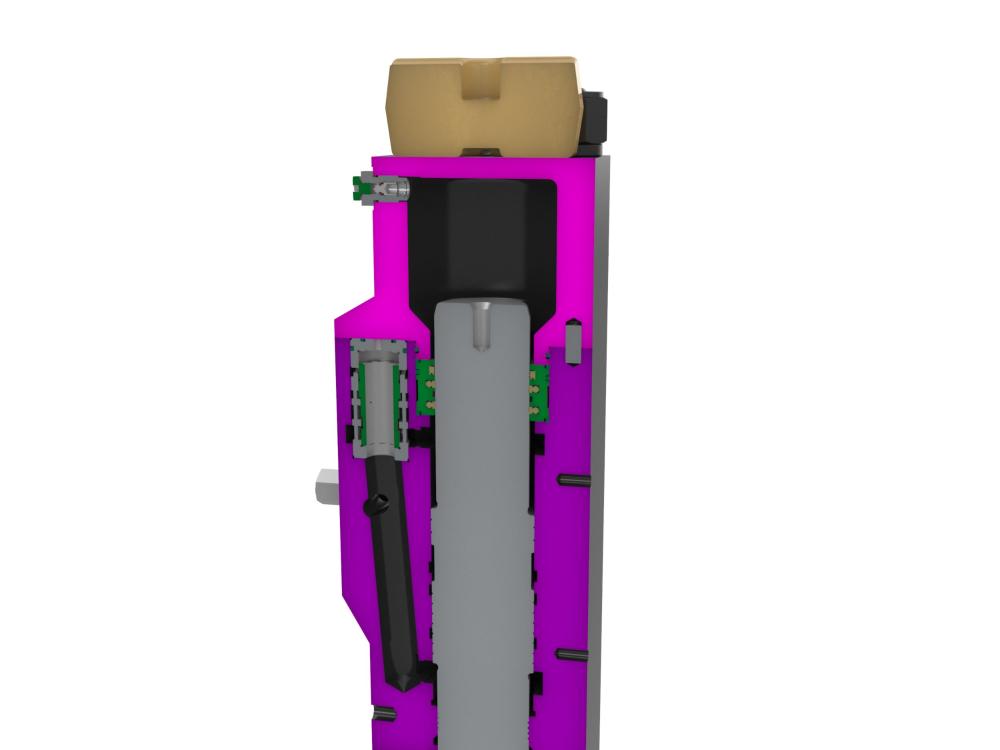

Gas fired design delivers consistently high production over time making the breaker reliable in applications such as concrete, asphalt, rock and light trenching.

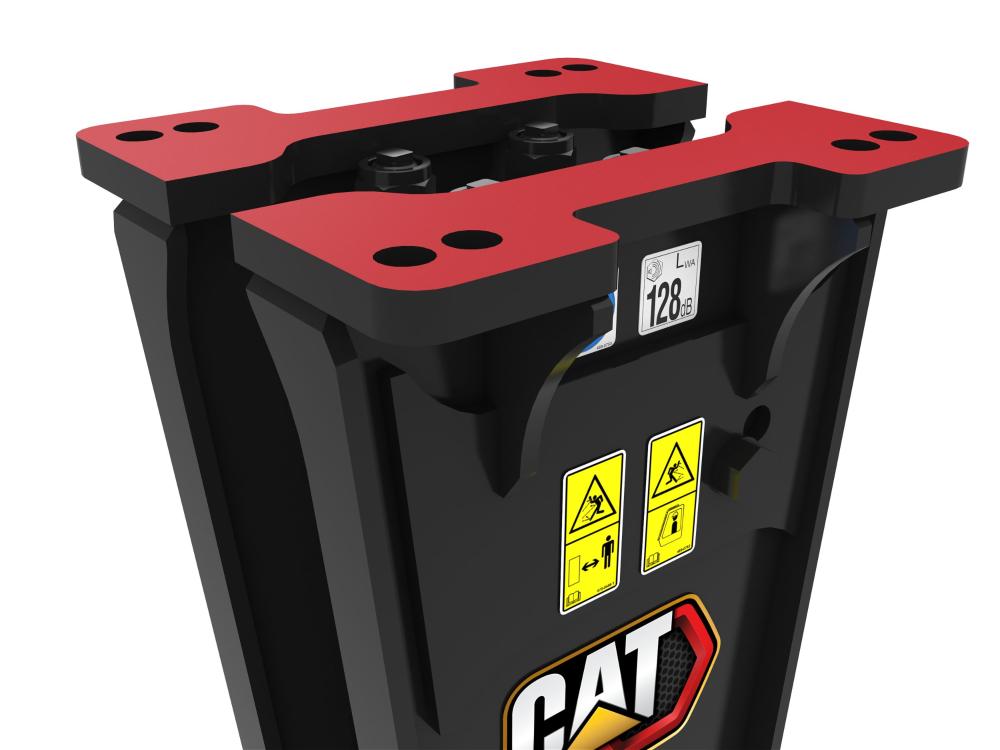

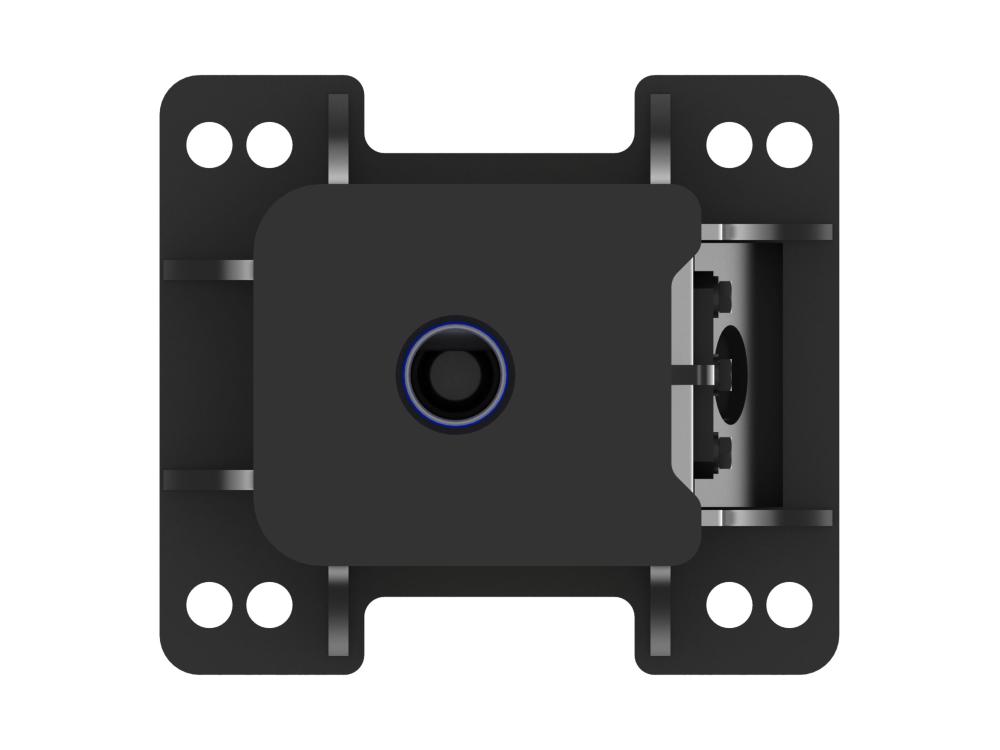

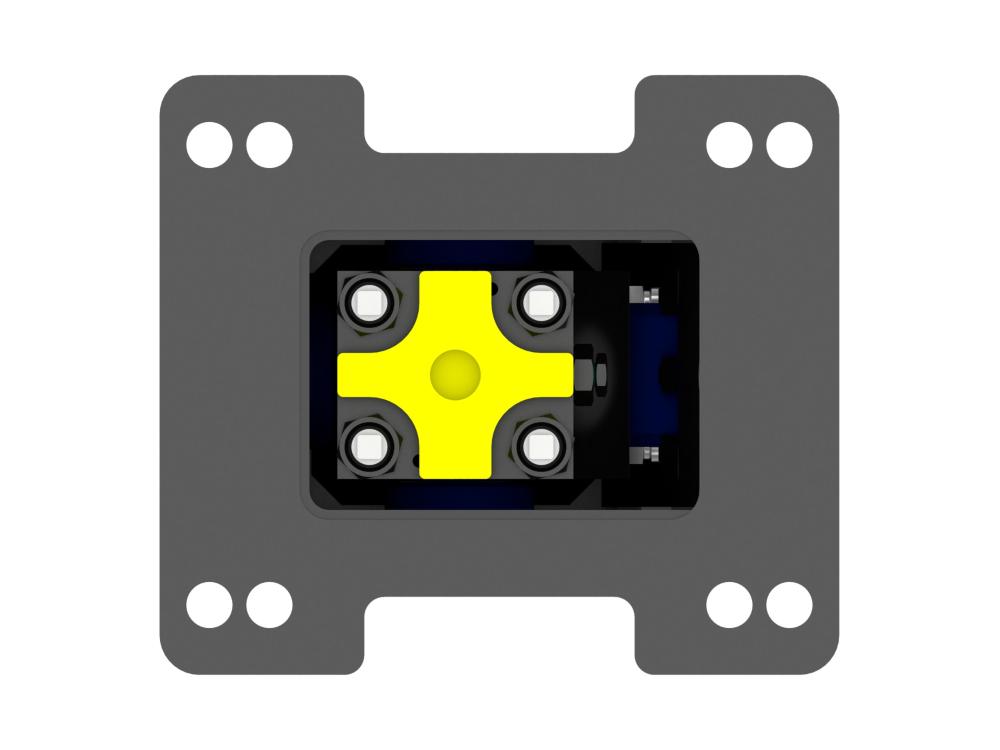

Flat top/top-mount style provides a larger work area and excellent operator visibility with a common footprint and hole pattern for optimum versatility. Top-mount style increases impact power by keeping breaker force and stick force in line. A top-mount bracket will transfer back significantly less recoil and bending stress into the end of the stick, resulting in reduced impact on machine structures. Full complement of mounting brackets is available to suite coupler or pin-on preference.

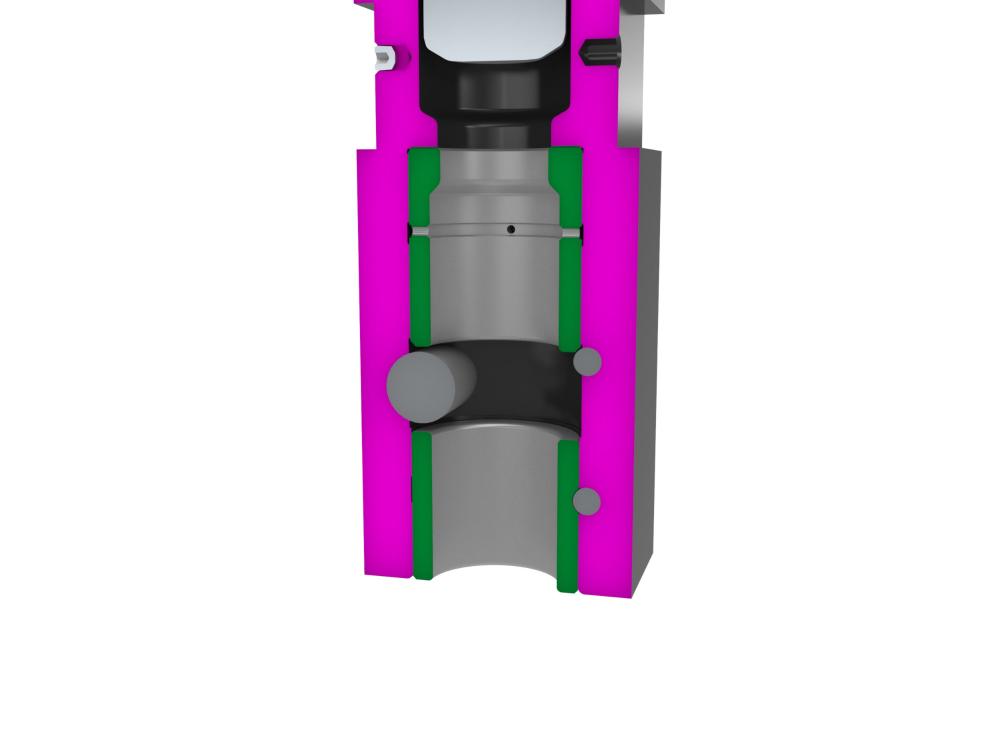

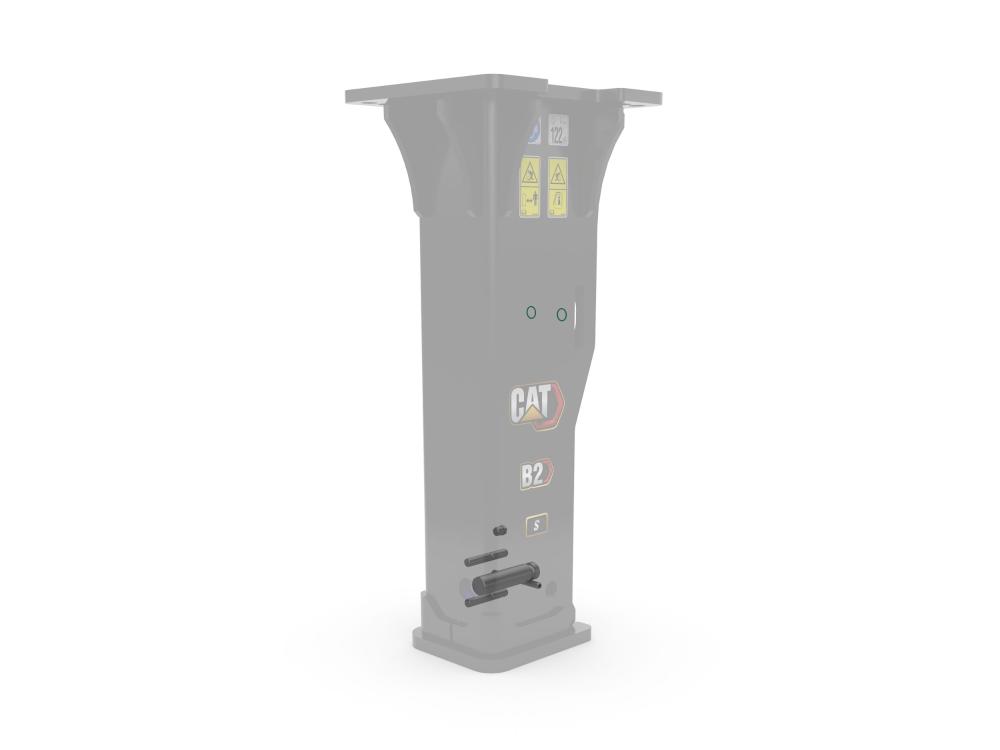

Slip fit bushings are field replaceable and easy to maintain due to one locking pin, extending wear life and reducing owning and operating costs. Upper bushing rotates 360°, lower bushing has two positions and can be rotated 90°.

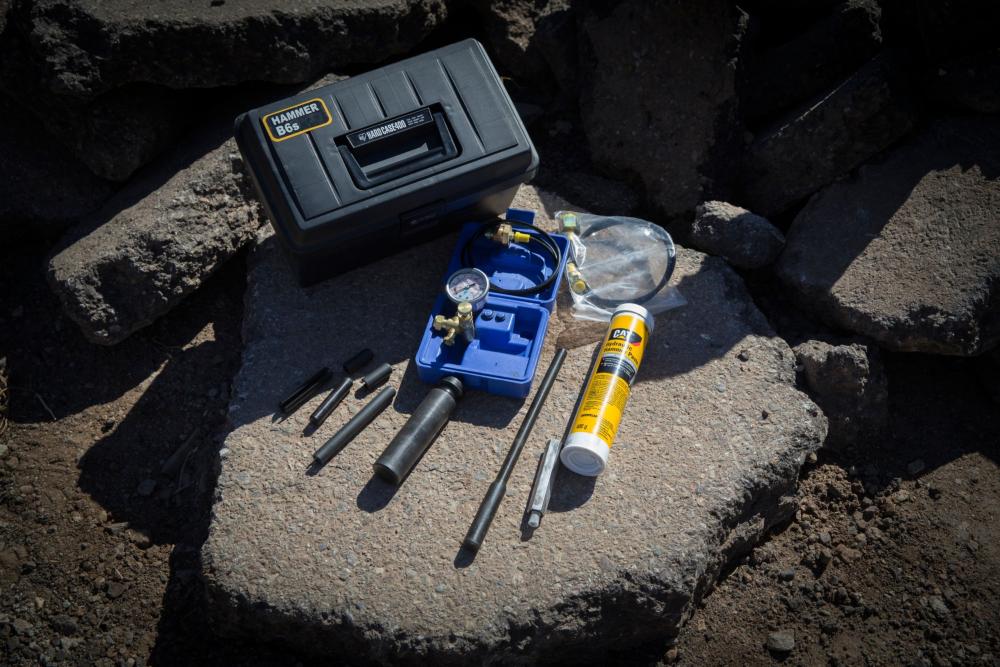

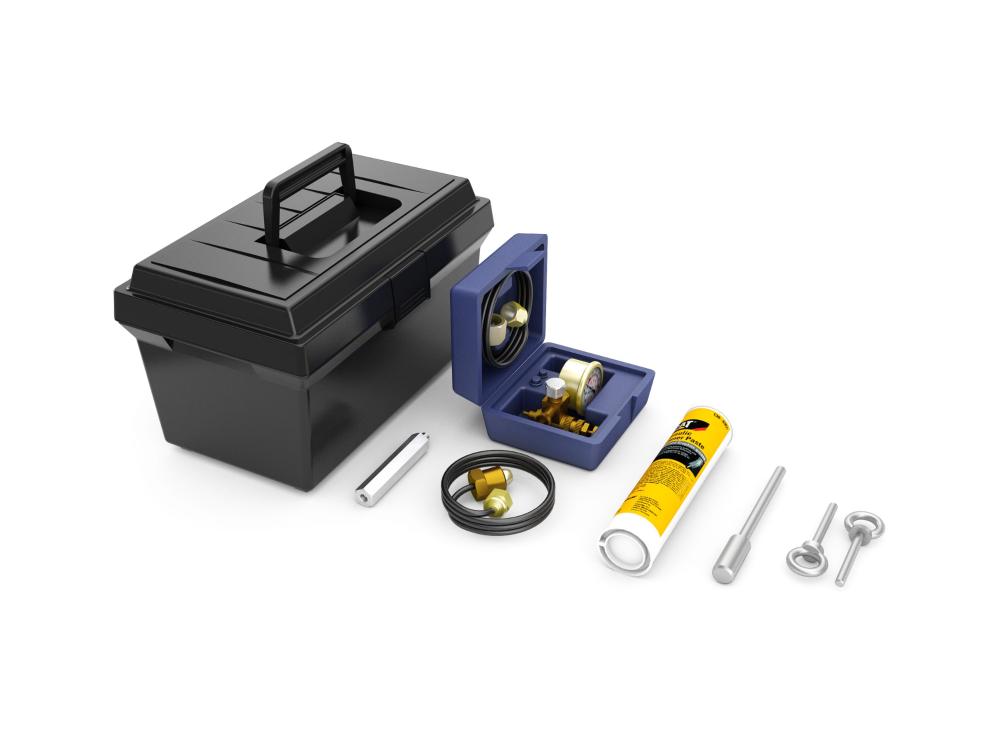

Every B Series Hammer comes with:

Tool Kit w/Storage Box

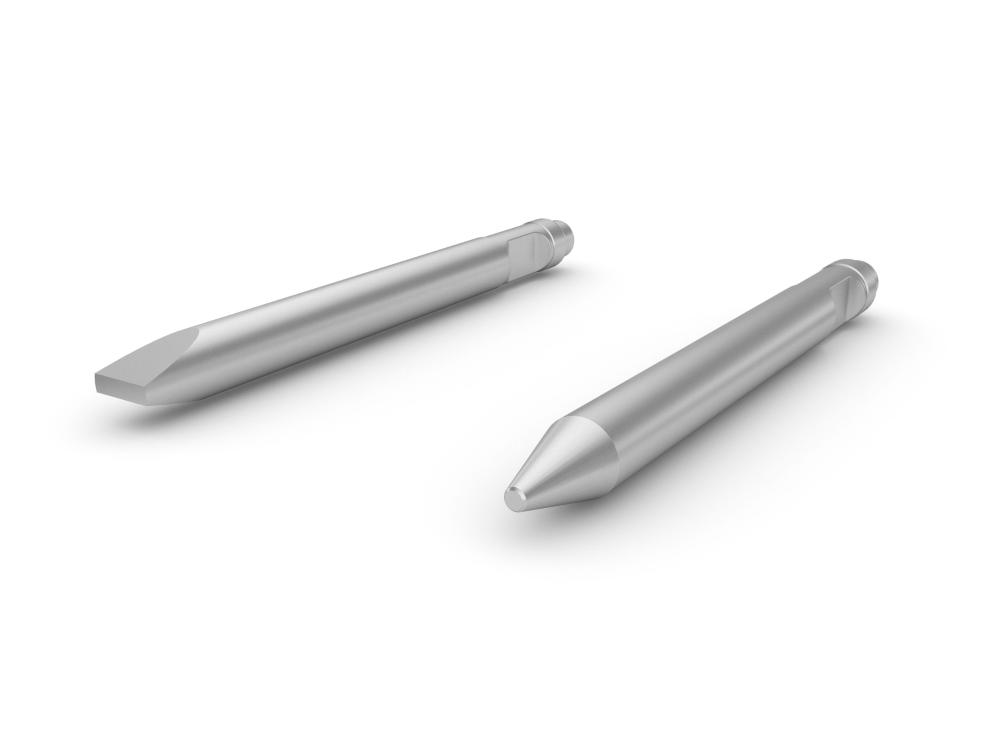

2 Tools (1 x Conical and 1 x Transverse Chisel)
Maintenance Kit

Cat® B1-B9 Model Hammers Brochure.pdf Cat® B1-B9 Model Hammers Parts Reference Guide.pdf

Others

Operating Weight - With Tool	116.8 kg	257.5 lb
Energy Class	290 J	213.9 ft·lbf
Machine Class	1-3 Ton Mini Excavators
Tool Shaft Diameter	45 mm	1.8 in
Impact Frequency	700-1200 bpm
Minimum Operating Pressure	8798 kPa	1276 psi
Minimum Carrier Weight	1497 kg	3300.3 lb
Optimal Hydraulic Flow	20-30 lpm (5.3-7.9 gpm)
Overall Width	300 mm	11.8 in
Overall Length	340 mm	13.4 in
Overall Height	1091 mm	43 in
Height - Without Tool	795 mm	31.3 in
Sound Level	122 dB
Mounting Bracket Size	Small-Medium

Compatible machines:

301.5

Net Power

15.7 kW

21 hp

Operating Weight

1775 kg

3913 lb

Dig Depth

2540 mm

100 in

Caterpillar

15195767
301.6

Net Power

15.7 kW

21 hp

Operating Weight

1958 kg

4317 lb

Dig Depth

2540 mm

100 in

Caterpillar

15195795
301.7 CR

Net Power

15.7 kW

21 hp

Operating Weight

1915 kg

4222 lb

Dig Depth

2540 mm

100 in

Caterpillar

15195813
301.8

Net Power

15.7 kW

21 hp

Operating Weight

2029 kg

4473 lb

Dig Depth

2570 mm

101.2 in

Caterpillar

15195920
302.7 CR

Net Power

17.6 kW

23.6 hp

Operating Weight

3050 kg

6725 lb

Dig Depth

2710 mm

106.7 in

Caterpillar

15195971
302 CR

Net Power

15.7 kW

21 hp

Operating Weight

2262 kg

4987 lb

Dig Depth

2570 mm

101.2 in

Caterpillar

15195945
303 CR

Net Power

17.6 kW

23.6 hp

Operating Weight

3545 kg

7817 lb

Dig Depth

2950 mm

116.1 in

Caterpillar

15195999
