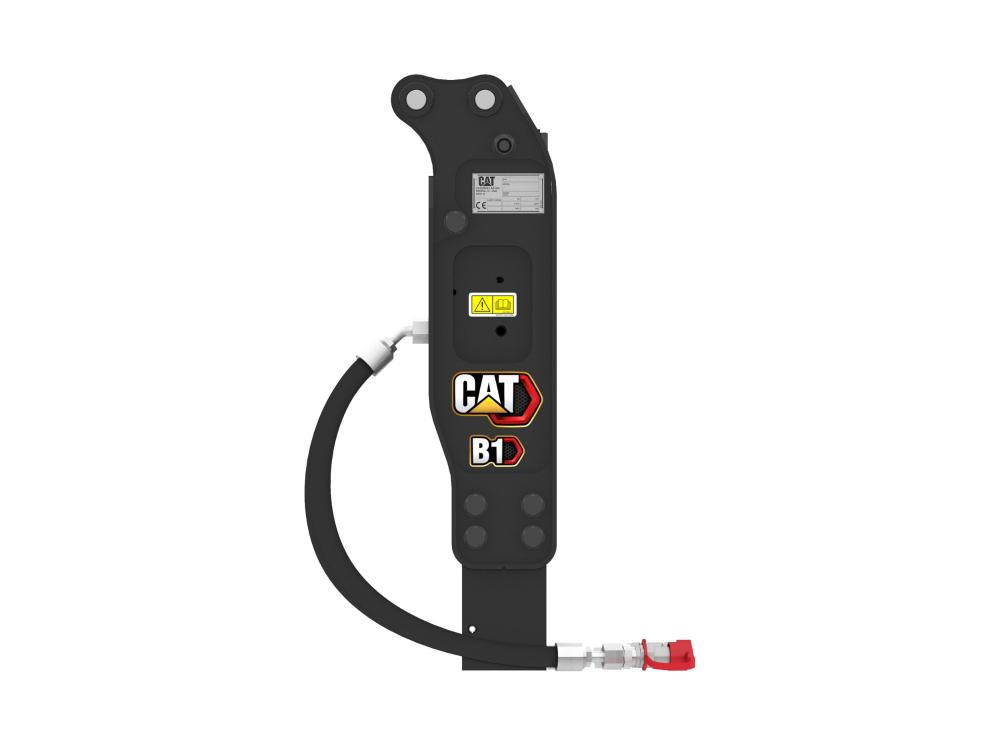

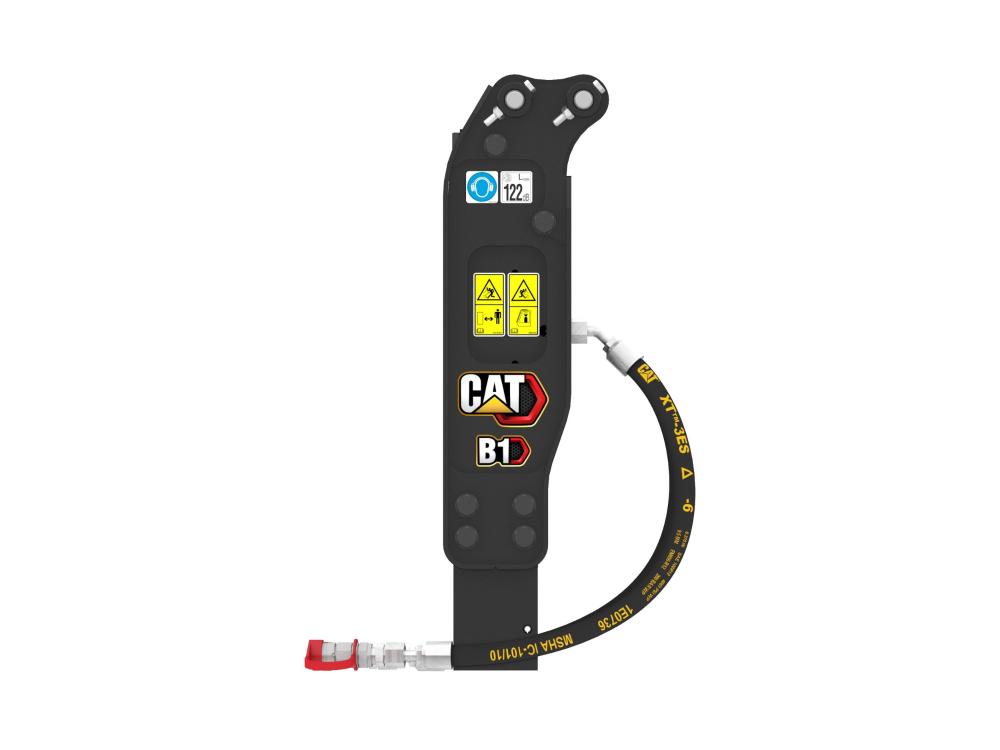

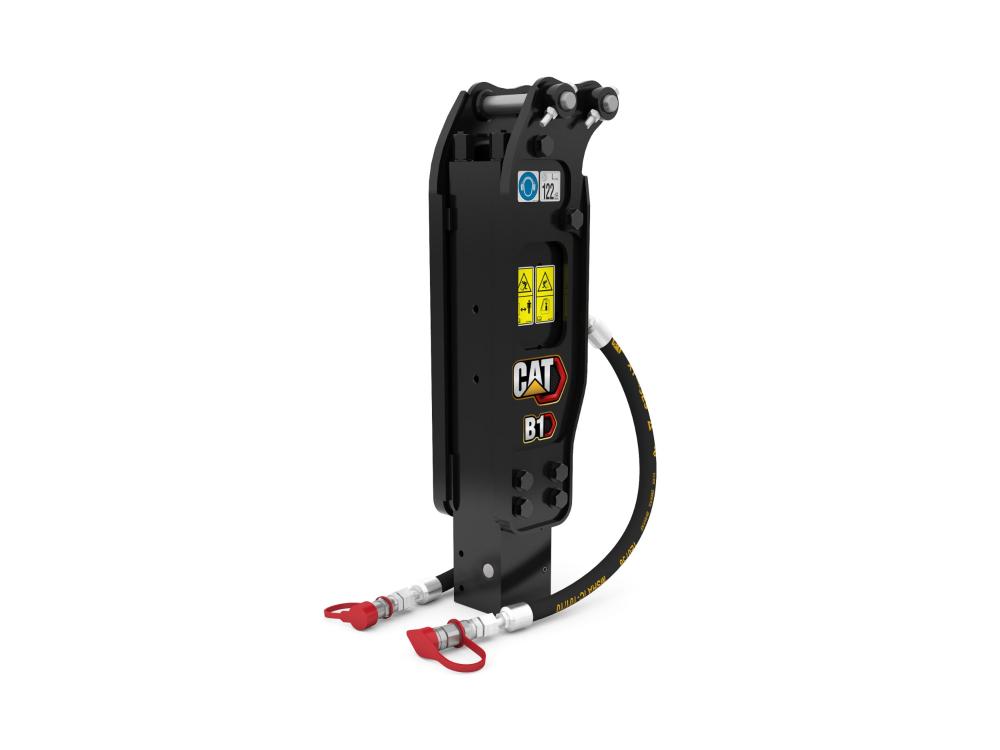

B1 Pin On Hydraulic Hammer

15694412

B1 Pin On Hydraulic Hammer

Cat

https://www.finanzauto.es/productos/martillos-caterpillar-martillo-hidraulico-con-bulon-b1

Units of measurement :

Metric

Imperial

Operating Weight - With Tool

73.6 kg

162.3 lb

Energy Class

200 J

147.5 ft·lbf

Machine Class

300.9D Mini Excavator

Availability

Purchase Rental Used

Cat® Hammers for Skid Steer Loaders, Compact Track Loaders, Mini Excavators and Backhoe Loaders are high performance breakers, designed for maximum performance on demolition, construction, and road work.

Features

Specifications

Documents

Application

Ergonomically Positioned Hydraulic Lines

Gas Fired Design

Flat Top/Top-Mount Style

Slip Fit Bushings

Included with Each B Series Hammer

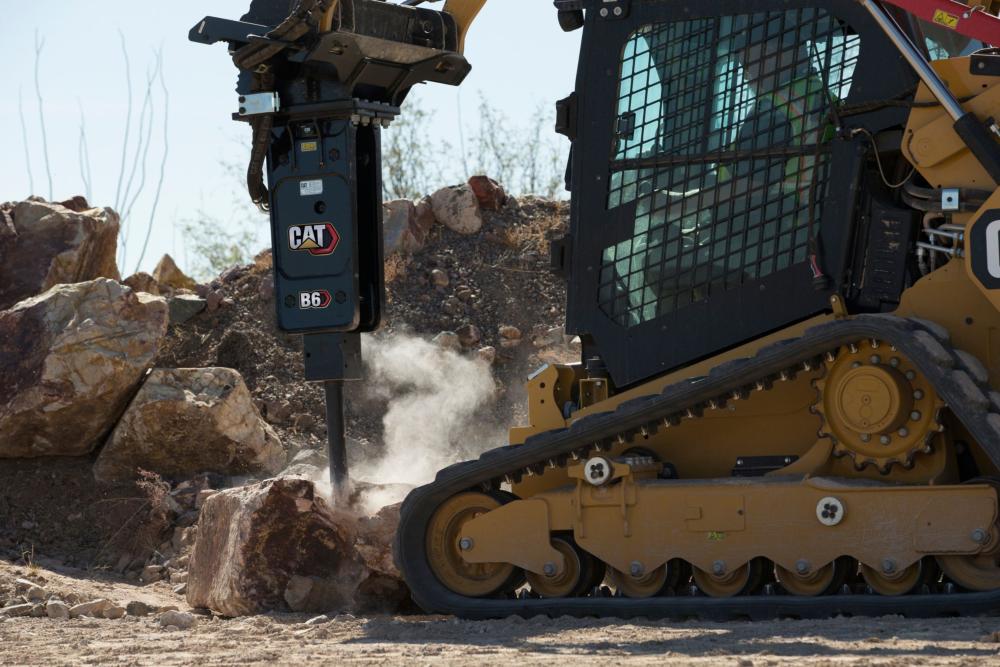

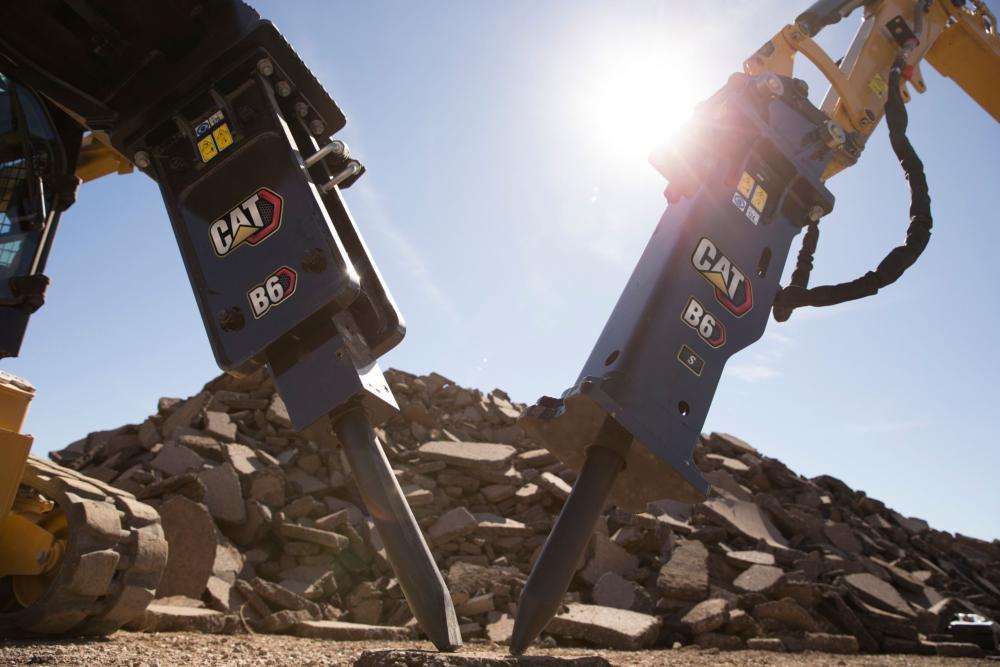

Cat® B Hammers are suitable for use in a wide range of construction and light demolition applications - such as breaking concrete sidewalks and driveways, pavement, roads, masonry, site prep and landscaping, and breaking frozen ground for utility repairs.

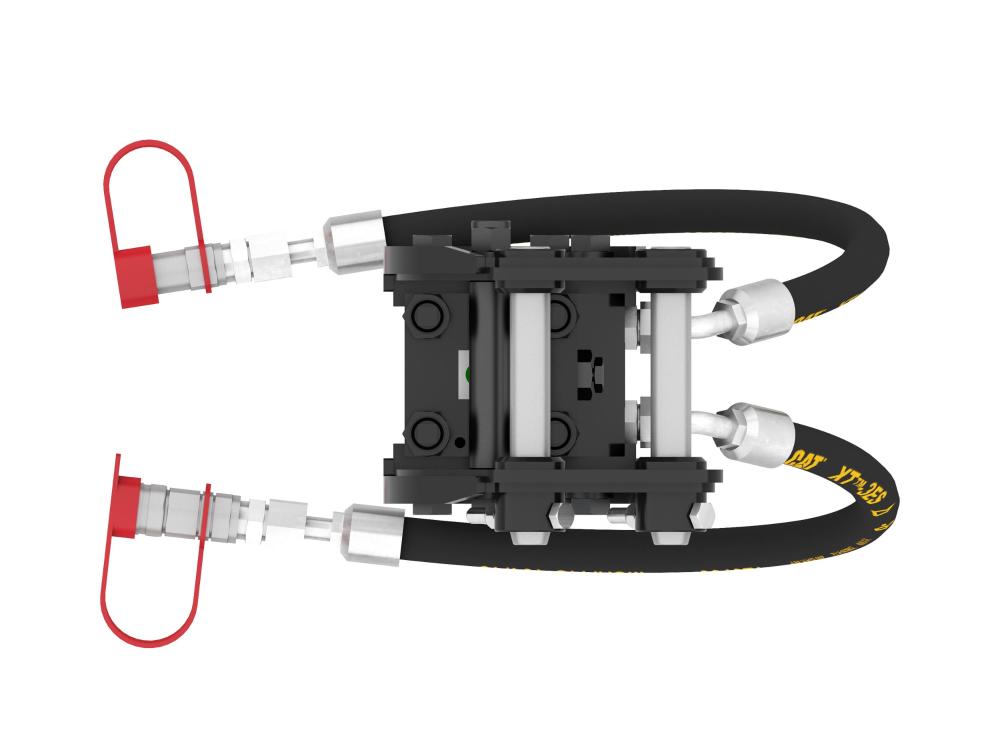

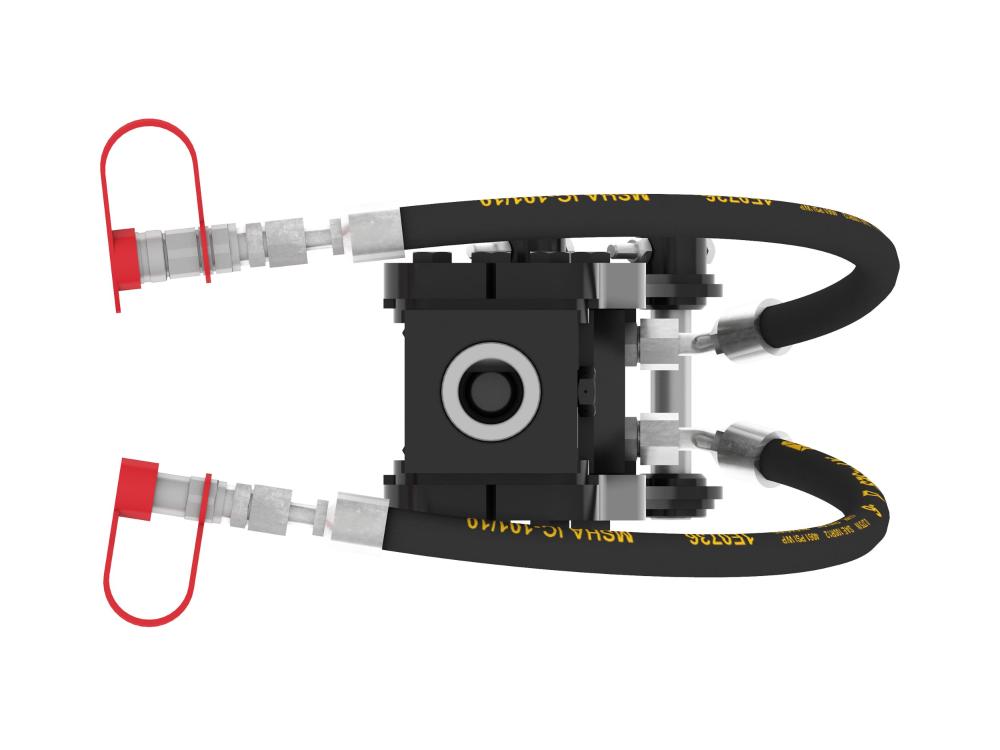

Ergonomically positioned hydraulic lines are designed to optimize serviceability, are easily accessible and require no special tools. Housing has been positioned to protect against force and dirt during impact but allow for wrench access. Hydraulic lines and back head pressure can be checked and charged while breaker is mounted to machine, allowing quick monitoring of breaker's condition.

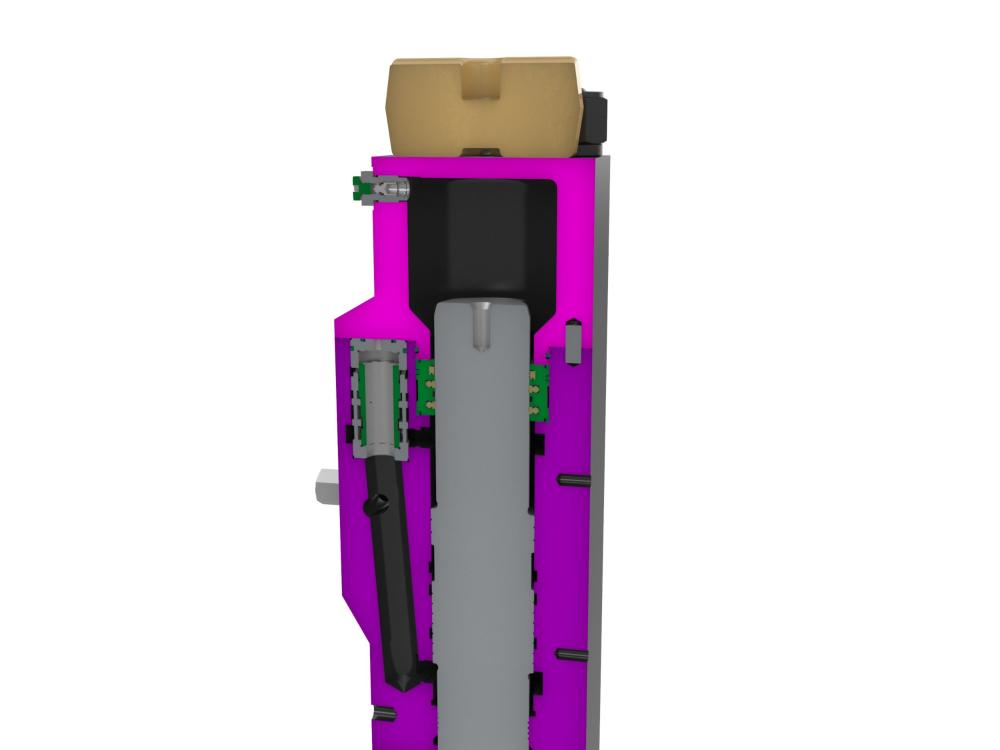

Gas fired design delivers consistently high production over time making the breaker reliable in applications such as concrete, asphalt, rock and light trenching.

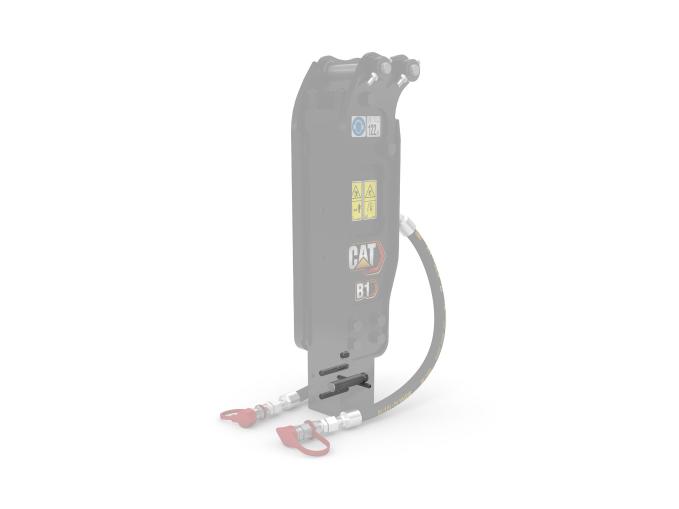

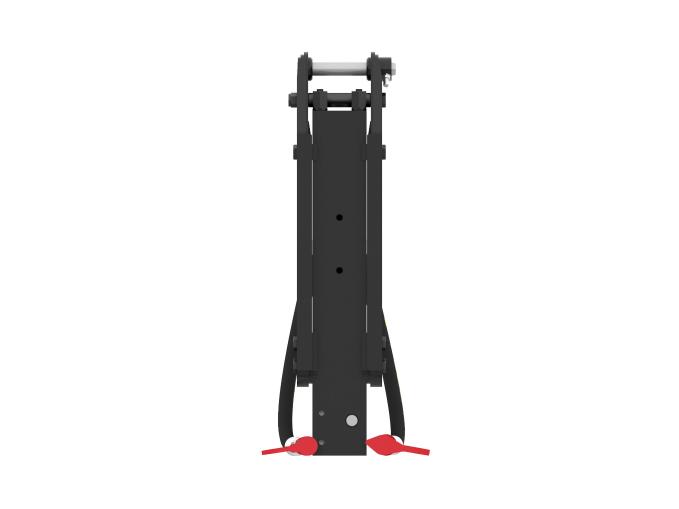

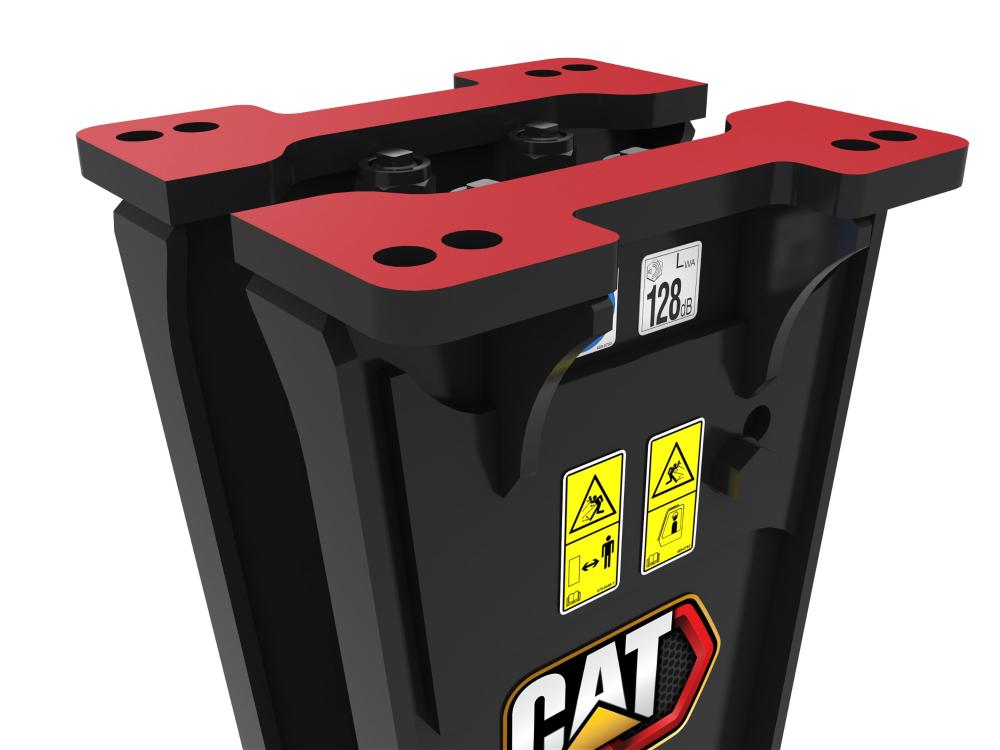

Flat top/top-mount style provides a larger work area and excellent operator visibility with a common footprint and hole pattern for optimum versatility. Top-mount style increases impact power by keeping breaker force and stick force in line. A top-mount bracket will transfer back significantly less recoil and bending stress into the end of the stick, resulting in reduced impact on machine structures. Full complement of mounting brackets is available to suite coupler or pin-on preference.

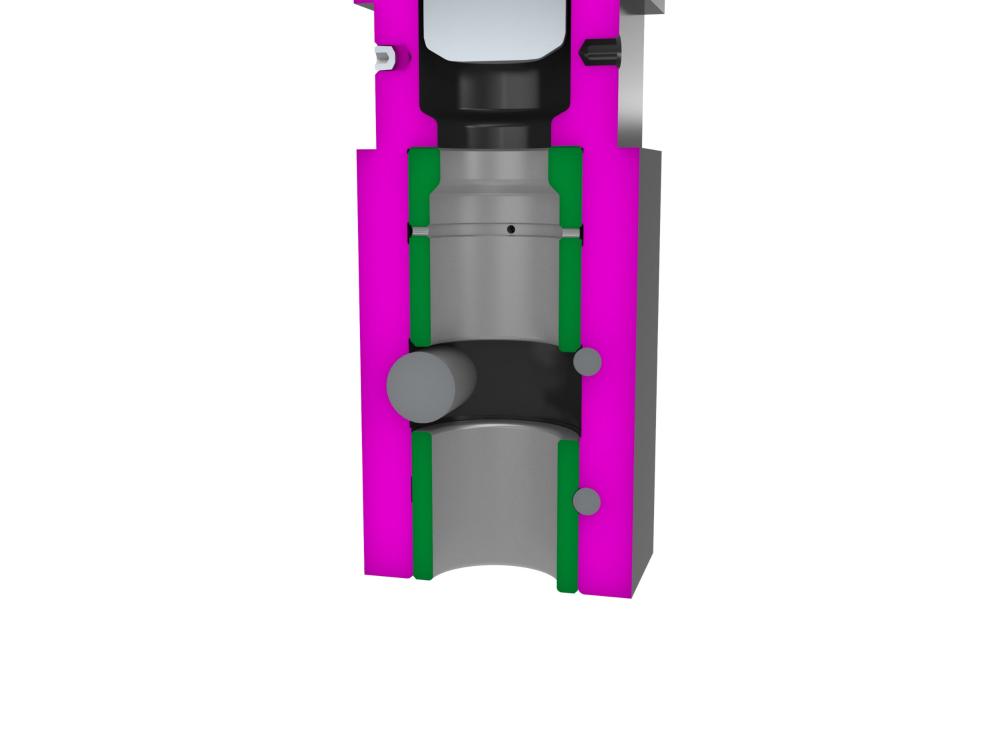

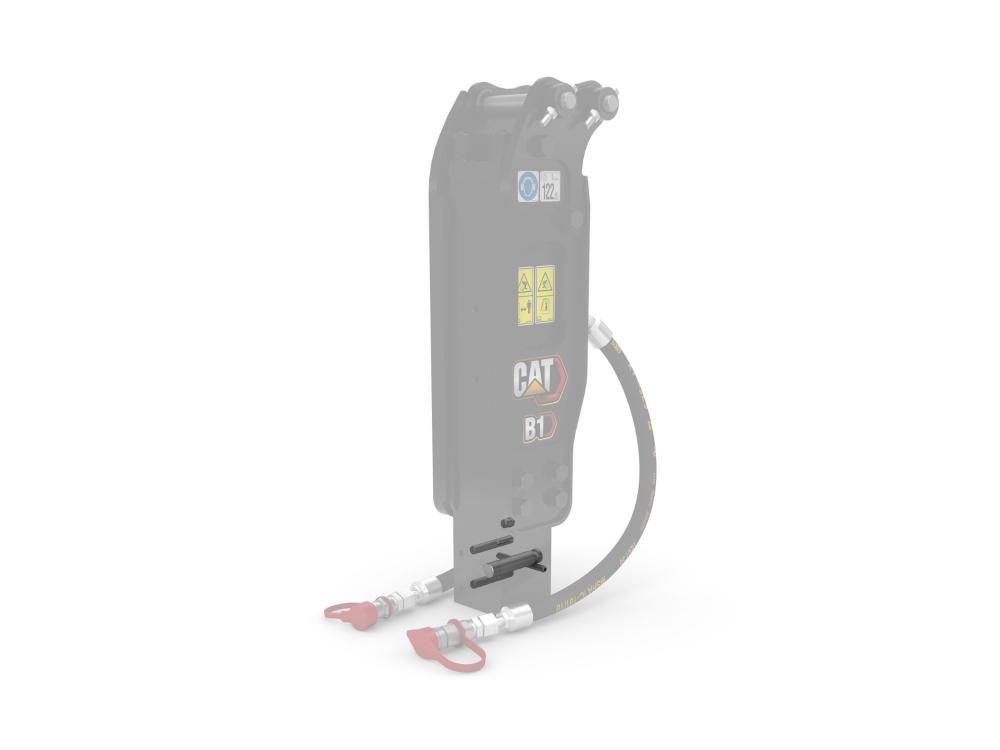

Slip fit bushings are field replaceable and easy to maintain due to one locking pin, extending wear life and reducing owning and operating costs. Upper bushing rotates 360°, lower bushing has two positions and can be rotated 90°.

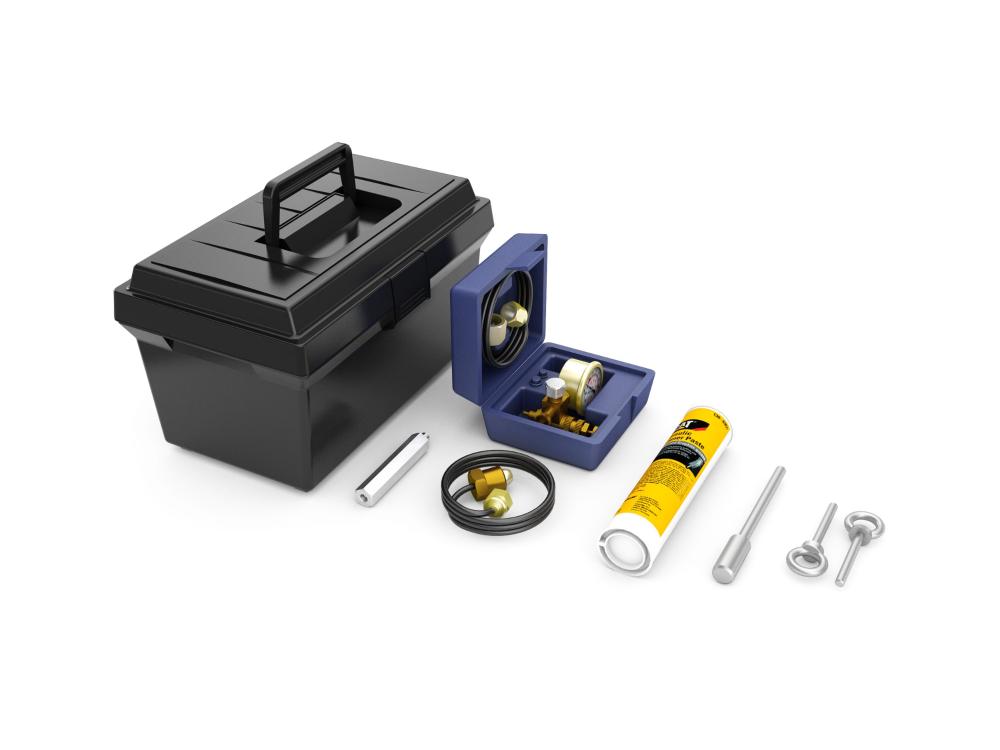

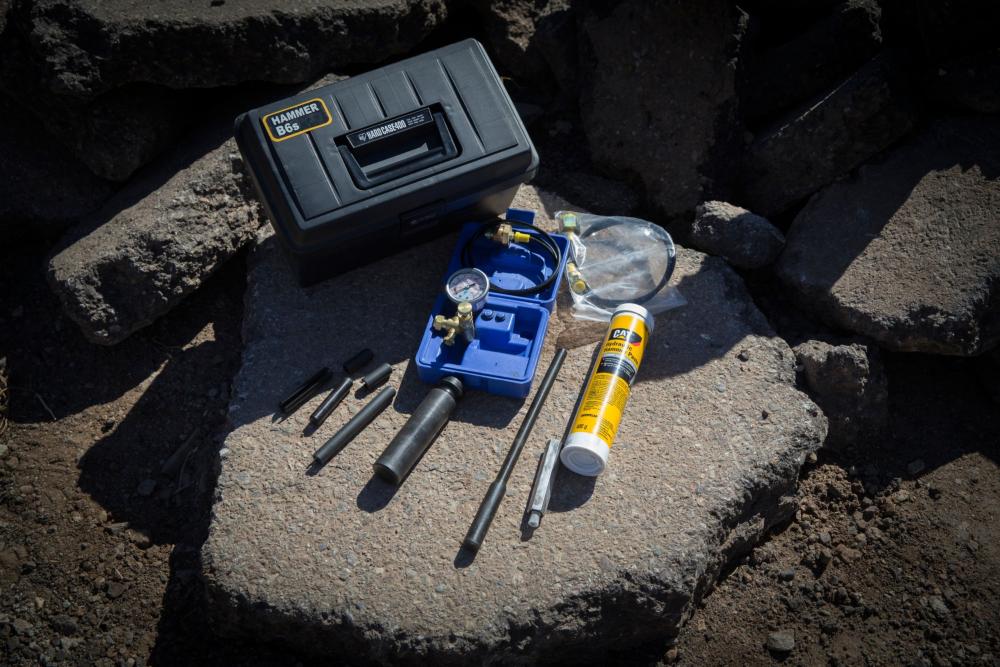

Every B Series Hammer comes with:

Tool Kit w/Storage Box

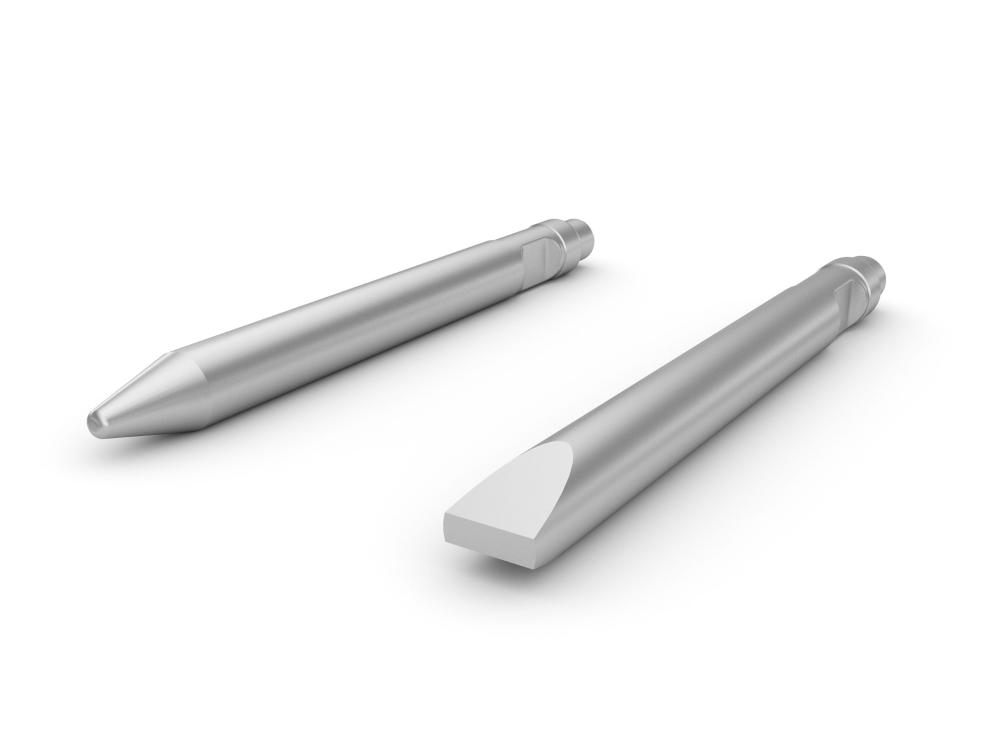

2 Tools (1 x Conical and 1 x Transverse Chisel)
Maintenance Kit

Cat® B1-B9 Model Hammers Brochure.pdf Cat® B1-B9 Model Hammers Parts Reference Guide.pdf

Others

Operating Weight - With Tool	73.6 kg	162.3 lb
Energy Class	200 J	147.5 ft·lbf
Machine Class	300.9D Mini Excavator
Tool Shaft Diameter	40 mm	1.6 in
Impact Frequency	800-1400 bpm
Minimum Operating Pressure	8798 kPa	1276 psi
Minimum Carrier Weight	898 kg	1979.7 lb
Optimal Hydraulic Flow	15-25 lpm (4-6.6 gpm)
Overall Width	199 mm	7.8 in
Overall Length	208 mm	8.2 in
Overall Height	958 mm	37.7 in
Height - Without Tool	748 mm	29.4 in
Sound Level	122 dB
Mounting Bracket Size	Pin On

Compatible machines:

300.9D

Net Power

9.6 kW

13 hp

Operating Weight

935 kg

2061 lb

Dig Depth

1731 mm

68 in

Caterpillar

15699515
300.9D VPS & HPU300

Net Power

9.7 kW

13 hp

Operating Weight

1088 kg

2399 lb

Dig Depth

1731 mm

68 in

Caterpillar

15699534
