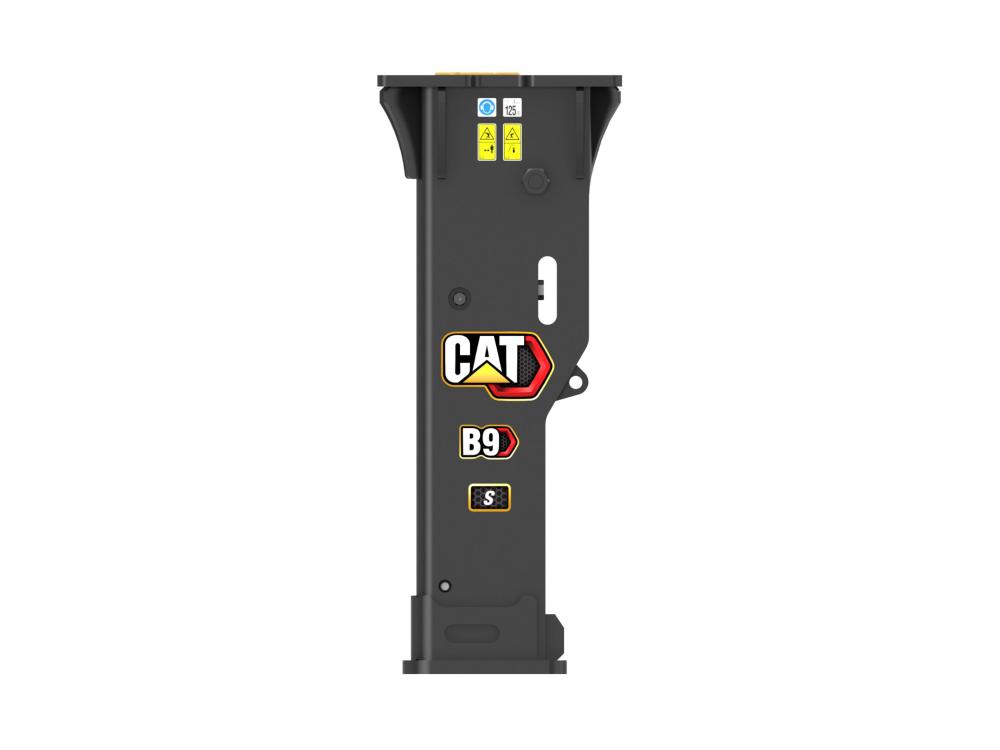

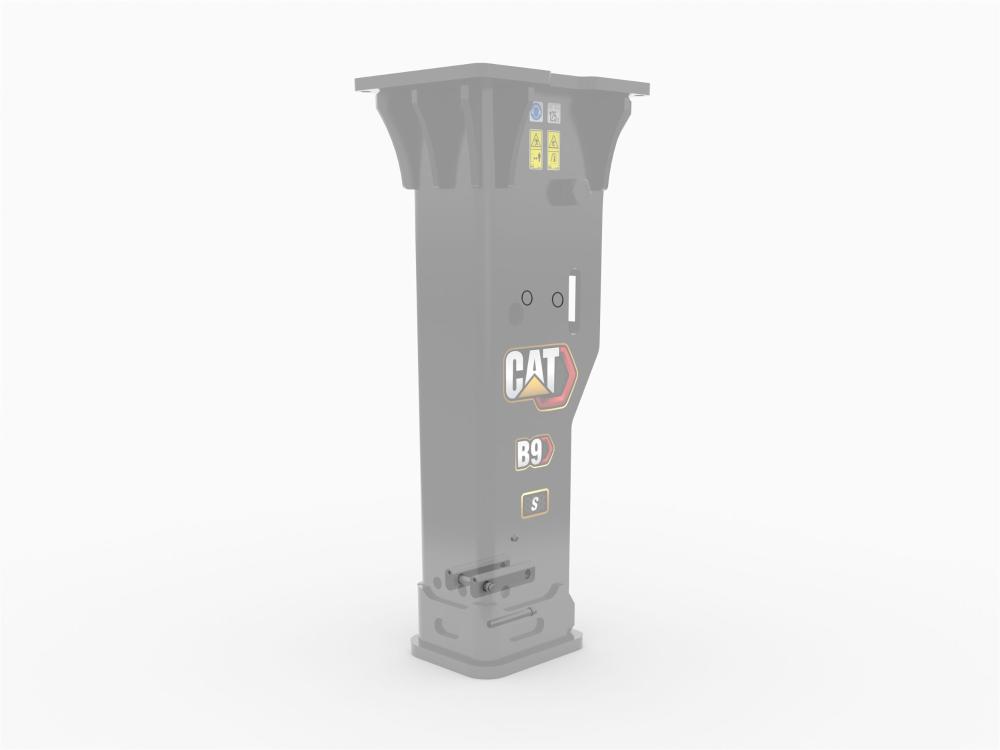

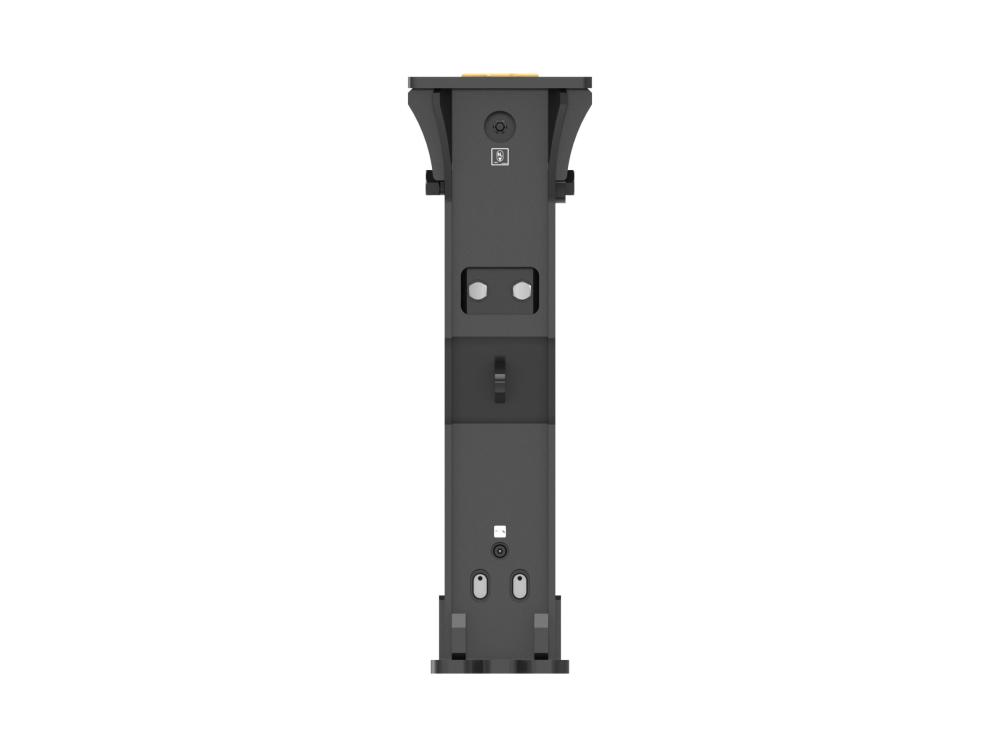

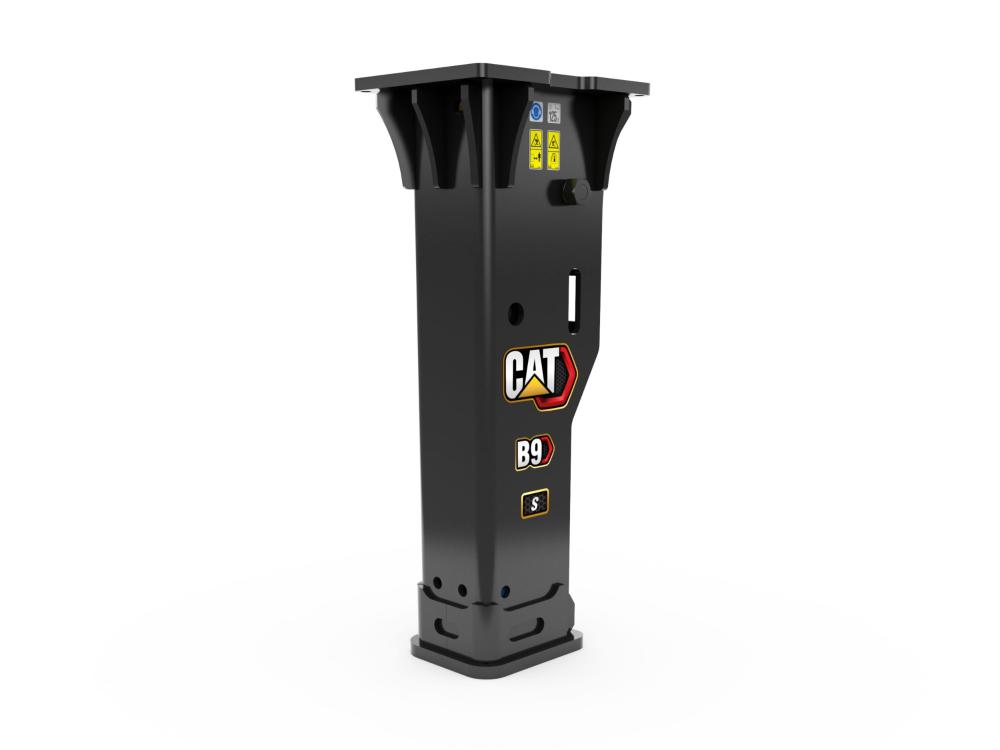

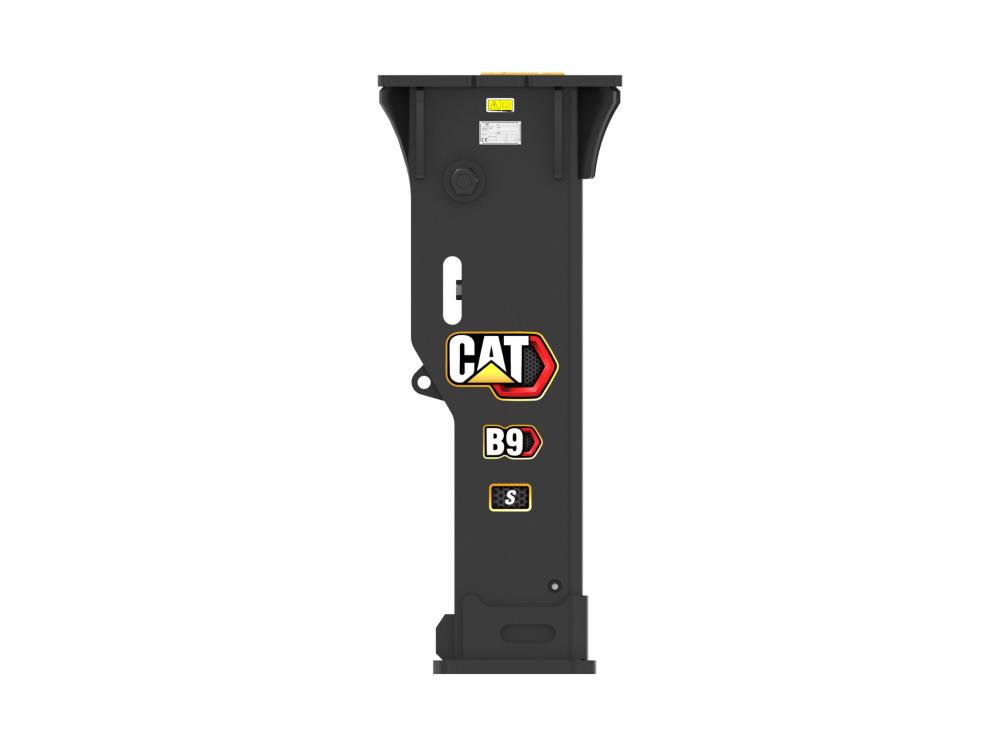

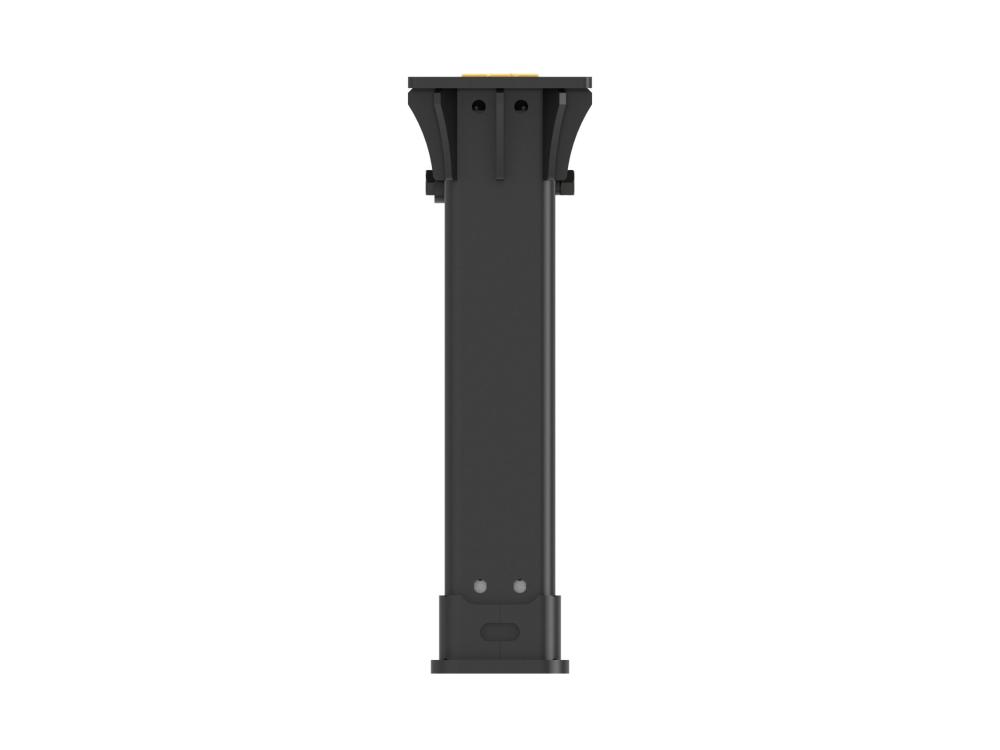

B9s Silenced Hydraulic Hammer

15181790

B9s Silenced Hydraulic Hammer

Cat

https://www.finanzauto.es/productos/martillos-caterpillar-martillo-hidraulico-insonorizado-b9s

Units of measurement :

Metric

Imperial

Operating Weight - With Tool

518 kg

1142 lb

Energy Class

1300 J

958.8 ft·lbf

Machine Class

7-10 Ton Mini Excavators, 415-450 Backhoe Loaders (No Side Shift)

Availability

Purchase Rental Used

Cat® Hammers for Skid Steer Loaders, Compact Track Loaders, Mini Excavators and Backhoe Loaders are high performance breakers, designed for maximum performance on demolition, construction, and road work.

Features

Specifications

Documents

Application

Ergonomically Positioned Hydraulic Lines

Gas Fired Design

Flat Top/Top-Mount Style

Slip Fit Bushings

Included with Each B Series Hammer

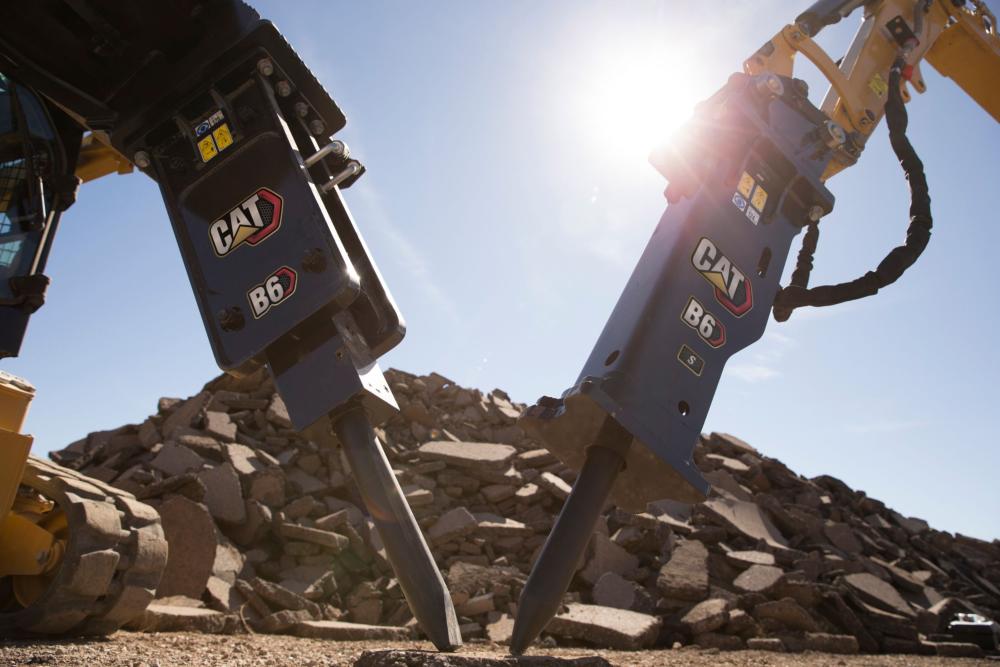

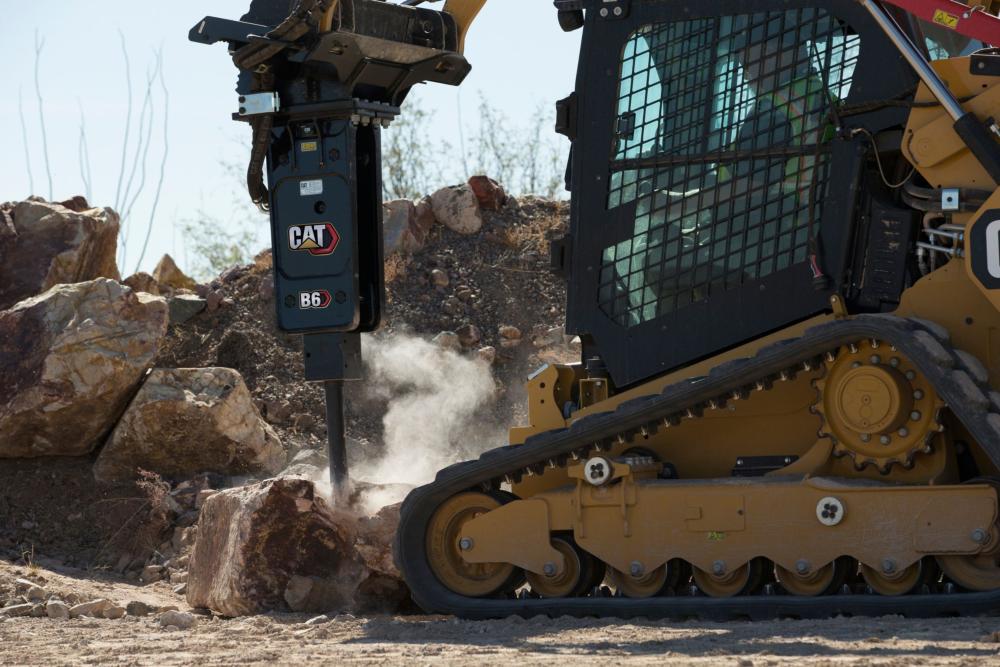

Cat® B Hammers are suitable for use in a wide range of construction and light demolition applications - such as breaking concrete sidewalks and driveways, pavement, roads, masonry, site prep and landscaping, and breaking frozen ground for utility repairs.

Ergonomically positioned hydraulic lines are designed to optimize serviceability, are easily accessible and require no special tools. Housing has been positioned to protect against force and dirt during impact but allow for wrench access. Hydraulic lines and back head pressure can be checked and charged while breaker is mounted to machine, allowing quick monitoring of breaker's condition.

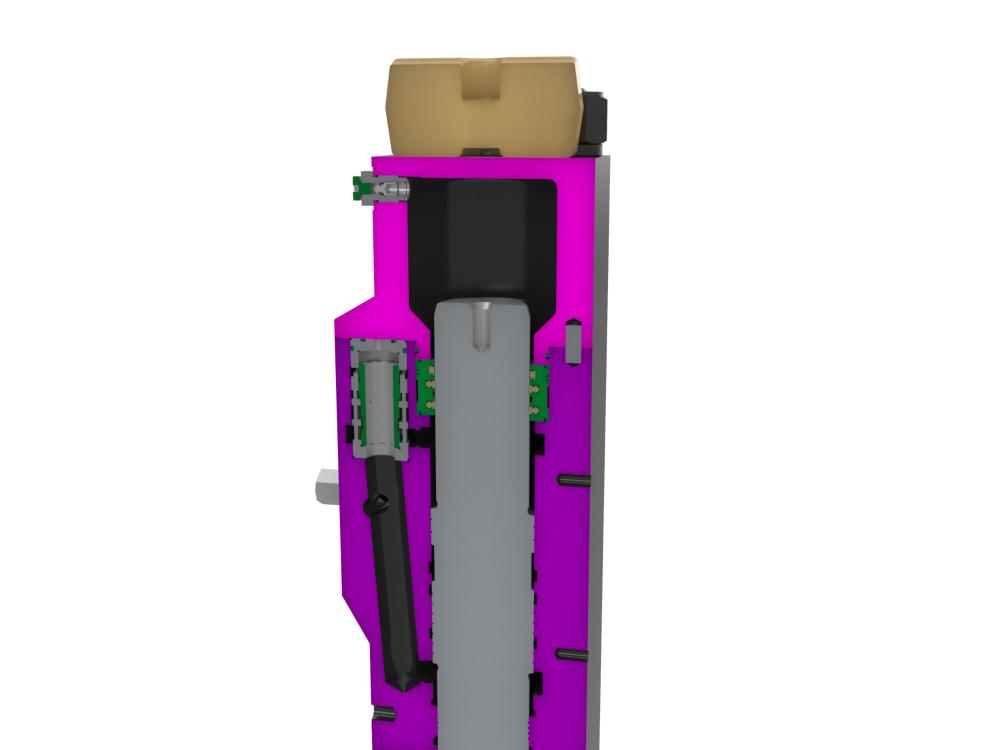

Gas fired design delivers consistently high production over time making the breaker reliable in applications such as concrete, asphalt, rock and light trenching.

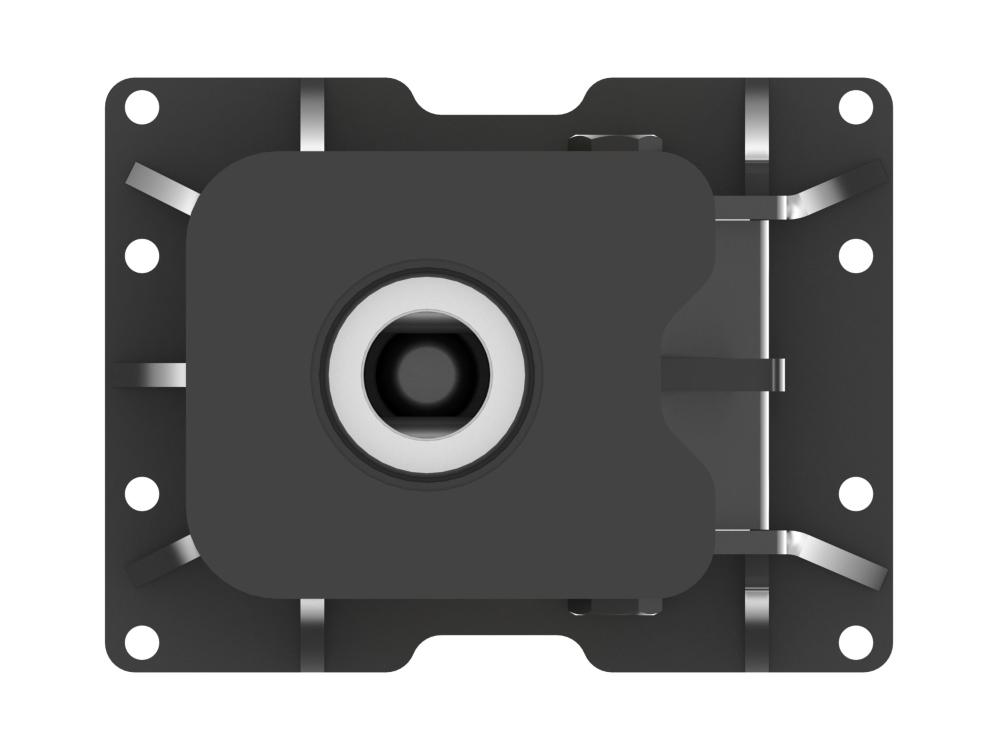

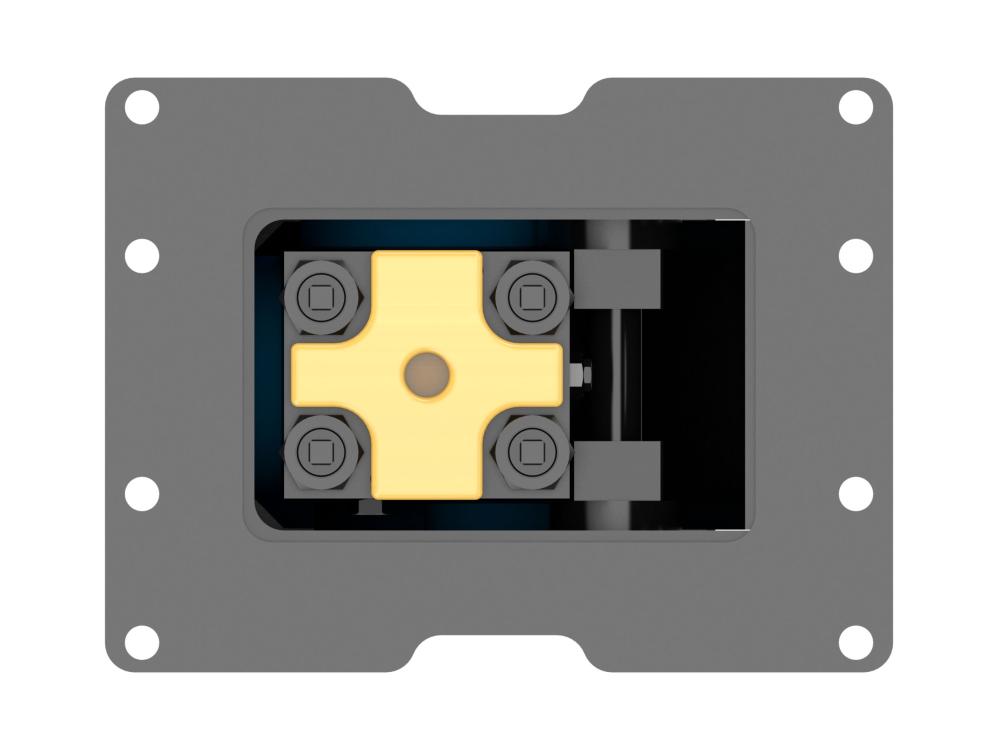

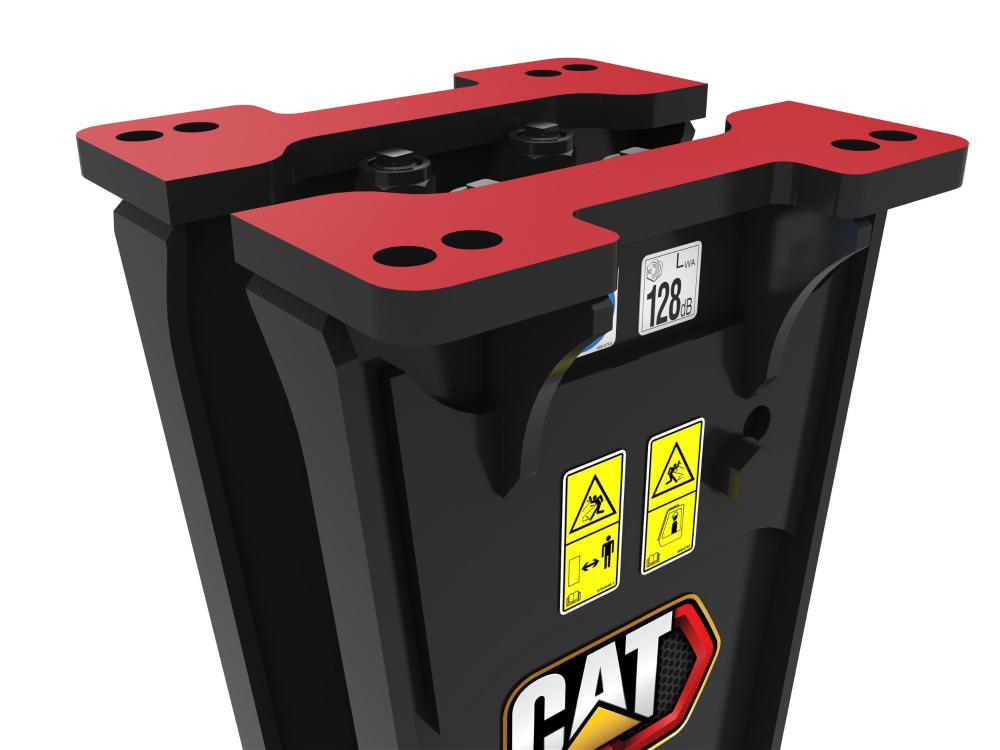

Flat top/top-mount style provides a larger work area and excellent operator visibility with a common footprint and hole pattern for optimum versatility. Top-mount style increases impact power by keeping breaker force and stick force in line. A top-mount bracket will transfer back significantly less recoil and bending stress into the end of the stick, resulting in reduced impact on machine structures. Full complement of mounting brackets is available to suite coupler or pin-on preference.

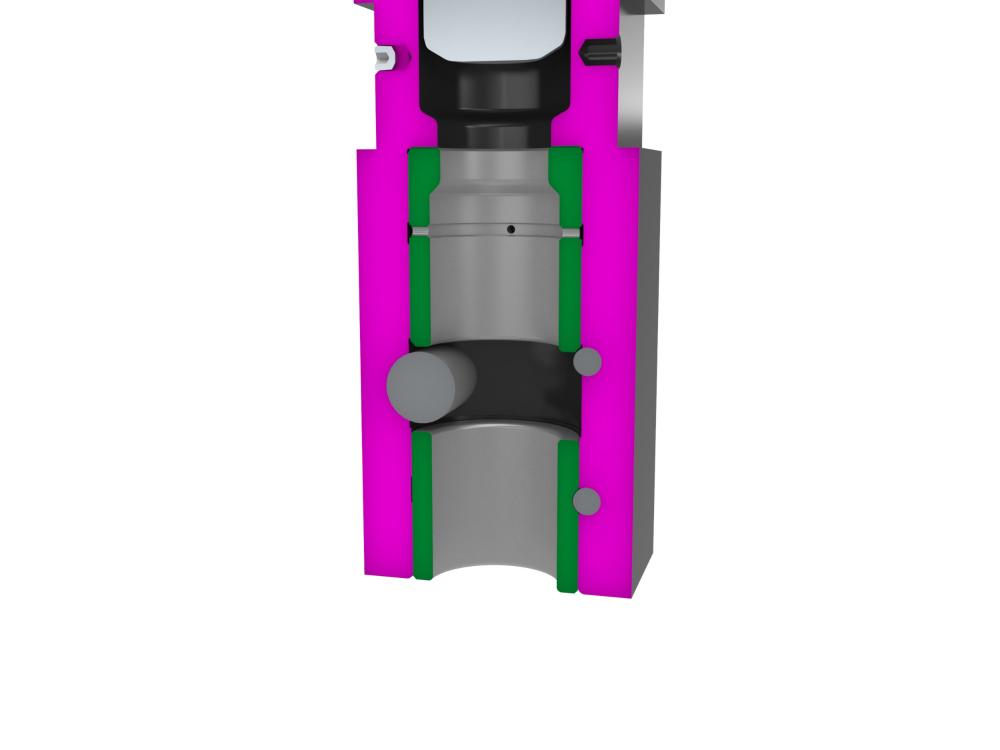

Slip fit bushings are field replaceable and easy to maintain due to one locking pin, extending wear life and reducing owning and operating costs. Upper bushing rotates 360°, lower bushing has two positions and can be rotated 90°.

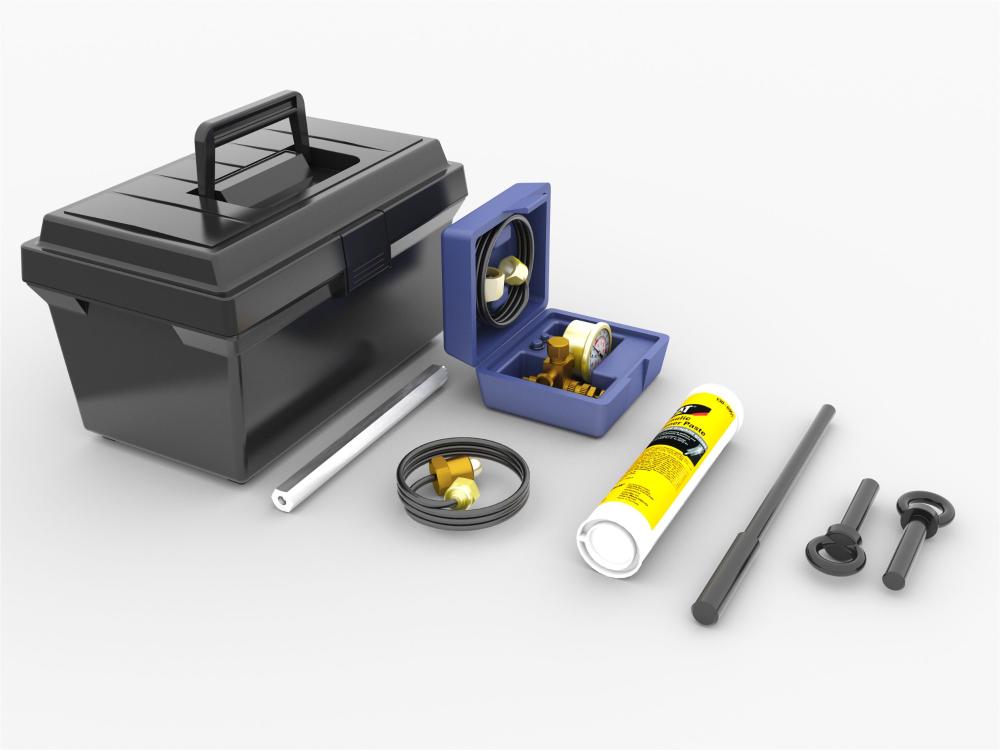

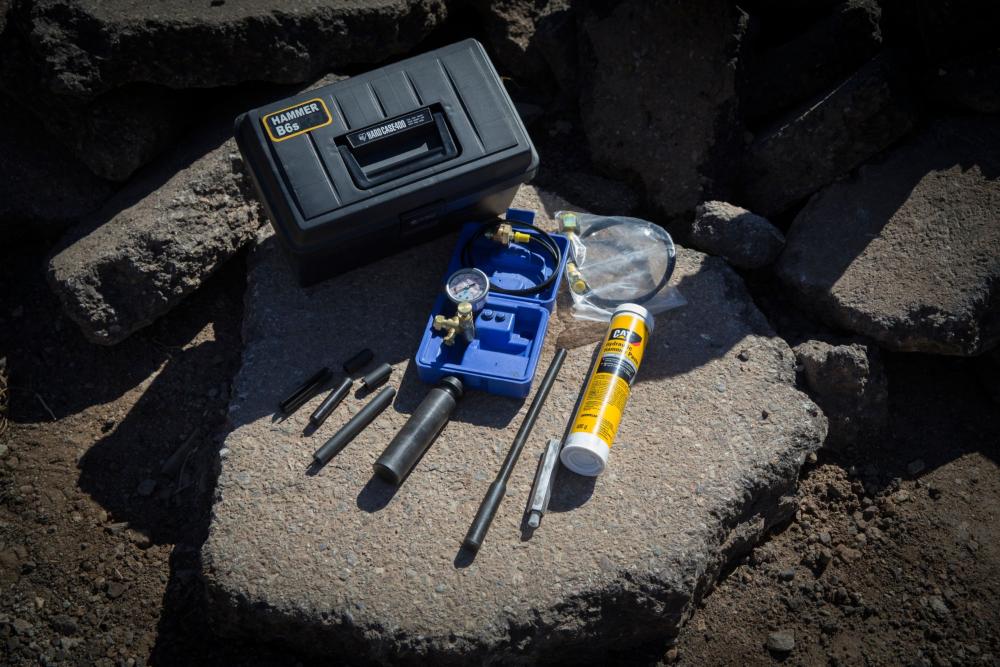

Every B Series Hammer comes with:

Tool Kit w/Storage Box

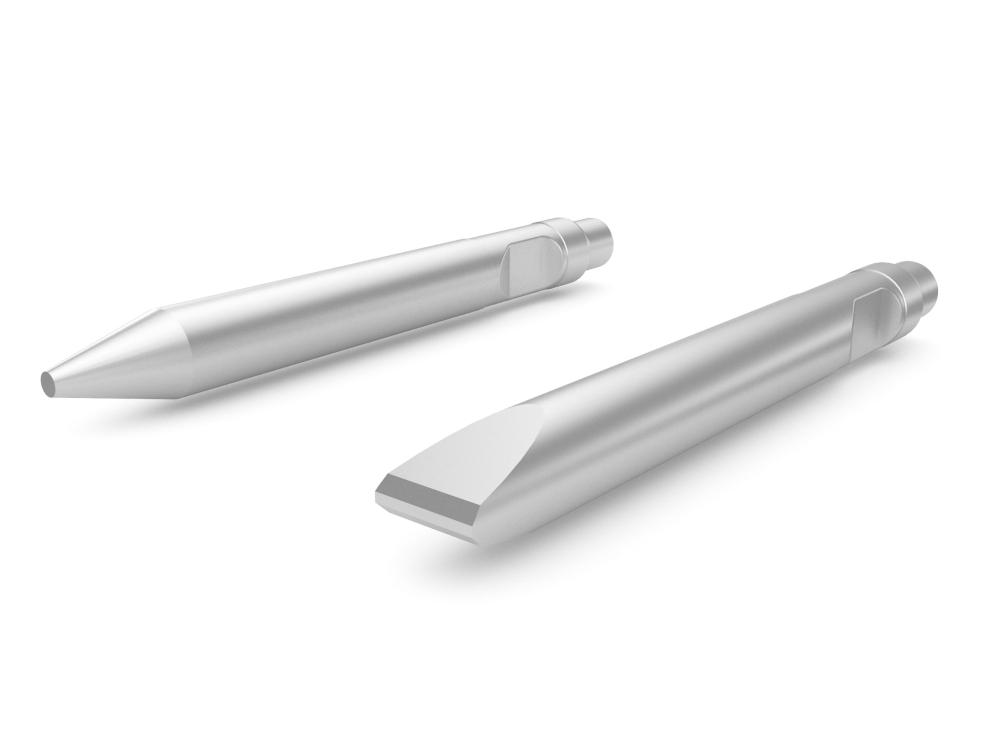

2 Tools (1 x Conical and 1 x Transverse Chisel)
Maintenance Kit

Cat® B1-B9 Model Hammers Brochure.pdf Cat® B1-B9 Model Hammers Parts Reference Guide.pdf

Others

Operating Weight - With Tool	518 kg	1142 lb
Energy Class	1300 J	958.8 ft·lbf
Machine Class	7-10 Ton Mini Excavators, 415-450 Backhoe Loaders (No Side Shift)
Tool Shaft Diameter	85 mm	3.3 in
Impact Frequency	400-800 bpm
Minimum Operating Pressure	12728 kPa	1846 psi
Minimum Carrier Weight	8233 kg	18150.6 lb
Optimal Hydraulic Flow	60-100 lpm (15.9-26.4 gpm)
Overall Width	400 mm	15.7 in
Overall Length	530 mm	20.9 in
Overall Height	1733 mm	68.2 in
Height - Without Tool	1296 mm	51 in
Sound Level	125 dB
Mounting Bracket Size	Extra Large

Compatible machines:

308 CR

Net Power

51.8 kW

69.5 hp

Operating Weight

8387 kg

18493 lb

Dig Depth

4643 mm

182.8 in

Caterpillar

15196157
308 CR VAB

Net Power

51.8 kW

69.5 hp

Operating Weight

9245 kg

20385 lb

Dig Depth

3815 mm

150.2 in

Caterpillar

15196186
309 CR

Net Power

51.8 kW

69.5 hp

Operating Weight

9565 kg

21091 lb

Dig Depth

4642 mm

182.8 in

Caterpillar

15196205
309 CR VAB (Long Undercarriage)

Net Power

51.8 kW

69.5 hp

Operating Weight

9740 kg

21477 lb

Dig Depth

3815 mm

150.2 in

Caterpillar

15196307
310 - Tier 4 / Stage V

Net Power

51.8 kW

69.5 hp

Operating Weight

10432 kg

23002 lb

Dig Depth

5211 mm

205.2 in

Caterpillar

15196340
432

Power - Net

68 kW

92 hp

Operating Weight - Nominal

8469 kg

18671 lb

Operating Weight - Maximum

11000 kg

24251 lb

Caterpillar

15194633
434

Power - Net

68 kW

92 hp

Operating Weight - Nominal

9170 kg

20216 lb

Operating Weight - Maximum

11500 kg

25353 lb

Caterpillar

15194653
444

Power - Net

68 kW

92 hp

Operating Weight - Nominal

9462 kg

20860 lb

Operating Weight - Maximum

11500 kg

25353 lb

Caterpillar

15194673
