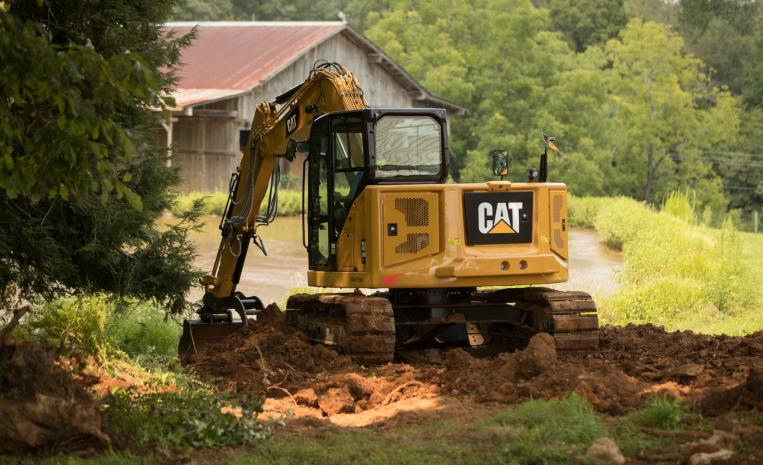

309 CR Mini Hydraulic Excavator
Caterpillar
Metric
Imperial
Net Power
51.8 kW
69.5 hp
Operating Weight
9565 kg
21091 lb
Dig Depth
4642 mm
182.8 in
Availability
The Cat® 309 CR Mini Excavator delivers maximum power and performance in a mini size to help you work in a wide range of applications.
4 Industry First Features
Cat Exclusives in a Mini ExcavatorUp to 10% Lower Total Ownership Costs
with improved fuel efficiency and longer service intervalsUp to 20% More Performance
with customizable operator settings and improvements in lift, swing, travel and multifunctionALL DAY COMFORT
EASY TO OPERATE
STICK STEER TRAVEL MODE
BIG PERFORMANCE IN A MINI DESIGN
HIGH FLOW
SAFETY ON THE JOB SITE
SIMPLE SERVICE FOR LESS DOWNTIME
LOWER OPERATING COSTS
UNMATCHED DEALER SUPPORT
SUSTAINABILITY
- A sealed and pressurized cab is equipped with an improved air conditioning system, adjustable wrist rests and a suspension seat to help keep you working comfortably all day long.
- Controls are easy to use and the intuitive Next Generation Monitor provides customizable machine operator preferences and easy to read machine information.
- Moving around the job site is even easier with the Cat Stick Steer option. Easily switch from traditional travel controls with levers and pedals to joystick controls with a push of a button. The benefit of less effort and improved control is in your hands!
- Increased lifting, swinging, travel and multi-functioning performance helps you get the job done more efficiently, blade float allows for easy clean up and long undercarriage provides improved stability.
- Dedicated auxiliary hydraulic pump is ideal for running power-hungry attachments while allowing the machine to simultaneously travel and multifunction. This feature allows consistent pressure to the auxiliary lines with no loss of hydraulic power keeping your attachment running at full power maintaining optimal productivity.
- Your safety is our top priority. The Cat Mini Excavator is designed to help keep you safe on the job. A back-up camera, courtesy work lights and a fluorescent retractable seat belt are just a few of the safety features we’ve built into the machine.
- Maintenance is quick and easy on the Cat Mini Excavator. Routine check points are easy to access at ground level with grouped service points and robust service panels.
- Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat Mini Excavator was designed with reducing your operating costs in mind.
- Your Cat dealer is here to help you reach your business goals. From providing equipment solutions to operator training to service needs and beyond, your Cat dealer is ready to help.
- The Cat® C3.3B engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
- Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
- Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
- Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
- Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
- The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
- Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
- Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
- Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)
- Cat Grade with advanced 2D and 3D technologies combine advanced guidance with optional automated machine control helping you reach grading targets while reducing fuel burn and greenhouse gas emissions by improving efficiency, job site productivity, and accuracy. (if equipped).
Engine
| Net Power | 51.8 kW | 69.5 hp |
| Engine Model | Cat C3.3B | |
| Displacement | 3.33 l | 203 in³ |
| Bore | 94 mm | 3.7 in |
| Stroke | 120 mm | 4.7 in |
| Gross Power - SAE J1995:2014 | 55.4 kW | 74.3 hp |
| Rated Net Power - 2,200 rpm - U.S. EPA Tier 4 Final/EU Stage V - ISO 9249/EEC 80/1269 | 51.8 kW | 69.5 hp |
Weights
| Operating Weight | 9565 kg | 21091 lb |
| Maximum Operating Weight with Cab** | 9565 kg | 21091 lb |
| Note (1) | *Minimum Weight is based on steel tracks, no counterweight, operator, full fuel tank, standard stick, blade and no bucket. | |
| Note (2) | **Maximum Weight is based on steel tracks with rubber pads, counterweight, operator, full fuel tank, long stick, blade and no bucket. | |
| Minimum Operating Weight with Cab* | 8950 kg | 19735 lb |
Dimensions - Long Stick
| Dig Depth | 4642 mm | 182.8 in |
| Maximum Dump Clearance | 5072 mm | 199.7 in |
| Boom In Reach | 3215 mm | 126.6 in |
| Vertical Wall | 3404 mm | 134 in |
| Maximum Blade Depth | 671 mm | 26 in |
| O/A Undercarriage Length | 3200 mm | 126 in |
| O/A Track Width | 2470 mm | 97.2 in |
| Stick Length | 2358 mm | 92.8 in |
| Maximum Blade Height | 408 mm | 16.1 in |
| Maximum Dig Height | 7039 mm | 277.1 in |
| Tail Swing with Counterweight | 1585 mm | 62.4 in |
| Maximum Reach | 7637 mm | 300.7 in |
| Cab Height | 2541 mm | 100 in |
| Ground Clearance | 356 mm | 14 in |
| Swing Bearing - Height | 756 mm | 29.7 in |
| Track Belt/Shoe Width | 450 mm | 17.7 in |
| Boom Swing - Left | 604 mm | 23.8 in |
| Boom Swing - Right | 935 mm | 36.8 in |
| Tail Swing without Counterweight | 1450 mm | 57.1 in |
| Maximum Reach - Ground Level | 7460 mm | 293.7 in |
| Note | *Boom Height when stick is pinned in transport position with no attachments. | |
| Note (2) | ***With blade positioned at the rear of the machine. | |
| Note (1) | **Boom Height when stick is pinned in working position with attachments Standard Stick offers only one pin position. | |
| Height - Boom Transport - No Tools* | 2260 mm | 89 in |
| Overall Shipping Length - with Counterweight | 7052 mm (277.6 in)*** | |
| Height - Boom Working - With Tools** | 3050 mm | 120.1 in |
| Overall Shipping Length - without Counterweight | 7052 mm (277.6 in)*** |
Blade
| Height | 431 mm | 17 in |
| Width - Wide | 2640 mm | 104 in |
| Width - Standard | 2470 mm | 97 in |
Specifications
| Note | The 309 CR specifications are based on a machine configured with a Long (L) Undercarriage. |
Weight Increase from Minimum Configuration
| Steel Tracks with Pads | 330 kg | 728 lb |
| Long Stick | 66 kg | 146 lb |
| Counterweight | 250 kg | 552 lb |
Travel System
| Gradeability - Maximum | 30 degrees | |
| Ground Pressure - Minimum Weight | 34.7 kPa | 5 psi |
| Ground Pressure - Maximum Weight | 37.1 kPa | 5.4 psi |
| Travel Speed - High | 4.9 km/h | 3.1 mile/h |
| Travel Speed - Low | 2.6 km/h | 1.6 mile/h |
| Maximum Traction Force - High Speed | 28.9 kN | 6497 lb |
| Maximum Traction Force - Low Speed | 84.8 kN | 19064 lb |
Service Refill Capacities
| Engine Oil | 11.2 l | 3 gal (US) |
| Fuel Tank | 147 l | 39 gal (US) |
| Hydraulic System | 110 l | 29 gal (US) |
| Cooling System | 10 l | 2.6 gal (US) |
| Hydraulic Tank | 53 l | 14 gal (US) |
Hydraulic System
| Type | Load Sensing Hydraulics with Variable Displacement Piston Pump | |
| Operating Pressure - Swing | 250 bar | 3626 psi |
| Digging Force - Stick - Standard | 42.3 kN | 9500 lb |
| Digging Force - Stick - Long | 35.7 kN | 8023 lb |
| Operating Pressure - Travel | 285 bar | 4134 psi |
| Pump Flow at 2,400 rpm | 233 l/min | 62 gal/min |
| Digging Force - Bucket | 62 kN | 13943 lb |
| Operating Pressure - Equipment | 285 bar | 4134 psi |
| Note | Flow and pressure are not combinable. Under load, as flow rises pressure goes down. | |
| Maximum Auxiliary Circuit - Secondary - Flow at Pump | 33 l/min | 9 gal/min |
| Maximum Auxiliary Circuit - Primary - Pressure at Pump | 285 bar | 4134 psi |
| Maximum Auxiliary Circuit - Primary - Flow at Pump | 131 l/min | 35 gal/min |
| Maximum Auxiliary Circuit - Secondary - Pressure at Pump | 285 bar | 4134 psi |
| Maximum Auxiliary Circuit - High Flow - Pressure at Pump | 285 bar | 4134 lbf/in |
| Maximum Auxiliary Circuit - High Flow - Flow at Pump | 140 l/min | 37 gal/min |
Swing System
| Machine Swing Speed | 10.6 r/min | 10.6 r/min |
| Boom Swing - Right | 50 degrees | |
| Boom Swing - Left | 60 degrees |
Certification - Cab
| Roll Over Protective Structure (ROPS) | ISO 12117-2:2008 |
| Top Guard | ISO 10262:1998 (Level I) |
| Tip Over Protective Structure (TOPS) | ISO 12117:1997 |
Sound
| Average Exterior Sound Pressure (ISO 6395:2008) | 99 dB(A) | 99 dB(A) |
| Note | European Union Directive "2000/14/EC" | |
| Operator Sound Pressure (ISO 6396:2008) | 72 dB(A) | 72 dB(A) |
Dimensions - Standard Stick
| Boom Swing - Right | 935 mm | 36.8 in |
| Maximum Dump Clearance | 4760 mm | 187.4 in |
| Tail Swing without Counterweight | 1450 mm | 57.1 in |
| Maximum Reach - Ground Level | 6949 mm | 273.6 in |
| O/A Undercarriage Length | 3200 mm | 126 in |
| Cab Height | 2541 mm | 100 in |
| Swing Bearing - Height | 756 mm | 29.7 in |
| Maximum Dig Height | 6736 mm | 265.2 in |
| Track Belt/Shoe Width | 450 mm | 17.7 in |
| O/A Track Width | 2470 mm | 97.2 in |
| Ground Clearance | 356 mm | 14 in |
| Maximum Reach | 7141 mm | 281.1 in |
| Tail Swing with Counterweight | 1585 mm | 62.4 in |
| Boom In Reach | 3059 mm | 120.4 in |
| Vertical Wall | 2991 mm | 117.8 in |
| Dig Depth | 4108 mm | 161.7 in |
| Stick Length | 1820 mm | 71.8 in |
| Boom Swing - Left | 604 mm | 23.8 in |
| Maximum Blade Height | 408 mm | 16.1 in |
| Maximum Blade Depth | 671 mm | 26 in |
| Note | *Boom Height when stick is pinned in transport position with no attachments. | |
| Overall Shipping Length - without Counterweight | 6774 mm | 266.7 in |
| Overall Shipping Length - with Counterweight | 6774 mm | 266.7 in |
| Note (2) | ***With blade positioned at the rear of the machine. | |
| Note (1) | **Boom Height when stick is pinned in working position with attachments Standard Stick offers only one pin position. | |
| Height - Boom Transport - No Tools* | 2430 mm | 95.7 in |
| Height - Boom Working - With Tools** | 2660 mm | 104.7 in |
Air Conditioning System
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.0 kg of refrigerant which has a CO2 equivalent of 1.430 metric tonnes. |
Sustainability
| Recyclability | 96% |
