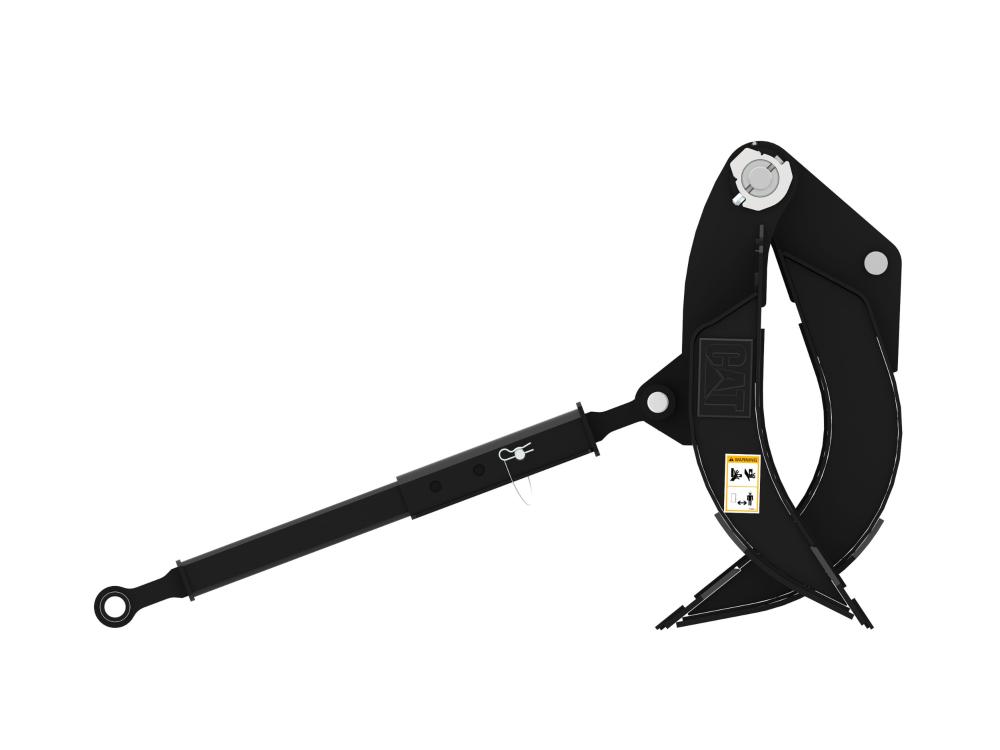

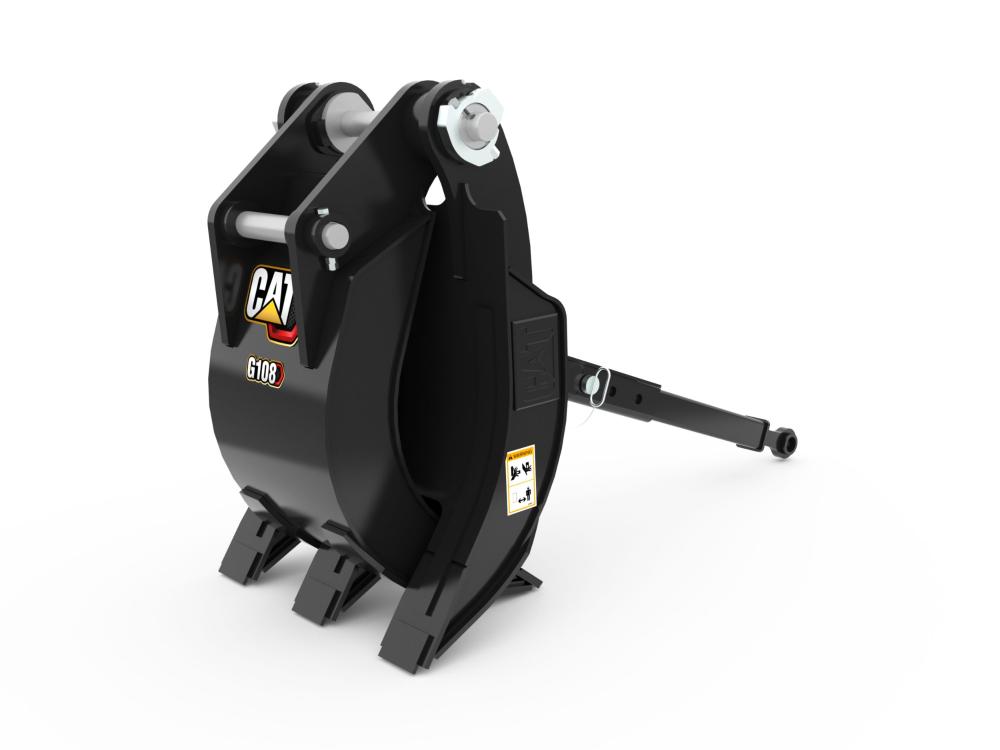

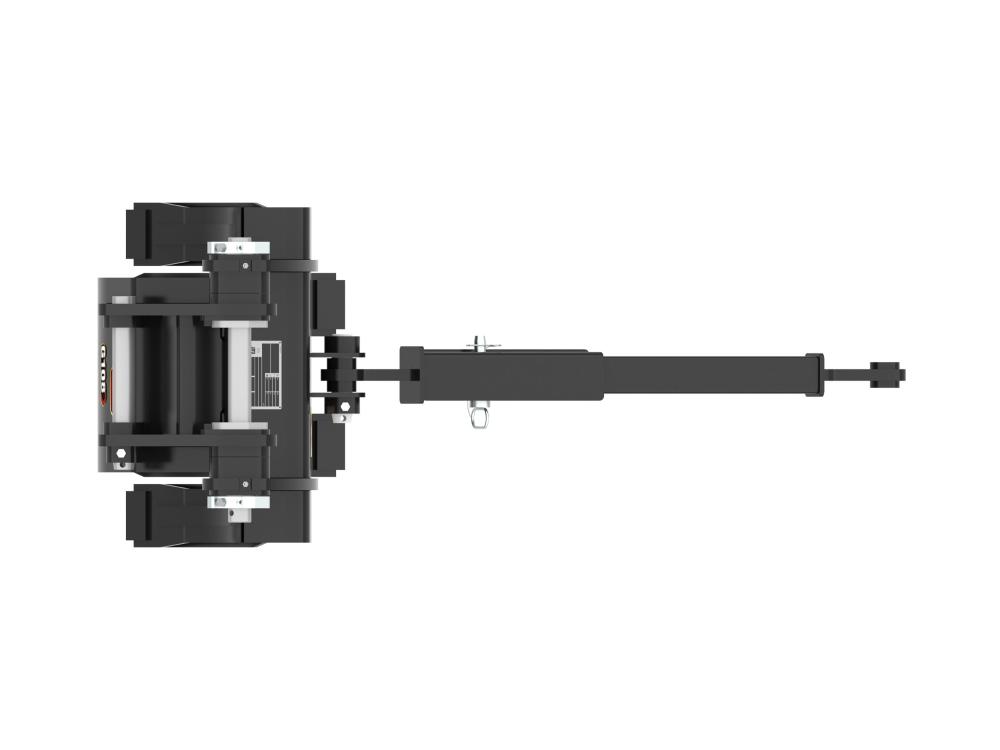

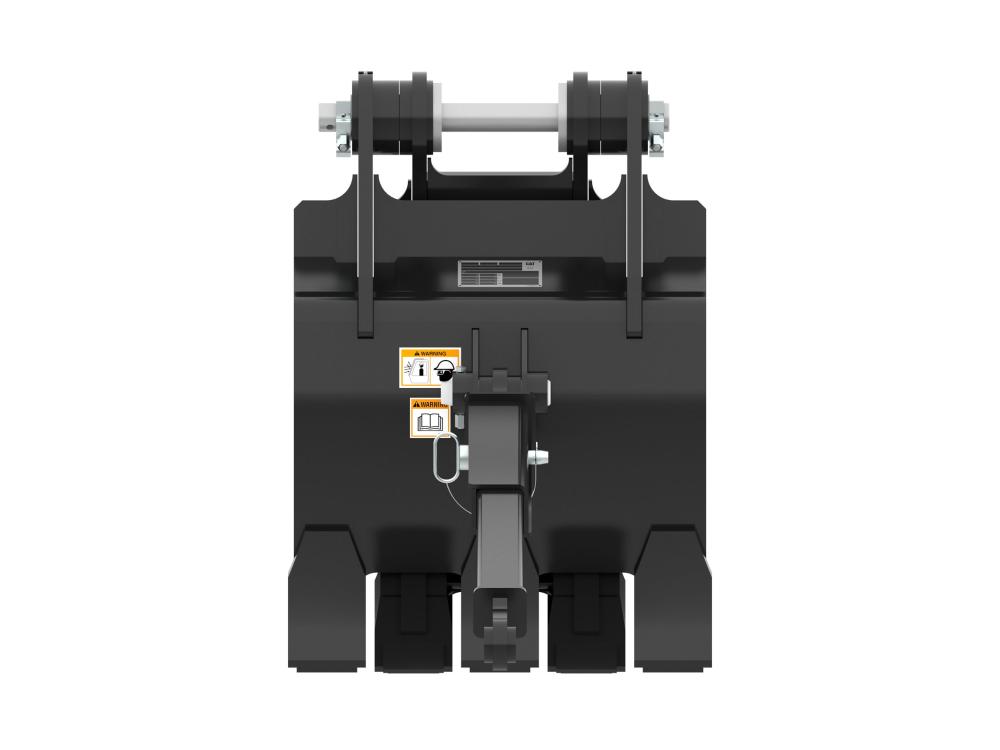

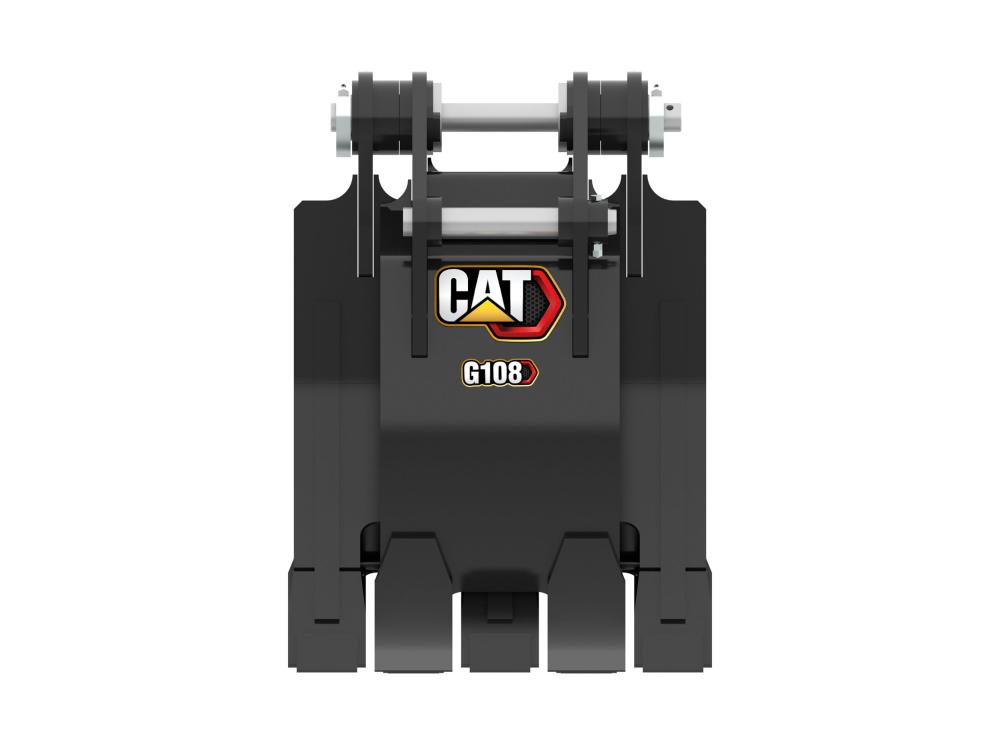

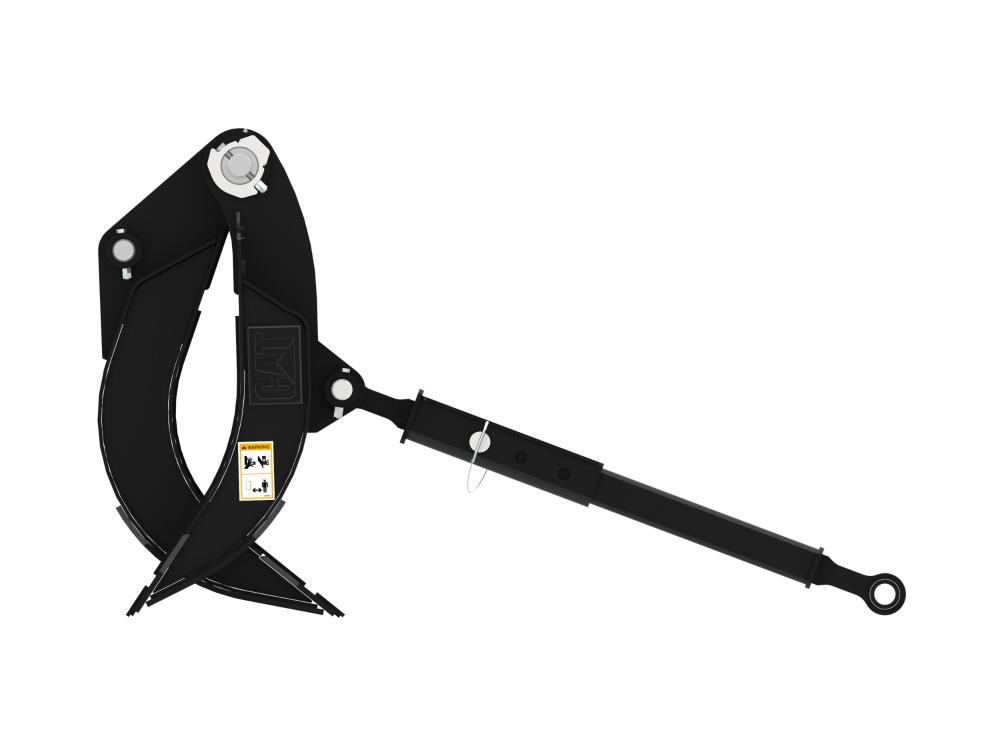

G108 Stiff link Contractors' Grapple

Units of measurement :

Metric

Imperial

Machine Class

7-9 Ton Mini Excavators

Jaw Opening

1765 mm

Weight

370 kg

Availability

Purchase Rental Used

Contractors\u2019 Grapples are a proven product built for your high-volume material handling needs. Designed for long-lasting durability, Contractors\u2019 Grapples are made to help you in the toughest of applications.

Application

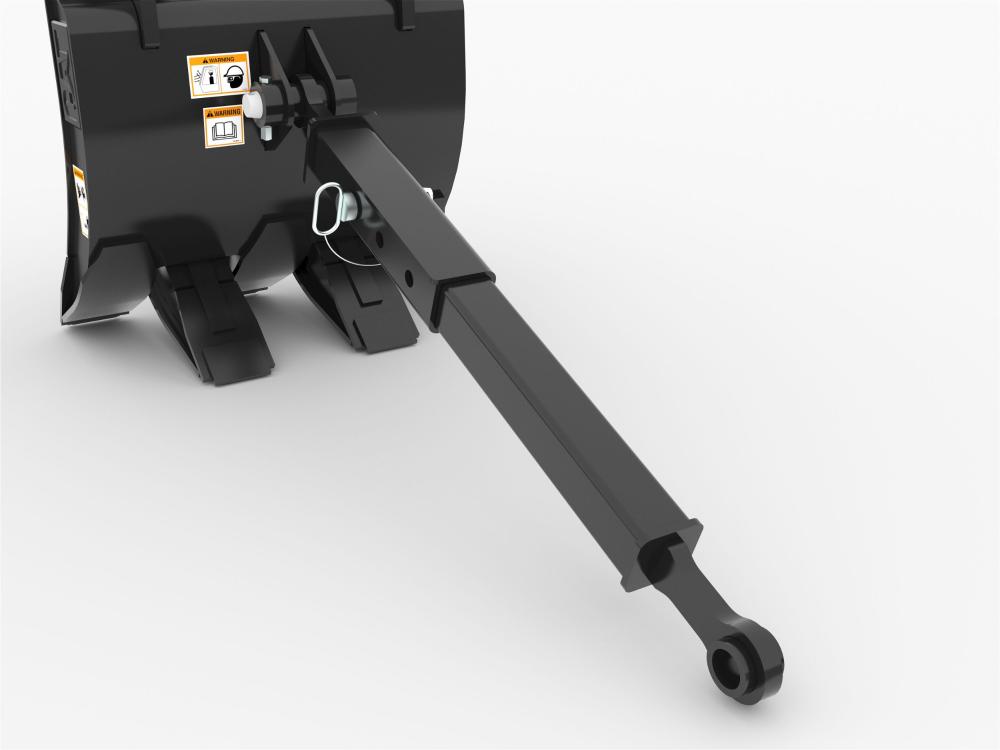

Easy to Install Stiff Link

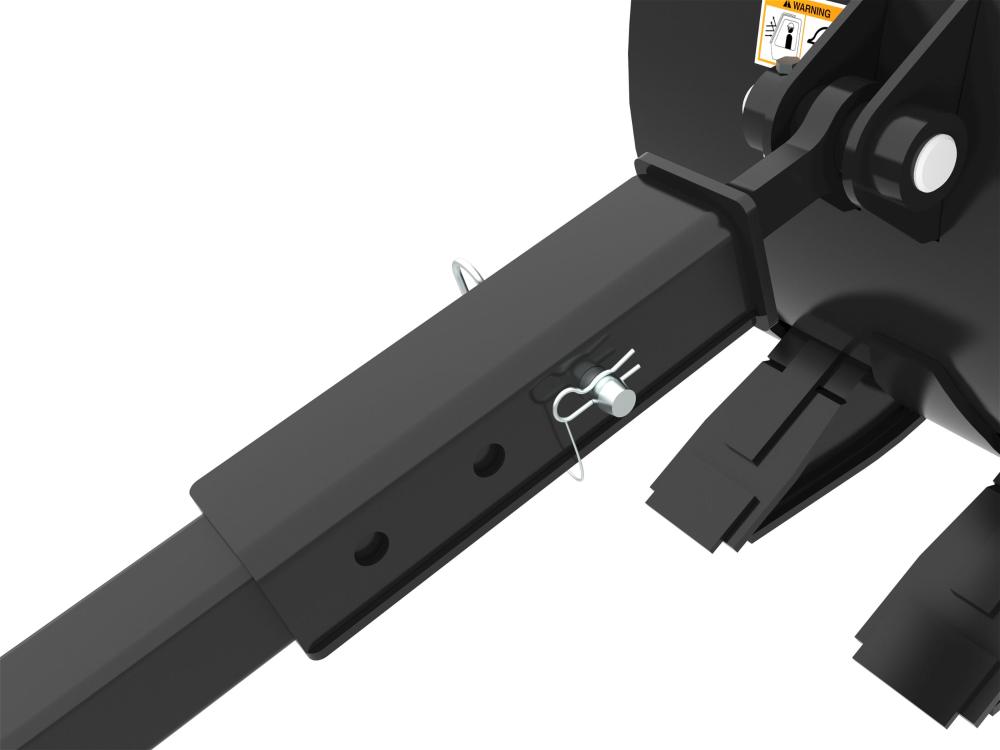

Adjustable Link Position

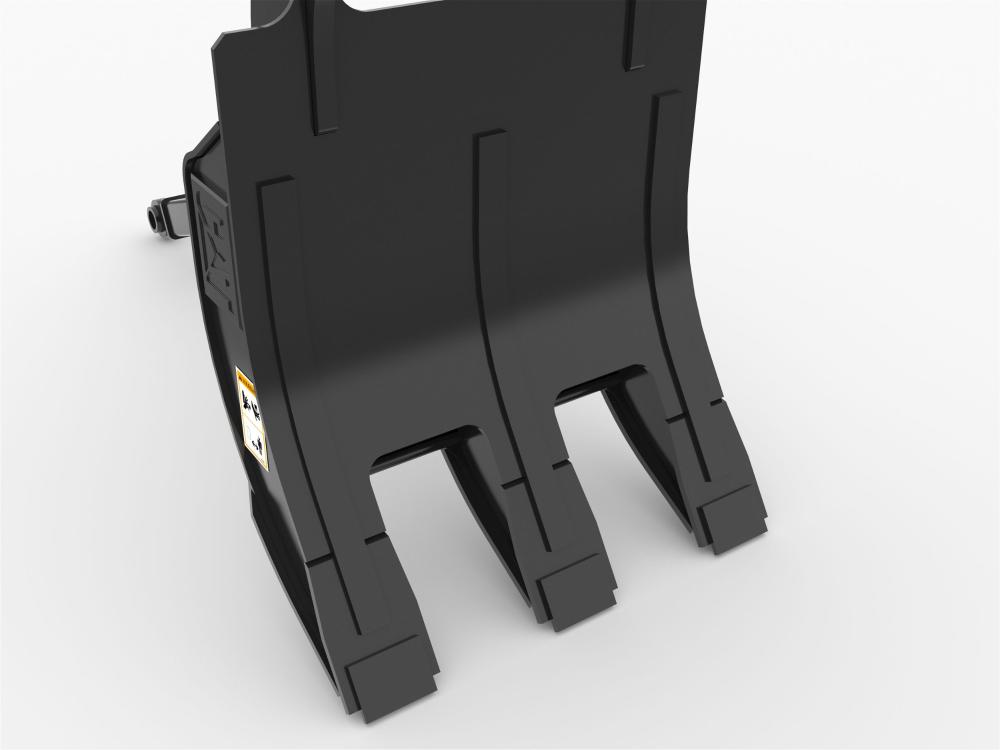

Standard Wear Plates

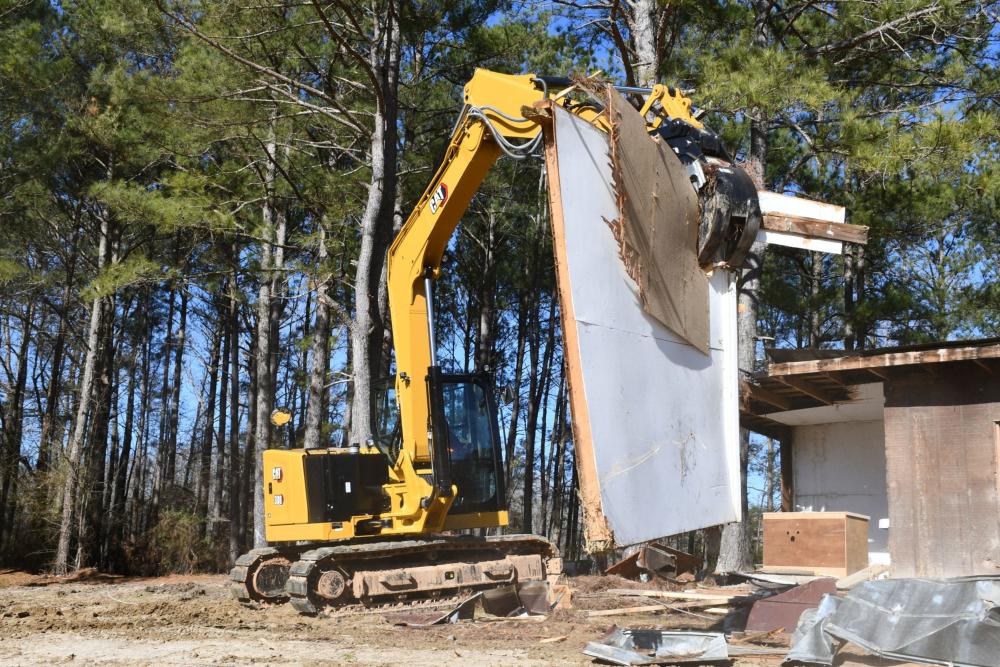

The Cat® Contractor Grapple is used in demolition at sites as well as waste and recycling industries for material handling in a more efficient way.

Cat® G108 Contractors' Grapple Product Brochure.pdf

Others

Machine Class	7-9 Ton Mini Excavators
Jaw Opening	1765 mm	69.5 in
Weight	370 kg	815.7 lb
Overall Width	735 mm	28.9 in
Upper Jaw Width	435 mm	17.1 in
Wear Plate Thickness	8 mm	0.3 in
Number of Adjustments	3
Length Between Adjustments	192 mm	7.6 in
Interface Type	Pin On
Inner Wrapper Thickness	8 mm	0.3 in
Outer Wrapper Thickness	8 mm	0.3 in
Upper Jaw Tine Count	2
Lower Jaw Tine Count	3
