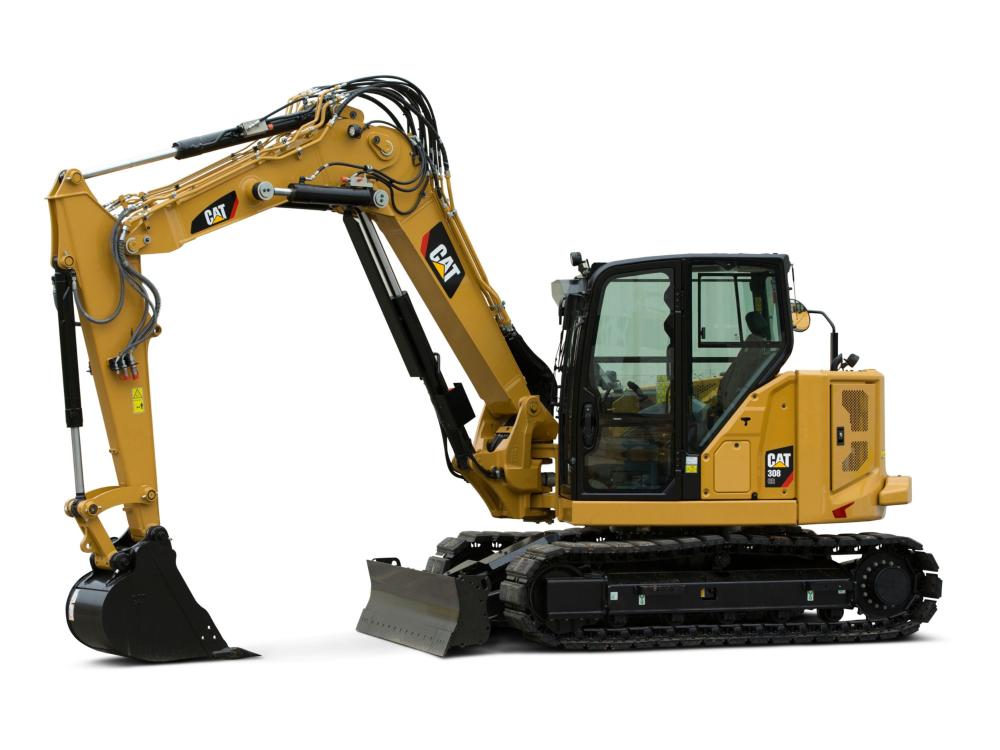

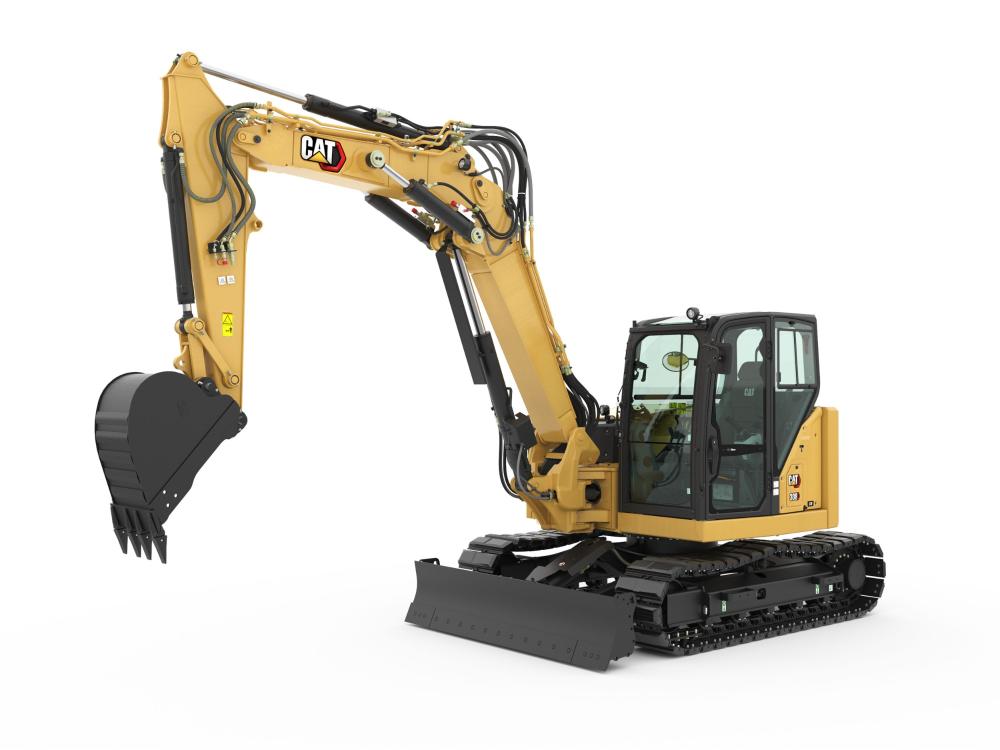

308 CR VAB Mini Hydraulic Excavator
Caterpillar
Metric
Imperial
Net Power
51.8 kW
69.5 hp
Operating Weight
9245 kg
20385 lb
Dig Depth
3815 mm
150.2 in
Availability
The Cat® 308 CR Variable Angle Boom (VAB) Mini Excavator delivers maximum power and performance in a mini size to help you work in a wide range of applications. The Variable Angle Boom provides the maximum in linkage flexibility in tight applications.
4 Industry First Features
Cat Exclusives in a Mini ExcavatorUp to 10% Lower Total Ownership Costs
with improved fuel efficiency and longer service intervalsUp to 20% More Performance
with customizable operator settings and improvements in lift, swing, travel and multifunctionALL DAY COMFORT
EASY TO OPERATE
STICK STEER TRAVEL MODE
BIG PERFORMANCE IN A MINI DESIGN
SAFETY ON THE JOB SITE
SIMPLE SERVICE FOR LESS DOWNTIME
LOWER OPERATING COSTS
UNMATCHED DEALER SUPPORT
SUSTAINABILITY

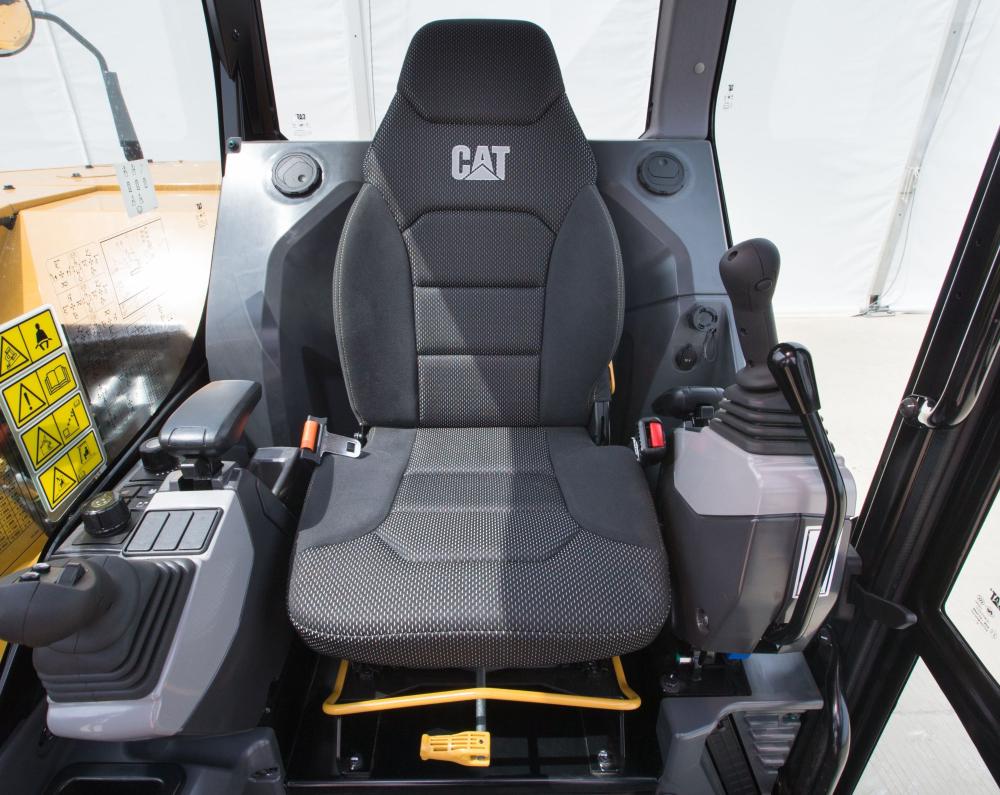

- A sealed and pressurized cab is equipped with an improved air conditioning system, adjustable wrist rests and a suspension seat to help keep you working comfortably all day long.

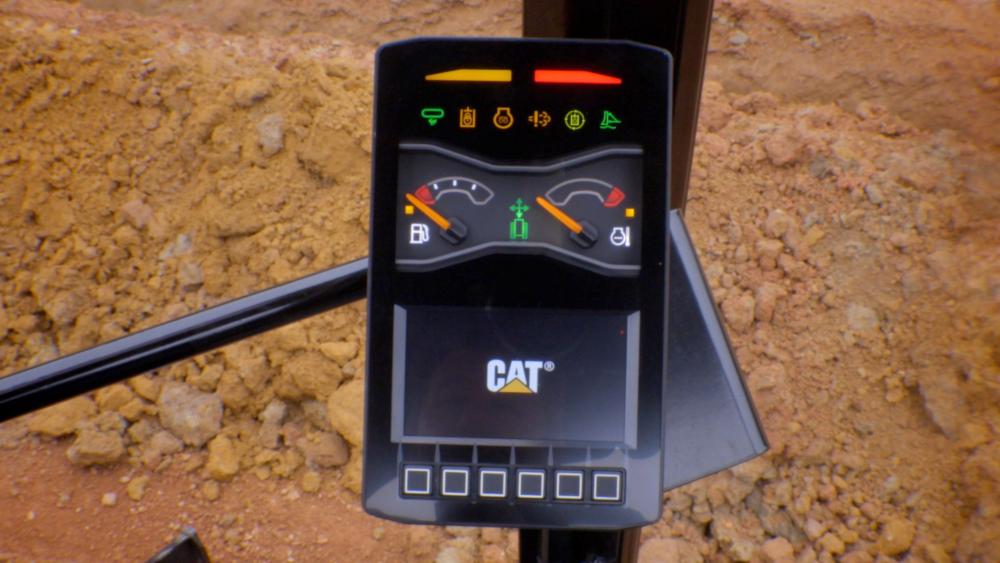

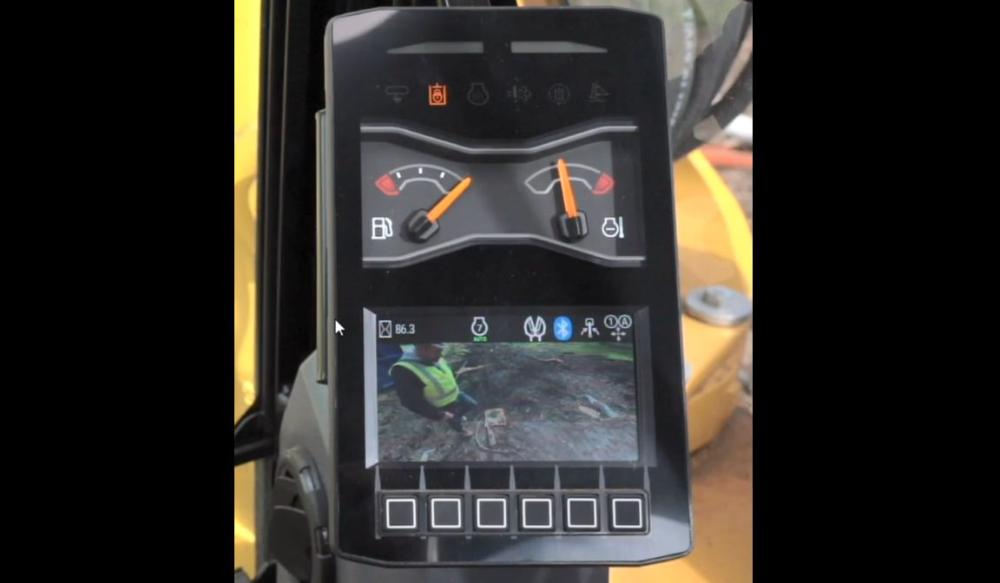

- Controls are easy to use and the intuitive Next Generation Monitor provides customizable machine operator preferences and easy to read machine information.
- Moving around the job site is even easier with the Cat Stick Steer option. Easily switch from traditional travel controls with levers and pedals to joystick controls with a push of a button. The benefit of less effort and improved control is in your hands!

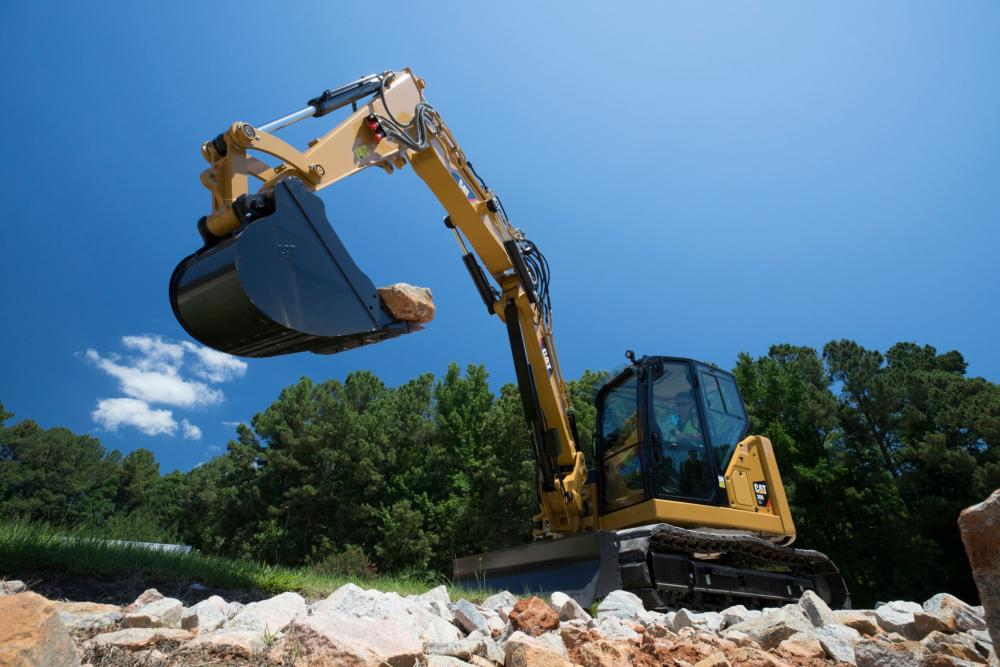

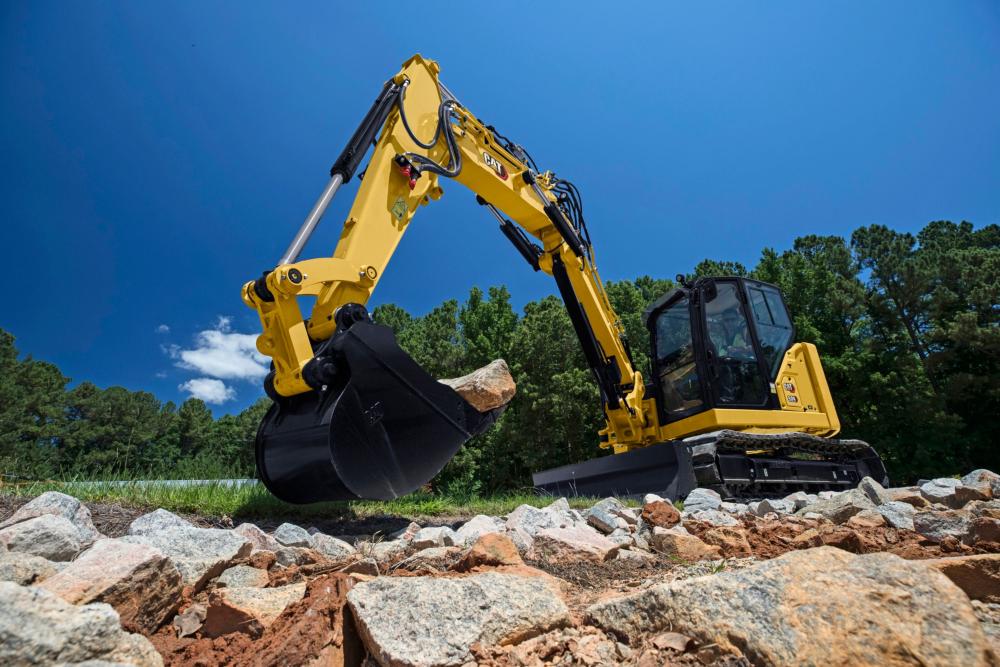

- Increased lifting, swinging, travel and multi-functioning performance help you get the job done more efficiently, and dig-to-blade allows for easy clean up.
- Your safety is our top priority. The Cat Mini Excavator is designed to help keep you safe on the job. A back-up camera, courtesy work lights and a fluorescent retractable seat belt are just a few of the safety features we’ve built into the machine.

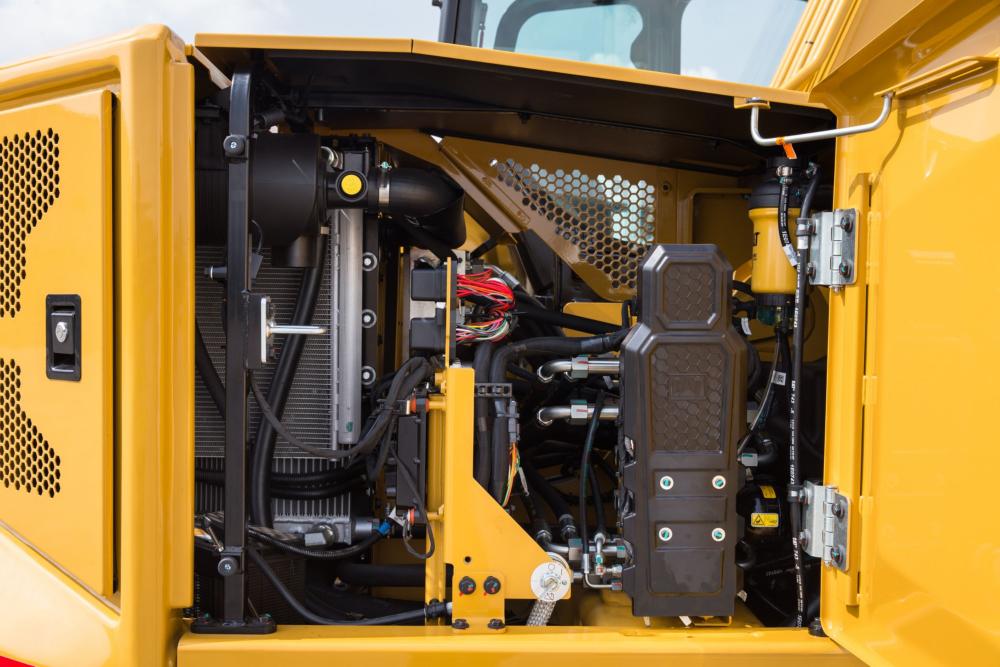

- Maintenance is quick and easy on the Cat Mini Excavator. Routine check points are easy to access at ground level with grouped service points and robust service panels.
- Equipped with features such as auto idle, auto engine shutdown, and efficient hydraulics with a variable displacement pump, the Cat Mini Excavator was designed with reducing your operating costs in mind.
- Your Cat dealer is here to help you reach your business goals. From providing equipment solutions to operator training to service needs and beyond, your Cat dealer is ready to help.
- The Cat® C3.3B engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
- Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
- Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
- Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
- Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
- The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
- Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
- Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
- Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)
- Cat Grade with advanced 2D and 3D technologies combine advanced guidance with optional automated machine control helping you reach grading targets while reducing fuel burn and greenhouse gas emissions by improving efficiency, job site productivity, and accuracy. (if equipped).
Engine
| Net Power | 51.8 kW | 69.5 hp |
| Displacement | 3.33 l | 203 in³ |
| Note | Net power advertised is the power available at the flywheel when the engine is equipped with air cleaner, exhaust system and fan. | |
| Bore | 94 mm | 3.7 in |
| Gross Power - SAE J1995:2014 | 55.4 kW | 74.3 hp |
| Stroke | 120 mm | 4.7 in |
| Net Power - 2,200 rpm - ISO 9249:2007, 80/1269/EEC | 51.8 kW | 69.5 hp |
| Engine Model - U.S. EPA Tier 4 Final/EU Stage V | Cat® C3.3B |
Weights
| Operating Weight | 9245 kg | 20385 lb |
| Note (1) | *Minimum Weight is based on rubber tracks, no counterweight, operator, full fuel tank, blade, and no bucket. | |
| Note (2) | **Maximum Weight is based on steel tracks with rubber pads, counterweight, operator, full fuel tank, blade, and no bucket. | |
| Maximum Operating Weight with Standard Stick** | 9245 kg | 20385 lb |
| Minimum Operating Weight with Standard Stick* | 8655 kg | 19084 lb |
Dimensions - VAB In
| Dig Depth | 3815 mm | 150.2 in |
| Tail Swing with Counterweight | 1585 mm | 62.4 in |
| Maximum Blade Height | 370 mm | 14.6 in |
| Track Belt/Shoe Width | 450 mm | 17.7 in |
| Maximum Dump Clearance | 3450 mm | 135.8 in |
| Vertical Wall | 2520 mm | 99.2 in |
| Boom in Reach | 3120 mm | 122.8 in |
| Ground Clearance | 350 mm | 13.8 in |
| Swing Bearing Height | 756 mm | 29.8 in |
| Boom Swing Right | 935 mm | 37 in |
| Overall Track Width | 2300 mm | 90.6 in |
| Overall Shipping Length | 6450 mm | 253.9 in |
| Transport Height | 2475 mm | 97.4 in |
| Cab Height | 2541 mm | 100 in |
| Overall Undercarriage Length | 2880 mm | 113.4 in |
| Maximum Reach | 6515 mm | 256.5 in |
| Tail Swing without Counterweight | 1450 mm | 57.1 in |
| Maximum Reach at Ground Level | 6300 mm | 248 in |
| Stick Length | 1820 mm | 71.7 in |
| Maximum Blade Depth | 407 mm | 16 in |
| Boom Swing Left | 605 mm | 24 in |
| Maximum Dig Height | 5220 mm | 205.5 in |
Blade
| Height | 431 mm | 17 in |
| Width - Wide | 2450 mm | 96.5 in |
| Width - Standard | 2300 mm | 90.6 in |
Weight Increase from Minimum Configuration
| Counterweight | 250 kg | 552 lb |
| Steel Tracks with Pads | 341 kg | 752 lb |
Travel System
| Maximum Traction Force - High Speed | 27.8 kN | 6250 lbf |
| Travel Speed - Low | 3.1 km/h | 1.9 mile/h |
| Ground Pressure - Maximum Weight | 40.6 kPa | 5.9 psi |
| Travel Speed - High | 5.1 km/h | 3.2 mile/h |
| Gradeability - Maximum | 30 degrees | |
| Ground Pressure - Minimum Weight | 37.9 kPa | 5.5 psi |
| Maximum Traction Force - Low Speed | 67.5 kN | 15175 lbf |
Service Refill Capacities
| Engine Oil | 11.2 l | 3 gal (US) |
| Cooling System | 10 l | 2.6 gal (US) |
| Hydraulic System | 110 l | 29 gal (US) |
| Hydraulic Tank | 53 l | 14 gal (US) |
| Fuel Tank | 147 l | 39 gal (US) |
Hydraulic System
| Digging Force - Bucket | 62 kN | 13946 lbf |
| Operating Pressure - Equipment | 285 bar | 4134 psi |
| Pump Flow at 2,400 rpm | 167 l/min | 44 gal/min |
| Operating Pressure - Travel | 285 bar | 4134 psi |
| Digging Force - Stick - Standard | 42.3 kN | 9509 lbf |
| Type | Load Sensing Hydraulics with Variable Displacement Piston Pump | |
| Operating Pressure - Swing | 250 bar | 3626 psi |
| Note | Flow and pressure are not combinable. Under load, as flow rises pressure goes down. | |
| Maximum Auxiliary Circuit - Primary - Pressure at Pump | 285 bar | 4134 psi |
| Maximum Auxiliary Circuit - Secondary - Pressure at Pump | 285 bar | 4134 psi |
| Maximum Auxiliary Circuit - Primary - Flow at Pump | 131 l/min | 35 gal/min |
| Maximum Auxiliary Circuit - Secondary - Flow at Pump | 33 l/min | 9 gal/min |
Swing System
| Machine Swing Speed | 10.6 r/min | 10.6 r/min |
| Boom Swing - Right | 50 degrees | |
| Boom Swing - Left | 60 degrees |
Certification - Cab and Canopy
| Roll Over Protective Structure (ROPS) | ISO 12117-2:2008 |
| Tip Over Protective Structure (TOPS) | ISO 12117:1997 |
| Top Guard | ISO 10262:1998 (Level II) |
Sound
| Operator Sound Pressure (ISO 6396:2008) | 72 dB(A) | 72 dB(A) |
| Note | European Union Directive "2000/14/EC" | |
| Average Exterior Sound Pressure (ISO 6395:2008) | 99 dB(A) | 99 dB(A) |
Air Conditioning System
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.0 kg of refrigerant which has a CO2 equivalent of 1.430 metric tonnes. |
Dimensions - VAB Out
| Dig Depth | 3460 mm | 136.2 in |
| Overall Shipping Length | 6450 mm | 253.9 in |
| Stick Length | 1820 mm | 71.7 in |
| Track Belt/Shoe Width | 450 mm | 17.7 in |
| Swing Bearing Height | 756 mm | 29.8 in |
| Maximum Blade Depth | 407 mm | 16 in |
| Maximum Reach at Ground Level | 7715 mm | 303.7 in |
| Transport Height | 2475 mm | 97.4 in |
| Boom in Reach | 2710 mm | 106.7 in |
| Overall Undercarriage Length | 2880 mm | 113.4 in |
| Maximum Reach | 7885 mm | 310.4 in |
| Maximum Dump Clearance | 6285 mm | 247.4 in |
| Ground Clearance | 350 mm | 13.8 in |
| Vertical Wall | 3725 mm | 146.7 in |
| Tail Swing with Counterweight | 1585 mm | 62.4 in |
| Tail Swing without Counterweight | 1450 mm | 57.1 in |
| Boom Swing Left | 605 mm | 24 in |
| Maximum Blade Height | 370 mm | 14.6 in |
| Cab Height | 2541 mm | 100 in |
| Maximum Dig Height | 8180 mm | 322 in |
| Boom Swing Right | 935 mm | 37 in |
| Overall Track Width | 2300 mm | 90.6 in |
Sustainability
| Recyclability | 96% |
