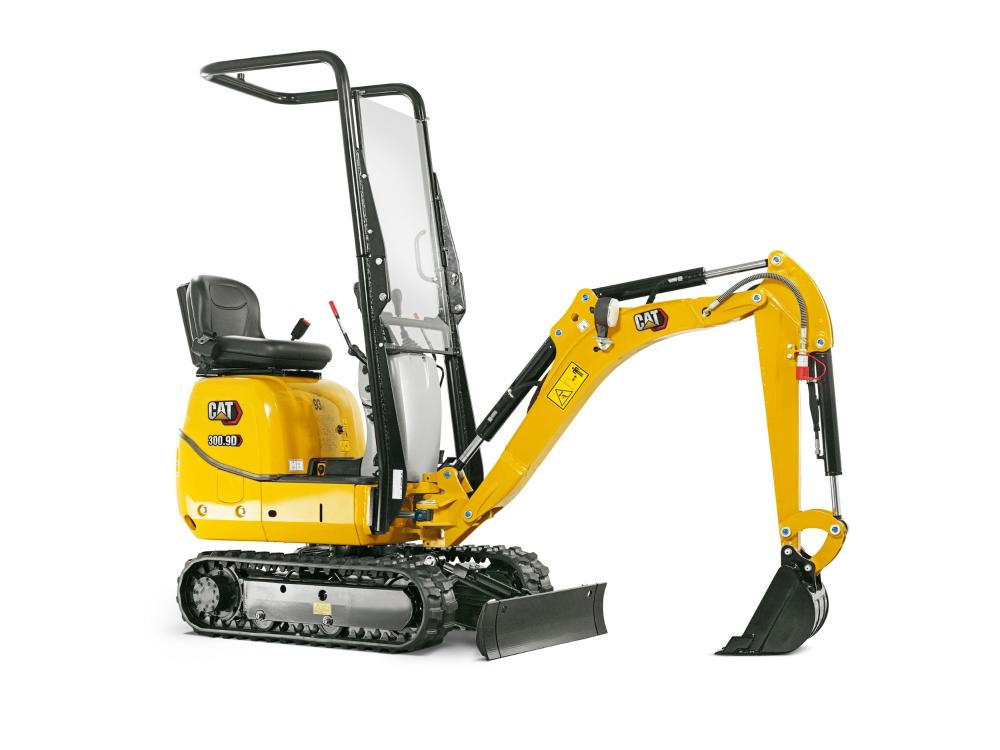

300.9D Mini Hydraulic Excavator

Units of measurement :

Metric

Imperial

Net Power

9.6 kW

Operating Weight

935 kg

Dig Depth

1731 mm

Availability

Purchase Rental Used

Caterpillar is pleased to announce the introduction of the 300.9D sub 3 ton mini excavator machine. The 300.9D expands the Cat® Mini Excavator offering. Most notably, the new 300.9D sub 1 tonne class provides customers with a lower cost unit for entrance into MHE ownership.

Compact

Work in tight areas

Easy to Use

Simple controls for easy operation

Versatile

Range of attachments for a variety of applications

Compact Dimensions

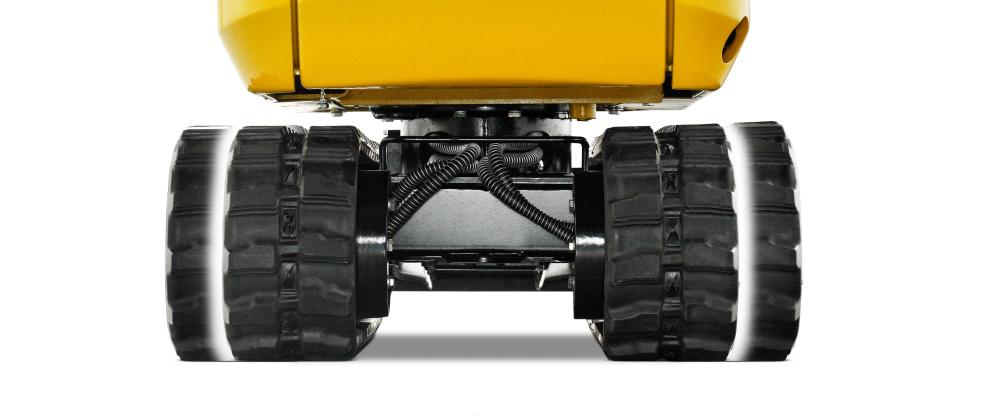

Extending Undercarriage and Blade

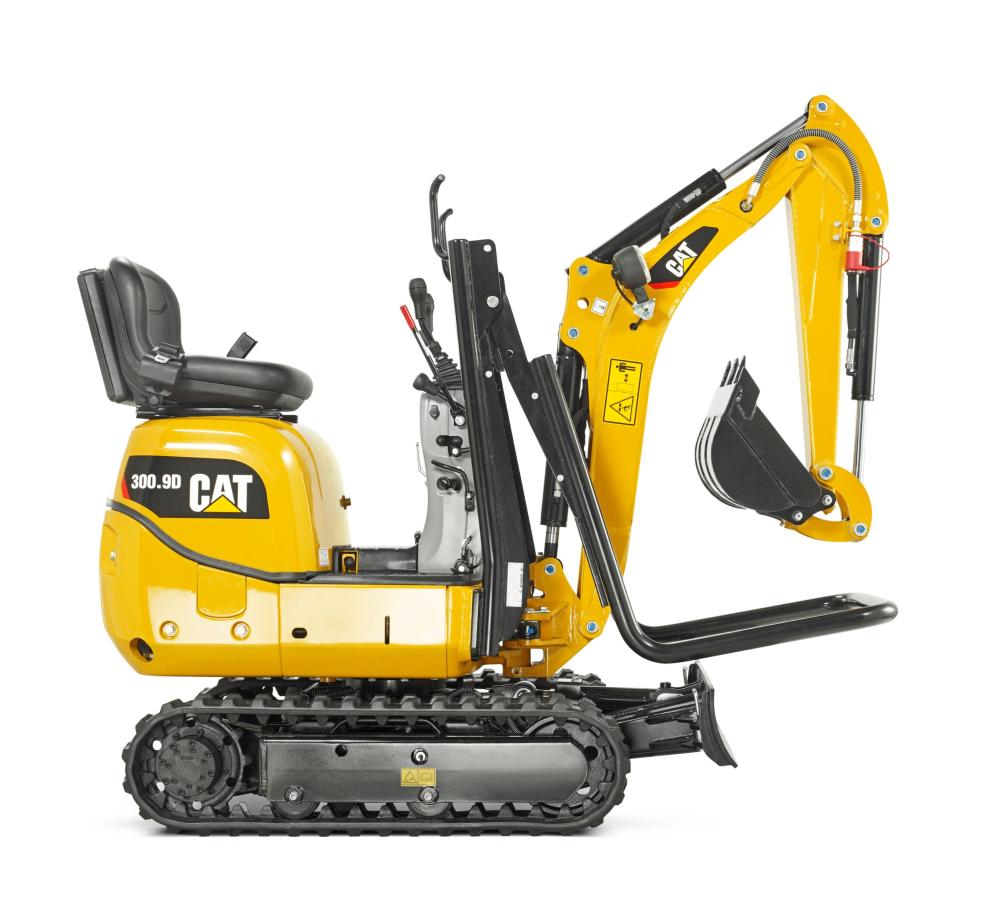

Foldable Safety Frame

Simple Controls

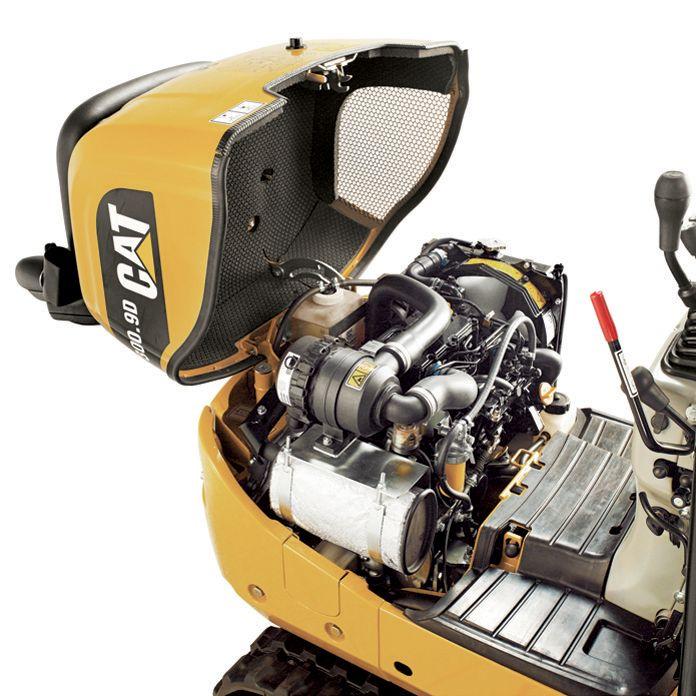

Easy Service

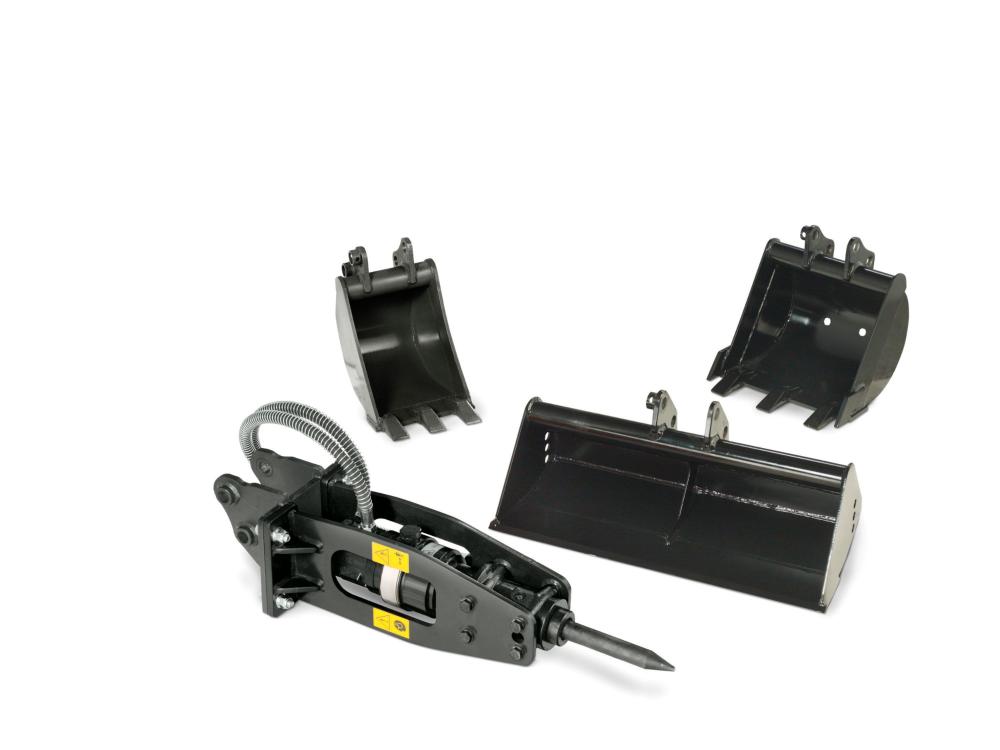

Versatility

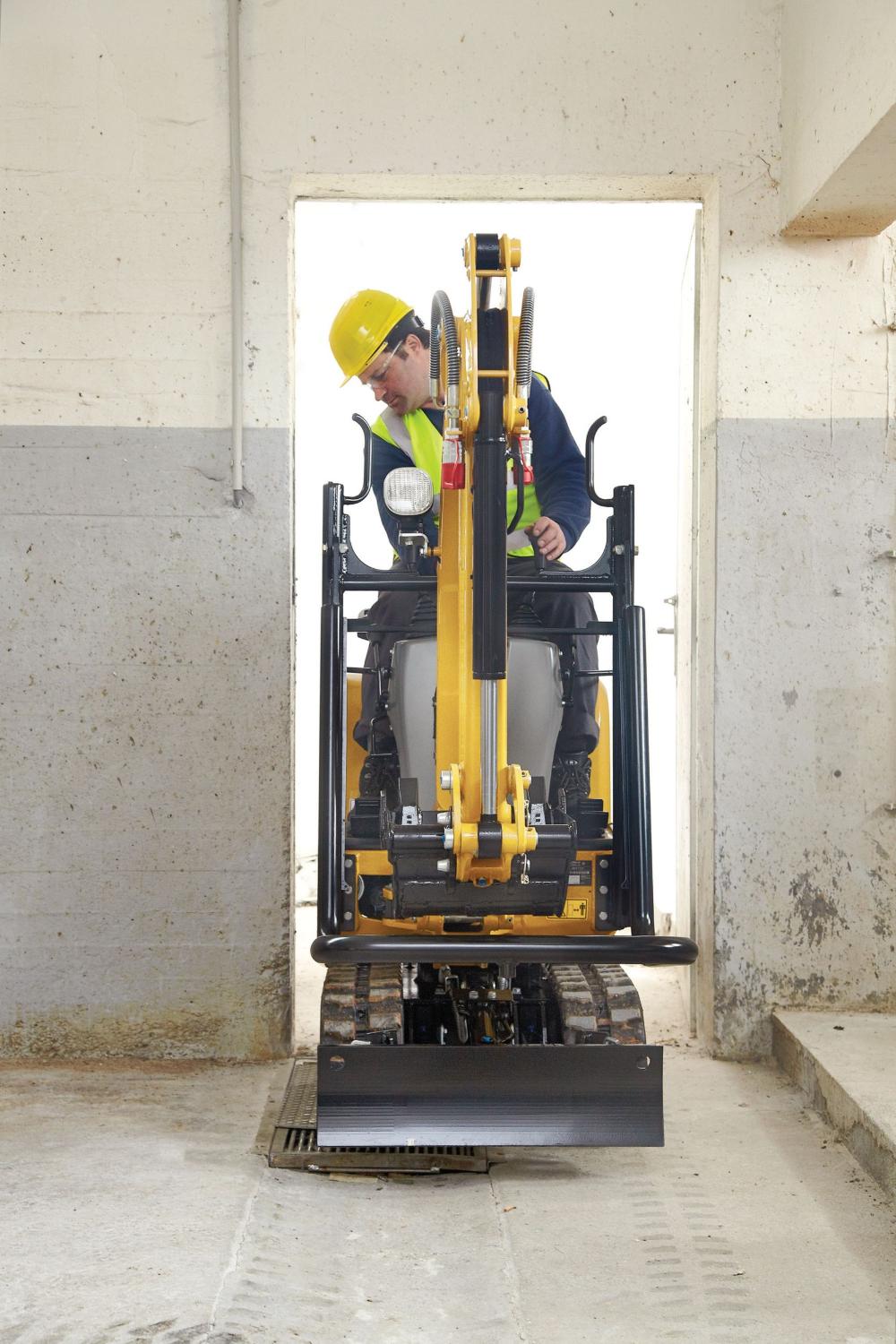

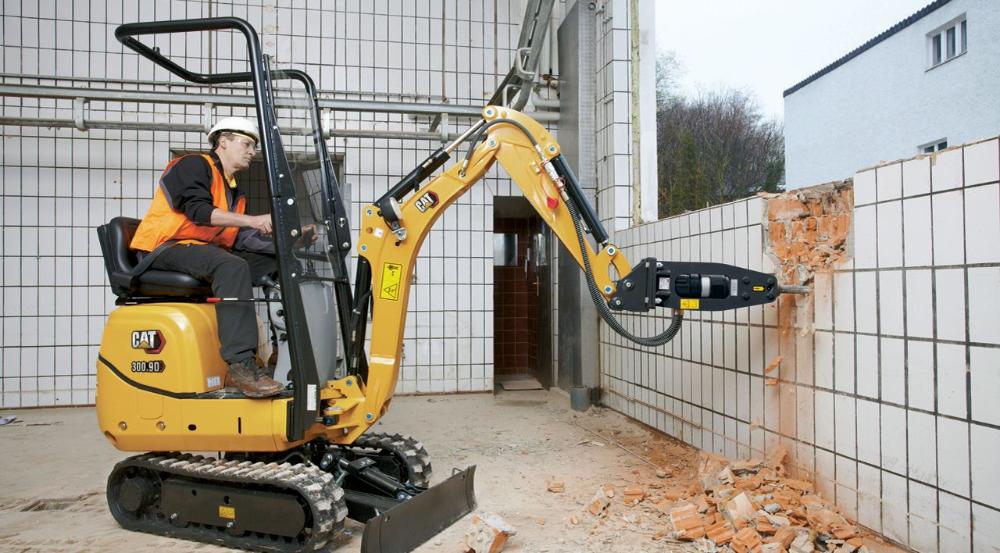

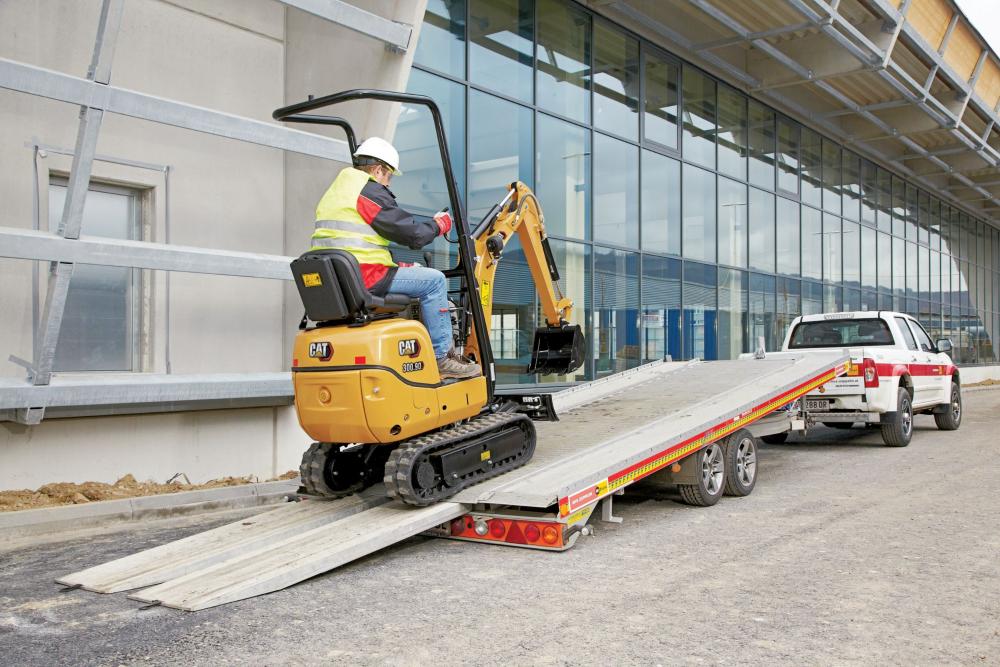

With an overall width of only 730 mm (2 ft 5 in) the Cat® 300.9D can easily drive through narrow passages and doors. Both indoor and outdoor jobs are now accessible with the under 1000 kg (2,205 lb) weight making easy trailer transportation between sites possible.

300.9D Product Brochure.pdf Cat Mini Hydraulic Excavators Product Line Brochure (North America).pdf Cat Mini Hydraulic Excavators Product Line Brochure (Europe).pdf Cat Attachments for Mini Excavators Brochure.pdf Attachment Compatibility Guide for Mini Excavators.pdf

Engine

Net Power	9.6 kW	13 hp
Engine Model	Yanmar 31NV70
Rated Speed	2100 r/min	2100 r/min
Maximum Engine Output	13.7 kW	18 hp
Gross Power - ISO 14396	13.7 kW	18 hp
Diesel Tank Volume	10 l	2.64 gal (US)
Displacement	854 cm³	52 in³
Flywheel Output ISO	9.6 kW	13 hp
Battery	12 V, 20 Amp
Type	Water cooled model 3-cylinder diesel engine
Make/Type	Yanmar 31NV70
Emissions	Meets U.S. EPA Tier 4 Final/EU Stage V emission standards.

Weights

Dimensions

Hydraulic System

Operational Data

Chassis and Swivel Gear

Operating Specifications

Dozer Blade

Noise Emissions

Compatible products:

Other categories of Excavadoras:

300.9D Mini Hydraulic Excavator

Operating Weight	935 kg	2061 lb
Operating Weight - Without Safety Frame	935 kg	2061 lb
Operating Weight - With Safety Frame	985 kg	2170 lb

Dig Depth	1731 mm	68 in
Undercarriage Width - Extended	864 mm	2.83 ft
Width	730 mm	2.4 ft
Height - With ROPS Safety Frame Folded Down	1507 mm	4.94 ft
Maximum Dump Height	2035 mm	6.68 ft
Maximum Dozer Lift Height	197 mm	8 in
Length - Undercarriage	1220 mm	4 ft
Maximum Vertical Dig Depth	1349 mm	4.43 ft
Minimum Front Linkage Swing Radius	1150 mm	3.77 ft
Boom Swing Angle - Left	55 °	55 °
Undercarriage Width - Retracted	711 mm	2.33 ft
Boom Swing Angle - Right	56 °	56 °
Maximum Reach	3074 mm	10.09 ft
Maximum Reach - Ground Level	3023 mm	9.92 ft
Transport Length - Arm Lowered	2746 mm	9 ft
Track Width	180 mm	7 in
Tail Swing Radius	736 mm	2.41 ft
Maximum Dozer Dig Depth	174 mm	7 in
Maximum Dig Height	2863 mm	9.39 ft
Height - With ROPS Safety Frame Unfolded	2276 mm	7.47 ft

Pumps	2 gear pumps
Discharge Capacity	11.4 + 11.4 L/min (3 + 3 gal/min)
Operating Pressure for the Work and Travel Hydraulics	170 bar	2466 psi
Operating Pressure Pivot	70 bar	1015 psi
Hydraulic Tank Capacity	14 l	3.7 gal (US)

Operating Weight - Without Safety Frame	935 kg	2061 lb
Digging Force - Bucket	8.9 kN	2000 lb
Digging Force - Stick	4.5 kN	1011 lb
Operating Weight - With Safety Frame	985 kg	2170 lb

Gradeability	30°/58%
Travel Speed	1.8 km/h	1.12 mile/h
Track Width	180 mm	7 in
Ground Clearance	127 mm	5 in
Ground Pressure	0.25 kg/cm²	3.5 psi
Machine Swing Speed	8 r/min	8 r/min
Number of Rollers - Each Side	2

Stick Length - Standard	890 mm	34.8 in
Machine Overhang	318 mm	12.5 in

Height	200 mm	8 in
Dig Depth	174 mm	7 in
Width	700 mm	28 in
Lift Height	197 mm	8 in
