Versatility in a Compact Size
Extending Undercarriage and Blade
Foldable Safety Frame
Simple Controls
Easy Service
Attachments

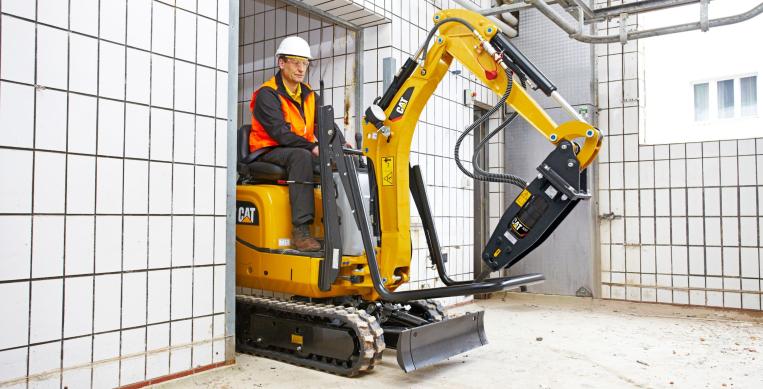

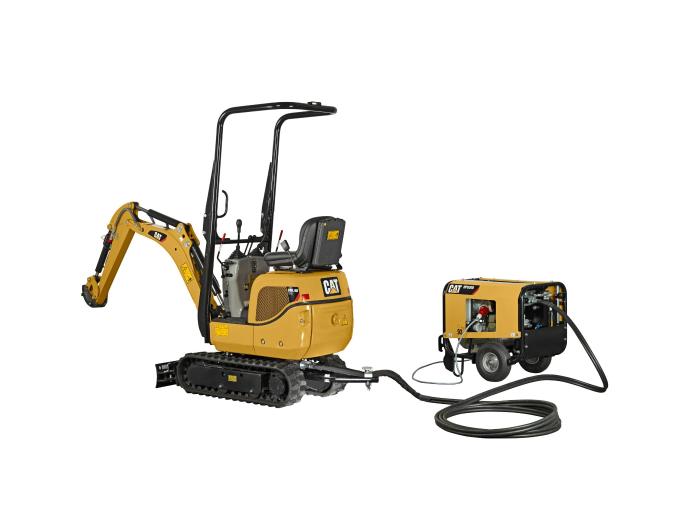

The 300.9D VPS with HPU300 features Dual Mode Selection for a choice of diesel or electric power. This innovative machine delivers zero emissions from electrical supply, low noise, superior power and control. Easily change from diesel to electric power.Both indoor and outdoor jobs are accessible with the under 1000 kg (2,205 lb) weight making trailer transportation between sites easy.

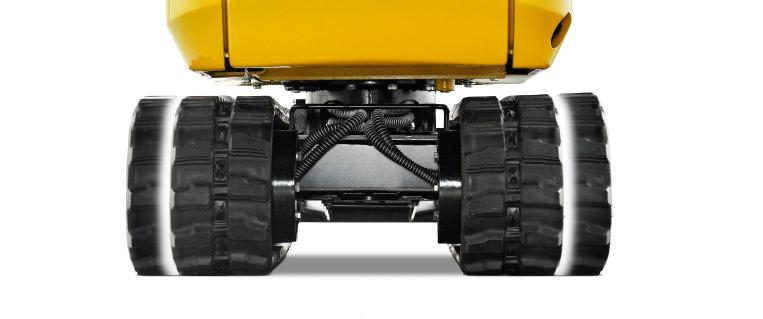

An extending undercarriage and fold out dozer blade allow the machine to be configured for excellent working stability and optimum performance. Easy retraction, controlled from the operator's seat, enables the machine to pass through narrow openings.
A protective ROPS safety frame structure mounted on the front of the machine allows fitting of a guard for extra operator protection during hammer use. The structure folds down in a few seconds for easy machine transportation and storage.
The operator area is spacious and laid out to provide comfort and ease of operation. Smooth, precision operation of functions is possible from independent controls allowing all skill levels to be productive with little practice.
Service and maintenance time is reduced to a minimum with a simple to open steel engine cover and all maintenance and greasing points easily accessible.
A range of tools is available to take advantage of the machines versatility. All tools are matched to the machine to optimize performance and deliver excellent value through high productivity and long life.
Engine
| Net Power |
9.7 kW |
13 hp |
| Engine Model |
Yanmar 3TNV70 |
| Emissions |
Meets U.S. EPA Tier 4 Final/EU Stage V emission standards. |
Weights
| Operating Weight |
1088 kg |
2399 lb |
Operating Specifications - 300.9D VPS
| Dumping Height - Maximum |
2035 mm |
80 in |
| Reach at Ground Level |
3027 mm |
119 in |
| Stick Force |
4.5 kN |
1012 lbf |
| Bucket Force |
8.9 kN |
2000 lbf |
Engine - 300.9D VPS
| Gross Power |
9.7 kW |
13 hp |
| Engine Type |
Liquid Cooled, 3 Cylinder, Diesel |
| Fuel Tank Capacity |
10 l |
2.6 gal (US) |
Dimensions - 300.9D VPS
| Length × Width × Height |
2476 × 700 × 1507 mm (108 × 28 × 59 in) |
| Operating Weight |
1088 kg |
2399 lb |
| Shipping Weight |
988 kg |
2178 lb |
Hydraulic System - 300.9D VPS
| Operating Pressure - Swing Gear |
70 bar |
1015 psi |
| Operating Pressure - Front Linkage and Travel |
170 bar |
2466 psi |
| Rotation Speed |
8 r/min |
8 r/min |
| Pump Type |
Gear |
| Pump Flow |
22 l/min |
6 gal/min |
| Hydraulic Tank Capacity |
14 l |
3.7 gal (US) |
Dimensions - HPU300
| Length × Width × Height |
930 × 720 × 1000 mm (36.5 × 28.3 × 39.5 in) |
| Operating Weight |
192 kg |
423 lb |
Blade - 300.9D VPS
| Lift Height |
197 mm |
8 in |
| Dig Depth |
174 mm |
7 in |
| Width |
700 mm |
28 in |
| Height |
200 mm |
8 in |
Hydraulics - HPU300
| Flow Rate |
20 l/min |
5.3 gal/min |
| Hydraulic Oil Tank Capacity |
9 l |
2.4 gal (US) |
| Connecting Hose Length |
10 m |
32.8 ft |
| Operating Pressure |
190 bar |
2756 psi |
Motor - HPU300
| Input Current |
16A |
| Motor Type |
3 Phase Electric Motor |
| Performance - North America |
9 kW |
12 hp |
| Performance - Europe |
7.5 kW |
10 hp |
Travel System - 300.9D VPS
| Travel Speed |
1.8 km/h |
1.1 mile/h |
| Track Width |
180 mm |
7.1 in |
