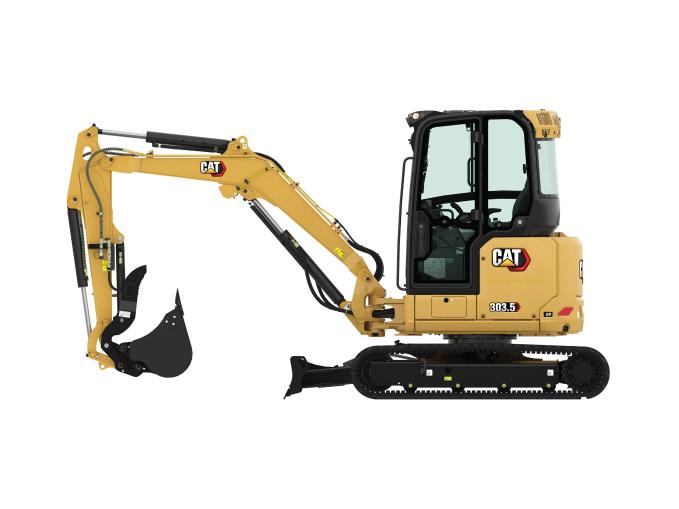

303.5 CR Mini Hydraulic Excavator

Units of measurement :

Metric

Imperial

Net Power

17.6 kW

Operating Weight

4190 kg

Dig Depth

3110 mm

Availability

Purchase Rental Used

The Cat® 303.5 CR Mini Excavator delivers power and performance in a compact size to help you work in a wide range of applications.

4 Industry First Features

Cat Exclusives in a Mini Excavator

Up to 5% Lower Total Ownership Costs

with more common parts, lower repair costs and tilt up cab

Up to 10% More Performance

with programmable operator settings and faster cyle times

ALL DAY COMFORT

EASY TO OPERATE

STICK STEER TRAVEL MODE

BIG PERFORMANCE IN A COMPACT DESIGN

SAFETY ON THE JOB SITE

SIMPLE SERVICE FOR LESS DOWNTIME

LOWER OPERATING COSTS

SUSTAINABILITY

Choose either a canopy or a sealed and pressurized cab which can be equipped with air conditioning, adjustable wrist rests, and a suspension seat option to help keep you working comfortably all day long.

The Cat® C1.7 engine meets U.S. EPA Tier 4 Final, EU Stage V, and Japan 2014 emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester) * or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Auto Idle helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
Cruise control helps you maintain a constant speed as you travel across your jobsite saving fuel and reducing greenhouse gas emissions.
The Cat® Seat Belt Reminder provides audible and visual warnings to remind operators to buckle up during machine operation. The easy-to-install system is compatible with all equipment brands to help ensure operator safety.
Extended maintenance intervals not only reduce downtime but decrease the amount of fluid and filters that are replaced over the life of the machine.
Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.(if equipped)
Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.(if equipped)
Cat Grade with advanced 2D and 3D technologies combine advanced guidance with optional automated machine control helping you reach grading targets while reducing fuel burn and greenhouse gas emissions by improving efficiency, job site productivity, and accuracy. (if equipped).

*Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. (for use of blends higher than 20% biodiesel, consult your Cat dealer)

303.5 CR Small Product Brochure (Global except China and Japan).pdf Cat Mini Hydraulic Excavators Product Line Brochure (North America).pdf Cat Mini Hydraulic Excavators Product Line Brochure (Europe).pdf Options And Accessories Kit Guide for Mini Hydraulic Excavators.pdf Cat Attachments for Mini Excavators Brochure.pdf Attachment Compatibility Guide for Mini Excavators.pdf

Engine

Net Power	17.6 kW	23.6 hp
Engine Model	C1.7
Bore	84 mm	3.3 in
Net Power @ 2,200 rpm - U.S. EPA Tier 4 Final/EU Stage V - ISO 9249/EEC 80/1269	17.6 kW	23.6 hp
Displacement	1.7 l	104 in³
Note	Net power is tested per ISO 9249 and 80/1269/EEC.
Gross Power - 2,400 rpm - SAE J1995	18.4 kW	24.7 hp
Emissions	Meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Note (2)	Net power advertised is the power available at the flywheel when the engine is at rated speed and rated power when the engine is installed with the factory configured fan, air intake system, exhaust system, and alternator with a minimum alternator load.
Stroke	100 mm	3.9 in

Weights

Dimensions - Long Stick

Dig Depth	3110 mm	122.4 in
Track Belt/Shoe Width	300 mm	11.8 in
Maximum Reach	5510 mm	216.9 in
O/A Track Width	1780 mm	70.1 in
Maximum Blade Depth	535 mm	21.1 in
Tail Swing without Counterweight	890 mm	35 in
Stick Length	1560 mm	61.4 in
Swing Bearing - Height	565 mm	22.2 in
Boom Swing - Left	25.2 °	640 mm
Overall Shipping Length*	4850 mm	190.9 in
Maximum Reach - Ground Level	5380 mm	211.8 in
Maximum Dump Clearance	3600 mm	141.7 in
Tail Swing with Counterweight	960 mm	37.8 in
O/A Shipping Height	2480 mm	97.6 in
Note	*Overall Shipping Length depends on blade position during shipment.
Boom In Reach	1860 mm	73.2 in
Maximum Dig Height	5020 mm	197.6 in
Vertical Wall	2390 mm	94.1 in
Boom Height - Shipping Position	1750 mm	68.9 in
Maximum Blade Height	385 mm	15.2 in
O/A Undercarriage Length	2220 mm	87.4 in
Boom Swing - Right	870 mm	34.3 °
Ground Clearance	310 mm	12.2 in

Blade

Dimensions - Standard Stick

Boom Swing - Right	870 mm	34.3 °
Tail Swing with Counterweight	960 mm	37.8 in
Stick Length	1260 mm	49.6 in
Maximum Reach - Ground Level	5130 mm	202 in
Boom Swing - Left	640 mm	25.2 °
Maximum Reach	5270 mm	207.5 in
Track Belt/Shoe Width	300 mm	11.8 in
Maximum Dump Clearance	3490 mm	137.4 in
Swing Bearing - Height	565 mm	22.2 in
Boom Height - Shipping Position	1520 mm	59.8 in
O/A Shipping Height	2480 mm	97.6 in
Overall Shipping Length*	4800 mm	189 in
Boom In Reach	1760 mm	69.3 in
Note	*Overall Shipping Length depends on blade position during shipment.
Tail Swing with Extra Counterweight	1005 mm	39.6 in
Maximum Dig Height	4920 mm	193.7 in
Vertical Wall	2250 mm	88.6 in
Dig Depth	2810 mm	110.6 in
O/A Undercarriage Length	2220 mm	87.4 in
Tail Swing without Counterweight	890 mm	35 in
Maximum Blade Depth	535 mm	21.1 in
Maximum Blade Height	385 mm	15.2 in
Ground Clearance	310 mm	12.2 in

Weight Increase from Minimum Configuration

Service Refill Capacities

Travel System

Hydraulic System

Sound

Swing System

Dimensions (Approximate) - Standard Stick

Certification - Cab and Canopy

Dimensions (Approximate) - Long Stick

Sustainability

Compatible products:

Other categories of Excavadoras:

360º Interior
360º Exterior

303.5 CR Mini Hydraulic Excavator

Operating Weight	4190 kg	9239 lb
Minimum Operating Weight with Canopy*	3480 kg	7673 lb
EU: CE Plate Weight with Cab***	3630 kg	8004 lb
Note (3)	***CE Plate Weight is based on the most common EU configuration. Includes 75 kg (165 lb) operator and full fuel tank and excludes bucket.
Maximum Operating Weight with Cab**	4190 kg	9239 lb
Maximum Operating Weight with Canopy**	4050 kg	8930 lb
EU: CE Plate Weight with Canopy***	3530 kg	7784 lb
Minimum Operating Weight with Cab*	3620 kg	7982 lb
Note (1)	* Minimum Weight is based on fixed rubber tracks, operator, full fuel tank, standard stick, blade, bucket and no extra counterweight.
Note (2)	**Maximum Weight is based on steel tracks, operator, full fuel tank, long stick, blade, bucket and extra counterweight.

Cab	140 kg	309 lb
Counterweight	100 kg	221 lb
Steel Tracks	130 kg	287 lb
Long Stick	20 kg	44 lb
Angle Blade	160 kg	353 lb
Extra Counterweight	250 kg	551 lb

Fuel Tank	45 l	11.9 gal (US)
Hydraulic Tank	20 l	5.3 gal (US)
Cooling System	7 l	1.8 gal (US)
Engine Oil	6 l	1.6 gal (US)
Hydraulic System	45 l	11.9 gal (US)

Ground Pressure - Minimum Weight	29.6 kPa	4.3 psi
Maximum Traction Force - High Speed	16.9 kN	3799 lbf
Maximum Traction Force - Low Speed	31 kN	6969 lbf
Travel Speed - High	4.5 km/h	2.8 mile/h
Gradeability - Maximum	30 degrees
Travel Speed - Low	2.6 km/h	1.6 mile/h
Ground Pressure - Maximum Weight	35.7 kPa	5.2 psi

Pump Flow at 2,400 rpm	100 l/min	26 gal/min
Auxiliary Circuit - Primary - Flow	70 l/min	18 gal/min
Operating Pressure - Swing	181 bar	2625 psi
Type	Load Sensing Hydraulics with Variable Displacement Piston Pump
Auxiliary Circuit - Secondary - Pressure	245 bar	3553 psi
Digging Force - Stick - Long	16.9 kN	3799 lbf
Auxiliary Circuit - Secondary - Flow	25 l/min	7 gal/min
Digging Force - Bucket	33 kN	7419 lbf
Operating Pressure - Travel	245 bar	3553 psi
Operating Pressure - Equipment	245 bar	3553 psi
Auxiliary Circuit - Primary - Pressure	245 bar	3553 psi
Digging Force - Stick - Standard	18.9 kN	4249 lbf
Note	*Flow and pressure are not combinable. Under load, as flow rises pressure goes down.

Note	European Union Directive ‚ "2000/14/EC"
Operator Sound Pressure (ISO 6396:2008)	78 dB(A)	78 dB(A)
Average Exterior Sound Pressure (ISO 6395:2008)	94 dB(A)	94 dB(A)

Machine Swing Speed	9 r/min	9 r/min
Boom Swing - Right	50 °	50 °
Boom Swing - Left	75 °	75 °

Roll Over Protective Structure (ROPS)	ISO 12117-2:2008
Tip Over Protective Structure (TOPS)	ISO 12117:1997
Top Guard	ISO 10262:1998 (Level I)
