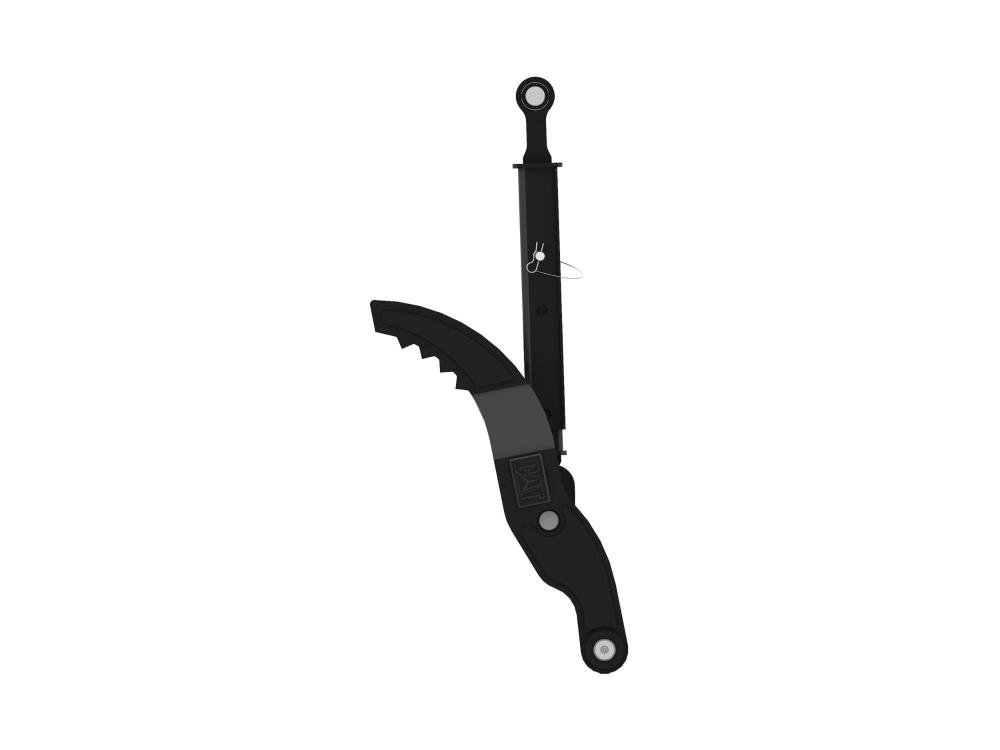

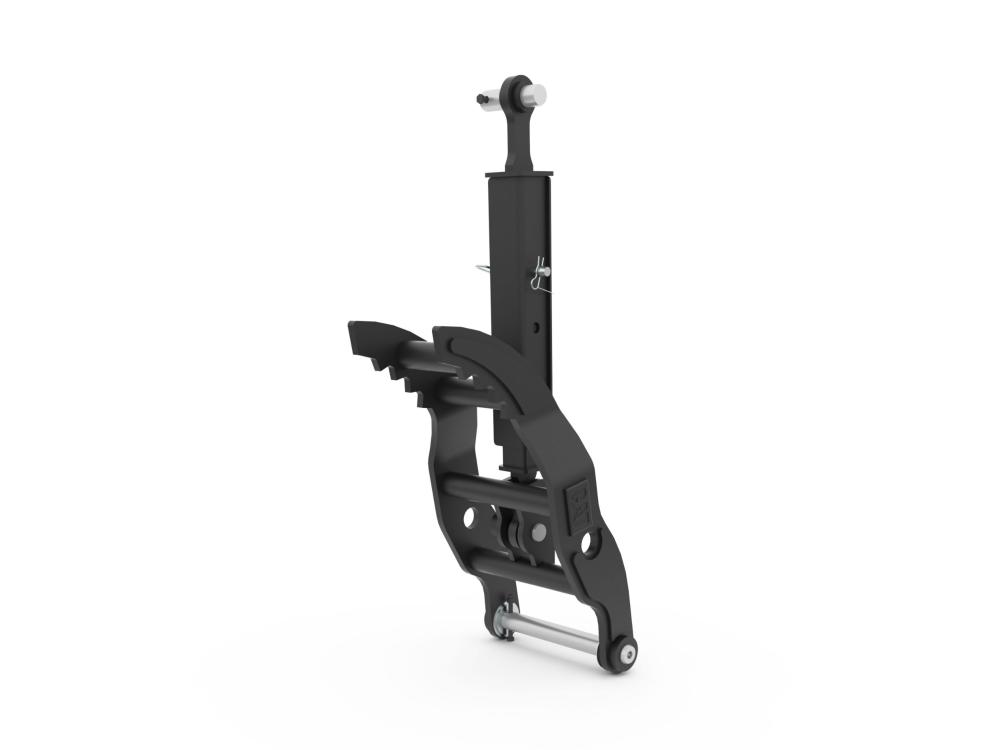

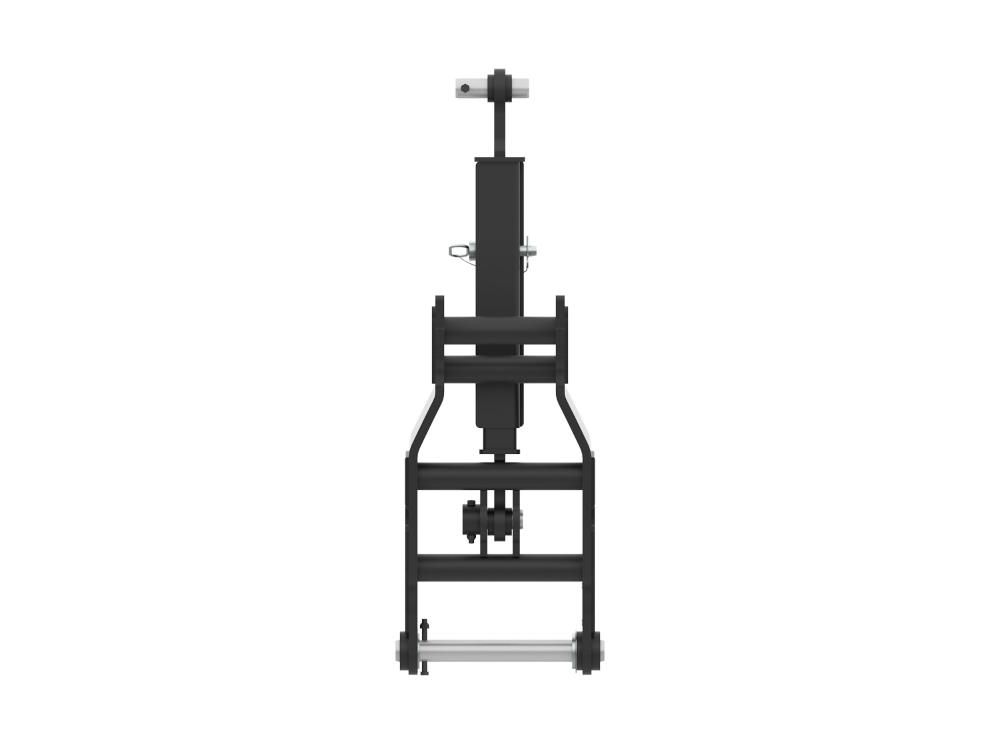

437 mm (17 in) 4 Teeth/2 Tine Stiff Link Thumb for 7-9 Ton Mini Excavators

Units of measurement :

Metric

Imperial

Number of Teeth/Tines

4/2

Overall Width

437 mm

Length

969 mm

Availability

Purchase Rental Used

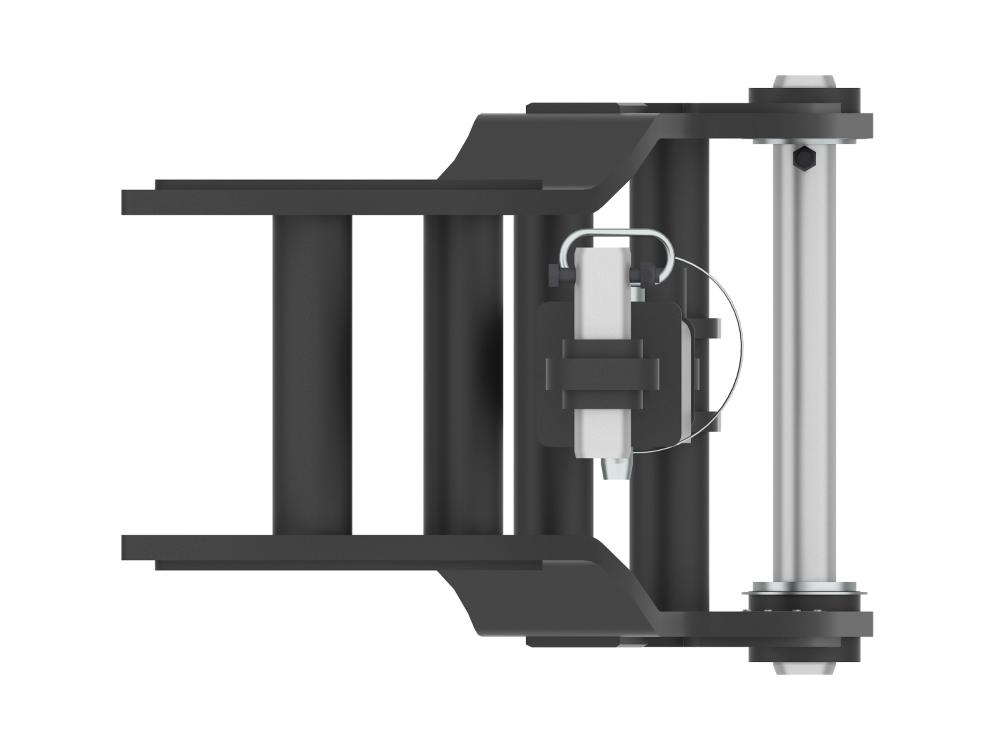

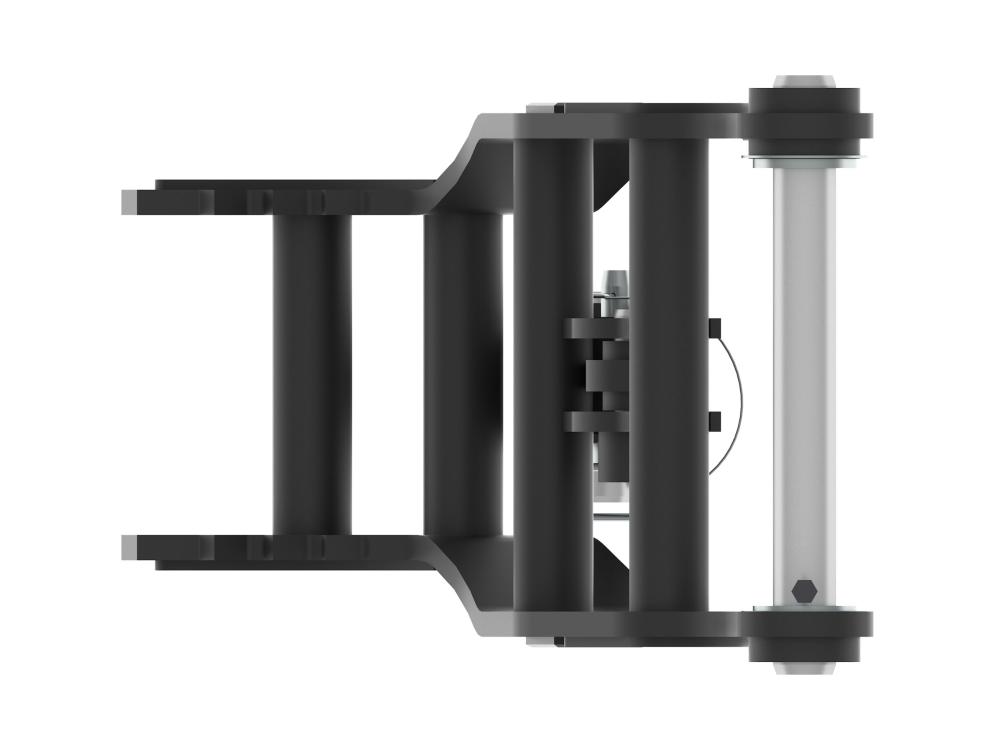

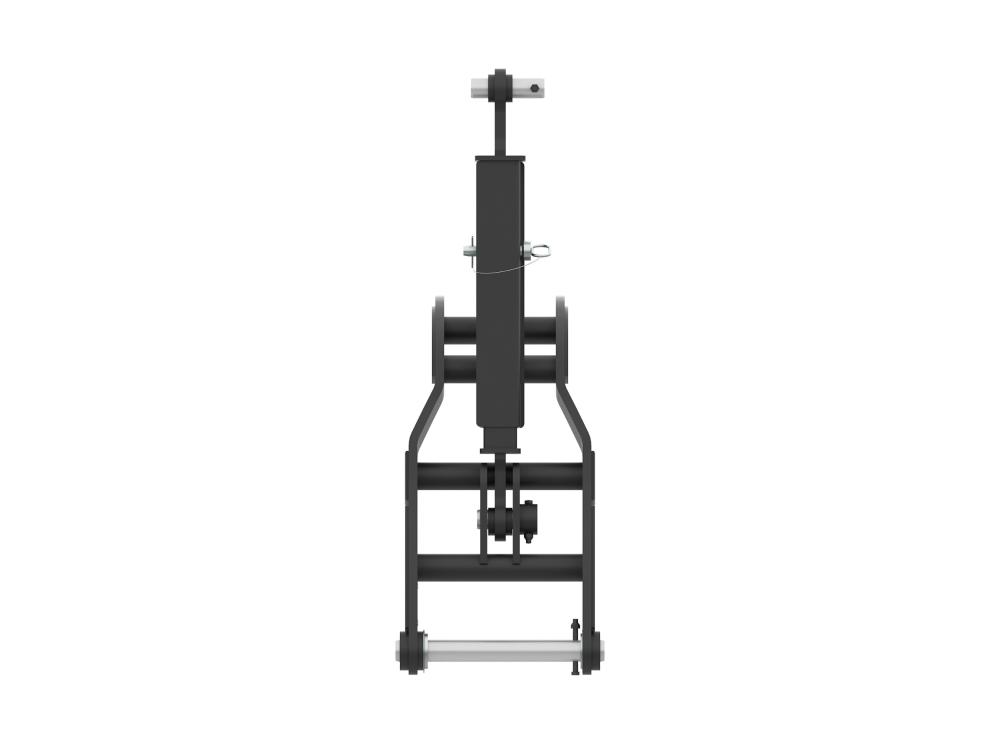

Cat® Stiff Link Thumbs feature a rigid link and are attached to the excavator stick with a weld-on bracket. The bucket curls into the thumb to pick, grab, sort and handle various types of material and objects found on job sites.

Application

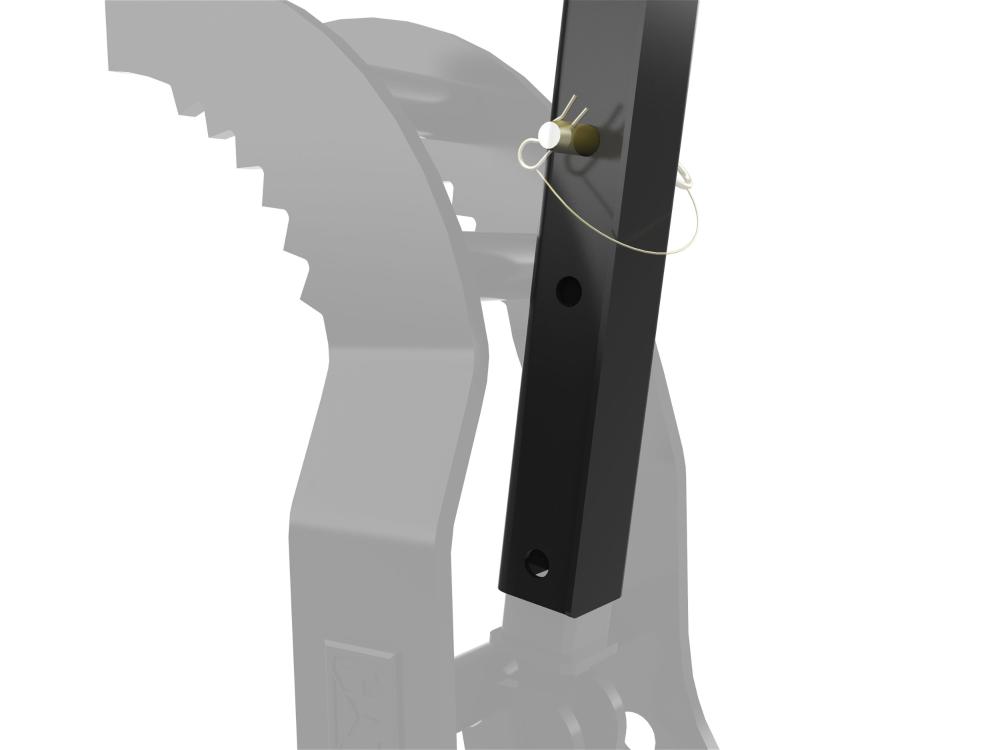

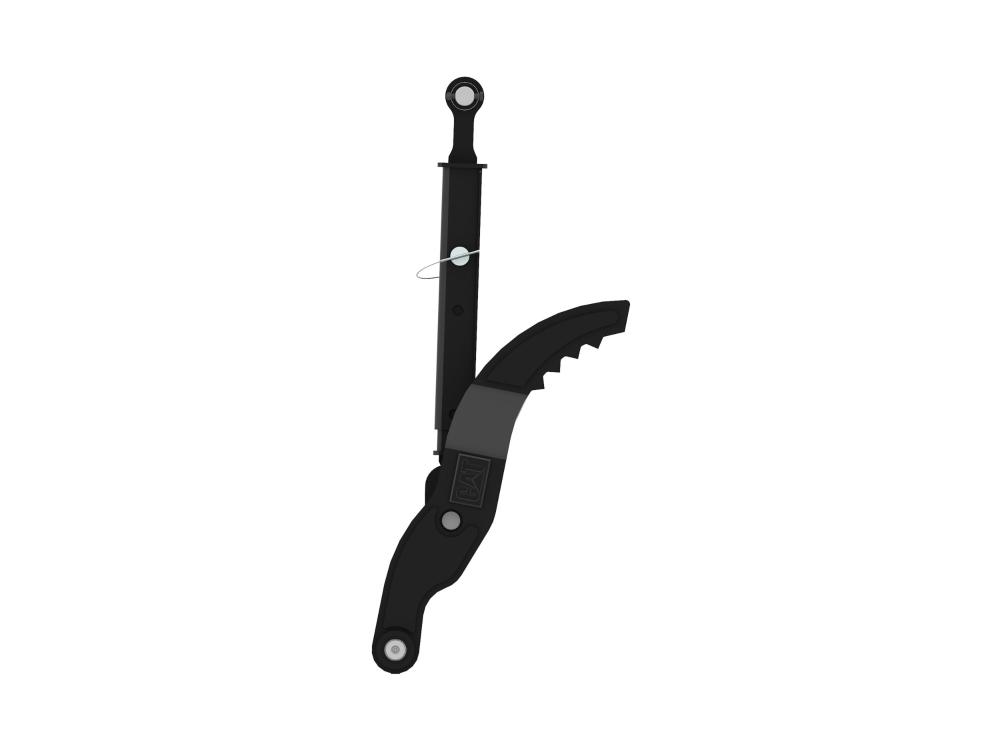

Adjustable Link

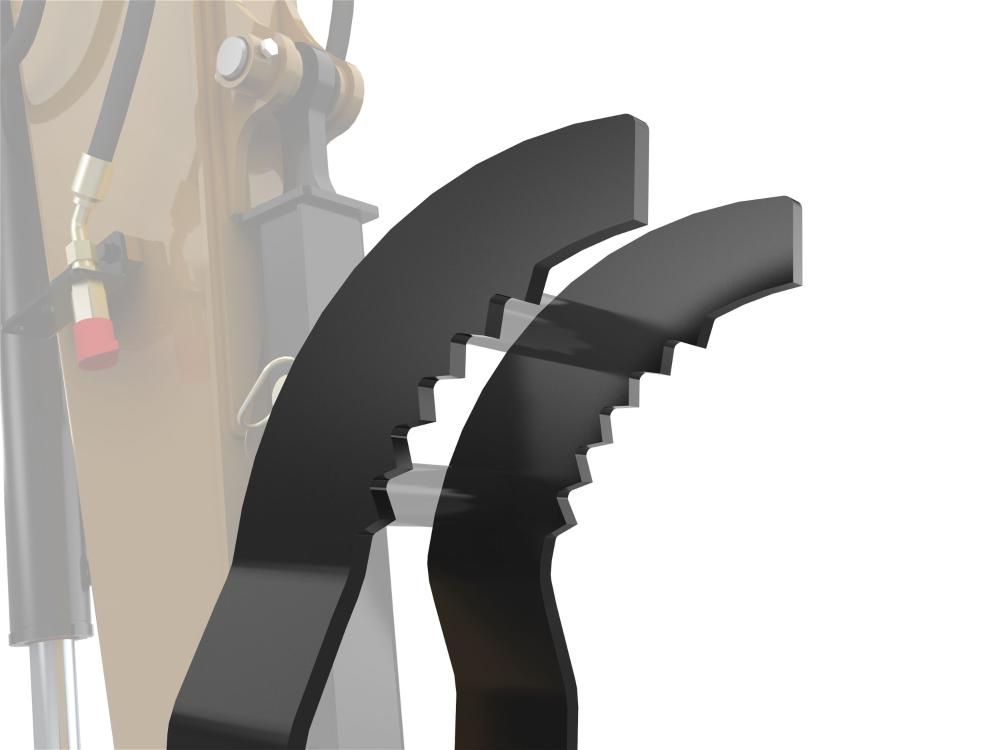

Durable Tines

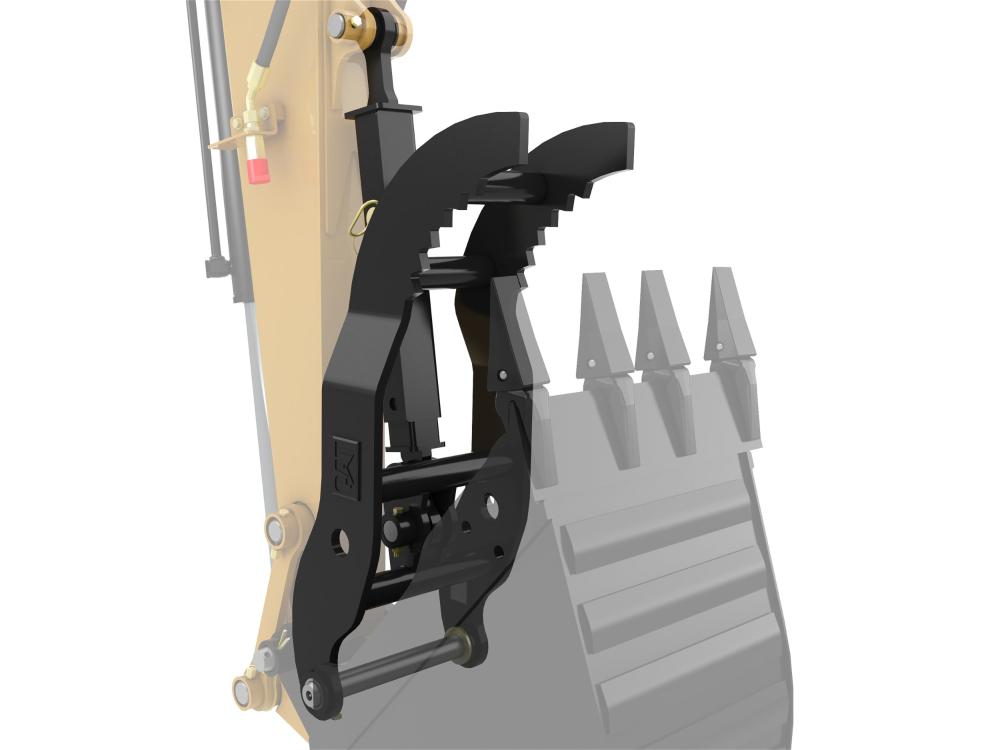

Retractable Thumb

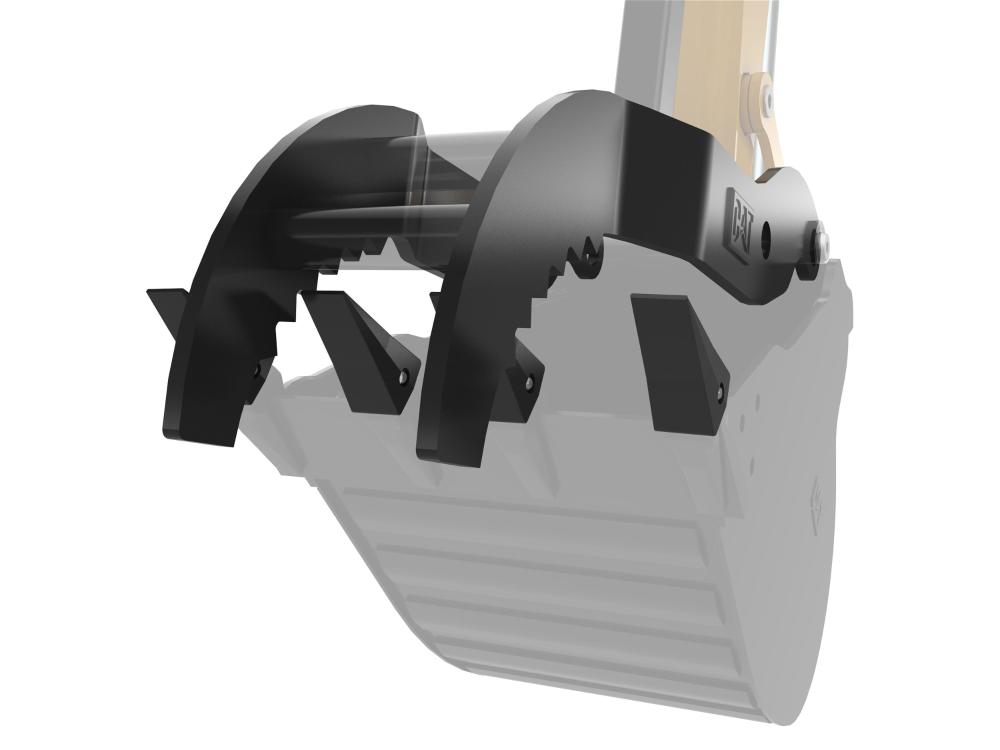

Cross-Tube Design

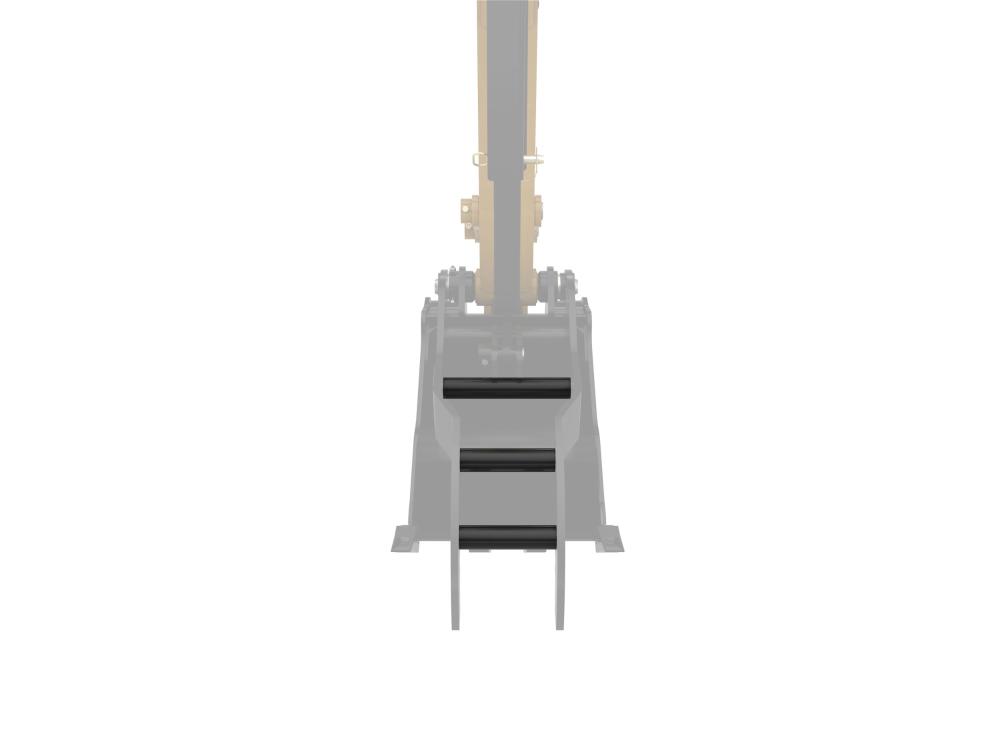

Thumb Tine Spacing

Cat® Stiff Link Thumbs are designed to easily handle a wide array of bulky, irregularly shaped objects encountered in demolition, industrial, construction, recycling, storm debris clean-up, landscaping and other aggressive applications.

Compatible machines:

437 mm (17 in) 4 Teeth/2 Tine Stiff Link Thumb for 7-9 Ton Mini Excavators

Number of Teeth/Tines	4/2
Overall Width	437 mm	17.2 in
Length	969 mm	38.1 in
Stored Height	464 mm	18.3 in
Weight	115 kg	253.5 lb
Rotation	78 Degrees
Tine Spacing	254 mm	10 in
Tine Thickness	20 mm	0.8 in
Tines Included	Yes
Machine Class	7-9 Ton Mini Hydraulic Excavators
Interface Type	Pin On
