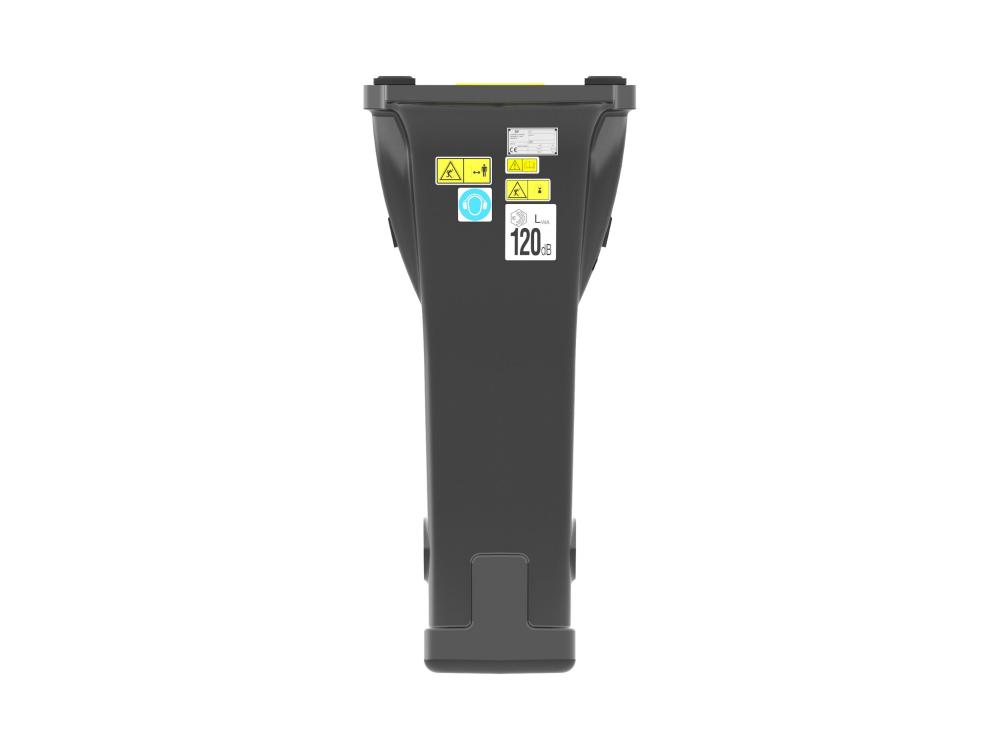

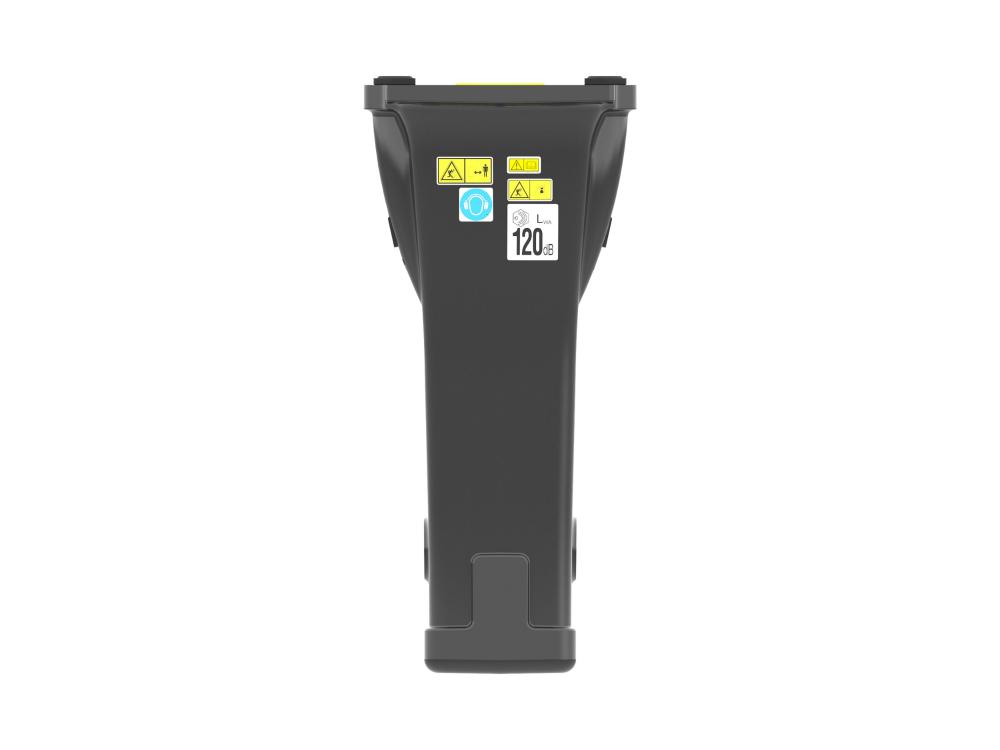

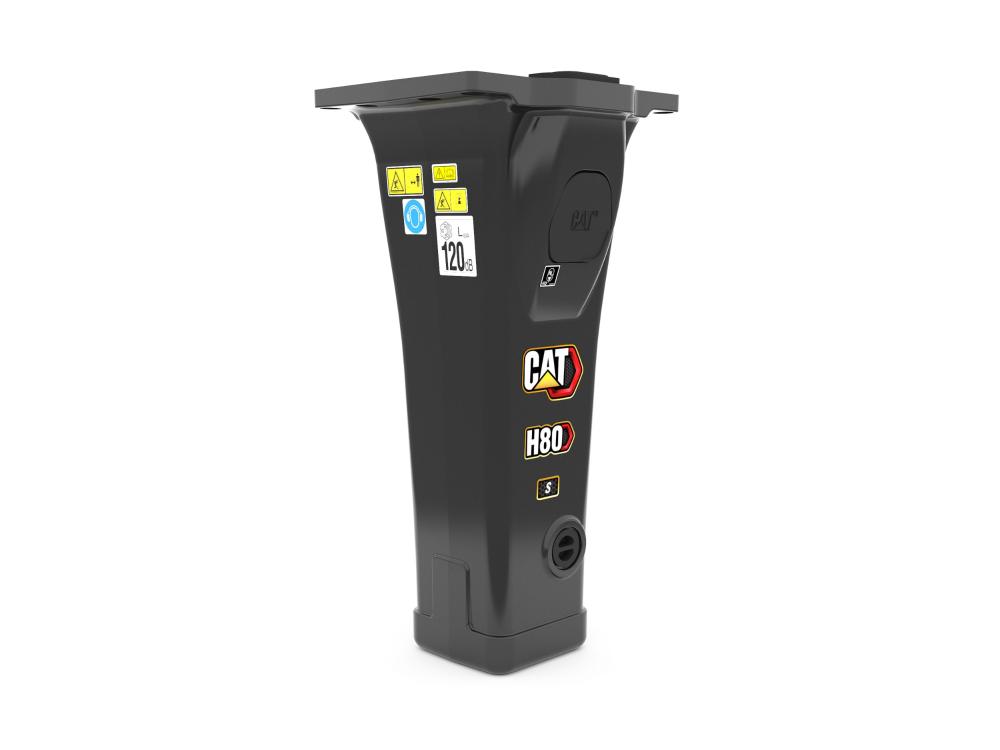

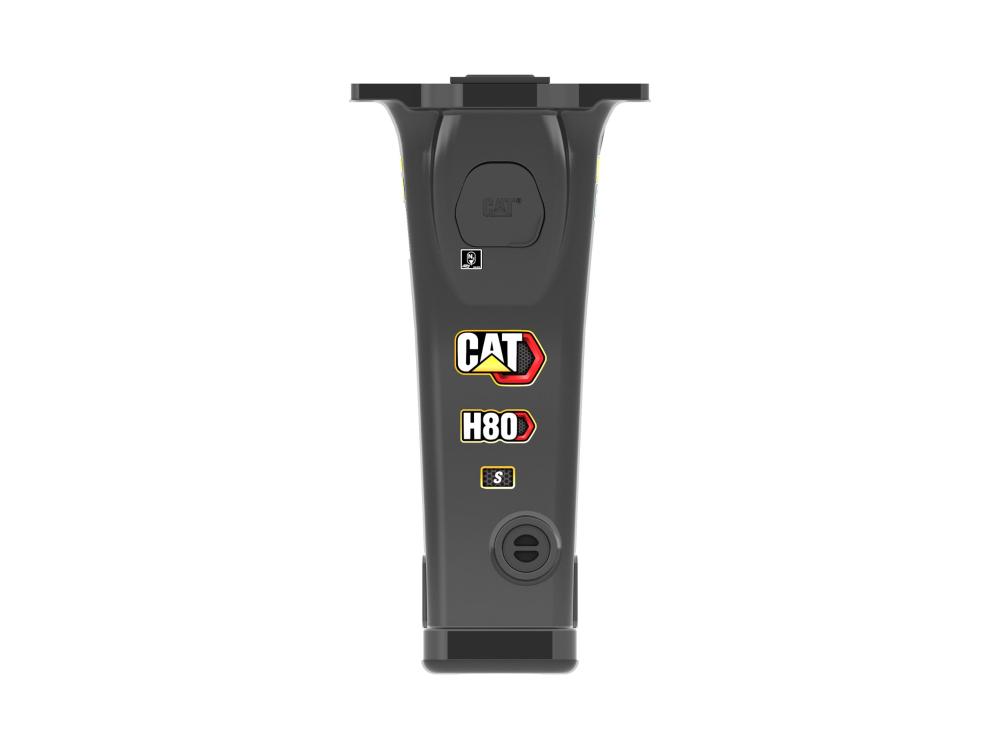

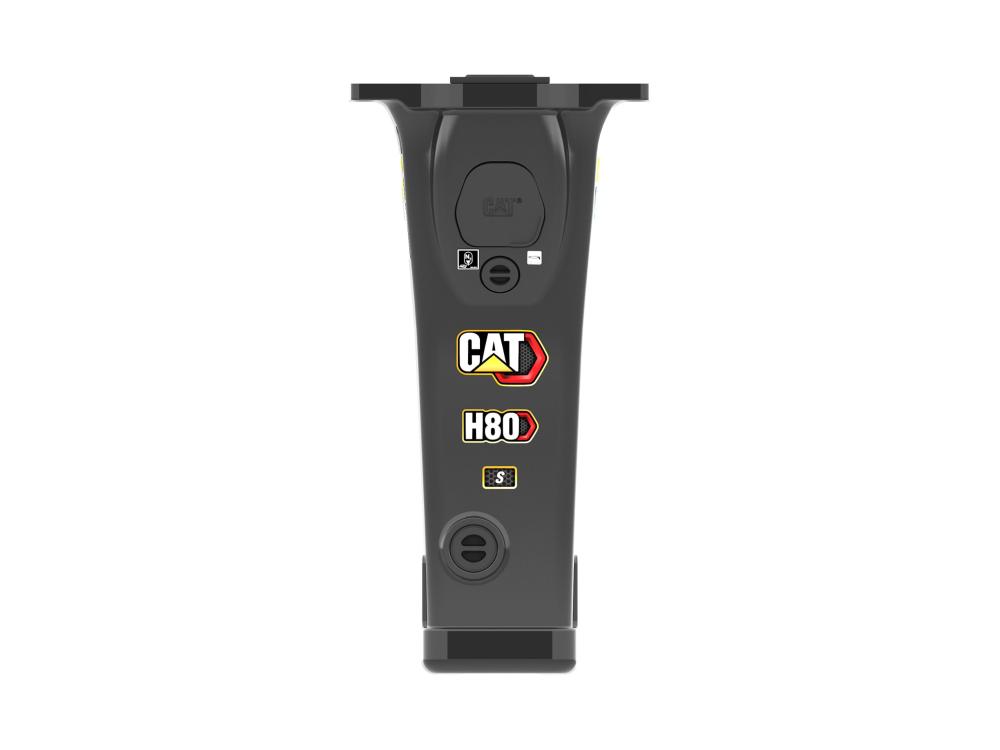

H80s Hydraulic Hammer

15181883

H80s Hydraulic Hammer

Cat

https://www.finanzauto.es/productos/martillos-caterpillar-martillo-hidraulico-h80s

Units of measurement :

Metric

Imperial

Operating Weight - With Tool

425 kg

937 lb

Energy Class

1356 J

1000.1 ft·lbf

Machine Class

7-9 Ton Mini Excavators, 415-450 Backhoe Loaders

Availability

Purchase Rental Used

Cat® Hammers for Skid Steer Loaders, Compact Track Loaders, Mini Excavators and Backhoe Loaders are high performance breakers, designed for maximum performance on demolition, construction, and road work.

Features

Specifications

Documents

Application

Silenced

Flat Top/Top-Mount Style

Auto Shut Off (ASO)

Tri-Suspension System

Standing Height Grease Point

Easy to Tune & Maintain

Ports Positioned for Hose Protection

Hammer Tools

Used in a wide range of construction and light demolition applications - such as breaking concrete sidewalks and driveways, pavement, roads, masonry, site prep and landscaping, and breaking frozen ground for utility repairs.

Fully enclosed, silenced housing lowers overall noise level for a quieter, safer job site. Internal power cell is protected, designed and engineered to eliminate stress points.

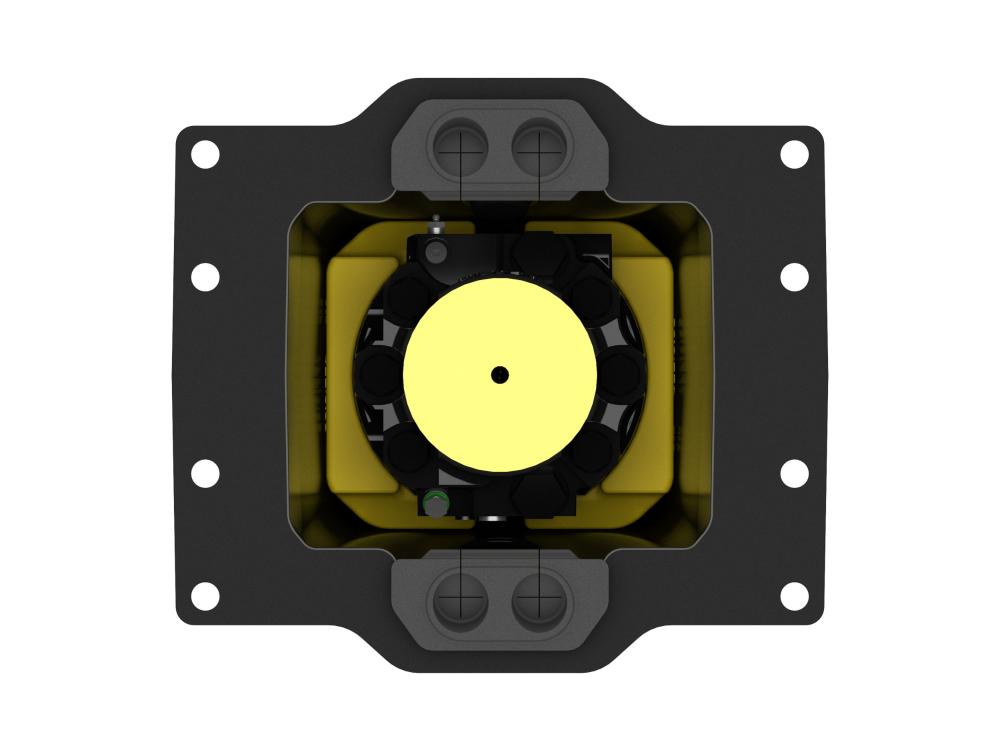

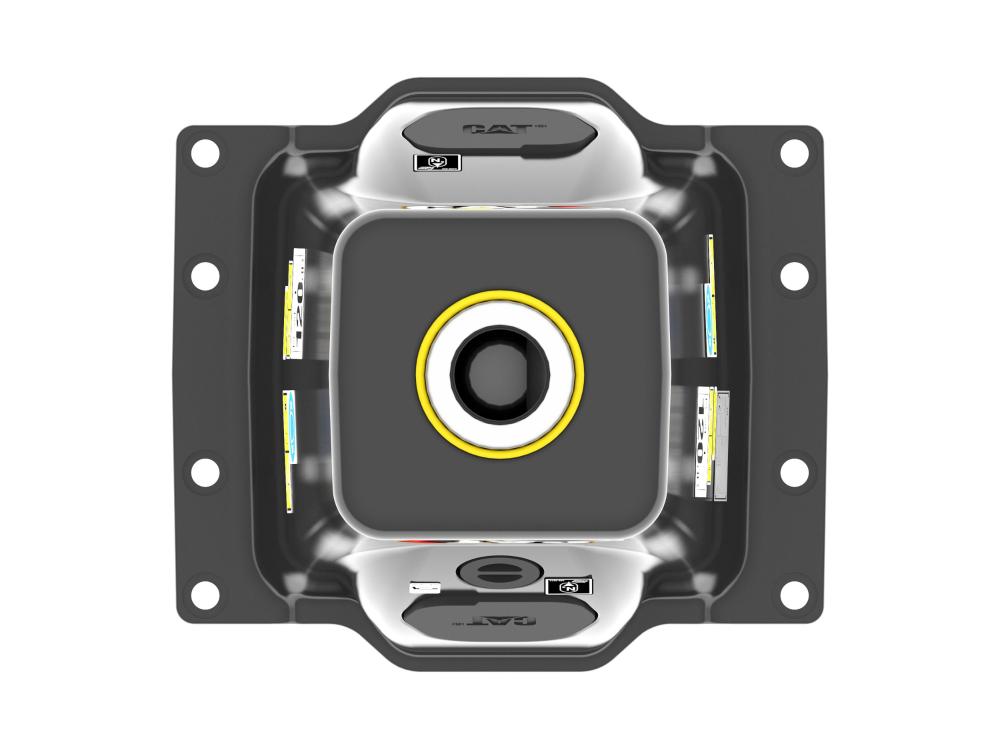

Flat top/top-mount style provides a larger work area and excellent operator visibility with a common footprint and hole pattern for optimum versatility. Top-mount style increases impact power by keeping breaker force and stick force in line. A top-mount bracket will transfer back significantly less recoil and bending stress into the end of the stick, resulting in reduced impact on machine structures. Full complement of mounting brackets is available to suite coupler or pin-on preference.

ASO instantly stops the piston when breaking through material, preventing blank firing, a key contributor to hammer wear. Internal stresses are reduced, hammer is protected regardless of operator skill level.

Tri-Suspension system comprises the suspension jacket, the upper and lower buffers. Suspension aligns power cell and gives manageable, smooth performance.

Standing height grease point makes required maintenance comfortable and easy to perform.

Gas ports and valves are easy to check and charge while hammer is mounted to machine.

Improved routing protects against force and dirt during impact, eliminating downtime.

Tools are heat-treated, matched to piston diameter and provide optimum mass to deliver full blow energy.

Cat® H35-H90 Silenced Hammers Product Brochure.pdf Cat® H25D-H95 Model Hammers Parts Reference Guide.pdf

Others

Operating Weight - With Tool	425 kg	937 lb
Energy Class	1356 J	1000.1 ft·lbf
Machine Class	7-9 Ton Mini Excavators, 415-450 Backhoe Loaders
Tool Shaft Diameter	75 mm	3 in
Impact Frequency	600-1500 bpm
Minimum Operating Pressure	10000 kPa	1450.4 psi
Minimum Carrier Weight	5987 kg	13199.1 lb
Optimal Hydraulic Flow	70-130 lpm (18-34 gpm)
Overall Width	485 mm	19.1 in
Overall Length	535 mm	21.1 in
Overall Height	1433 mm	56.4 in
Height - Without Tool	1057 mm	41.6 in
Sound Level	120 dB
Mounting Bracket Size	Extra Large

Compatible machines:

309 CR

Net Power

51.8 kW

69.5 hp

Operating Weight

9565 kg

21091 lb

Dig Depth

4642 mm

182.8 in

Caterpillar

15196205
309 CR VAB (Long Undercarriage)

Net Power

51.8 kW

69.5 hp

Operating Weight

9740 kg

21477 lb

Dig Depth

3815 mm

150.2 in

Caterpillar

15196307
428

Power - Net

52 kW

70 hp

Operating Weight - Nominal

8270 kg

18232 lb

Operating Weight - Maximum

11000 kg

24251 lb

Caterpillar

15194613
432

Power - Net

68 kW

92 hp

Operating Weight - Nominal

8469 kg

18671 lb

Operating Weight - Maximum

11000 kg

24251 lb

Caterpillar

15194633
434

Power - Net

68 kW

92 hp

Operating Weight - Nominal

9170 kg

20216 lb

Operating Weight - Maximum

11500 kg

25353 lb

Caterpillar

15194653
444

Power - Net

68 kW

92 hp

Operating Weight - Nominal

9462 kg

20860 lb

Operating Weight - Maximum

11500 kg

25353 lb

Caterpillar

15194673
