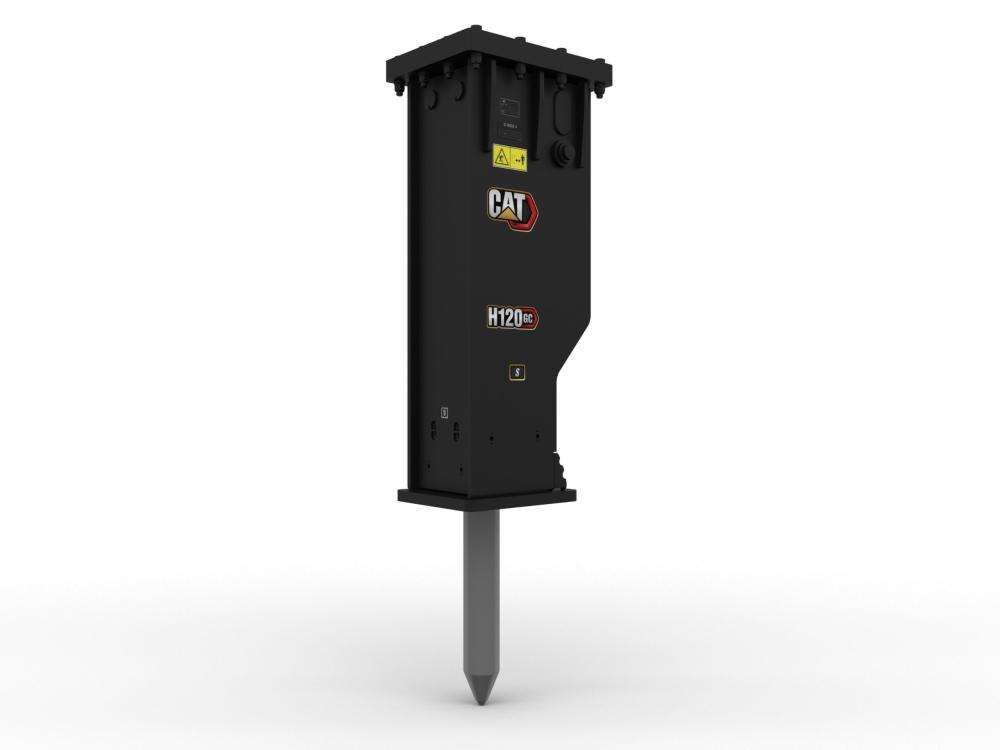

H120 GC S Hammer

Units of measurement :

Metric

Imperial

Blows per Minute

400 to 800

Minimum Operating Weight

1746 kg

Rated Flow - Minimum

125 l/min

Availability

Purchase Rental Used

Cat® H120 GC S hammers are designed for durability in rock breaking and concrete demolition. With powerful hydraulics and quick access to maintenance areas, Cat H120 GC S hammers help increase overall productivity and reduce maintenance costs. Cat H120 GC S hammers are a versatile solution for many applications, including road construction, trenching, and demolition.

High Performance

Reliability and Durability

Easy to Maintain

Boost Efficiency and Productivity with Integrated Technologies

Automatic shutoff offers blank firing protection by stopping the piston when there is no material under the tool to help extend the life of the hammer.
Manually adjust the piston speed by choosing between high piston speed or maximum power to help increase efficiency and production on the job site.
The standard silencing feature allows you to use a GC S hammer on job sites in noise sensitive areas like neighborhoods or near hospitals where noise is regulated.

Cat GC S Hammers - Key Features and Benefits (Afr-ME, Aus-NZ, Eurasia, Europe, India, S Korea, N Am, S Am, SE Asia, Taiwan, Türkiye).pdf Cat GC S Hammer - Technical Specifications (Afr-ME, Aus-NZ, Eurasia, Europe, India, S Korea, N Am, S Am, SE Asia, Taiwan, Türkiye).pdf

Others

Blows per Minute	400 to 800
Minimum Operating Weight	1746 kg	3849 lb
Rated Flow - Minimum	125 l/min	33 gal/min
Rated Flow - Maximum	150 l/min	40 gal/min
Minimum Operating Pressure	16000 kPa	2320 psi
Maximum Operating Pressure	18000 kPa	2610 psi
Tool Shaft Diameter	135 mm	5.3 in
Minimum Carrier Weight	18 t	39683 lb
Maximum Carrier Weight	25 t	55115 lb
