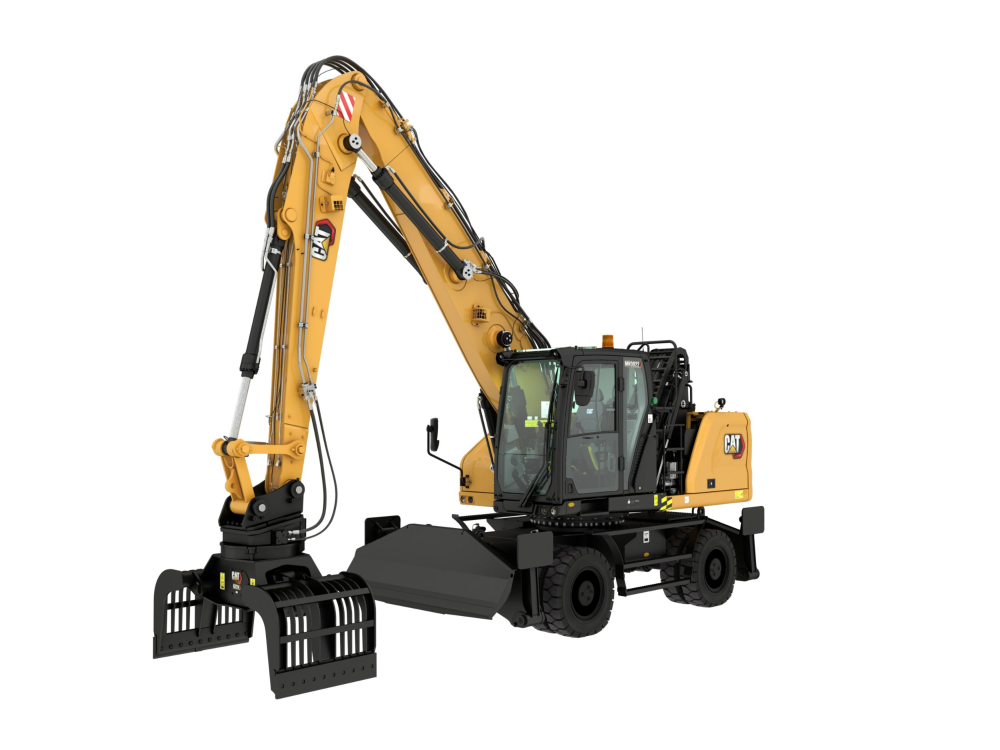

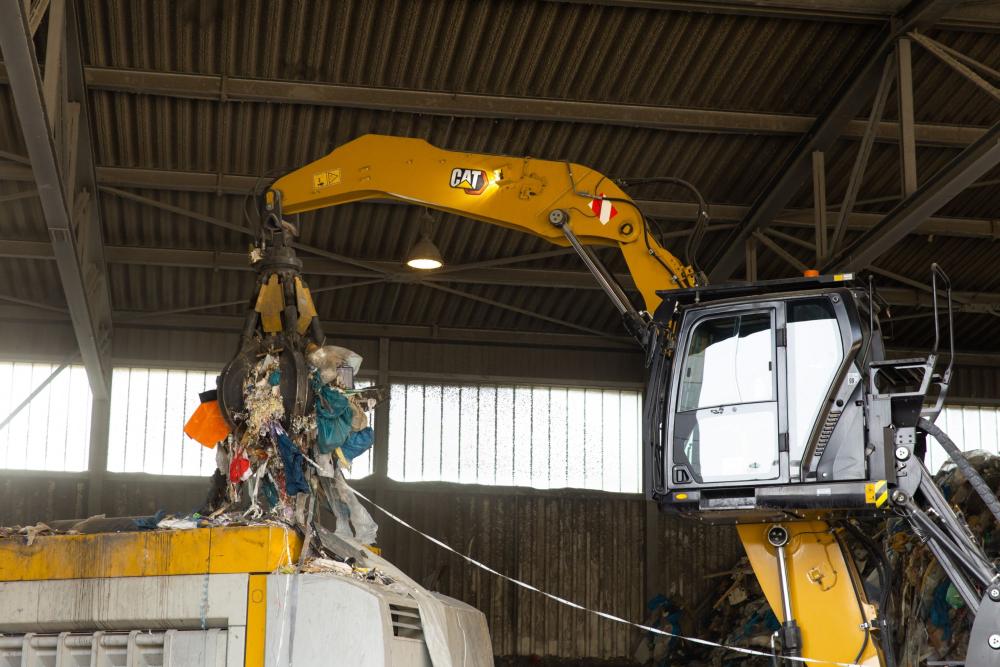

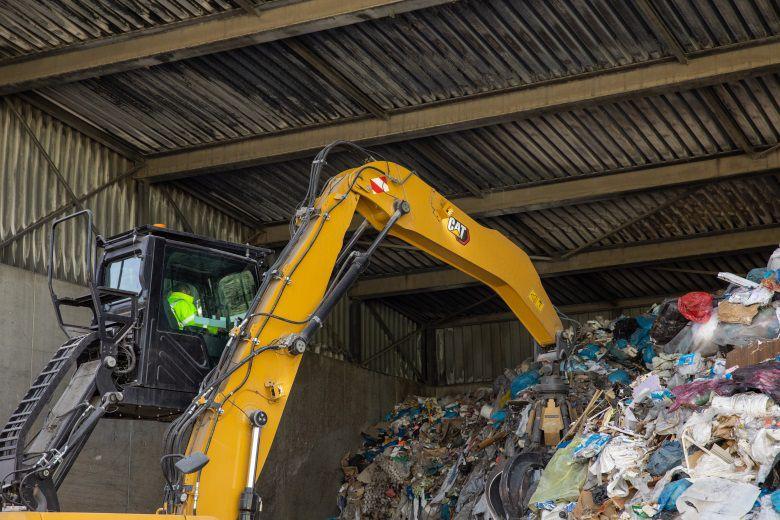

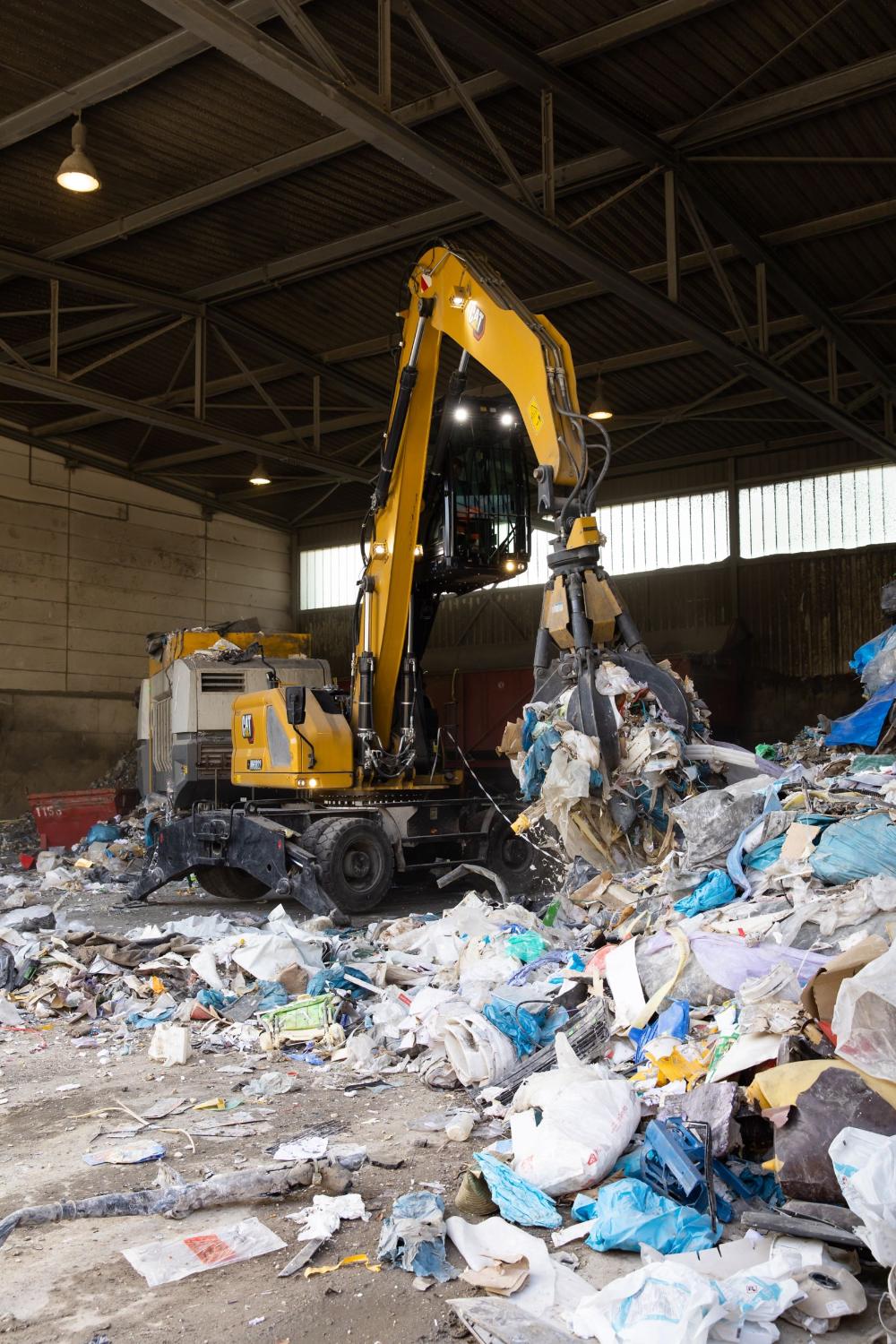

MH3022 Wheel Material Handler
Caterpillar
Metric
Imperial
Engine Model
Cat C4.4
Maximum Operating Weight
24500 kg
54000 lb
Maximum Reach
9280 mm
30.4 ft
Availability
We know that when it comes to material handling equipment, your success depends on productivity and low operating costs. The Cat® MH3022 is a purpose-built material handler that features simple-to-use technologies, a redesigned cab for enhanced comfort, and more options to match your work. Combine these features with up to 10% lower operating costs, and you have a safe, quality and reliable product that will provide you with the superior performance you need for your toughest indoor material handling applications.
Superior performance
Improved cycle times let you complete more work in less time. A wider machine footprint improves stability.Up To 10% Lower operating costs
With extended maintenance intervals and fewer connections and hoses, you get more done at a lower cost compared to the previous model.Enhanced comfort
Operate with ease in cab comfort options of your choice and better visibility with 360° machine view.Up To 22% Less CO2 Emissions
The MH3022 emits up to 22% less CO2 than the previous MH3022-06.Latest Features
High Performance
Take the Guesswork Out of Managing Your Equipment
Work In Comfort
Reliable, Durable, and Versatile
Maintenance
Safety
Sustainability

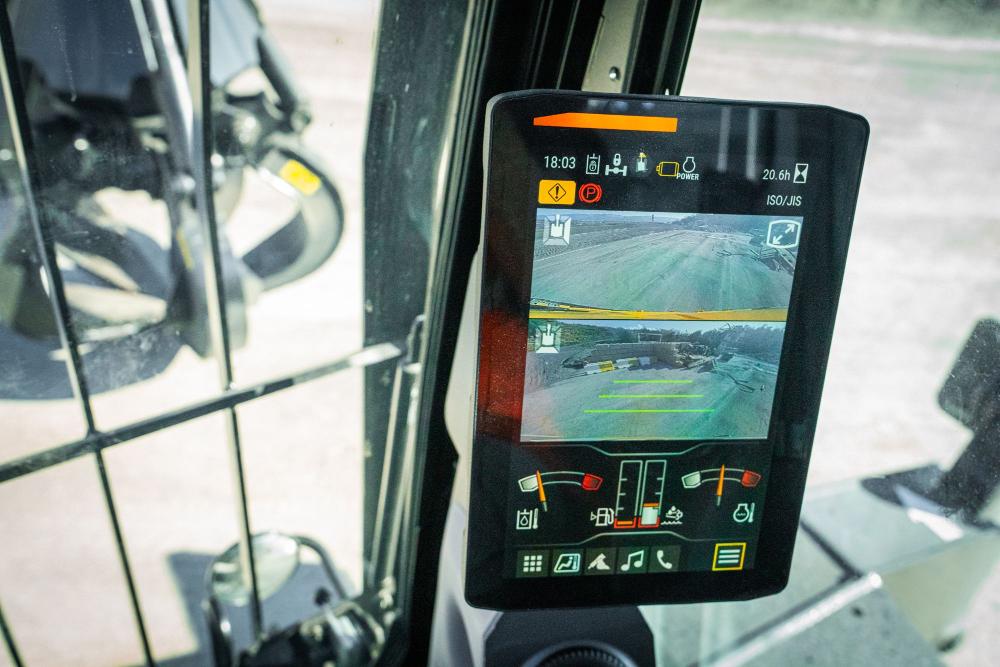

Cab Monitor Improvements
Not all features are available in all regions. Please check with your local Cat dealer for specific offering availability in your area. Build Number: 07D
- Continuously improved user interface allows for intuitive navigation, minimizing performance interruption with the easy-to-use touchscreen menu.
- Identify apps quickly with a grid list view, abbreviated app names, and categorized menu options.
- A new notification center keeps important information visible to the operator, and displays messages without shrinking the camera view.
- Color coded notifications set critical messages apart from the rest.
- Use the in-monitor QR code to learn about machine technology and features through a full suite of "how-to" videos.
- Enhance visibility to make service work easier and safer with optional inspection lighting.
- Standard integrated vehicle health management system alerts the operator with service guidance and parts needed to enhance uptime.
Not all features are available in all regions. Please check with your local Cat dealer for specific offering availability in your area. Build Number: 07D
- Use up to 10% less fuel versus the previous model, with no impact on your productivity.
- The C4.4 engine can run on biodiesel up to B20 and meets US EPA Tier 4 Final and EU Stage V Final emissions standards with an aftertreatment system that requires no scheduled downtime or maintenance.
- Match the machine to the job with three power modes - Power, Smart, and Eco. Smart mode automatically matches engine and hydraulic power to working conditions, providing maximum power when needed and reducing power when it isn't to save fuel.
- The advanced electro-hydraulic system provides the optimum balance of power and efficiency while giving you the control you need.
- Available SmartBoom™ lets the boom freely travel up and down without using any pump flow so operators can focus on stick and bucket work.
- Valve priority puts hydraulic pressure and flow where you need it.
- The variable gauge undercarriage retracts for easy transportation and expands for increased stability and lifting capacity.
- Program and store your preferred power mode and joystick settings using your Operator ID. The machine will automatically remember your selections.
- Cat Payload helps you achieve precise load targets to improve your operating efficiency. Pick up a load of material--with a bucket and thumb combination or grapple and clamshell attachments--and get a real-time weight estimate without swinging.
- Combine Payload with VisionLink® and remotely manage your production targets.

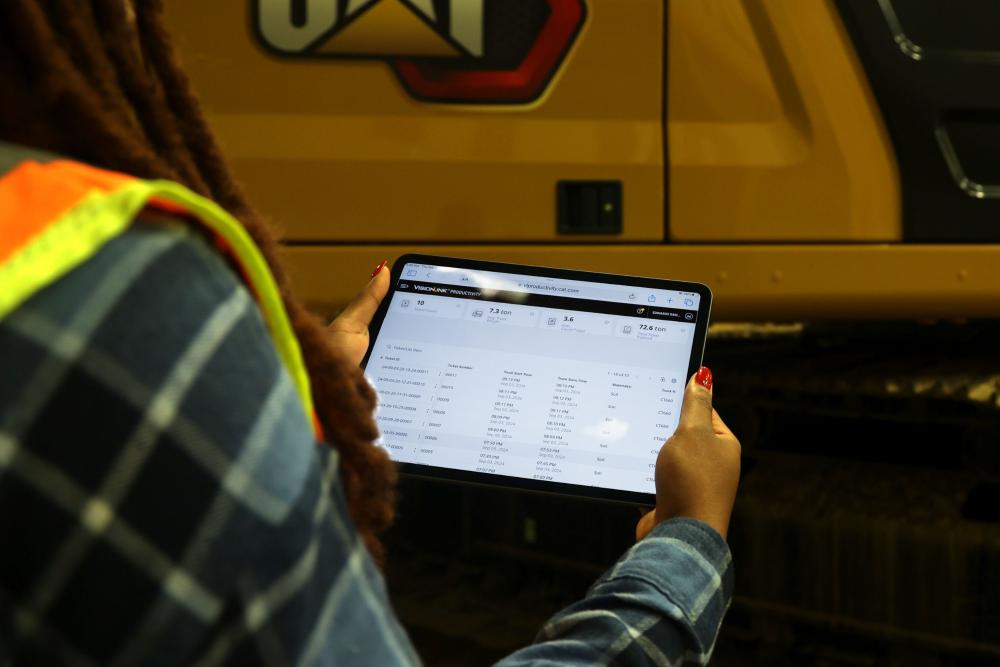

- VisionLink® provides actionable data insights for all assets - regardless of fleet size or equipment manufacturer. * Review equipment data from your desktop or mobile device to maximize uptime and optimize assets. Dashboards provide information such as hours, miles, location, idle time, and fuel utilization. Make informed decisions that lower costs, simplify maintenance, and improve safety and security on your jobsite.
- Remote Troubleshoot is a mobile application that allows your Cat dealer to perform diagnostic testing on your connected machine remotely to help ensure that issues are resolved quickly and with less downtime.
- Remote Flash is a mobile application that allows you to update onboard software without a technician being present, allowing you to initiate software updates when convenient, increasing your overall operating efficiency.
* Data field availability can vary by equipment manufacturer.

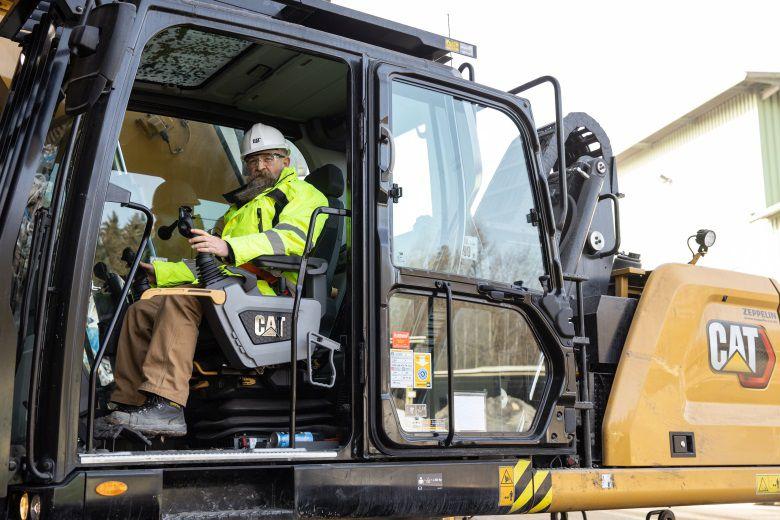

- Choose between Deluxe and Premium cab options.
- The Deluxe seat is heated and air adjustable, while the Premium seat is heated and ventilated and adjusts automatically.
- The cab has a wide seat that adjusts for operators of all sizes.
- Control the machine comfortably with easy-to-reach controls.
- Standard automatic climate control keeps you at the right temperature all shift long.
- Stow your gear with plenty of in-cab storage beneath and behind the seat, overhead, and in the consoles. A cup holder, document holder, bottle holder, and coat hook are also provided.
- Connect to personal devices via the standard radio's USB ports and Bluetooth® technology.
- Cat continues to improve user interface functionality for operators of all skill levels. The touchscreen monitor is an easy-to-use operating tool that presents the jobsite dashboard with an intuitive format.
- Productivity applications are displayed in grid-view to read on the go, and touchscreen navigation is programmed to make sure job performance continues without any hold-ups.
- Count on your machine to withstand wear throughout the years. Boom, sticks, and other high-stress areas are reinforced with thick multi-plate fabrications, castings, and forgings to ensure quality and reliability.
- Work up to 3000 m (9,840 ft) above sea level without derating.
- Don't let the temperature stop you from working. The material handler has a standard high-ambient temperature capability of 52°C (125°F) and a cold-start capability of -18°C (0°F).
- Auto warm-up speeds up hydraulic oil warming in cold temperatures and helps prolong the life of components.
- Match your machine to your application. Multiple configurations allow you to customize your machine to your needs.
- Equip your MH3022 with an optional 15kW generator for magnet operation. Generator controls are fully integrated into the cab monitor.

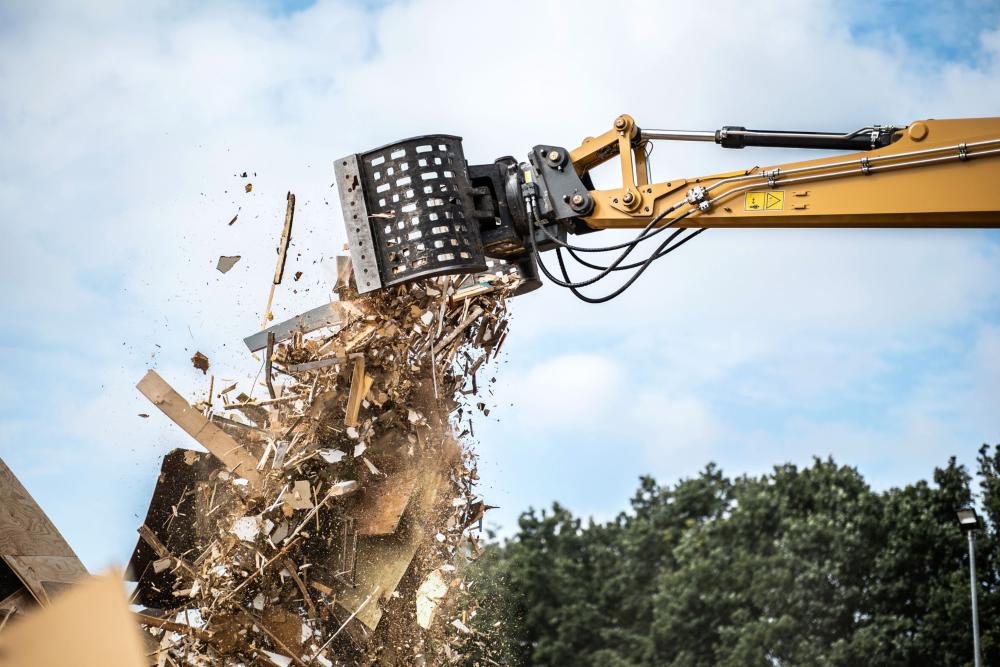

- Expand your work capabilities with attachments for a variety of applications.
- Track your machine's filter life and maintenance intervals via the in-cab monitor.
- Using Cat genuine oil and filters and doing your typical S·O·SSM monitoring will double the current service interval to 1,000 hours, giving you greater uptime to do more work.

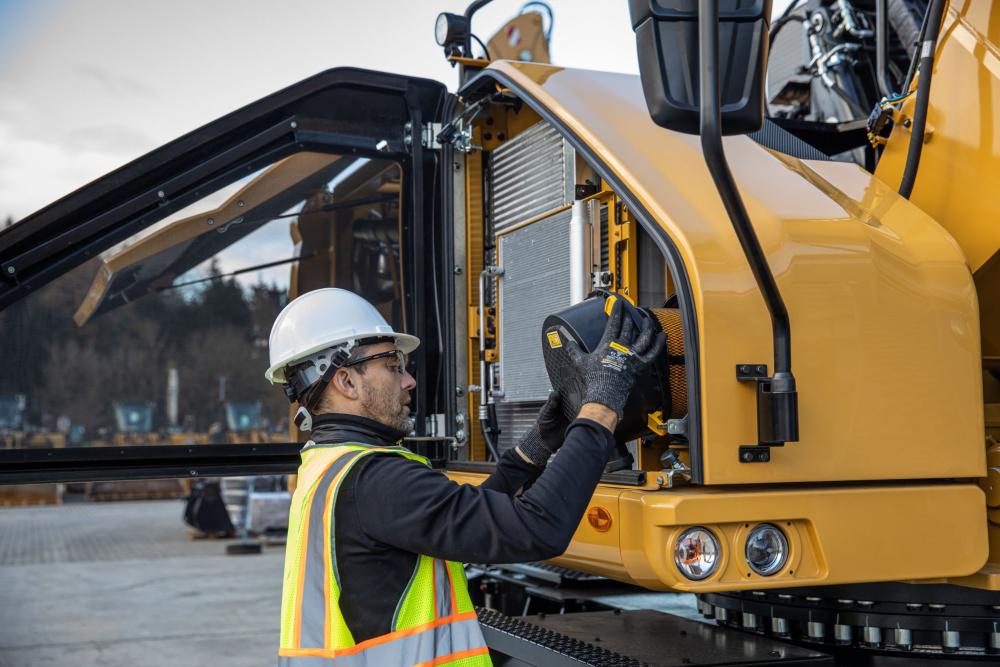

- Expect the latest air intake filter with pre-cleaner to last up to 1,000 hours – a 100% increase over the previous filter.
- The latest hydraulic oil filter provides improved filtration performance, anti-drain valves to keep oil clean when the filter is replaced, and longer life with a 3,000-hour replacement interval – 50% longer than previous filter designs.
- High-efficiency cooling fans run only when needed; you can program intervals so they automatically reverse to keep cores clean without interrupting your work.
- S·O·S ports are on ground level, simplifying maintenance and allowing for quick, easy extraction of fluid samples for analysis.
- Boost productivity with proactive service reminders. The integrated vehicle health management system alerts the operator with step-by-step service guidance and the parts needed so you don't experience unnecessary downtime.
- Cab Avoidance helps you avoid contact between your worktool and the cab.
- Standard 2D E-Fence prevents your machine from moving outside operator-defined parameters.
- Ground-level shutoff switch stops all fuel to the engine when activated and shuts down the machine.
- Keep your machine secure with Operator ID. Use your PIN code on the monitor to enable the push-button starting feature.
- Enjoy great all-around visibility with the help of smaller cab pillars, larger windows, and a flat engine hood design. Rearview and side-view cameras are standard.
- Standard 1800-lumen LED exterior lights illuminate your surroundings for a safer work environment.
- Thick impact-resistant windshields fulfill P5A standards.

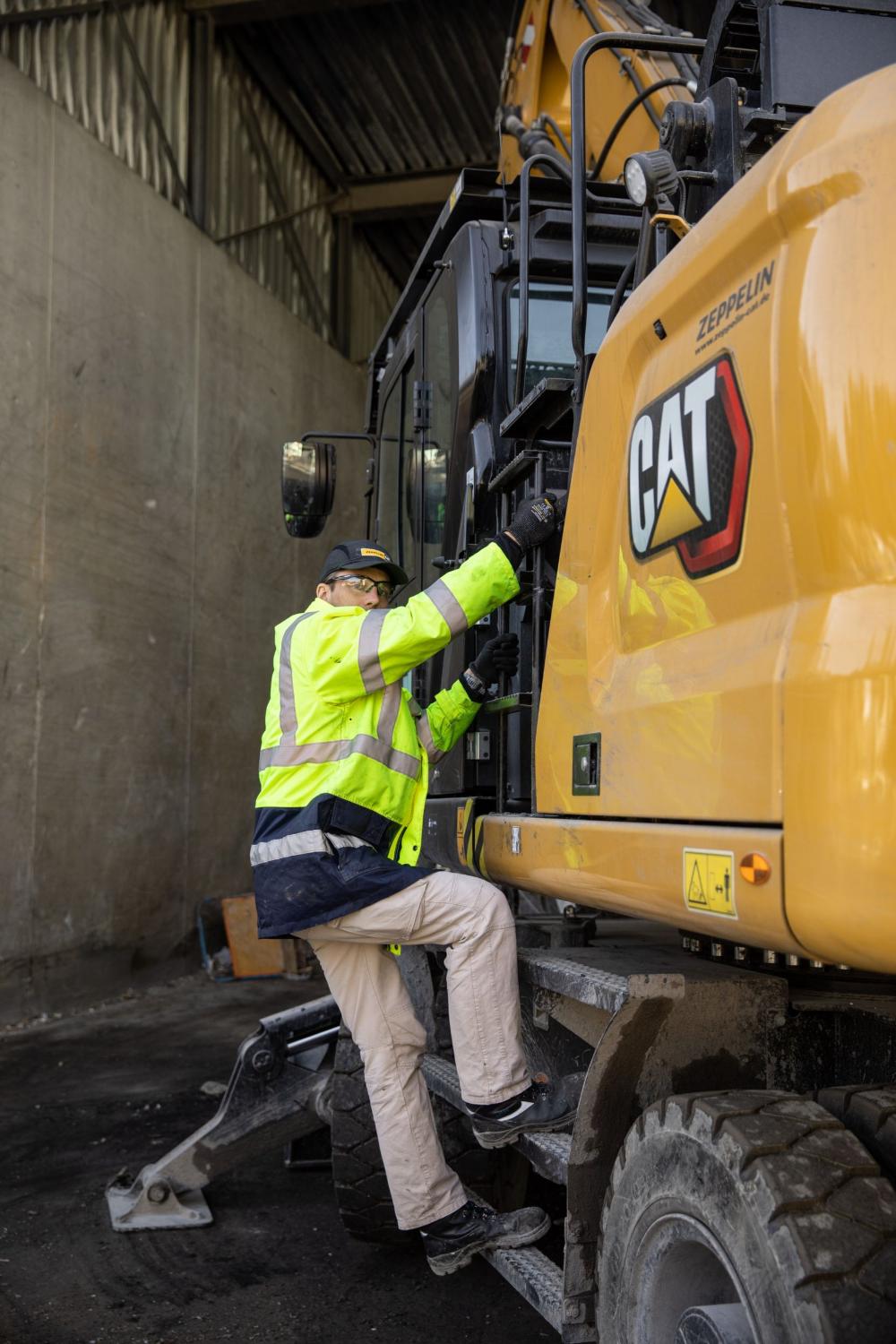

- Service platform design provides easy, safe, and quick access to the upper service platform. The service platform steps use an anti-skid punch plate to prevent slipping.
- The standard hydraulic lockout lever isolates all hydraulic and travel functions in the lowered position.
- Optional Operator Protective Guards (OPG) protect from falling and flying debris.
- When activated, the ground-level shutoff switch stops all fuel in the engine and shuts down the machine.
- In an emergency, lower the cab safely with the emergency cab lowering valve behind the cab riser or to the right of the seat. The valve located behind the cab riser is easily accessible.
- Boom and stick lowering check valves prevent reverse flow, keeping your front linkage securely in place should the hydraulic system unexpectedly lose pressure.
- Make service work more accessible and safer with optional inspection lighting. With the flip of a switch, lights will illuminate the engine pump, battery, and radiator compartments to enhance visibility.
- The Cat® C4.4 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
- The MH3022 emits up to 22% less CO2 than the previous MH3022-06.*
- Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels*** up to: 20% biodiesel FAME (fatty acid methyl ester)** or 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
- Auto Engine Speed Control reduces unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
- Cat® 2D E-fence keeps the front linkage within a predefined work area to avoid hazards such as traffic - not only helping keep personnel safe but also helps avoid repairs, downtime, and costly job site fines.
- Extended maintenance intervals reduce downtime and decrease the amount of fluid and filters that are replaced over the life of the machine.
- VisionLink® displays the CO2 emissions for monitored assets, calculated by fuel type for the Runtime Fuel Burned each day in a selected date range.
- Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.
- Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.
**Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer).
***Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels.
Engine
| Engine Model | Cat C4.4 | |
| Net Power - ISO 9249 | 108 kW | 145 hp |
| Net Power - ISO 9249 (DIN) | 147 hp (metric) | 147 hp (metric) |
| Engine Power - Maximum - ISO 14396 | 110 kW | 148 hp |
| Engine Power - ISO 14396 (DIN) | 150 hp (metric) | 150 hp (metric) |
| Bore | 105 mm | 4.1 in |
| Stroke | 127 mm | 5 in |
| Displacement | 4.4 l | 268.5 in³ |
| Biodiesel Capability | Up to B20¹ | |
| Emissions | Meets U.S. EPA Tier 4 Final and EU Stage V emission standards. | |
| Note (1) | Net power advertised is the power available at the flywheel when the engine is equipped with fan, air intake system, exhaust system, and alternator with engine speed at 2,000 rpm. Advertised power is tested per the specified standard in effect at the time of manufacture. | |
| Note (2) | ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: 20% biodiesel FAME (fatty acid methyl ester)* or 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. *Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). **Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. |
Machine Weights
| Maximum Operating Weight | 24500 kg | 54000 lb |
| Minimum Operating Weight | 21200 kg | 46750 lb |
Working Ranges
| Maximum Reach | 9280 mm | 30.4 ft |
| Boom | MH Boom 5.35 (17'7") | |
| Stick | Straight 4.3 m (14'1") | |
| Maximum Height | 10760 mm | 35.3 ft |
| Minimum Dump Height | 3310 mm | 10.8 ft |
| Maximum Reach at Ground Line | 8680 mm | 28.5 ft |
| Maximum Depth | 1460 mm | 4.8 ft |
| Boom Pin Height | 7120 mm | 23.3 ft |
Transmission
| Maximum Gradeability | 65 | |
| Maximum Travel Speed (with steering wheel) | 20 km/h | 12.4 mile/h |
| Maximum Travel Speed (with joysticks) | 15 km/h | 9.3 mile/h |
| Drawbar Pull | 127 kN·m | 28551 lb/ft |
Hydraulic System
| Maximum Flow - Implement/Travel Circuit | 306 l/min | 81 gal/min |
| Maximum Pressure - Implements | 37000 kPa | 5366 psi |
| Maximum Pressure - Travel | 35000 kPa | 5076 psi |
| Maximum Pressure - Swing | 36500 kPa | 5294 psi |
Service Refill Capacities
| Fuel Tank Capacity | 350 l | 92.5 gal (US) |
| Diesel Exhaust Fluid Tank | 30 l | 7.9 gal (US) |
| Cooling System | 36 l | 9.5 gal (US) |
| Engine Oil | 13 l | 3.4 gal (US) |
| Hydraulic Tank | 155 l | 40.9 gal (US) |
| Hydraulic System - Including Tank | 345 l | 91.1 gal (US) |
| Rear Axle - Housing (Differential) | 14 l | 3.7 gal (US) |
| Front Steering Axle - Differential | 10.5 l | 2.8 gal (US) |
| Final Drive - Each | 2.5 l | 0.7 gal (US) |
| Powershift Transmission | 2.5 l | 0.7 gal (US) |
Swing Mechanism
| Swing Speed | 8.2 r/min | 8.2 r/min |
| Maximum Swing Torque | 54 kN·m | 39553 lb/ft |
Dimensions
| Boom | MH Boom 5.35 (17'7") | |
| Stick | Straight 4.3 m (14'1") | |
| Shipping Height (with OPG, without stick) | 11 ft | 3350 mm |
| Shipping Length | 8300 mm | 27.3 ft |
| Shipping Length (with push blade) | 8600 mm | 28.3 ft |
| Machine Length | 4950 mm | 16.3 ft |
| Machine Length (with push blade) | 5390 mm | 17.8 ft |
| Tail Swing Radius | 2600 mm | 8.5 ft |
| Counterweight Clearance | 1300 mm | 4.3 ft |
| Cab Height- Lowered | 3350 mm | 11 ft |
| Cab Height-Lowered with OPG | 3350 mm | 11 ft |
| Cab Height-Raised | 5750 mm | 18.8 ft |
| Cab Height-Raised with OPG | 5750 mm | 18.8 ft |
| Wheel Base | 2600 mm | 8.5 ft |
| Shipping Width | 2540 mm | 8.3 ft |
| Ground Clearance | 310 mm | 1 ft |
| Undercarriage Length | 4900 mm | 16.1 ft |
| Undercarriage Length (with push blade) | 5365 mm | 17.6 ft |
| Upper Frame Width (including handrails) | 2540 mm | 8.3 ft |
Transmissions
| Maximum Travel Speed (with joysticks) | 15 km/h | 9.3 mile/h |
You might also be interested in:
-
MH3024
Engine Model
Cat C4.4
Maximum Operating Weight
26800 kg
59100 lb
Maximum Reach
12010 mm
39.4 ft
Cat
15196814
-

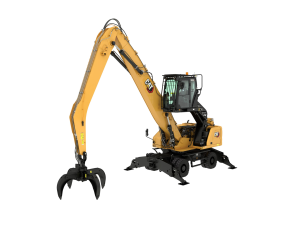

MH3026
Engine Model
Cat C7.1
Maximum Operating Weight
29200 kg
64370 lb
Maximum Reach
13000 mm
42.7 ft
Cat
15196834
-

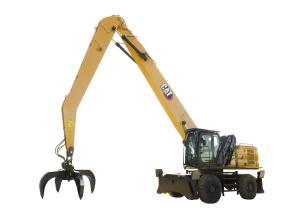

MH3040
Engine Model
Cat C7.1
Maximum Operating Weight
39000 kg
86000 lb
Maximum Reach
15490 mm
50.8 ft
Cat
15196849
-

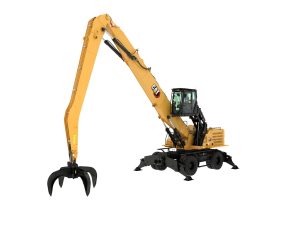

MH3050
Engine Model
Cat C9.3B
Maximum Operating Weight
50000 kg
110250 lb
Maximum Reach
18060 mm
59.3 ft
Cat
15702215
Compatible products:
-
Cat® Detect with Smart Camera
Caterpillar
15184906
-
Cat® Detect with Surround Cameras
Caterpillar
15184916
-
CTV15-1000 Clamshell Grapple
Capacity
1000 l
1.25 yd³
Operating Weight
1305 kg
2877 lb
Bolt-on Cutting Edge Included
No
Caterpillar
15679388
-
CTV15-1200 Clamshell Grapple
Capacity
1200 l
1.5 yd³
Operating Weight
1385 kg
3053 lb
Bolt-on Cutting Edge Included
No
Caterpillar
15679475
-
CTV15-1500 Clamshell Grapple
Capacity
1500 l
2 yd³
Operating Weight
1505 kg
3318 lb
Bolt-on Cutting Edge Included
No
Caterpillar
15679563
-
CTV15-1700 Clamshell Grapple
Capacity
1700 l
2.25 yd³
Operating Weight
1586 kg
3497 lb
Bolt-on Cutting Edge Included
No
Caterpillar
15679651
-
CTV15-1900-BOCE Clamshell Grapple
Capacity
1900 l
2.5 yd³
Operating Weight
1841 kg
4028 lb
Bolt-on Cutting Edge Included
Yes
Caterpillar
15679913
-
CTV15-1900 Clamshell Grapple
Capacity
1900 l
2.5 yd³
Operating Weight
1666 kg
3673 lb
Bolt-on Cutting Edge Included
No
null
15679738
-
CTV15-2300 Clamshell Grapple
Capacity
2300 l
3 yd³
Operating Weight
1827 kg
4028 lb
Bolt-on Cutting Edge Included
No
Caterpillar
15679826
-
CVP110
Impulse Force
110 kN
24669 lb
Cycles/Minimum
2200
Base Plate Width
864 mm
34 in
Caterpillar
15180039
-

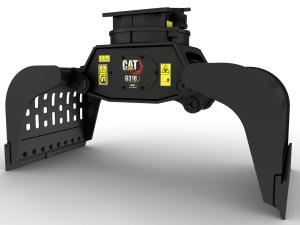

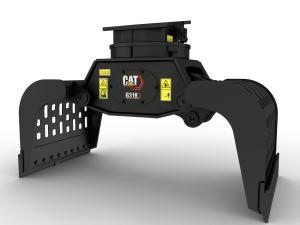

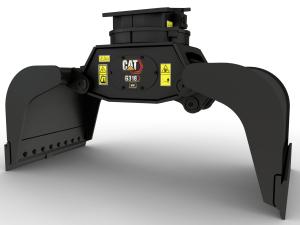

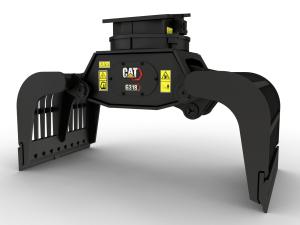

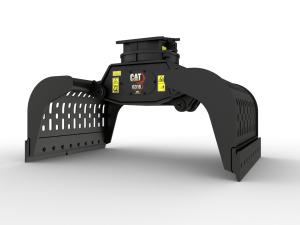

G318 Demolition & Sorting Grapple
Grapple Area
550 l
0.72 yd³
Weight
1310 kg
2888 lb
Machine Class
18-25 Ton Excavators
Caterpillar
15686328
-
G318 Demolition & Sorting Grapple
Grapple Area
600 l
0.78 yd³
Weight
1308 kg
2884 lb
Machine Class
18-25 Ton Excavators
Caterpillar
15686561
-
G318 Demolition & Sorting Grapple
Grapple Area
600 l
0.78 yd³
Weight
1323 kg
2917 lb
Machine Class
18-25 Ton Excavators
Caterpillar
15686794
-

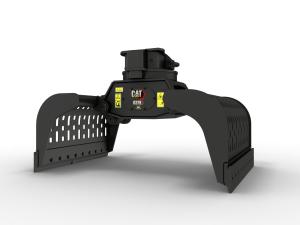

G318 WH Demolition & Sorting Grapple
Grapple Area
800 l
1.05 yd³
Weight
1447 kg
3190 lb
Machine Class
20-25 Ton Excavators
Caterpillar
15687027
-
G318 WH Demolition & Sorting Grapple
Grapple Area
800 l
1.05 yd³
Weight
1447 kg
3190 lb
Machine Class
20-25 Ton Excavators
Caterpillar
15687261
-
G318 WH Demolition & Sorting Grapple
Grapple Area
1100 l
1.44 yd³
Weight
1619 kg
3569 lb
Machine Class
20-25 Ton Excavators
Caterpillar
15687494
-

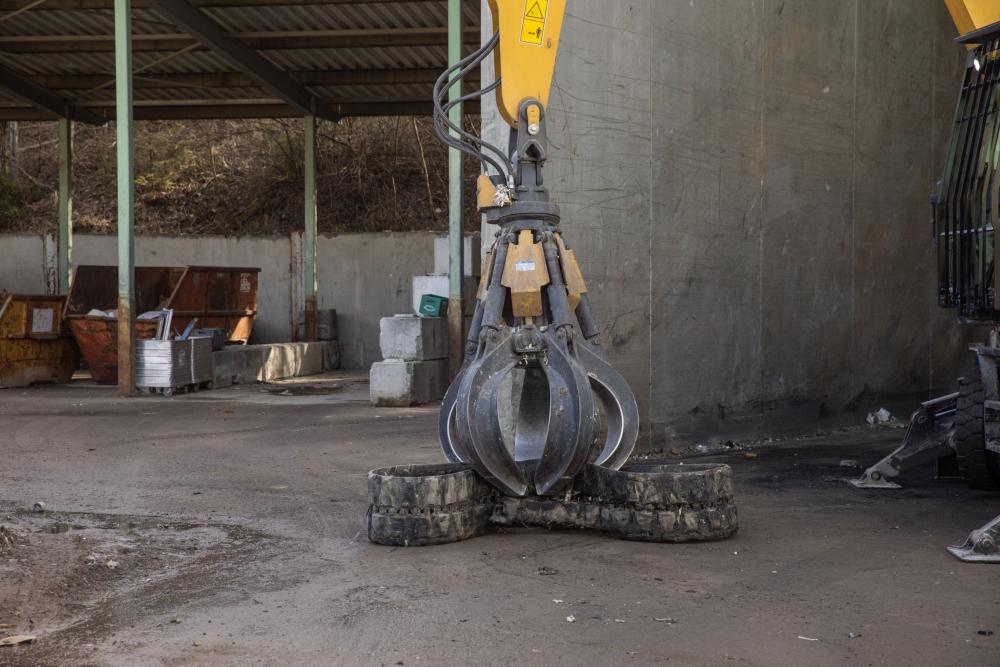

GSH420 4-Tine, 500-Liter Orange Peel Grapple
Capacity
500 l
0.65 yd³
Maximum Lift Capacity
8000 kg
17637 lb
Shell Type Options
Semi-open
Caterpillar
15690495
-
GSH420 4-Tine, 600-Liter Orange Peel Grapple
Capacity
600 l
0.75 yd³
Maximum Lift Capacity
8000 kg
17637 lb
Shell Type Options
Semi-open
Caterpillar
15181465
-
GSH420 4-Tine, 750-Liter Orange Peel Grapple
Capacity
750 l
1 yd³
Maximum Lift Capacity
8000 kg
17637 lb
Shell Type Options
Semi-open
Caterpillar
15690638
-
GSH425 4-Tine, 1150-Liter Orange Peel Grapple
Capacity
1150 l
1.5 yd³
Maximum Lift Capacity
10000 kg
22046 lb
Shell Type Options
Semi-open
Caterpillar
15692154
Other categories of Equipos:
-
Mini Excavators
-
Small Excavators
-
Magni fixed telehandlers
-
Compact Wheel Loaders
-
Medium Excavators
-
Magni rotating telehandlers
-
Small Wheel Loaders
-
Large Excavators
-
Magni heavy duty telehandlers
-
Medium Wheel Loaders
-
Demolition Excavators
-
Large Wheel Loaders
-
Wheel Excavators
-
.jpg)
Chippers
-
Forestry forwarders
-
Underground Mining Equipment
-
Mobile stockpillers
-
Compactors
-
Landfill Compactors
-
Vibratory Soil Compactors
-
Soil Compactors
-
Screens
-
Scalper screens
-
Mobile Trommel screens
-
Underground Mining Trucks
-
Articulated Trucks
-
Mining Trucks
-
Off-Highway Trucks
-
Underground mining equipment
-
Long Reach Excavation
-
Excavators
-
Minig excavators
-
Asphalt Pavers
-
Track Asphalt Pavers
-
Wheel Asphalt Pavers
-
Cold Planers
-
Impact
-
Attachments
-
Mobile crushers and screeners
-
Jaws
-
Track Material Handlers
-
Magni Telehandlers
-
Recycling Machines
-
Forestry machinery
-
Skid Steer Loaders
-
Tracked skid steer loaders
-
Wheeled skid steer loaders
-
Cone crusher
-
Motor Graders
-
Wheel Tractor-Scrapers
-
Elevating Scrapers
-
Track Loaders
-
Wheel Loaders
-
Forestry processors
-
Road Reclaimers
-
Backhoe Loaders
-
Tandem Vibratory Rollers
-
Crawler tractors
-
Wheel Dozers
-
Mobile Shredders
-
High-Spedd Mobile Shredders
-
Low-Speed Mobile Shredders
-
Shredder vehicles
-
Windrow Turners
360º Interior

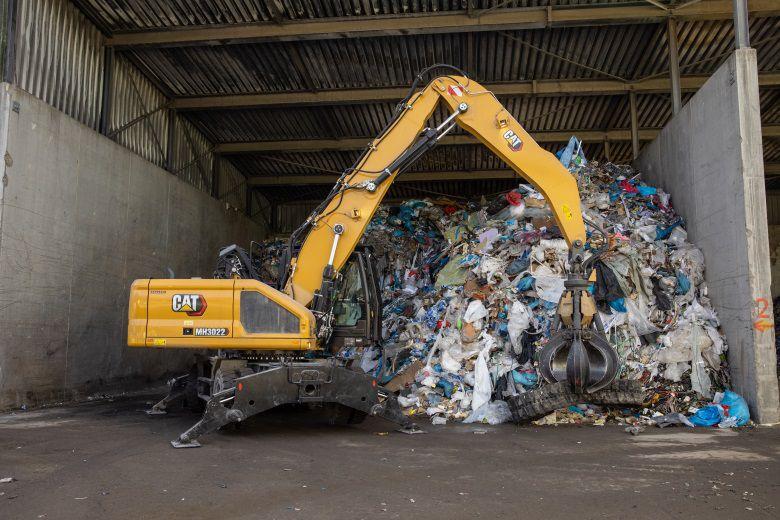

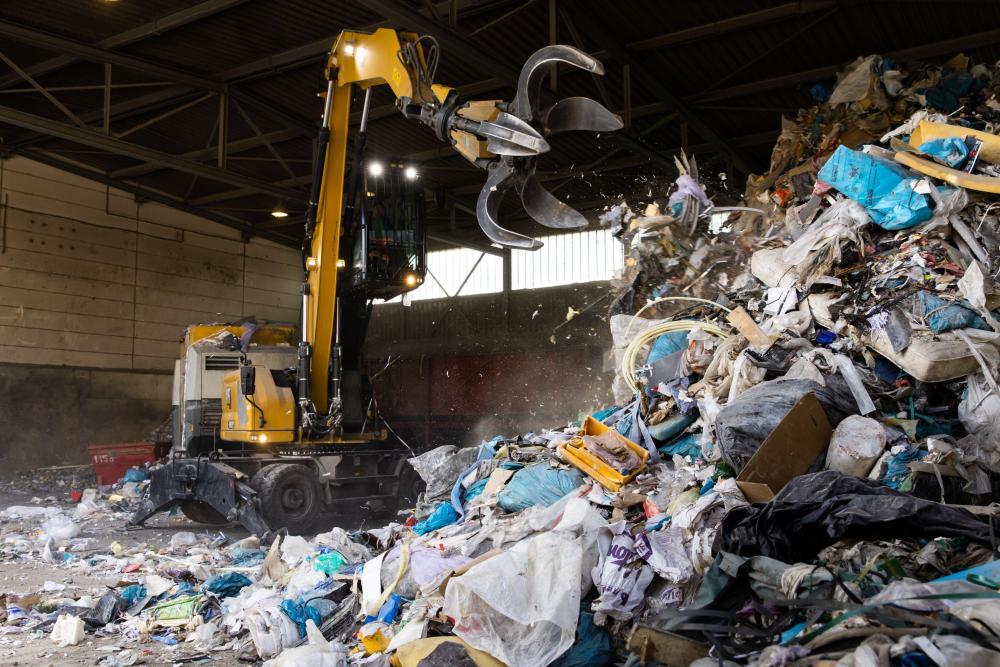

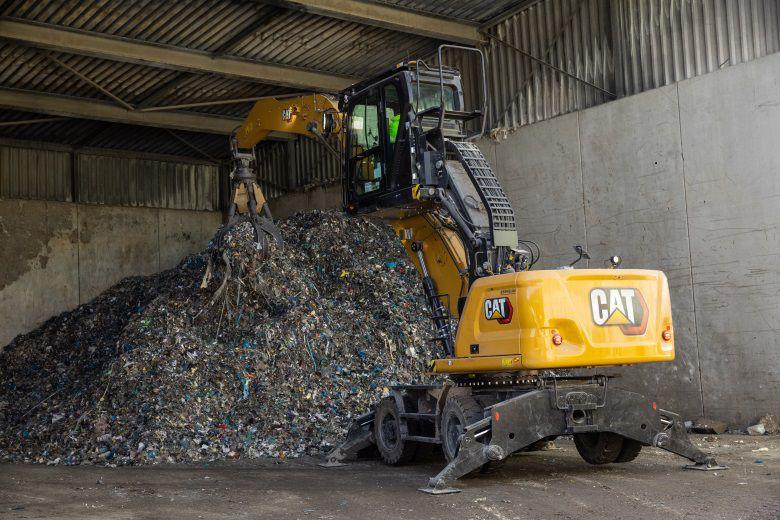

MH3022 Wheel Material Handler
Call us
I am interested
I am interested
Thank you for contacting us.
We have received your request and will contact you as soon as possible.
Please check your email to ensure that the form has been sent correctly.
