Caterpillar blades
Pusher Blades
Discover our Cat pusher and levelling blades, designed to provide maximum efficiency and performance in a wide range of construction applications.
Discover our Cat pusher and levelling blades, designed to provide maximum efficiency and performance in a wide range of construction applications.
Metric
Imperial
Grader Blades
(2)
Angle Blades - Compact Products
(2)
Cushion Dozer Blades
(2)
Variable Radius Semi-U Blades
(2)
Woodchip U-Blades
(5)
-
15.3 m³ (20.0 yd³)
Width
4216.4 mm
Wing Angle
30 °
Height
1880 mm
-
23.8 m³ (30.8 yd³ )
Width
4902 mm
Wing Angle
30 °
Height
2279 mm
-
28.3 m³ (37.0 yd³)
Width
5486 mm
Wing Angle
30 °
Height
2337 mm
-
45.9 m³ (60.0 yd³)
Width
5461 mm
Wing Angle
30 °
Height
3099 mm
-
72.6 m³ (95.0 yd³)
Width
6731 mm
Wing Angle
30 °
Height
3353 mm
Coal U-Blades
(9)
-
13.38 m³ (17.5 yd³)
Width
4953 mm
Wing Angle
30 °
Height
1626 mm
-
14.8 m³ (19.4 yd³)
Width
4902 mm
Wing Angle
30 °
Height
1767 mm
-
21.41 m³ (28.0 yd³)
Width
5537 mm
Wing Angle
30 °
Height
1981 mm
-
36.70 m³ (48.0 yd³)
Width
5740 mm
Wing Angle
30 °
Height
2565 mm
-
52.0 m³ (68.0 yd³)
Width
6731 mm
Wing Angle
30 °
Height
2794 mm
-
63.46 m³ (83.0 yd³)
Width
6858 mm
Wing Angle
30 °
Height
3073 mm
-
65.75 m³ (86.0 yd³)
Width
7366 mm
Wing Angle
30 °
Height
3048 mm
-
74.93 m³ (98.0 yd³)
Width
8179 mm
Wing Angle
30 °
Height
3048 mm
-
9.66 m³ (13 yd³)
Width
4267 mm
Wing Angle
30 °
Height
1473 mm
Reclamation U-Blades
(3)
Landfill U-Blades
(4)
Dozer Blades
(3)
-
2007 mm (79 in)
Blade Width
2007 mm
Width - Fully Angled
1750 mm
Maximum Blade Angle - Right/Left of Center
30 degrees
-
2337 mm (92 in), Smart
Blade Width
2337 mm
Width - Fully Angled
2049 mm
Maximum Blade Angle - Right/Left of Center
30 degrees
-
2337 mm (92 in)
Blade Width
2337 mm
Width - Fully Angled
2049 mm
Maximum Blade Angle - Right/Left of Center
30 degrees

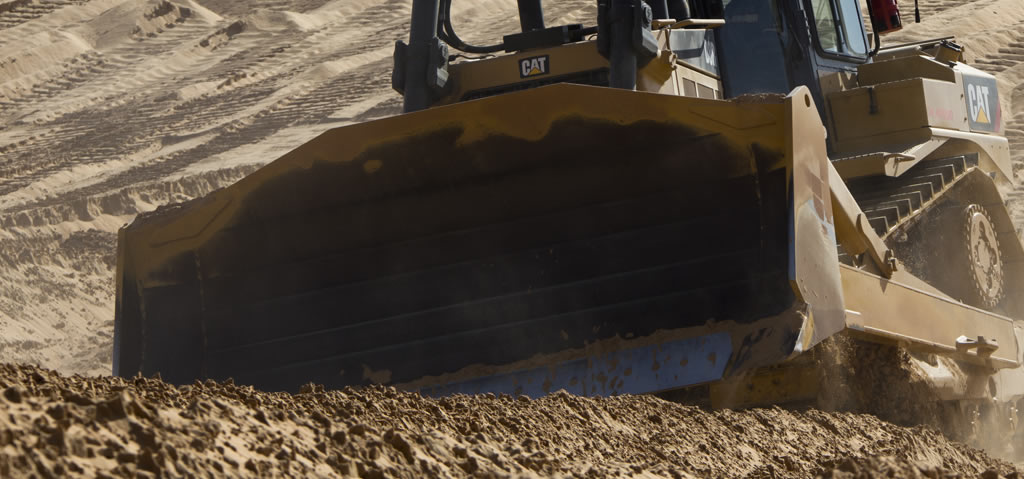

About Caterpillar Pusher Blades
Our Cat blades are ideal for levelling and moving material with precision and ease, ensuring optimum results from every job.
Characteristics of Cat Pusher and Levelling Blades
Our Cat levelling and dozing blades are designed with advanced features that make them ideal for a variety of levelling and earthmoving tasks:
Improved Efficiency
Specialised designs ensure smooth and efficient operation.
Robustness and Durability
Manufactured from high-strength materials for long life and reliable performance.
Versatility
Perfect for construction projects, roads, earthmoving and more, adapting to different conditions and types of terrain.
