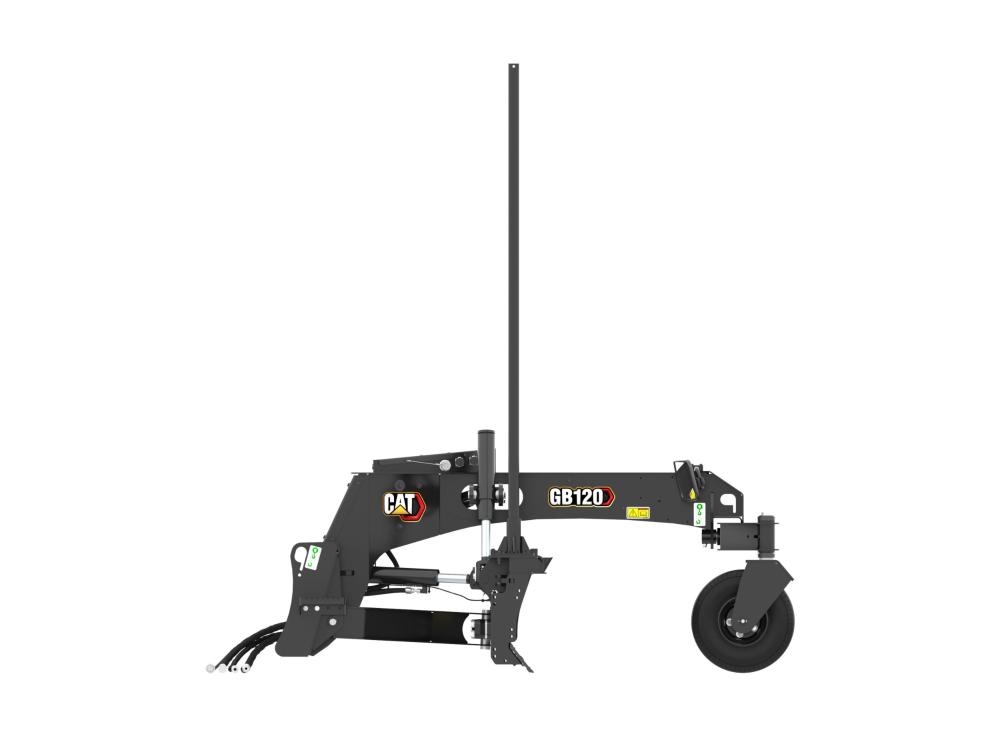

GB120 Grader Blade

Units of measurement :

Metric

Imperial

Overall Width

1992 mm

Blade Width

1981 mm

Width - Fully Angled

1747 mm

Availability

Purchase Rental Used

Cat® Smart Grader Blade attachments are for cutting, moving and grading dirt, gravel, sand and virtually any other material used as a base. The Smart grader blade is an industry first bringing cross slope to D3 Skid Steer Loader and Compact Track Loader platforms.

Application

Attachment Control Mode

Angle Indication in Machine Display

Cross Slope Control

External Reference Ready

Curved Moldboard

Wear Indicating Cutting Edges

Dual Parabolic Mirrors

Centrally Located Electronics

Protected Hydraulic Valve and ECM

Independent Front Axle with Dual Wheels

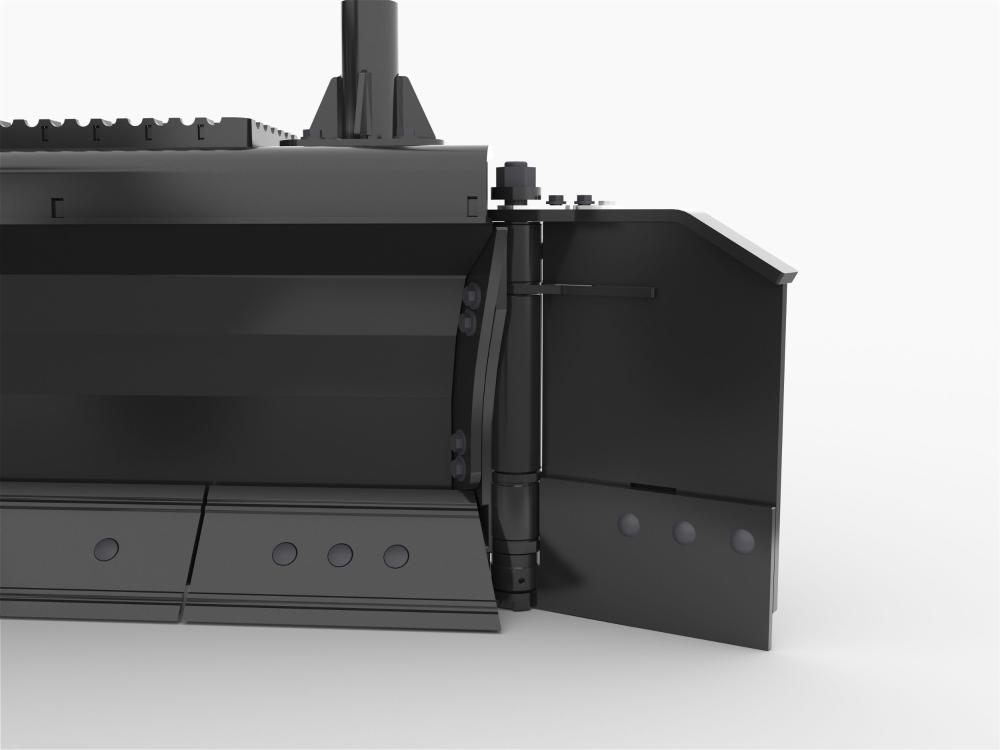

Optional Side Wings

Mast Mounting Points

Serrated Steps

Tool Mounted Operation and Maintenance Manual Holder

Cat® Smart Grader Blade attachments are for cutting, moving and grading dirt, gravel, sand and virtually any other material used as a base. There is an assist feature of the blade that takes the unit beyond Smart. The Smart grader blade brings cross slope to Skid Steer Loader and Compact Track Loader platforms.

Cat® Smart Grader Blades Brochure.pdf

Others

Overall Width	1992 mm	78.4 in
Blade Width	1981 mm	78 in
Width - Fully Angled	1747 mm	68.8 in
Optimal Hydraulic Flow	50-86 L/min (13-23 gpm)
Optimal Hydraulic Pressure	180-230 bar (2600-3340 psi)
Required Hydraulics	Standard Flow
Overall Length	2246 mm	88.4 in
Overall Height with Masts	2652 mm	104.4 in
Overall Height	1046 mm	41.2 in
Weight	894 kg	1970.9 lb
Tilt Angle Range +/-	15 degrees
Maximum Blade Angle - Right/Left of Center	30 degrees
Blade Height	431 mm	17 in
Ground Clearance	152 mm	6 in
Maximum Cutting Depth	102 mm	4 in
Interface Type	Skid Steer Coupler
