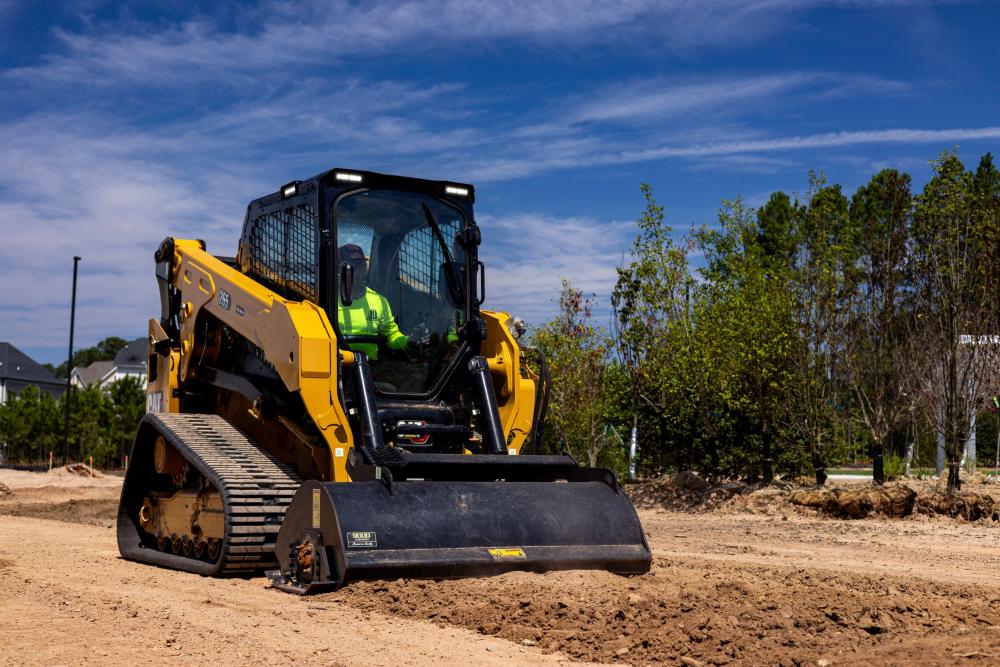

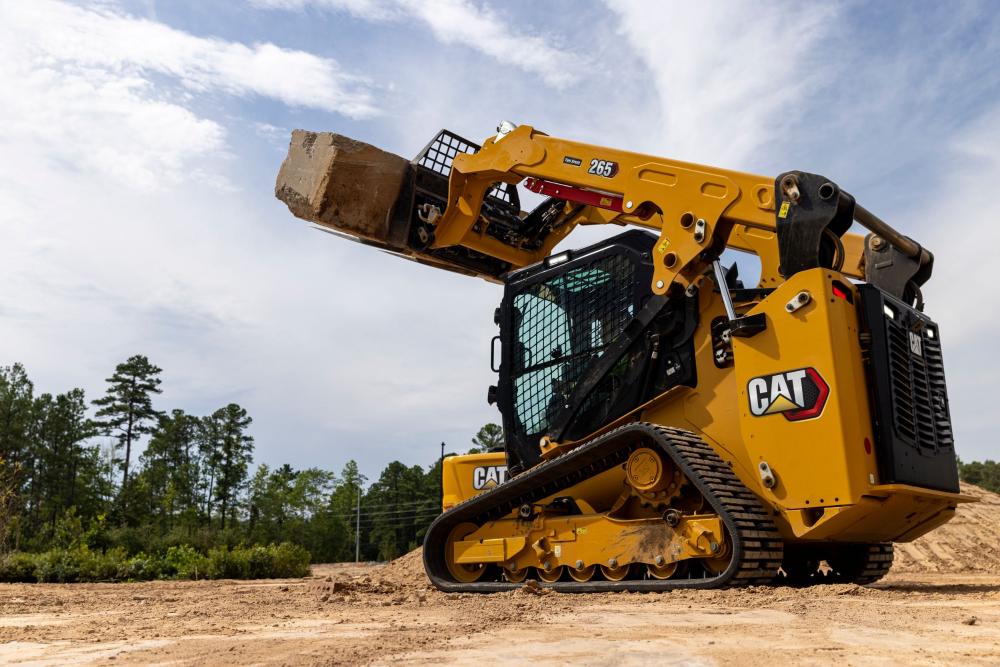

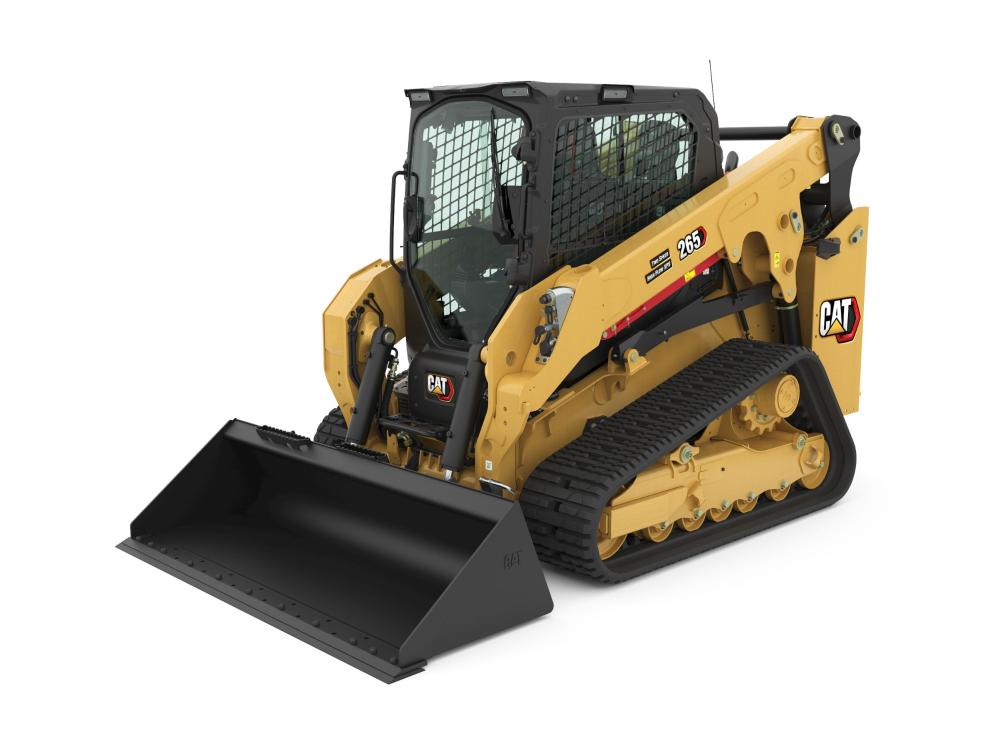

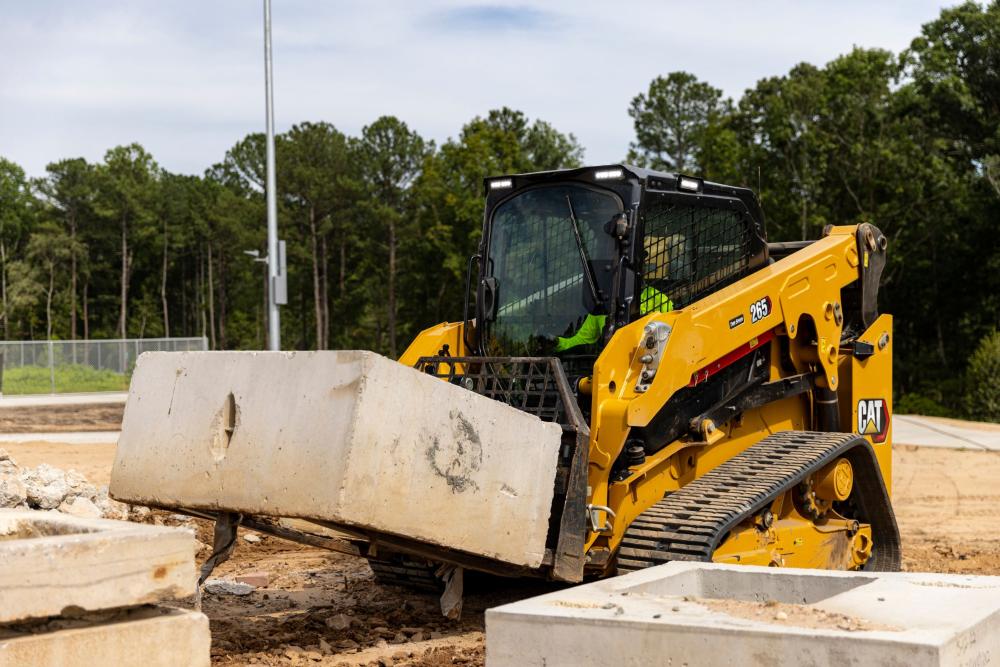

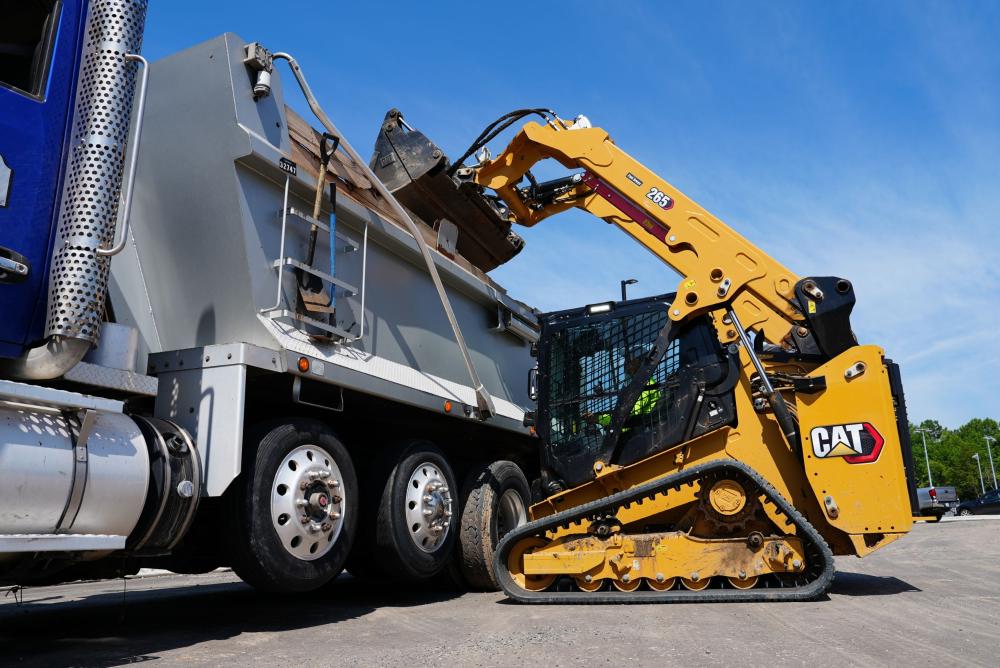

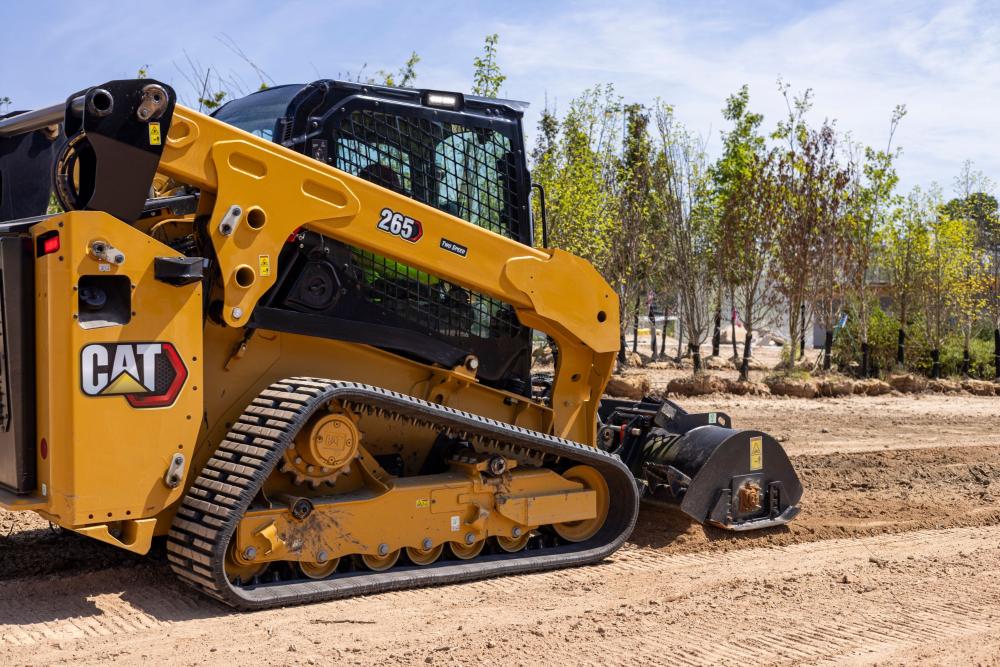

The Cat® 265 Compact Track Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its standard torsion suspension undercarriage system provides superior traction, flotation, stability, and speed to work in a wide range of applications and underfoot conditions
featuring redesigned layout with more cab space and easier entry and exit
Redesigned Operator Station
Ventilated and heated high-back air ride seat
High-performance power train
Three levels of auxiliary hydraulic performance
Electronically controlled Cat C2.8TA engine
Torsion suspension undercarriage and two-speed travel
Advanced Touchscreen Monitor
Advanced Joysticks
Ground-level access
Broad range of performance-matched Cat Attachments

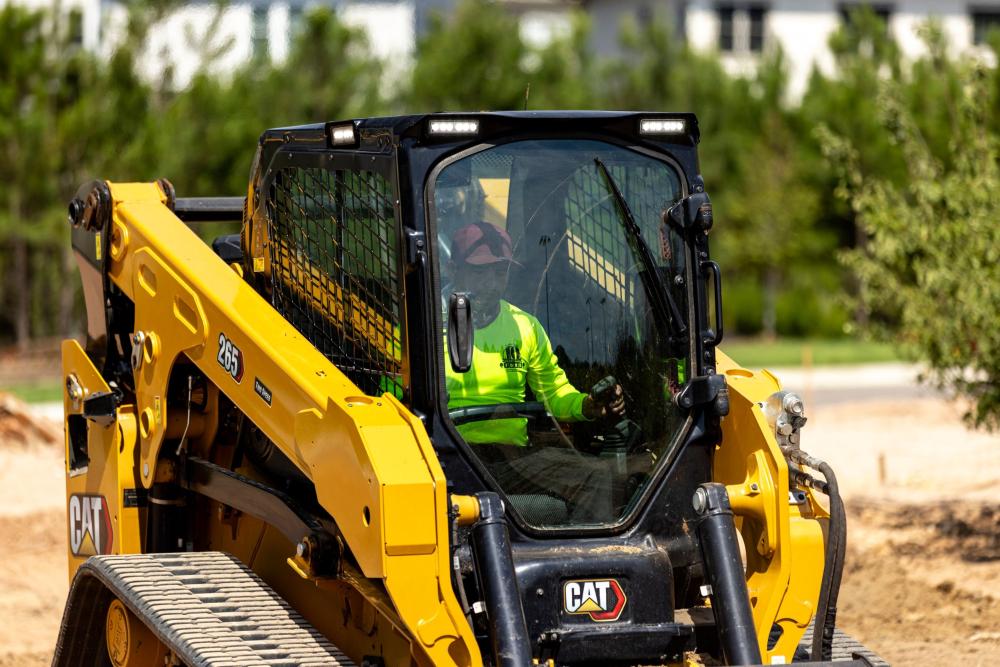

Redesigned Operator Station delivers a larger operating environment, and combined with additional seat travel, the 265 provides more space for operators of any size. The optional one-piece, sealed, and pressurized cab offers a clean and quiet workspace with excellent air distribution through optimally placed vents throughout the cab.

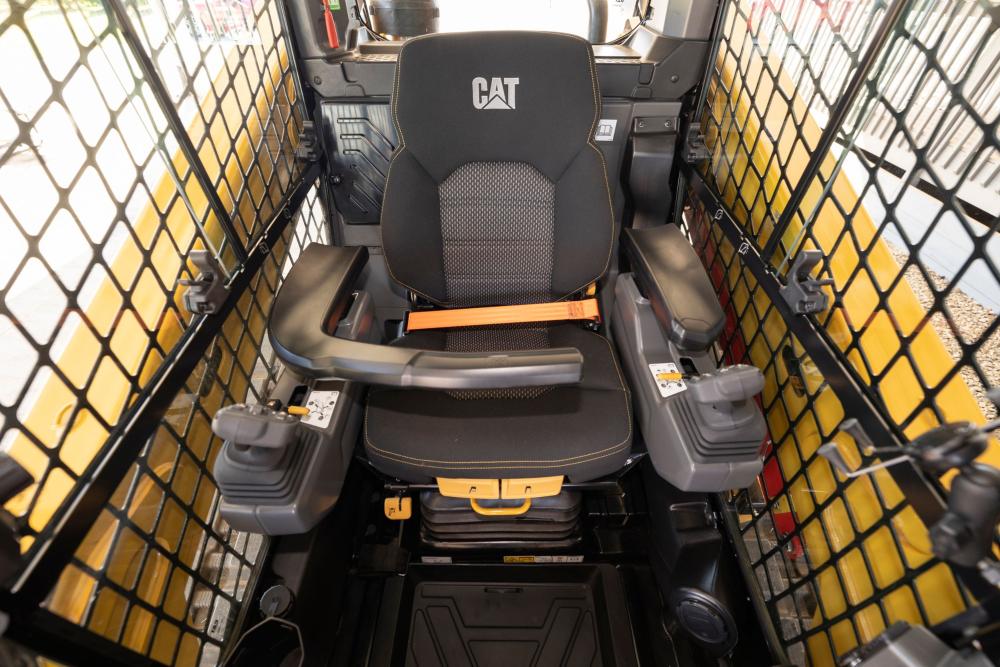

Available ventilated and heated high-back air ride seat with seat mounted adjustable joystick controls deliver industry-leading operator comfort.
High-performance power train provides selectable settings for drive power priority and maximum travel speed (overdrive) to customize the machine performance to match the task.
Three levels of auxiliary hydraulic performance available Standard Flow, High Flow, and High Flow XPS. Standard flow for attachments that require a base level of auxiliary flow and horsepower, High Flow boosts the auxiliary flow for applications that demand additional hydraulic flow for increased attachment performance, and the High Flow XPS hydraulic system provides maximum auxiliary hydraulic performance by delivering additional flow and additional pressure for the most demanding attachments and applications

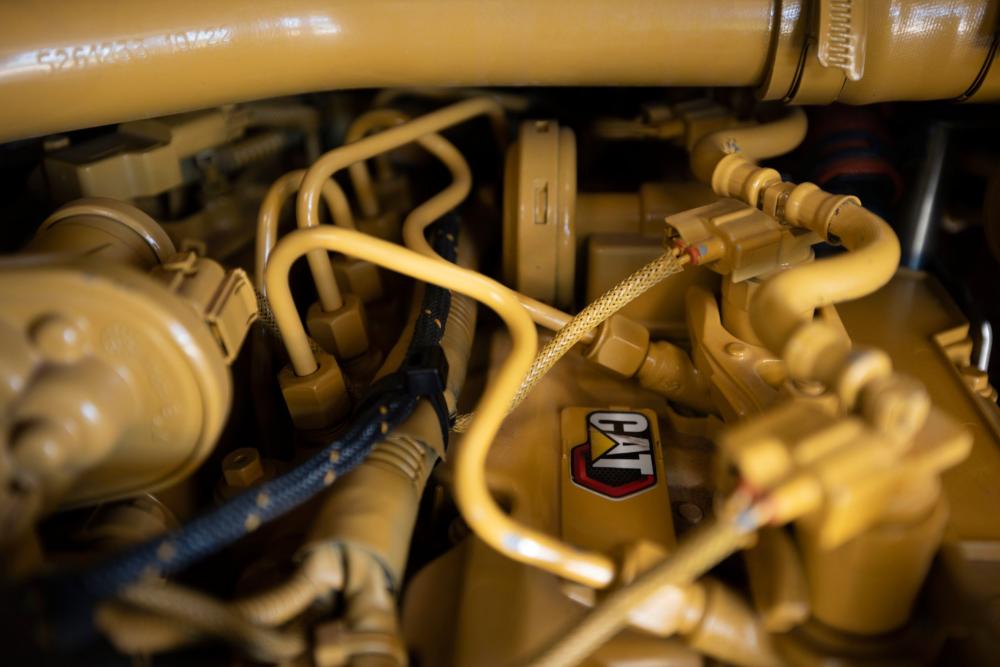

Electronically controlled Cat C2.8TA (turbo after-cooled) engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards while delivering maximum horsepower across a wide RPM range and providing high torque for increased working performance, no matter the application

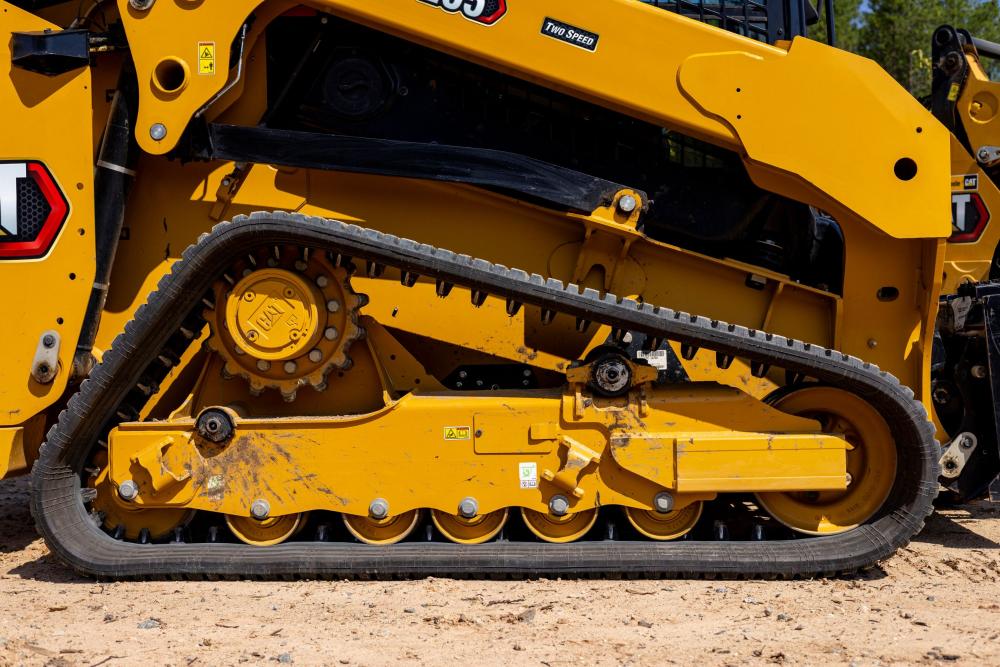

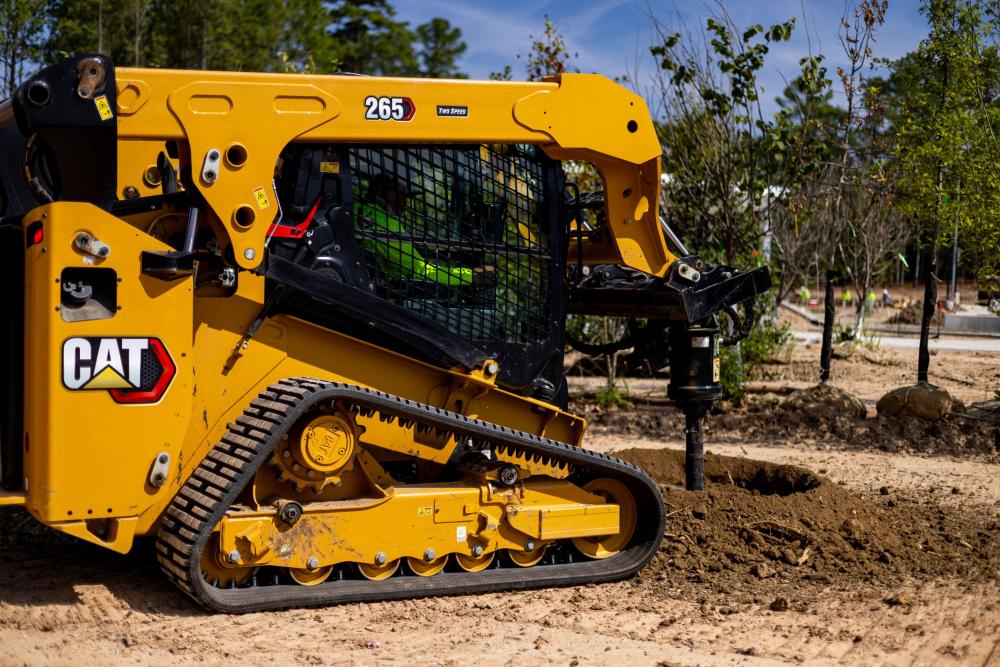

Standard torsion suspension undercarriage and standard two-speed travel, combined with the optional Speed Sensitive Ride Control system improves operation on rough terrain, enabling better load retention, increased productivity, and greater operator comfort.

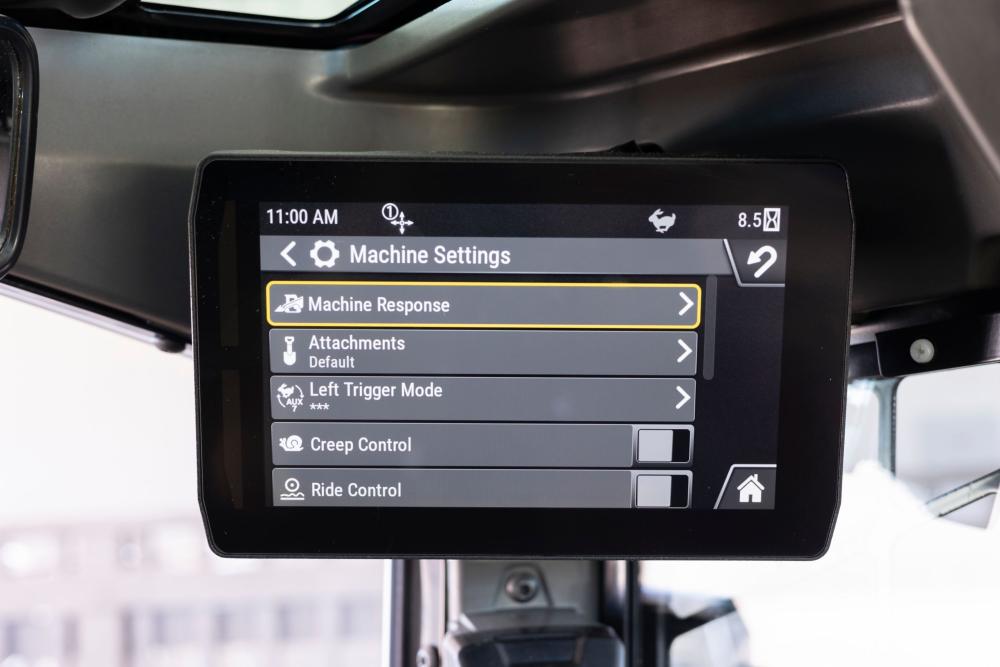

The 20.3 cm (8-inch) Advanced Touchscreen Monitor offers cutting-edge functionality and control that includes an integrated radio, Bluetooth® connectivity, and multi-camera (side-view) option, and supports 32 different language choices.

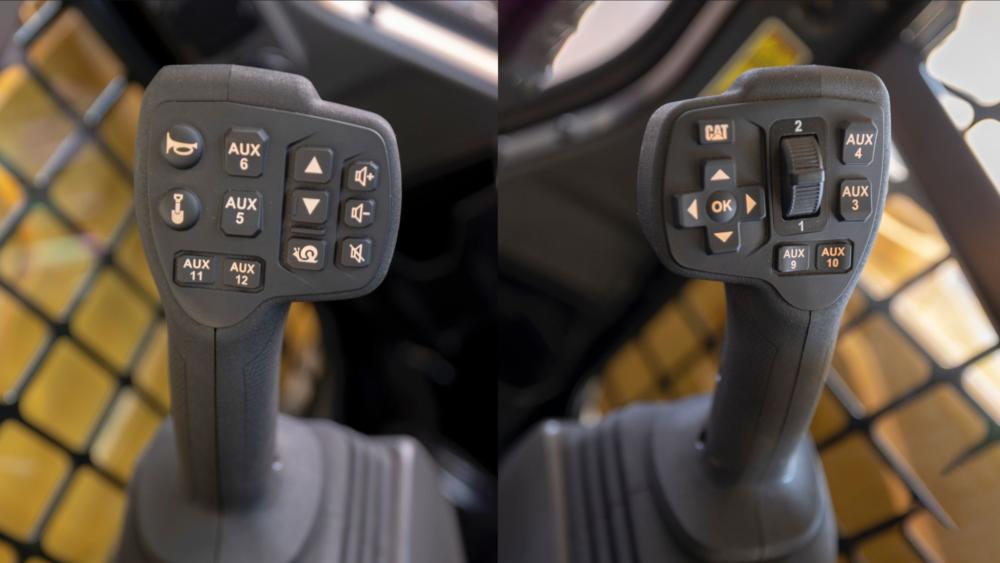

Maximize machine capability and control with the Advanced Joysticks. The Advanced Joysticks provide unmatched control of machine functions and adjustments within the display without the operator having to remove his hands from the controls. This includes the on-joystick navigation of the Advanced Touchscreen Monitor, radio volume up/down/mute, creep activation, creep on/off, creep speed increment/decrement, one-button Smart Attachment control activation, and additional auxiliary control buttons that deliver single-button control of complex attachment functions

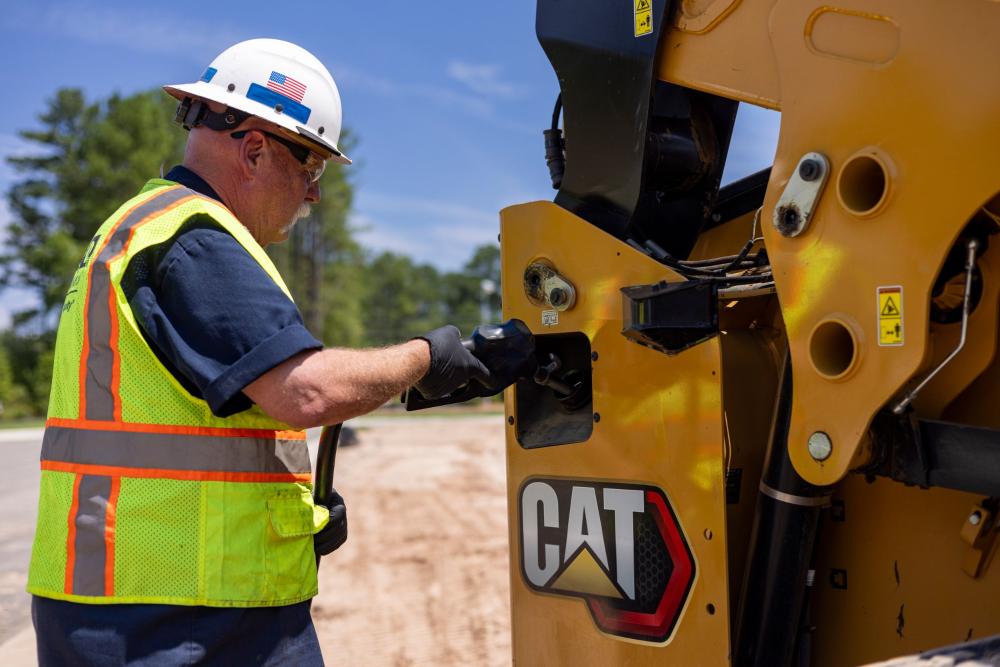

Ground-level access to all daily service and routine maintenance points help reduce machine downtime for greater productivity.

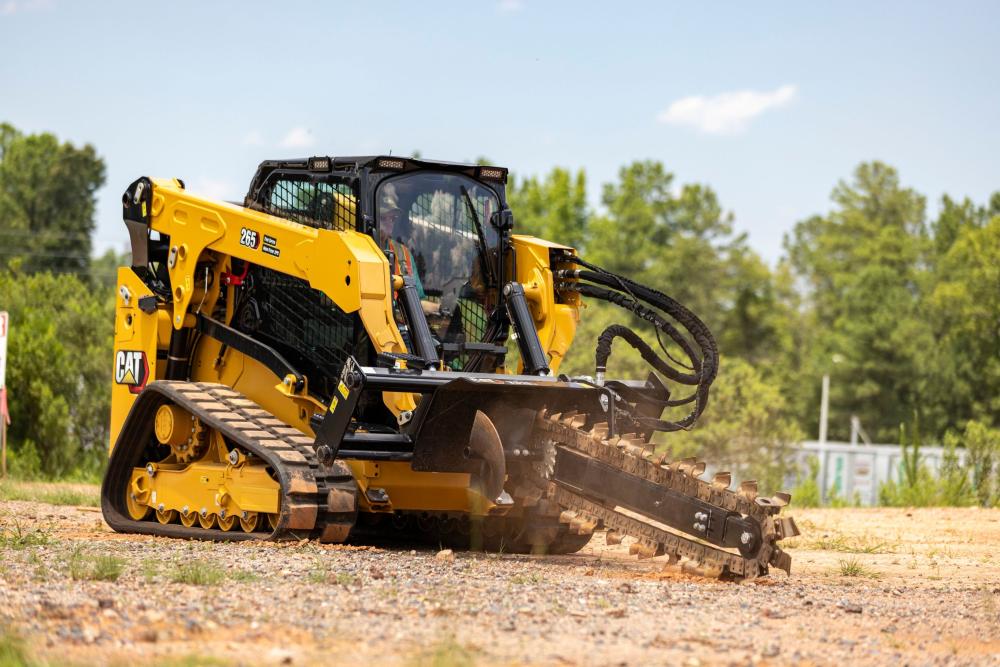

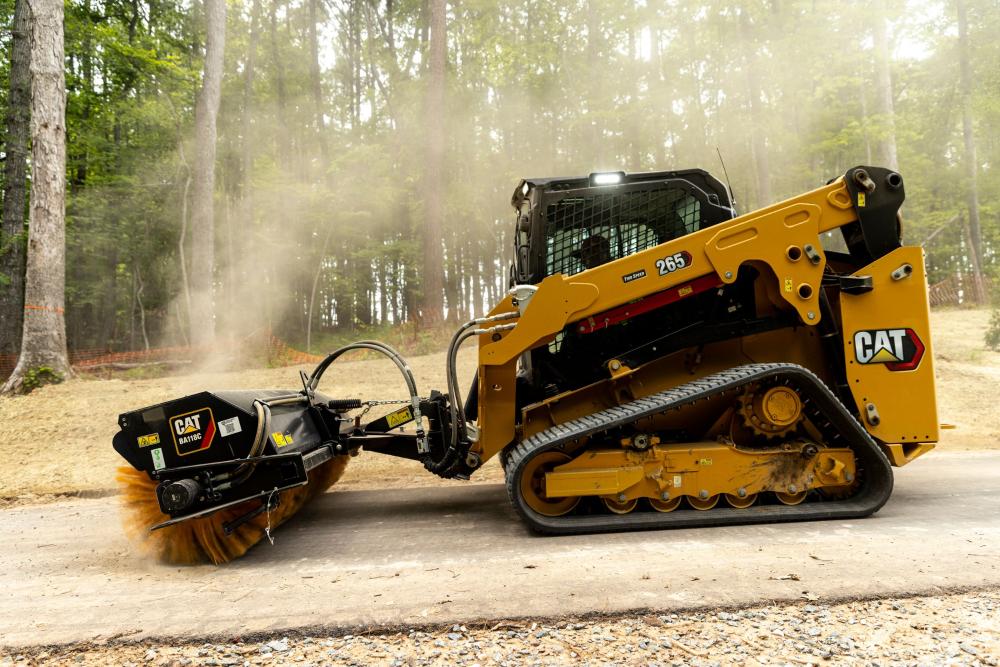

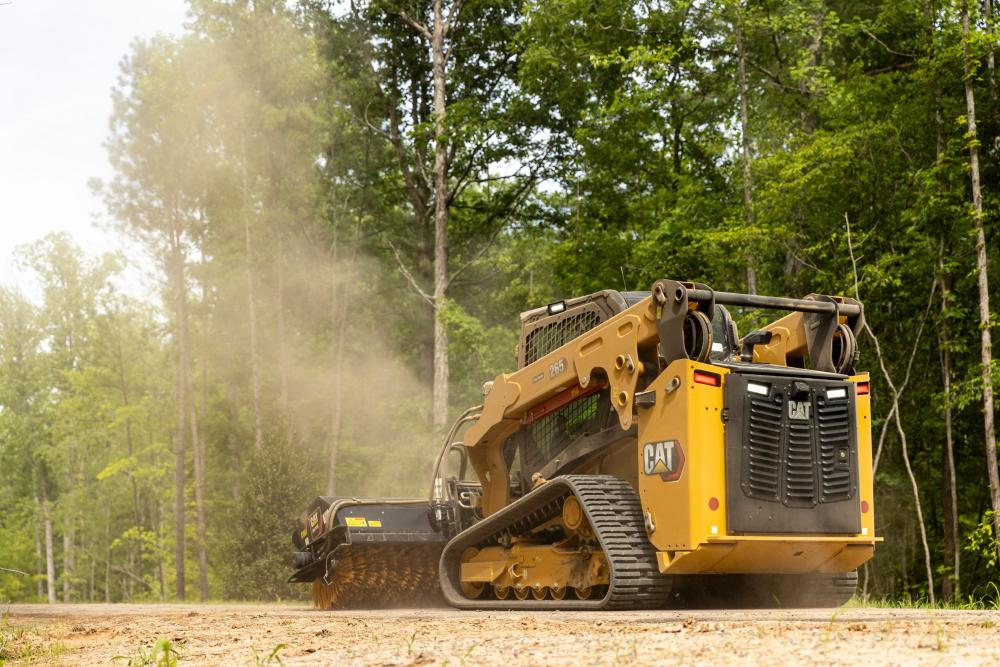

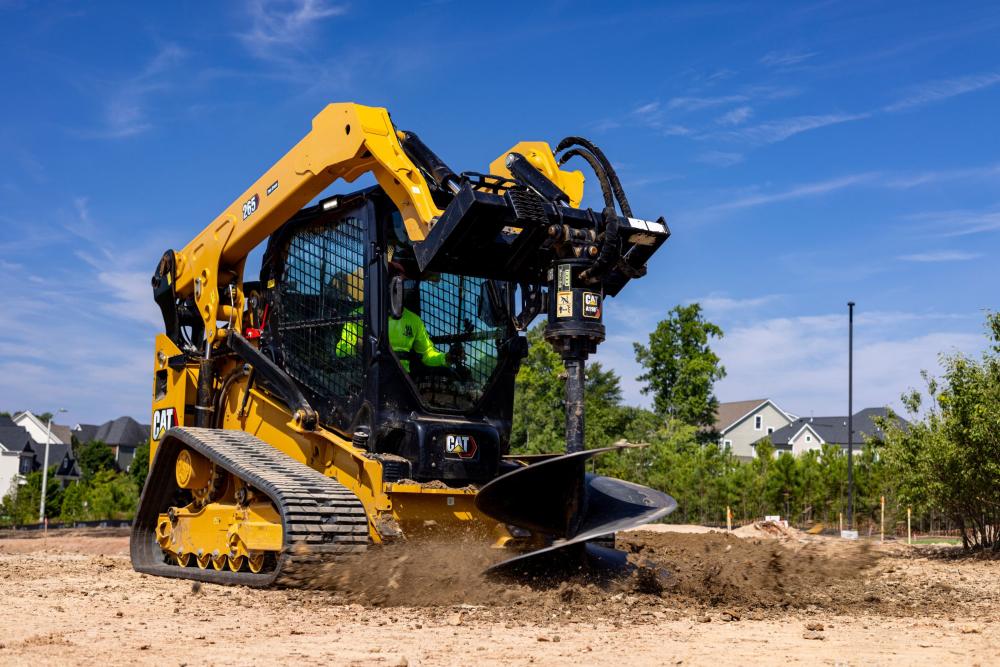

Broad range of performance-matched Cat Attachments make the Cat Compact Track Loaders the most versatile machine on the job site.
Rated Operating Capacity with Optional Counterweight
1359 kg
2996 lb
Tipping Load
3659 kg
8066 lb
Weights*
Operating Weight
4759 kg
10492 lb
Counterweight Adds to Operating Weight
125 kg
276 lb
Counterweight Adds to Operating Weight - ROC (35%)
78 kg
173 lb
Counterweight Adds to Operating Weight - Tip Load
224 kg
494 lb
Enclosed Cab Adds to Operating Weight
82 kg
180 lb
Enclosed Cab Adds to Operating Weight - ROC (35%)
34 kg
75 lb
Enclosed Cab Adds to Operating Weight - Tip Load
97 kg
214 lb
Note
*Operating Weight, Operating Specifications, and Dimensions are based on 2036 mm (80") low profile bucket with bolt on cutting edge, 450 mm (17.7") wide track, 75 kg (165 lb) operator, open canopy, mechanical suspension seat, HD battery with disconnect, standard flow hydraulics, manual coupler, and full fluids. No external counterweights, and no dual self-level/return-to-dig/work tool positioner
Operating Weight - ROC (35%)
1280 kg
2823 lb
Operating Weight - ROC (50%)
1829 kg
4033 lb
Operating Weight - Tip Load
3659 kg
8066 lb
Dimensions
Bucket Pin Height - Carry Position
213 mm
8.4 in
Bucket Pin Height - Maximum Lift
3354 mm
132 in
Bucket Pin Reach - Maximum Lift
249 mm
9.8 in
Clearance at Maximum Lift and Dump
2655 mm
104.5 in
Departure Angle
28.2°
Ground Clearance
216 mm
8.5 in
Height - Top of Cab
2115 mm
83.3 in
Length - Track on Ground
1626 mm
64 in
Length - With Bucket on Ground
3580 mm
140.9 in
Length - Without Bucket
2950 mm
116.1 in
Maximum Overall Height
4173 mm
164.3 in
Maximum Reach - With Arms Parallel to Ground
1187 mm
46.7 in
Overall Length - Track
2126 mm
83.7 in
Rack Back Angle - Maximum Height
85.3°
Reach at Maximum Lift/Dump
638 mm
25.1 in
Roll Back Angle
27°
Turning Radius from Center - Bucket (racked)
2229 mm
87.8 in
Turning Radius from Center - Coupler
1436 mm
56.5 in
Turning Radius from Center - Machine Rear
1741 mm
68.5 in
Vehicle Width (450 mm/17.7 in tracks)
1925 mm
75.8 in
Maximum Dump Angle
46.4°
Cab
FOPS
ISO 3449:2005 Level I
ROPS
ISO 3471:2008
Service Refill Capacities
Cooling System
10.7 l
2.8 gal (US)
Engine Crankcase
8.2 l
2.2 gal (US)
Fuel Tank
120 l
31.7 gal (US)
Hydraulic System
36.8 l
9.7 gal (US)
Hydraulic Tank
26 l
6.9 gal (US)
Power Train
Travel Speed - Forward or Reverse - One Speed
8 km/h
5 mile/h
Travel Speed - Forward or Reverse - Two Speed
13 km/h
8.1 mile/h
Hydraulic System
Hydraulic Flow - High Flow - Hydraulic Power (Calculated)
45.4 kW
60.9 hp
Hydraulic Flow - High Flow - Loader Hydraulic Flow
113 l/min
30 gal/min
Hydraulic Flow - High Flow - Loader Hydraulic Pressure
24130 kPa
3500 psi
Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated)
60.2 kW
80.7 hp
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow
129 l/min
34 gal/min
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure
28000 kPa
4061 psi
Hydraulic Flow - Standard - Hydraulic Power (Calculated)
34.6 kW
46.4 hp
Hydraulic Flow - Standard - Loader Hydraulic Flow
86 l/min
23 gal/min
Hydraulic Flow - Standard - Loader Hydraulic Pressure
