Counterweight Adds to Operating Weight - ROC (35%)
134 kg
296 lb
Counterweight Adds to Operating Weight - Tip Load
384 kg
847 lb
Note
*Operating Weight, Operating Specifications, and Dimensions are all based on 75 kg (165 lb) operator, all fluids, two speed, 2188 mm (86 in) low profile bucket, 400 mm (15.7 in) tracks, dual flange front idler/single flange rear idler, standard flow hydraulics, open Rollover Protective Structure (ROPS) cab,mechanical suspension seat, standard monitor, 1000 CCA battery, no optional counterweights and manual quick coupler (unless otherwise noted).

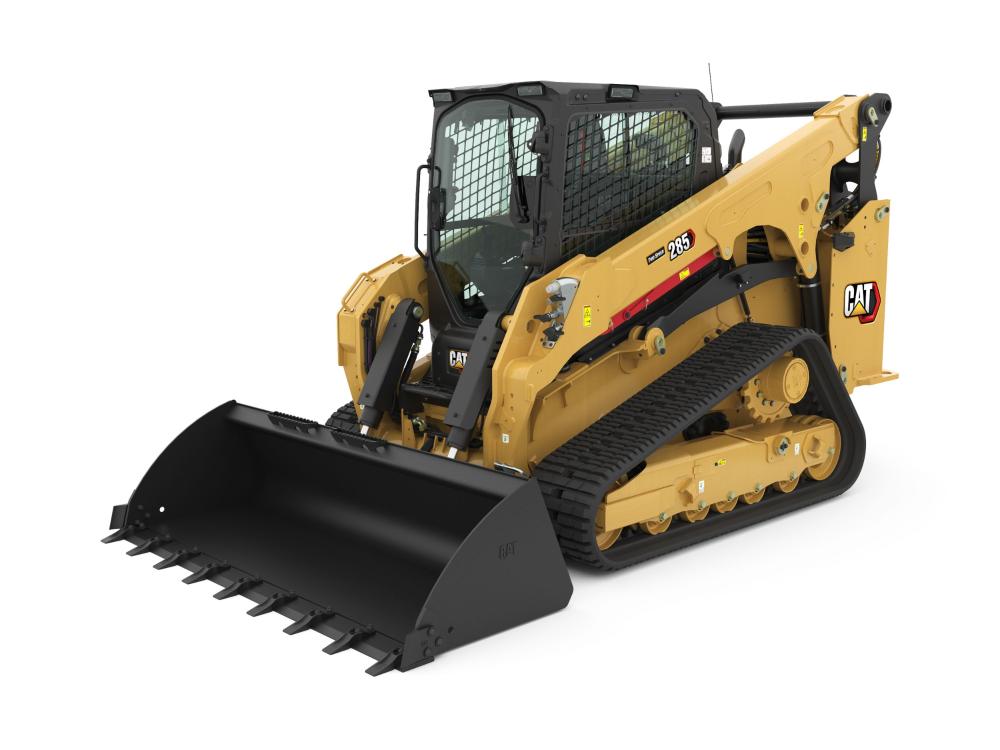

Dimensions
Bucket Pin Height - Carry Position
209 mm
8.2 in

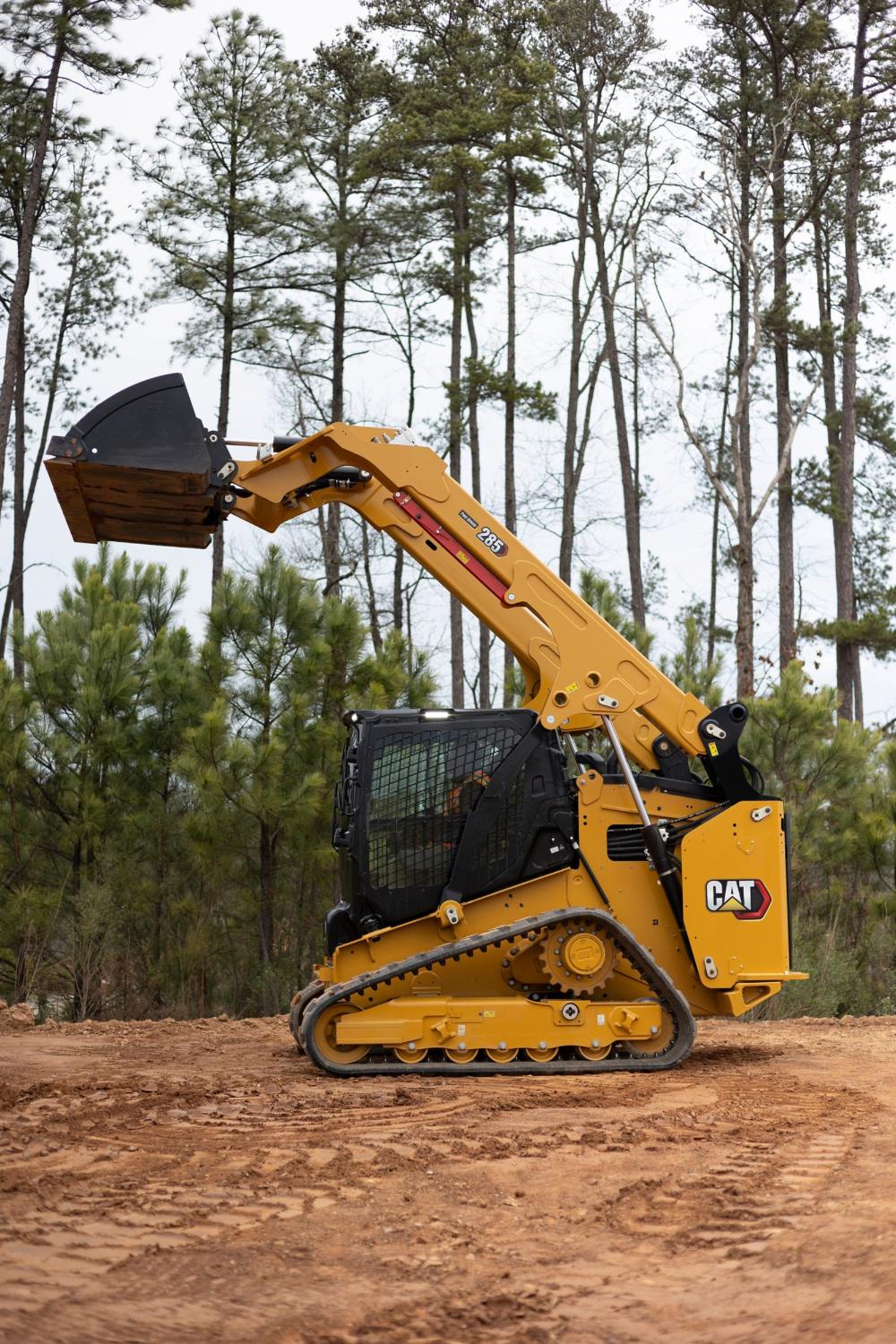

Bucket Pin Height - Maximum Lift
3724 mm
146.6 in
Bucket Pin Reach - Maximum Lift
413 mm
16.3 in
Clearance at Maximum Lift and Dump
3039 mm
119.6 in
Departure Angle
26°
Ground Clearance
280 mm
11 in
Height - Top of Cab
2230 mm
87.8 in

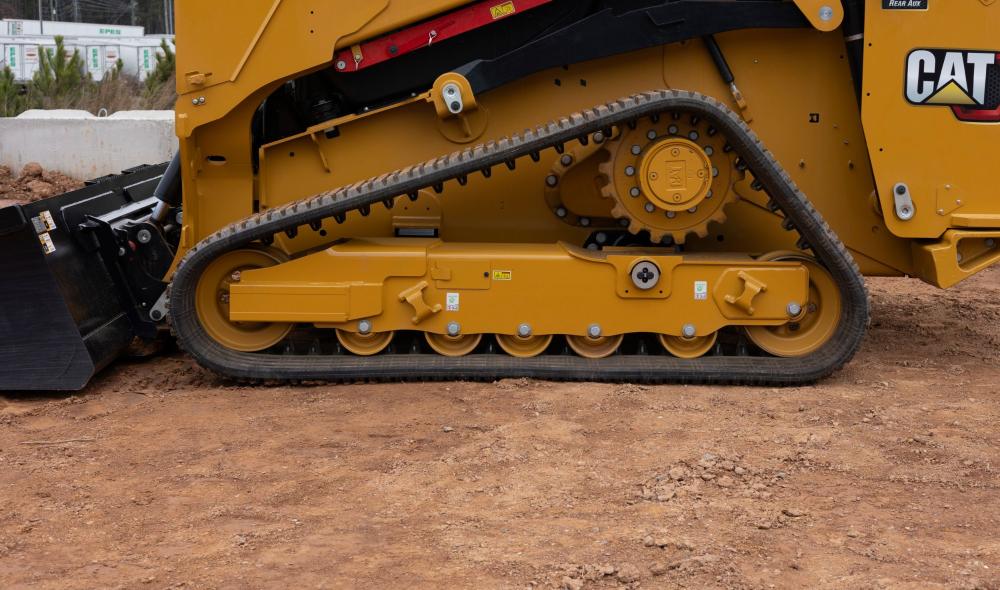

Length - Track on Ground
1830 mm
72 in
Length - With Bucket on Ground
3998 mm
157.4 in
Length - Without Bucket
3360 mm
132.3 in
Maximum Overall Height
4520 mm
178 in
Maximum Reach - With Arms Parallel to Ground
1285 mm
50.6 in
Overall Length - Track
2180 mm
85.8 in
Rack Back Angle - Maximum Height
89°
Reach at Maximum Lift/Dump
882 mm
34.7 in
Roll Back Angle
27.2°
Turning Radius from Center - Bucket (racked)
2400 mm
94.5 in
Turning Radius from Center - Coupler
1578 mm
62.1 in
Turning Radius from Center - Machine Rear
1887 mm
74.3 in
Vehicle Width (450 mm/17.7 in tracks)
2078 mm
81.8 in
Maximum Dump Angle
40.5°

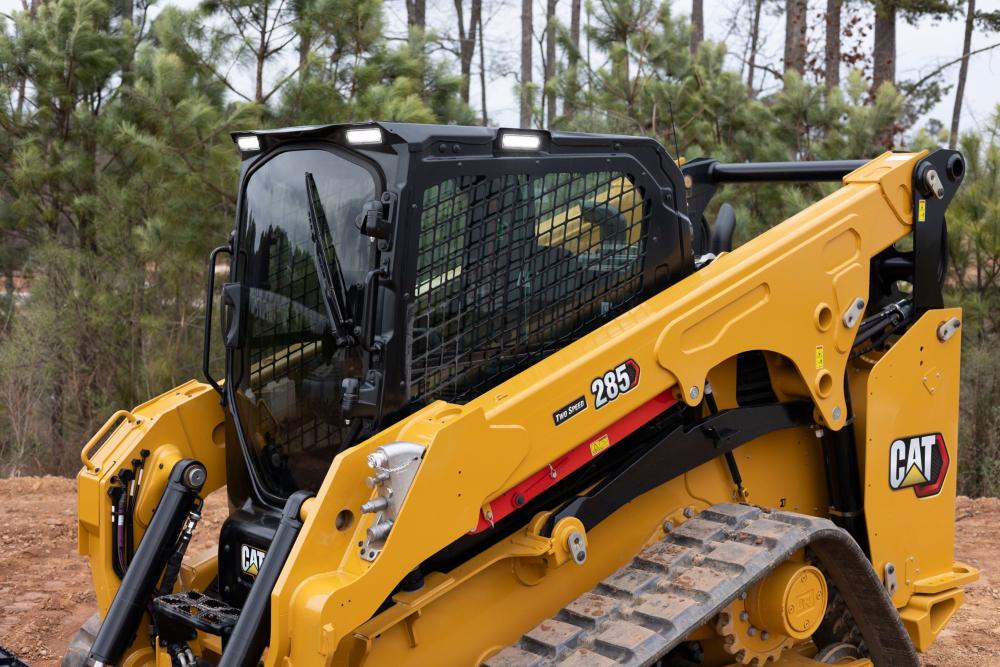

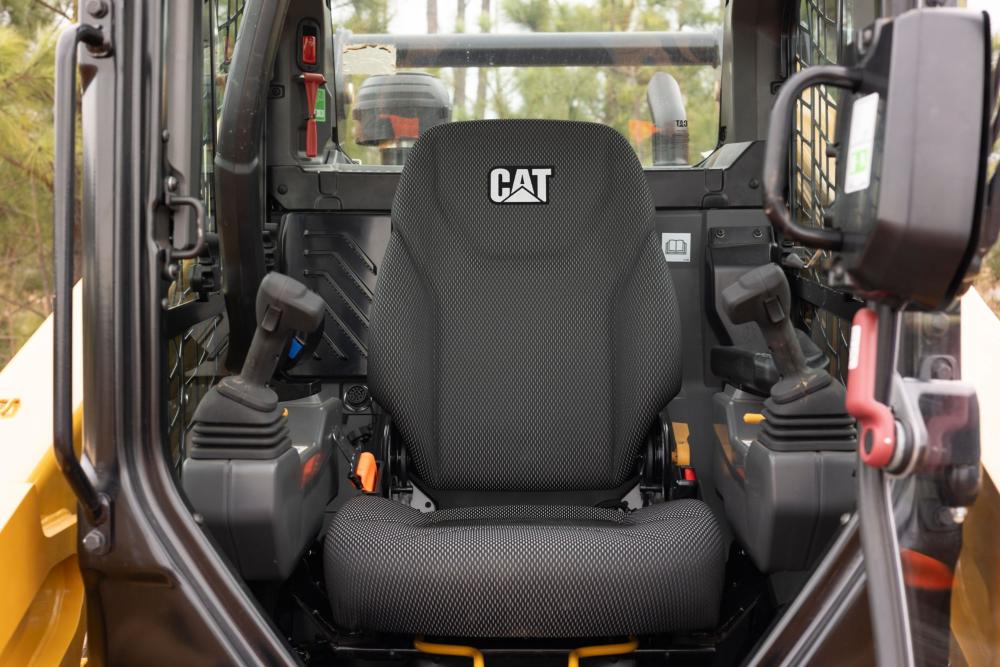

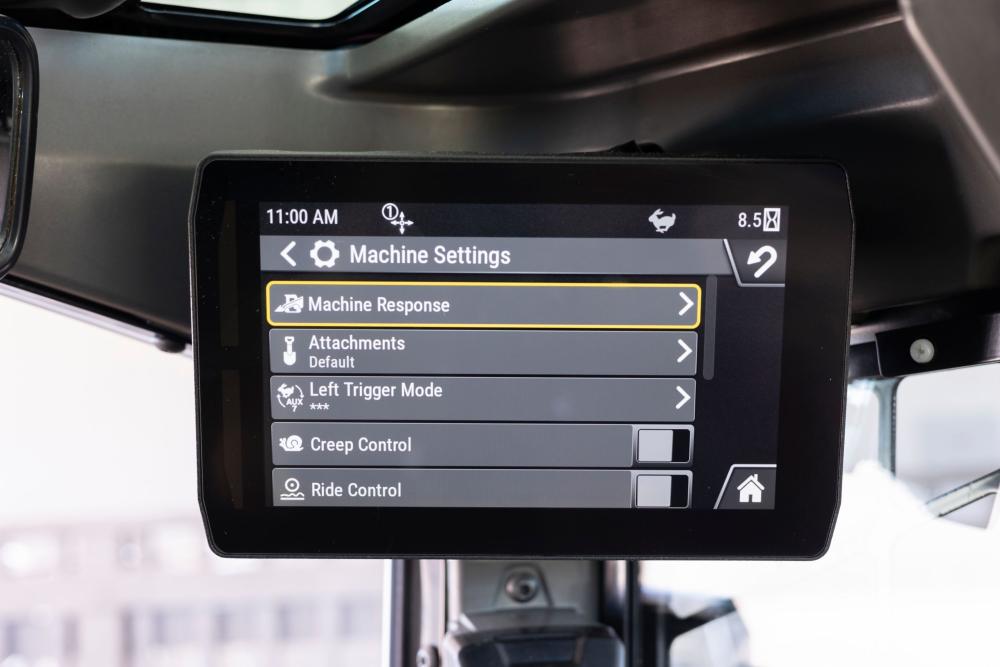

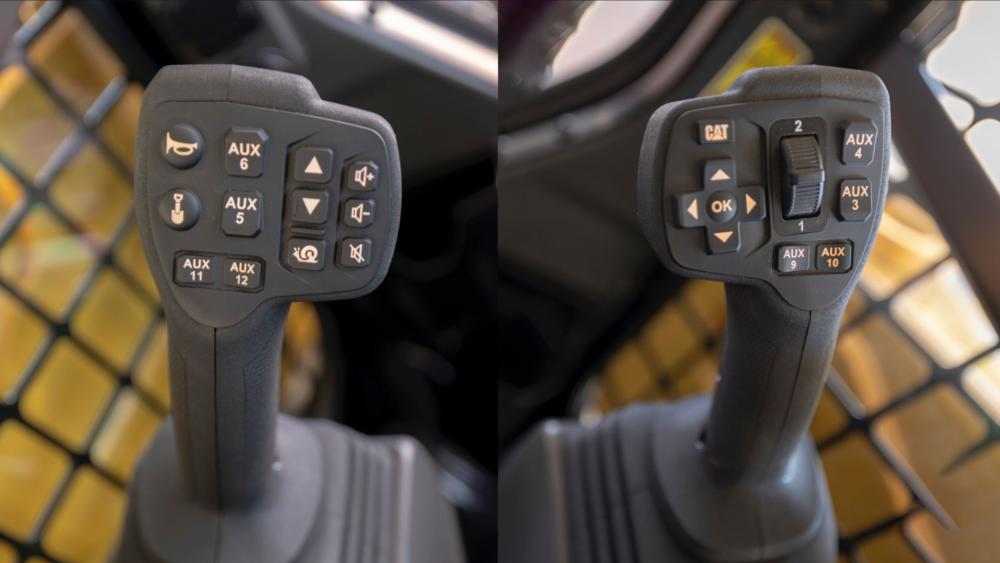

Cab
ROPS
ISO 3471:2008
FOPS
ISO 3449:2005 Level I
FOPS Level II
ISO 3449:2005 Level II (Optional)

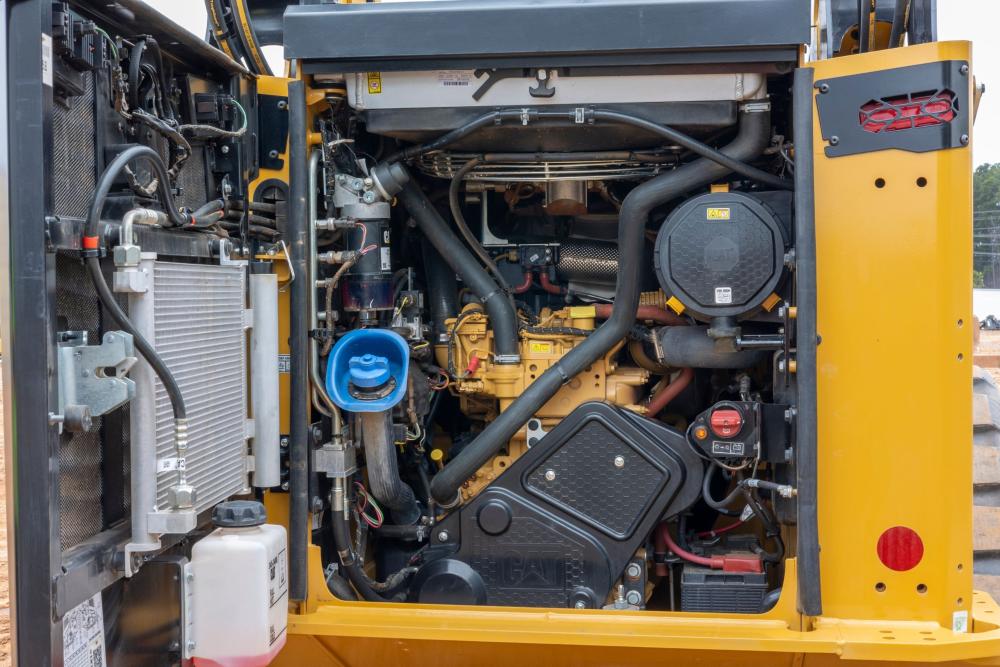

Service Refill Capacities
Cooling System
17.5 l
4.6 gal (US)

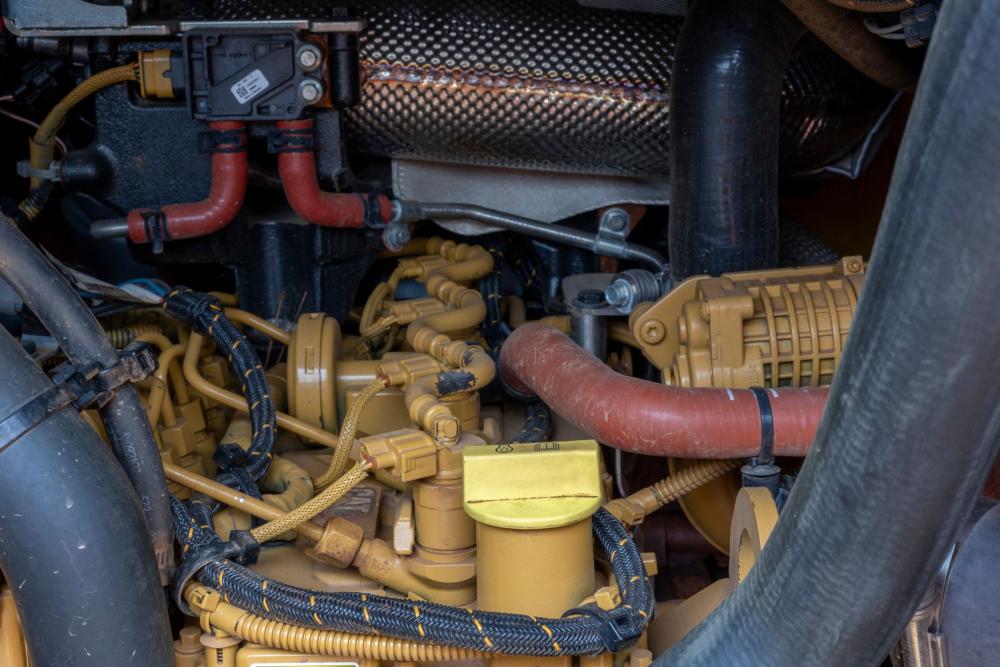

Engine Crankcase
9 l
2.4 gal (US)
Fuel Tank
136.1 l
36 gal (US)
Hydraulic System
41 l
10.8 gal (US)
Hydraulic Tank
26 l
6.9 gal (US)
Diesel Exhaust Fluid (DEF) Tank
11 l
2.9 gal (US)
Power Train
Travel Speed - Forward or Reverse - One Speed
7.8 km/h
4.8 mile/h
Travel Speed - Forward or Reverse - Two Speed
12.4 km/h
7.7 mile/h
Hydraulic System

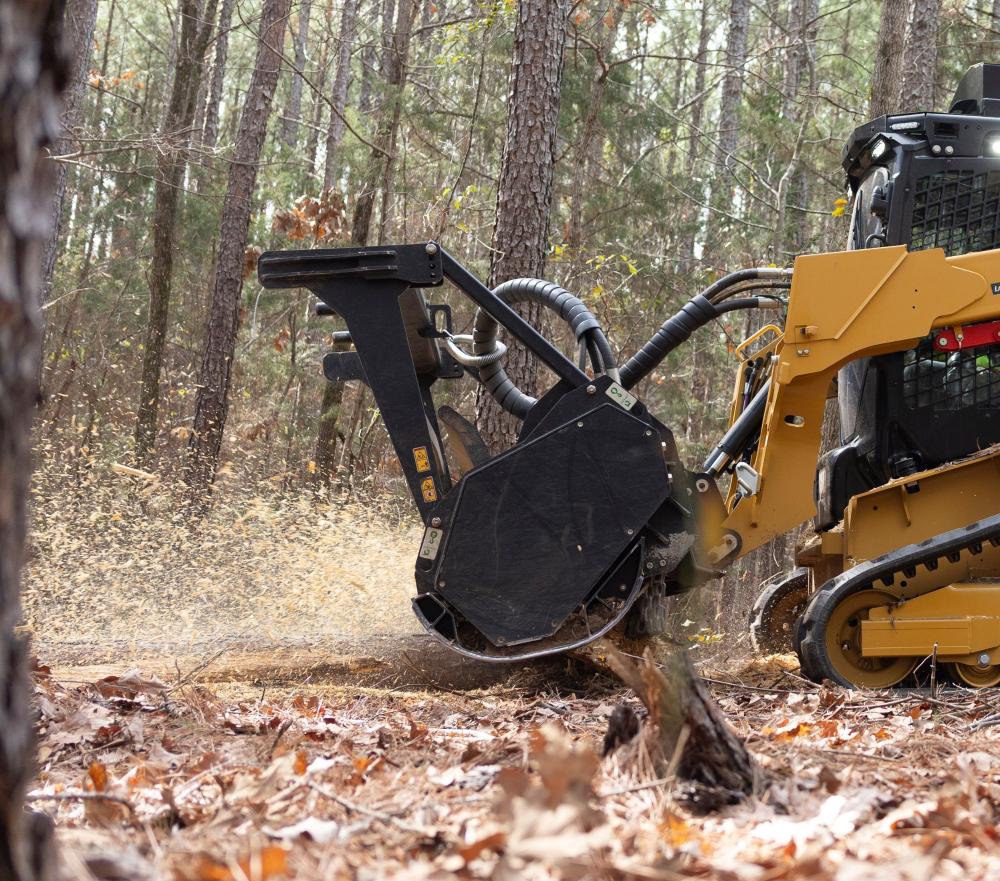

Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated)
60.2 kW
80.7 hp
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow
129 l/min
34 gal/min
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure
28000 kPa
4061 psi
Hydraulic Flow - Standard - Hydraulic Power (Calculated)
34.6 kW
46.4 hp
Hydraulic Flow - Standard - Loader Hydraulic Flow
86 l/min
23 gal/min
Hydraulic Flow - Standard - Loader Hydraulic Pressure
