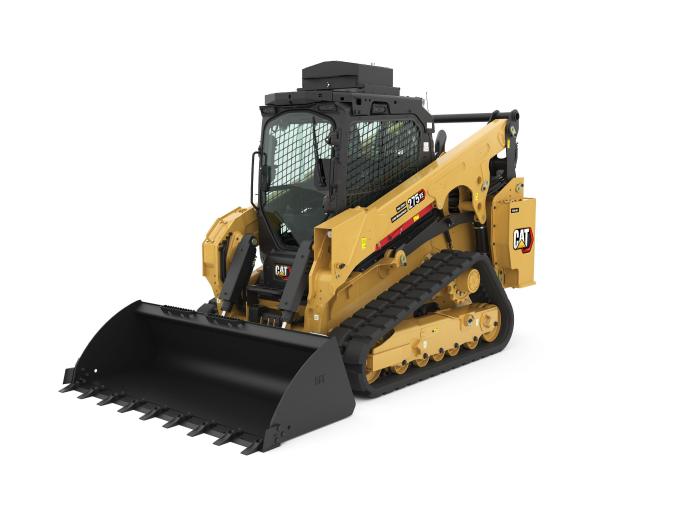

The Cat® 275 XE Compact Track Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its standard equalizer bar (E-bar) undercarriage system and two speed travel provides superior traction, flotation, stability, and speed to work in a wide range of applications and underfoot conditions.
Standard equalizer bar (E-bar) undercarriage and standard two-speed travel
Advanced Touchscreen Monitor
Advanced Joysticks
Ground-level access
Cat Attachments
Redesigned operator station delivers a larger operating environment. Combined with additional seat travel, the 275 XE provides more space for operators of any size. The optional one-piece, sealed, and pressurized cab offers a clean and quiet workspace with excellent air distribution through optimally placed vents throughout the cab.
Available ventilated and heated high-back air ride seat and seat mounted adjustable joystick controls deliver industry-leading operator comfort.
The high-performance power train provides maximum performance and production capability along with standard two speed travel. The optional Speed Sensitive Ride Control system improves material retention and operator comfort when working on rough terrain.
The XE hydraulic system provides the highest flow and highest pressure, delivering great hydraulic horsepower to efficiently run even the most power-hungry attachments.
The electronically controlled Cat C3.6TA (turbocharged, aftercooled) engine delivers maximum horsepower across a wide RPM range. It provides high torque for increased working performance, no matter the application.
The standard E-bar undercarriage provides a hybrid undercarriage solution delivering the benefits of a rigid style undercarriage design when lifting heavy loads or when using heavy attachments while also providing the benefits of an oscillating undercarriage design when encountering rough terrain or obstacles.
The Advanced Touchscreen Monitor offers cutting-edge functionality and control that includes an integrated radio, Bluetooth® connectivity, and multi-camera (side-view) option, and supports 32 different language choices.
Maximize machine capability and control with the Advanced Joysticks. The Advanced Joysticks provide unmatched control of machine functions and adjustments within the display without having to remove your hands from the controls. This includes the on-joystick navigation of the Advanced Touchscreen Monitor, radio volume up/down/mute, creep activation, creep on/off, creep speed increment/decrement, one-button Smart Attachment control activation, and additional auxiliary control buttons that deliver single-button control of complex attachment functions.
Ground-level access to all daily service and routine maintenance points helps reduce machine downtime for greater productivity.
Make your Cat Compact Track Loader the most versatile machine on the job site with the wide range of Cat attachments.
Rated Operating Capacity with Optional Counterweight
1359 kg
2996 lb
Tipping Load
5450 kg
12015 lb
Weights*
Operating Weight
5763 kg
12705 lb
Counterweight Adds to Operating Weight
194 kg
428 lb
Counterweight Adds to Operating Weight - ROC (35%)
126 kg
279 lb
Counterweight Adds to Operating Weight - Tip Load
361 kg
796 lb
Enclosed Cab Adds to Operating Weight
99 kg
218 lb
Enclosed Cab Adds to Operating Weight - ROC (35%)
48 kg
105 lb
Enclosed Cab Adds to Operating Weight - Tip Load
136 kg
214 lb
Operating Weight - ROC (35%)
1908 kg
4205 lb
Operating Weight - ROC (50%)
2725 kg
6008 lb
Operating Weight - Tip Load
5450 kg
12015 lb
Note
* Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, two speed (variable), 2036 mm (80 in) low profile bucket, 400 mm (15.7 in) tracks, triple flange front/rear idler, XE (H6) hydraulics with rear auxiliary, enclosed cab with glass door, side windows, heater, air ride suspension seat, advanced monitor, 1000 CCA battery, no optional counterweights and manual quick coupler (unless otherwise noted).
Dimensions
Bucket Pin Height - Carry Position
205 mm
8.1 in
Bucket Pin Height - Maximum Lift
3415 mm
134.4 in
Bucket Pin Reach - Maximum Lift
415 mm
16.3 in
Clearance at Maximum Lift and Dump
2694 mm
106.1 in
Departure Angle
29.5°
Ground Clearance
280 mm
11 in
Height - Top of Cab
2230 mm
87.8 in
Length - Track on Ground
1836 mm
72.3 in
Length - With Bucket on Ground
3880 mm
152.8 in
Length - Without Bucket
3250 mm
128 in
Maximum Overall Height
4193 mm
165.1 in
Maximum Reach - With Arms Parallel to Ground
1171 mm
46.1 in
Overall Length - Track
2341 mm
92.2 in
Rack Back Angle - Maximum Height
86.7°
Reach at Maximum Lift/Dump
814 mm
32 in
Roll Back Angle
27.3°
Turning Radius from Center - Bucket (racked)
2320 mm
91.3 in
Turning Radius from Center - Coupler
1531 mm
60.3 in
Turning Radius from Center - Machine Rear
1931 mm
76 in
Vehicle Width (450 mm/17.7 in tracks)
1976 mm
77.8 in
Maximum Dump Angle
44.7°
Cab
FOPS
ISO 3449:2005 Level I
ROPS
ISO 3471:2008
FOPS Level II
ISO 3449:2005 Level II (Optional)
Service Refill Capacities
Cooling System
17.5 l
4.6 gal (US)
Engine Crankcase
9 l
2.4 gal (US)
Fuel Tank
136.1 l
36.9 gal (US)
Hydraulic System
41 l
10.8 gal (US)
Hydraulic Tank
26 l
6.9 gal (US)
Diesel Exhaust Fluid (DEF) Tank
11 l
2.9 gal (US)
Power Train
Travel Speed - Forward or Reverse - One Speed
8.4 km/h
5.2 mile/h
Travel Speed - Forward or Reverse - Two Speed
12.5 km/h
7.8 mile/h
Hydraulic System
Hydraulic Flow - XE - Maximum Loader Hydraulic Pressure
31000 kPa
4496 psi
Hydraulic Flow - High Flow - Loader Hydraulic Flow
129 l/min
34 gal/min
Hydraulic Flow - XE - Maximum Loader Hydraulic Flow*
150 l/min
40 gal/min
Hydraulic Flow - High Flow - Loader Hydraulic Pressure
24130 kPa
3500 psi
Hydraulic Flow - XE - Hydraulic Power (calculated)
77.5 kW
103.9 hp
Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated)
60.2 kW
80.7 hp
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow
86 l/min
23 gal/min
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure
2800 kPa
4061 psi
Hydraulic Flow - Standard - Hydraulic Power (Calculated)
34.6 kW
46.4 hp
Hydraulic Flow - Standard - Loader Hydraulic Flow
86 l/min
23 gal/min
Hydraulic Flow - Standard - Loader Hydraulic Pressure
