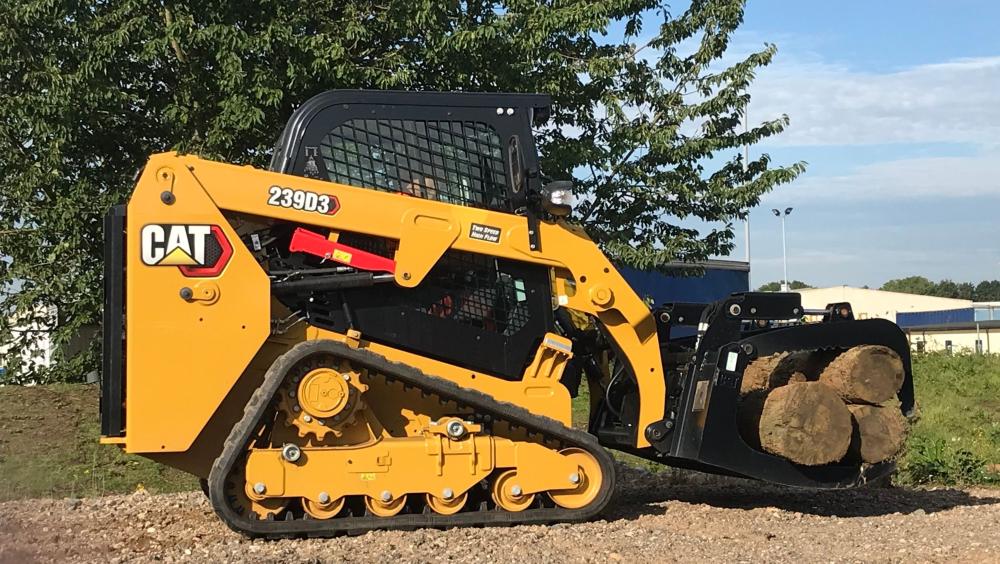

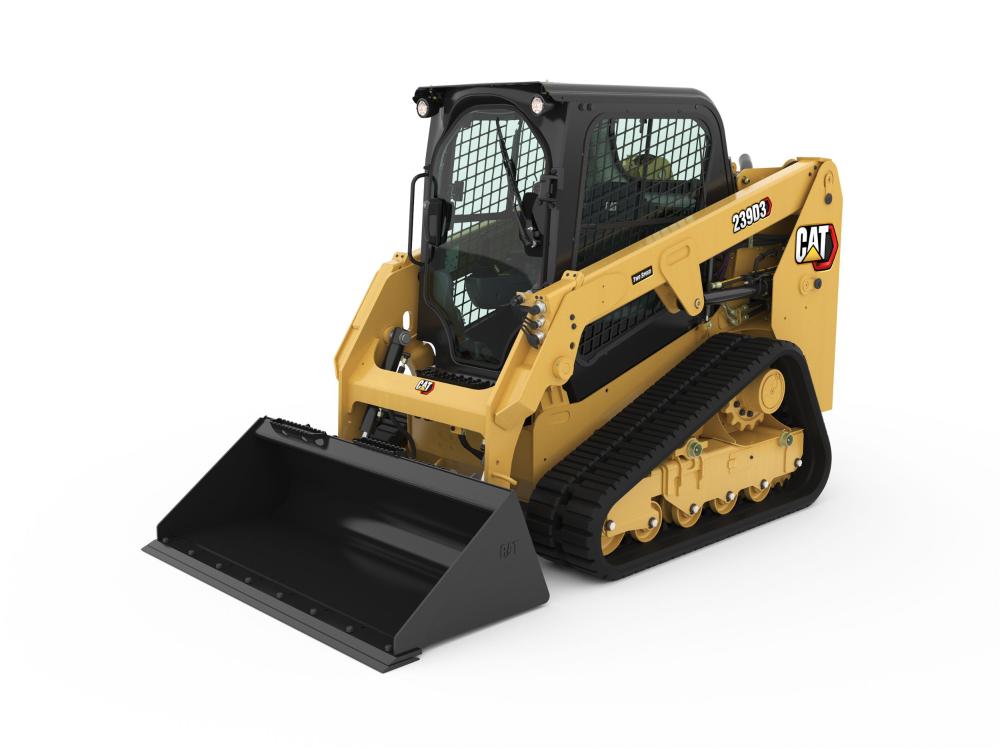

The Cat® 239D3 Compact Track Loader, with its radial lift design, delivers impressive mid-lift reach and excellent digging performance with outstanding drawbar power. Its standard, suspended undercarriage system provides superior traction, flotation, stability and speed to work in a wide range of applications and underfoot conditions.
•Redesigned, More Comfortable Cab •Wider opening door for easier machine entry
PERFORMANCE
•Improved Performance-Tuned Suspension •Customer Driven Enhancements to Fuel System and Drive Train
SMART
•Providing the Next Level Machine and Tool Compatibility •Integrated SMART technology to automate complex attachments – INDUSTRY FIRSTS -Attachment Recognition -Tailors Controls -Grade Assist
Quiet and Comfortable
Maximum Performance
Making Your Job Easier
A Smooth Ride
Optimized Machine Capability
Sustainability

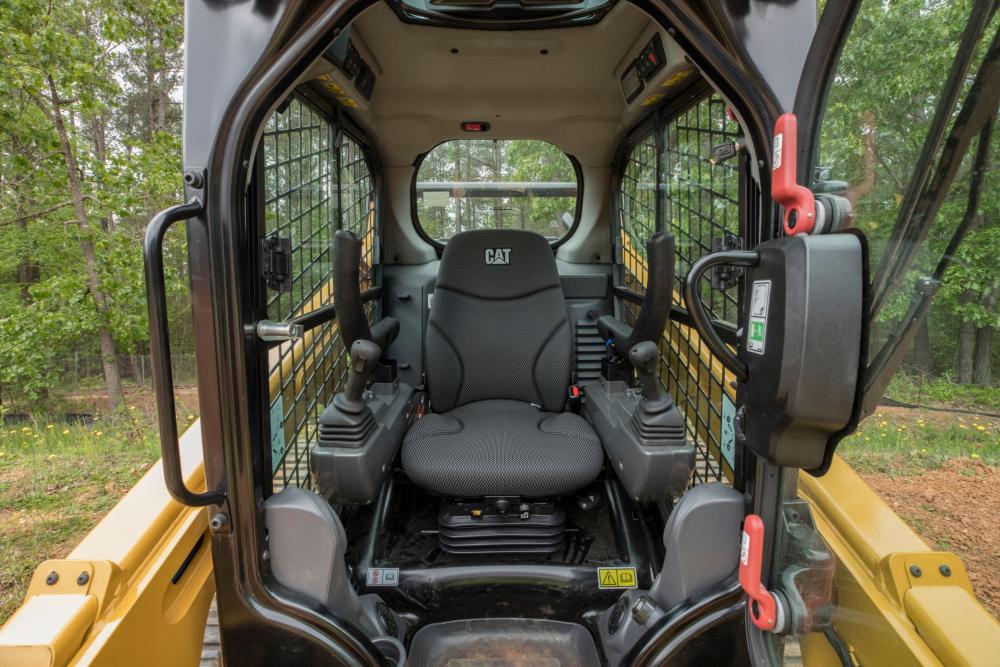

The industry leading sealed and pressurized cab option provides the operator with a cleaner and quieter operating environment with excellent work tool visibility. Continuing the industry leading trend, the D3 Series also includes as standard, seat mounted adjustable joystick controls for operator comfort.

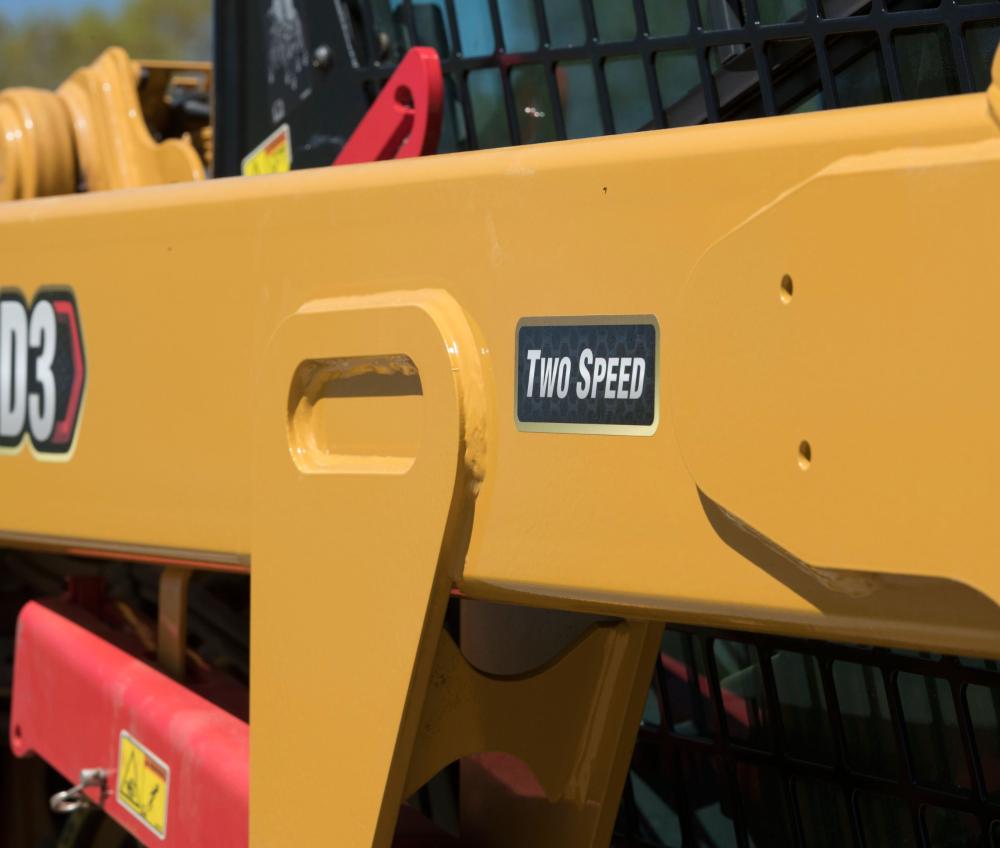

High performance power train provides maximum performance and production capability through the Electronic Torque Management system, standard two speed travel and an electronic hand/foot throttle with decel pedal capability.
Cat® “Intelligent Leveling” system provides industry leading technology, integration, and available features such as dual direction self level, work tool return to dig, and work tool positioner.

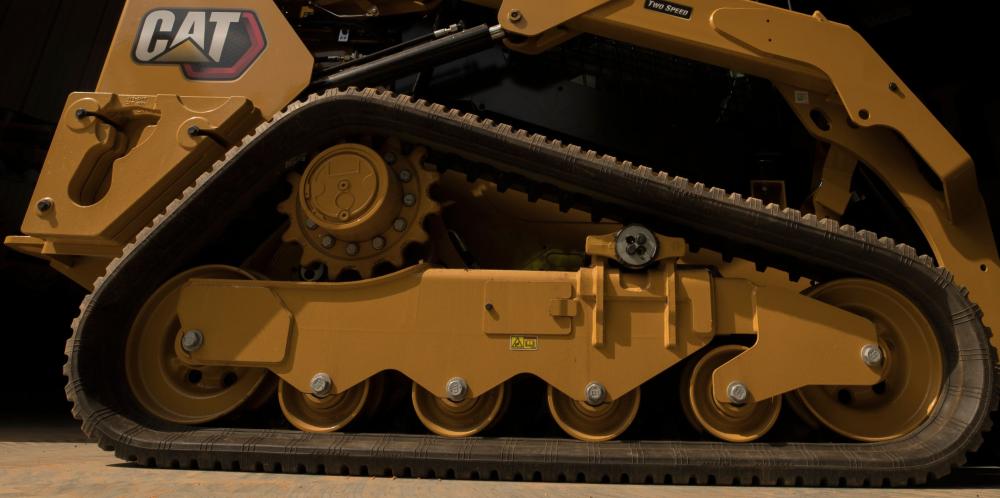

A standard, fully independent torsion axle suspension combined with the optional Speed Sensitive Ride Control system improves operation on rough terrain, enabling better load retention, increased productivity and greater operator comfort.

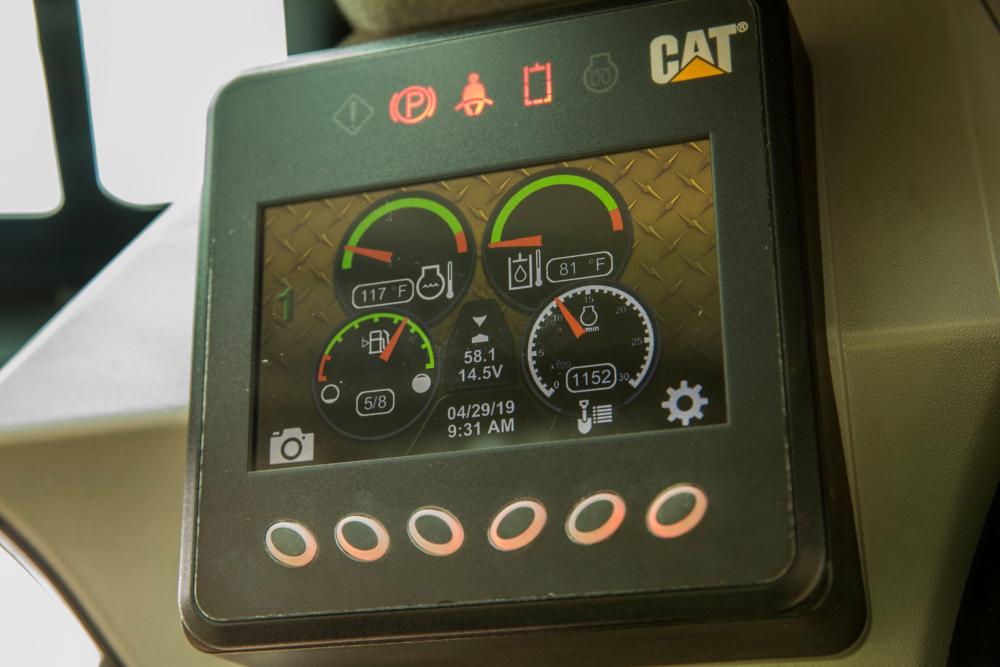

Maximize machine capability and control with the available Advanced Display, providing on-screen adjustments for implement response, hystat response and creep control. Also features multi-language functionality with customizable layouts, security system and rearview camera.
The Cat® C2.2 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester). Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Cat® Extended Life Coolant and long-life HYDO Advanced hydraulic fluids not only reduce downtime but help decrease the amount of fluid and filters that are replaced over the life of the machine.
Boost productivity with Cat technologies like work tool positioner, return to dig, and Cat Smart Attachments.
Save fuel and reduce your greenhouse gas emissions with efficiency features such as foot throttle pedal and cooling system demand fan.
Rated Operating Capacity with Optional Counterweight
1090 kg
2400 lb
Ground Contact Area - With 320 mm/12.6 in Track
0.89 m²
1373 in²
Ground Pressure - With 320 mm/12.6 in Track
37.3 kPa
5.4 psi
Note
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1730 mm (68 in) low profile bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C1 cab (OROPS, mechanical seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted).
Ground Contact Area - With 400 mm/15.7 in Track
1.11 m²
1716 in²
Ground Pressure - With 400 mm/15.7 in Track
30.6 kPa
4.4 psi
Rated Operating Capacities - 50% Tipping Load
995 kg
2185 lb
Weights
Operating Weight
3372 kg
7434 lb
Note
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1730 mm (68 in) low profile bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C1 cab (OROPS, mechanical seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted).
Dimensions
Vehicle Width (320 mm/12.6 in tracks)
1676 mm
66 in
Ground Clearance
195 mm
7.7 in
Length - With Bucket on Ground
3234 mm
127.3 in
Length - Without Bucket
2522 mm
99.3 in
Maximum Reach - With Arms Parallel to Ground
1356 mm
53.4 in
Turning Radius from Center - Bucket
2069 mm
81.5 in
Overall Length - Track
1808 mm
71.2 in
Reach - Maximum Lift/Dump
563 mm
22.2 in
Vehicle Width (400 mm/15.7 in tracks)
1756 mm
69.1 in
Maximum Overall Height
3645 mm
143.5 in
Bucket Pin Height - Carry Position
218 mm
8.6 in
Length - Track on Ground
1384 mm
54.5 in
Clearance at Maximum Lift and Dump
2057 mm
81 in
Bucket Pin Height - Maximum Lift
2825 mm
111.2 in
Departure Angle
34.5°
Rack Back Angle - Maximum Height
85.5°
Turning Radius from Center - Coupler
1159 mm
45.6 in
Note
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, 1730 mm (68 in) low profile bucket, 320 mm (12.6 in) tracks, standard flow hydraulics, C1 cab (OROPS, mechanical seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted).
Height - Top of Cab
2034 mm
80.1 in
Maximum Dump Angle
50.3°
Turning Radius from Center - Machine Rear
1458 mm
57.4 in
Cab
ROPS
ISO 3471:2008
FOPS
ISO 3449:2005 Level I
Service Refill Capacities
Cooling System
12 l
3.2 gal (US)
Engine Crankcase
10 l
2.6 gal (US)
Fuel Tank
57 l
15.1 gal (US)
Hydraulic System
45 l
11.9 gal (US)
Hydraulic Tank
34 l
9 gal (US)
Hydraulic System
Hydraulic Flow - High Flow - Loader Hydraulic Flow
99 l/min
26 gal/min
Hydraulic Flow - Standard - Loader Hydraulic Pressure
23000 kPa
3336 psi
Hydraulic Flow - Standard - Loader Hydraulic Flow
69 l/min
18 gal/min
Hydraulic Flow - High Flow - Loader Hydraulic Pressure
23000 kPa
3336 psi
Hydraulic Flow - High Flow - Hydraulic Power (Calculated)
38 kW
50.9 hp
Hydraulic Flow - Standard - Hydraulic Power (Calculated)
26.5 kW
35.5 hp
Power Train
Travel Speed - Forward or Reverse - Two Speed
12.2 km/h
7.6 mile/h
Travel Speed - Forward or Reverse - One Speed
8.1 km/h
5 mile/h
Noise Level
Note (2)
**The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
Outside Cab***
103 dB(A)
103 dB(A)
Note (3)
***The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
Note (1)
Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Inside Cab**
83 dB(A)
83 dB(A)
Air Conditioning System (if equipped)
Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.81 kg of refrigerant which has a CO2 equivalent of 1.158 metric tonnes.
