232D3 Skid Steer Loader

Units of measurement :

Metric

Imperial

Gross Power - SAE J1995

50.1 kW

Rated Operating Capacity

865 kg

Operating Weight

2955 kg

Availability

Purchase Rental Used

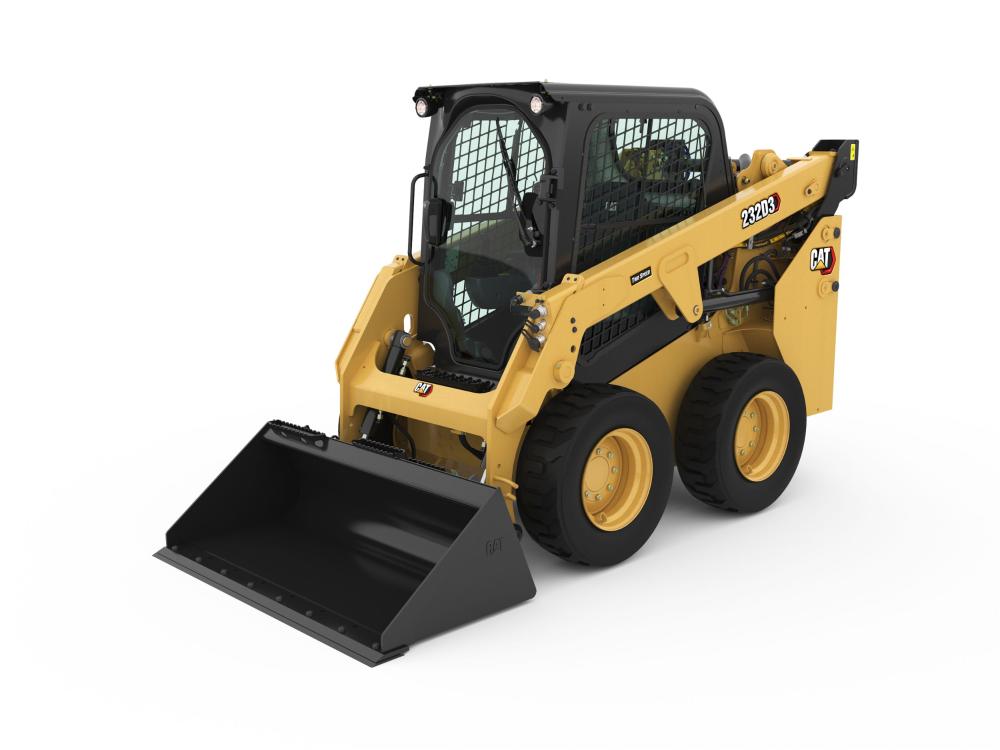

The Cat® 232D3 Skid Steer Loader, with its vertical lift design, delivers extended reach and lift height for quick and easy truck loading. Its stability and lifting performance provides excellent material handling.

15% Additional Space for More Operator Comfort

•Redesigned, More Comfortable Cab
•Wider opening door for easier machine entry

30% Additional Capacity in a New Line of Buckets

•New Industrial Performance Buckets

SMART

•Providing the Next Level Machine and Tool Compatibility
•Integrated SMART technology to automate complex attachments
- INDUSTRY FIRSTS
- Attachment recognition
- Tailors controls
- Grade Assist

Quiet and Comfortable

Maximum Performance

Making Your Job Easier

Optimized Machine Capability

Sustainability

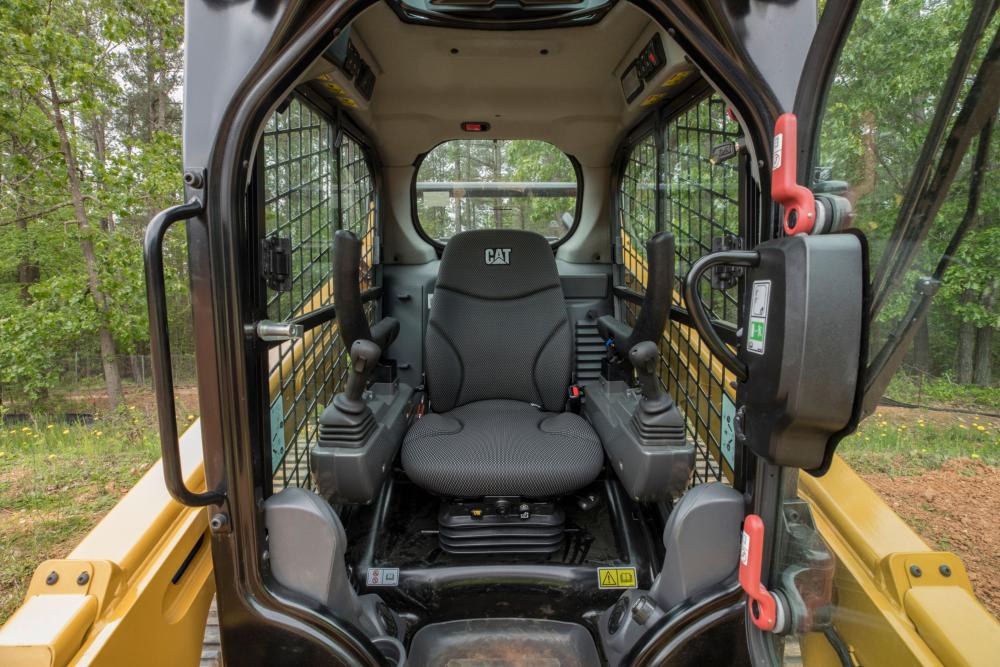

The industry leading sealed and pressurized cab option provides the operator with a cleaner and quieter operating environment with excellent work tool visibility. Continuing the industry leading trend, the D3 Series also includes as standard, seat mounted adjustable joystick controls for operator comfort.

232D3 Product Brochure.pdf Advanced Display User Guide for Skid Steer, Compact Track, and Multi Terrain Loaders - D_D2_D3 Series.pdf 226D3_232D3_236D3_242D3_246D3_262D3_272D3_272D3 XE Product Brochure.pdf Retrofit Options and Accessories Guide for Compact Track, Skid Steer and Multi Terrain Loaders.pdf

Engine

Gross Power - SAE J1995	50.1 kW	67.1 hp
Net Power - SAE 1349	49.1 kW	65.8 hp
Displacement	2.2 l	134.3 in³
Stroke	100 mm	3.9 in
Bore	84 mm	3.3 in
Peak Torque - 1,500 rpm - SAE J1995	208 N·m	153 ft·lbf
Net Flywheel Power	49.1 kW	65.8 hp
Net Power - ISO 9249	49.6 kW	66.5 hp
Engine Model	Cat C2.2 CRDI

Operating Specifications

Weights

Dimensions

Wheel Base	1054 mm	41.5 in
Height - Top of Cab	2029 mm	79.9 in
Vehicle Width over Tires	1497 mm	58.9 in
Ground Clearance	170 mm	6.7 in
Departure Angle	27.9°
Maximum Dump Angle	47.4°
Length - Without Bucket	2523 mm	99.3 in
Clearance at Maximum Lift and Dump	2254 mm	88.7 in
Bucket Pin Reach - Maximum Lift	224 mm	8.8 in
Maximum Overall Height	3832 mm	150.9 in
Turning Radius from Center - Machine Rear	1513 mm	59.6 in
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, single speed, 1576 mm (62 in) low profile bucket, Cat 10 × 16.5 tires, standard flow hydraulics, C1 cab (OROPS, mechanical seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted).
Bucket Pin Height - Carry Position	214 mm	8.4 in
Length - With Bucket on Ground	3233 mm	127.3 in
Bumper Overhang - Behind Rear Axle	894 mm	35.2 in
Turning Radius from Center - Bucket	1976 mm	77.8 in
Maximum Reach - With Arms Parallel to Ground	1249 mm	49.2 in
Bucket Pin Height - Maximum Lift	3001 mm	118.1 in
Reach - Maximum Lift/Dump	653 mm	25.7 in
Rack Back Angle - Maximum Height	88.2°
Turning Radius from Center - Coupler	1102 mm	43.4 in

Cab

Service Refill Capacities

Hydraulic System

Power Train

Noise Level

Air Conditioning System (if equipped)

Compatible products:

Other categories of Minicargadoras:

Tracked skid steer loaders

360º Interior
360º Exterior
Virtual Tour

232D3 Skid Steer Loader

Rated Operating Capacity	865 kg	1900 lb
Tipping Load	1725 kg	3800 lb
Breakout Force - Tilt Cylinder	1782 kg	3928 lb
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, single speed, 1576 mm (62 in) low profile bucket, Cat 10 × 16.5 tires, standard flow hydraulics, C1 cab (OROPS, mechanical seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted).
Rated Operating Capacity with Optional Counterweight	910 kg	2000 lb

ROPS	ISO 3471:2008
FOPS	ISO 3449:2005 Level I

Cooling System	12 l	3.2 gal (US)
Engine Crankcase	10 l	2.6 gal (US)
Fuel Tank	57 l	15.1 gal (US)
Hydraulic System	45 l	11.9 gal (US)
Hydraulic Tank	34 l	9 gal (US)
Chain Box - Each Side	7 l	1.8 gal (US)

Hydraulic Flow - High Flow - Maximum Loader Hydraulic Flow	99 l/min	26 gal/min
Hydraulic Flow - Standard - Hydraulic Power (Calculated)	26.5 kW	35.5 hp
Hydraulic Flow - High Flow - Maximum Loader Hydraulic Pressure	23000 kPa	3336 psi
Hydraulic Flow - Standard - Loader Hydraulic Flow	69 l/min	18 gal/min
Hydraulic Flow - Standard - Loader Hydraulic Pressure	23000 kPa	3336 psi
Hydraulic Flow - High Flow - Hydraulic Power (Calculated)	38 kW	50.9 hp

Travel Speed - Forward or Reverse - One Speed	12.3 km/h	7.6 mile/h

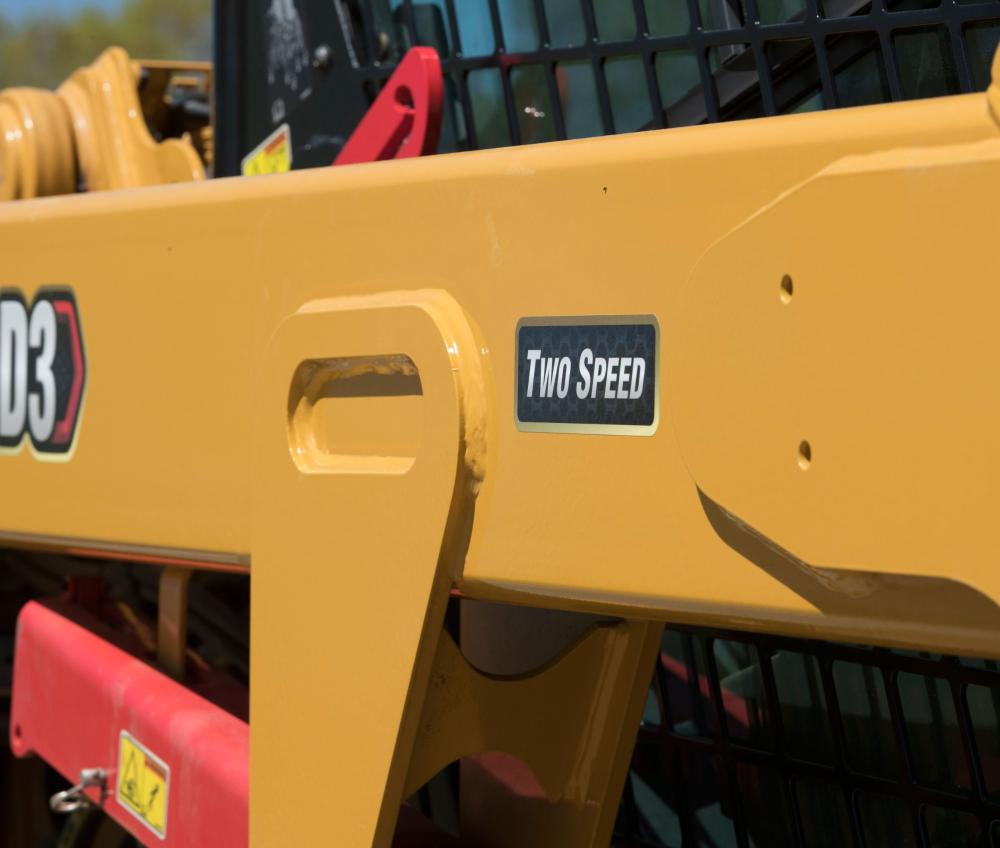

Travel Speed - Forward or Reverse - Two Speed Option	17.8 km/h	11.1 mile/h

Operating Weight	2955 kg	6514 lb
Note	Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, single speed, 1576 mm (62 in) low profile bucket, Cat 10 × 16.5 tires, standard flow hydraulics, C1 cab (OROPS, mechanical seat), 850 CCA battery, manual quick coupler, no self level and no optional counterweights (unless otherwise noted).

Note (3)	**The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
Inside Cab*	83 dB(A)
Outside Cab**	101 dB(A)
Note (1)	Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Note (2)	*The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
