Advertised power is tested per the specified standard in effect at the time of manufacture. Net power advertised is the power available at the flywheel when the engine is equipped with fan at minimum speed, air intake system, exhaust system, and alternator.

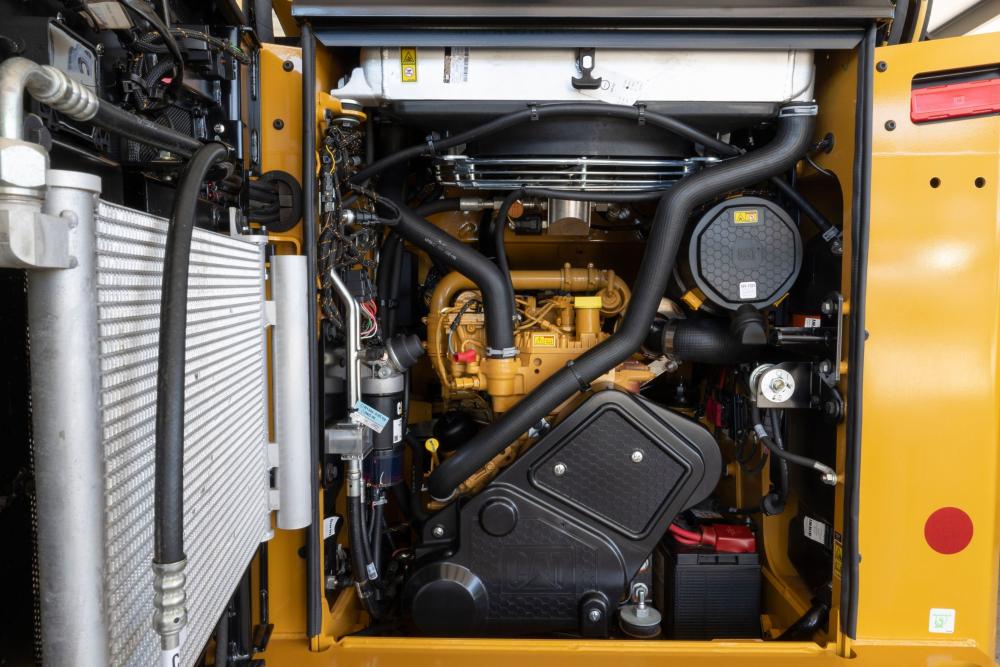

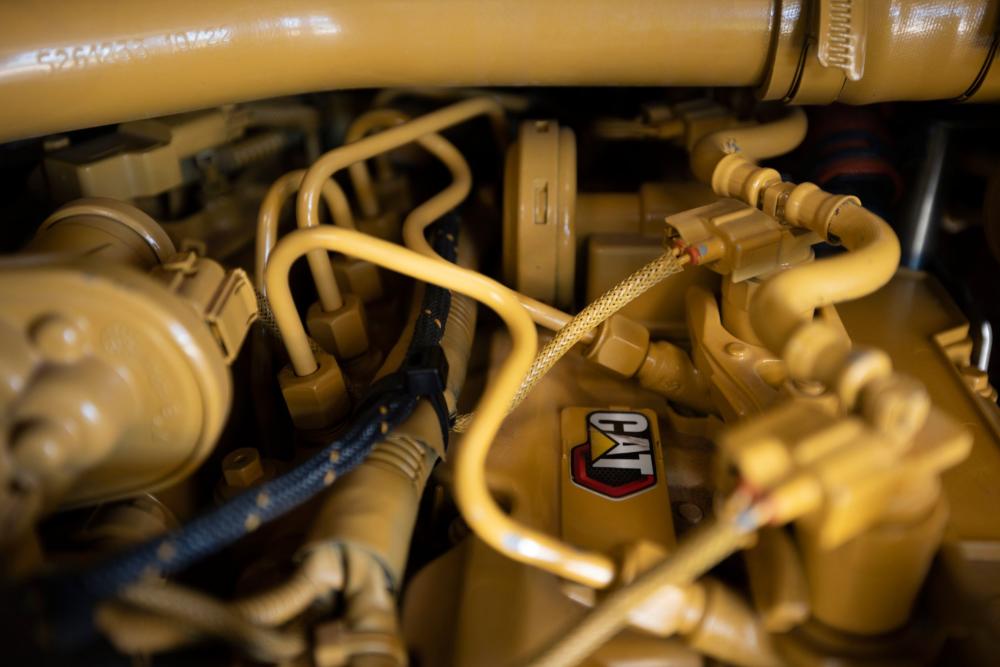

Engine Model
Cat C2.8T (turbo)
Operating Specifications
Rated Operating Capacity
1220 kg
2689 lb
Tipping Load
2440 kg
5378 lb
Breakout Force - Tilt Cylinder
3077 kg
6784 lb
Breakout Force - Lift Cylinder
2698 kg
5948 lb
Rated Operating Capacity with Optional Counterweight
1325 kg
2916 lb
Note
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS (Open Roll Over Protection System), 1730 mm (68 in) low profile bucket, Cat 12 × 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).
Weights
Operating Weight
3551 kg
7829 lb
Note
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS (Open Roll Over Protection System), 1730 mm (68 in) low profile bucket, Cat 12 × 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).
Dimensions
Wheel Base
1094 mm
43.1 in
Height - Top of Cab
2080 mm
81.9 in
Vehicle Width over Tires
1677 mm
66 in
Ground Clearance
195 mm
7.7 in
Departure Angle
23°
Maximum Dump Angle
46°
Length - With Bucket on Ground
3430 mm
135 in
Length - Without Bucket
2800 mm
110.2 in
Bucket Pin Height - Maximum Lift
3150 mm
124 in
Maximum Reach - With Arms Parallel to Ground
833 mm
32.8 in
Turning Radius from Center - Coupler
1296 mm
51 in
Turning Radius from Center - Machine Rear
1649 mm
64.9 in
Maximum Overall Height
3957 mm
155.8 in
Bucket Pin Reach - Maximum Lift
75 mm
3 in
Bucket Pin Height - Carry Position
200 mm
7.9 in
Note
Operating Weight, Operating Specifications and Dimensions all based on 75 kg (165 lb) operator, all fluids, one speed, OROPS (Open Roll Over Protection System), 1730 mm (68 in) low profile bucket, Cat 12 × 16.5 tires, standard flow hydraulics, mechanical suspension seat, no optional counterweights and manual quick coupler (unless otherwise noted).
Rack Back Angle - Maximum Height
97°
Clearance at Maximum Lift and Dump
2443 mm
96.2 in
Turning Radius from Center - Bucket
2024 mm
79.7 in
Reach - Maximum Lift/Dump
448 mm
17.6 in
Roll Back Angle
28°
Cab
ROPS
ISO 3471:2008
FOPS
ISO 3449:2005 Level I
FOPS Level II
ISO 3449:2005 (Optional)
Service Refill Capacities
Chain Box - Each Side
8.3 l
2.2 gal (US)
Cooling System
11.5 l
3 gal (US)
Engine Crankcase
8 l
2.1 gal (US)
Fuel Tank
94.4 l
24.9 gal (US)
Hydraulic System
36.8 l
9.7 gal (US)
Hydraulic Tank
26 l
6.9 gal (US)
Hydraulic System
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Pressure
28000 kPa
4061 psi
Hydraulic Flow - High Flow - Maximum Loader Hydraulic Flow
112 l/min
30 gal/min
Hydraulic Flow - Standard - Loader Hydraulic Flow
76 l/min
20 gal/min
Hydraulic Flow - High Flow XPS - Maximum Loader Hydraulic Flow
113 l/min
30 gal/min
Hydraulic Flow - High Flow - Hydraulic Power (Calculated)
43 kW
58 hp
Hydraulic Flow - Standard - Hydraulic Power (Calculated)
29 kW
39 hp
Hydraulic Flow - Standard - Loader Hydraulic Pressure
23000 kPa
3335 psi
Hydraulic Flow - High Flow XPS - Hydraulic Power (Calculated)
53 kW
71 hp
Hydraulic Flow - High Flow - Maximum Loader Hydraulic Pressure
23000 kPa
3335 psi
Power Train
Travel Speed - Forward or Reverse - One Speed
12.9 km/h
8 mile/h
Travel Speed - Forward or Reverse - Two Speed Option
16.9 km/h
10.5 mile/h
Sustainability
Recyclability
94%
Noise Level
Note (2)
*The declared dynamic operator sound pressure levels per ISO 6396:2008. The measurements were conducted with the cab doors and windows closed and at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds.
Outside Cab**
101 dB(A)
Inside Cab*
83 dB(A)
Note (1)
Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Note (3)
**The labeled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC.
Air Conditioning System (if equipped)
Air Conditioning
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 0.85 kg of refrigerant which has a CO2 equivalent of 1.216 metric tonnes.
