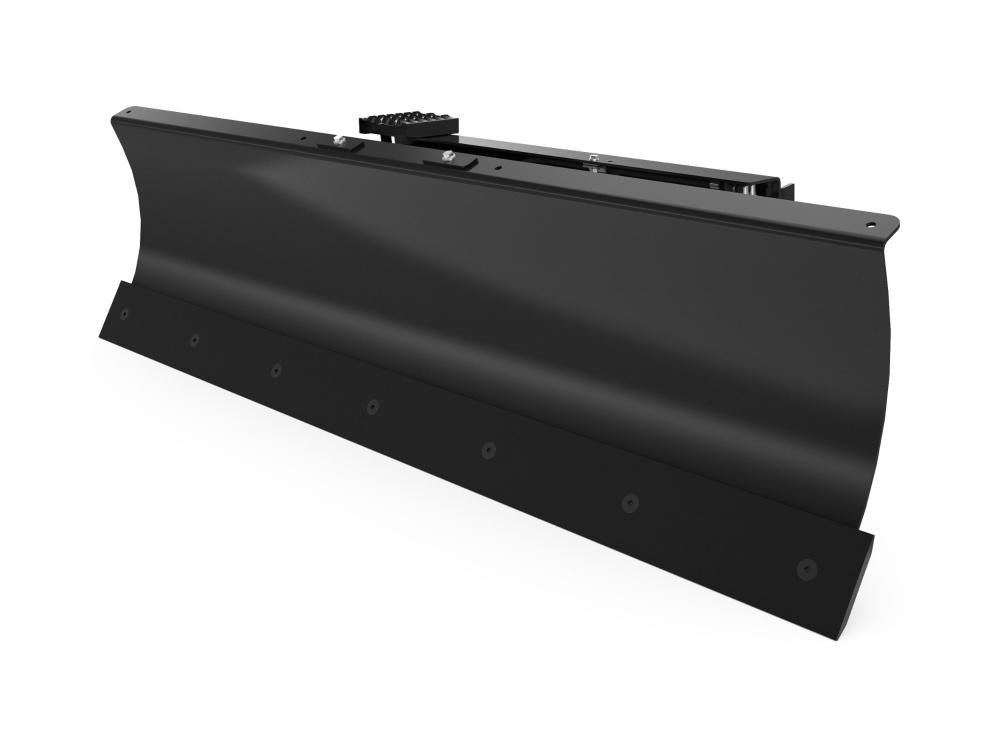

2134 mm (84 in) Angle Blade

Units of measurement :

Metric

Imperial

Blade Width

2134 mm

Width - Fully Angled

1949 mm

Maximum Blade Angle - Right/Left of Center

30 degrees

Availability

Purchase Rental Used

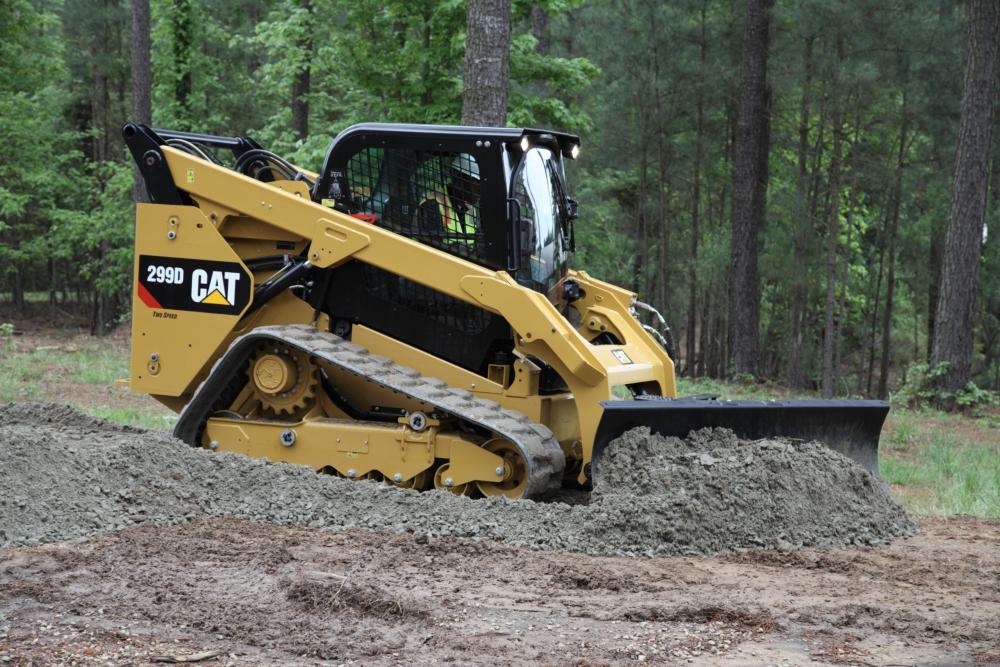

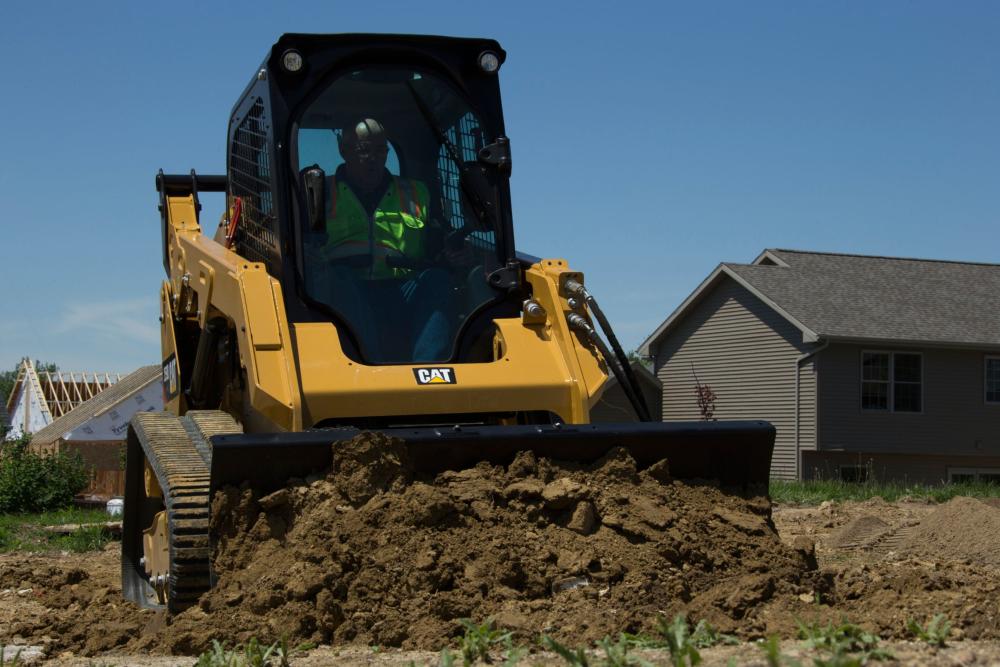

Cat® Angle Blades are useful work tools in a wide range of applications for moving dirt, gravel, livestock waste and snow. They are also useful for finish grade work in construction and landscaping.

Application

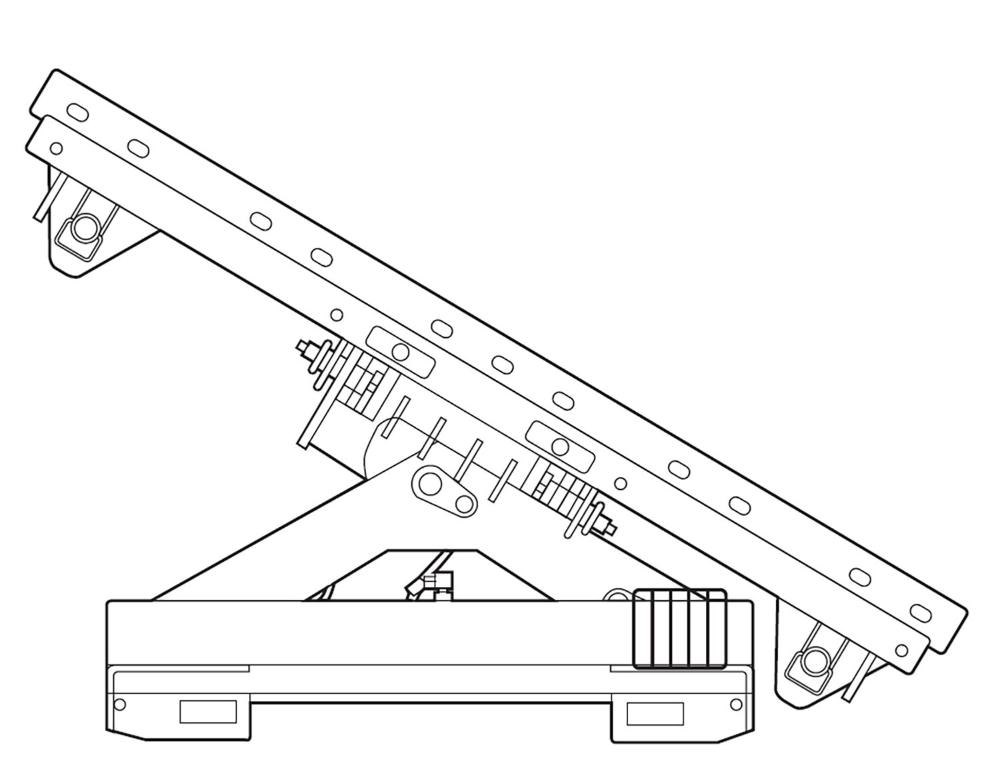

Two-Way Blade

Angle Range

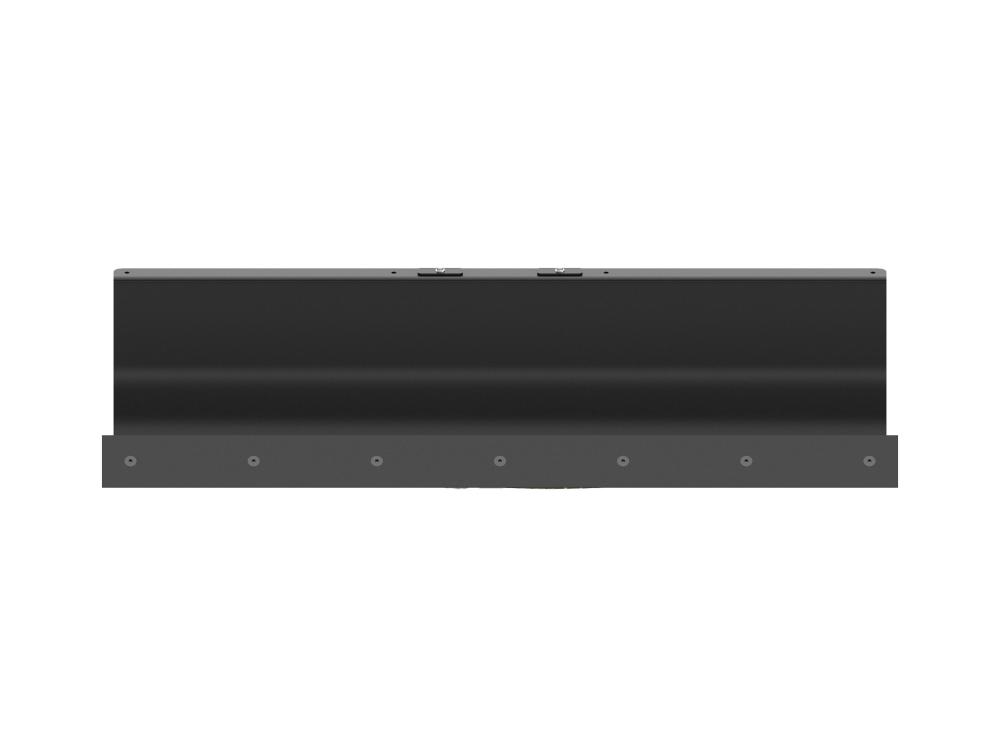

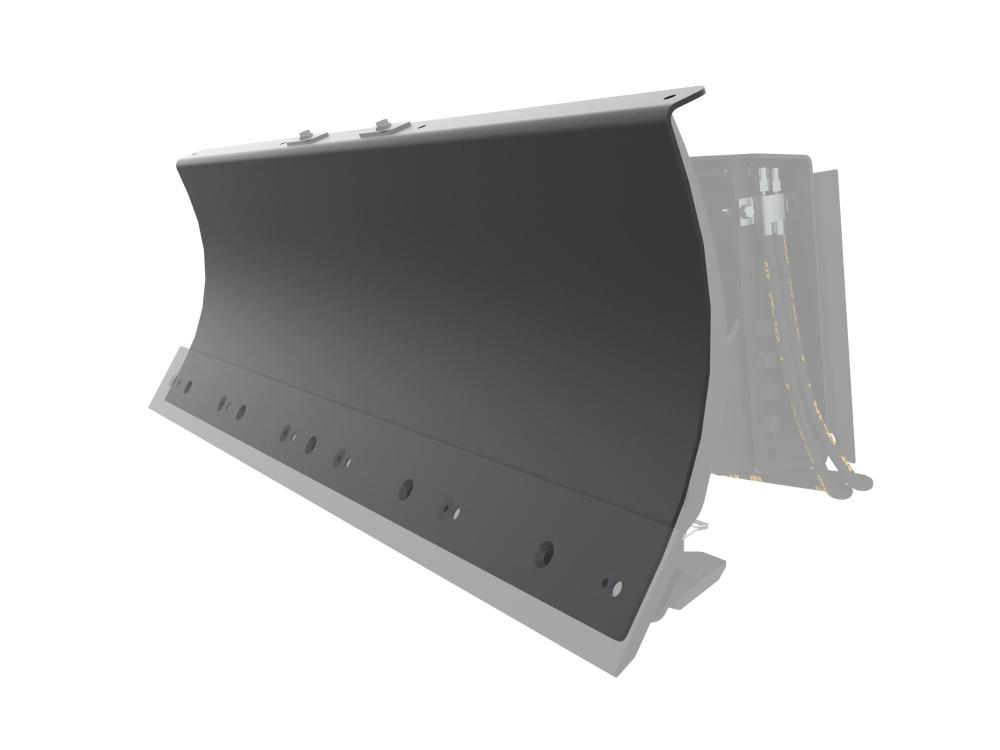

Curved Moldboard

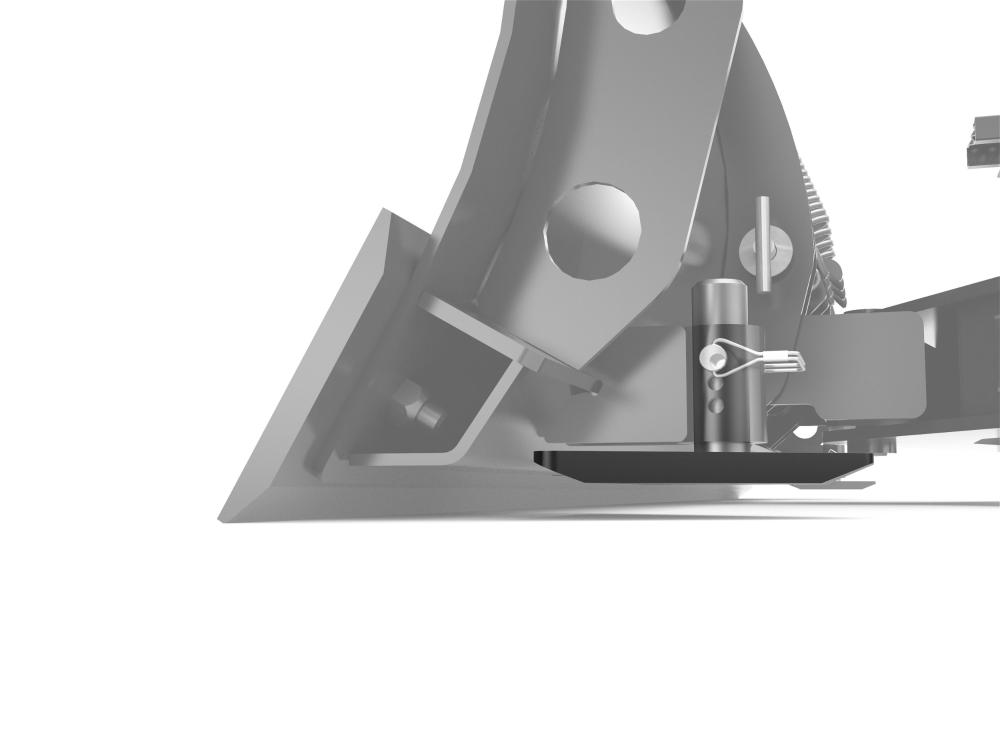

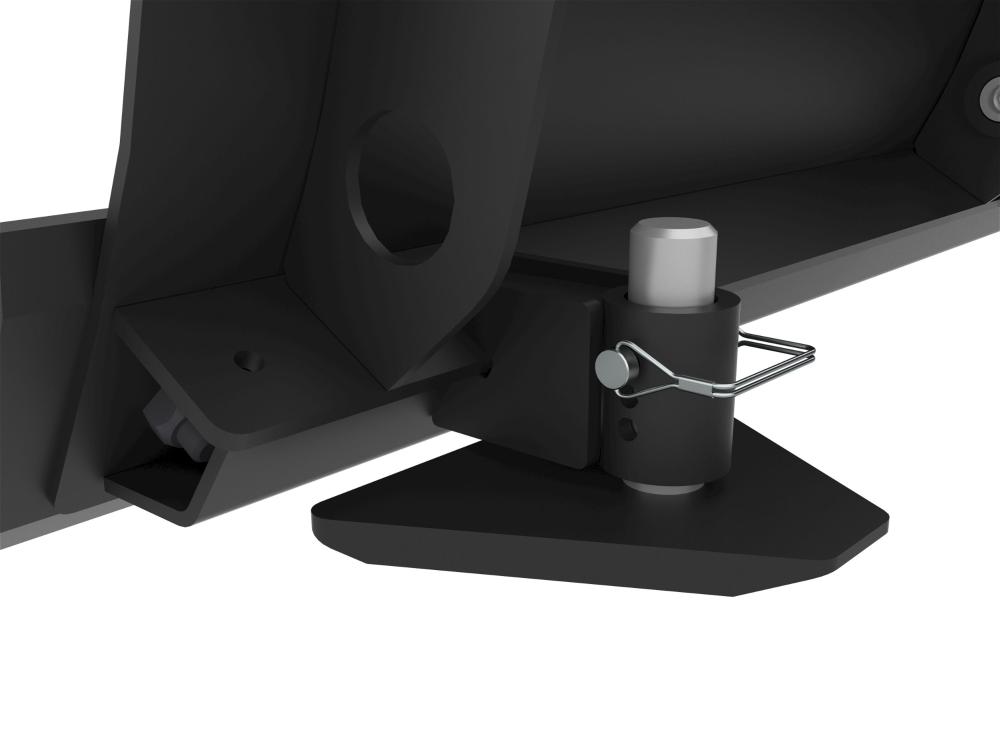

Adjustable Skid Shoes

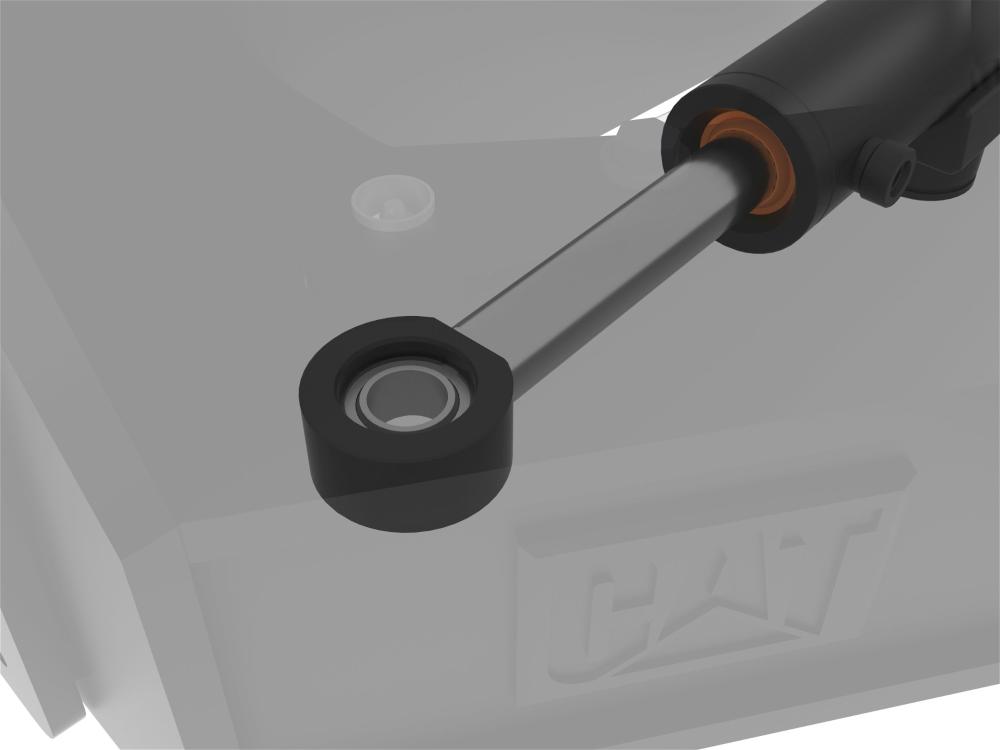

Spherical Rod Eye Cylinder

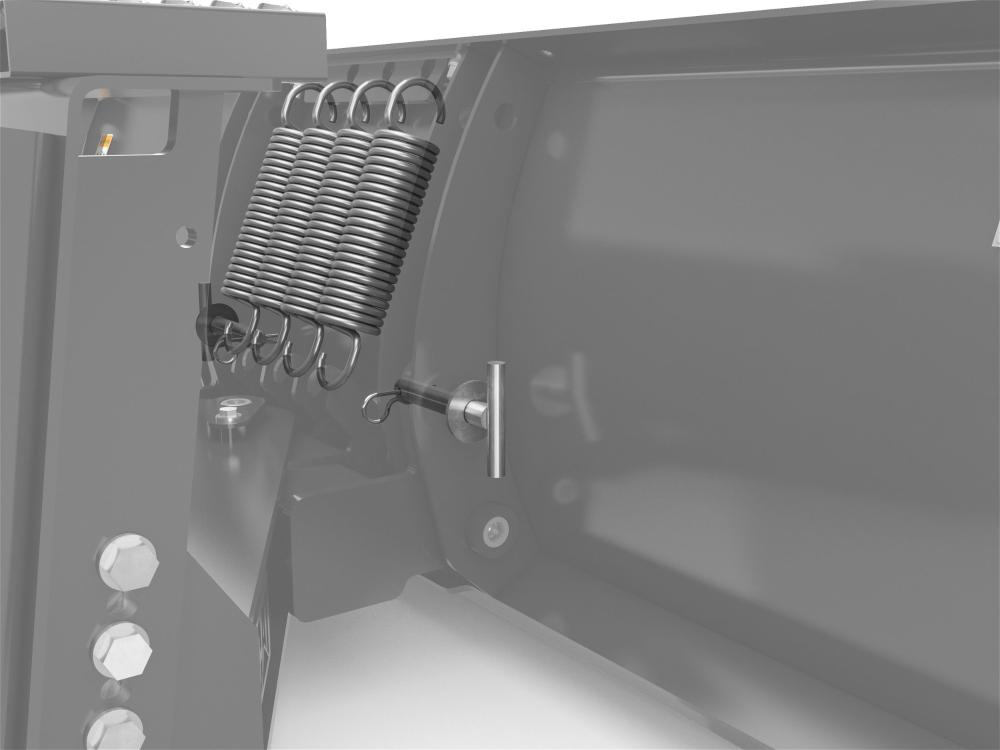

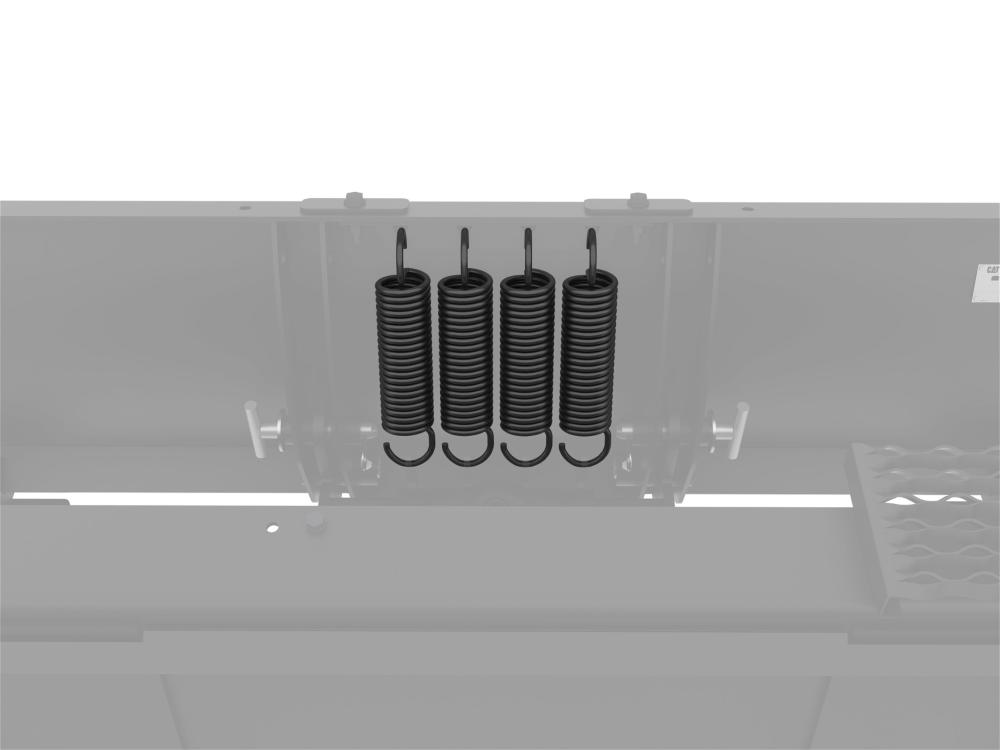

Four Pre-loaded Springs

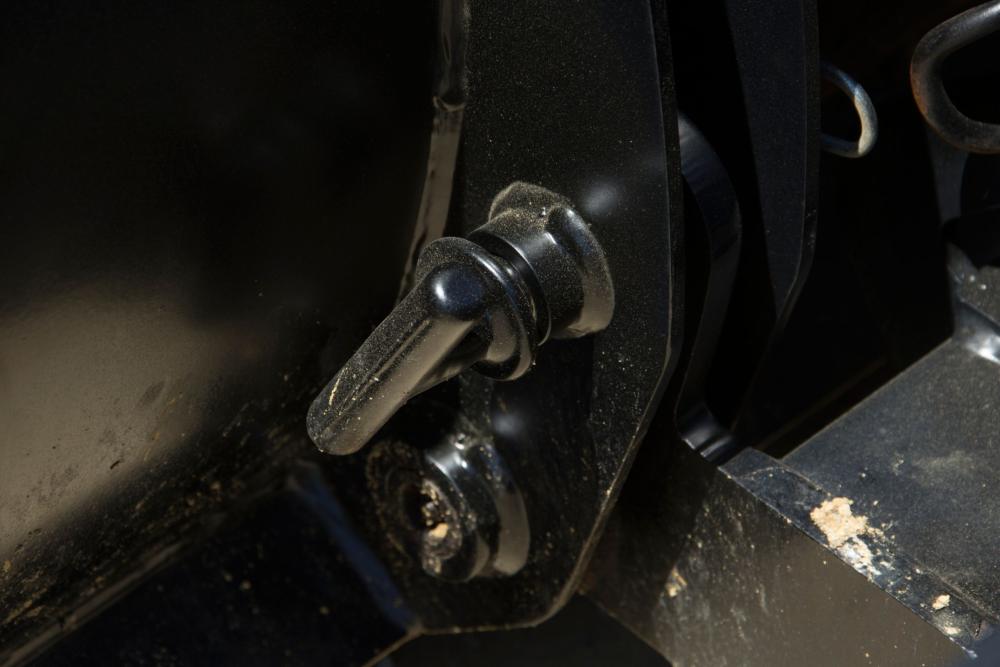

Adjustable Interface

Optional Snow Kit

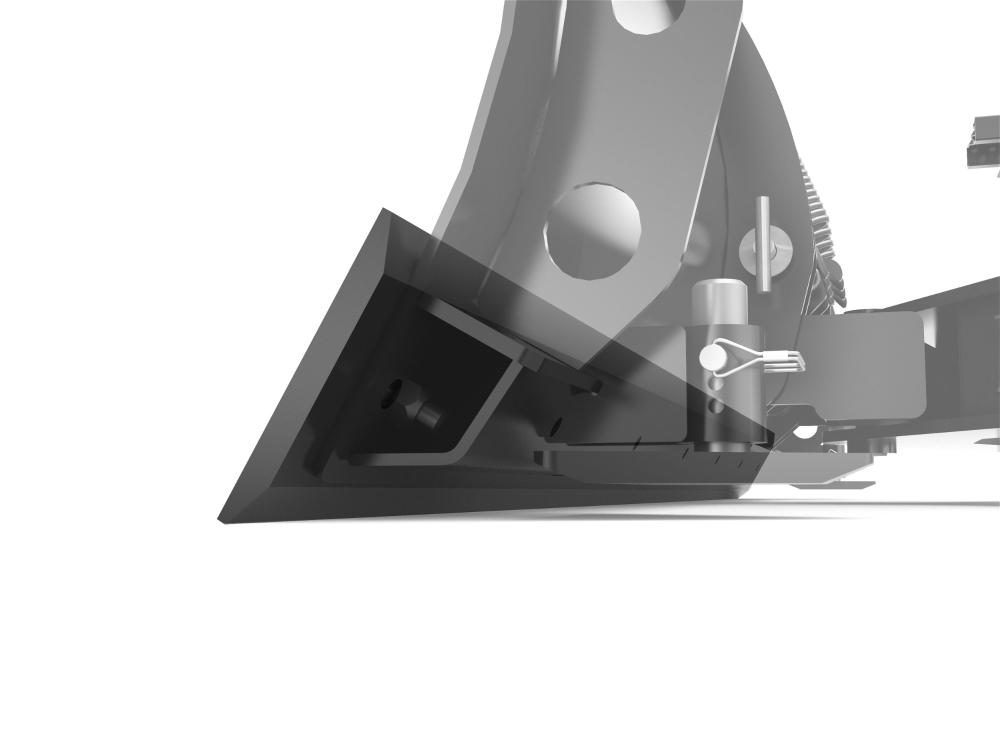

Optional Non-Metallic Blade

Designed for moving dirt, gravel, livestock waste and snow. Also ideal for finish grade work in construction and landscaping applications.

Cat® Blades for Compact Products Brochure.pdf

Others

Blade Width	2134 mm	84 in
Width - Fully Angled	1949 mm	76.7 in
Maximum Blade Angle - Right/Left of Center	30 degrees
Blade Height	614 mm	24.2 in
Cutting Edge Width	2198 mm	86.5 in
Length	753 mm	29.6 in
Weight	331 kg	729.7 lb
Cutting Edge Thickness	16 mm	0.6 in
Optimal Hydraulic Flow	42-86 L/min (11-23 gpm)
Optimal Hydraulic Pressure	145-235 bar (2100-3400 psi)
Required Hydraulics	Standard Flow
Interface Type	Skid Steer Coupler
