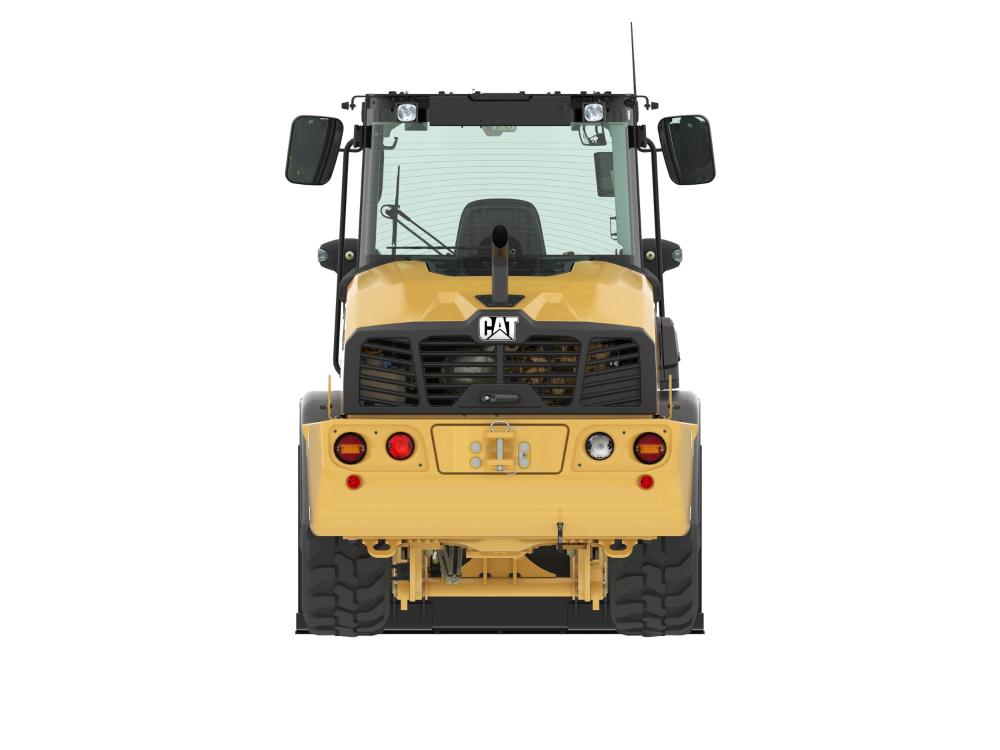

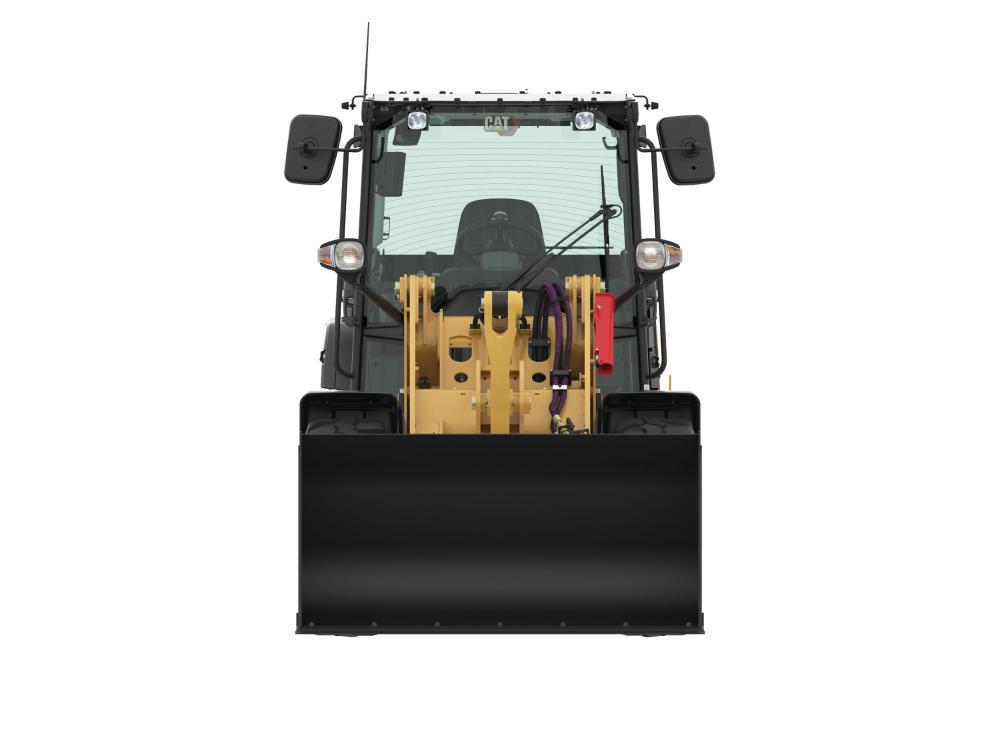

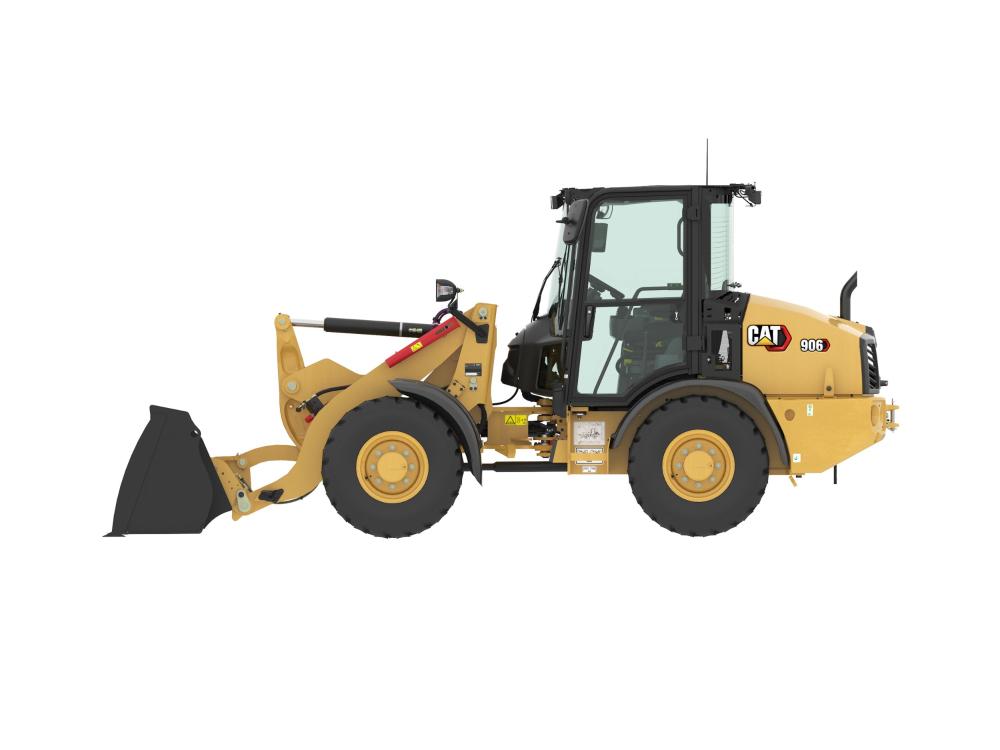

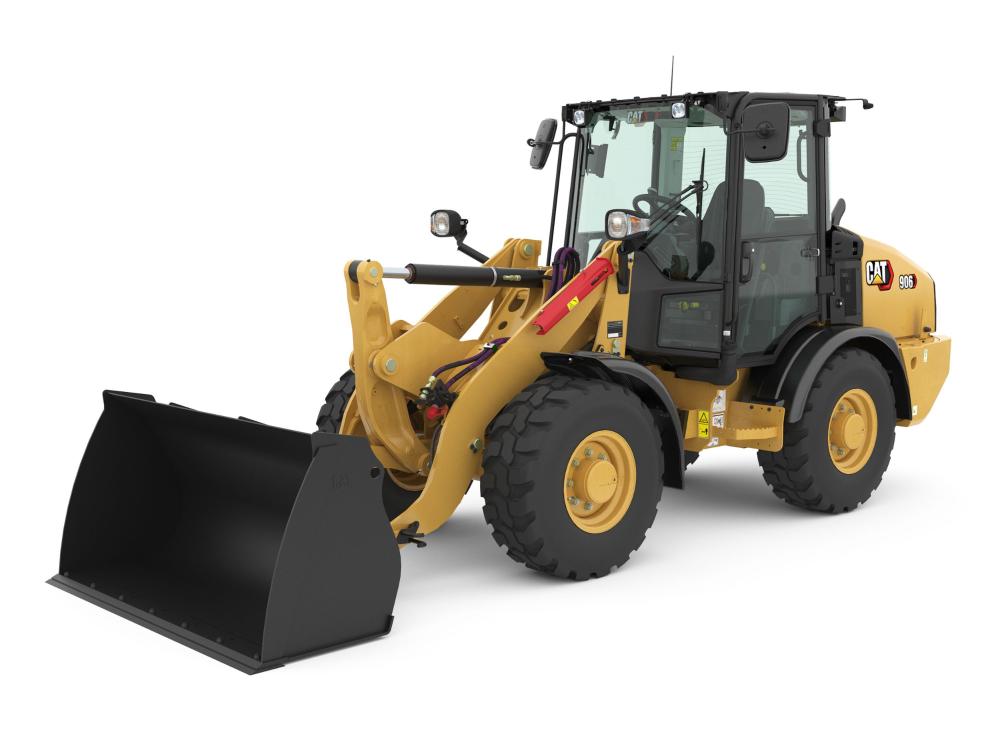

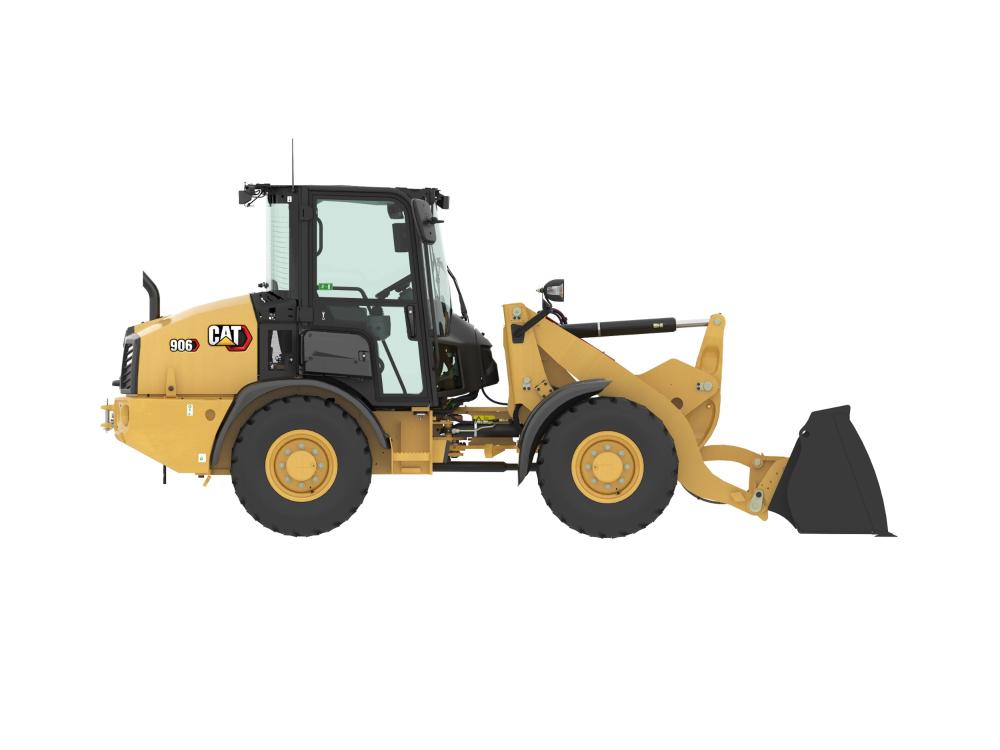

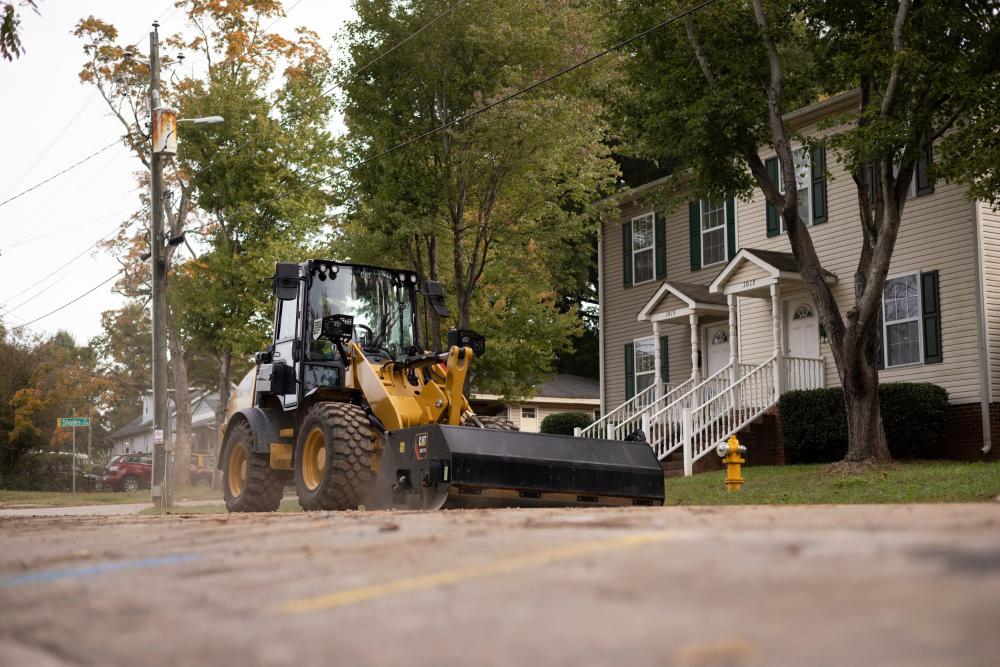

Cat 906 Compact Wheel Loader
Cat
Metric
Imperial
Maximum Gross Power
55.7 kW
74.7 hp
Operating Weight
5730 kg
12628 lb
Bucket Capacities
0.75-1.55 m³ (1.0-2.0 yd³)
Availability
Cat® wheel loaders set the standard for productivity, fuel efficiency and operator comfort. The Cat 906 Compact Wheel Loader has a high torque C2.8 engine that works in conjunction with an intelligent hystat power train to deliver exceptional fuel efficiency. \u201cShift on the go\u201d locking differentials and hydrostatic transmission provide smooth and powerful operation while increasing the efficiency of machine cycles.
60% Greater Wiper Coverage
all new cab with seat mounted controls and integrated display screen40 kph (25 mph)
with "shift on the go" transmissionCustomized
for application specific configurations including factory and aftermarket optionsCONFIGURED FOR SUCCESS
ENJOY ALL DAY COMFORT
EFFICIENTLY POWERFUL
WORK MADE EASY
CUSTOMIZE YOUR EXPERIENCE
PURPOSE BUILT SPECIALTY MODELS
AFTERMARKET AND SERVICES
SUSTAINABILITY
- Cat® wheel loaders set the standard for productivity, fuel efficiency and operator comfort. The Cat 906 Compact Wheel Loader has a high torque C2.8 engine that works in conjunction with an intelligent hystat power train to deliver exceptional fuel efficiency. Dependent on regional requirements our engines meet U.S. EPA Tier 4 Final and EU Stage V emission standards with a clean emission module designed to manage itself so you can concentrate on the task at hand or emit equivalent to U.S. EPA Tier 3 and EU Stage IIIA.

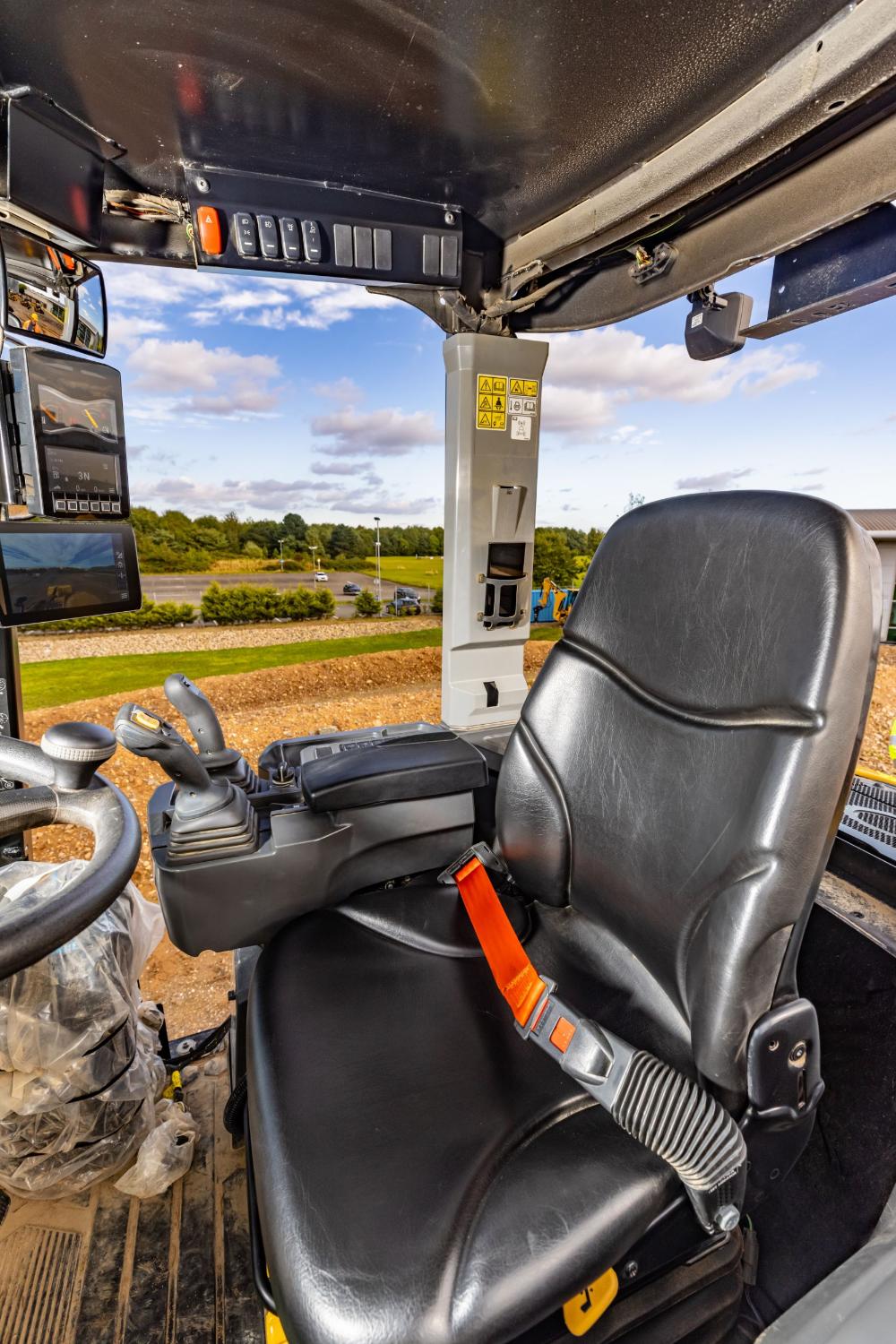

- All new cab is spacious, quiet and comfortable with all around 360° visibility to keep you productive throughout the day. Seat-mounted controls feature a multifunction joystick for lift and tilt functions with an integrated thumb operated speed range, forward/neutral/reverse (FNR) switch, trigger operated differential lock and constant flow. Optional fourth function joystick also available.
- Digital display with soft touch buttons for customized settings to easily control linkage and drive train to further enhance operator comfort and safety.
- Cat C2.8 engine provides a cleaner, quieter operation while delivering superior performance and durability through a high torque, low speed design. Caterpillar’s exclusive Intelligent Power Management system monitors operator input and available power to keep the machine working at peak efficiency.
- “Shift on the go” locking differentials and hydrostatic transmission provide smooth and powerful operation while increasing the efficiency of machine cycles. New Powertrain (Utility) Mode via the display enables right pedal machine operation giving further improved operator controllability of attachment RPM versus machine ground speed over creep control and inching pedal.
- All-in-one joystick to keep eyes on the work while maximizing operation of hydro-mechanical attachments with a state of the art pressure compensated electro-hydraulic system. Optimized Z-bar linkage for great performance and versatility with buckets that now have the DNA of the larger Cat loaders, such as curved side plates and a flat torque tube for parallel reference to the cutting edge.
- Work as one with your machine by customizing the controls. Operator can adjust machine responsiveness with the push of a button based on the attachment or application. Once customized, settings can be locked with “simplified mode” to ensure the machine is consistent and intuitive for every user.
- Machine security is enhanced with a standard keycode or optional Bluetooth® technology.
- Machines can be built to meet industry and application specific needs: Agriculture, General Construction, Industrial and Waste, Landscaping or Snow Removal.
- The 906 is availble with the following specific handler arrangements: Ag Handler and Waste Handler
- Range of services and aftermarket retrofits and upgrades available to keep your machine going and configured for your application.
- Service and maintenance parts available, including a range of self-service options (SSO) and dealer installed kits.
- Integrated Technology available to reduce service costs and maintenance.
- The Cat® C2.8 engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
- Engine Idle Shutdown Timer reduces fuel burn, greenhouse gas emissions and unnecessary idle time by shutting down the machine after a pre-set idling period.
- Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.
- Remote Flash minimizes downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.
- Advanced Electro Hydraulic System provides the optimum balance of power and efficiency while giving you the control you need for your precise jobsite requirements.
- Engine Demand Fan is hydraulically driven to provide machine cooling only when needed, improving fuel efficiency and reducing greenhouse gas emissions.
- Hydrostatic Transmission is an efficient way to transfer engine power to the wheels at low speeds versus a torque converter.
- Efficient HVAC regulates temperature control. No need to leave the machine running to cool the cab.
- Shift on the go transmission, means no need to stop so you keep your momentum.
Engine
| Maximum Gross Power | 55.7 kW | 74.7 hp |
| Engine Model | Cat C2.8* | |
| Maximum Engine Speed | 2550 rpm | |
| Maximum Gross Power - Rated Engine Speed | 2400 r/min | 2400 r/min |
| Maximum Gross Power - SAE J1995 | 55.7 kW | 74.7 hp |
| Maximum Gross Power - ISO 14396 | 55.4 kW | 74.3 hp |
| Maximum Gross Power - ISO 14396 (metric) | 75.3 mhp | 75.3 mhp |
| Rated Net Power - Rated Engine Speed | 2400 r/min | 2400 r/min |
| Rated Net Power - SAE J1349 | 54.2 kW | 72.7 hp |
| Rated Net Power - ISO 9249 | 53.8 kW | 72.1 hp |
| Rated Net Power - 2,400 rpm - ISO 9249 (metric) | 73.1 mhp | 73.1 mhp |
| Maximum Gross Torque - SAE J1995 | 300 N·m | 222 lb/ft |
| Maximum Gross Torque - ISO 14396 | 300 N·m | 221 lb/ft |
| Maximum Net Torque - SAE J1349 | 296 N·m | 218 lb/ft |
| Maximum Net Torque - ISO 9249 | 295 N·m | 217 lb/ft |
| Displacement | 2.8 l | 171 in³ |
| Bore | 90 mm | 3.54 in |
| Stroke | 110 mm | 4.33 in |
| Note | Advertised power is tested per the specified standard in effect at the time of manufacture. | |
| Note (1) | Net power advertised is the power available at the flywheel. | |
| Note (2) | *Two Cat C2.8 engine emission options are available: 1) Meets U.S. EPA Tier 4 Final, EU Stage V. 2) U.S. EPA Tier 3 and EU Stage IIIA equivalent. Tier 3 engine specs are 0.3 kW/0.4 hp more gross power (SAE J1995), 0.2 kW/0.3 hp on net power (SAE J1349) and 1 N·m/0.7 lb-ft higher on gross torque (SAE J1995). | |
| Note (3) | #Maximum gross and net torque measured at 1,600 rpm. |
Weights
| Operating Weight | 5730 kg | 12628 lb |
Buckets
| Bucket Capacities | 0.75-1.55 m³ (1.0-2.0 yd³) |
| Bucket Capacities - General Purpose | 0.80-1.35 m³ (1.0-1.7 yd³) |
| Bucket Capacities - Light Material | 1.25-1.55 m³ (1.6-2.0 yd³) |
| Multi-Purpose | 0.75-1.1 m³ (1.0-1.4 yd³) |
| Note | Bucket selection must be made with an understanding of the material density and application to ensure machine stability is maintained within the tipping loads stated per model and configuration. |
| Note (1) | Bucket capacities stated include BOCE, in line with ISO 7546. |
Sustainability
| Recyclability | 93% |
Service Refill Capacities
| Fuel Tank | 70 l | 18.5 Gal |
| Cooling System | 12 l | 3.2 Gal |
| Engine Crankcase | 8.8 l | 2.3 Gal |
| Axles - Front Center Differential | 8.8 l | 2.3 Gal |
| Axles - Rear Center Differential | 8.8 l | 2.3 Gal |
| Hydraulic System - Including Tank | 67.5 l | 17.8 Gal |
| Hydraulic Tank | 44.6 l | 11.8 Gal |
| Transmission | 2.4 l | 0.6 Gal |
| Note | No Diesel Exhaust Fluid (DEF) fluid needed on this size engine. |
Axles
| Front | Fixed (standard) Locking Differential (optional) |
| Rear | Fixed (standard) Locking Differential (optional) |
| Note | Oscillation of ±11 degrees via hitch between front and rear frames. |
Steering
| Steering Articulation Angle - Each Direction | 39 ° | 39 ° |
| Maximum Flow - Steering Pump | 46.7 l/min | 12.3 gal/min |
| Maximum Working Pressure - Steering Pump | 23000 kPa | 3336 psi |
| Steering Cycle Times – (full left to full right) – at High Idle | 2.8 s | 2.8 s |
| Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left | 3.25 turns or 4.00 turns |
Transmission
| Forward and Reverse - Speed Range Creep# | 10 km/h | 6 mile/h |
| Forward and Reverse - Speed Range 1* | 10 km/h | 6 mile/h |
| Forward and Reverse - Speed Range 2** - High Speed | 17 km/h | 10.5 mile/h |
| Forward and Reverse - Speed Range 2** - Standard | 20 km/h | 12 mile/h |
| Forward and Reverse - Speed Range 3*** | 40 km/h | 25 mile/h |
| Note | #Factory default shown, can be adjusted to any speed up to 19 km/h (12 mph). | |
| Note (1) | *Creep function not available in this gear or above. | |
| Note (2) | **Max speed dependent on model and configuration (standard vs. high speed transmission). | |
| Note (3) | ***Reverse is 30 km/h (19 mph). |
Tires
| Tire Size - Standard | *405/70 R18 SPT9 |
| Tire Size - Optional | 405/70 R18 Powerloads |
| Tire Size - Optional (1) | 340/80 R18 XMCL/Bibload |
| Tire Size - Optional (2) | 340/80 R18 TRI 2 |
| Tire Size - Optional (3) | 40X14-20 TL, SM/TR |
| Tire Size - Optional 4 | 340/80 R18 Duraforce |
| Note | *This tire has been used for all dimension, stability and performance data. |
| Note (1) | Other tire choices are available. Contact your Cat dealer for details. |
| Note (2) | In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities. |
| Note (3) | Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model. |
Cab
| ROPS | ISO 3471:2008 |
| FOPS | ISO 3449:2005 Level II |
| Note (1) | Canopy and cab, Rollover Protective Structures (ROPS) are available worldwide. Canopy not available in EU. |
Loader Hydraulic System
| Main Relief - 1st Auxiliary (3rd slice) | 23500 kPa | 3408 psi |
| Main Relief - 1st Auxiliary (3rd slice) - Standard Flow* | 80 l/min | 21 gal/min |
| Main Relief - 1st Auxiliary (3rd slice) - High Flow* | 120 l/min | 32 gal/min |
| Main Relief - 2nd Auxiliary (4th slice) | 23500 kPa | 3408 psi |
| Main Relief - 2nd Auxiliary (4th slice) - Flow | 45 l/min | 12 gal/min |
| Hydraulic Cycle Time - Rackback | 2.2 s | 2.2 s |
| Hydraulic Cycle Time - Lift | 5 s | 5 s |
| Hydraulic Cycle Time - Dump | 1.6 s | 1.6 s |
| Hydraulic Cycle Time - Float Down | 2.8 s | 2.8 s |
| Note | * Maximum flow stated, actual flow delta could be 6% from data shown. Also adjustable from 20% to 100% of maximum flow through display. |
Dimensions - With HPL-V Coupler - Approximate#
| Height: Ground to Cab** | 2468 mm | 8.08 ft |
| Height: Ground to Beacon** | 2651 mm | 8.67 ft |
| Height: Ground Axle Center** | 480 mm | 1.58 ft |
| Height: Ground Clearance** | 300 mm | 1 ft |
| Length: Overall* | 5369 mm | 17.58 ft |
| Length: Rear Axle to Bumper | 1391 mm | 4.58 ft |
| Length: Hitch to Front Axle | 1085 mm | 3.58 ft |
| Length: Wheel Base | 2170 mm | 7.08 ft |
| Clearance: Bucket at 45° * | 2510 mm | 8.25 ft |
| Clearance: Load over Height** | 2902 mm | 9.5 ft |
| Clearance: Level Bucket** | 3037 mm | 9.92 ft |
| Height: Bucket Pin** | 3251 mm | 10.67 ft |
| Height: Overall** | 4122 mm | 13.5 ft |
| Reach: Bucket at 45° * | 725 mm | 2.42 ft |
| Carry Height: Bucket Pin | 321 mm | 1.08 ft |
| Dig Depth** | 113 mm | 0.33 ft |
| Width: Bucket | 1890 mm | 6.17 ft |
| Width: Tread Center | 1420 mm | 4.67 ft |
| Turning Radius: Over Bucket | 4327 mm | 14.17 ft |
| Width: Over Tires | 1848 mm | 6.08 ft |
| Turning Radius: Outside of Tires | 3925 mm | 12.92 ft |
| Turning Radius: Inside of Tires | 2057 mm | 6.75 ft |
| Rack Angle at Full Lift | 56° | |
| Dump Angle at Full Lift | 45° | |
| Rack Angle at Carry | 51° | |
| Departure Angle - Degrees | 30° | |
| Articulation Angle - Degrees | 39° | |
| Operating Weight: Bucket ^ | 5730 kg | 12632 lb |
| Tipping Load - Straight - ISO 14397-1 † | 4427 kg | 9760 lb |
| Tipping Load - Full Turn - ISO 14397-1 † | 3731 kg | 8225 lb |
| Operating Weight: Carriage and Tines ^^ | 5552 kg | 12240 lb |
| Tipping Load - Straight † | 3514 kg | 7748 lb |
| 80% of Tip: Firm and Level EN474-3 †† | 2364 kg | 5211 lb |
| Note (1) | *Vary with bucket | |
| Note (2) | **Vary with tire | |
| Note (3) | ^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), 0.95 m3 (1.2 yd3) general purpose bucket. | |
| Note (4) | ^^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), class II carriage, 1220 mm (4 ft) tines (500 mm [20 in] load center). | |
| Note (5) | †Full compliance to ISO 14397-1 (2007) Sections 1 thru 6 (fork 500 mm [20 in] load center), which requires 2% verification between calculation and testing. | |
| Note (6) | ††Full compliance to EN474-3 and SAE J1197. | |
| Note (7) | #HPL-A weight, tipping and rated loads are within 1% of the HPL-V. | |
| Note (8) | Dimensions listed are for a machine configured with standard cab, heater, 20 km/h (12 mph), standard guarding, 80 kg (176 lb) operator, full fluids, SPT9EM 405/70 R18 tires and 0.95 m3 (1.2 yd3) general purpose bucket with bolt-on cutting edge or a class II fork carriage and tines (tire supplier variability can impact dimensions by 2%). | |
| Note (9) | Note: Goodyear POWERLOAD® tires can add up to approximately 140 kg (305 lb) to the full turn tip load and reduce vertical height by approximately 25 mm (1 in) compared to SPT9. | |
| Length: Front Axle to Front of Coupler | 1065 mm | 3.5 ft |
| Tipping Load - Full Turn † | 2955 kg | 6514 lb |
Dimensions - With SSL Coupler - Approximate
| Height - Ground to Cab | 2468 mm | 8.08 ft |
| Height: Ground to Beacon** | 2651 mm | 8.67 ft |
| Height: Ground Axle Center** | 480 mm | 1.58 ft |
| Height - Ground Clearance | 300 mm | 1 ft |
| Length - Overall with Bucket | 5527 mm | 18.17 ft |
| Length: Rear Axle to Bumper | 1391 mm | 4.58 ft |
| Length: Hitch to Front Axle | 1085 mm | 3.58 ft |
| Length - Wheel Base | 2170 mm | 7.08 ft |
| Clearance - Bucket at 45° | 2391 mm | 7.83 ft |
| Clearance: Load over Height** | 2902 mm | 9.5 ft |
| Clearance - Level Bucket | 3028 mm | 9.92 ft |
| Height - Bucket Pin | 3251 mm | 10.67 ft |
| Height: Overall** | 4212 mm | 13.83 ft |
| Reach - Bucket at 45° | 814 mm | 2.67 ft |
| Carry Height: Bucket Pin | 345 mm | 1.17 ft |
| Dig Depth | 85 mm | 0.25 ft |
| Width - Bucket | 1890 mm | 6.17 ft |
| Width - Tread Center | 1420 mm | 4.67 ft |
| Turning Radius - Over Bucket | 4478 mm | 14.67 ft |
| Width - Over Tires | 1848 mm | 6.07 ft |
| Turning Radius: Outside of Tires | 3925 mm | 12.92 ft |
| Turning Radius - Inside Tire | 2057 mm | 6.75 ft |
| Rack Angle at Full Lift | 51° | |
| Dump Angle at Full Lift | 50° | |
| Rack Angle at Carry | 46° | |
| Departure Angle - Degrees | 30° | |
| Articulation Angle - Degrees | 39° | |
| Operating Weight: Bucket ^ | 5835 kg | 12863 lb |
| Tipping Load – Straight – ISO 14397-1 † | 3907 kg | 8613 lb |
| Tipping Load – Full Turn – ISO 14397-1 † | 3275 kg | 7220 lb |
| Operating Weight: Carriage and Tines ^^ | 5640 kg | 12434 lb |
| Tipping Load - Straight † | 3338 kg | 7359 lb |
| 80% of Tip: Firm and Level EN474-3 †† | 2254 kg | 4970 lb |
| Note (1) | *Vary with bucket | |
| Note (2) | **Vary with tire | |
| Note (3) | ^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), 0.95 m3 (1.2 yd3) general purpose bucket. | |
| Note (4) | ^^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), class II carriage, 1220 mm (4 ft) tines (500 mm [20 in] load center). | |
| Note (5) | †Full compliance to ISO 14397-1 (2007) Sections 1 thru 6 (fork 500 mm [20 in] load center), which requires 2% verification between calculation and testing. | |
| Note (6) | ††Full compliance to EN474-3 and SAE J1197. | |
| Note (7) | #HPL-A weight, tipping and rated loads are within 1% of the HPL-V. | |
| Note (8) | Dimensions listed are for a machine configured with standard cab, heater, 20 km/h (12 mph), standard guarding, 80 kg (176 lb) operator, full fluids, SPT9EM 405/70 R18 tires and 0.95 m3 (1.2 yd3) general purpose bucket with bolt-on cutting edge or a class II fork carriage and tines (tire supplier variability can impact dimensions by 2%). | |
| Note (9) | Note: Goodyear POWERLOAD® tires can add up to approximately 140 kg (305 lb) to the full turn tip load and reduce vertical height by approximately 25 mm (1 in) compared to SPT9. | |
| Tipping Load - Full Turn † | 6212 lb | 2818 kg |
| Length: Front Axle to Front of Coupler | 1316 mm | 4.33 ft |
You might also be interested in:
-
908
Maximum Gross Power
55.7 kW
74.7 hp
Operating Weight
6632 kg
14617 lb
Bucket Capacities
0.75-1.55 m³ (1.0-2.0 yd³)
Cat
15197687
-
910
Maximum Gross Power
82 kW
110 hp
Operating Weight
8109 kg
18102 lb
Bucket Capacities
1.3-3.5 m3 (1.7-4.6 yd3)
Cat
15197706
-
914
Maximum Gross Power
82 kW
110 hp
Operating Weight
8668 kg
19103 lb
Bucket Capacities
1.3-3.5 m3 (1.7-4.6 yd3)
Cat
15197721
-
920
Maximum Gross Power
90 kW
121 hp
Operating Weight
9865 kg
21742 lb
Bucket Capacities
1.3-3.5 m3 (1.7-4.6 yd3)
Cat
15197736
Compatible products:
-
0.8 m3 (1.0 yd3), ISO Coupler, Bolt-On Cutting Edge
Width
1890 mm
74.4 in
Weight
588.5 kg
1297.4 lb
Height
943 mm
37.1 in
Cat
15176787
-
0.8 m3 (1.0 yd3), Skid Steer Coupler, Bolt-On Cutting Edge
Width
1890 mm
74.4 in
Weight
533.9 kg
1177 lb
Height
943 mm
37.1 in
Cat
15176797
-
0.8 m3 (1.0 yd3), Skid Steer Coupler, Bolt-On Teeth
Width
1890 mm
74.4 in
Weight
513 kg
1131 lb
Height
927 mm
36.5 in
Cat
15176807
-
1042 mm (41 in)
Height
493.1 mm
19.4 in
Width
1042 mm
41 in
Weight
79 kg
174.2 lb
Cat
15180985
-
1140 mm (45 in)
Overall Width
1285 mm
50.6 in
Overall Height
570 mm
22.4 in
Capacity
909 kg
2004 lb
Cat
15175363
-
1140 mm (45 in)
Overall Width
1407 mm
55.4 in
Overall Height
1315 mm
51.8 in
Capacity
1364 kg
3007.1 lb
Cat
15175406
-
1300 mm (51 in)
Height
550 mm
21.7 in
Width
1300 mm
51 in
Overall Width
1312 mm
51.7 in
Cat
15181028
-
1803 mm (71 in)
Overall Width
1401 mm
55.2 in
Overall Height
873 mm
34.4 in
Maximum Opening Width
1803 mm
71 in
Cat
15175323
-
1829 mm (72 in)
Blade Width
1829 mm
72 in
Width - Fully Angled
1685 mm
66.3 in
Maximum Blade Angle - Right/Left of Center
30 degrees
Cat
15175423
-
2.44 m (8 ft)
Working Width
2438 mm
96 in
Weight
491 kg
1082.5 lb
Length
1143 mm
45 in
Cat
15184188
-
2.44 m (8 ft)
Working Width
2438 mm
96 in
Weight
470 kg
1036.2 lb
Length
1143 mm
45 in
Cat
15184148
-
2.44 m (8 ft)
Working Width
2438 mm
96 in
Weight
353 kg
778.2 lb
Length
1109 mm
43.7 in
Cat
15184168
-
2007 mm (79 in)
Blade Width
2007 mm
79 in
Width - Fully Angled
1750 mm
68.9 in
Maximum Blade Angle - Right/Left of Center
30 degrees
Cat
15175541
-
2080 mm (82 in), Skid Steer Coupler, Bolt-On Cutting Edge
Width
2080 mm
81.9 in
Weight
587.4 kg
1295 lb
Height - Grapples Closed
1054 mm
41.5 in
Cat
15176767
-
2133 mm (84 in)
Overall Width
1401 mm
55.2 in
Overall Height
873 mm
34.4 in
Maximum Opening Width
2133 mm
84 in
Cat
15175326
-
2134 mm (84 in)
Blade Width
2134 mm
84 in
Width - Fully Angled
1949 mm
76.7 in
Maximum Blade Angle - Right/Left of Center
30 degrees
Cat
15175448
-
2337 mm (92 in)
Blade Width
2337 mm
92 in
Width - Fully Angled
2049 mm
80.7 in
Maximum Blade Angle - Right/Left of Center
30 degrees
Cat
15175592
-
3.05 m (10 ft)
Working Width
3048 mm
120 in
Weight
523 kg
1153 lb
Length
1143 mm
45 in
Cat
15184286
-
3.05 m (10 ft)
Working Width
3048 mm
120 in
Weight
545 kg
1201.5 lb
Length
1143 mm
45 in
Cat
15184265
-
3.05 m (10 ft)
Working Width
3048 mm
120 in
Weight
393 kg
866.4 lb
Length
1109 mm
43.7 in
Cat
15184346
Other categories of Palas cargadoras de ruedas:
360º Interior
360º Exterior
Virtual Tour

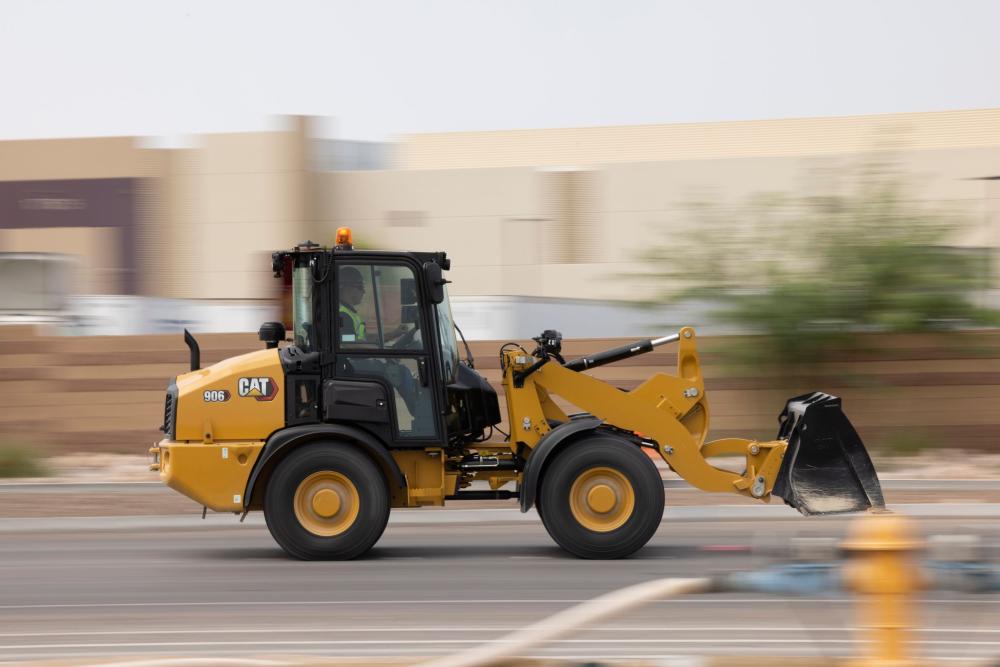

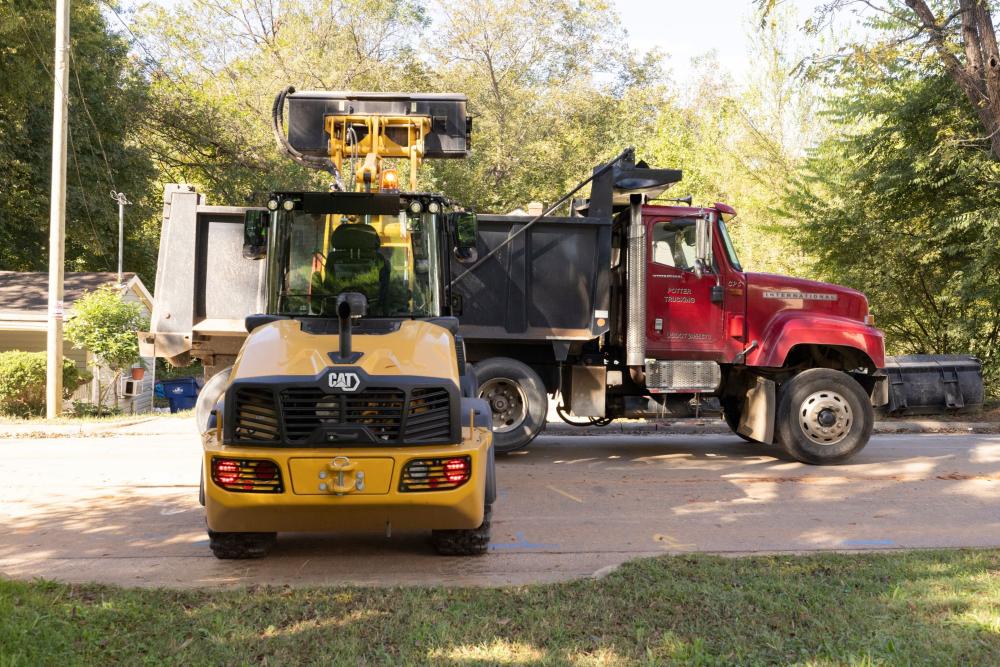

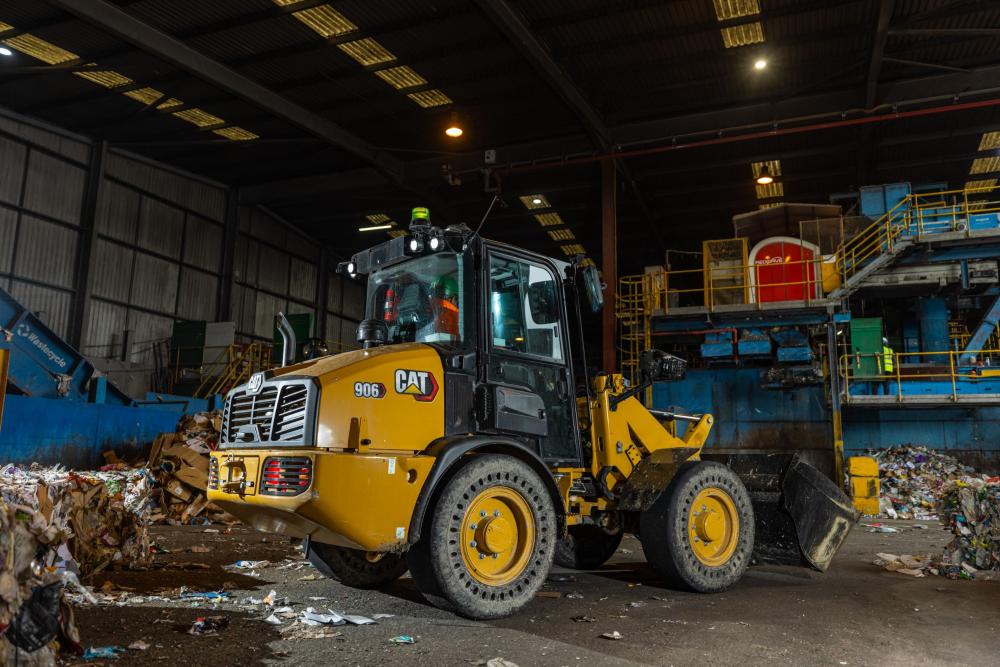

Cat 906 Compact Wheel Loader
Call us
I am interested
I am interested
Thank you for contacting us.
We have received your request and will contact you as soon as possible.
Please check your email to ensure that the form has been sent correctly.
