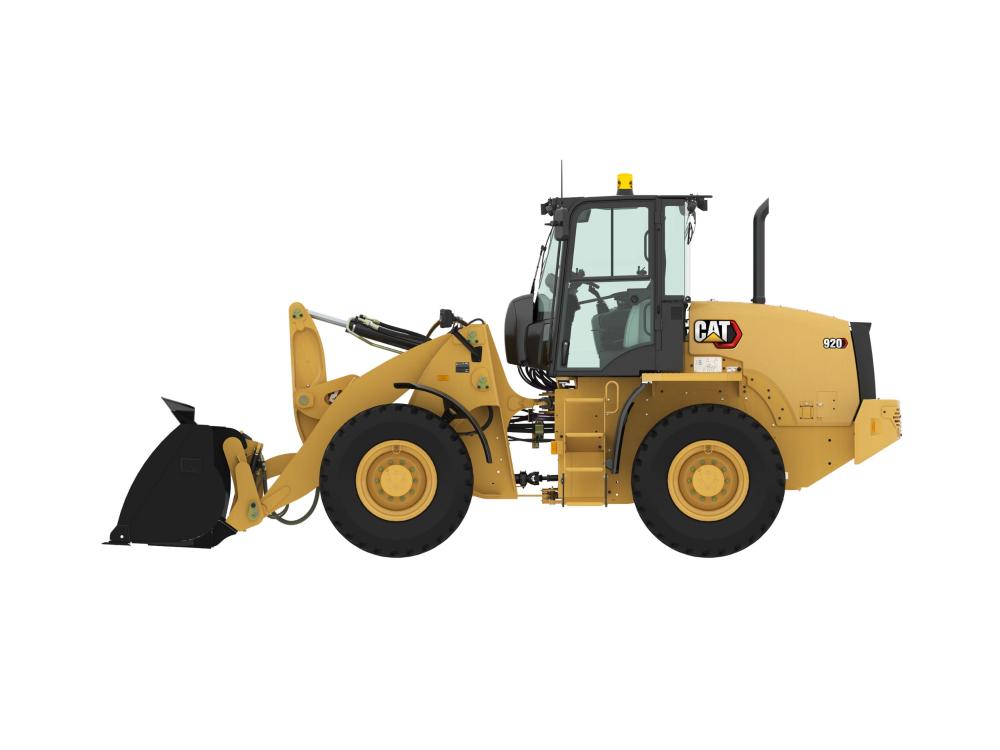

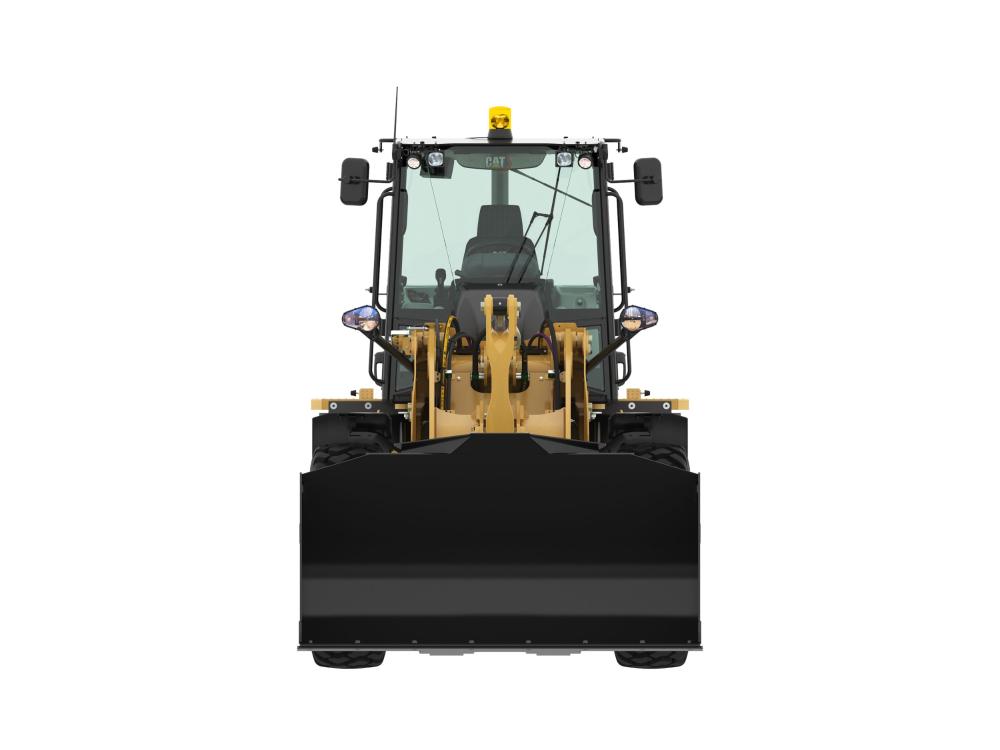

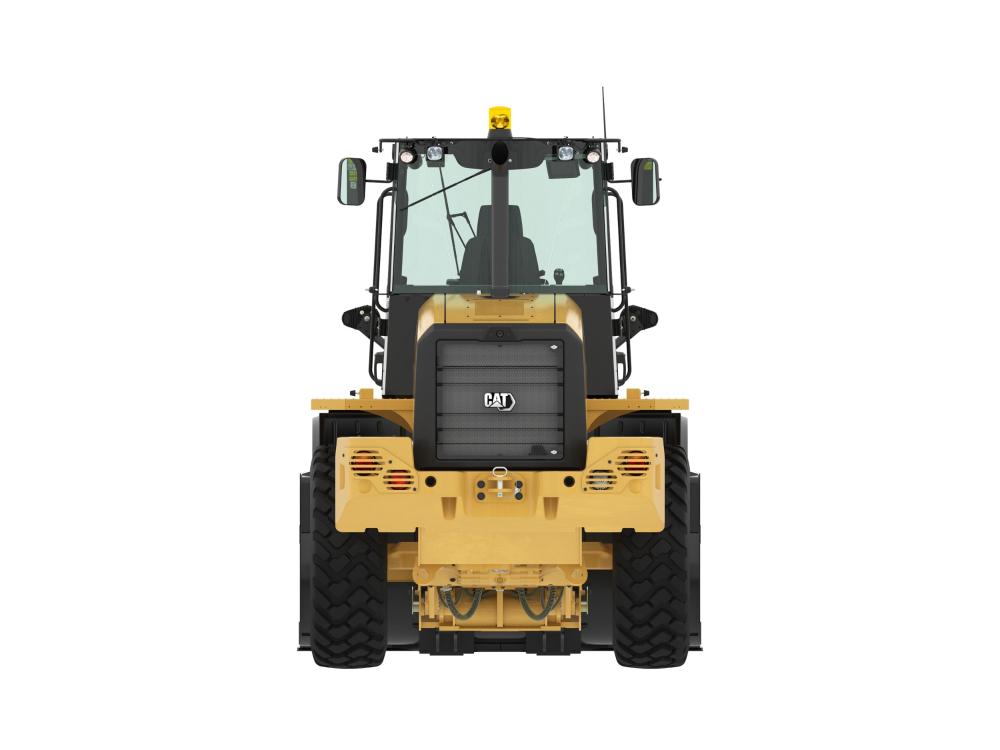

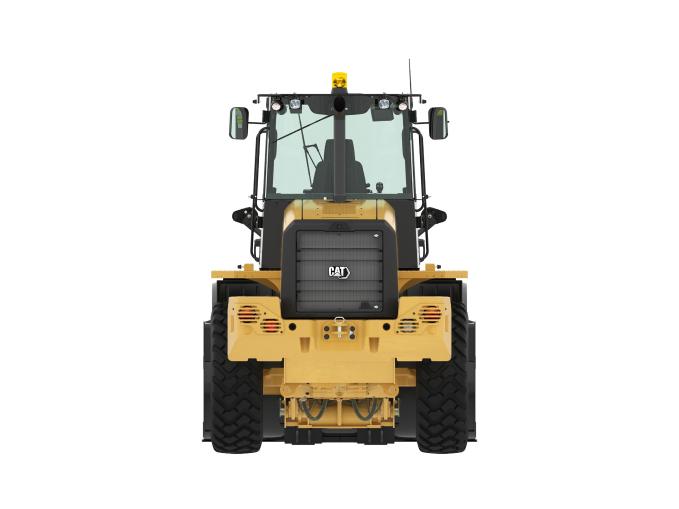

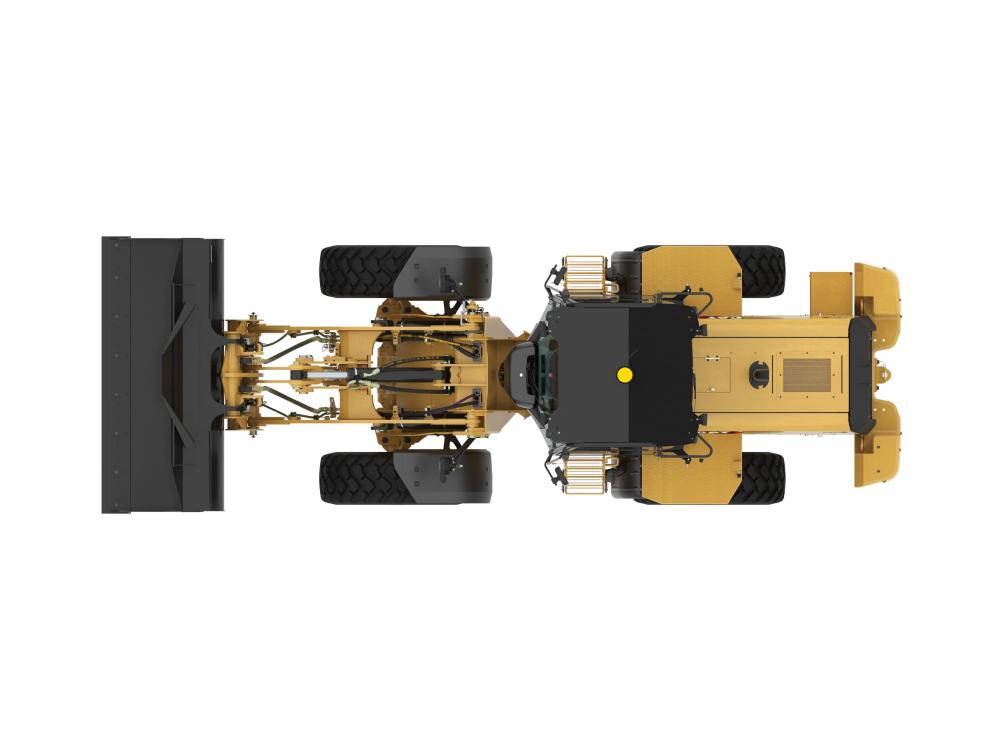

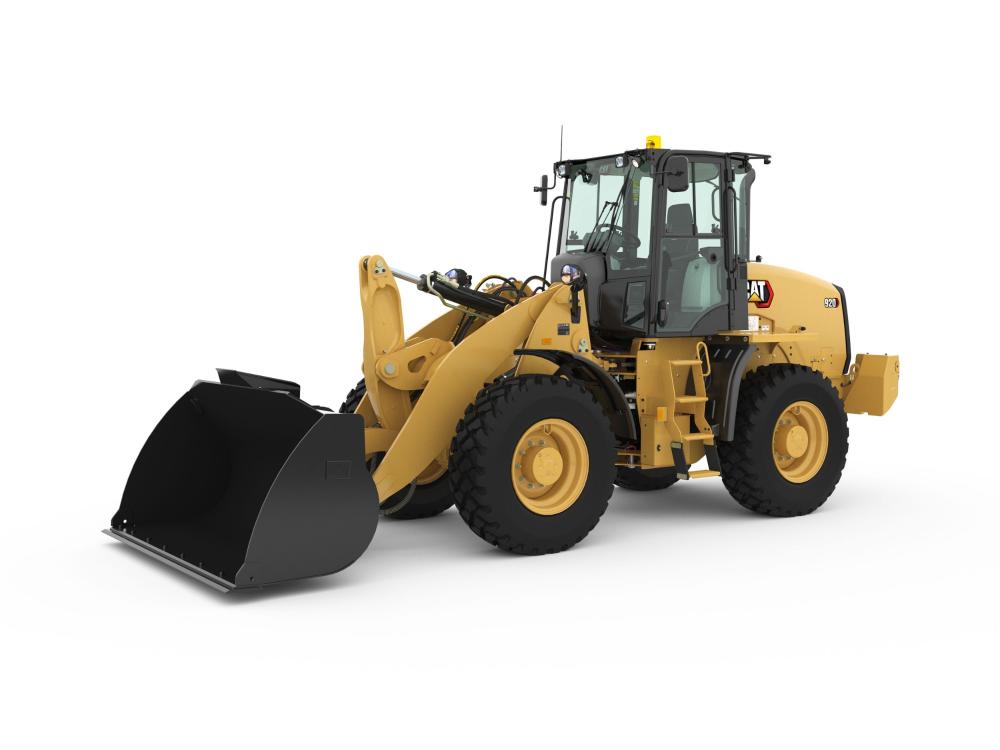

920 Compact Wheel Loader

Units of measurement :

Metric

Imperial

Maximum Gross Power

90 kW

Operating Weight

9865 kg

Bucket Capacities

1.3-3.5 m3 (1.7-4.6 yd3)

Availability

Purchase Rental Used

The Cat® 920 Compact Wheel Loader features a C3.6 engine, the Cat Optimized Z-bar Loader linkage, various work tools, a state-of-the-art electro-hydraulic system, a tuned drivetrain, a cab with all-around visibility, extended service intervals and excellent service access, and standard fuel savings features.

10% More Payload*

*920 Aggregate Handler only.

Big Options Small Loader

4% Power Boost

Cat® C3.6 Engine

Cat Optimized Z-bar Loader Linkage

Work Tools

Hydraulics and Controls

Tuned Drivetrain

Cab

Serviceability

Efficiently Powerful

Standard Fuel Savings Features

Sustainability

EU Stage V and U.S. EPA Tier 4 Final compliant.

920 Product Brochure.pdf 910, 914, 920 Product Brochure.pdf Attachments for Compact Wheel Loaders Brochure.pdf Retrofit Options and Accessories for Compact Wheel Loaders.pdf

Engine

Maximum Gross Power	90 kW	121 hp
Rated Net Power - Rated Engine Speed	2200 r/min	2200 r/min
Maximum Gross Power - Rated Engine Speed	2200 r/min	2200 r/min
Rated Net Power - SAE J1349	90 kW	120 hp
Maximum Gross Power - ISO 14396 (metric)	122 hp	122 hp
Rated Net Power - ISO 9249	88 kW	118 hp
Maximum Gross Torque - SAE J1995	505 N·m	372 ft·lbf
Maximum Gross Torque - ISO 14396	500 N·m	369 ft·lbf
Maximum Net Torque - SAE J1349	496 N·m	366 ft·lbf
Maximum Net Torque - ISO 9249	493 N·m	363 ft·lbf
Displacement	3.6 l	220 in³
Bore	98 mm	3.85 in
Stroke	120 mm	4.72 in
Engine Model	Cat C3.6
Emissions	Engine meets Tier 4 Final/Stage V emission standards.
Note	Net power advertised is the power available at the flywheel plus front drive implement pump when the engine is equipped with fan, air cleaner, muffler and alternator.
Maximum Gross Power - ISO 14396	90 kW	121 hp

Weights

Buckets

Sustainability

Service Refill Capacities

Cab

Steering

Loader Hydraulic System

Transmission

Axles

Tires

Compatible products:

Other categories of Palas cargadoras de ruedas:

360º Interior
360º Exterior

920 Compact Wheel Loader

Bucket Capacities	1.3-3.5 m3 (1.7-4.6 yd3)
Bucket Capacities - General Purpose	1.3-1.9 m³ (1.7-2.5 yd³)
Bucket Capacities - Light Material	2.5-3.5 m³ (3.3-4.6 yd³)

Transmission	3.2 l	0.8 gal (US)
Engine Crankcase	10 l	2.6 gal (US)
Diesel Exhaust Fluid (DEF) Tank	18 l	4.8 gal (US)
Axles - Rear	17 l	4.5 gal (US)
Cooling System	21.5 l	5.7 gal (US)
Hydraulic System - Including Tank	98 l	25.9 gal (US)
Axles - Front	17 l	4.5 gal (US)
Fuel Tank	165 l	43.6 gal (US)
Hydraulic Tank	55 l	14.5 gal (US)
Note	DEF used in Cat Selective Catalyst Reduction (SCR) systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241-1.

ROPS	ISO 3471:2008
FOPS	ISO 3449:2005
Note (3)	The labelled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC (as amended by 2005/88/EC) is 103 dB(A).
Note (2)	The declared dynamic operator sound pressure levels per ISO 6396:2008*, when the cab is properly installed and maintained, is 77 dB(A).
Note (1)	Cab and Rollover Protective Structures (ROPS) are standard in North America and Europe.
Note (4)	*The measurements were conducted with the cab doors and windows closed.

Maximum Working Pressure - Steering Pump	22000 kPa	3190 psi
Steering Cycle Times - Full Left to Full Right - At 2,350 rpm: 90 rpm Steering Wheel Speed	2.3 s	2.3 s
Steering Articulation Angle - Each Direction	40 °	40 °
Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left	3.4 turns	3.4 turns
Maximum Flow - Steering Pump	82 l/min	21.7 gal/min

Relief Pressure - Tilt Cylinder	32000 kPa	4641 psi
Maximum Flow - Implement Pump - 3rd Function, Maximum Flow, Standard	95 l/min	25 gal/min
Maximum Flow - Implement Pump	165 l/min	43.6 gal/min
Relief Pressure - Tilt Cylinder - 4th Function Relief Pressure	32000 kPa	4641 psi
Hydraulic Cycle Time - Float Down, Maximum Lift to Ground Level	2.7 s	2.7 s
Note	All cycle times listed are with cylinder snubbing turned off.
Maximum Working Pressure - Implement Pump	28000 kPa	4061 psi
Hydraulic Cycle Time - Total Cycle Time	11.5 s	11.5 s
Hydraulic Cycle Time - Rackback	2.2 s	2.2 s
Maximum Flow - Implement Pump - 4rd Function, Maximum Flow	95 l/min	25 gal/min
Hydraulic Cycle Time - Dump, at Maximum Reach	1.8 s	1.8 s
Hydraulic Cycle Time - Raise, Ground Level to Maximum Lift	4.8 s	4.8 s
Maximum Flow - Implement Pump - 3rd Function, Maximum Flow, High	150 l/min	40 gal/min

Note	*Creeper Control allows speed control from a stand still up to 10 km/h (6.3 mph). The Creeper Control will only work in Range 1.
Forward and Reverse - Speed Range 3	40 km/h	25 mile/h
Forward and Reverse - Speed Range 2*	20 km/h	12.5 mile/h
Forward and Reverse - Speed Range 1*	10 km/h	6.3 mile/h

Rear	Oscillating ±11 degrees; Locking differential (standard)
Front	Fixed; Locking differential (standard)

Other Choices Include	17.5 R25 L3 XHA2; 20.5 R25 L3 XHA3; 17.5-25 L2/L3 SGL; 20.5-25 L2/L3 SGL; 17.5-25 L3 HRL D/L-3A; 17.5 R25 L2 Snow; 20.5 R25 L2 Snow; 17.5 R25 Solid
Standard Size	17.5 R25 L2 XTLA
Note (1)	Other tire choices are available. Contact your Cat dealer for details.
Note (3)	Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.
Note (2)	In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities.
