B4s Silenced Hydraulic Hammer

15181576

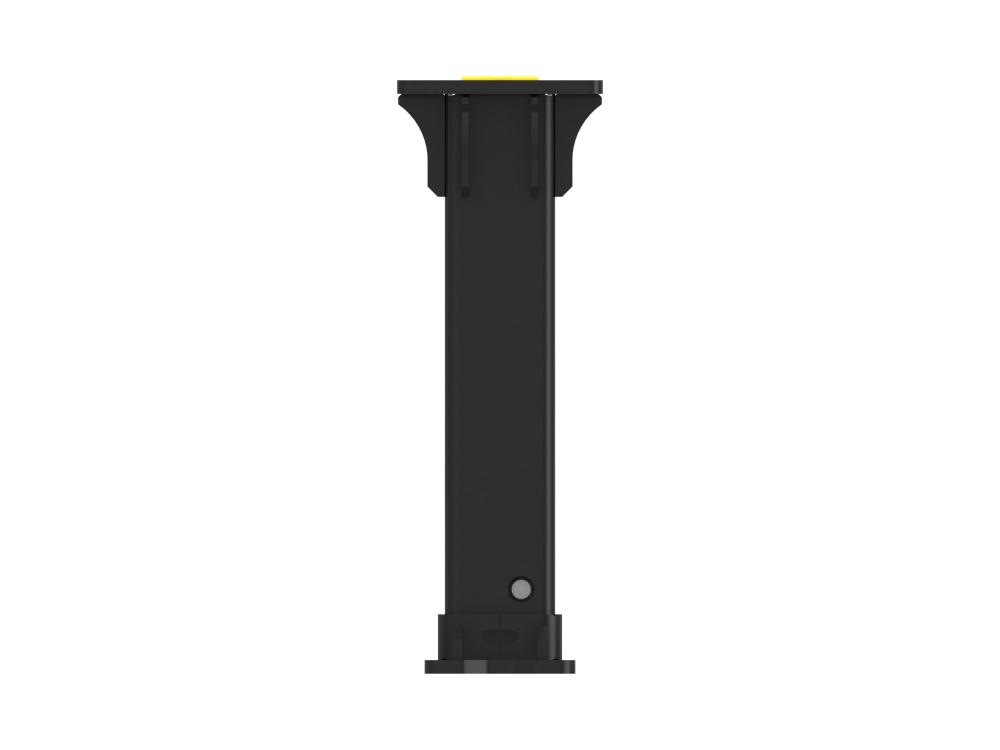

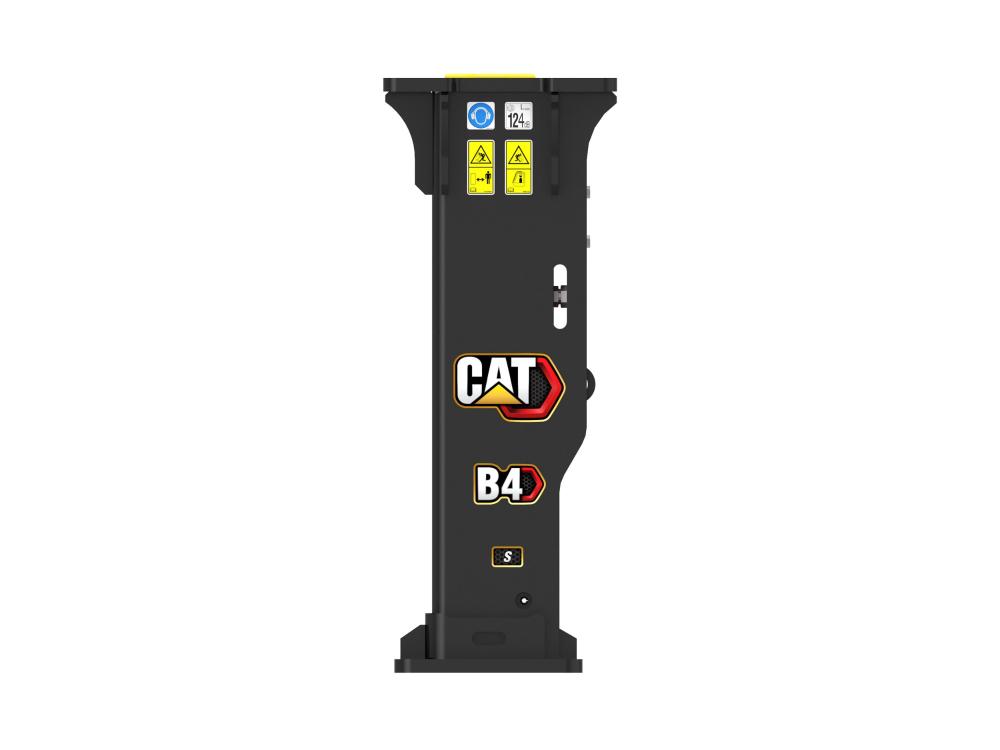

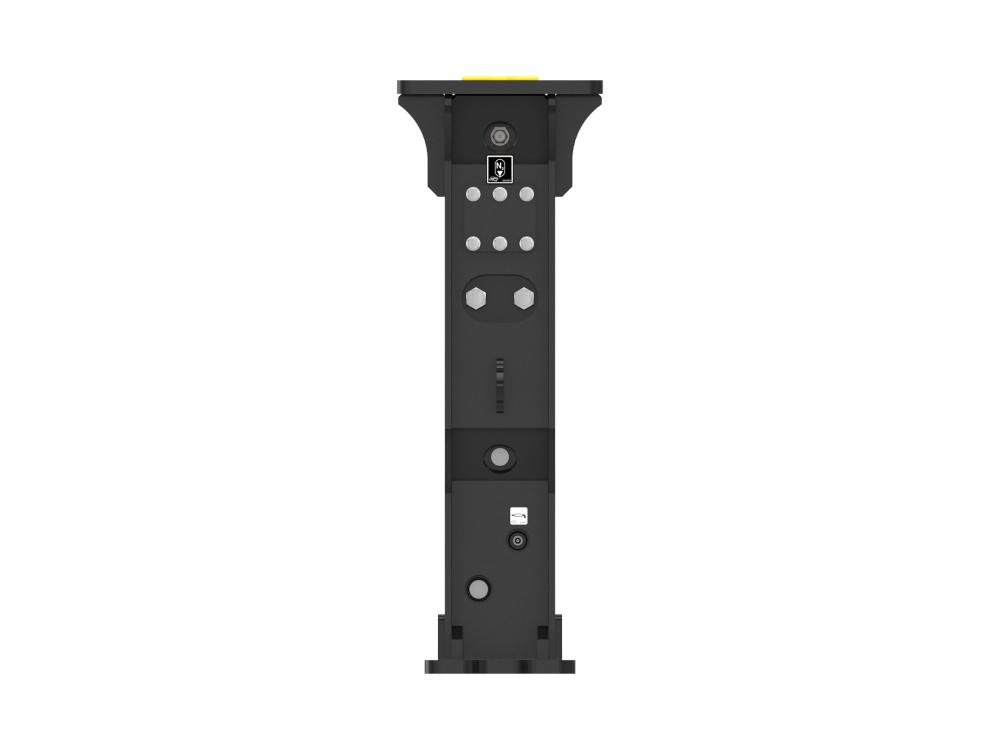

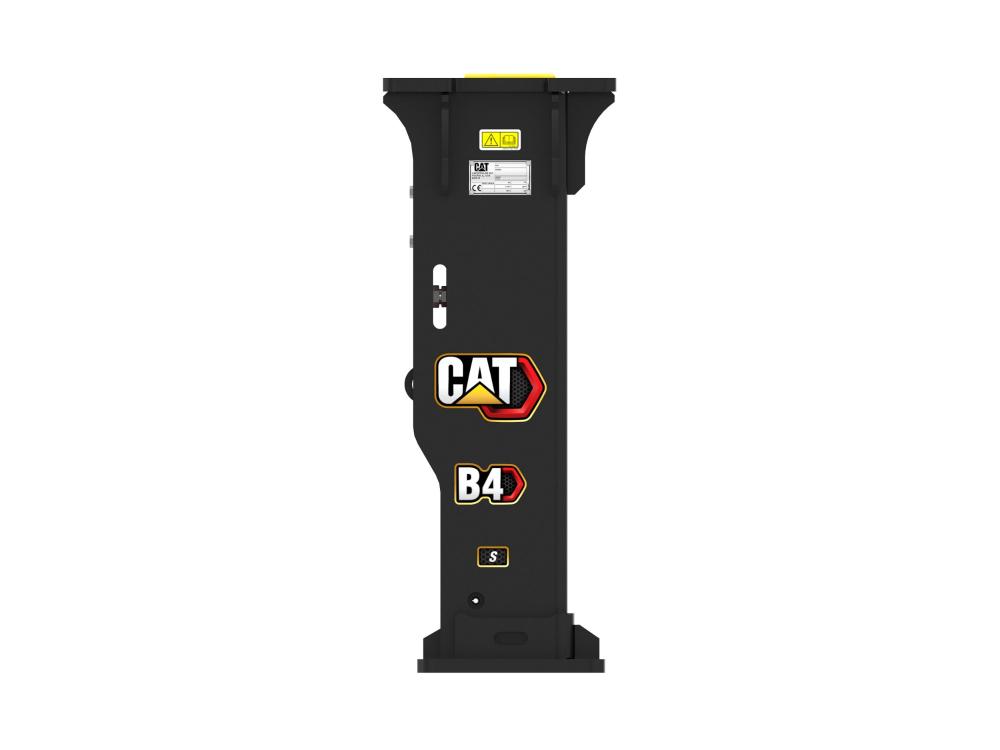

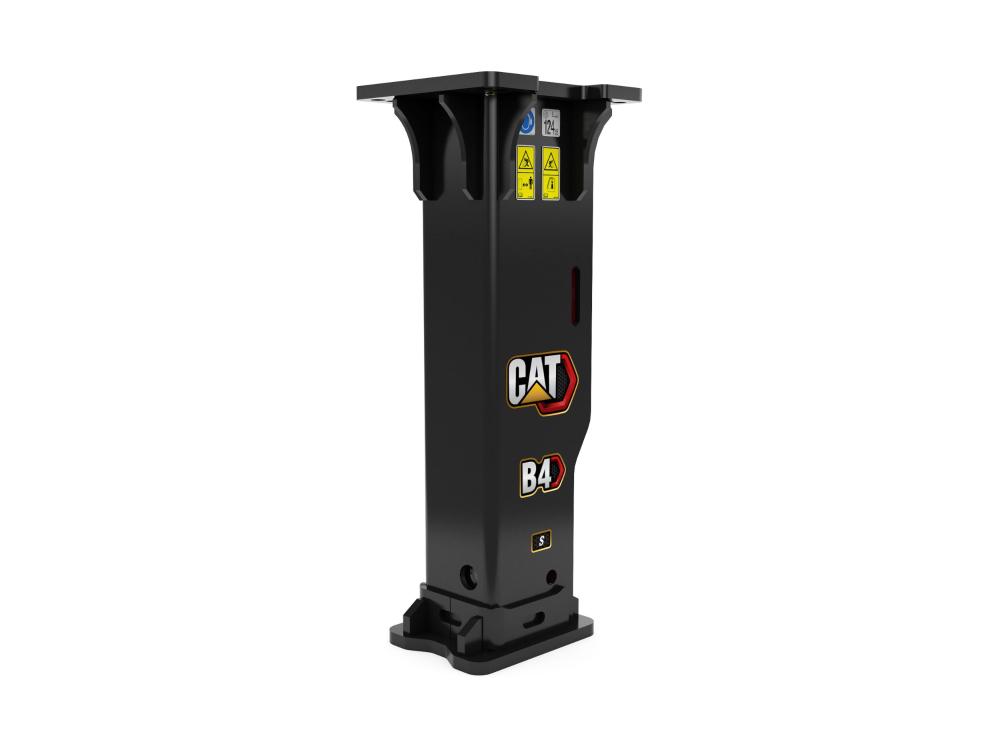

B4s Silenced Hydraulic Hammer

Cat

Units of measurement :

Metric

Imperial

Operating Weight - With Tool

162 kg

357.1 lb

Energy Class

370 J

272.9 ft·lbf

Machine Class

2-5 Ton Mini Excavators, 216-299 Skid Steer/Compact Track Loaders

Availability

Purchase Rental Used

Cat® Hammers for Skid Steer Loaders, Compact Track Loaders, Mini Excavators and Backhoe Loaders are high performance breakers, designed for maximum performance on demolition, construction, and road work.

Features

Specifications

Documents

Application

Ergonomically Positioned Hydraulic Lines

Gas Fired Design

Flat Top/Top-Mount Style

Newly Designed Skid Steer Loader Mounting Bracket

Slip Fit Bushings

Tool Mounted Operation and Maintenance Manual (OMM) Holder

Included with Each B Series Hammer

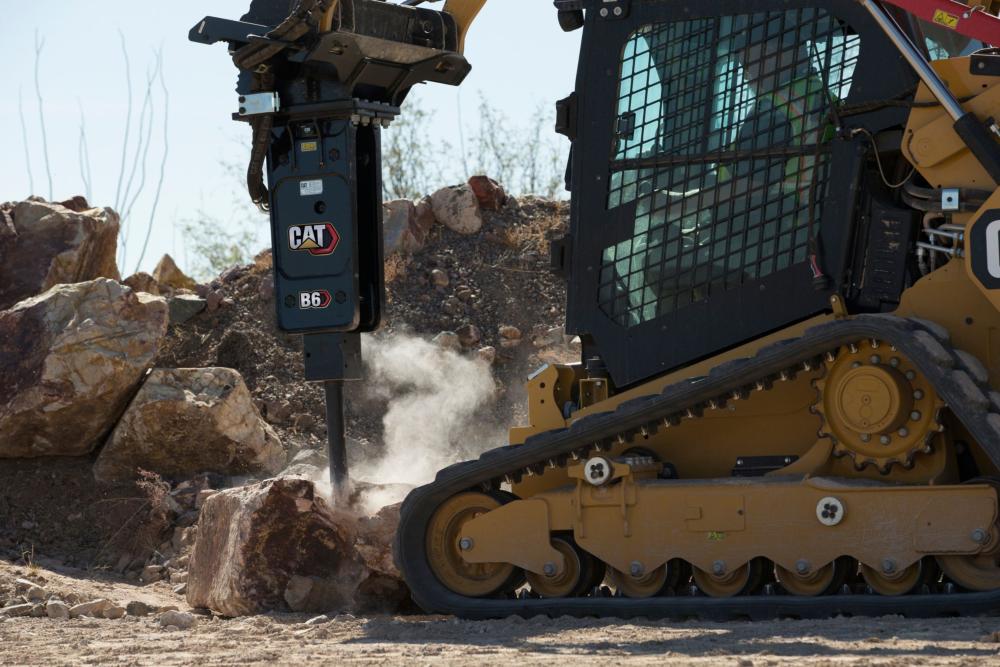

Cat® B Hammers are suitable for use in a wide range of construction and light demolition applications - such as breaking concrete sidewalks and driveways, pavement, roads, masonry, site prep and landscaping, and breaking frozen ground for utility repairs.

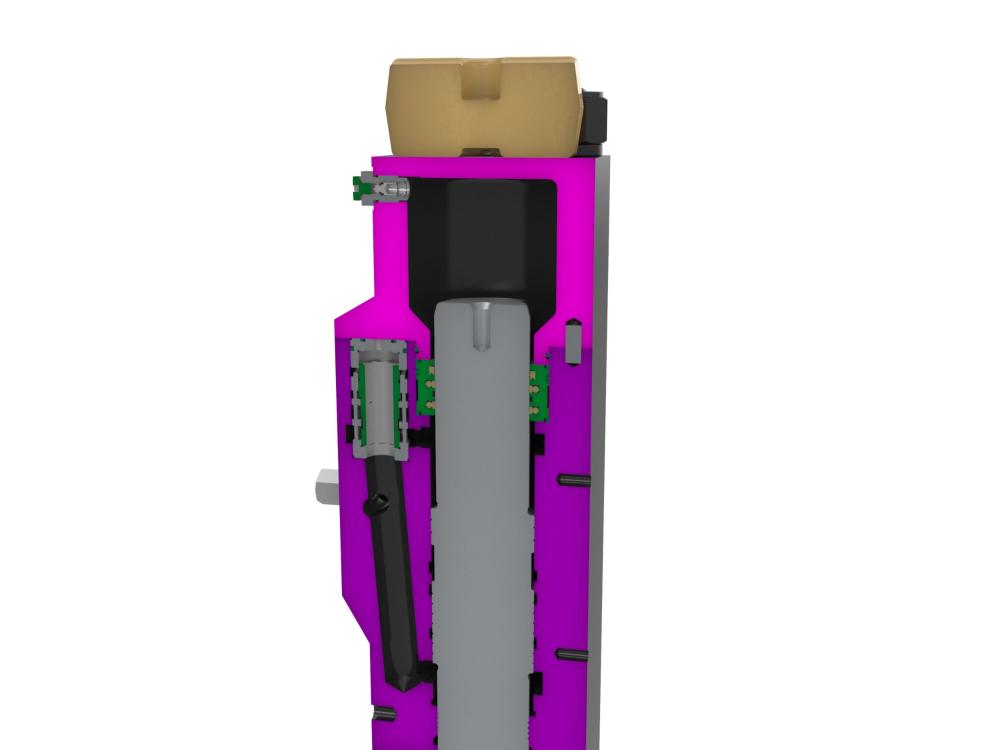

Ergonomically positioned hydraulic lines are designed to optimize serviceability, are easily accessible and require no special tools. Housing has been positioned to protect against force and dirt during impact but allow for wrench access. Hydraulic lines and back head pressure can be checked and charged while breaker is mounted to machine, allowing quick monitoring of breaker's condition.

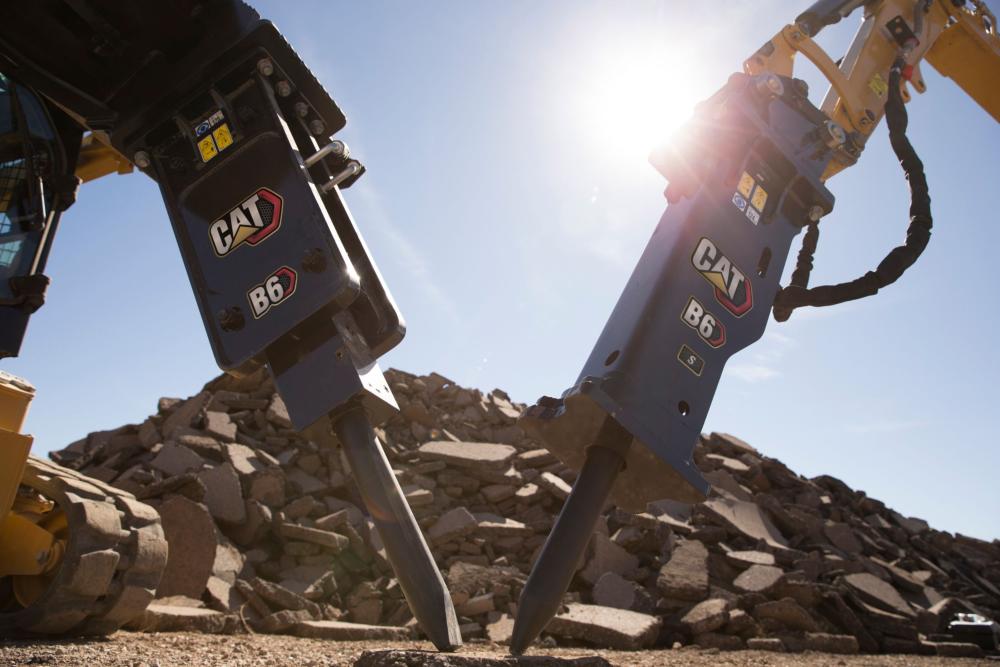

Gas fired design delivers consistently high production over time making the breaker reliable in applications such as concrete, asphalt, rock and light trenching.

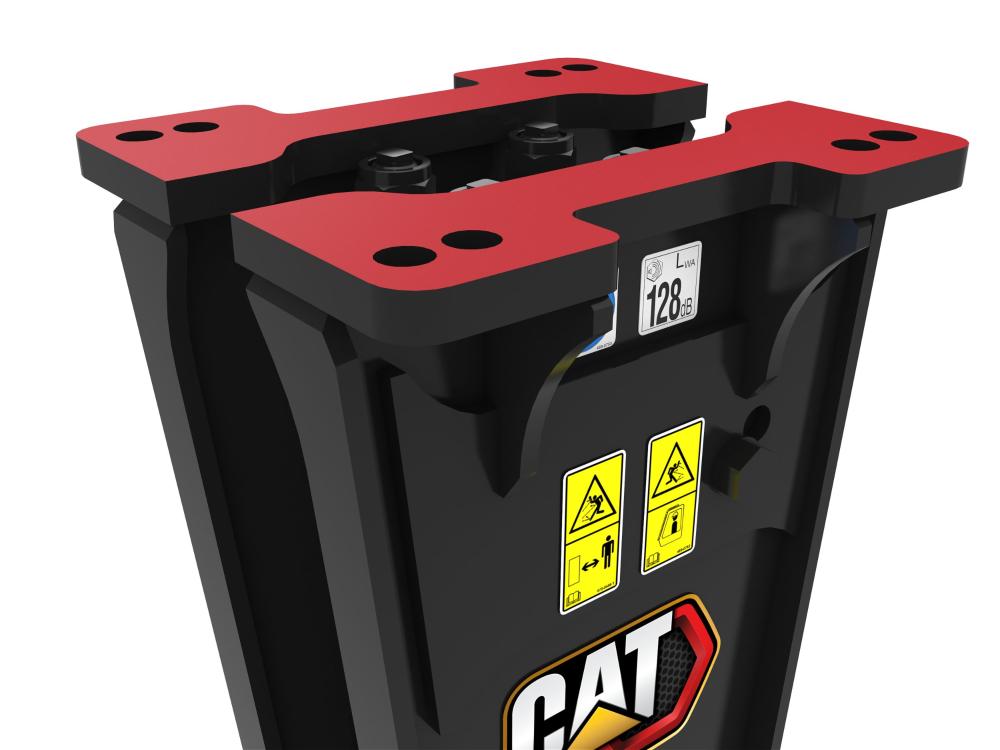

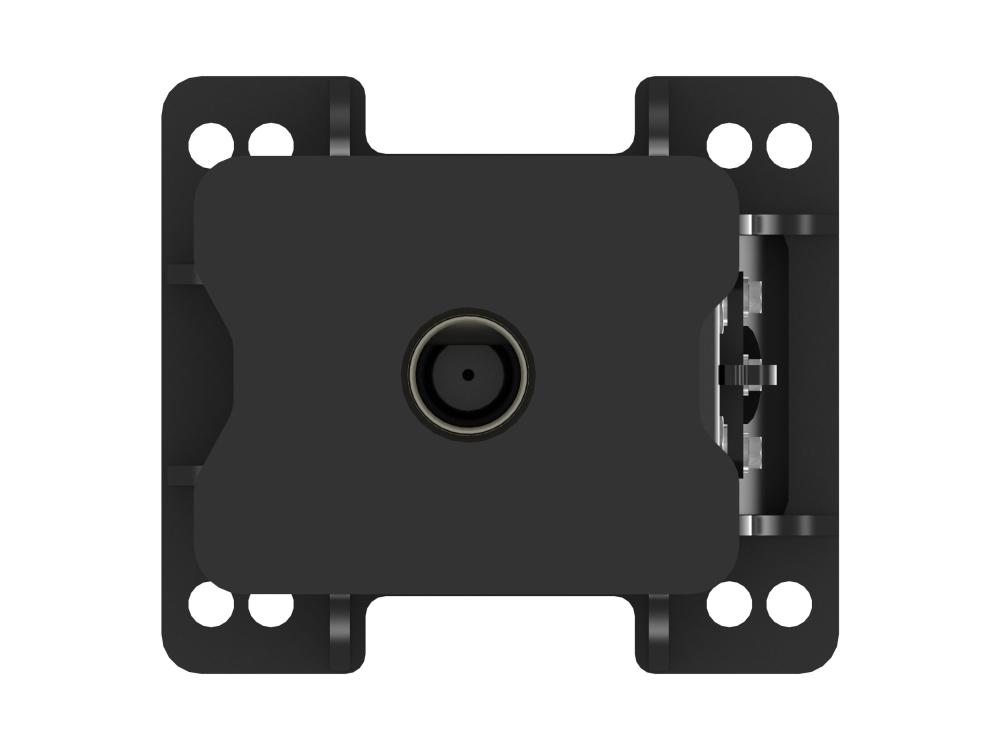

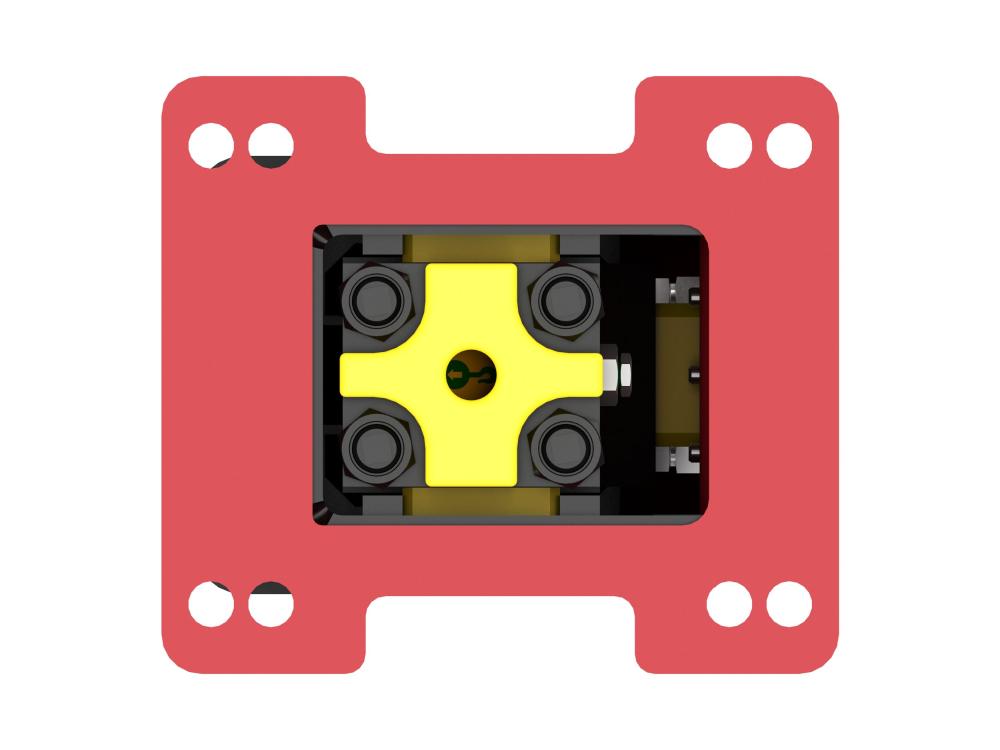

Flat top/top-mount style provides a larger work area and excellent operator visibility with a common footprint and hole pattern for optimum versatility. Top-mount style increases impact power by keeping breaker force and stick force in line. A top-mount bracket will transfer back significantly less recoil and bending stress into the end of the stick, resulting in reduced impact on machine structures. Full complement of mounting brackets is available to suite coupler or pin-on preference.

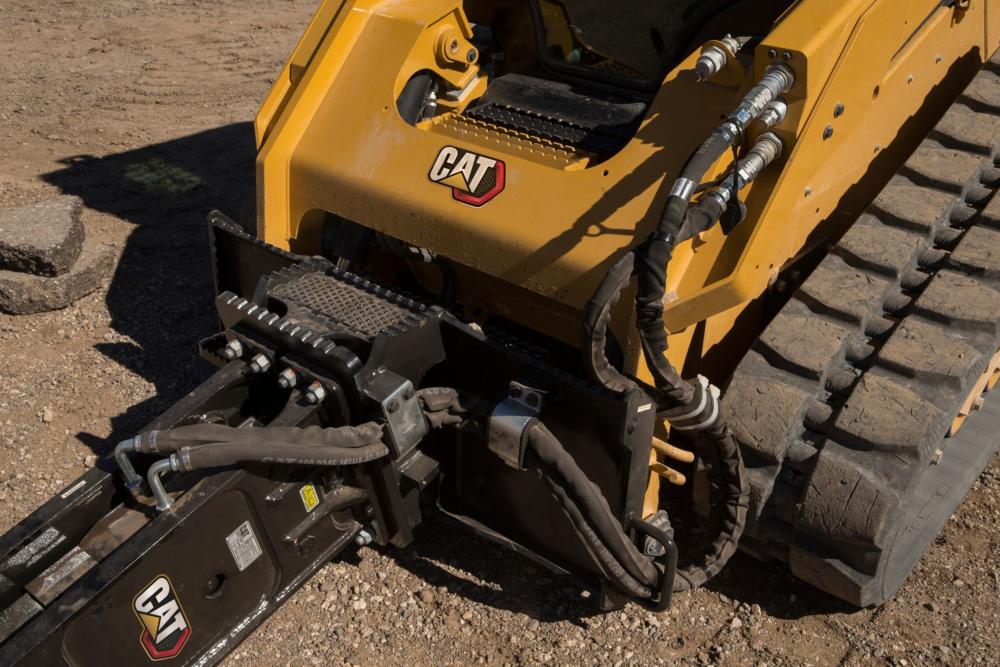

Newly designed skid steer loader mounting bracket features enhanced hose routing and improved ingress/egress with new bolt-on step and updated central step. Brackets are compatible with H Model Hammers, E Series Hammers and the CVP16 and CVP40 Vibratory Plate Compactors.

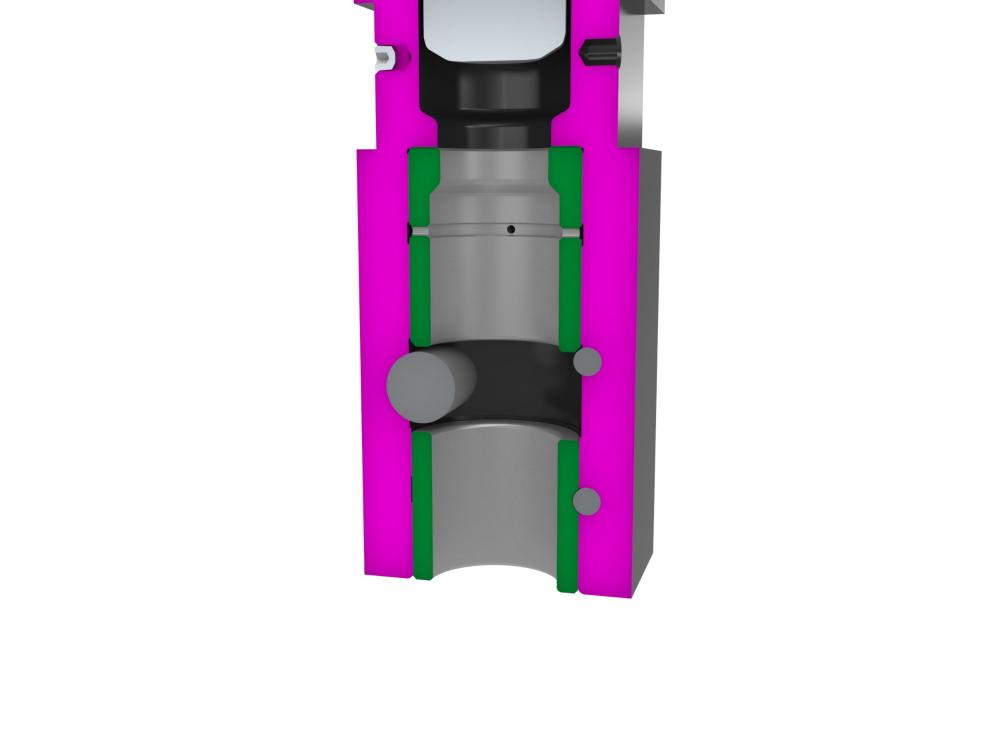

Slip fit bushings are field replaceable and easy to maintain due to one locking pin, extending wear life and reducing owning and operating costs. Upper bushing rotates 360°, lower bushing has two positions and can be rotated 90°.

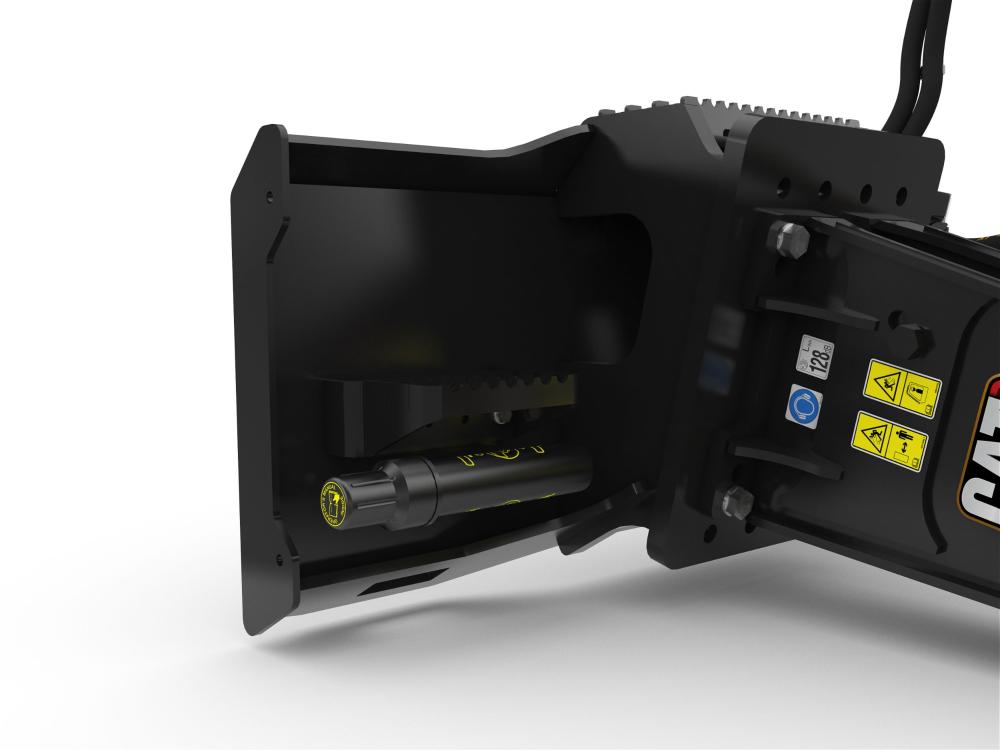

Tool mounted OMM holder is sealed from the elements and includes all operation manuals and maintenance guides required for proper operation of the hammer (Skid Steer Loader bracket only).

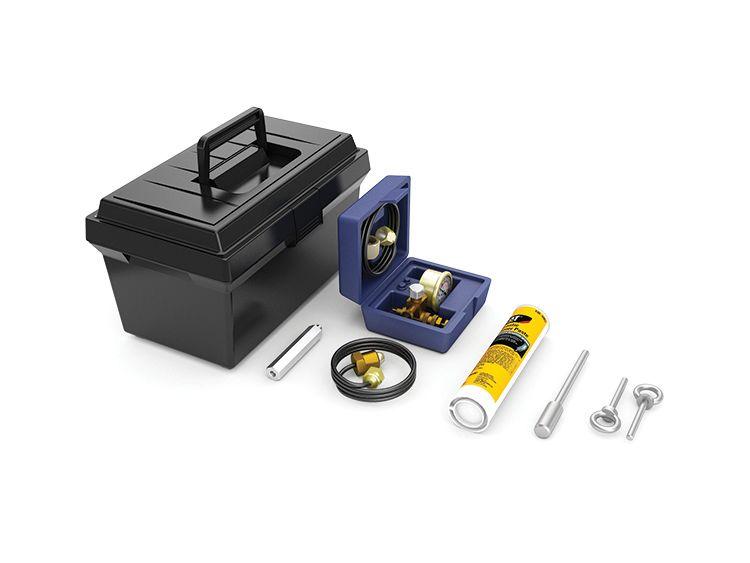

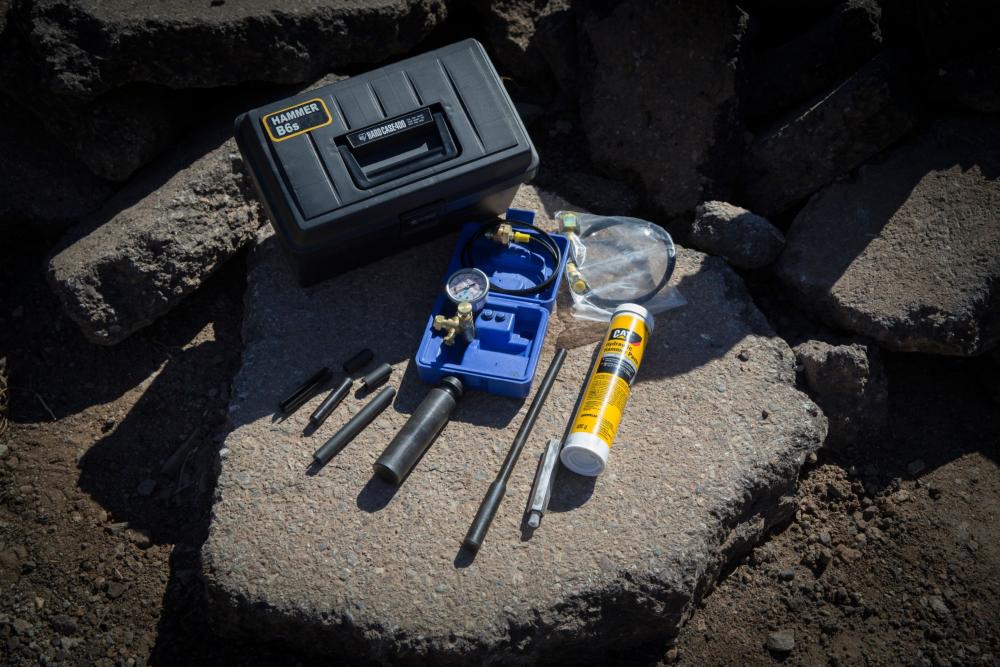

Every B Series Hammer comes with:

Tool Kit w/Storage Box
2 Tools (1 x Conical and 1 x Transverse Chisel)
Maintenance Kit

Cat® B1-B9 Model Hammers Brochure.pdf Cat® B1-B9 Model Hammers Parts Reference Guide.pdf

Others

Operating Weight - With Tool	162 kg	357.1 lb
Energy Class	370 J	272.9 ft·lbf
Machine Class	2-5 Ton Mini Excavators, 216-299 Skid Steer/Compact Track Loaders
Tool Shaft Diameter	53 mm	2.1 in
Impact Frequency	600-1100 bpm
Minimum Operating Pressure	10286 kPa	1491.9 psi
Minimum Carrier Weight	2540 kg	5599.7 lb
Optimal Hydraulic Flow	25-50 lpm (6.6-13.2 gpm)
Overall Width	300 mm	11.8 in
Overall Length	340 mm	13.4 in
Overall Height	1195 mm	47 in
Height - Without Tool	865 mm	34.1 in
Sound Level	124 dB
Mounting Bracket Size	Small-Medium

Compatible machines:

226D3

Gross Power - SAE J1995

50.1 kW

67.1 hp

Rated Operating Capacity

705 kg

1550 lb

Operating Weight

2653 kg

5849 lb

Caterpillar

15197332
232D3

Gross Power - SAE J1995

50.1 kW

67.1 hp

Rated Operating Capacity

865 kg

1900 lb

Operating Weight

2955 kg

6514 lb

Caterpillar

15197345
236D3

Gross Power - SAE J1995

55.4 kW

74.3 hp

Rated Operating Capacity

820 kg

1800 lb

Operating Weight

2979 kg

6567 lb

Caterpillar

15197358
239D3

Gross Power - SAE J1995

50.1 kW

67.1 hp

Rated Operating Capacities - 35% Tipping Load

695 kg

1530 lb

Operating Weight

3372 kg

7434 lb

Caterpillar

15197196
249D3

Gross Power - SAE J1995

50.1 kW

67.1 hp

Rated Operating Capacities - 35% Tipping Load

790 kg

1740 lb

Operating Weight

3552 kg

7831 lb

Caterpillar

15197211
262D3

Gross Power - SAE J1995

55.4 kW

74.3 hp

Rated Operating Capacity

1225 kg

2700 lb

Operating Weight

3763 kg

8296 lb

Caterpillar

16110610
272D3

Gross Power - SAE J1995

73 kW

98 hp

Rated Operating Capacity

1570 kg

3450 lb

Operating Weight

4143 kg

9133 lb

Caterpillar

15197430
272D3 XE

Gross Power - SAE J1995

82 kW

110 hp

Rated Operating Capacity

1680 kg

3700 lb

Operating Weight

4342 kg

9573 lb

Caterpillar

15705752
