H35s Hydraulic Hammer

15181824

H35s Hydraulic Hammer

Cat

https://www.finanzauto.es/productos/martillos-caterpillar-martillo-hidraulico-h35s

Units of measurement :

Metric

Imperial

Operating Weight - With Tool

130 kg

286.6 lb

Energy Class

407 J

300.2 ft·lbf

Machine Class

1-2 Ton Mini Excavator

Availability

Purchase Rental Used

Cat® Hammers for Skid Steer Loaders, Compact Track Loaders, Mini Excavators and Backhoe Loaders are high performance breakers, designed for maximum performance on demolition, construction, and road work.

Features

Specifications

Documents

Application

Silenced

Flat Top/Top-Mount Style

Auto Shut Off (ASO)

Tri-Suspension System

Standing Height Grease Point

Easy to Tune & Maintain

Ports Positioned for Hose Protection

Hammer Tools

Used in a wide range of construction and light demolition applications - such as breaking concrete sidewalks and driveways, pavement, roads, masonry, site prep and landscaping, and breaking frozen ground for utility repairs.

Fully enclosed, silenced housing lowers overall noise level for a quieter, safer job site. Internal power cell is protected, designed and engineered to eliminate stress points.

Flat top/top-mount style provides a larger work area and excellent operator visibility with a common footprint and hole pattern for optimum versatility. Top-mount style increases impact power by keeping breaker force and stick force in line. A top-mount bracket will transfer back significantly less recoil and bending stress into the end of the stick, resulting in reduced impact on machine structures. Full complement of mounting brackets is available to suite coupler or pin-on preference.

ASO instantly stops the piston when breaking through material, preventing blank firing, a key contributor to hammer wear. Internal stresses are reduced, hammer is protected regardless of operator skill level.

Tri-Suspension system comprises the suspension jacket, the upper and lower buffers. Suspension aligns power cell and gives manageable, smooth performance.

Standing height grease point makes required maintenance comfortable and easy to perform.

Gas ports and valves are easy to check and charge while hammer is mounted to machine.

Improved routing protects against force and dirt during impact, eliminating downtime.

Tools are heat-treated, matched to piston diameter and provide optimum mass to deliver full blow energy.

Cat® H35-H90 Silenced Hammers Product Brochure.pdf Cat® H25D-H95 Model Hammers Parts Reference Guide.pdf

Others

Operating Weight - With Tool	130 kg	286.6 lb
Energy Class	407 J	300.2 ft·lbf
Machine Class	1-2 Ton Mini Excavator
Tool Shaft Diameter	40 mm	1.6 in
Impact Frequency	600-1800 bpm
Minimum Operating Pressure	10000 kPa	1450.4 psi
Minimum Carrier Weight	1102 kg	2429.5 lb
Optimal Hydraulic Flow	12-35 lpm (3-9 gpm)
Overall Width	300 mm	11.8 in
Overall Length	311 mm	12.2 in
Overall Height	860 mm	33.9 in
Height - Without Tool	620 mm	24.4 in
Sound Level	120 dB
Mounting Bracket Size	Medium

Compatible machines:

301.5

Net Power

15.7 kW

21 hp

Operating Weight

1775 kg

3913 lb

Dig Depth

2540 mm

100 in

Caterpillar

15195767
301.6

Net Power

15.7 kW

21 hp

Operating Weight

1958 kg

4317 lb

Dig Depth

2540 mm

100 in

Caterpillar

15195795
301.7 CR

Net Power

15.7 kW

21 hp

Operating Weight

1915 kg

4222 lb

Dig Depth

2540 mm

100 in

Caterpillar

15195813
301.8

Net Power

15.7 kW

21 hp

Operating Weight

2029 kg

4473 lb

Dig Depth

2570 mm

101.2 in

Caterpillar

15195920
302 CR

Net Power

15.7 kW

21 hp

Operating Weight

2262 kg

4987 lb

Dig Depth

2570 mm

101.2 in

Caterpillar

15195945

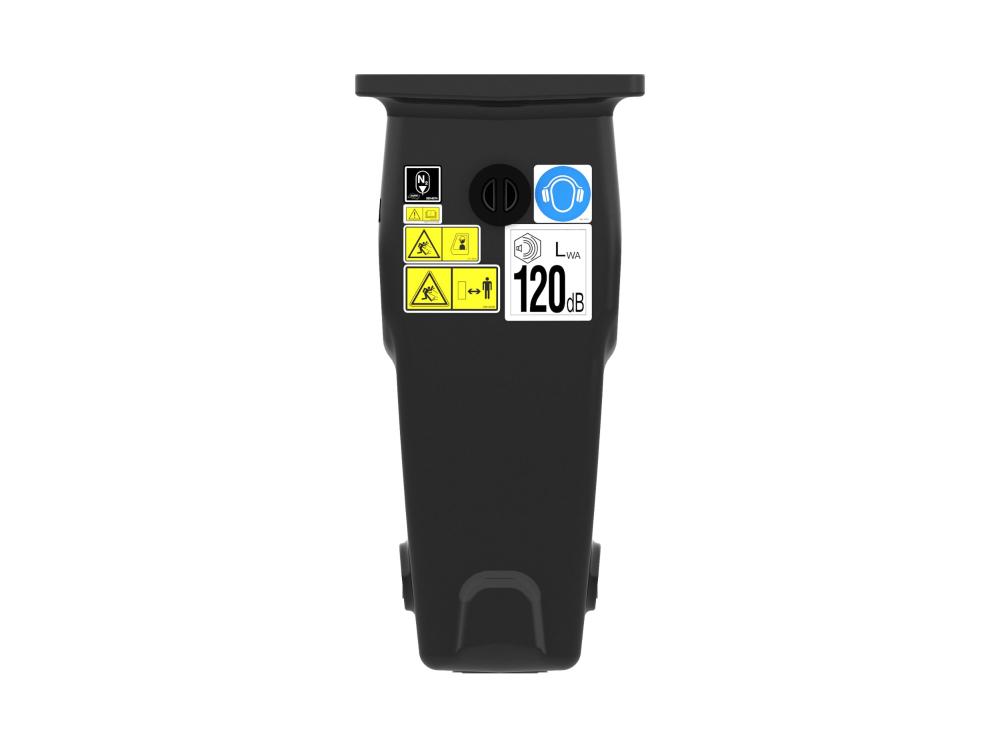

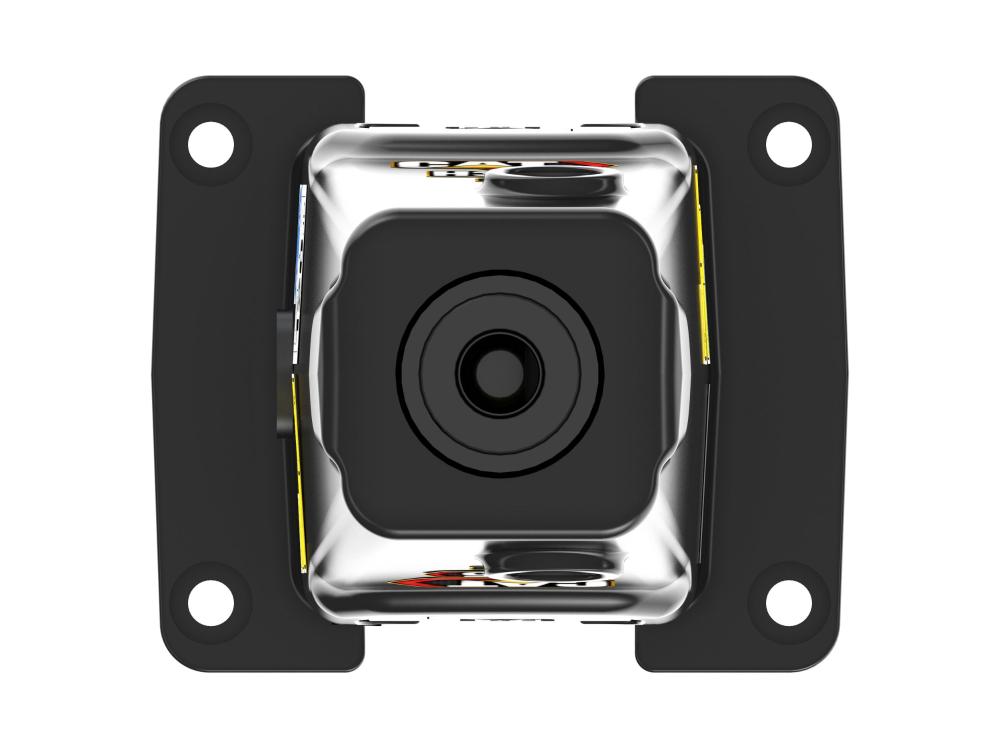

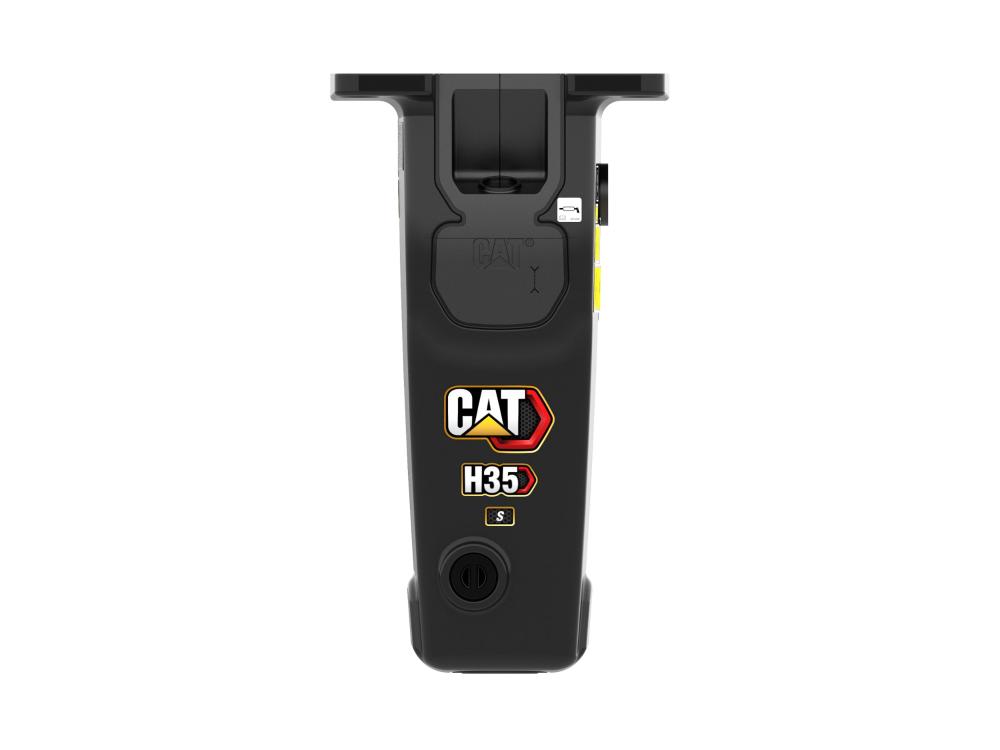

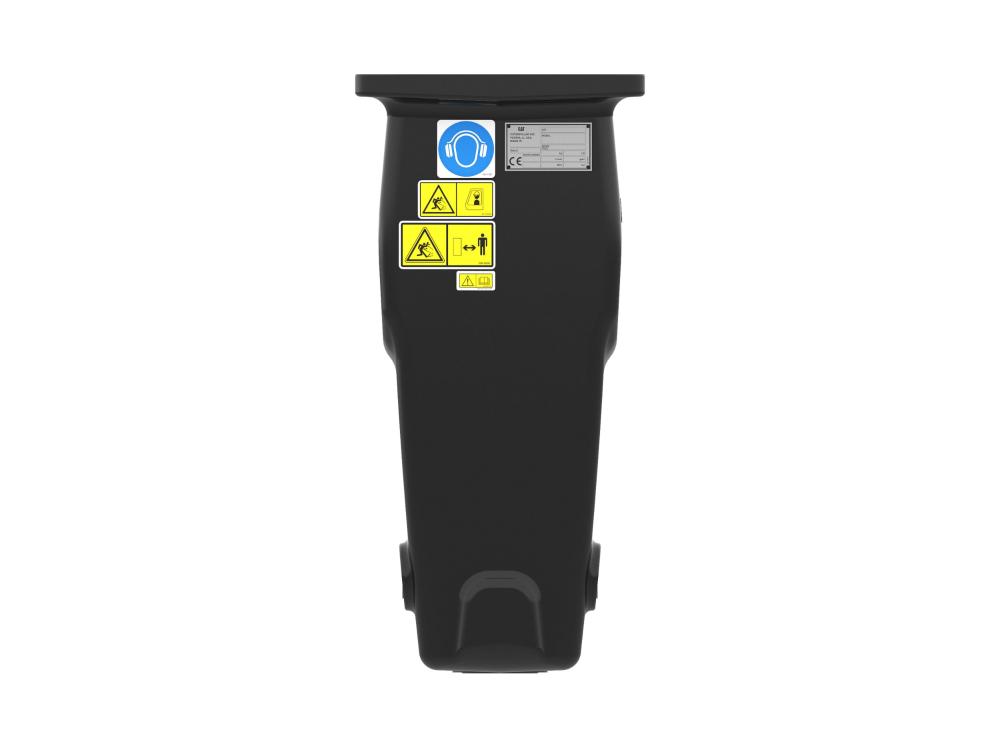

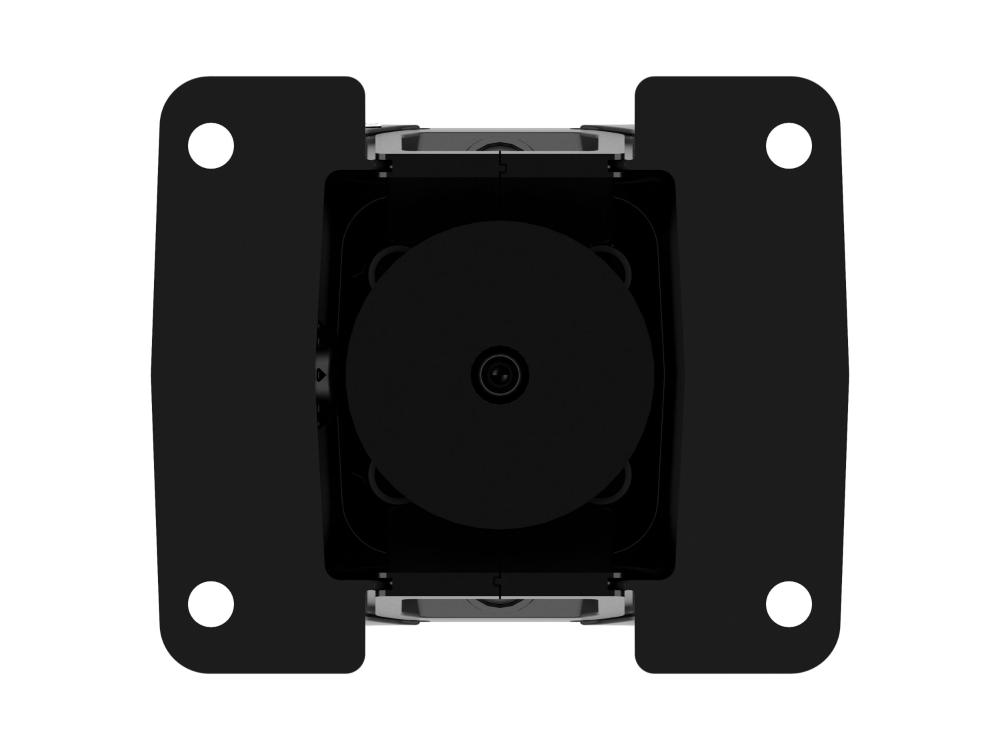

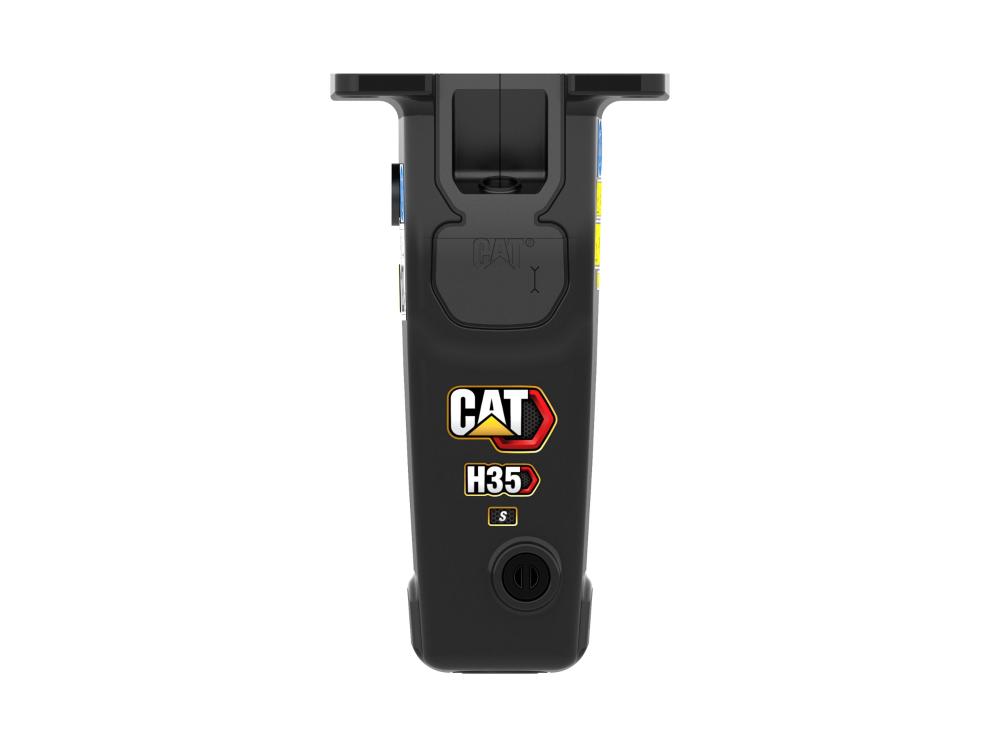

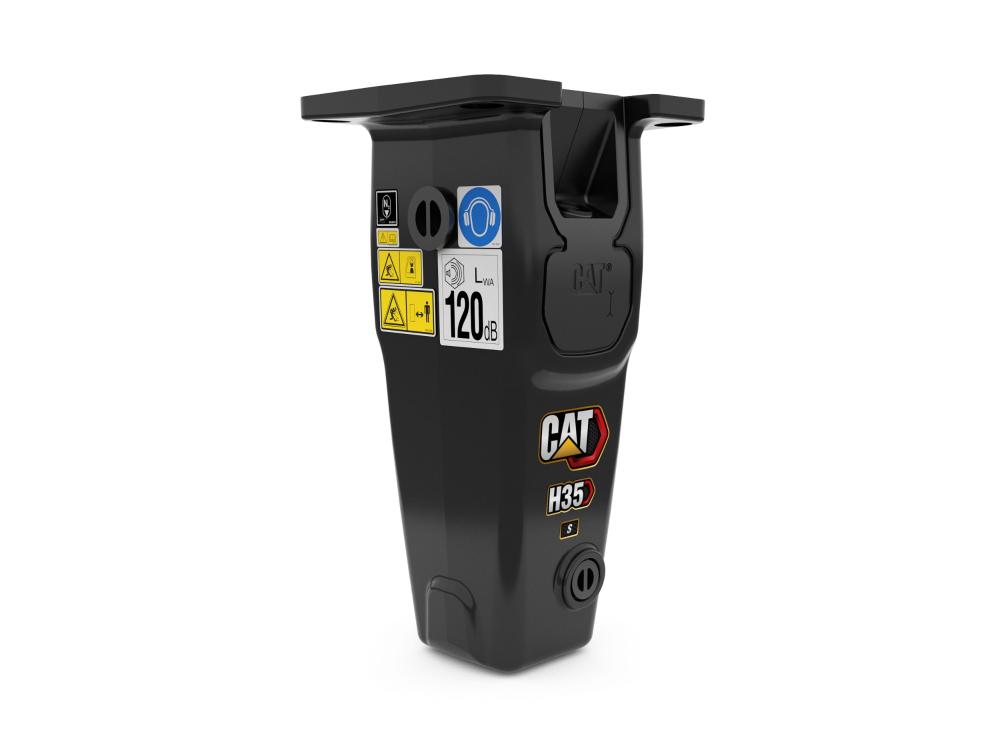

360º Exterior
