H65s Hydraulic Hammer

15181860

H65s Hydraulic Hammer

Cat

https://www.finanzauto.es/productos/martillos-caterpillar-martillo-hidraulico-h65s

Units of measurement :

Metric

Imperial

Operating Weight - With Tool

390 kg

859.8 lb

Energy Class

1085 J

800.3 ft·lbf

Machine Class

5-9 Ton Mini Excavators, 216-299 Skid Steer/Compact Track Loaders, 415-444 Backhoe Loaders

Availability

Purchase Rental Used

Cat® Hammers for Skid Steer Loaders, Compact Track Loaders, Mini Excavators and Backhoe Loaders are high performance breakers, designed for maximum performance on demolition, construction, and road work.

Features

Specifications

Documents

Application

Silenced

Flat Top/Top-Mount Style

Auto Shut Off (ASO)

Tri-Suspension System

Standing Height Grease Point

Easy to Tune & Maintain

Ports Positioned for Hose Protection

Hammer Tools

Used in a wide range of construction and light demolition applications - such as breaking concrete sidewalks and driveways, pavement, roads, masonry, site prep and landscaping, and breaking frozen ground for utility repairs.

Fully enclosed, silenced housing lowers overall noise level for a quieter, safer job site. Internal power cell is protected, designed and engineered to eliminate stress points.

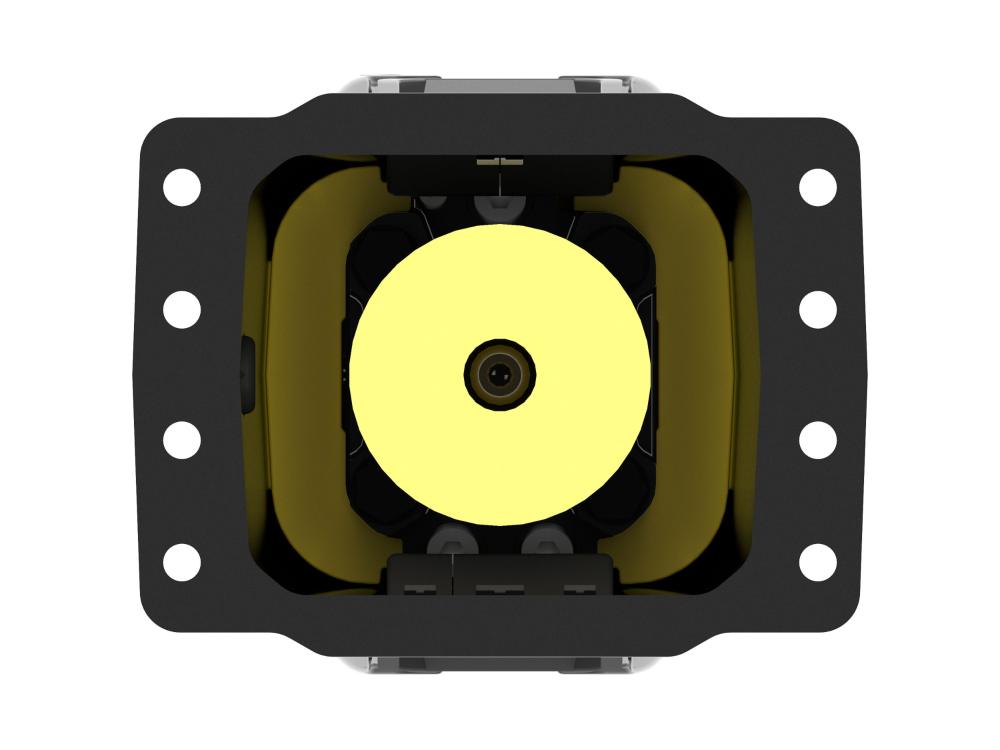

Flat top/top-mount style provides a larger work area and excellent operator visibility with a common footprint and hole pattern for optimum versatility. Top-mount style increases impact power by keeping breaker force and stick force in line. A top-mount bracket will transfer back significantly less recoil and bending stress into the end of the stick, resulting in reduced impact on machine structures. Full complement of mounting brackets is available to suite coupler or pin-on preference.

ASO instantly stops the piston when breaking through material, preventing blank firing, a key contributor to hammer wear. Internal stresses are reduced, hammer is protected regardless of operator skill level.

Tri-Suspension system comprises the suspension jacket, the upper and lower buffers. Suspension aligns power cell and gives manageable, smooth performance.

Standing height grease point makes required maintenance comfortable and easy to perform.

Gas ports and valves are easy to check and charge while hammer is mounted to machine.

Improved routing protects against force and dirt during impact, eliminating downtime.

Tools are heat-treated, matched to piston diameter and provide optimum mass to deliver full blow energy.

Cat® H35-H90 Silenced Hammers Product Brochure.pdf Cat® H25D-H95 Model Hammers Parts Reference Guide.pdf

Others

Operating Weight - With Tool	390 kg	859.8 lb
Energy Class	1085 J	800.3 ft·lbf
Machine Class	5-9 Ton Mini Excavators, 216-299 Skid Steer/Compact Track Loaders, 415-444 Backhoe Loaders
Tool Shaft Diameter	68 mm	2.7 in
Impact Frequency	720-1740 bpm
Minimum Operating Pressure	10000 kPa	1450.4 psi
Minimum Carrier Weight	2994 kg	6600.6 lb
Optimal Hydraulic Flow	40-115 lpm (10-30 gpm)
Overall Width	346 mm	13.6 in
Overall Length	451 mm	17.8 in
Overall Height	1324 mm	52.1 in
Height - Without Tool	953 mm	37.5 in
Sound Level	124 dB
Mounting Bracket Size	Large

Compatible machines:

226D3

Gross Power - SAE J1995

50.1 kW

67.1 hp

Rated Operating Capacity

705 kg

1550 lb

Operating Weight

2653 kg

5849 lb

Caterpillar

15197332
232D3

Gross Power - SAE J1995

50.1 kW

67.1 hp

Rated Operating Capacity

865 kg

1900 lb

Operating Weight

2955 kg

6514 lb

Caterpillar

15197345
236D3

Gross Power - SAE J1995

55.4 kW

74.3 hp

Rated Operating Capacity

820 kg

1800 lb

Operating Weight

2979 kg

6567 lb

Caterpillar

15197358
239D3

Gross Power - SAE J1995

50.1 kW

67.1 hp

Rated Operating Capacities - 35% Tipping Load

695 kg

1530 lb

Operating Weight

3372 kg

7434 lb

Caterpillar

15197196
249D3

Gross Power - SAE J1995

50.1 kW

67.1 hp

Rated Operating Capacities - 35% Tipping Load

790 kg

1740 lb

Operating Weight

3552 kg

7831 lb

Caterpillar

15197211
272D3

Gross Power - SAE J1995

73 kW

98 hp

Rated Operating Capacity

1570 kg

3450 lb

Operating Weight

4143 kg

9133 lb

Caterpillar

15197430
272D3 XE

Gross Power - SAE J1995

82 kW

110 hp

Rated Operating Capacity

1680 kg

3700 lb

Operating Weight

4342 kg

9573 lb

Caterpillar

15705752
304

Net Power

33.6 kW

45 hp

Operating Weight

4475 kg

9867 lb

Dig Depth

3510 mm

138.2 in

Caterpillar

15196054
305 CR

Net Power

33.6 kW

45 hp

Operating Weight

5754 kg

12688 lb

Dig Depth

3670 mm

144.5 in

Caterpillar

15196081
306 CR

Net Power

41.7 kW

55.9 hp

Operating Weight

7150 kg

15766 lb

Dig Depth

4110 mm

162 in

Caterpillar

15196107
306 CR VAB

Net Power

41.7 kW

55.9 hp

Operating Weight

7150 kg

15766 lb

Dig Depth

2975 mm

117.1 in

Cat

15699596
428

Power - Net

52 kW

70 hp

Operating Weight - Nominal

8270 kg

18232 lb

Operating Weight - Maximum

11000 kg

24251 lb

Caterpillar

15194613
432

Power - Net

68 kW

92 hp

Operating Weight - Nominal

8469 kg

18671 lb

Operating Weight - Maximum

11000 kg

24251 lb

Caterpillar

15194633
434

Power - Net

68 kW

92 hp

Operating Weight - Nominal

9170 kg

20216 lb

Operating Weight - Maximum

11500 kg

25353 lb

Caterpillar

15194653
444

Power - Net

68 kW

92 hp

Operating Weight - Nominal

9462 kg

20860 lb

Operating Weight - Maximum

11500 kg

25353 lb

Caterpillar

15194673

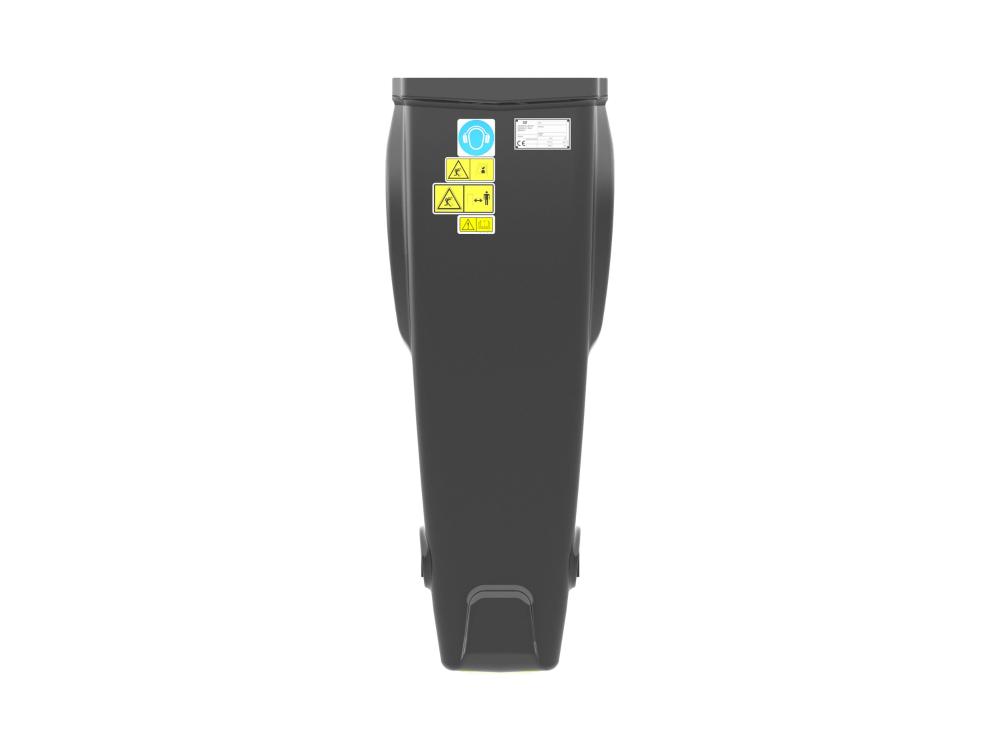

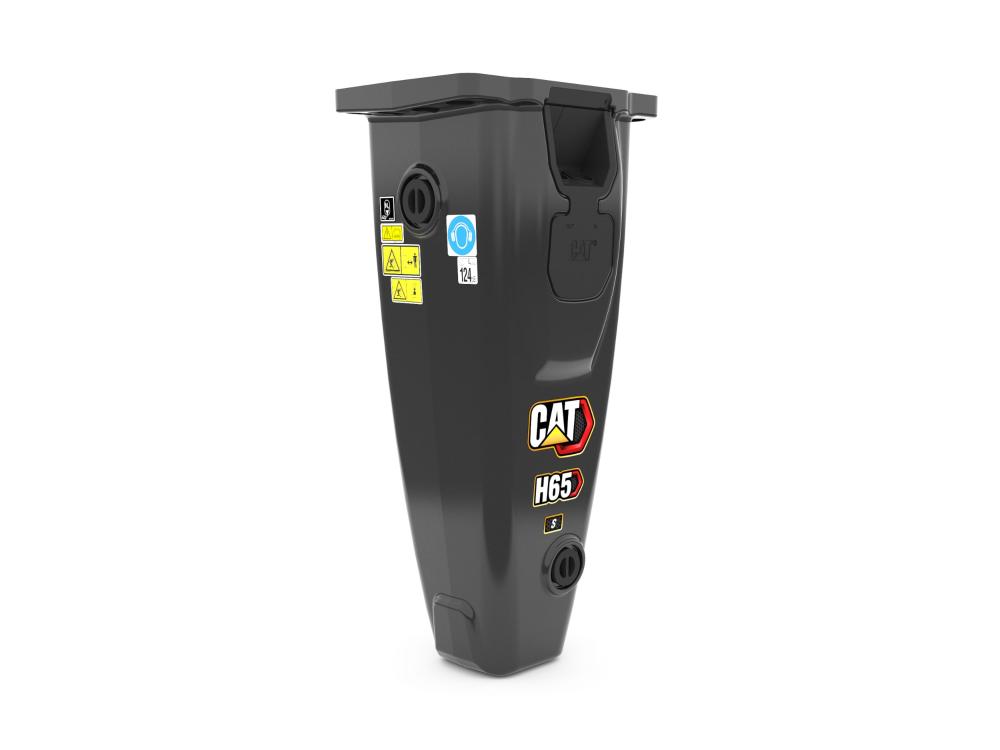

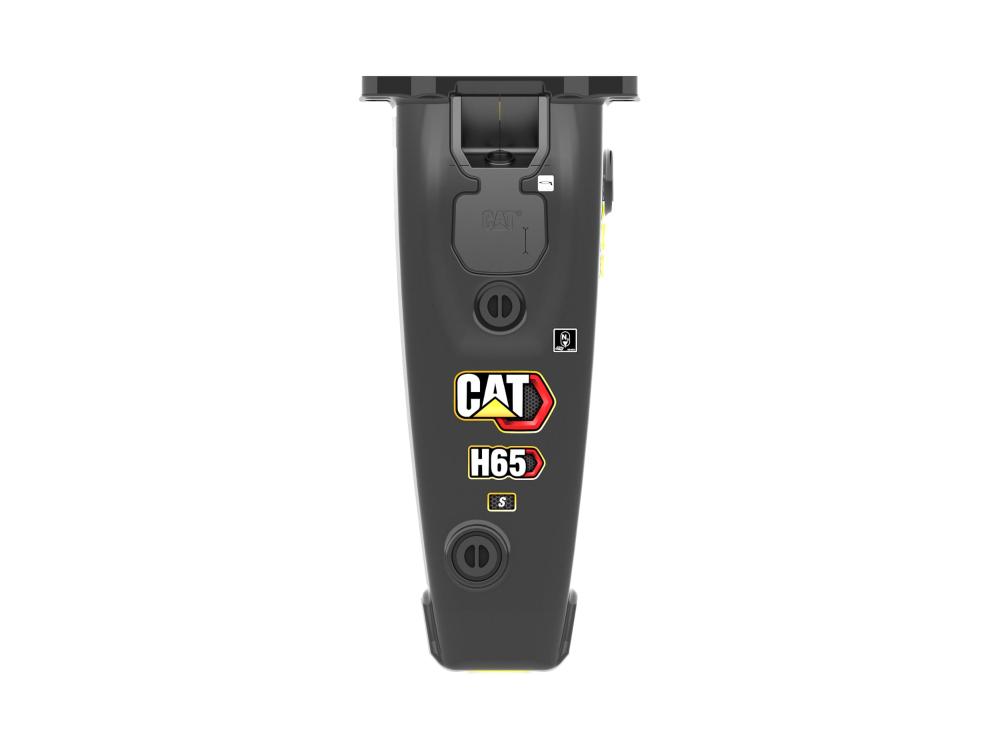

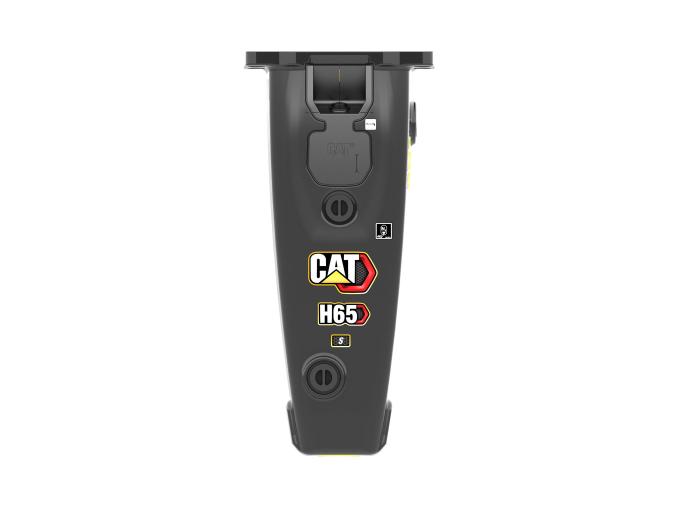

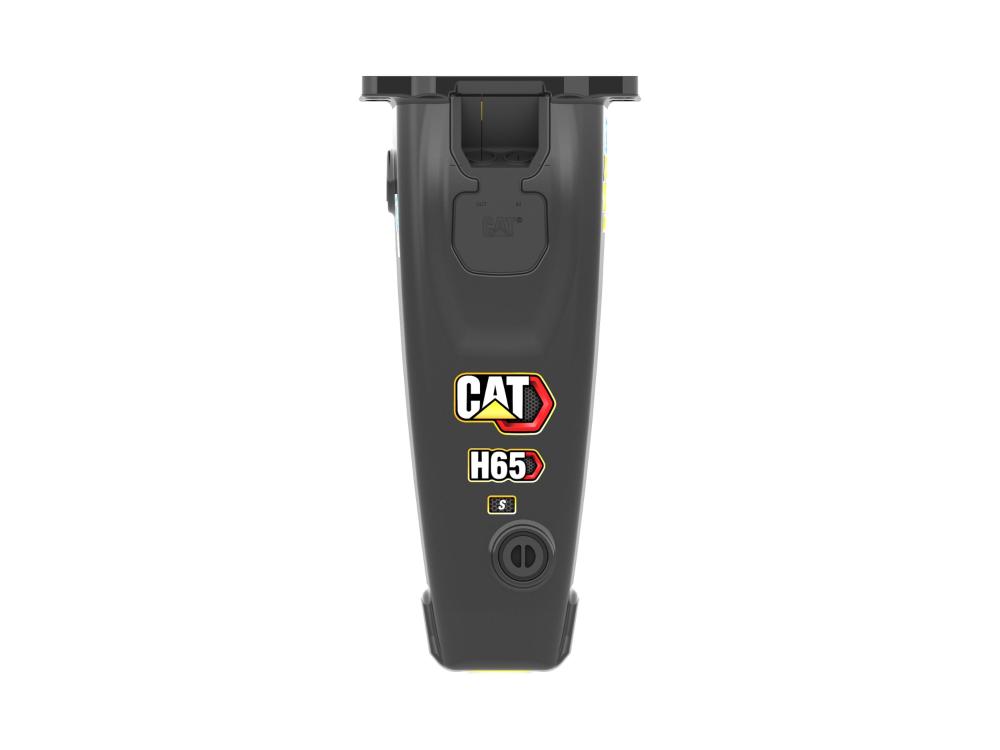

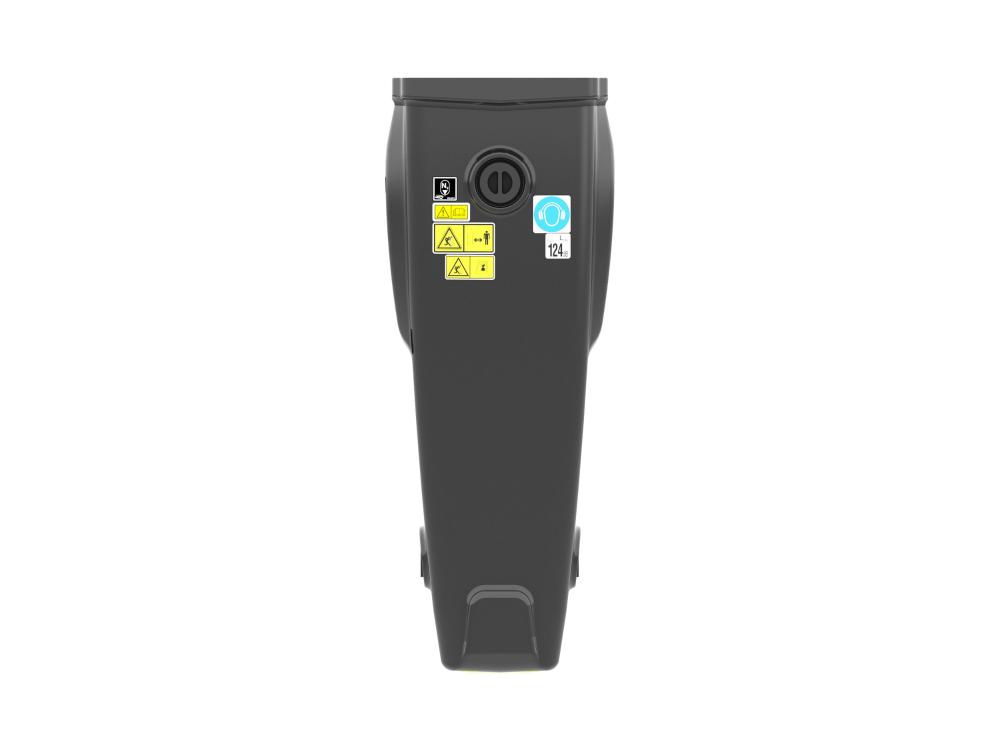

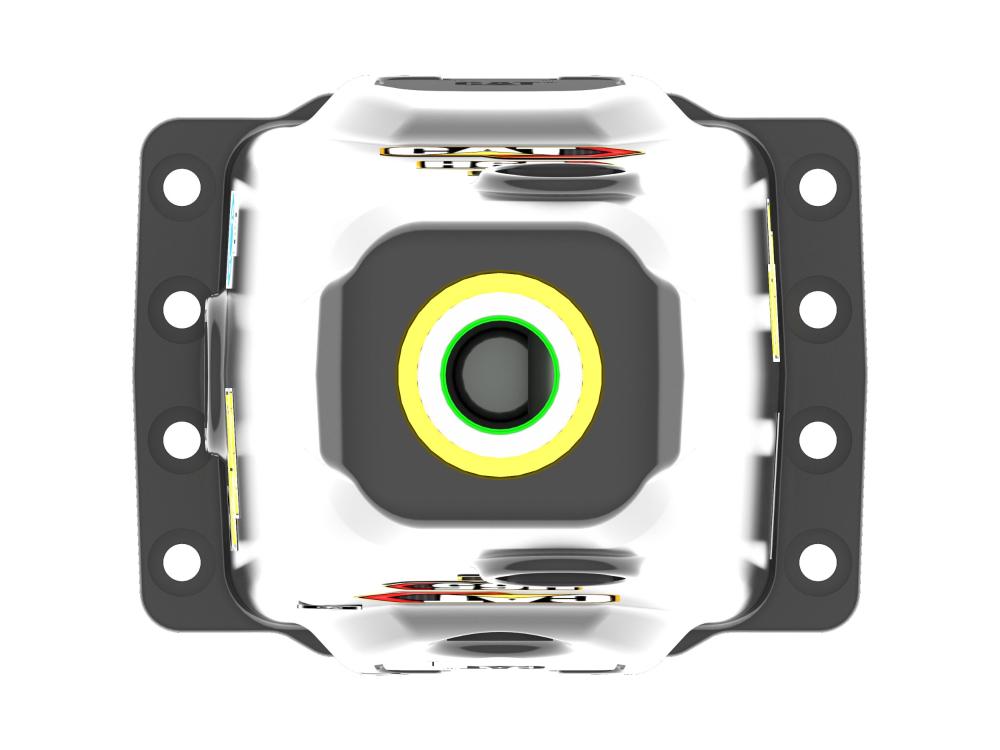

360º Exterior
