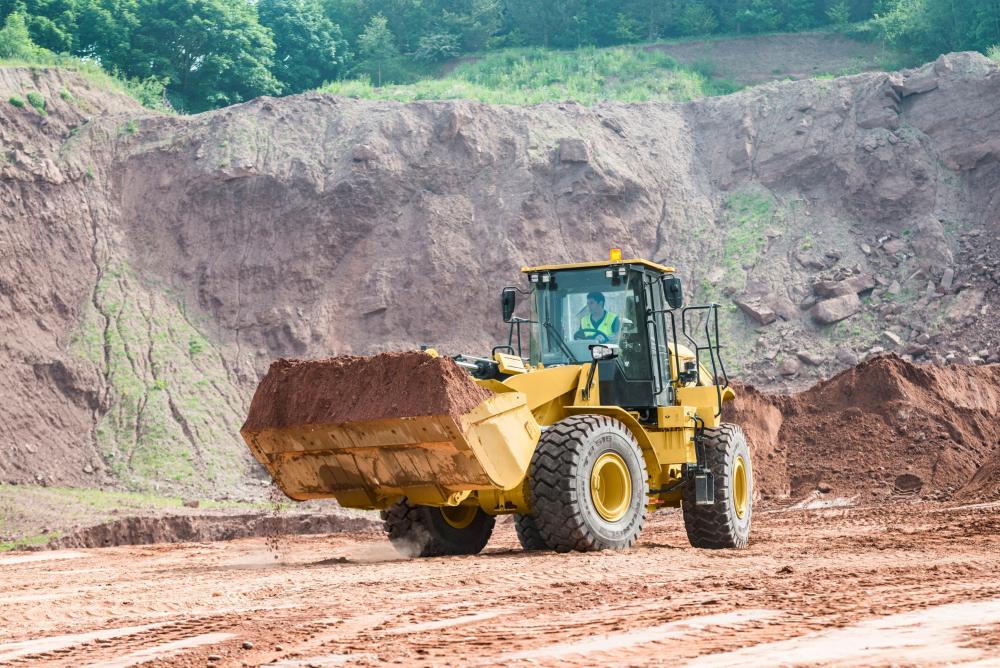

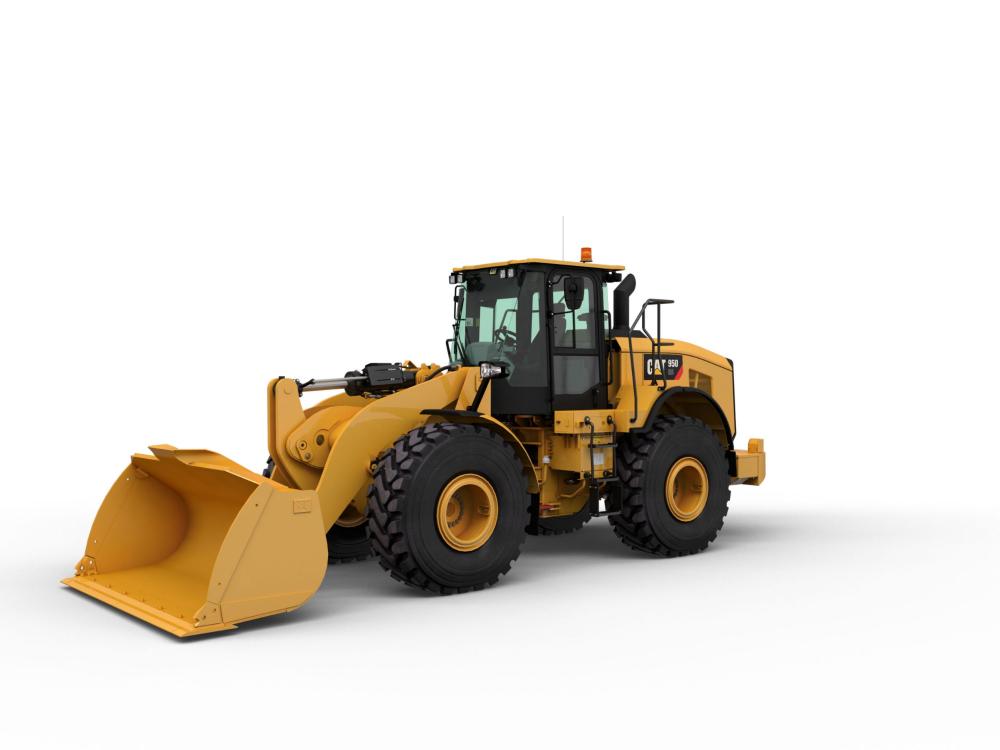

RELIABILITY YOU CAN COUNT ON
ACHIEVE GREATER PRODUCTIVITY
DO MORE WITH LESS FUEL
DESIGNED FOR OPERATORS
SAFELY HOME EVERY DAY
SAVE ON SERVICE AND MAINTENANCE
CAT PRODUCTION MEASURMENT KIT

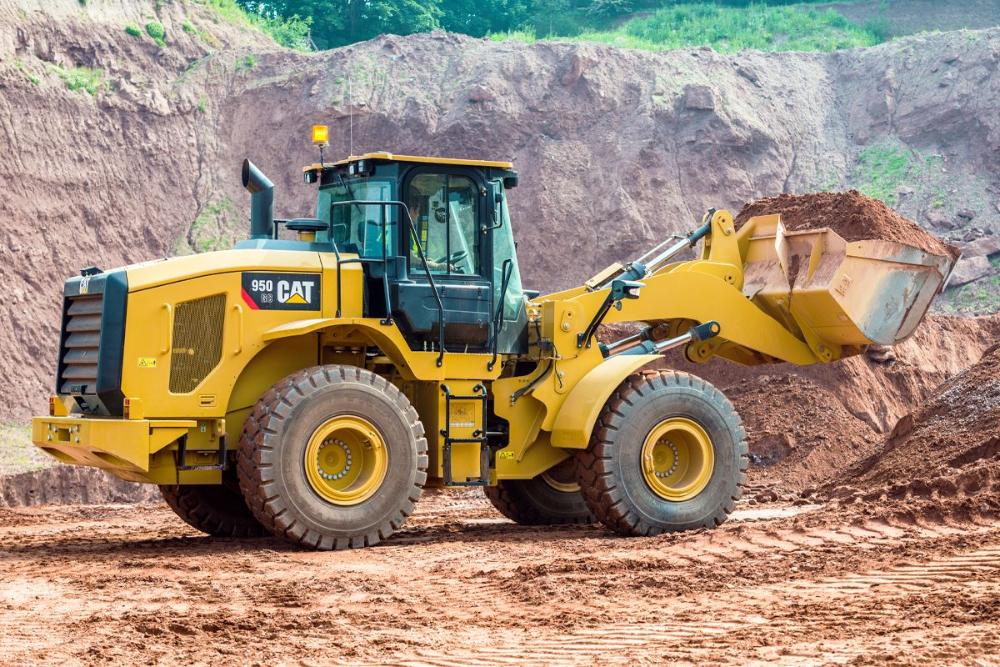

- Cat® C7.1 engine offers increased power density with a combination of proven electronic, fuel, and air systems.
- Equipped with automatic Cat regeneration system, Cat Clean Emissions Module (CEM) with Diesel Particulate Filter (DPF), and Diesel Exhaust Fluid (DEF) tank and pump.
- Thorough component design and machine validation processes result in unmatched reliability and uptime.

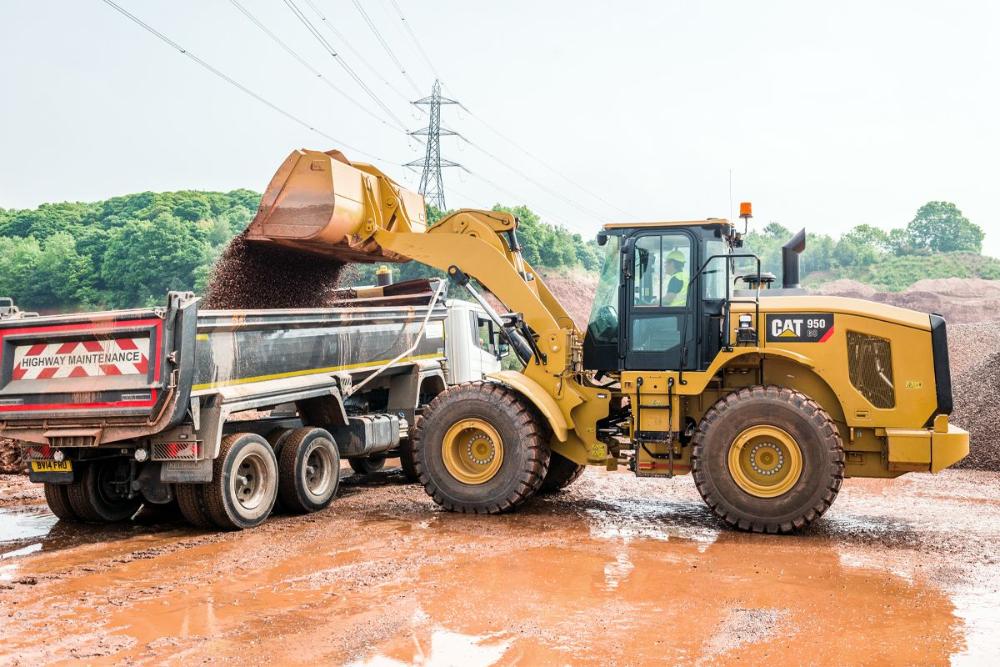

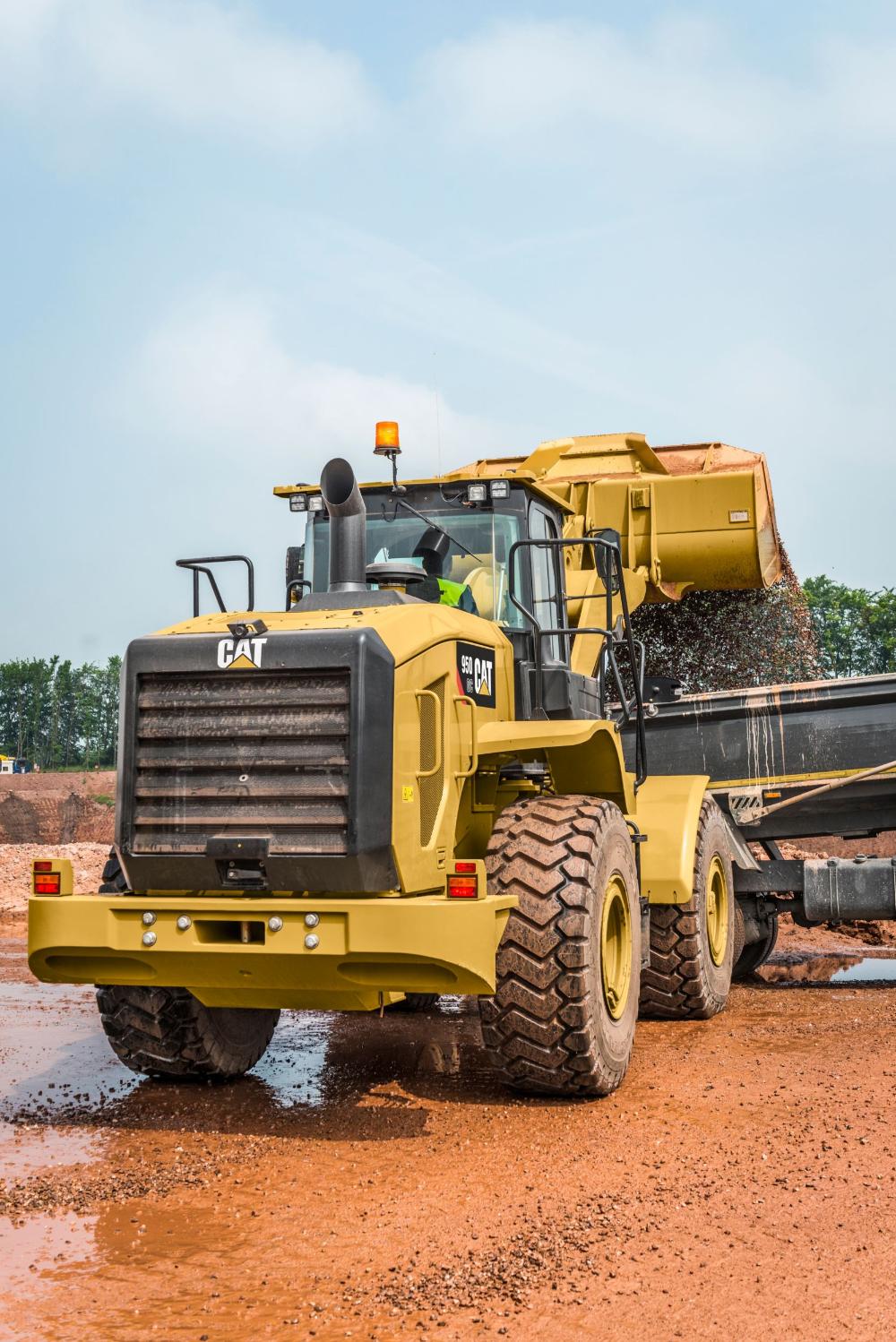

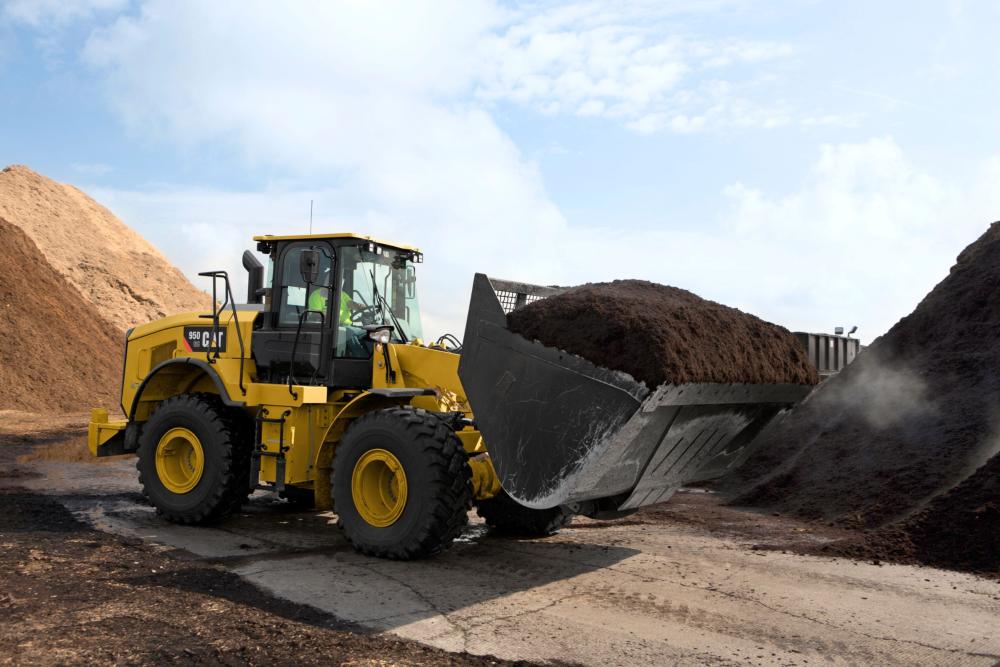

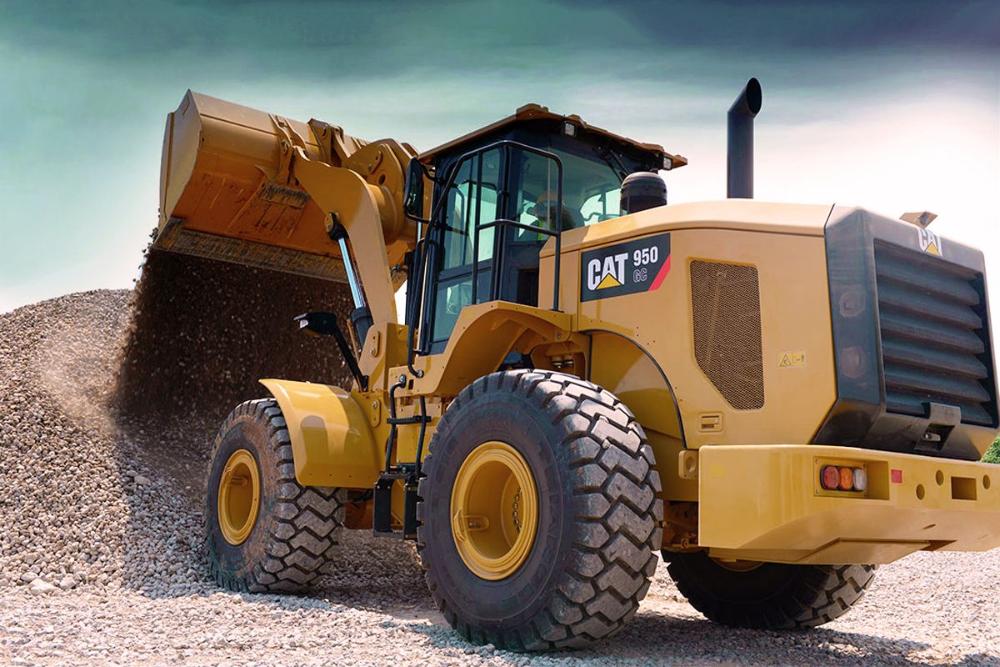

- The proven Cat Z-bar linkage geometry with Performance Series Buckets offer excellent penetration into the pile and high breakout forces. Combined with best-in-class standard dump clearan ce, this results in low fuel consumption and exceptional production capabilities.
- Cat designed, electronically controlled, automatic powershiftcountershaft transmission features shift protection and is equipped with a split flow oil system for efficiency, durability, and smoother gear changes.
- Optional Fusion™ quick-coupler control features a selectable kickout to adjust for efficient bucket and fork applications.

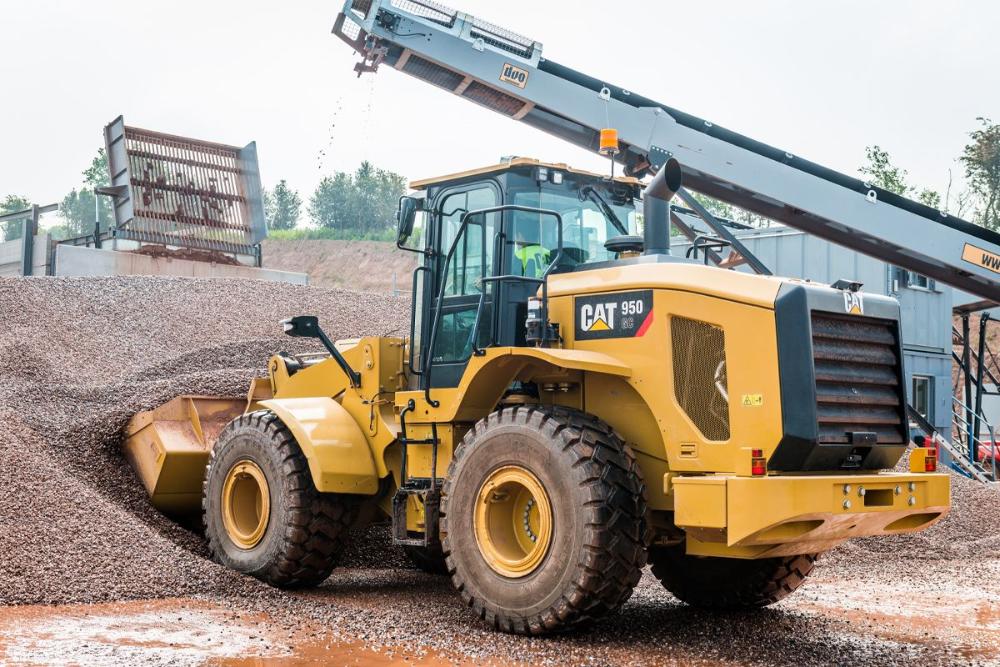

- Engine Idle Management System (EIMS) and Auto Engine Idle Shutdown (EIS) maximize fuel efficiency by reducing engine rpm after a specified amount of idle time.
- Electronically controlled, hydraulically driven variable speed fan adjusts to meet the varying cooling requirements of the machine. This results in a reduced average fan speed, lowering fuel consumption, noise levels, and radiator plugging.
- Load sensing hydraulics produce flow and pressure for theimplement system upon demand and only in amounts necessary to perform the needed work functions. This state-of-the-art system results in low fuel consumption.

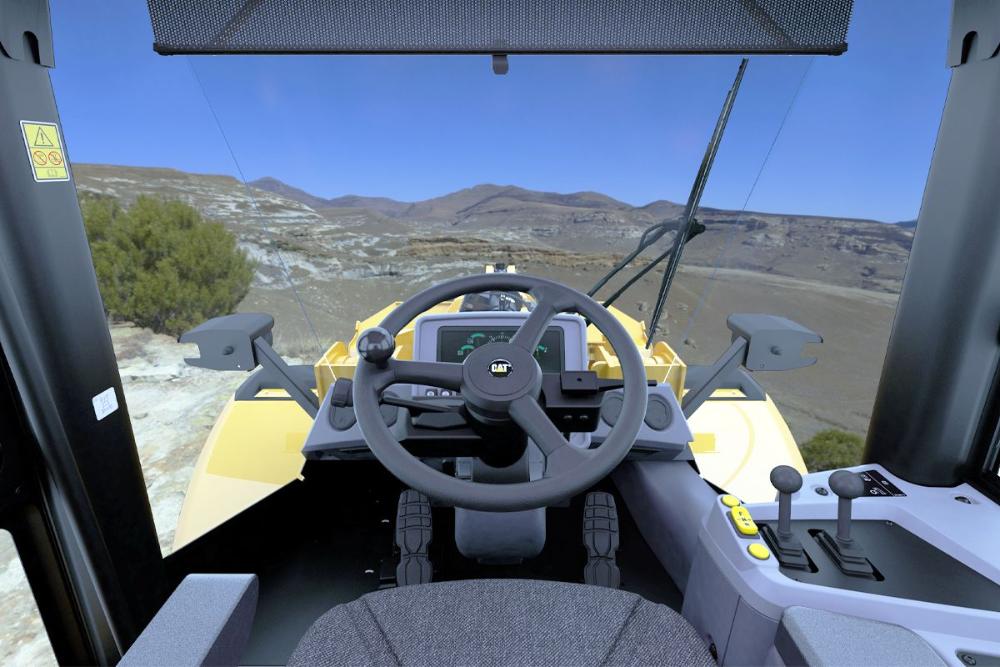

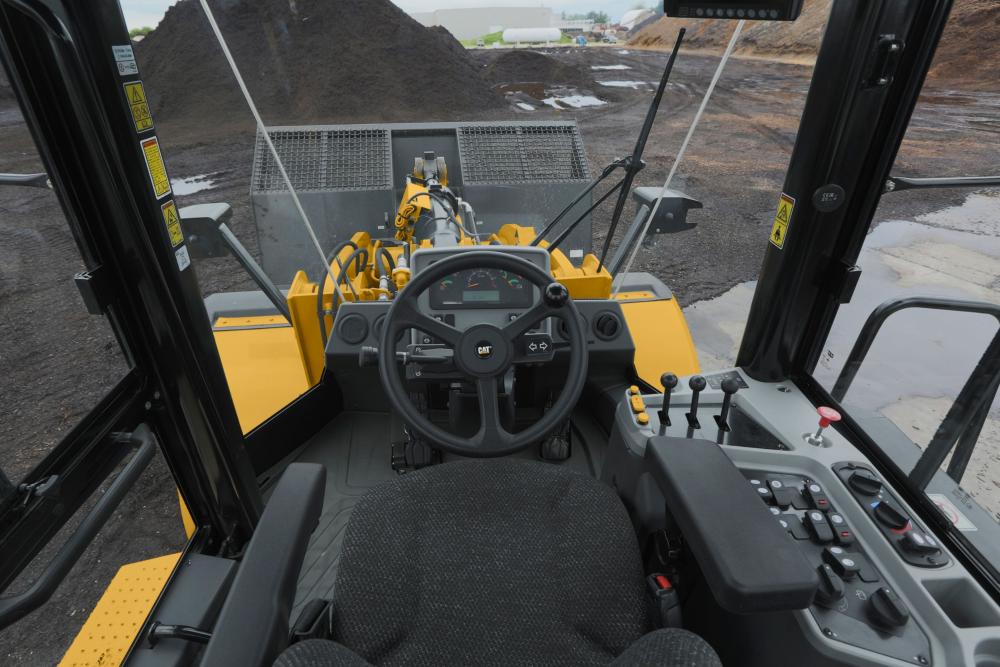

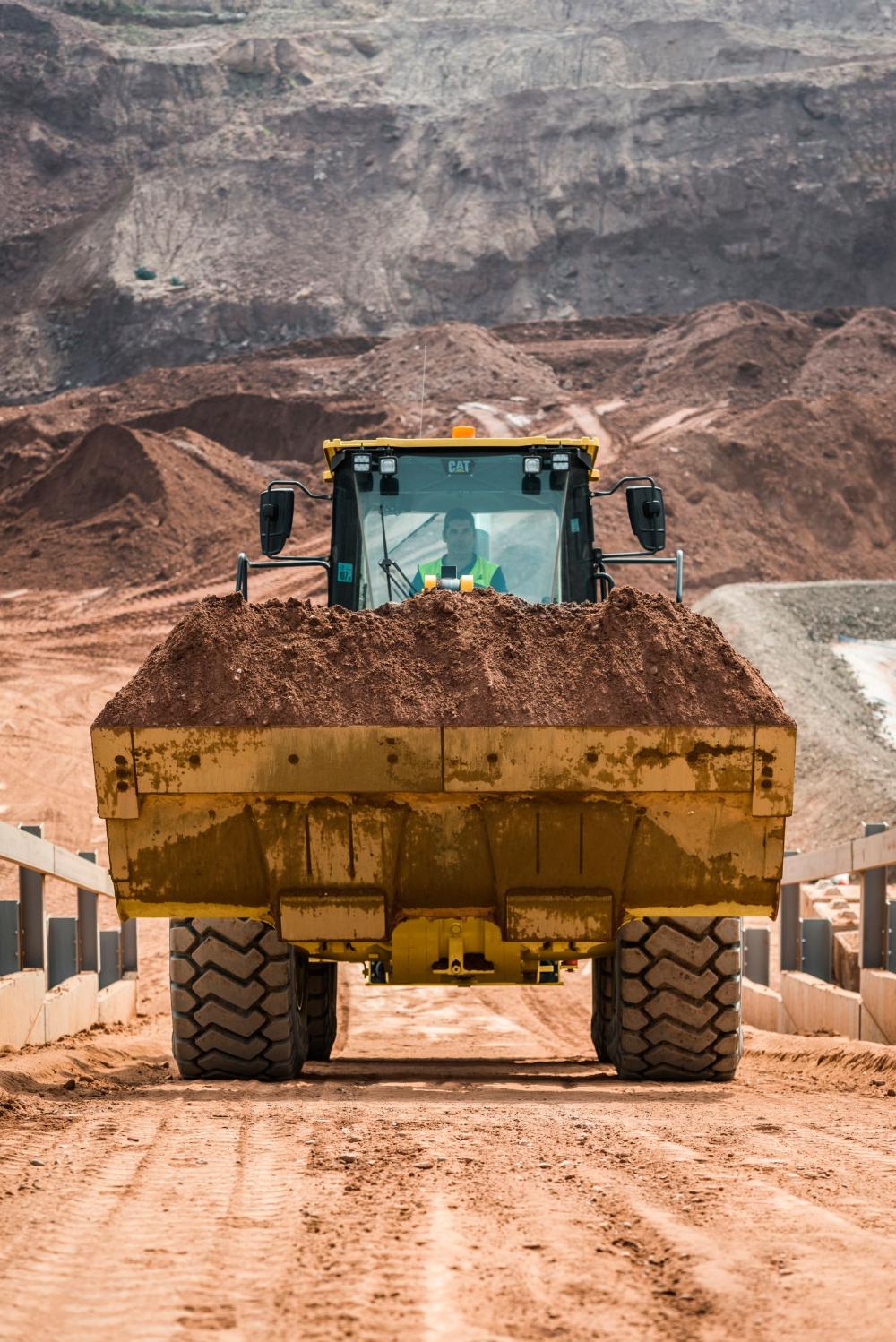

- The spacious cab features easy, intuitive controls and excellent visibility which provides a comfortable working environment for efficient all day operation.
- Pilot-operated hydraulic implement controls deliver comfortable, low-effort operation. Two single-axis levers or one joystick are available. Both arrangements are equipped with kick-down switches.
- The adjustable steering column includes the F-N-R shifter and turn signal control lever.
- Unmatched viewing area with a wide, flat, and distortion-free front windshield.
- The glass stretches to the floor of the cab for excellent visibility to the bucket and front tires.
- The cab roof has channels which direct rain off the corners of the cab, keeping windows clear.
- Air conditioning system is standard. Ten louvered vents allow the operator to direct the air flow to remain productive and efficient all shift long.

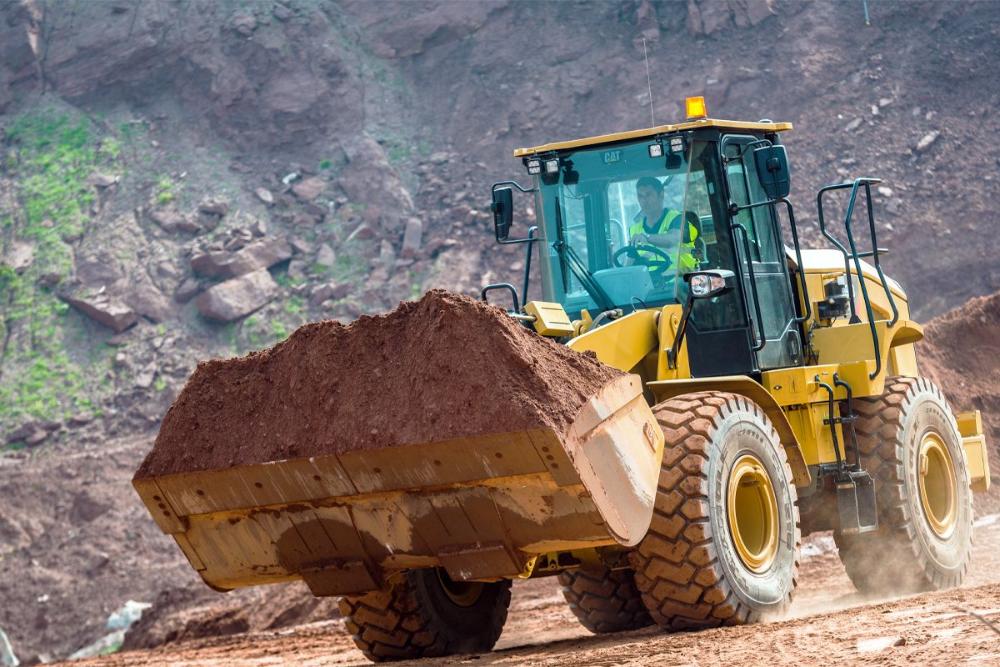

- Ladders are standard on both sides of the machine to easily access the platforms.
- Platforms are equipped with guard- and handrails for safe access to the cab.
- The main cab door opens to the front and provides wide access to the operator environment.
- Front and back wipers ensure that a clear view is maintained.
- External rearview mirrors with integrated spot mirrors arestandard.
- A rear vision camera is standard to clearly monitor movement behind the machine.
- Hinged wheel guards, easy removal/re-install.
- Optional windshield and power train guards.

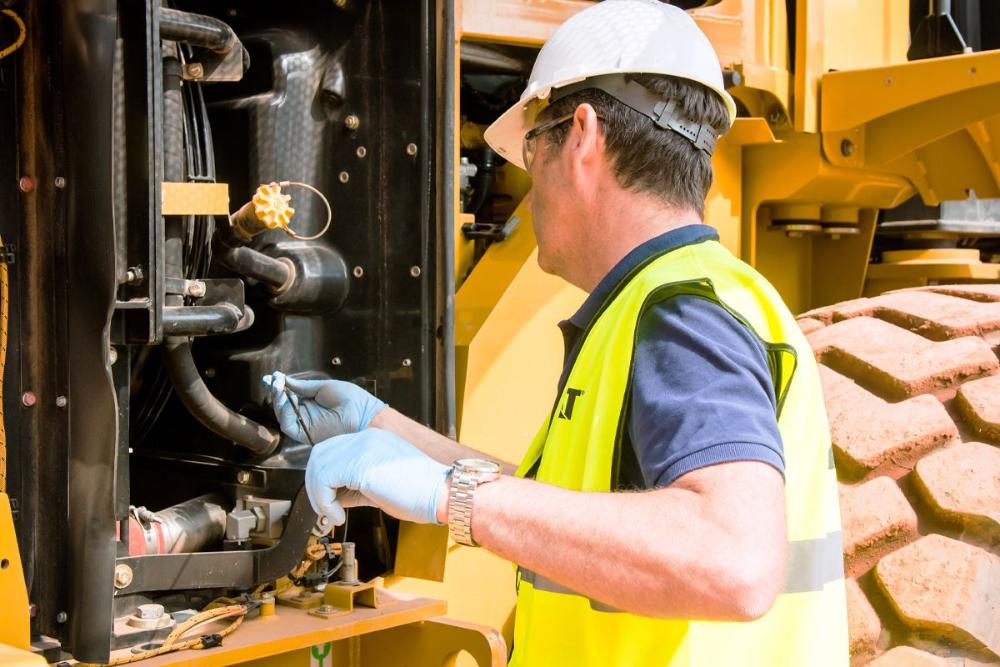

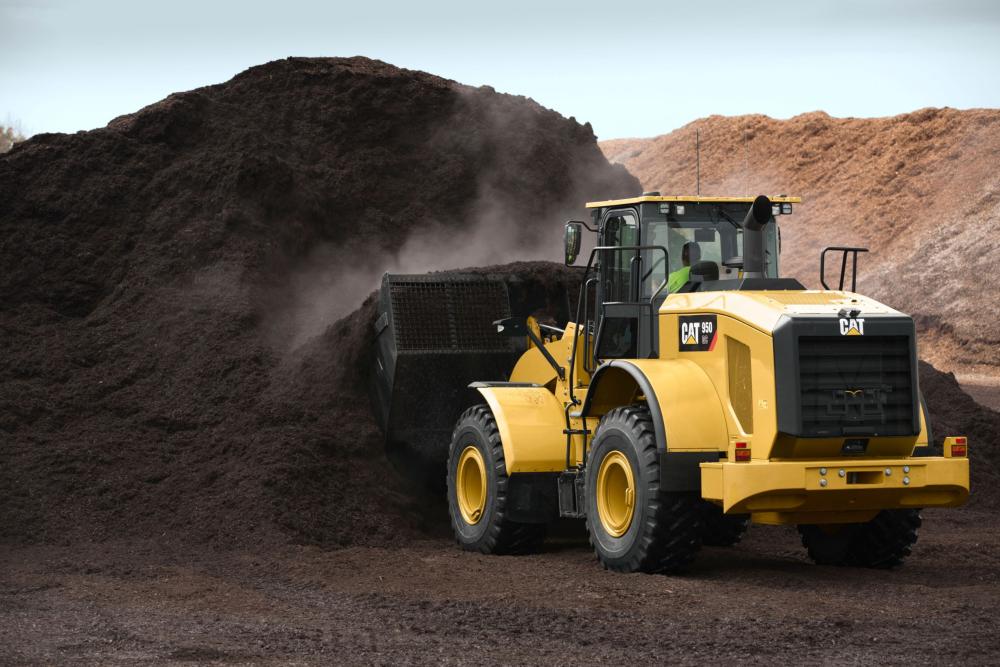

- Grouped service points and sight gauges allow for easy daily maintenance.
- Convenient access to left, right, and rear of engine compartment provides excellent serviceability.
- Electrical and hydraulic service centers, along with additional key serviceability features, help make servicing and in-field component exchange quick, easy, and efficient.
- A rear swing-up grill gives easy cleaning access to thecooling cores.
- Optional integrated Cat Autolube system provides full lube system monitoring and diagnostic test visibility. One-button control, including fault flash function.
- Caterpillar design and manufacturing techniques assureoutstanding service life.
- This optional kit is simple to install compared to other 3rd party payload systems*.
- On-the-go weighing** for precise load targets with provenaccuracy, flexible installation, and easy calibration and setup.
- Brings payload weighing to the cab so operators can work more productively and deliver consistently accurate loads.
- Increases productivity, weighing while lifting with no interruptions in loading cycle.
- High efficiency: load to exact specification, load more trucks faster, and move more material for more revenue.
- Improve efficiency with less rework; save time, labor, fuel,and costs.
* Not available in all markets
** Not legal for trade
Engine
| Net Power - ISO 9249 |
168 kW |
225 hp |
| Emissions |
Tier 4/Stage V |
| Displacement |
7.01 l |
428 in³ |
| Maximum Net Power - 1,700 rpm - ISO 9249 - Metric |
168 kW |
228 hp |
| Maximum Power - 1,700 rpm - ISO 14396 |
179 kW |
240 hp |
| Maximum Power - 1,700 rpm - ISO 14396 - Metric |
179 kW |
243 hp |
| Peak Gross Torque - 1,400 rpm - SAE J1995 |
1099 N·m |
811 ft·lbf |
| Peak Gross Torque - 1,400 rpm - ISO 14396 |
1092 N·m |
805 ft·lbf |
| Engine Model |
Cat C7.1 |
| Maximum Net Power - 1,700 rpm - ISO 9249 |
168 kW |
225 hp |
| Maximum Net Power - 1,700 rpm - SAE J1349 |
168 kW |
225 hp |
| Maximum Power - 1,700 rpm - SAE J1995 |
180 kW |
241 hp |
| Note |
The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.9 kg (4.2 lb) of refrigerant which has a CO2 equivalent of 2.717 metric tonnes (2.995 tons). |
| Bore |
105 mm |
4.13 in |
| Stroke |
135 mm |
5.31 in |
Weights
| Operating Weight |
18849 kg |
41554 lb |
Buckets
| Bucket Capacities |
2.9-4.4 m³ (3.75-5.75 yd³) |
Transmission
| Reverse - 3 |
22.8 km/h |
14.2 mile/h |
| Forward - 3 |
22.8 km/h |
14.2 mile/h |
| Forward - 1 |
7.3 km/h |
4.5 mile/h |
| Forward - 2 |
12.8 km/h |
8 mile/h |
| Forward - 4 |
36 km/h |
22.4 mile/h |
| Reverse - 2 |
12.8 km/h |
8 mile/h |
| Reverse - 1 |
7.3 km/h |
4.5 mile/h |
| Note |
Maximum travel speed in standard vehicle with empty bucket and standard L3 tires with 760 mm (30 in) roll radius. |
Hydraulic System
| Hydraulic Cycle Time - Total Cycle Time |
9.4 s |
9.4 s |
| Steering System - Pump Type |
Piston |
| Implement System - Maximum Operating Pressure @ 50 ± 1.5 L/min (13.2 + 0.4 gal/min) |
27900 kPa |
4047 psi |
| Implement System - Maximum Pump Output at 2,390 rpm |
256 l/min |
68 gal/min |
Service Refill Capacities
| DEF Tank |
16 l |
4.2 gal (US) |
| Transmission |
45 l |
11.9 gal (US) |
| Fuel Tank Size |
290 l |
76.6 gal (US) |
| Cooling System |
50 l |
13.2 gal (US) |
| Differential - Final Drives - Rear |
38 l |
10 gal (US) |
| Differential - Final Drives - Front |
40 l |
10.6 gal (US) |
| Crankcase |
18 l |
4.8 gal (US) |
| Hydraulic Tank |
112 l |
29.6 gal (US) |
Sound
| With Cooling Fan Speed at Maximum Value - Operator Sound Pressure Level (ISO 6396:2008) |
73 dB(A) |
73 dB(A) |
| With Cooling Fan Speed at Maximum Value - Exterior Sound Power Level (ISO 6395:2008) |
109 dB(A) |
109 dB(A) |
| With Cooling Fan Speed at Maximum Value - Exterior Sound Pressure Level (SAE J88:2013) |
76 dB(A)* |
| Note (1) |
*Distance of 15 m (49.2 ft), moving forward in second gear ratio. |
| With Cooling Fan Speed at 70% of Maximum Value: Note (2) |
European Union Directive "2000/14/EC" as amended by "2005/88/EC." |
| With Cooling Fan Speed at 70% of Maximum Value - Operator Sound Pressure Level (ISO 6396:2008)** |
73 dB(A) |
73 dB(A) |
| With Cooling Fan Speed at 70% of Maximum Value: Note (1) |
For machines in European Union countries and in countries that adopt the EU Directives |
| With Cooling Fan Speed at Maximum Value - Note |
Distance of 15 m (49.2 ft), moving forward in second gear ratio. |
| With Cooling Fan Speed at 70% of Maximum Value - Exterior Sound Power Level (ISO 6395:2008)** |
107 LWA*** |
| Note (3) |
***European Union Directive "2000/14/EC" as amended by "2005/88/EC." |
| Note (2) |
**For machines in European Union countries and in countries that adopt the "EU Directives." |
Dimensions
| Rack Back - Ground |
40 degrees |
| Height - Top of Exhaust Pipe |
3416 mm |
11.17 ft |
| Centerline of Rear Axle to Hitch |
1650 mm |
5.42 ft |
| Lift Arm Clearance |
3649 mm |
12 ft |
| B-Pin Height |
4188 mm |
13.75 ft |
| Centerline of Rear Axle to Edge of Counterweight |
2055 mm |
6.75 ft |
| Ground Clearance |
460 mm |
1.5 ft |
| Rack Back - Maximum Lift |
60 degrees |
| Height - Top of Hood |
2673 mm |
8.75 ft |
| Wheel Base |
3300 mm |
10.83 ft |
| Height - Top of ROPS |
3458 mm |
11.33 ft |
| Rack Back - Carry |
45 degrees |
| Note |
All dimensions are approximate and based on MAXAM MS302 23.5R25 L3 radial tires. |
Weights and Operating Specifications
| Note (2) |
*Full compliance to ISO (2007) 14397-1 Sections 1 thru 6, which requires 2% verification between calculations and testing. |
| Tipping Load - Full Turn - Rigid Tires** |
11737 kg |
25875 lb |
| Breakout Force |
154 kN |
34638 lbf |
| Tipping Load - Full Turn - ISO 14397-1* |
11006 kg |
24264 lb |
| Note (3) |
**Compliance to ISO (2007) 14397-1 Sections 1 thru 5. |
| Operating Weight |
18849 kg |
41554 lb |
| Note (1) |
For 3.1 m3 (4.0 yd3) general purpose buckets with BOCE. Weight based on a machine configuration with MAXAM MS302 23.5R25 L3 radial tires, full fluids, operator, standard counterweight, cold start, roading fenders, Product Link™, secondary steering, sound suppression. |
Engine - Tier 4 Final/Stage IV
| Emissions |
Tier 4/Stage IV |
