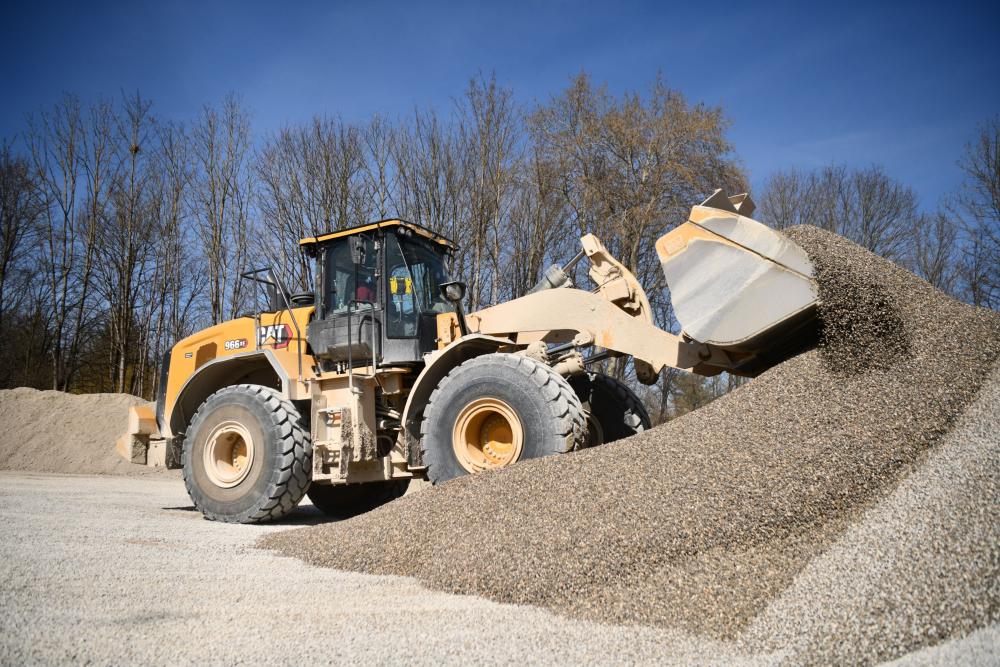

966 XE Wheel Loader
Caterpillar
Metric
Imperial
Engine Power - 1,600 rpm ISO 14396:2002
239 kW
321 hp
Operating Weight
23196 kg
51124 lb
Engine Power - 1,600 rpm ISO 14396:2002
325 hp (metric)
Availability
Efficient Productivity
The Cat Continuously Variable Transmission delivers advanced rimpull control and improved speed-range selection.* This machine brings lower fuel burn for increased efficiency.** Deep system integration of the transmission, engine system, hydraulic system and cooling system results in significantly high performance and fuel efficiency.* 966 XE (14B) compared to the 966 XE (14A)
** 966 XE (14B) compared to 966 (14A)
Assisted Operation
Save time and money with long service intervals, in-cab maintenance reminders, Tire Pressure Monitoring System, and expanded Remote Services capability.Built In Safety
Spacious cab layout with floor to ceiling windshield, left footrest for added stability, along with a 4-point seat belt kit with retractors help you to work more safely.Latest Features
Delivering Excellent Fuel Efficiency
Achieve Great Productivity
Integrated Technology Solutions for Efficient Operation
Reliability You Can Count On
Safety Features
Reduce Your Maintenance Time and Costs
Built for Long-Term Production
Work in Comfort
Purpose-Built Specialty Configurations
- Auto front differential lock removes the burden from the operator by automatically engaging the differential lock to improve overall traction.
- Job Aids help operator improve and optimize their operating skills.
- 4-point seat belt kit includes retractors on the lap belts, improving operator comfort and freedom of movement.
- Tire Pressure Monitoring System (optional) allows operator to easily monitor tire pressure from the main machine display, helping to improve machine performance, operator ride, and operating costs.
- Maintenance reminders help to synchronize machine maintenance schedule and reduce operation down time.
- Left footrest allows for added operator comfort, safety, and machine stability when working in uneven, bumpy operations.
- Advanced Payload with e-Ticket allows an operator to generate a weighing ticket and effortlessly send it over the air to any email address.
- Application Profile settings allow each operator to set customized forward/reverse default speed ranges and rimpull limits and are easily visible on the front dash.
- Deep system integration of the Cat continuously variable transmission, engine, hydraulic, and cooling systems results in significantly increased performance and fuel efficiency.
- Eliminating the torque converter allows the capability to control engine rpm and machine speed independently, resulting in efficient digging, fine control, and easy operation.
- Lower rated engine speed reduces component wear and operating noise.
- Power dense engine burns less fuel by providing power and torque when needed.
- Continuously variable transmission delivers smooth, fast acceleration and speed on grade.
- Machine maneuvering on grade is made easy with speed-hold and anti-rollback.
- Integrated continuously variable transmission provides maximum, steady power at optimal speeds.
- Advanced rimpull control for best loading efficiency in the pile and tire wear reduction.
- Autodig with Auto Set Tires for consistent high bucket fill factors.
- Application Profiles optimize machine settings for different applications at one push of a button.
- Job Aids help operators improve and optimize their operating skills.
- Performance Series Buckets utilize a system-based approach to balance bucket shape against the machine’s linkage, resulting in higher fill factors and better material retention when compared with other buckets of the same rated capacity.
- Automatic engine idle shutdown system significantly helps to reduce idle time, overall operating hours, and fuel consumption.
- Dual ride control accumulator system enables a wide payload range and better ride quality.
- Standard auto front differential lock provides additional traction when needed. Auto front and rear differential locks are available as an option.
- Optional aggregate handler configuration offers higher payload capability for loose aggregate handling.**
- Fusion™ Quick Coupler allows for easy tool changes without leaving the cab, letting the machine move quickly from task to task.
**Optional configurations and equipment may vary from region to region and require conformance to Caterpillar payload policy. Consult your dealer or Caterpillar representative for details.
- Standard Cat technologies to monitor, manage, and enhance your jobsite operations.
– Cat Payload* with Assist provides accurate weighing of the bucket payloads. Data is displayed in real time to improve productivity and loading accuracy with manual tip-off.
– VisionLink® provides actionable data insights for all assets – regardless of fleet size or equipment manufacturer.* Customizable dashboards provide information such as hours, miles, location with mapping, idle time, asset status, asset operation, and fuel utilization. Make informed decisions that help to lower costs, simplify maintenance, and improve safety and security on your jobsite.
*Data field availability can vary by equipment manufacturer.
– Autodig allows the operator to fully automate bucket loading to improve fill factors and loading time.
– Auto Set Tires promotes proper loading technique, significantly reducing tire slip and tire wear.
- Optional Cat Advanced Payload** with Assist:
– Enhanced lists management, site integration, and extended scale features to help manage and improve productivity and profitability of operations.
– e-Ticket allows an operator to generate a weighing ticket and effortlessly send it over the air to any email address.
- Optional VisionLink Productivity gathers and summarizes machine telematics and jobsite data from all your equipment. Improve machine efficiency, productivity, utilization and reduce per-unit costs.
* Not legal for trade
** Legal for trade certified in certain regions
- Cat C9.3B engine offers high power density with a combination of proven electronics, fuel, and air systems.
- Equipped with automatic Cat regeneration system, Cat Clean Emissions Module (CEM) with Diesel Particulate Filter (DPF), and Diesel Exhaust Fluid (DEF) tank and pump.
- Features an electric fuel priming pump, fuel-water separator, and secondary fuel filter.
- Thorough component design and machine validation processes result in unmatched reliability and uptime.
- Rear-vision camera enhances visibility behind the machine, helping you work more safely.
- 4-point seat belt kit includes retractors on the lap belts, improving operator comfort and freedom of movement.
- Cab access with wide door, optional remote door opening, and inclined steps add solid stability.
- Floor-to-ceiling windshield, large mirrors with integrated spot mirrors, and rear-vision camera provide industry leading all-around visibility.
- Computerized monitoring system includes several warning indicators.
- Monitored seat belt is standard and can be enhanced with an optional exterior indicator.
- Optional multiview (360˚) vision system helps the operator monitor the surroundings of the machine at all times.
- Optional Cat Detect radar technology enhances awareness by monitoring the working environment and alerts operators to hazards.
- Optional access light and under-hood service light system to provide illuminated access to the machine and daily checks even in the dark.
- Long fluid and filter change intervals help to reduce downtime.
- Tire Pressure Monitoring System (optional) allows operator to easily monitor tire pressure from the main machine display helping to improve machine performance, operator ride and operating costs.
- Maintenance reminders help to synchronize machine maintenance schedule and reduce operation down time.
- Convenient access to hydraulic and electrical service centers for easy ground-level servicing.
- Remote Troubleshoot allows you to perform diagnostic and calibration testing on your connected machine remotely.
- Remote Flash updates onboard software without a technician being present, potentially reducing update time by as much as 50%.
- VisionLink helps you manage fleet location, hours, and maintenance schedules. It also alerts you for required maintenance and allows you to request service from your local Cat dealer.
- Integrated Autolube extends component and service life.
- One-piece tilting hood makes engine compartment access fast and easy.
- Heavy-duty axles designed to handle extreme applications.
- Cat Continuously Variable transmission features durable, long-lasting components.
- Full-flow hydraulic filtration system with additional kidney-loop filtration improves hydraulic system reliability and component life.
- Easily adjustable seat and suspension for outstanding operator comfort. It comes in two trim levels and can be equipped with a 4-point harness (kit).
- Spacious cab with significant leg room and adjustable seat controls for added comfort and efficiency.
- Left footrest allows for added operator comfort, safety and machine stability when working in uneven, bumpy operations.
- Automatic air conditioning system keeps the cab cool as desired.
- In-cab dashboard and high-resolution touch display(s) are easy to use, intuitive, and user friendly.
- Sound suppression, seals, and viscous cab mounts decrease noise and vibration for a quieter work environment.
- The seat-mounted electro-hydraulic joystick steering system provides precision control and dramatically reduces arm fatigue, resulting in excellent comfort and accuracy. An HMU steering wheel is also available.
- Ride control works as a shock absorber, improving ride quality over rough terrain.
- Application-specific arrangements direct from the factory for optimized performance and added durability in the toughest applications, including:
– Industrial and waste models feature guarding and reinforcement necessary for work in transfer stations, recycling depots, scrap yards, and demolition sites.
– Forestry model increases lift and tilt capacities for efficient and productive log and chip handling in paper, pellet, and sawmills.
Engine
| Engine Power - 1,600 rpm ISO 14396:2002 | 239 kW | 321 hp |
| Engine Power - 1,600 rpm ISO 14396:2002 | 325 hp (metric) | |
| Engine Model | Cat® C9.3B | |
| Gross Power - 1,600 rpm SAE J1995:2014 | 242 kW | 325 hp |
| Gross Power - 1,600 rpm SAE J1995:2014 | 329 hp (metric) | |
| Net Power - 1,600 rpm ISO 9249:2007, SAE J1349:2011 | 222 hp | 298 kW |
| Net Power - 1,600 rpm ISO 9249:2007, SAE J1349:2011 | 302 hp (metric) | |
| Engine Torque - 1,200 rpm ISO 14396:2002 | 1781 N·m | 1313 lbf·ft |
| Gross Torque - 1,200 rpm SAE J1995:2014 | 1799 N·m | 1327 hp |
| Net Torque - 1,200 rpm ISO 9249:2007, SAE J1349:2011 | 1662 N·m | 1226 lbf·ft |
| Displacement | 9.3 l | 567.5 in³ |
| Emissions | Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, China Nonroad Stage IV and Japan 2014 emission standards. | |
| Biodiesel Capability | Up to B20¹ | |
| Note (1) | The net power advertised is the power available at the flywheel when the engine is equipped with fan, alternator, air cleaner, and aftertreatment. | |
| Note (2) | ¹Cat engines are compatible with diesel fuel blended with following lower carbon intensity fuels up to: • 20% biodiesel FAME (fatty acid methyl ester)* • 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. *For use of blends higher than 20% biodiesel, consult your Cat dealer. **Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. | |
| Engine Torque @ 1,200 rpm – ISO 14396:2002 | 1781 N·m | 1313 lb/ft |
| Displacement | 9.3 L | |
| Gross Torque @ 1,200 rpm – SAE J1995:2014 | 1799 N·m | 1327 lb/ft |
| Note (3) | Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: • 20% biodiesel FAME (fatty acid methyl ester)* • 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to- liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel. |
Weights
| Operating Weight | 23196 kg | 51124 lb |
| Note | Weight based on a machine configuration with Bridgestone 26.5R25 VJT L3 radial tires, full fluids, operator, standard counterweight, ride control, cold start, roading fenders, Product Link™, front manual differential/open rear axles, powertrain guard, secondary steering, sound suppression, and a 4.2 m³ (5.5 yd³) general purpose bucket with BOCE. |
Transmission
| Forward - 1 | 6.9 km/h | 4.3 mile/h |
| Forward - 2 | 13 km/h | 8 mile/h |
| Forward - 3 | 22.7 km/h | 14.1 mile/h |
| Forward - 4 | 39.5 km/h | 24.5 mile/h |
| Reverse - 1 | 6.9 km/h | 4.3 mile/h |
| Reverse - 2 | 13 km/h | 8 mile/h |
| Reverse - 3 | 28.8 km/h | 17.9 mile/h |
| Note | Maximum travel speed in standard vehicle with empty bucket and standard L3 tires with 849 mm (33 in) roll radius. |
Sound
| Operator Sound Pressure Level - ISO 6396:2008 | 67 dB(A) | 67 dB(A) |
| Exterior Sound Power Level - ISO 6395:2008 | 107 dB(A) | 107 dB(A) |
| Operator Sound Pressure Level - ISO 6396:2008 ¹ | 67 dB(A) | 67 dB(A) |
| Exterior Sound Power Level - ISO 6395:2008² | 105 dB(A) | 105 dB(A) |
| Note (1) | ¹Including countries that adopt the EU and UK Directives. | |
| Note (2) | ²Exterior Sound Power Level - European Union Directive 2000/14/EC and UK Noise Regulation 2001 No. 1701. | |
| With Cooling Fan Speed at Maximum Value - Note | Distance of 15 m (49.2 ft), moving forward in second gear ratio. |
Air Conditioning System
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.6 kg (3.5 lb) of refrigerant which has a CO2 equivalent 2.288 metric tonnes (2.522 tons). |
Operating Specifications
| Static Tipping Load - Full 37° Turn | 14849 kg | 32727 lb |
| Static Tipping Load - Full 37° Turn - No Tire Deflection | 15981 kg | 35224 lb |
| Breakout Force | 174 kN | 38999 lbf |
| Note (1) | For a machine configuration as defined under “Weight.” | |
| Note (2) | Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing. |
Service Refill Capacities
| Fuel Tank | 303 l | 80.1 gal (US) |
| DEF Tank | 26 l | 6.9 gal (US) |
| Cooling System | 66 l | 17.4 gal (US) |
| Crankcase | 23 l | 6.1 gal (US) |
| Transmission | 63 l | 16.6 gal (US) |
| Differential - Final Drives - Front | 57 l | 15.1 gal (US) |
| Differential - Final Drives - Rear | 57 l | 15.1 gal (US) |
| Hydraulic Tank | 114 l | 30.1 gal (US) |
Hydraulic System
| Implement System - Maximum Operating Pressure | 31000 kPa | 4496 psi |
| Hydraulic Cycle Time - Total | 9.5 s | 9.5 s |
| Hydraulic Cycle Time - Total | 10.1 seconds |
Dimensions - Standard Lift
| Height - Top of Hood | 2850 mm | 9.42 ft |
| Height - Top of ROPS | 3593 mm | 11.83 ft |
| Ground Clearance | 424 mm | 1.33 ft |
| Wheel Base | 3550 mm | 11.67 ft |
| Overall Length - Without Bucket | 7399 mm | 24.33 ft |
| Hinge Pin Height at Carry Height | 635 mm | 2 ft |
| Hinge Pin Height at Maximum Lift | 4245 mm | 13.92 ft |
| Lift Arm Clearance at Maximum Lift | 3687 mm | 21.08 ft |
| Rack Back - Maximum Lift | 62 ° | 62 ° |
| Rack Back - Carry Height | 50 ° | 50 ° |
| Width over Tires (Loaded) | 3012 mm | 9.92 ft |
| Tread Width | 2230 mm | 7.25 ft |
| Note | All dimensions are approximate and based on machine equipped with 4.2 m³ (5.5 yd³) general purpose bucket with BOCE and Bridgestone 26.5R25 VJT L3 radial tires. | |
| Rack Back at Ground | 40 degrees | |
| Rack Back - Carry Height | 50 degrees | |
| Rack Back - Maximum Lift | 62 degrees |
Dimensions - High Lift
| Height - Top of Hood | 2850 mm | 9.42 ft |
| Height - Top of ROPS | 3593 mm | 11.83 ft |
| Ground Clearance | 424 mm | 1.33 ft |
| Wheel Base | 3550 mm | 11.67 ft |
| Overall Length - Without Bucket | 8069 mm | 26.5 ft |
| Hinge Pin Height at Carry Height | 782 mm | 2.5 ft |
| Hinge Pin Height at Maximum Lift | 4804 mm | 15.75 ft |
| Lift Arm Clearance at Maximum Lift | 4183 mm | 13.67 ft |
| Rack Back - Maximum Lift | 71 ° | 71 ° |
| Rack Back - Carry Height | 49 ° | 49 ° |
| Width over Tires (Loaded) | 3012 mm | 9.92 ft |
| Tread Width | 2230 mm | 7.25 ft |
| Note | All dimensions are approximate and based on machine equipped with 4.2 m³ (5.5 yd³) general purpose bucket with BOCE and Bridgestone 26.5R25 VJT L3 radial tires. | |
| Rack Back at Ground | 37 degrees | |
| Rack Back - Carry Height | 49 degrees | |
| Rack Back - Maximum Lift | 71 degrees |
You might also be interested in:
-
950
Engine Power - 2,100 rpm ISO 14396:2002
186 kW
249 hp
Operating Weight
19260 kg
42461 lb
Engine Power - 2,100 rpm ISO 14396:2002
253 hp (metric)
Caterpillar
15198050
-
950 GC
Net Power - ISO 9249
168 kW
225 hp
Operating Weight
18849 kg
41554 lb
Bucket Capacities
2.9-4.4 m³ (3.75-5.75 yd³)
Caterpillar
15198376
-
962
Engine Power - 2,100 rpm ISO 14396:2002
201 kW
269 hp
Operating Weight
20171 kg
44469 lb
Engine Power - 2,100 rpm ISO 14396:2002
273 hp (metric)
Caterpillar
15198071
-
966
Engine Power - 1,600 rpm ISO 14396:2002
239 kW
321 hp
Operating Weight
23196 kg
51124 lb
Engine Power - 1,600 rpm ISO 14396:2002
325 hp (metric)
Caterpillar
15198093
-
966 GC
Engine Power @ 1,600 rpm - ISO 14396:2002
239 kW
321 hp
Operating Weight*
21781 kg
48018 lb
Bucket Capacities
3.2 - 7.1 m³ (4.25 - 9.25 yd³)
Caterpillar
15198397
-
972
Engine Power - 1,600 rpm ISO 14396:2002
253 kW
339 hp
Operating Weight
24890 kg
54858 lb
Engine Power - 1,600 rpm ISO 14396:2002
344 hp (metric)
Caterpillar
15198147
-
972 XE
Engine Power - 1,600 rpm ISO 14396:2002
253 kW
339 hp
Operating Weight
24890 kg
54858 lb
Engine Power - 1,600 rpm ISO 14396:2002
344 hp (metric)
Caterpillar
15198168
-
980
Engine Power - 1,700 rpm ISO 14396:2002
313 kW
420 hp
Operating Weight
30344 kg
66877 lb
Engine Power - 1,700 rpm ISO 14396:2002
426 hp (metric)
Caterpillar
15198190
-
980 XE
Engine Power - 1,700 rpm ISO 14396:2002
313 kW
420 hp
Operating Weight
30344 kg
66877 lb
Engine Power - 1,700 rpm ISO 14396:2002
426 hp (metric)
Caterpillar
15198211
-
982
Engine Power - 1,700 rpm ISO 14396:2002
322 kW
432 hp
Operating Weight
35510 kg
78264 lb
Engine Power - 1,700 rpm ISO 14396:2002
438 hp (metric)
Caterpillar
15198233
-
982 XE
Engine Power - 1,700 rpm ISO 14396:2002
322 kW
432 hp
Operating Weight
35510 kg
78264 lb
Engine Power - 1,700 rpm ISO 14396:2002
438 hp (metric)
Caterpillar
15198254
Compatible products:
Other categories of Palas cargadoras de ruedas:
360º Interior
360º Exterior
Virtual Tour
966 XE Wheel Loader
Call us
I am interested
I am interested
Thank you for contacting us.
We have received your request and will contact you as soon as possible.
Please check your email to ensure that the form has been sent correctly.
