3512C

Units of measurement :

Metric

Imperial

Power Range

1281 - 2552 bhp

Speed Range

1200 - 1800 rpm

Emissions

IMO II, China Stage II

Availability

Purchase Rental Used

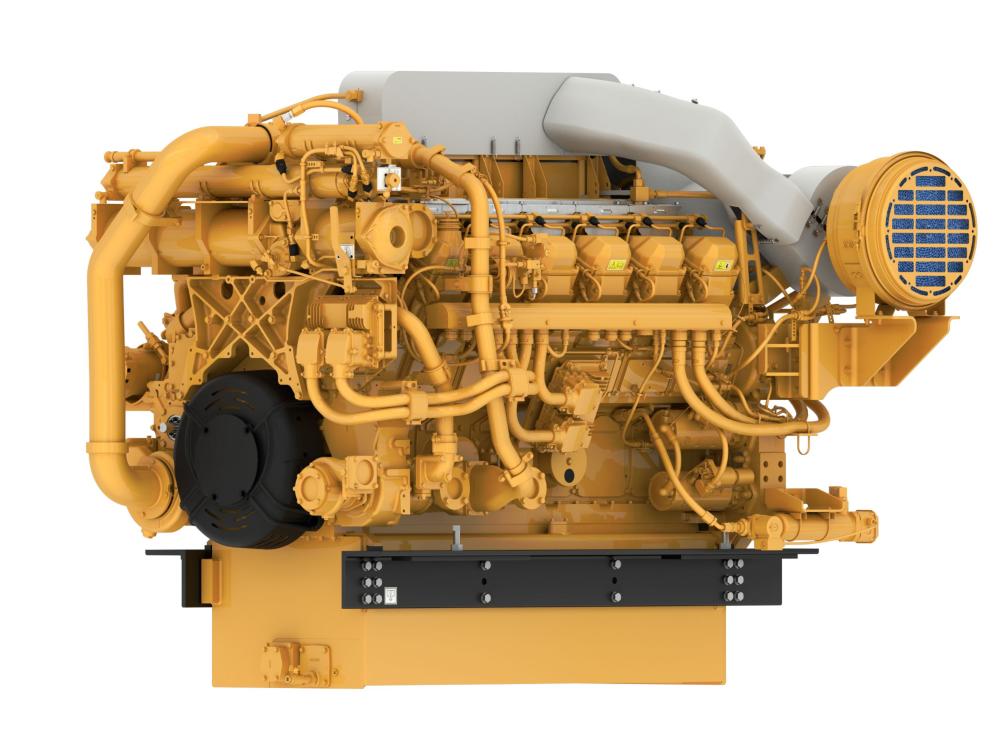

The Cat® 3512C marine propulsion engine delivers results under hard working conditions. This engine family is designed to maximize the performance of your invested dollars with a wide range of available power ratings, standard and reverse rotation configurations, no required aftertreatment, and efficient fuel consumption. This engine is available as IMO II or China Stage II emissions compliant making it an excellent propulsion engine choice for Tug, Governmental, and other workboat applications.

Driving down total cost of ownership

COMMITTED TO SUSTAINABLE DEVELOPMENT

IMPROVING WORKFORCE EFFICIENCY

FULLY INTEGRATED MARINE POWER SOLUTION

A wide range of power ratings available, No aftertreatment technology required, Fuel consumption nominal rated BSFC

3512C Propulsion Engine Specsheet.pdf

Power Rating

Power Range

1281 - 2552 bhp

Engine Specifications

Dimensions & Weights

Other categories of Motores marinos:

3512C

Speed Range	1200 - 1800 rpm
Emissions	IMO II, China Stage II
Aspiration	Twin Turbocharged Aspirator
Bore	170 mm	6.69 in
Stroke	190 mm	7.48 in
Stroke - HD	215 mm	8.46 in
Displacement	51.8 l	3161 in³
Displacement - HD	58.6 l	3574 in³
Rotation from Flywheel End	Counterclockwise or Clockwise
Configuration	V 12, 4-Stroke-Cycle Diesel

Maximum Length	2590 mm	102 in
Maximum Width	2037 mm	80.2 in
Minimum Dry Weight	6532 kg	14400 lb
Minimum Width	2037 mm	80.2 in
Minimum Height	1904 mm	75 in
Minimum Length	2590 mm	102 in
Maximum Height	1904 mm	75 in
Maximum Dry Weight	7411 kg	16340 lb
Length - Engine	222.2 mm	111.1 in
