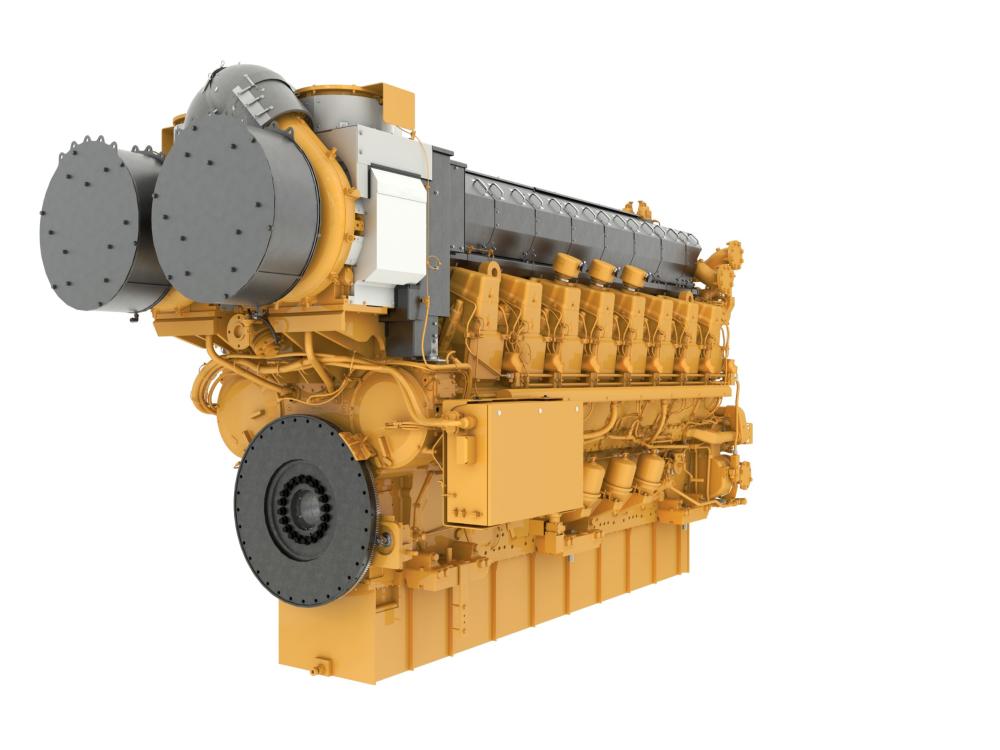

C280-16 Commercial Marine Propulsion Engine

Units of measurement :

Metric

Imperial

Power Range

6169-8046 bhp (4600-6000 bkW)

Speed Range

900-1000 rpm

Emissions

IMO II

Availability

Purchase Rental Used

Building on the durability and reliability of the C280 engine platform, Caterpillar is pleased to offer the C280-16 engine line, now up to 6000 bkW. The core components are the same as the existing C280, including the latest in EUI fuel system capabilities and state-of-the-art ADEM™ A3 Electronic Control Unit (ECU) features. Caterpillar® products continue to deliver more available power while delivering outstanding fuel efficiency. You can also count on long maintenance intervals and worldwide Caterpillar parts and service availability.

A3 ECU

Electronic Advantages:

Data Advantages through J1939 Link:

Customer Interface Panel

Electronic Unit Injectors

• CAN J1939 data link • Waterproof connectors • Maintenance-free • Backup ECU for redundant governing • Updated A4 ECU for 6000 bkW

C280-16 TIER 2 MARINE PROPULSION 7370 MHP 7268 BHP 5420 BKW.pdf C280-16 TIER 2 MARINE PROPULSION 6880 MHP 6785 BHP 5060 BKW.pdf C280-16 TIER 2 MARINE PROPULSION 6690 MHP 6598 BHP 4920 BKW.pdf C280-16 TIER 2 MARINE PROPULSION 6255 MHP 6169 BHP 4600 BKW.pdf C280-16 MARINE PROPULSION 3000 bkW _ 8046 bhp.pdf

Power Rating

Power Range

6169-8046 bhp (4600-6000 bkW)

Engine Specifications

Dimensions & Weights

Other categories of Motores marinos:

360º Exterior

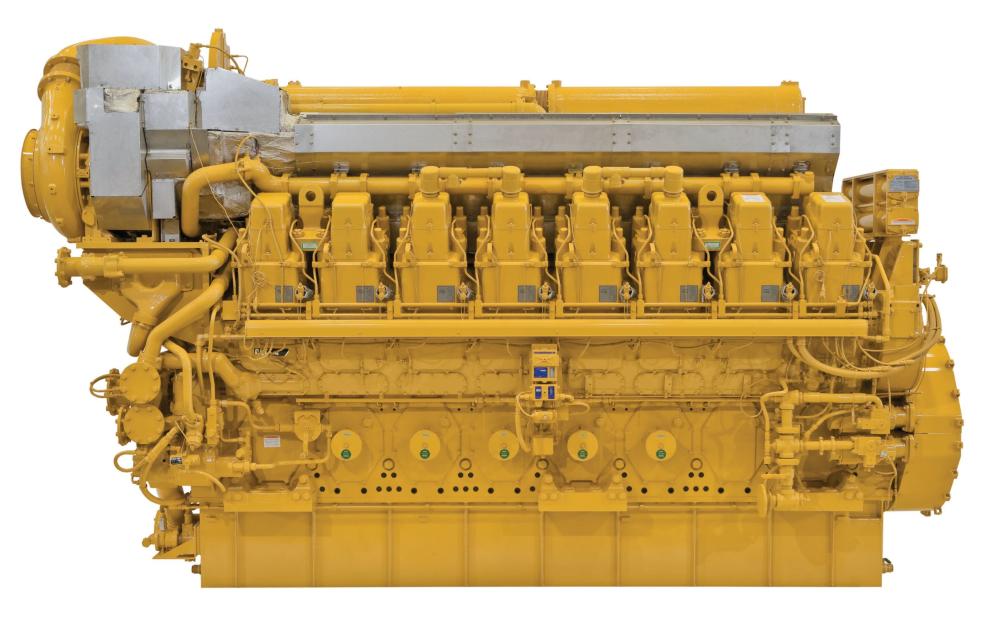

C280-16 Commercial Marine Propulsion Engine

Speed Range	900-1000 rpm
Emissions	IMO II
Aspiration	TTA
Bore	280 mm	11 in
Stroke	300 mm	11.8 in
Displacement	296 l	18062 in³
Rotation from Flywheel End	Counterclockwise or clockwise
Configuration	Vee 16, 4-Stroke-Cycle Diesel

Minimum Dry Weight	28500 kg	62832 lb
Minimum Length	5690 mm	224 in
Maximum Length	5690 mm	224 in
Minimum Height	3403 mm	134 in
Maximum Height	3403 mm	134 in
Minimum Width	2032 mm	80 in
Maximum Width	2032 mm	80 in
