CB4.4 Utility Compactor

Units of measurement :

Metric

Imperial

Standard Operating Weight with ROPS

3801 kg

Compaction Width

1400 mm

Engine Power (1)

36 kW

Availability

Purchase Rental Used

The CB4.4 is a 3-5 metric ton compactor with 800 mm (31.5 in) drums. It's a versatile machine that can be used as the only vibratory roller on small sized jobs or on larger jobs as a support roller for high-production rollers. Its high amplitude and drum width give it the capacity to achieve a tons-per-day production rate that make it an excellent match for shoulders, small parking lots, lane additions, or other similar sized jobs.

Productive

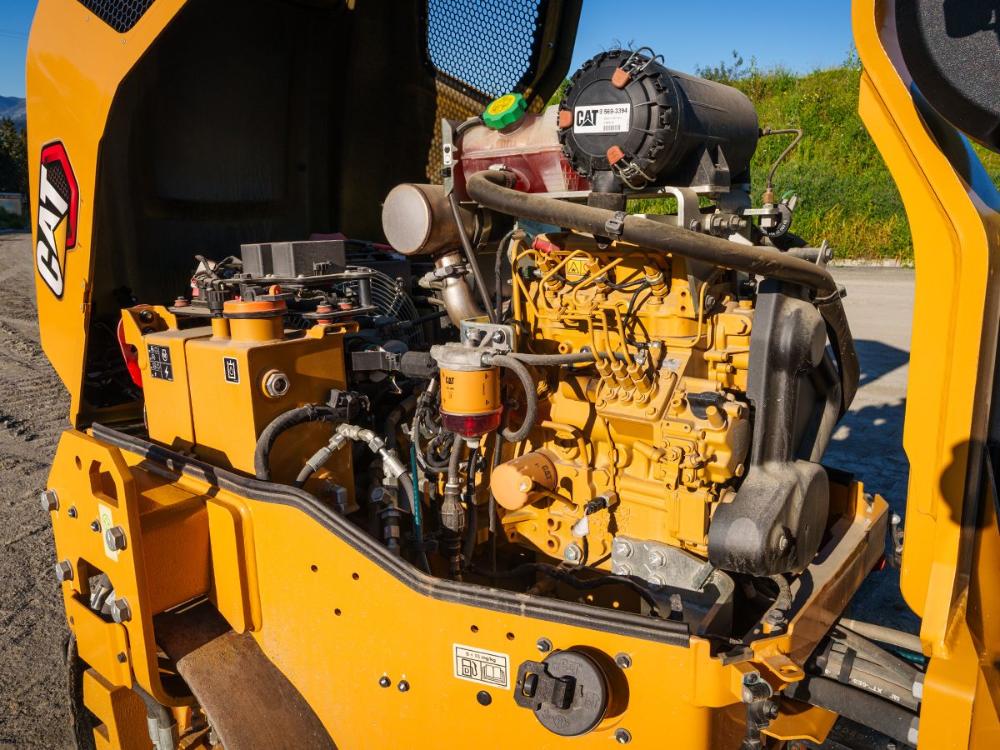

The Cat C1.7T engine operates at 48 hp / 36 kW with optimized hydraulics and multiple ballast options.

Easy to Maintain

CB4.4 provides reduced maintenance tasks, troubleshooting through Cat ET, and a 3-year/3000 hour vibe system service interval.

Simple to Operate

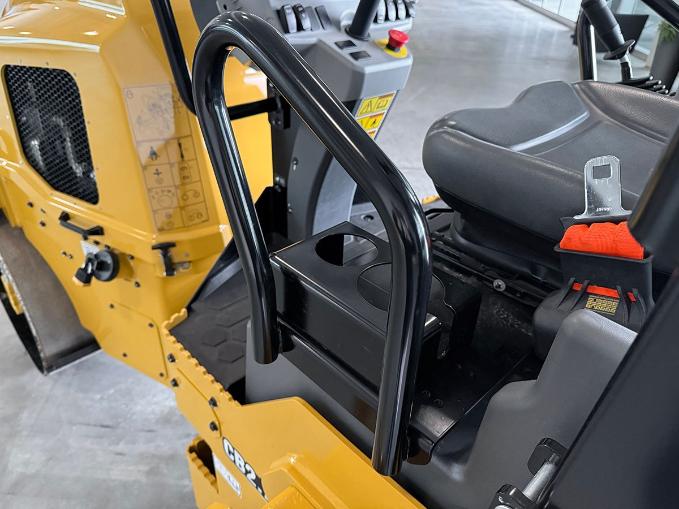

This machine has intuitive operator controls, a simple display, and an ergonomic operator station.

Simple to Operate

Proven Productivity

Technology Ready

Superior Safety

Easy to Service

• Rocker switches and Cat gauge cluster with water tank gauge to help make operation easy
• Variable water spray system to extend time between water fills
• Optional sliding operator seat and dual propel levers for reducing operator fatigue and better job surface visibility

Key Features.pdf Nomenclature Changes.pdf Application Chart.pdf Compaction Control Technologies.pdf Paving Product Line Brochure.pdf

Weights

Standard Operating Weight with ROPS	3801 kg	8362 lb
Maximum Weight at Rear Drum	1991 kg	4380 lb
Maximum Weight at Front Drum	1810 kg	3982 lb
Maximum Operating Weight with ROPS	4493 kg	9885 lb
Static Linear Load	12.93 kg/cm	72.2 lb/in

Dimensions

Engine

Operating Specifications

Vibratory System

Service Refill Capacities

Other categories of Compactadores:

CB4.4 Utility Compactor

Compaction Width	1400 mm	55.1 in
Overall Length	2853 mm	112.3 in
Overall Width	1500 mm	59.1 in
Drum Width	1400 mm	55.1 in
Drum Diameter	800 mm	31.5 in
Wheel Base	2050 mm	80.7 in
Height - ROPS	2660 mm	104.7 in

Standard Compaction Width	1400 mm	55.1 in
Drum Offset	50 mm	2 in
Curb Clearance	499 mm	19.6 in
Ground Clearance	284 mm	11.2 in
Travel Speed - Maximum	13 km/h	8.1 mile/h
Turning Radius - Inside Drum Edge	2876 mm	113.2 in
Turning Radius - Outside Drum Edge	4276 mm	168.3 in

Frequency	55/45 Hz (3300/2700 vpm)
Nominal Amplitude - High	0.49 mm	0.019 in
Centrifugal Force - Maximum	34.82 kN	7828 lb/ft

Fuel Tank Capacity	81 l	21.43 gal (US)
Water Spray Tank Capacity	300 l	79 gal (US)
