CC2.7 GC Utility Compactor

Units of measurement :

Metric

Imperial

Standard Operating Weight with ROPS

2599 kg

Compaction Width

1312 mm

Engine Power (1)

36 hp

Availability

Purchase Rental Used

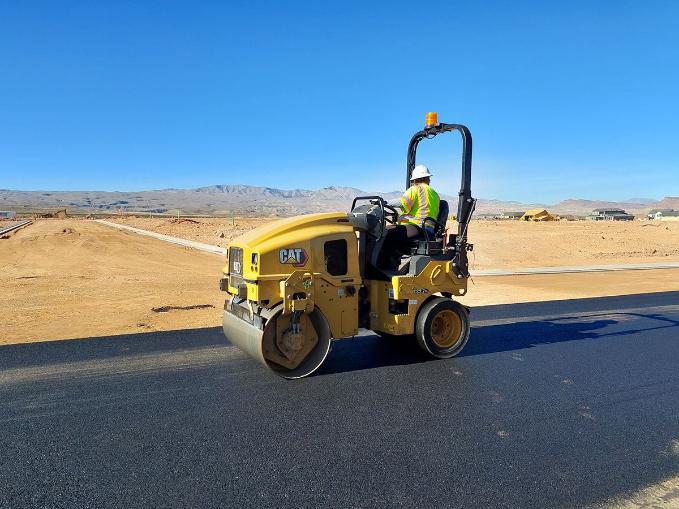

The CC2.7 GC is a 2.7 metric ton machine with 1000 mm (39 in) drums. It's a versatile machine with a high amplitude and is an excellent match for car parks, shoulders, small parking lots, lane additions, and other similar sized jobs.

Productive

Providing power with Cat C1.7T engine at 24.6 hp / 18.4 kW with optimized hydraulics and multiple ballast options.

Designed for Rental

This machine is easy to maintain, has a single point lift for versatile transport, and has custom paint options available.

Simple to Operate

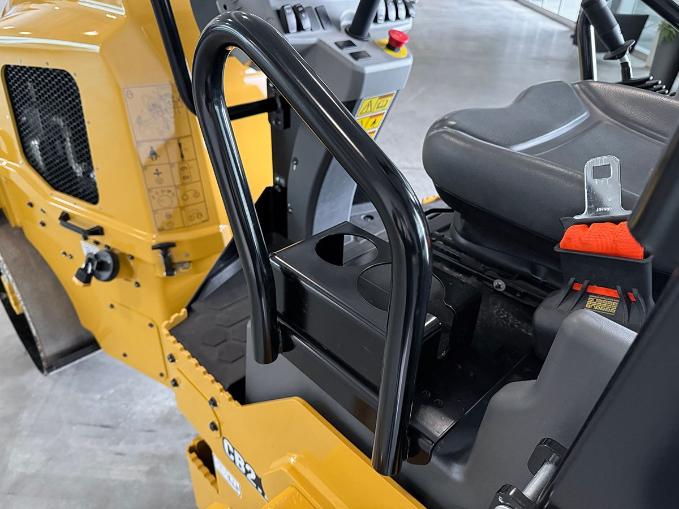

This machine has intuitive operator controls, a simple display, and an ergonomic operator station.

Simple to Operate

Proven Productivity

Technology Ready

Superior Safety

Easy to Service

Sustainability

• Rocker switches and Cat gauge cluster with water tank gauge to help make operation easy
• Variable water spray system to extend time between water fills
• Optional sliding operator seat and dual propel levers for reducing

The Cat® C1.7T engine meets U.S. EPA Tier 4 Final and EU Stage V emission standards.
Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester)** or 100% renewable diesel, HVO (hydrogenated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details.
Auto engine idle shutdown helps reduce unnecessary fuel burn and greenhouse gas emissions by allowing the engine to automatically go into idle mode when the machine is not working.
A well-trained operator is worth the investment. Skilled operators benefit your bottom line by maximizing productivity, avoiding costly downtime, and maintaining jobsite safety – which can help to improve fuel efficiency and reduce greenhouse gas emissions.
Extended maintenance intervals not only reduce downtime but can decrease the amount of fluid and filters that are replaced over the life of the machine. The hydraulic oil can be replaced every 3000 hours, eccentric housing oil can be replaced every 3000 hours, and engine oil changes can be 500 hours.
Cat Compact technologies help you consistently meet compaction targets faster, more uniformly, and in fewer passes - saving on fuel and reducing rework and material costs.
Cat Scheduled Oil Sampling (S•O•S℠) Services helps reveal excessive wear, contaminated fluids or other “unseen” issues that can shorten component life. In many cases, you can extend oil and coolant change intervals by using fluid monitoring. Consult your Cat dealer or the machine's operation and maintenance manual for more information.
Remote Flash for engines helps to minimize downtime and maintenance time while keeping your asset running with maximum efficiency. Alerts for machine updates are sent virtually from your Cat dealer and updates can be deployed without a dealer technician needing to be onsite.
Remote Troubleshoot decreases maintenance time and keeps your machine running with maximum efficiency by allowing your Cat dealer to virtually test the machine while working. Once a problem is identified, a technician can fix it the first time, saving time and money.

**Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel.

Key Features.pdf Compaction Control Technologies.pdf Paving Product Line Brochure.pdf

Weights

Standard Operating Weight with ROPS	2599 kg	5718 lb
Maximum Weight at Front Drum	1310 kg	2882 lb
Maximum Weight at Rear Wheels	1289 kg	2836 lb
Maximum Operating Weight	2779 kg	3114 lb

Dimensions

Engine

Vibratory System

Operating Specifications

Service Refill Capacities

Other categories of Compactadores:

CC2.7 GC Utility Compactor

Compaction Width	1312 mm	51.7 in
Height - ROPS	2595 mm	102.2 in
Wheel Base	1800 mm	70.9 in
Drum Diameter	720 mm	28.3 in
Overall Length	2596 mm	100.2 in
Overall Width	1312 mm	51.7 in
Drum Width	1200 mm	47.2 in

Centrifugal Force - Maximum	31 kN	6968.8 lb
Nominal Amplitude - High	0.52 mm	0.02 in
Frequency	3720 VPM	62 Hz

Turning Radius - Inside Drum Edge	2540 mm	100 in
Travel Speed - Maximum	8.6 km/h	5.3 mile/h
Drum Offset	50 mm	2 in
Static Linear Load	13.1 kg/cm	61 lb/in
Curb Clearance	453 mm	17.8 in
Turning Radius - Outside Drum Edge	3740 mm	147.2 in
Ground Clearance	285 mm	11.2 in

Fuel Tank Capacity	55 l	14.37 gal (US)
Water Spray Tank Capacity	160 l	42.24 gal (US)
