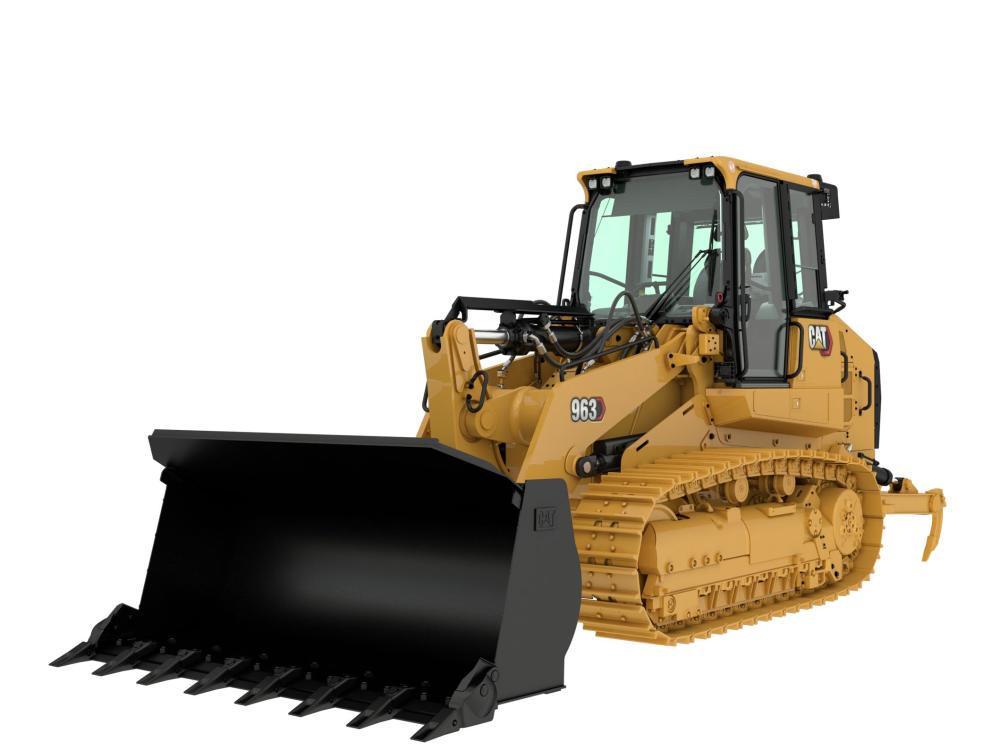

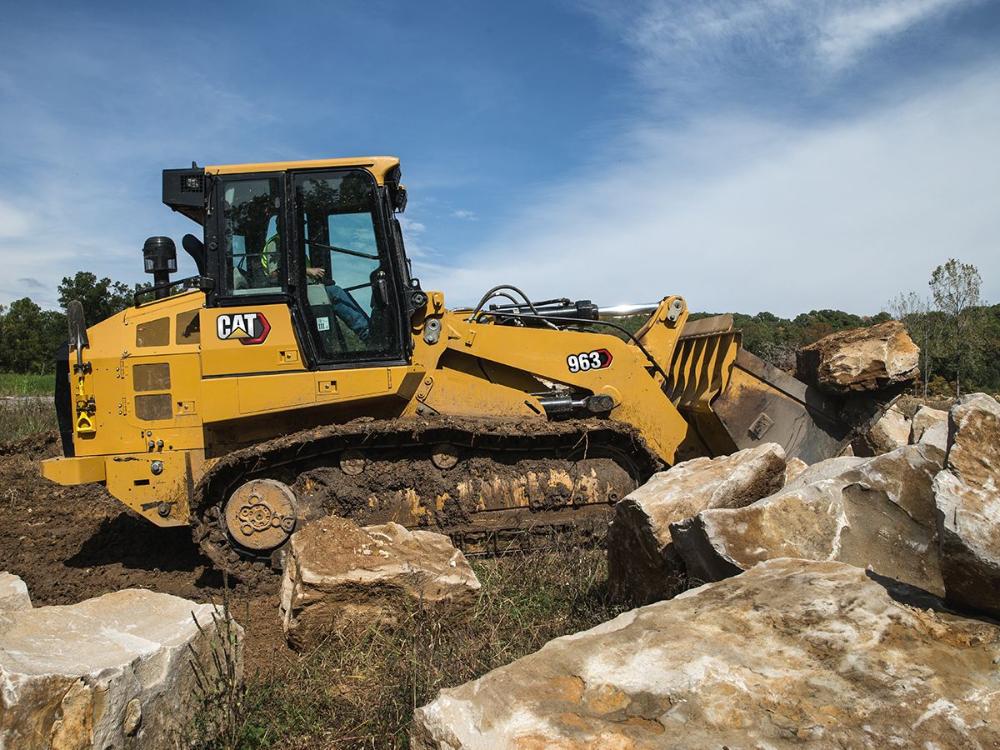

963 Track Loader

Units of measurement :

Metric

Imperial

Flywheel Power

151 kW

Operating Weight

20358 kg

Capacity - General Purpose

2.5 m³

Availability

Purchase Rental Used

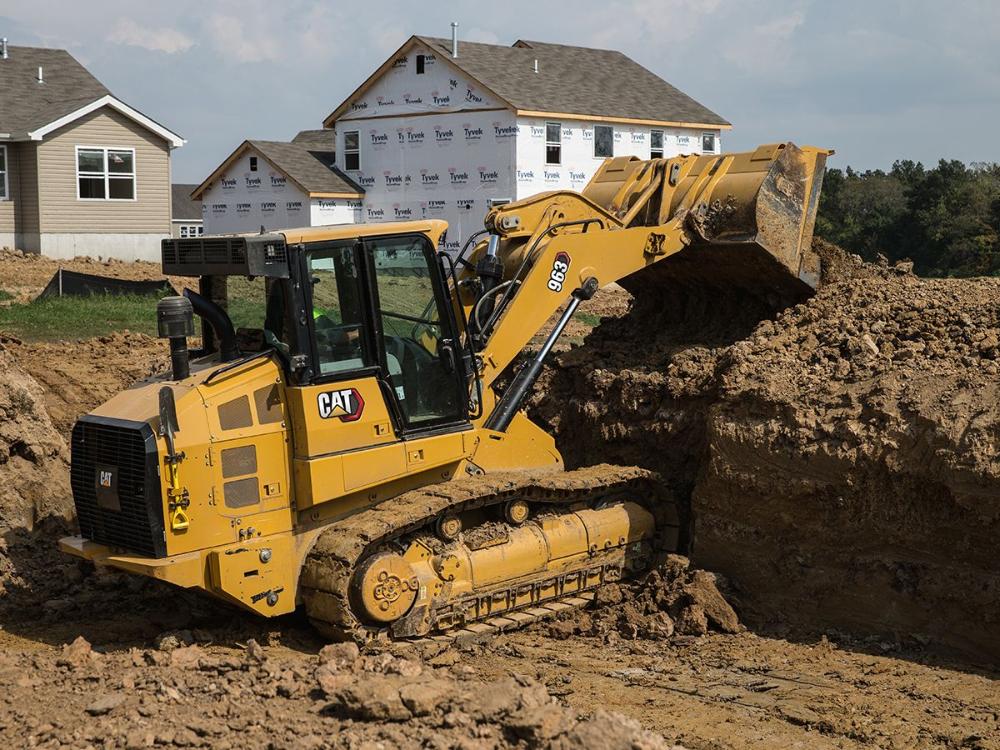

Save money and transport time with one rugged machine that does it all \u2013 land clearing, digging, grading, truck loading, slope work and more. Crawler loaders give you lower ground pressure and better traction so you can start the job sooner, and work longer, in all kinds of underfoot conditions. Cat® Track Loaders give you all this, plus outstanding performance and fuel efficiency.

ONE Machine, Many Jobs

One operator, one machine to dig, load, carry, fill and more. Fusion™ quick coupler for fast attachment changes. Purpose-built Waste, Low Ground Pressure, Ship Hold and Steel Mill loaders to get the job done.

Up To 10% Fuel Savings

Efficient Cat C7.1 engine. Automatic, Eco and Power modes match performance to the job to save you fuel. Remote Services and machine features help save on service and maintenance.

More Productivity

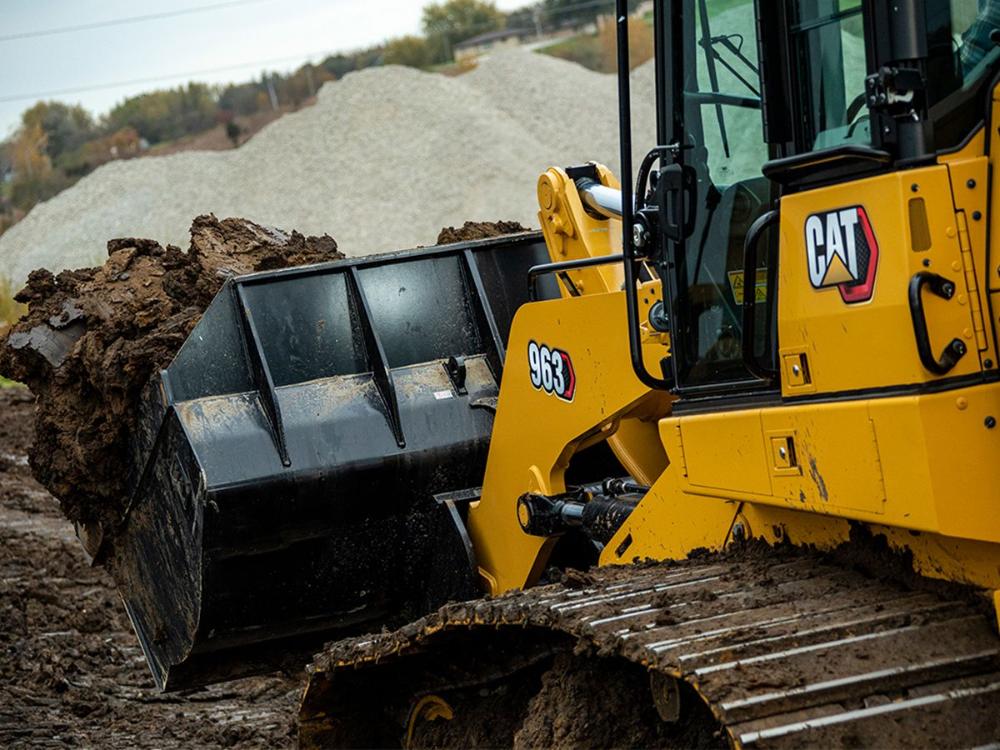

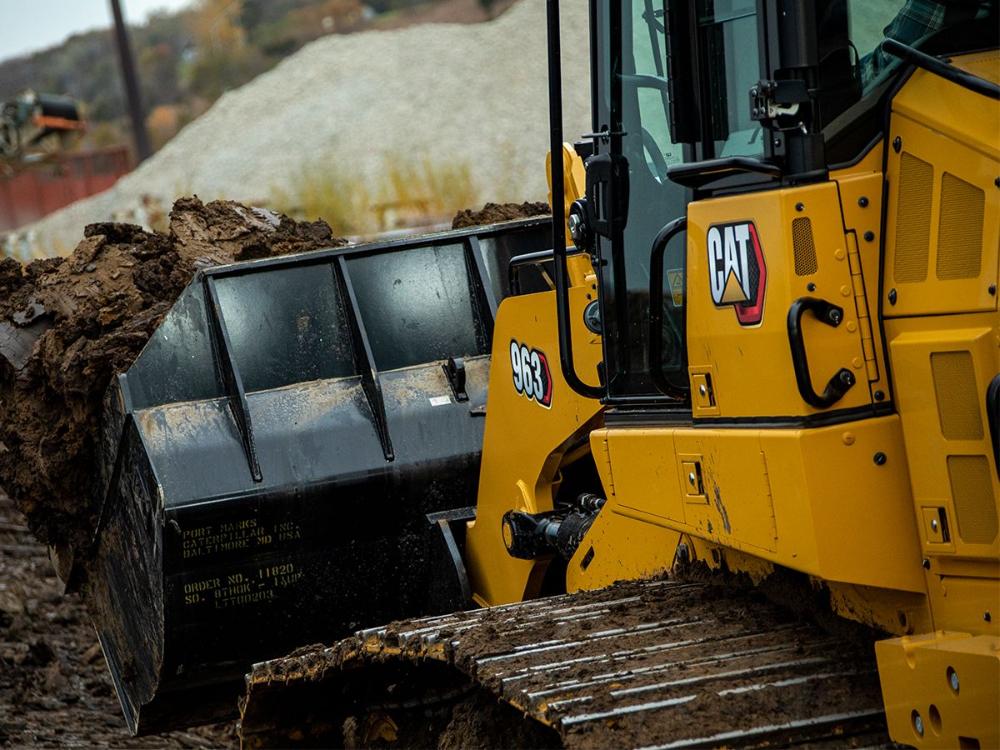

More power to the ground and Performance Series bucket option boost your power and productivity. Cat Payload technology helps optimize bucket loading for faster cycle times.

One Machine, Many Jobs

Top Performer

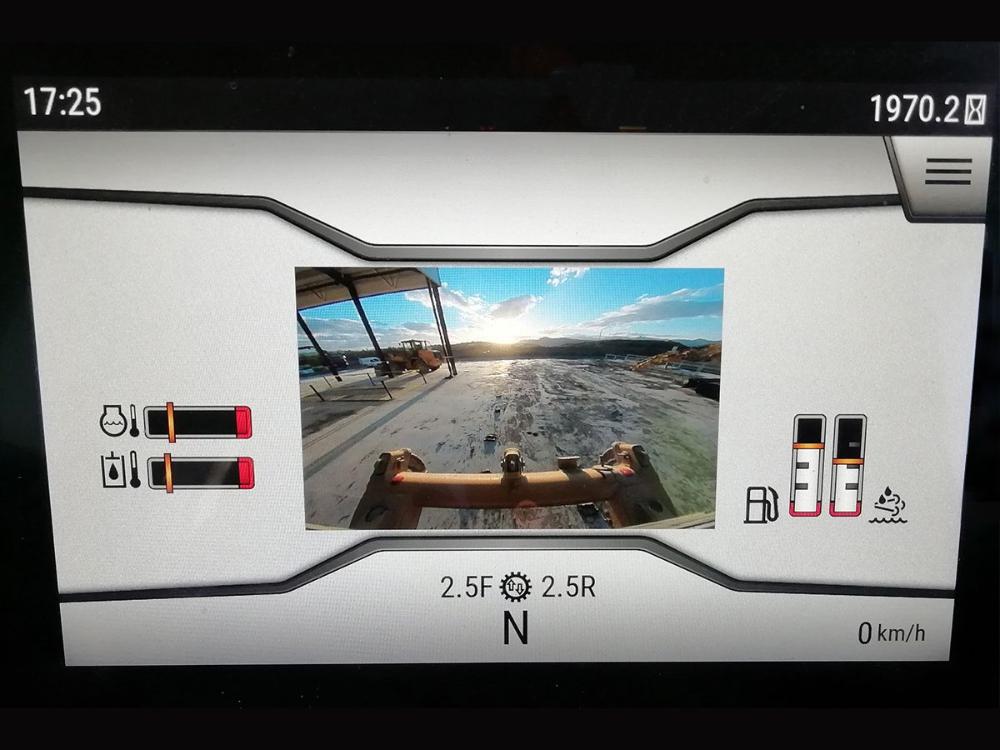

Easy to Operate

Focus on Safety

Equipped for the Job

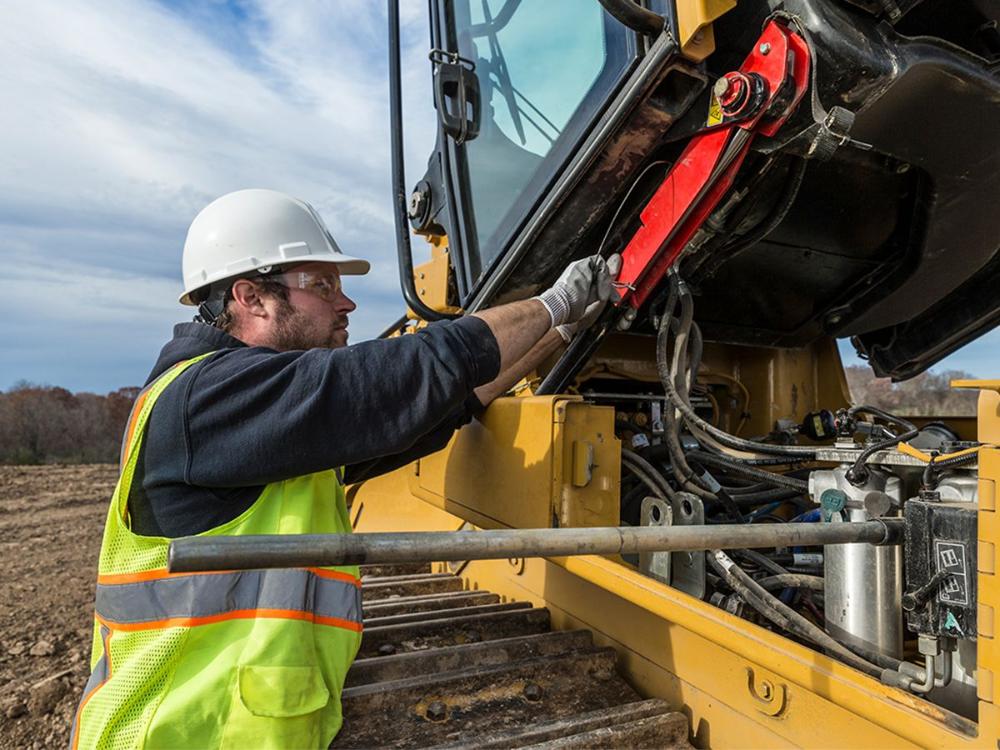

Save on Maintenance

Connect to Greater Efficiency

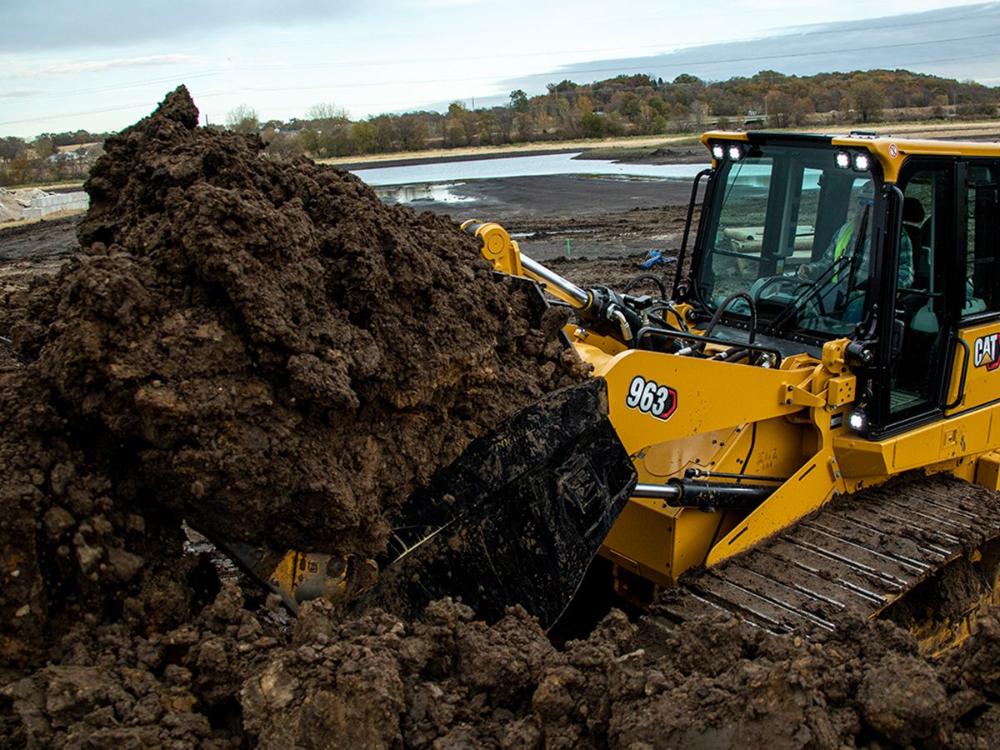

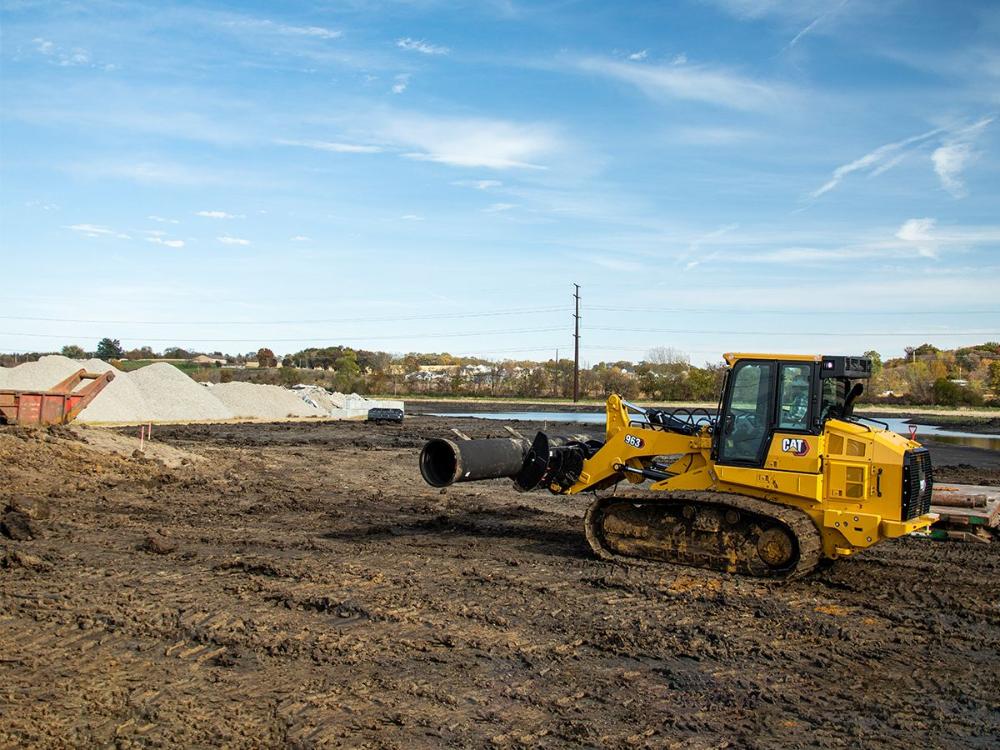

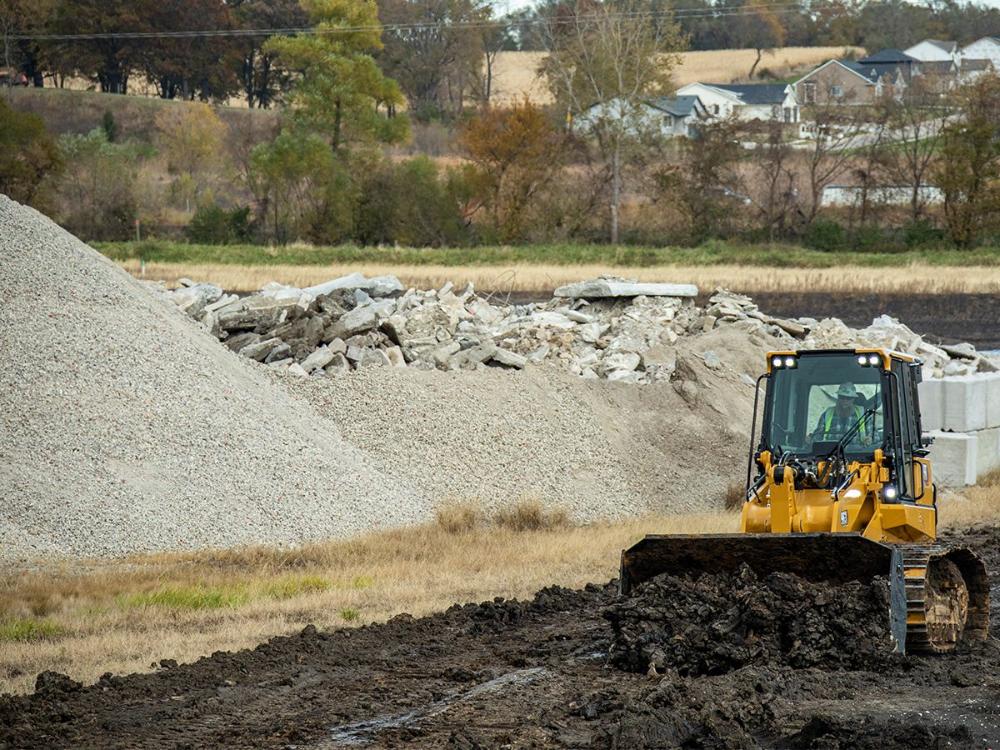

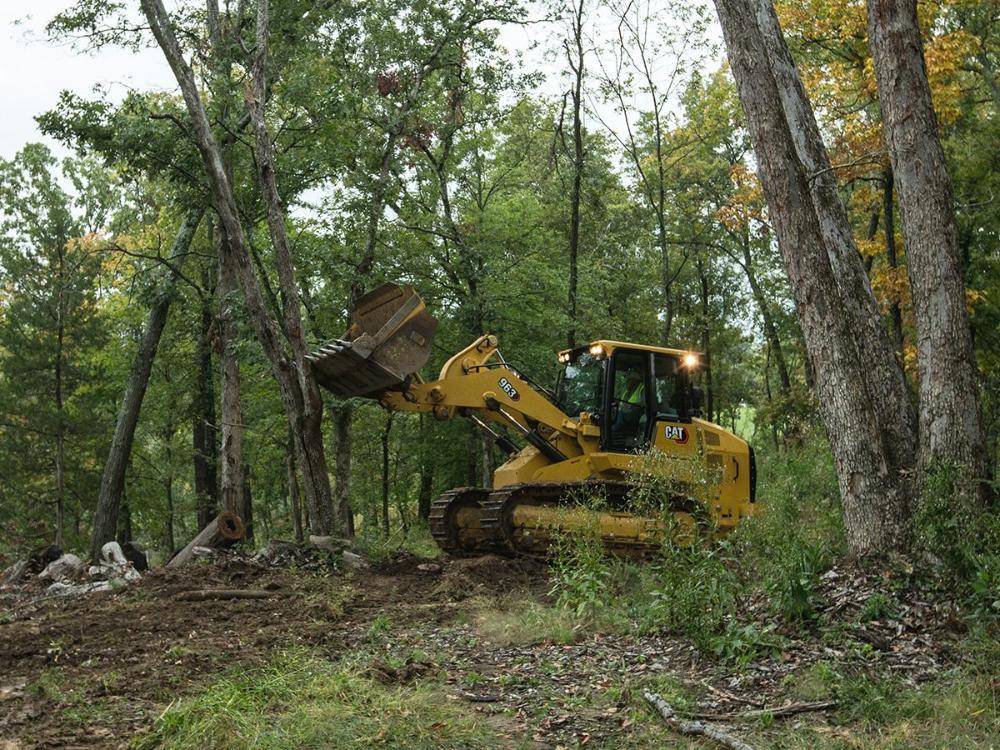

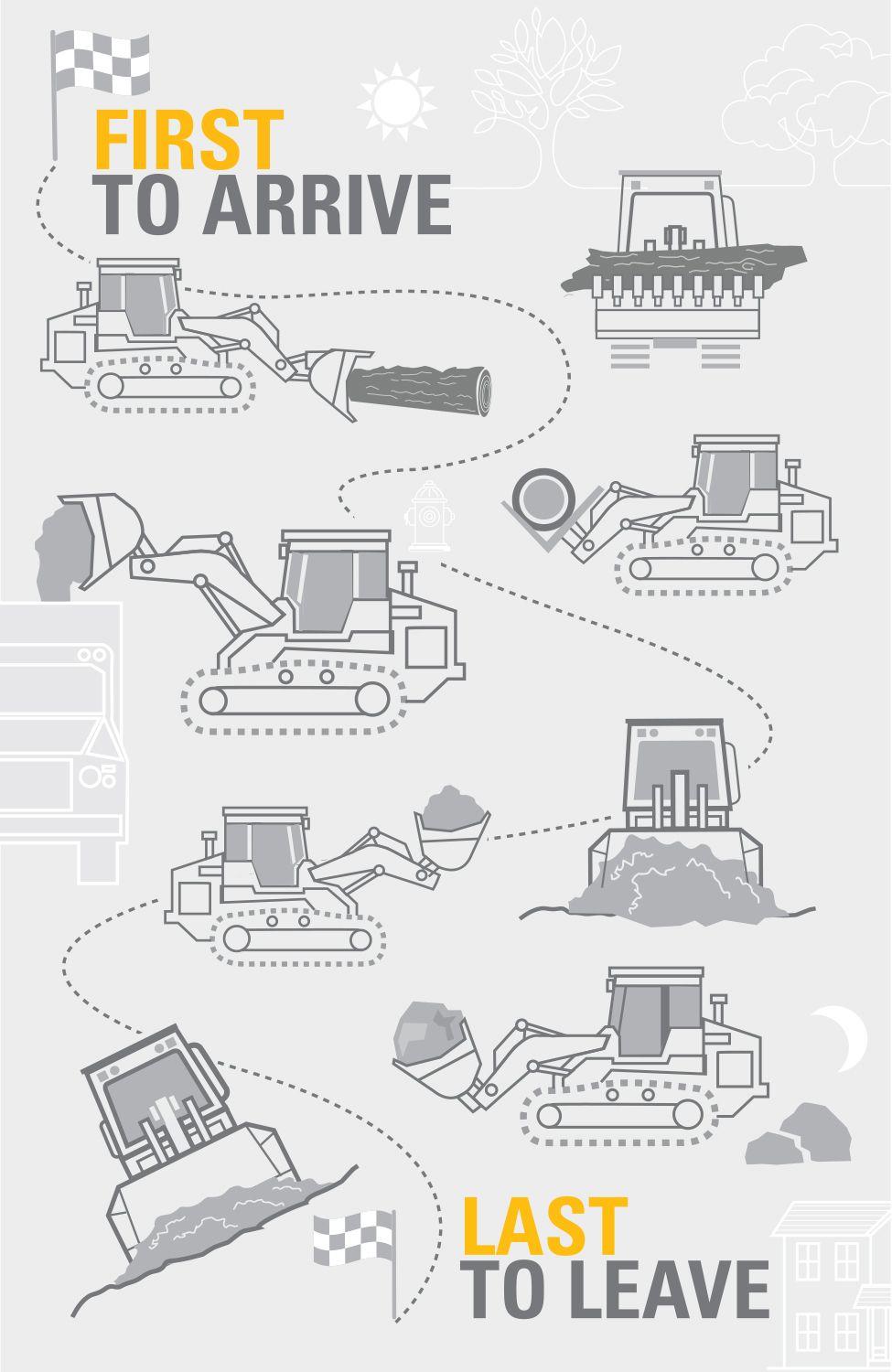

Track loader power, traction and agility mean you can use one machine and one operator to do everything from clearing the site to installing utilities and finishing around buildings.

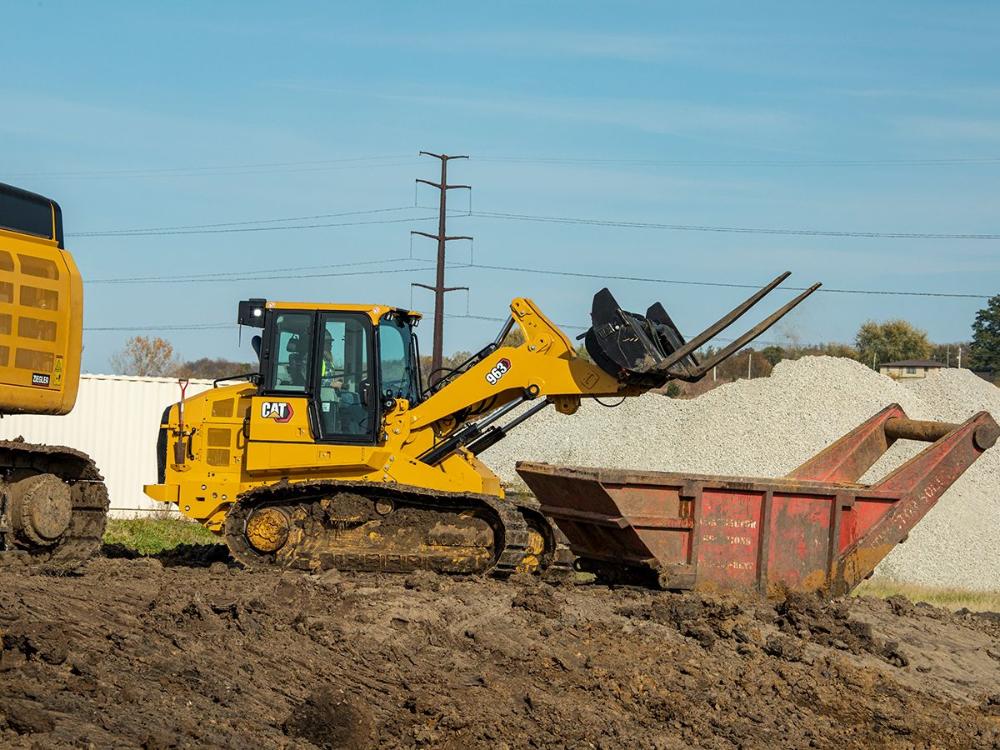

Fusion™ Quick Coupler option lets you make fast attachment changes with a wide range of tools like forks, buckets, etc. from wheel loaders and other Fusion compatible machines.
Bucket/tooth, undercarriage, track shoe and attachment choices help you equip your machine for optimal performance in your applications.

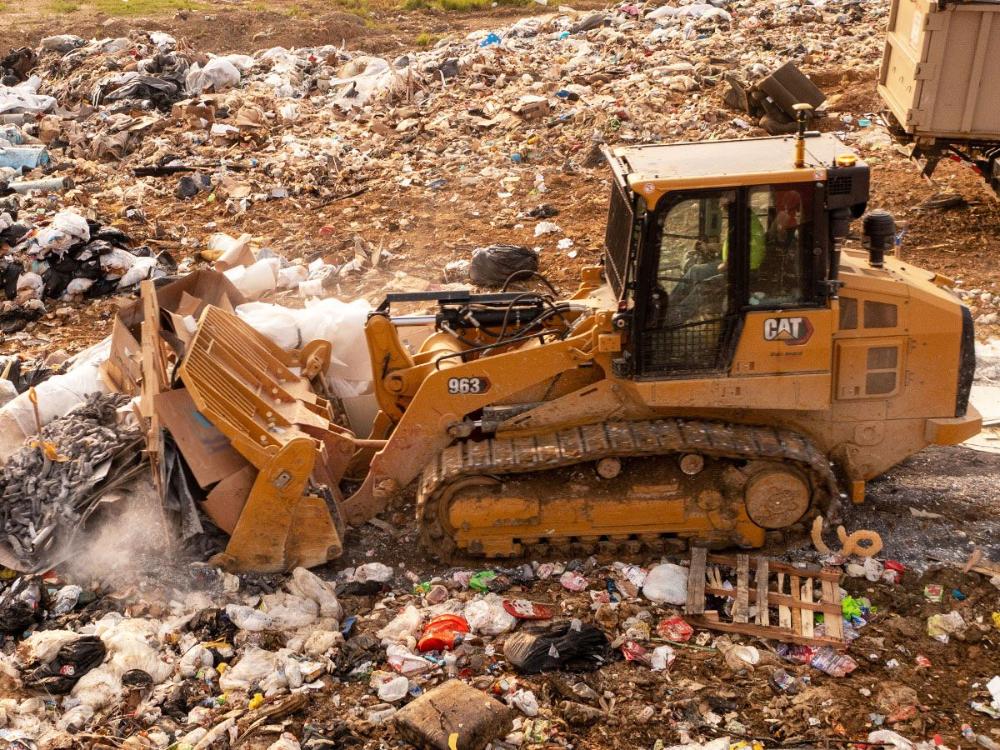

Purpose-built Waste Handler, Low Ground Pressure (LGP), Ship Hold and Steel Mill configurations stand up to the toughest tasks.

953, 963, 973 Track Loaders Product Brochure (Global).pdf 963 Track Loader Technical Specifications (Global).pdf

Engine

Flywheel Power	151 kW	202 hp
Engine Model	Cat C7.1
Net Power - ISO 9249/SAE J1349	151 kW	202 hp
Net Power - ISO 9249 (DIN)	204 mhp	204 mhp
Emissions	Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, China Nonroad Stage IV, Japan 2014 emission standards or India Bharat Stage III, Eurasian Economic Union Stage IIIA, UN ECE R96 Stage IIIA emission standards, equivalent to U.S. EPA Tier 3/ EU Stage IIIA.
Note (1)	Cat U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, China Nonroad Stage IV, Japan 2014 engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: 20% biodiesel FAME (fatty acid methyl ester); 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Cat engines meeting Eurasian Economic Union Stage IIIA, UN ECE R96 Stage IIIA emission standards, equivalent to U.S. EPA Tier 3/ EU Stage IIIA, are compatible with diesel fuel blended with the following lower-carbon intensity fuels up to: 100% biodiesel FAME (fatty acid methyl ester); 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels. Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (For use of blends higher than 20% biodiesel, consult your Cat dealer). **For use of blends higher than 20% biodiesel, consult your Cat dealer.
Note (2)	Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions Module (when equipped) and alternator. Advertised power is tested per the specified standard in effect at the time of manufacture.

Weights

Buckets

Service Refill Capacities

Standard

Low Ground Pressure (LGP)

Waste Handler

Dimensions

Undercarriage

Air Conditioning System

Other categories of Equipos:

360º Interior
360º Exterior
Virtual Tour

963 Track Loader

Capacity - General Purpose	2.5 m³	3.2 yd³
Capacity - Multi-Purpose	2 m³	2.6 yd³
Capacity - Performance Series	2.8 m³	3.7 yd³
Width - General Purpose	2571 mm	101.2 in
Width - Multi-Purpose	2575 mm	101.3 in
Width - Performance Series	2671 mm	105.2 in

Fuel Tank	320 l	84.5 gal (US)
DEF Tank	16 l	4.2 gal (US)

Operating Weight	20358 kg	44881 lb
Width of Standard Shoe	550 mm	22 in
Ground Contact Area	3.2 m²	4900 in²
Ground Pressure	63 kPa	9.1 psi

Operating Weight	22762 kg	50181 lb
Width of Standard Shoe	800 mm	31 in
Ground Contact Area	4.6 mm²	7136 in²
Ground Pressure	48.5 kPa	7 psi

Operating Weight	20661 kg	45549 lb
Width of Standard Shoe	550 mm	22 in
Ground Contact Area	3.2 m²	4900 in²
Ground Pressure	63.3 kPa	9.2 psi

Overall Machine Length*	7001 mm	275.6 in
Machine Height - Top of Cab	3325 mm	130.9 in
Height - Top of Stack	2940 mm	115.7 in
Overall Machine Height - Bucket Fully Raised	5402 mm	212.7 in
Overall Machine Width without Bucket: With Standard Tracks - 550 mm (21.6 in) Shoes	2400 mm	94.5 in
Note	*With General Purpose bucket and extra duty teeth.

Track Gauge	1850 mm	72.8 in
Track on Ground	2542 mm	100 in
Track Rollers/Shoes - Each Side	7 / 38

Detalle Productos Cat

963 Track Loader

ONE Machine, Many Jobs

Up To 10% Fuel Savings

More Productivity

One Machine, Many Jobs

Top Performer

Easy to Operate

Focus on Safety

Equipped for the Job

Save on Maintenance

Connect to Greater Efficiency

Engine

Weights

Buckets

Service Refill Capacities

Standard

Low Ground Pressure (LGP)

Waste Handler

Dimensions

Undercarriage

Air Conditioning System

You might also be interested in:

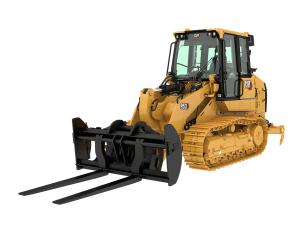

953

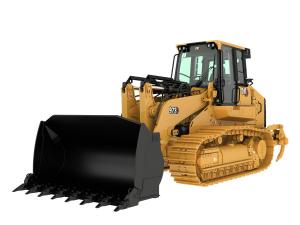

973
