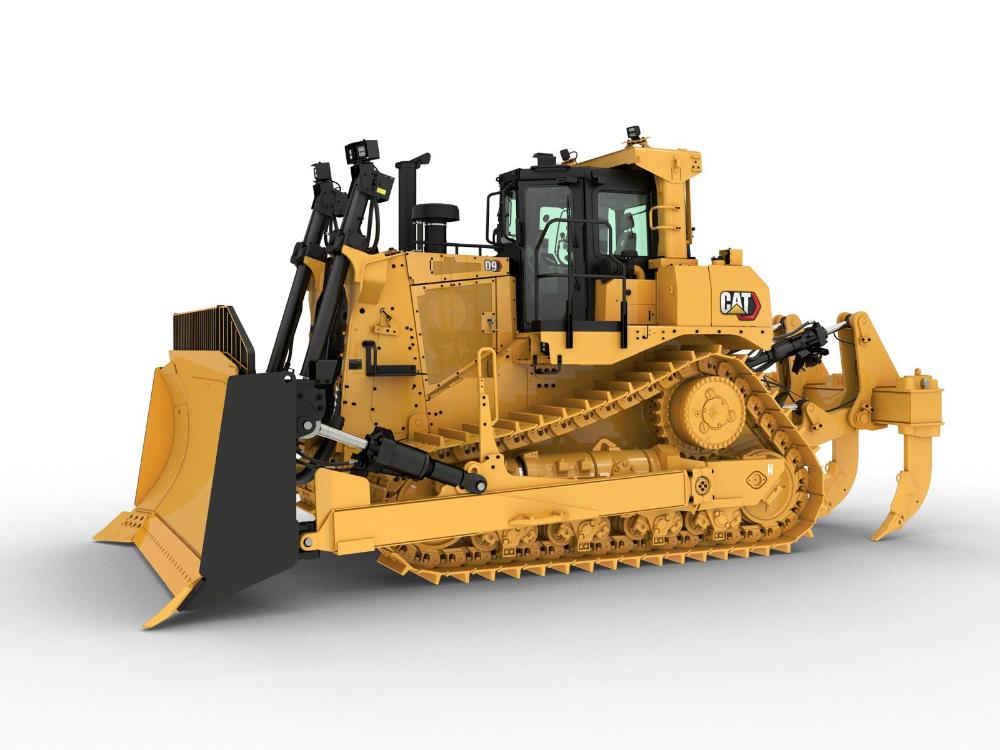

D9 Dozer
Cat
Metric
Imperial
Engine Model
Cat® C18
Engine Power - Net SAE J1349/ISO 9249
337 kW
452 hp
Operating Weight
49988 kg
110225 lb
Availability

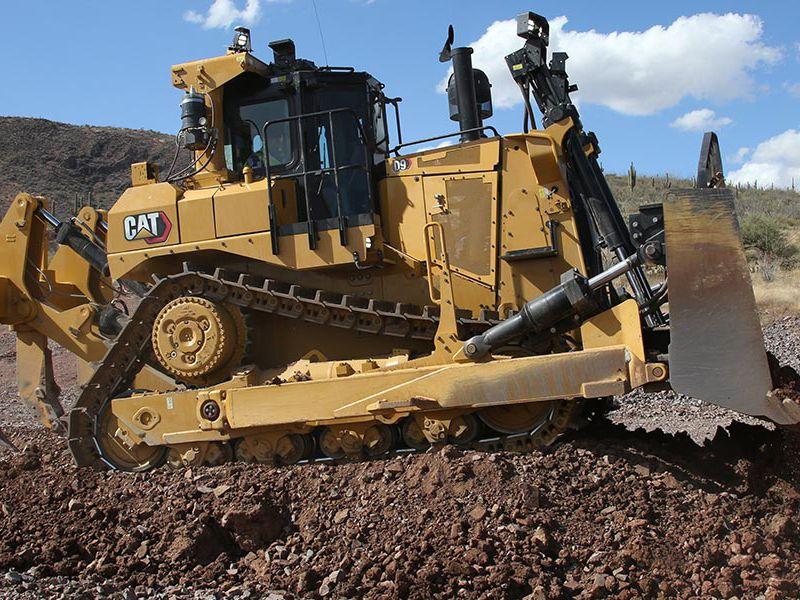

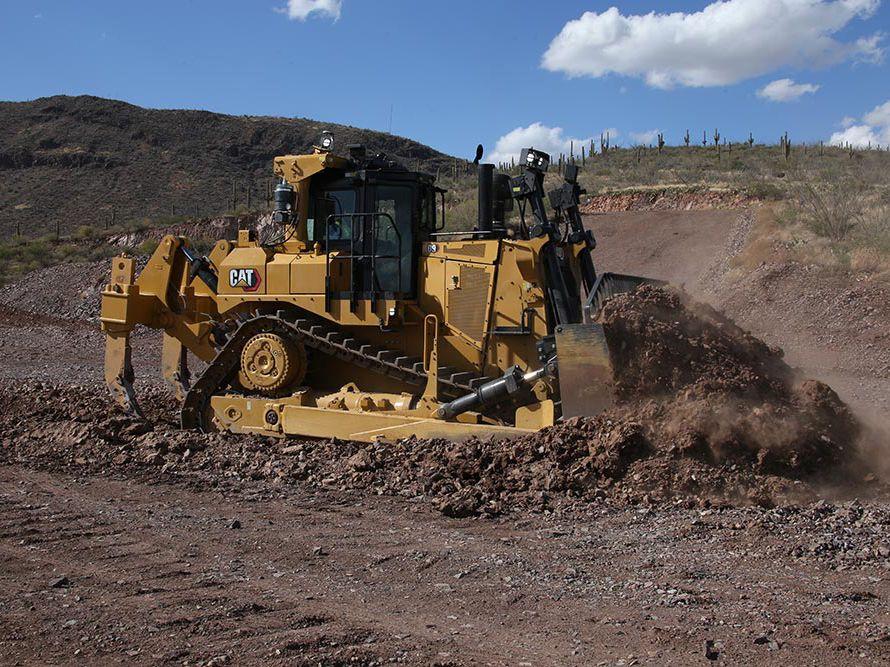

The Cat® D9 Dozer is a versatile machine designed to be used in a variety of applications, such as ripping overburden, production dozing, stockpiling, winching, site maintenance, fleet support and reclamation. It can be equipped with a number of blade options to meet site-specific needs. A highly reliable and fully integrated Cat machine, the D9\u2019s components work together to ensure top performance, high availability and long life. Features like the new stator clutch torque converter boost efficiency and reduce fuel usage, and a number of onboard technology solutions further increase efficiency and performance. These improvements \u2014 and more \u2014 make the D9 a dozer that delivers a lower overall cost per unit of material moved.
5% Boost in Fuel Efficiency
With new stator clutch torque converterUp to 3% Lower Overall Cost per Bank Cubic Meter
Thanks to features that boost productivity and efficiency of both the machine and its operatorsUp to 4% Lower Maintenance & Repair Costs
With integrated AutoLube system, longer filter change intervals and Remote Flash softwarePERFORMANCE & EFFICIENCY
OPERATOR COMFORT
SAFETY
PRODUCTIVITY
VERSATILITY
TECHNOLOGY & INNOVATION
SERVICEABILITY
BLADES & ATTACHMENTS
BUILT TO GO THE DISTANCE
SUSTAINABILITY

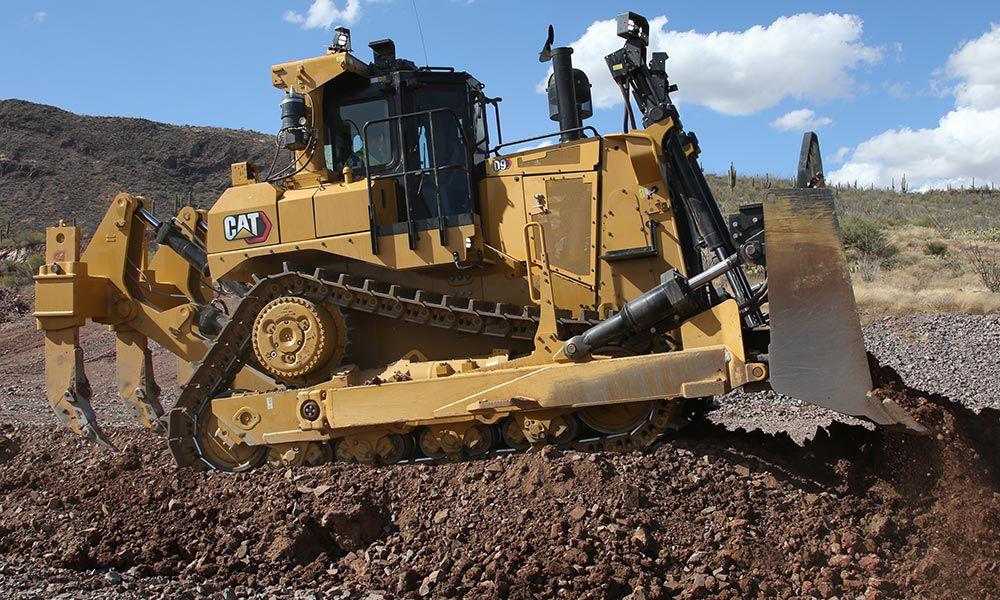

- The torque converter with stator clutch automatically frees up the stator when torque multiplication is not required under low load, resulting in higher drivetrain efficiency for reduced fuel consumption.
- Bogie suspension allows the track to conform to ground conditions, delivering higher traction and less slippage.
- Differential steering enables large loads, with fast and smooth maneuvering.

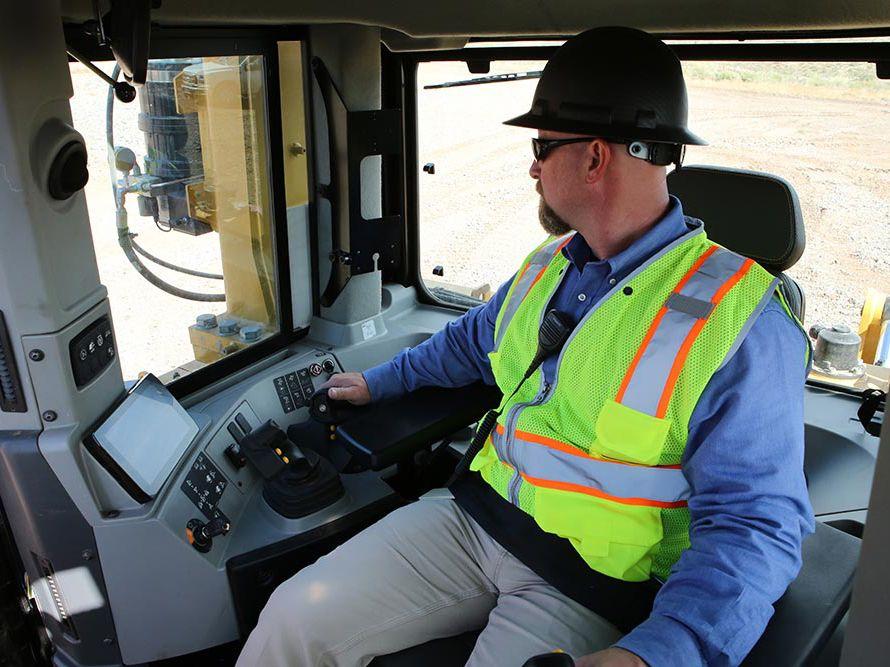

- The cab is unparalleled, with enhanced ergonomics, a fully adjustable air suspension seat and automatic temperature control.
- The suspended undercarriage absorbs impact and reduces shock loads transferred to the undercarriage by up to 50% for a smoother, more comfortable ride.

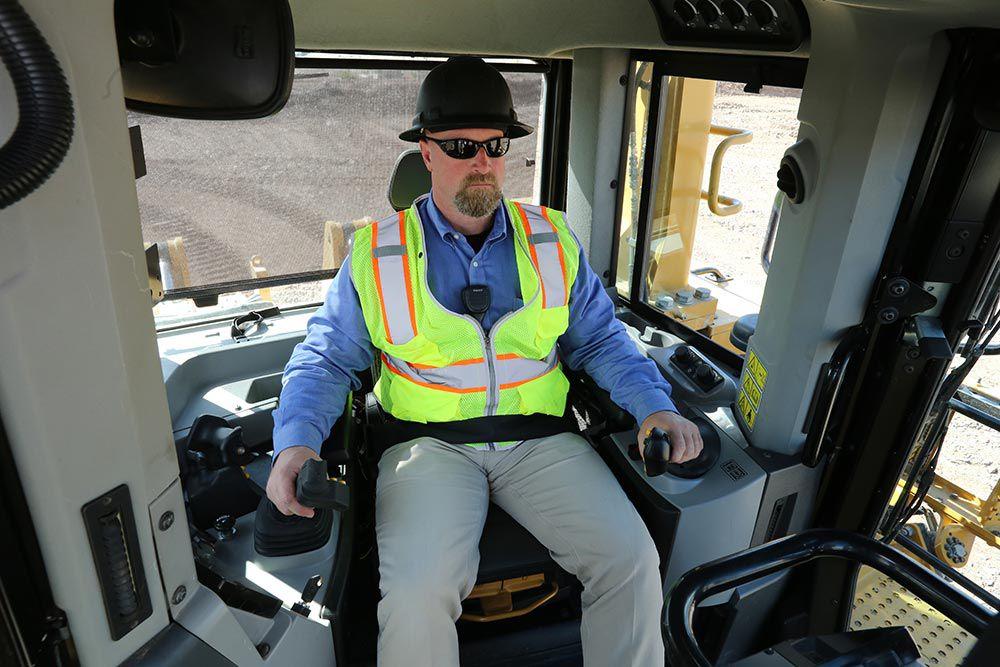

- Low-effort electronic steering, ripper and dozer controls are easily accessible and provide sure, precise maneuvering.

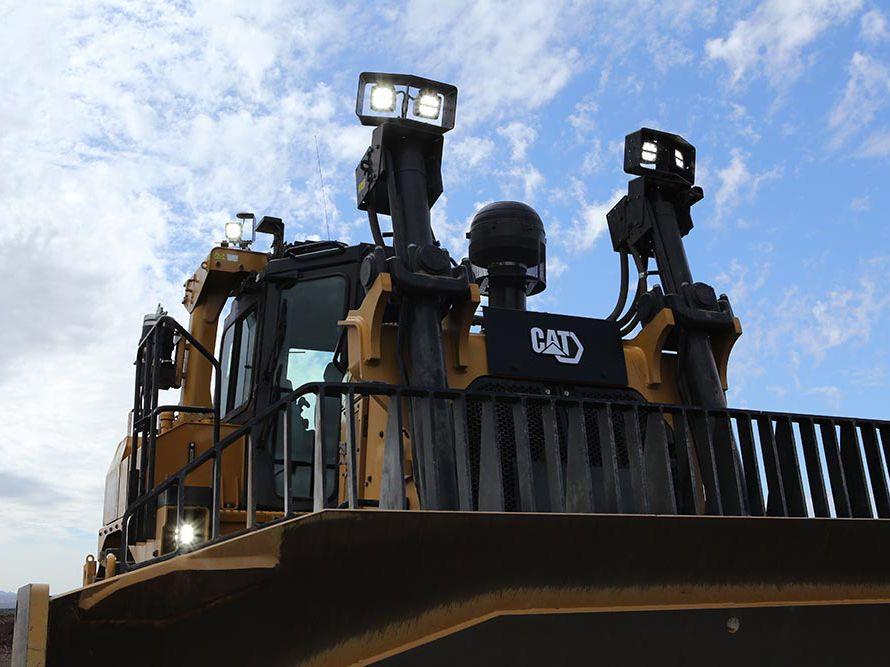

- The operator station offers an exceptional viewing area, with a tapered hood, notched fuel tank, and narrow ripper carriage to give the operator a clear line of sight to front and rear work areas.
- The optional 360 Vision camera system and in-cab display further enhance visibility.

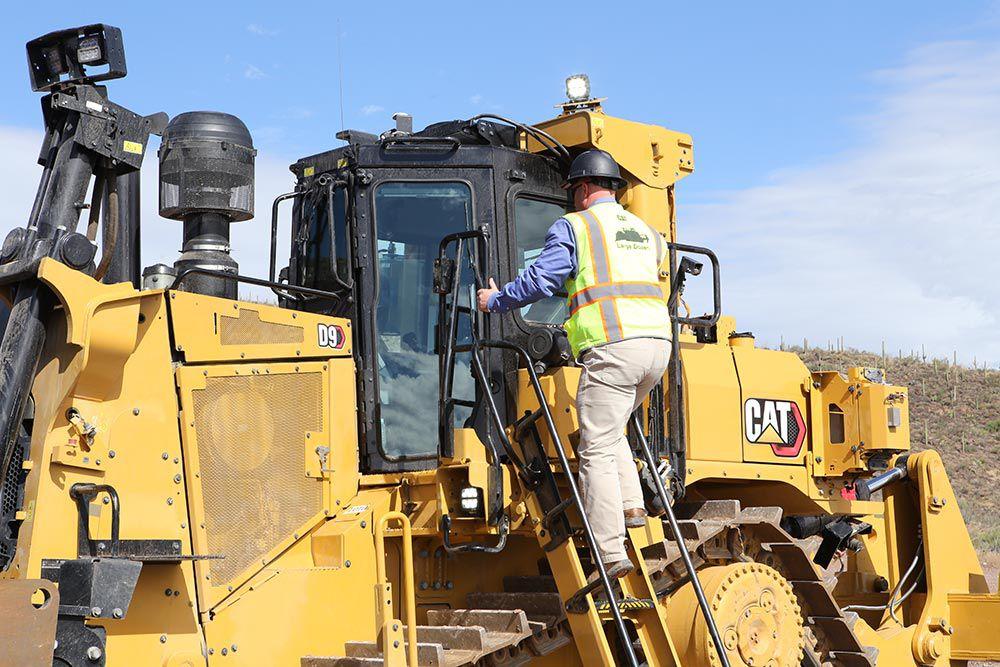

- An optional powered ladder improves access and egress.
- Ground-level access, forward-hinging cab door, retention pins on bottom guard and removed lift cylinder grease points provide a greater level of safety for service personnel.
- Differential steering provides a tight turning radius and maintains a high ground speed while turning.
- The planetary powershift transmission controls permit smooth speed and direction changes with Advanced Productivity Electronic Control System (APECS).
- The in-cab touchscreen Information Display is larger, faster, and more powerful with increased memory and intuitive menu structure.
- The optional Work Monitor screen collects machine data and provides real-time feedback on machine performance to optimize productivity.
- The Dual Tilt option allows the operator to optimize blade pitch angle, improving load control and making it possible to carry material instead of only pushing it.

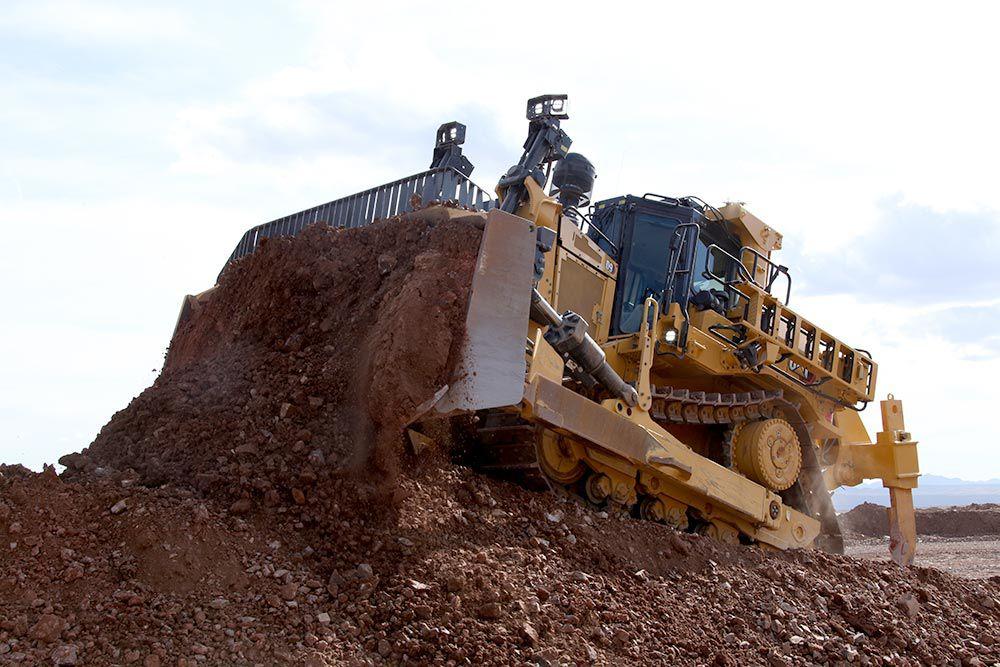

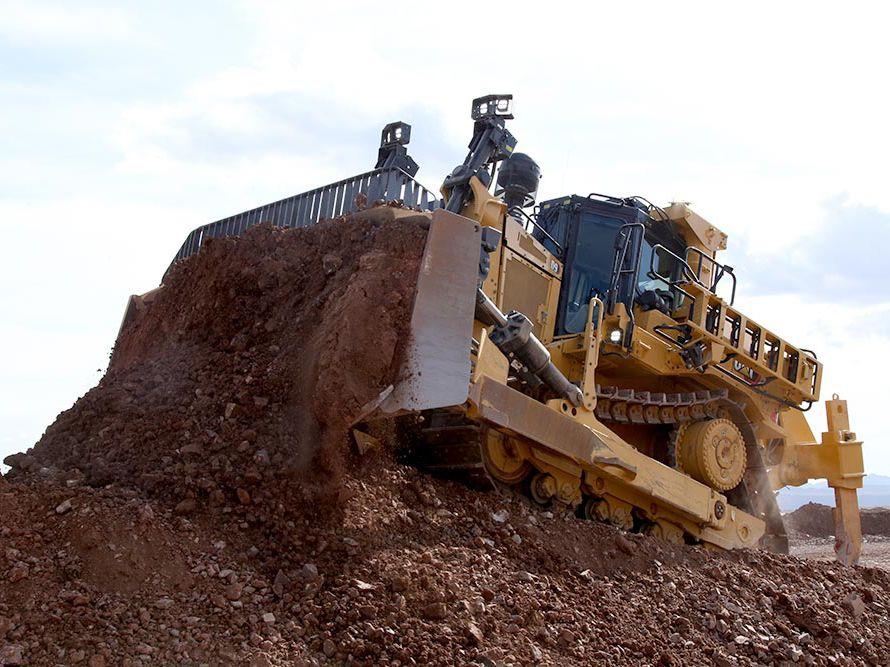

- The D9 is versatile enough for a variety of applications and is ideal for use in heavy construction, quarries, landfills, stockpiles, forestry and mine sites.
- The powerful Cat C18 Engine is available in U.S. EPA Tier 2, U.S. EPA Tier 3, U.S. EPA Tier 4 Final and EU Stage V configurations.
- The fully suspended undercarriage provides more ground contact, leading to less slippage and more overall productivity in all applications.
- Continuous power to both tracks provides smooth turning control and excellent maneuverability in every application, all while keeping ground speed high.

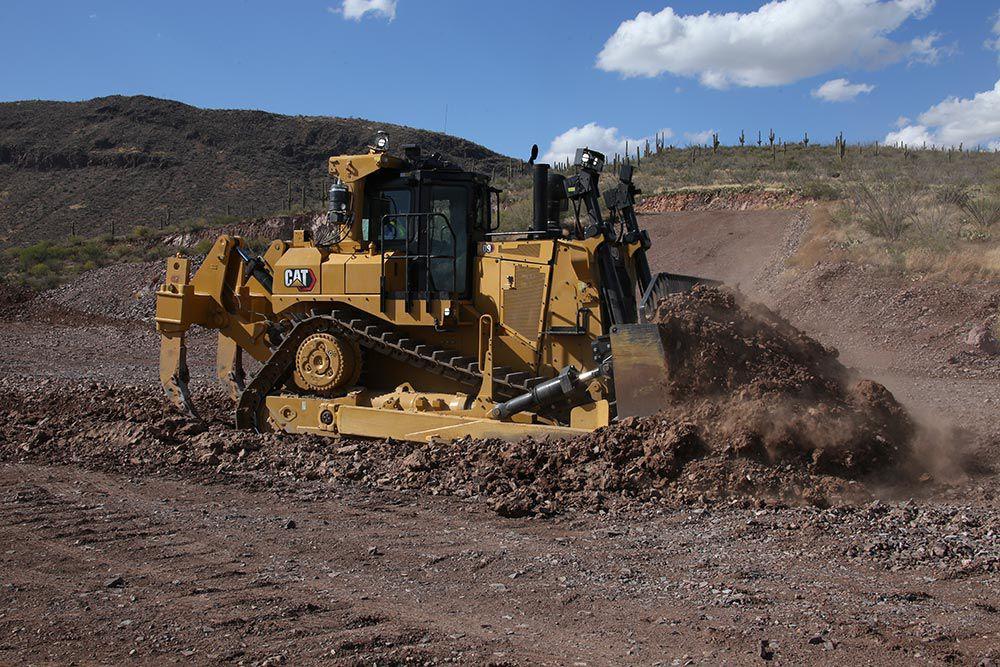

- Product Link™ Elite enables the remote transmission of information about the location, operation and condition of your equipment.
- Automated Blade Assist (ABA) (optional) increases efficiency while reducing operator workload, making use of preset blade pitch positions for the load, carry and spread portions of the cycle.
- AutoCarry™ (optional) automates blade lift to maintain desired blade load, improve load consistency and reduce track slip.
- Automatic Ripper Control (optional) automatically controls ripper height to limit track slip, reducing operator fatigue.
- Optional Cat MineStar™ Command for dozing offers multiple levels of remote-control operation.

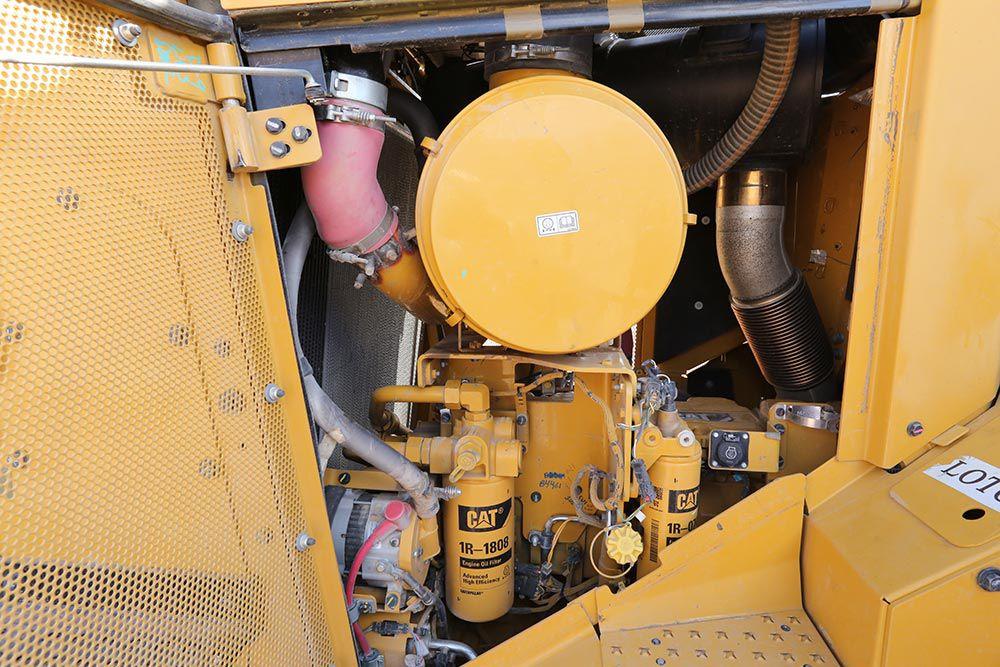

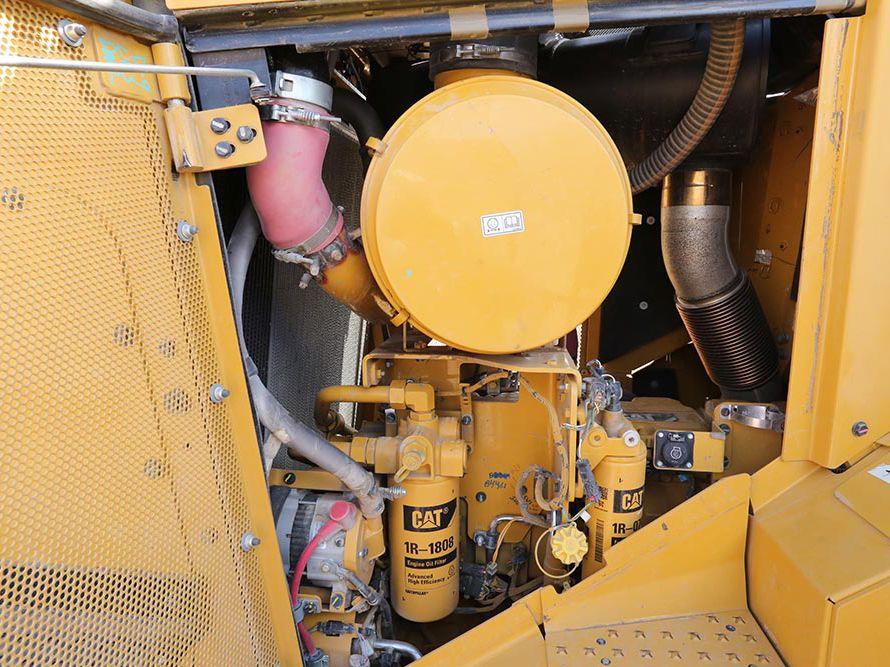

- Features such as integrated AutoLube System, fewer greasing points, longer filter change intervals, easy component removal and continuous fluid level monitoring contribute to up to 4% maintenance and repair savings.
- Grouped maintenance points minimize movement around the machine, and ground-level access enables easier service for fluids and key electrical controls.
- Remote flash sends an alert from your Cat dealer, prompting you to update the software on your machine. Updates can be deployed on site, without having to wait for a dealer technician to arrive.

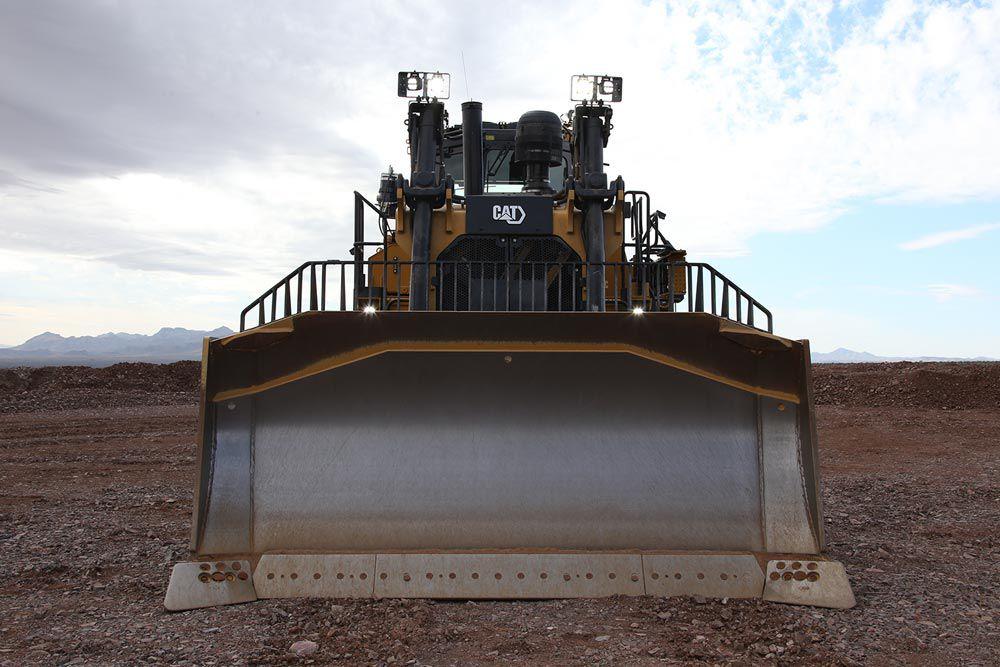

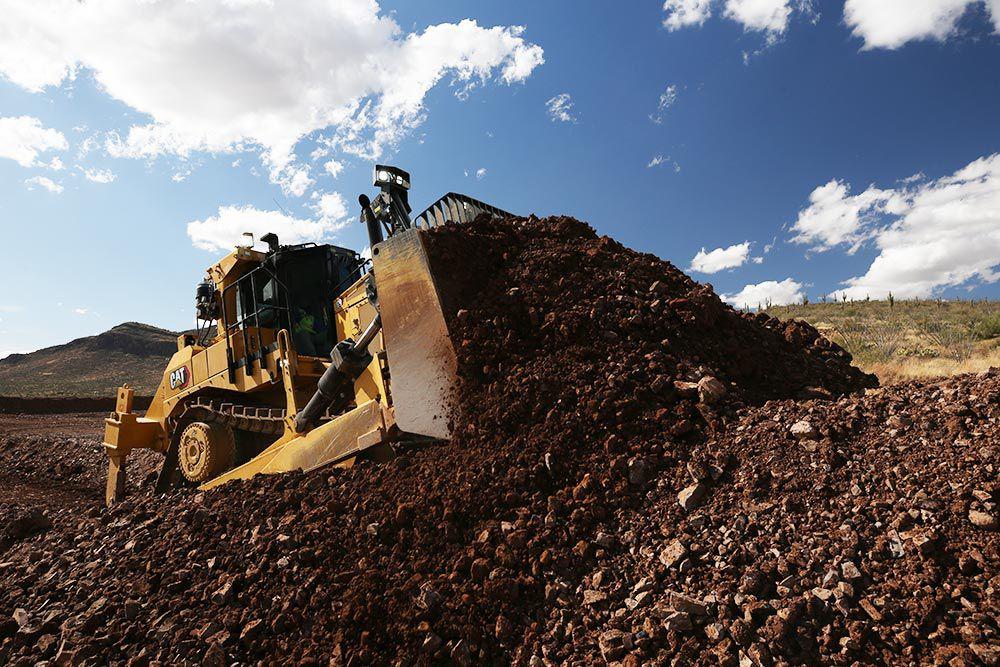

- The perfect match for the D9, Cat blades are aggressive in tough materials and offer superior loadability.
- Cat blades have the ability to resist torsional bending and distortion and offer increased wear resistance without sacrificing machine balance or performance.

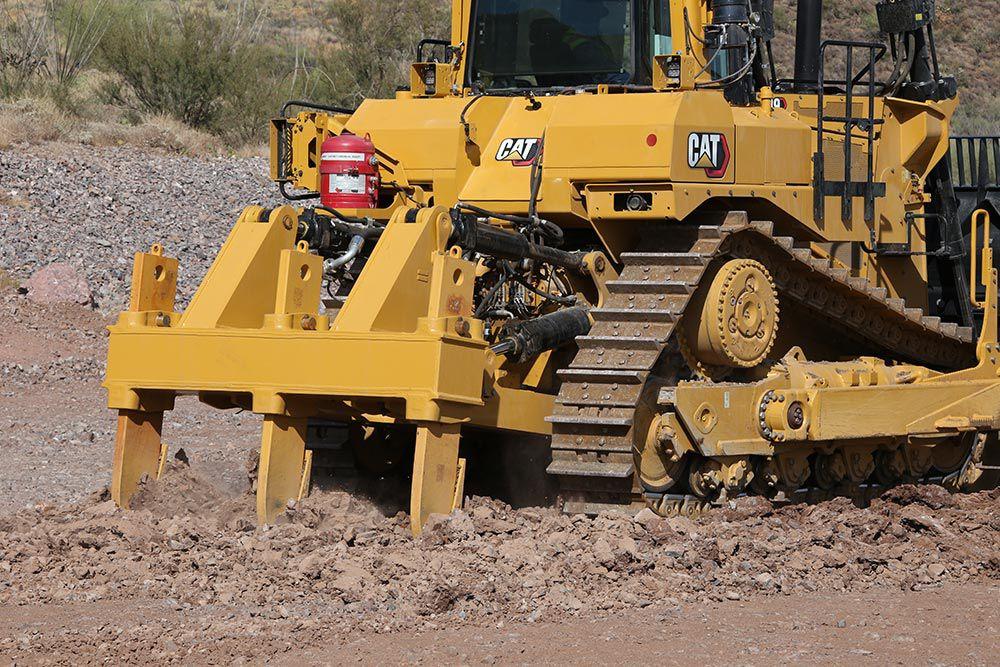

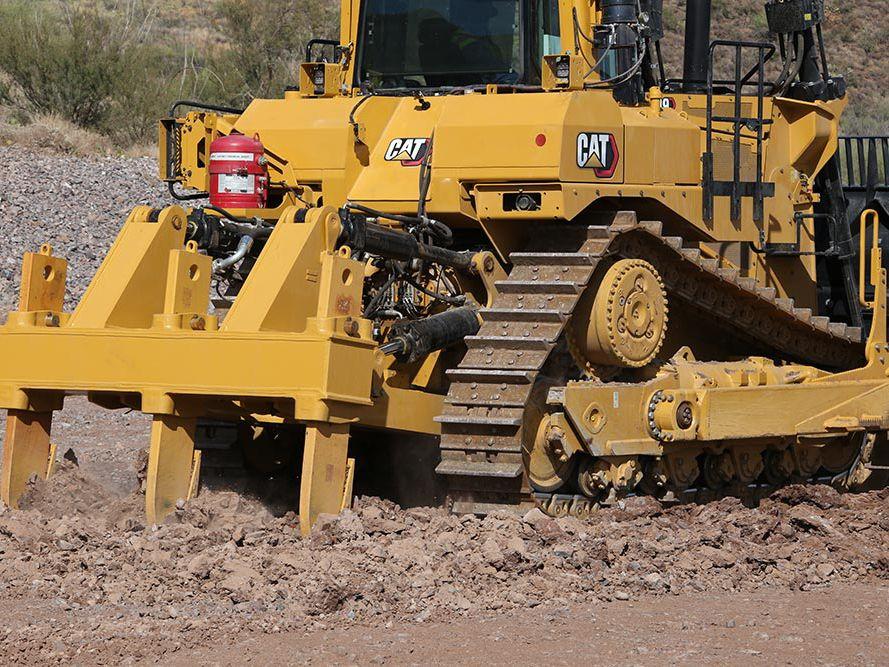

- Specialty attachments include single-shank ripper and multi-shank ripper
- Frame is built to absorb high-impact shock loads and twisting forces encountered during severe dozing and ripping applications.
- Powertrain and main components are built to be rebuilt for a cost-effective second life of like-new performance at a fraction-of-new price.
- The DuraLink™ undercarriage offers 20 to 40% longer life and delivers 8,000-hour seal life with new, heavy-duty extended-life (HDXL) undercarriage.
- The D9 is designed to use less fuel, which reduces engine emissions.
- The Tier 4 Final engine reduces NOx and particulate matter, plus the engine is compatible with diesel fuel blended with lower-carbon intensity fuels such as biofuels and renewable fuels.
- Features like extended life filters and longer maintenance intervals decrease the amount of waste contributed to the environment.
- By rebuilding machines and components, the Cat Rebuild and Cat Reman programs preserve raw materials, conserve energy and reduce emissions. In addition, retrofits and upgrades for older machines incorporate efficiency improvements and emission reductions, and keep them in production longer to conserve energy and minimize the need for raw materials.
- Increased commonality of systems and components, plus a reduction in unique part numbers, reduces waste and lowers owning and operating costs.
Engine - U.S. EPA Tier 2/3 Equivalent
| Engine Model | Cat® C18 | |
| Engine Power - Net SAE J1349/ISO 9249 | 337 kW | 452 hp |
| Bore | 145 mm | 5.7 in³ |
| Stroke | 183 mm | 7.2 in |
| Displacement | 18.1 l | 1106 in³ |
| Engine Power - Gross SAE J1995 | 363 kW | 487 hp |
| Engine Power - ISO 14396 | 357 kW | 479 hp |
| Emissions | U.S. EPA Tier 2 or Tier 3 equivalent | |
| Note (1) | All engine ratings apply at 1,750 rpm. | |
| Note (2) | No derating required up to 4267 m (14,000 ft) altitude. |
Weights
| Operating Weight | 49988 kg | 110225 lb |
| Shipping Weight | 38271 kg | 84373 lb |
| Note (1) | D9 Operation Weight includes hydraulic controls, blade tilt cylinder, coolant, lubricants, full fuel tank, ROPS, FOPS cab, SU Blade, Single-Shank Ripper, 610 mm (24 in) ES shoes and operator. | |
| Note (2) | D9 Operation Weight includes base machine chassis with cab, pivot shaft, roller frames, track and ROPS. |
Undercarriage
| Shoe Type | Extreme Service | |
| Width - Shoe | 610 mm | 24 in |
| Shoes/Side | 43 | |
| Grouser Height | 84 mm | 3.3 in |
| Pitch | 240 mm | 9.4 in |
| Ground Clearance | 459 mm | 18.1 in |
| Track Gauge | 2250 mm | 88.6 in |
| Length - Track on Ground | 3470 mm | 136.6 in |
| Ground Contact Area | 4.23 m² | 45.6 ft² |
| Track Rollers/Side | 8 | |
| Number of Carrier Rollers | 1 per side (optional) |
Standards
| ROPS | Rollover Protective Structure (ROPS) meets the following criteria ISO 3471:2008. |
| FOPS | Falling Object Protective Structure (FOPS) meets the following criteria ISO 3449:2005 LEVEL II. |
| Sound | The average dynamic spectator sound power level when ISO 6395:2008 is used to measure the value for a machine is 116 dB(A). The measurement was conducted at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. NOTE: The dynamic sound power level uncertainty is +/-2 dB(A). |
| Sound (1) | The average dynamic operator sound pressure level when ISO 6396:2008 is used to measure the value for an enclosed cab is 78 dB(A). The measurement was conducted at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. The cab was properly installed and maintained. The measurement was conducted with the cab doors and the cab windows closed. NOTE: The dynamic operator sound pressure level uncertainty is +/-2 dB(A). |
| Sound (2) | Hearing protection may be needed when the machine is operated with an open operator station for extended periods, in a noisy environment, or with a cab that is not properly maintained. |
Steering and Brakes
| Steering Type | Differential | |
| Brake Type | Spring Applied Wet Disc | |
| Brake Diameter | 393.7 mm | 15.5 in |
| Brake Count | 8 |
Engine - U.S. EPA Tier 4 Final/EU Stage V
| Engine Model | Cat® C18 | |
| Bore | 145 mm | 5.7 in³ |
| Stroke | 183 mm | 7.2 in³ |
| Displacement | 18.1 l | 1106 in³ |
| Engine Power - Gross SAE J1995 | 356 kW | 477 hp |
| Engine Power - ISO 14396 | 349 kW | 468 hp |
| Engine Power - Net SAE J1349/ISO 9249 | 328 kW | 440 hp |
| Emissions | U.S. EPA Tier 4 / EU Stage V | |
| Note (1) | All Engine ratings apply at 1,750 rpm. | |
| Note (2) | No derating required up to 2499 m (8,200 ft). |
FLUID CAPACITIES
| Fuel Tank (Splash Fill) | 963 l | 254 gal (US) |
| DEF Tank (Tier 4 only) | 36 l | 9.5 gal (US) |
| Fuel Tank (Fast Fill) | 939 l | 248 gal (US) |
| Cooling System | 81.3 l | 21 gal (US) |
| Engine Crankcase* | 36 l | 10 gal (US) |
| Powertrain | 150 l | 40 gal (US) |
| Final Drives (each) | 15 l | 4 gal (US) |
| Roller Frames (each) | 45 l | 12 gal (US) |
| Pivot Shaft Oil | 30 l | 8 gal (US) |
| Hydraulic System Tank | 89 l | 24 gal (US) |
| Note | *With oil filters. | |
| Note 2 | Biodiesel blends up to B20 (20% blend by volume) are acceptable when blended with 15 ppm (mg/kg) sulfur or less ULSD. B20 should meet ASTM D7467 specification (biodiesel blend stock should meet Cat biodiesel spec, ASTM D6751 or EN 14214). Cat DEO-ULSTM or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specification are required. Consult your OMM for further machine specific fuel recommendations. | |
| Note 3 | All non-road Tier 4 Final diesel engines are required to use only ultra-low sulfur diesel (ULSD) fuels containing 15 ppm (mg/kg) sulfur or less. | |
| Note 4 | Diesel Exhaust Fluid (DEF) used in Cat Selective Catalytic Reduction (SCR) systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241. |
Hydraulic Controls
| Pump Type | Piston-type geared to flywheel | |
| Pump Output - Steering | 363 l/min | 96 gal/min |
| Fan Pump | 80 l/min | 21 gal/min |
| Tilt Cylinder Flow - Rod End Flow | 200 l/min | 53 gal/min |
| Tilt Cylinder Flow - Head End Flow | 200 l/min | 53 gal/min |
| Lift Cylinder Relief Valve Setting | 26200 kPa | 3800 lbf/in |
| Tilt Cylinder Relief Valve Setting | 19300 kPa | 2799 psi |
| Ripper - Lift - Relief Valve Setting | 26200 kPa | 3800 psi |
| Ripper - Pitch - Relief Valve Setting | 26200 kPa | 3800 psi |
| Steering System - Pressure | 40500 kPa | 5874 psi |
| Tank Capacity | 89 l | 24 gal/min |
| Note (1) | Steering pump output measured at 1,750 engine rpm and 30 000 kPa (4,350 psi). | |
| Note (2) | Implement pump output measured at 1,750 engine rpm and 20 000 kPa (2,900 psi). | |
| Note (3) | Fan pump output measured at 1,750 engine rpm and 17 000 kPa (2,470 psi) |
Air Conditioning System
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430) the system contains 2.1 kg of refrigerant which has a CO2 equivalent of 3.003 metric tonnes. |
Transmission
| 1.0 Forward | 3.5 km/h | 2.2 mile/h |
| 2.0 Forward | 6.3 km/h | 3.9 mile/h |
| 3.0 Forward | 11 km/h | 6.8 mile/h |
| 1.0 Reverse | 4.4 km/h | 2.7 mile/h |
| 2.0 Reverse | 7.8 km/h | 4.8 mile/h |
| 3.0 Reverse | 13.6 km/h | 8.4 mile/h |
| Type | Planetary powershift |
Blade - Semi-Universal
| Blade Capacity (SAE J1265) | 13.6 m³ | 17.8 yd³ |
| Blade Width (over end bits) | 4350 mm | 171.3 in |
| Blade Height | 1934 mm | 76.1 in |
| Maximum Digging Depth | 606 mm | 23.9 in |
| Ground Clearance at Full Lift | 1422 mm | 56 in |
| Maximum Tilt | 940 mm | 37 in |
| Blade Weight | 4802 kg | 10587 lb |
| Total Operating Weight* (with blade and single-shank ripper) | 49988 kg | 110205 lb |
| Note | * Total Operating Weight includes: single tilt hydraulics, coolant, lubricants, full fuel tank, ROPS, FOPS cab, 610 mm (24 in) ES track shoes and the noted blade and ripper type. |
Blade - Universal
| Blade Capacity (SAE J1265) | 16.6 m³ | 21.7 yd³ |
| Blade Width (over end bits) | 4680 mm | 184.3 in |
| Blade Height | 1934 mm | 76.1 in |
| Maximum Digging Depth | 606 mm | 23.9 in |
| Ground Clearance at Full Lift | 1422 mm | 56 in |
| Maximum Tilt | 1014 mm | 39.9 in |
| Blade Weight | 5450 kg | 12016 lb |
| Total Operating Weight* (with blade and single-shank ripper) | 50513 kg | 111362 lb |
| Note | *Total Operating Weight includes: single tilt hydraulics, coolant, lubricants, full fuel tank, ROPS, FOPS cab, 610 mm (24 in) ES track shoes and the noted blade and ripper type. |
Ripper - Single Shank
| Maximum penetration force * (shank vertical) | 158 kN | 35520 lbf |
| Maximum penetration depth (standard tip) | 1231 mm | 48.5 in |
| Pryout Force | 332 kN | 74637 lbf |
| Maximum Clearance Raised - Under Tip, Pinned in Bottom Hole | 882 mm | 34.7 in |
| Number of Pockets | 1 | |
| Weight | 4854 kg | 10701 lb |
| Total Operating Weight* (with SU Blade and noted ripper) | 49988 kg | 110205 lb |
| Note | *Total Operating Weight includes: single tilt hydraulics, coolant, lubricants, full fuel tank, ROPS, FOPS cab, 610 mm (24 in) ES track shoes and the noted blade and ripper type. |
Ripper - Single Shank, Deep Ripping
| Maximum penetration force * (shank vertical) | 172 kN | 38667 lbf |
| Maximum penetration depth (standard tip) | 1727 mm | 68 in |
| Pryout Force | 331 kN | 74412 lbf |
| Maximum Clearance Raised - Under Tip, Pinned in Bottom Hole | 817 mm | 32.2 in |
| Number of Pockets | 1 | |
| Weight | 4981 kg | 10981 lb |
| Total Operating Weight* (with SU Blade and noted ripper) | 50115 kg | 110485 lb |
| Note | *Total Operating Weight includes: single tilt hydraulics, coolant, lubricants, full fuel tank, ROPS, FOPS cab, 610 mm (24 in) ES track shoes and the noted blade and ripper type. |
Ripper - Multi-Shank, Adjustable Parallelogram
| Maximum Penetration Force - Shank Vertical | 154 kN | 34621 lbf |
| Maximum Penetration - Standard Tip | 798 mm | 31.4 in |
| Pry-Out Force - Multi-Shank Ripper with One Tooth | 361 kN | 81156 lbf |
| Maximum Clearance Raised - Under Tip, Pinned in Bottom Hole | 879 mm | 34.6 in |
| Number of Pockets | 3 | |
| Weight | 5550 kg | 12136 lb |
| Total Operating Weight* - With SU-Blade and Ripper | 50684 kg | 111739 lb |
| Note | * Total Operating Weight includes: single tilt hydraulics, coolant, lubricants, full fuel tank, ROPS, FOPS cab, 610 mm (24 in) ES track shoes and the noted blade and ripper type. |
Dimensions (Approximate)
| Ground Clearance* | 459 mm | 18.1 in |
| Track Gauge | 2250 mm | 88.6 in |
| Width - Without Trunnions - Standard Shoe | 2870 mm | 113 in |
| Width - Over Trunnions | 3310 mm | 130.3 in |
| Height - FOPS Cab* | 3820 mm | 150.4 in |
| Height - Top of Stack* | 3876 mm | 152.6 in |
| Height - ROPS/Canopy* | 4000 mm | 157.5 in |
| Drawbar Height (Center of Clevis)* | 763 mm | 30 in |
| Length - Track on Ground | 3470 mm | 136.6 in |
| Overall Length - Basic Tractor | 4910 mm | 193.3 in |
| Length - Basic Tractor - With Drawbar | 5242 mm | 206.4 in |
| Length - Basic Tractor - With Winch | 5545 mm | 218.3 in |
| Length - With SU-Blade** | 6601 mm | 259.9 in |
| Length - With U-Blade | 6967 mm | 274.3 in |
| Length - With Single-Shank Ripper | 6529 mm | 257 in |
| Length - With Multi-Shank Ripper | 6538 mm | 257.4 in |
| Overall Length - SU-Blade/SS Ripper | 8219 mm | 323.6 in |
| Note (1) | *Includes grouser height for total dimensions on hard surfaces. |
Winches
| Winch Model | PA 140VS | |
| Weight* | 1790 kg | 3950 lb |
| Oil Capacity | 15 l | 4 gal (US) |
| Drum Width | 320 mm | 12.6 in |
| Wire Cable Diameter - Recommended | 28 mm | 1.13 in |
| Wire Cable Diameter - Optional | 32 mm | 1.25 ft |
| Maximum Drum Capacity - Recommended Cable Length | 78 m | 257 in |
| Maximum Drum Capacity - Optional Cable Length | 62 m | 204 ft |
| Wire Cable Ferrule Size - Outside Diameter | 60 mm | 2.4 in |
| Wire Cable Ferrule Size - Length | 70 mm | 2.8 in |
| Note | *Weight shown is base winch only. Does not include mounting arrangement, control arrangement, oil, or wire rope. With counterweight: 3700 kg (8,150 lb). | |
| Note (2) | Variable speed, hydraulically driven, dual braking system, three-roller fairlead. |
You might also be interested in:
-
D10
Engine Model
Cat® C27
Engine Power - Net SAE J1349/ISO 9249** - Forward
449 kW
602 hp
Operating Weight
70256 kg
154888 lb
Caterpillar
15195661
-
D11
Engine Model
Cat® C32
Engine Power - Net SAE J1349/ISO 9249 - Forward
634 kW
850 hp
Operating Weight
104236 kg
229800 lb
Caterpillar
15195677
-

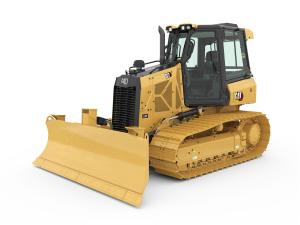

D2
Engine Model
Cat® C3.6
Power - Net
68.8 kW
92 hp
Operating Weight
8338 kg
18382 lb
Caterpillar
15195366
-
D3
Engine Model
Cat® C3.6
Power - Net
77.6 kW
104 hp
Operating Weight
9362 kg
20639.68 lb
Caterpillar
15195393
-
D4 - Tier 4/Stage V
Engine Model
Cat C4.4
Power - Net
97 kW
130 hp
Operating Weight
13272 kg
29259 lb
Cat
15698867
-

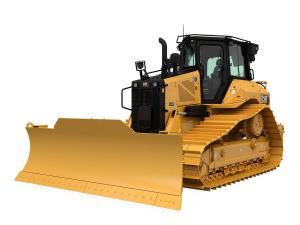

D5 - Tier 4/Stage V
Engine Model
Cat C7.1
Power - Net
127 kW
170 hp
Operating Weight
19170 kg
42263 lb
Cat
15195420
-
D6 - Tier 4/Stage V
Engine Model
Cat C9.3B
Power - Net
161 kW
215 hp
Operating Weight
23012 kg
50733 lb
Cat
15195552
-

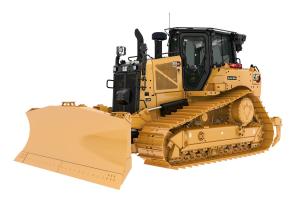

D6 XE - Tier 4/Stage V
Engine Model
Cat C9.3B
Power - Net
161 kW
215 hp
Operating Weight
23285 kg
51333 lb
Cat
15195581
-

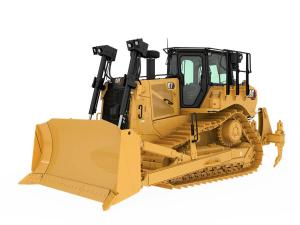

D7 - Tier 4/Stage V
Engine Model
Cat C9.3B
Power - Net
197 kW
265 hp
Operating Weight
29776 kg
65644 lb
Cat
15195610
-
D8 - Tier 4/Stage V
Engine Model
Cat® C15
Power - Net
271 kW
363 hp
Operating Weight
39500 kg
87083 lb
Cat
15699223
Compatible products:
Other categories of Equipos:
-
Mini Excavators
-
Small Excavators
-
Magni fixed telehandlers
-
Compact Wheel Loaders
-
Medium Excavators
-
Magni rotating telehandlers
-
Small Wheel Loaders
-
Large Excavators
-
Magni heavy duty telehandlers
-
Medium Wheel Loaders
-
Demolition Excavators
-
Large Wheel Loaders
-
Wheel Excavators
-
.jpg)
Chippers
-
Forestry forwarders
-
Underground Mining Equipment
-
Mobile stockpillers
-
Compactors
-
Landfill Compactors
-
Vibratory Soil Compactors
-
Soil Compactors
-
Screens
-
Scalper screens
-
Mobile Trommel screens
-
Underground Mining Trucks
-
Articulated Trucks
-
Mining Trucks
-
Off-Highway Trucks
-
Underground mining equipment
-
Long Reach Excavation
-
Excavators
-
Minig excavators
-
Asphalt Pavers
-
Track Asphalt Pavers
-
Wheel Asphalt Pavers
-
Cold Planers
-
Impact
-
Attachments
-
Mobile crushers and screeners
-
Jaws
-
Material Handlers
-
Track Material Handlers
-
Magni Telehandlers
-
Recycling Machines
-
Forestry machinery
-
Skid Steer Loaders
-
Tracked skid steer loaders
-
Wheeled skid steer loaders
-
Cone crusher
-
Motor Graders
-
Wheel Tractor-Scrapers
-
Elevating Scrapers
-
Track Loaders
-
Wheel Loaders
-
Forestry processors
-
Road Reclaimers
-
Backhoe Loaders
-
Tandem Vibratory Rollers
-
Wheel Dozers
-
Mobile Shredders
-
High-Spedd Mobile Shredders
-
Low-Speed Mobile Shredders
-
Shredder vehicles
-
Windrow Turners
360º Interior
360º Exterior
Virtual Tour
D9 Dozer
Call us
I am interested
I am interested
Thank you for contacting us.
We have received your request and will contact you as soon as possible.
Please check your email to ensure that the form has been sent correctly.
