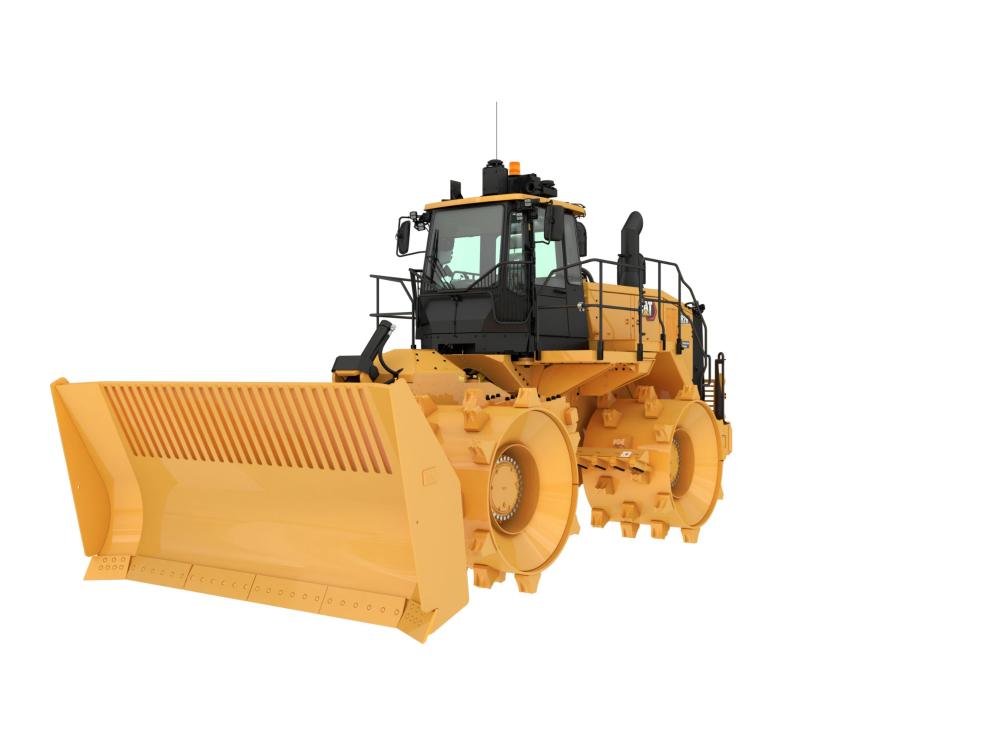

826 Landfill Compactor
Caterpillar
Metric
Imperial
Gross Power - SAE J1995:2014
324 kW
435 hp
Net Power - SAE J1349:2011
302 kW
405 hp
Net Power - ISO 9249:2007
302 kW
405 hp
Availability
Cat landfill compactors are designed with durability built in, ensuring maximum availability through multiple lifecycles. With optimized performance and simplified serviceability, our machines allow you to operate more efficiently and safely. Introduced in 1978, the 826 has been an industry leader for over 45 years. Focused on helping our customers succeed, we have continued to build upon each new series. The 826 continues our legacy of reliability, performance, safety, operator comfort, serviceability, and efficiency.
Improved Maintenance
Make regular maintenance more convenient with accessible controls located inside the cab.Additional Safety
Grouped ground level engine and machine controls allow for safe and easy daily maintenance.Enhanced Operator Comfort

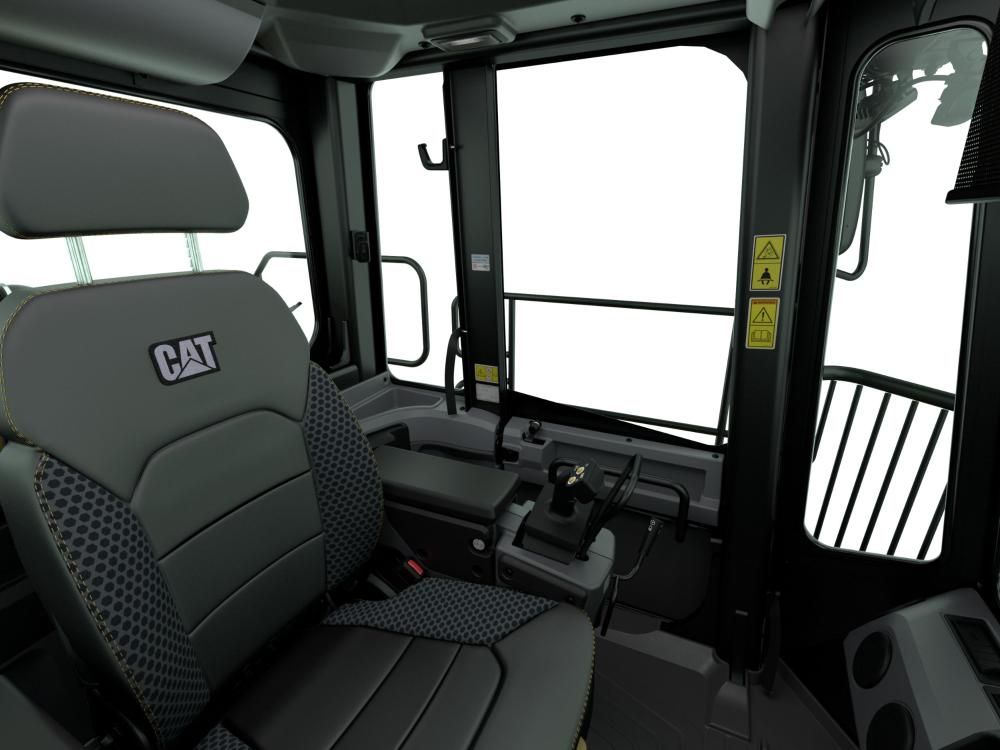

Comfortable cab and low effort controls with reduced vibration levels help operators work more productively throughout the day.- Flip-up armrest for easy ingress/egress.
- Keep your operators informed about machine conditions and operation with Vital Information Management System (VIMS™) 3G machine monitoring system.
- Enhanced visibility with standard rearview camera.
- Preferred temperature settings maintained with automatic climate control.
- Cat Premium Plus seat with standard features, including leather finish, forced air heating and cooling, two-way thigh adjustment, power lumbar and back bolster adjustment, and dynamic end dampening to provide total comfort throughout the workday.
- Low spectator sound levels and optional low sound packages.
- Easy access in a controlled environment; electronics bay is located inside the cab.
- Focused on safety with ground level or platform access to most major components.
- Ground level: engine shutdown switch, lockable battery disconnect, and auxiliary start.
- Quick visual inspection and minimized fluid contamination with sight gauges for coolant, transmission, and hydraulic oil.
- Electronic air inlet restriction indicator.
- Designed for ease of service and inspection.
– Hydraulic oil cooler, fuel cooler, and roof-mounted condenser
– Centralized grease points - Operators and technicians can resolve any problems before failure using VIMS.
- Guarding around the axles mitigates risk of damaged components.

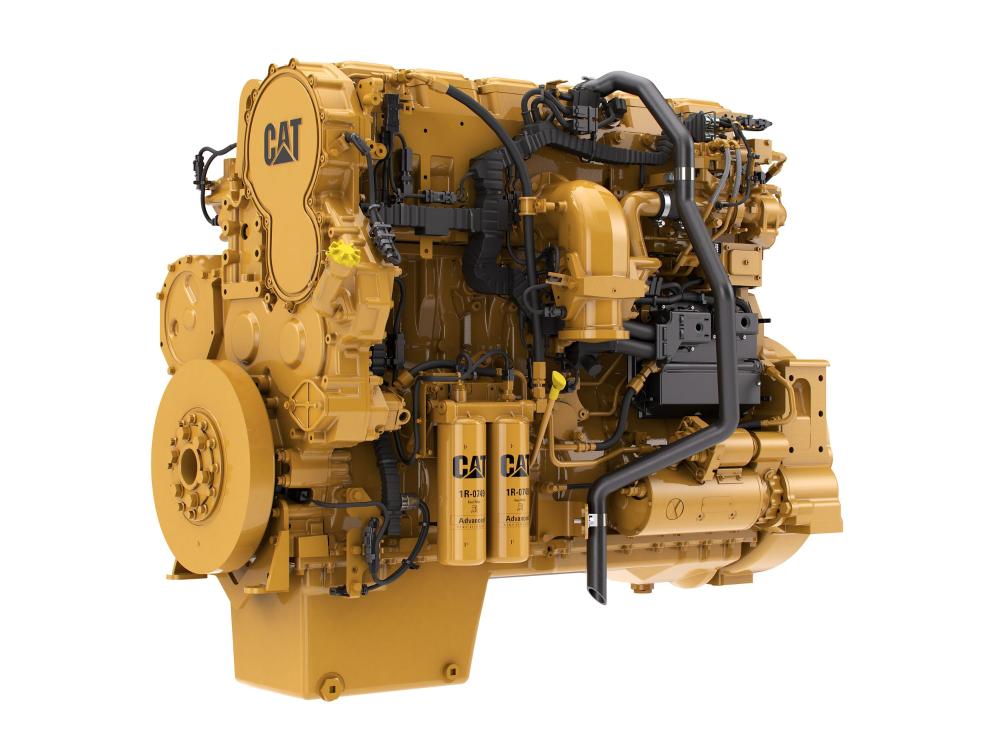

- Improved performance, long life, low emissions.
- High productivity and fuel efficient.
- Two engine options available that meet U.S. EPA Tier 4 Final and EU Stage V emission standards or emitting equivalent to U.S. EPA Tier 3 and EU Stage IIIA.
- For the Tier 4 Final, EU Stage V option, the Cat Clean Emissions Module contains a diesel oxidation catalyst, diesel particulate filter, and Cat Regeneration System, utilizing selective catalytic reduction (SCR) technology.
- Regeneration is completely automatic and does not interrupt the machine’s work cycle.
- Experience maximum responsiveness and control with Steering and Transmission Integrated Control (STIC™) system.
- Conserve more fuel with the automatic engine and electrical system shutdown.
- Achieve greater momentum on grades and fuel savings by carrying that momentum through the shift points advanced productivity electronic control system (APECS) transmission controls.
- Operators experience less fatigue with throttle lock to maintain engine speed.
- Equipped with Cat torque converter with lock-up clutch which eliminates torque converter (TC) losses while lowering system heat and transfers more power to the ground.
- Torque converter with lock-up clutch eliminates torque converter losses while lowering system heat. Improves travel speeds and increases fuel efficiency.
- Lock-up torque converter transfers more power to the ground and optimizes fuel efficiency in all applications.

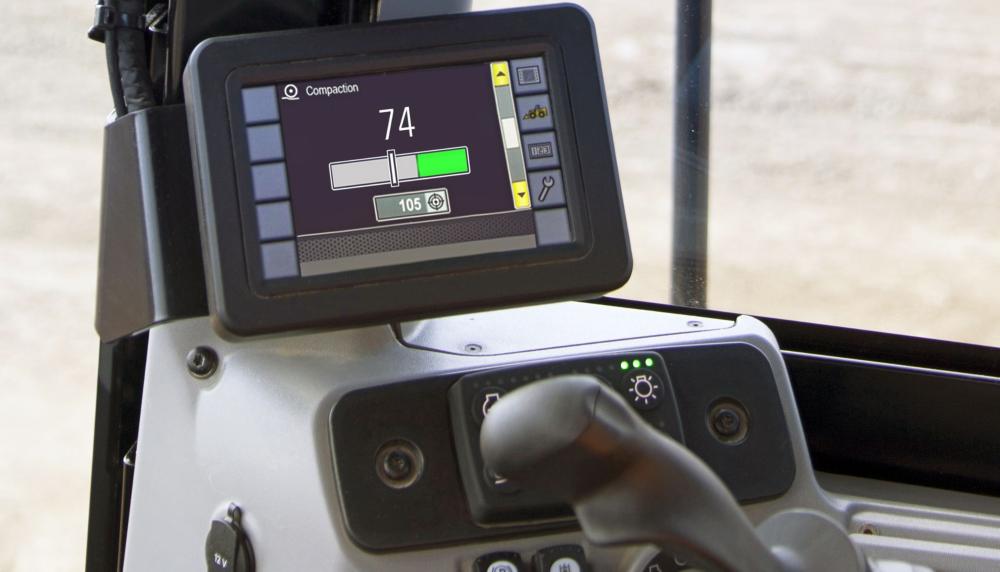

- Compact technology combines advanced compaction measurement, in-cab guidance, and reporting capabilities to help you consistently meet compaction targets fast, uniformly, and in fewer passes – saving on fuel and the cost of unnecessary rework.
- Link technology (standard) provides access to machine location, hours, fuel consumption, idle time, events, and diagnostic codes through the online VisionLink® interface.
- Improved productivity with optional Cat Compact with Elevation Mapping.
- Engine and Powertrain Guards – Hydraulically actuated guards help prevent trash buildup and shield components.
- Front Frame Guards – Front frame guards prevent trash buildup inside the frame. This guard further protects components and hydraulic lines.
- Axle Wrapping and Seal Guarding – The guarding prevents material from wrapping and binding around the axles, as well as assists in ease of cleaning.
- Major System Guarding and Sight Gauges – Transmission oil tube is guarded to resist damage from debris. The sight gauge for the transmission is visible from ground level. The fuel tank is positioned away from the debris in the front frame and is easily accessed.
- Air Inlet Screen – The vertically corrugated, fine-mesh air inlet screen helps reduce trash from entering the radiator area and allows for debris to fall off.

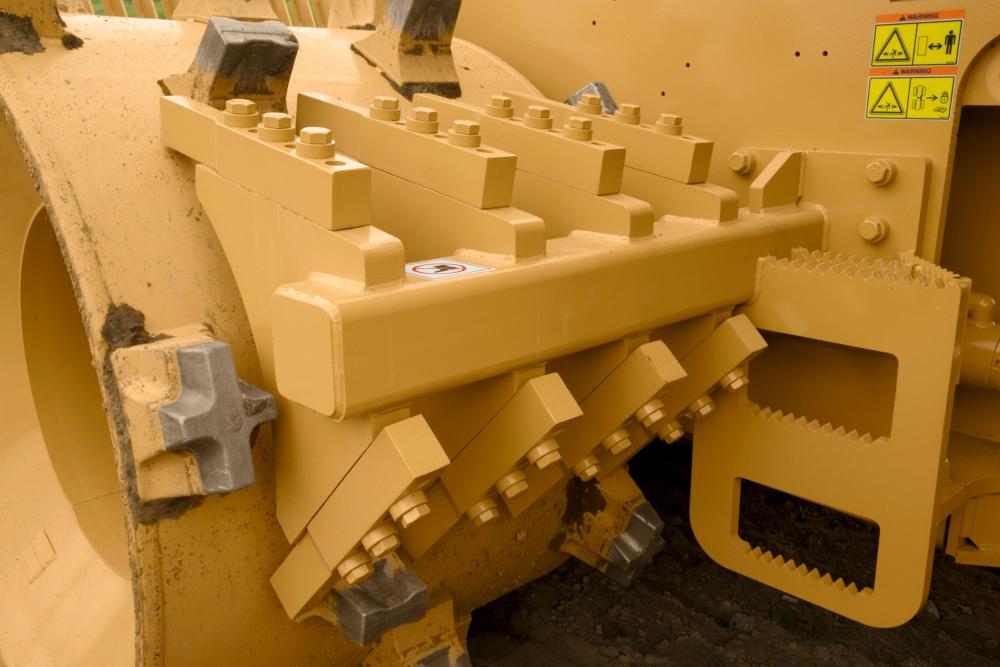

- Striker Bars and Optional Cleaner Fingers – Striker bars are located in front of and behind the rear wheels and behind the front wheels. Striker bars help to keep wheels free of debris to assist the wheel step tips in maintaining good compaction. In cohesive material or severe packing conditions, optional cleaner fingers are available to further assist in keeping the wheel step tips clean.
- Extended Roof – An oversized roof extends past the cab doors and windows to minimize debris buildup.

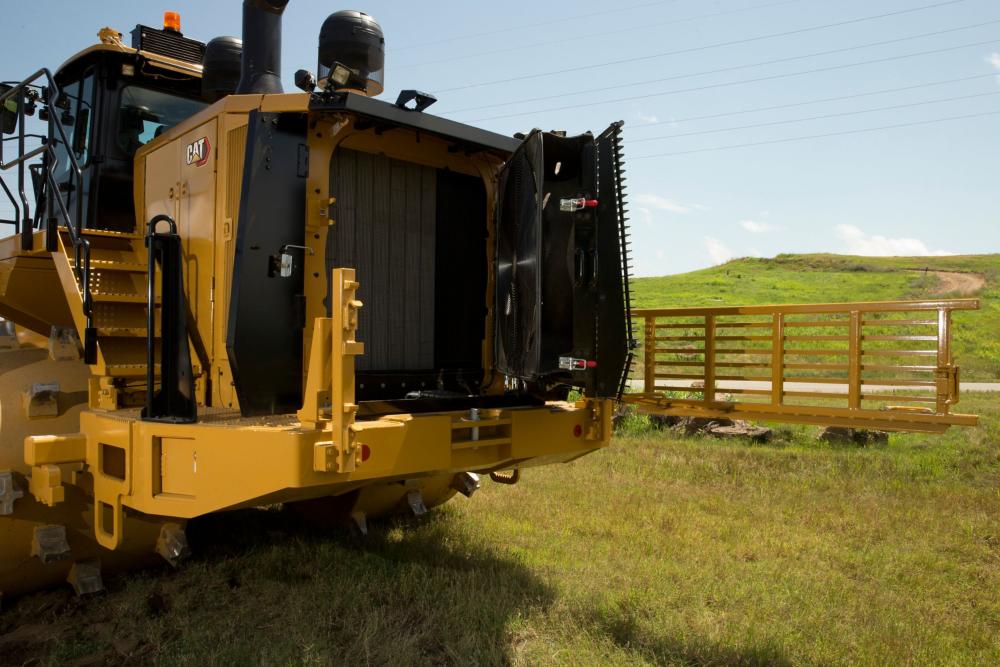

- Under Hood Ventilation System – Creates a neutral pressure environment to prevent trash ingestion from hood openings while providing fresh air to the alternator, electronics, and turbo.
- Designed specifically to complement Cat machines.
- Improves machine performance through longer wear life and maintaining traction.

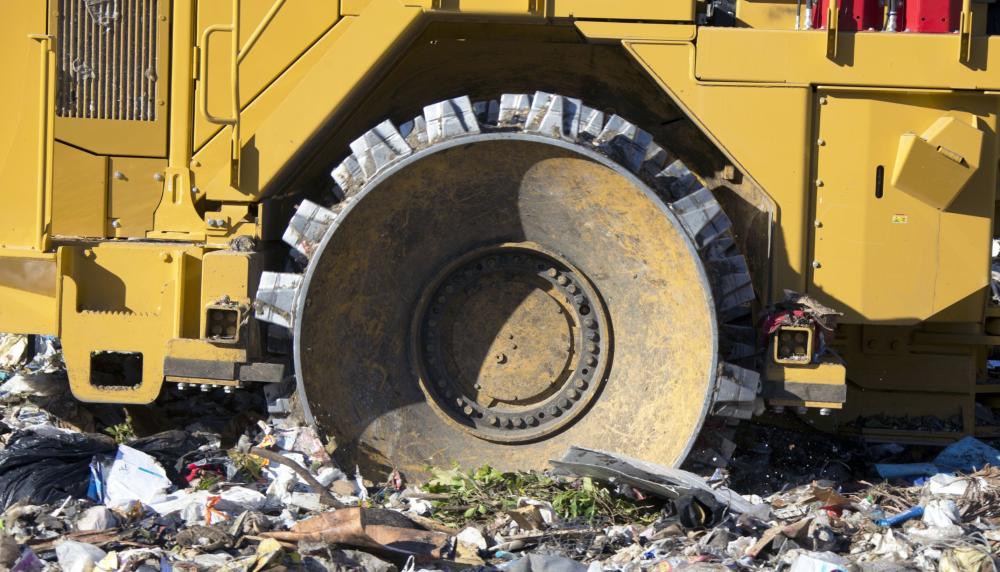

- Four wheel and tip configurations are available to meet your particular application:
- Paddle Tip – High performance and less fuel burn with more traction and less weight.
- Plus Tip – Traditional design for increased side slope stability.
- Combination Tip – Both paddle and plus tips provide the best compromise of performance and fuel economy with side slope stability.
- Diamond Tip – Longest life tip on the market with reputation of reliability that is world class in the waste tip industry.
Engine
Gross Power - SAE J1995:2014 | 324 kW | 435 hp |
Net Power - SAE J1349:2011 | 302 kW | 405 hp |
Net Power - ISO 9249:2007 | 302 kW | 405 hp |
Engine Power - ISO 14396:2002 | 318 kW | 426 hp |
Engine Model | C15 Cat® | |
Emissions | U.S. EPA Tier 4 Final/ EU Stage V/Korea Stage V and Japan 2014 or Brazil MAR-1, emitting equivalent to U.S. EPA Tier 3/EU Stage IIIA | |
Rated Speed | 1800 | |
Torque Rise | 33% | |
Bore | 137.2 mm | 5.4 in |
Stroke | 171.4 mm | 6.7 in |
Displacement | 15.2 l | 927.6 in³ |
High Idle Speed | 2300 r/min | 2300 r/min |
Low Idle Speed | 800 r/min | 800 r/min |
Maximum Altitude – Without Derating (Tier 4 Final/Stage V) | 2834 m | 9298 ft |
Maximum Altitude - Without Derating (Tier 3/Stage IIIA) | 2773 m | 9098 ft |
Note | Net power advertised is the power available at the engine flywheel when the engine is equipped with a fan, air cleaner, clean emissions module and alternator. |
Operating Specifications
Operating Weight (Tier 4 Final/Stage V) | 40917 kg | 90207 lb |
Operating Weight (Tier 3/Stage IIIA equivalent) | 40454 kg | 89186 lb |
Maximum Operating Weight (Tier 4 Final/Stage V) | 41988 kg | 92568 lb |
Maximum Operating Weight (Tier 3/Stage IIIA equivalent) | 41526 kg | 91549 lb |
Transmission
Transmission Type | Planetary - Powershift - ECPC | |
Direct Drive - Forward 1 | 6.8 km/h | 4.2 mile/h |
Direct Drive - Forward 2 | 12.1 km/h | 7.5 mile/h |
Direct Drive - Reverse 1 | 7.8 km/h | 4.3 mile/h |
Direct Drive - Reverse 2 | 13.8 km/h | 8.6 mile/h |
Hydraulic System
Pump Flow at 1800 rpm | 117 l/min | 30.9 gal/min |
Main Relief Pressure | 26000 kPa | 3771 psi |
Maximum Supply Pressure | 24100 kPa | 3495 psi |
Lift System | Double Acting Cylinder | |
Bore | 120 mm | 4.7 in |
Stroke | 1070 mm | 42.1 in |
Service Refill Capacities
Cooling System | 116 l | 30.6 gal (US) |
Engine Crankcase | 34 l | 9 gal (US) |
Transmission | 66 l | 17.4 gal (US) |
Fuel Tank | 782 l | 206.6 gal (US) |
Diesel Exhaust Fluid Tank (Tier 4 Final/Stage V) | 32 l | 8.5 gal (US) |
Differential - Final Drives - Front | 100 l | 26.4 gal (US) |
Differential - Final Drives - Rear | 110 l | 29.1 gal (US) |
Hydraulic Tank Only | 134 l | 35.4 gal (US) |
Note | Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: • 20% biodiesel FAME (fatty acid methyl ester) * • 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). ** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels – Cat DEO-ULS™ or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specifications are required. – Diesel exhaust fluid (DEF) that meets all requirements defined in ISO 22241-1:2006. |
Axles
Front | Planetary - Fixed |
Rear | Planetary - Oscillating |
Oscillation Angle | ±5° |
Braking System
Service Brakes | Multi Disc Wet (Enclosed) 2 WHL |
Parking Brake | Drum and Shoe, Spring Applied, Hydraulic Released |
Sound Performance - Tier 4 Final / Stage V
Operator Sound Pressure Level (ISO 6396:2008) | 73 dB(A) | 73 dB(A) |
Machine Sound Power Level (ISO 6395:2008) | 113 dB(A) | 113 dB(A) |
Operator Sound Pressure Level (ISO 6396:2008)* | 72 dB(A) | 72 dB(A) |
Machine Sound Power Level (ISO 6395:2008)* | 110 dB(A) | 110 dB(A) |
Note (1) | * Sound suppression equipped | |
Note (2) | The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. | |
Note (3) | The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. | |
Note (4) | Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. |
Sound Performance - Tier 3 / Stage IIIA
Operator Sound Pressure Level (ISO 6396:2008) | 73 dB(A) | 73 dB(A) |
Machine Sound Power Level (ISO 6395:2008) | 113 dB(A) | 113 dB(A) |
Operator Sound Pressure Level (ISO 6396:2008)* | 72 dB(A) | 72 dB(A) |
Machine Sound Power Level (ISO 6395:2008)* | 110 dB(A) | 110 dB(A) |
Note (1) | * Sound suppression equipped | |
Note (2) | The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. | |
Note (3) | The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed. | |
Note (4) | Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment. |
Hydraulic System - Steering
Steering System - Circuit | Pilot operated, load sensing | |
Bore | 114.3 mm | 4.5 in |
Stroke | 576 mm | 22.7 in |
Steering System - Pump | Piston - Variable Displacement | |
Maximum System Flow | 170 L/min @ 1,800 rpm (44.9 gal/min @ 1,800 rpm) | |
Steering Pressure Limited | 24000 kPa | 3481 psi |
Vehicle Articulation Angle | 86 ° | 86 ° |
Dimensions (Approximate)
Height to Top of Air Conditioning Condenser | 4568 mm | 14.99 ft |
Height - Cab Roof | 4193 mm | 13.75 ft |
Height - Top of Beacon | 4765 mm | 15.63 ft |
Height - Top of Exhaust Pipe | 4439 mm | 14.56 ft |
Height - Top of Hood | 3312 mm | 10.87 ft |
Ground Clearance - Bumper | 960 mm | 3.15 ft |
Centerline of Rear Axle to Edge of Counterweight - No Rear Radiator Guard | 2860 mm | 9.38 ft |
Centerline of Rear Axle to Edge of Counterweight - Including Rear Radiator Guard | 3096 mm | 10.16 ft |
Hitch to Centerline of Front Axle | 1850 mm | 6.07 ft |
Wheel Base | 3700 mm | 12.14 ft |
Length - With Blade on Ground - Straight Blade - Including Rear Radiator Guard | 8715 mm | 28.59 ft |
Ground Clearance | 642 mm | 2.11 ft |
Width - Over Wheels | 3800 mm | 12.47 ft |
Turning Radius - Inside of Wheels | 2797 mm | 9.18 ft |
Straight Blade
Width – Moldboard Length | 4311 mm | 14.16 ft |
Width - Over End Bits | 4502 mm | 14.75 ft |
Height with Cutting Edge and Screen | 1900 mm | 6.23 ft |
Maximum Depth of Cut | 461 mm | 1.5 ft |
Maximum Lift above Ground | 1277 mm | 4.19 ft |
Capacity, Rated | 12.3 m³ | 16.1 yd³ |
Overall Machine Length (includes rear radiator guard, measured to cutting edge) | 8715 mm | 28.59 ft |
Semi U-Blade
Width – Moldboard Length | 4462 mm | 14.66 ft |
Width - Over End Bits | 4522 mm | 14.83 ft |
Height with Cutting Edge and Screen | 2022 mm | 6.63 ft |
Maximum Depth of Cut | 619 mm | 2.03 ft |
Maximum Lift above Ground | 1165 mm | 3.825 ft |
Capacity, Rated | 16 m³ | 20.9 yd³ |
Overall Machine Length (includes rear radiator guard, measured to cutting edge) | 9005 mm | 29.54 ft |
U-Blade
Width – Moldboard Length | 4331 mm | 14.25 ft |
Width - Over End Bits | 4398 mm | 14.41 ft |
Height with Cutting Edge and Screen | 2019 mm | 6.62 ft |
Maximum Depth of Cut | 619 mm | 2.03 mm |
Maximum Lift above Ground | 1156 mm | 3.79 ft |
Capacity, Rated | 17.5 m³ | 22.9 yd³ |
Overall Machine Length (includes rear radiator guard, measured to cutting edge) | 9357 mm | 30.7 ft |
Wheels
Combination Tips (Weight Group) | 9582 kg | 21125 lb |
Plus Tips - Weight (Group) | 9980 kg | 22002 lb |
Paddle Tips - Weight (Group) | 9317 kg | 20540 lb |
Diamond Tips Weight (Group) | 10885 kg | 23997 lb |
Outside Diameter | 1971 mm | 77.6 in |
Outside Diameter - Diamond | 1983 mm | 78.1 in |
Drum Diameter | 1610 mm | 63.4 in |
Drum Width | 1200 mm | 47.2 in |
Feet Per Row | 6 | |
Feet Per Wheel | 30 | |
Replaceable | Weld On | |
Width Over Drums | 149.6 in | 3800 mm |
Tip Height | 7 in | 179 mm |
Tip Height - Diamond | 179 mm | 7.25 in |
